USER MANUAL UHE-CMTF47 HOMEDICS

White portable water heater with three legs and a control knob, no visible text or symbols on the body.

please take a moment now

register your product at

www.Homedics.com/register

Your valuable input regarding this

product will help us create

the products you will want

in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

2-year limited warranty

UHE-CMTF47 | L-03102, Rev. 3

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always place humidifier on a firm, flat surface. A waterproof mat or pad is recommended for use under the humidifier. Never place it on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture.
• Always unplug the unit from the electrical outlet immediately after using and before cleaning.
• DO NOT reach for a unit that has fallen into water. Unplug it immediately.
• DO NOT place or store the unit where it can fall or be pulled into a tub or sink.
• DO NOT place or drop into water or other liquids.
  • DO NOT use water above 86°F.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• Use this unit only for its intended use as described in this manual. DO NOT use attachments not recommended by Homedics; specifically, any attachments not provided with this unit.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used, or where oxygen is being administered.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a Homedics Service Center for examination and repair.
• Always unplug the unit when filling or moving the unit.
• Ensure that your hands are dry when operating the controls or removing the plug.
• NEVER use the humidifier in an environment where explosive gases are present.
• DO NOT place the humidifier near heat sources, such as a stove, and DO NOT expose the humidifier to direct sunlight.
• DO NOT carry this unit by the power cord or use the power cord as a handle.
• To disconnect, turn all controls to the off position, then remove the plug from the outlet.

CAUTION: All servicing of this humidifier must be performed by authorized Homedics service personnel only.

SAVE THESE INSTRUCTIONS

CAUTION – PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

• This product is intended for household use only.
• NEVER cover the unit while it is operating.
• Always keep the cord away from high temperatures and fire.
• Perform regular maintenance on the ultrasonic membrane.
• NEVER use detergent to clean the ultrasonic membrane.
• NEVER clean the ultrasonic membrane by scraping with a hard object.
• DO NOT attempt to adjust or repair the unit. Servicing must be performed by professional or qualified personnel.
• Stop using this unit if there is an unusual noise or smell.
• Unplug this unit when not in use for a long period of time.
• DO NOT touch the water or any parts of the unit that are covered by water while the unit is on or plugged in.
• NEVER operate without water in the tank.
• Only use water in the tank.
• NEVER use any additive in the water.
• Keep this unit out of reach of children. DO NOT allow children to use this unit without supervision.
• DO NOT use outdoors. For indoor use only.

CAUTION: DO NOT place humidifier on furniture.

ALWAYS USE a waterproof mat or pad on wood floors.

UNIQUE FEATURES & SPECIFICATIONS

ULTRASONIC TECHNOLOGY

This humidifier uses ultrasonic, high-frequency technology to convert water into a fine mist that is dispersed evenly into the air.

TOP-FILL TANK

Easy to fill without removing a water tank. Easy to clean inside the tank.

ADJUSTABLE MIST

Rotating mist control knob.

360° ROTATING MIST NOZZLE

Easily adjusts the mist output direction.

NIGHT-LIGHT

A useful night-light feature is included for your convenience.

AUTO-SHUTOFF PROTECTION

When the tank is empty, the unit will shut off automatically.

CAPACITY

.97 gallons - 3.7 liters

RUNTIME

Up to 45 hours. Runtime is based on setting the mist output on the low setting.

Based on the natural humidity level in your home, the temperature of water you use, and the mist output setting, you may experience longer or shorter runtimes.

COVERAGE AREA

Humidifies up to 370 FT ^2 /34.3 M ^2 . Based on AHAM standard HU-1.

OIL TRAY

Includes 3 essential oil pads. Use with your favorite essential oil to deliver aroma into the air.

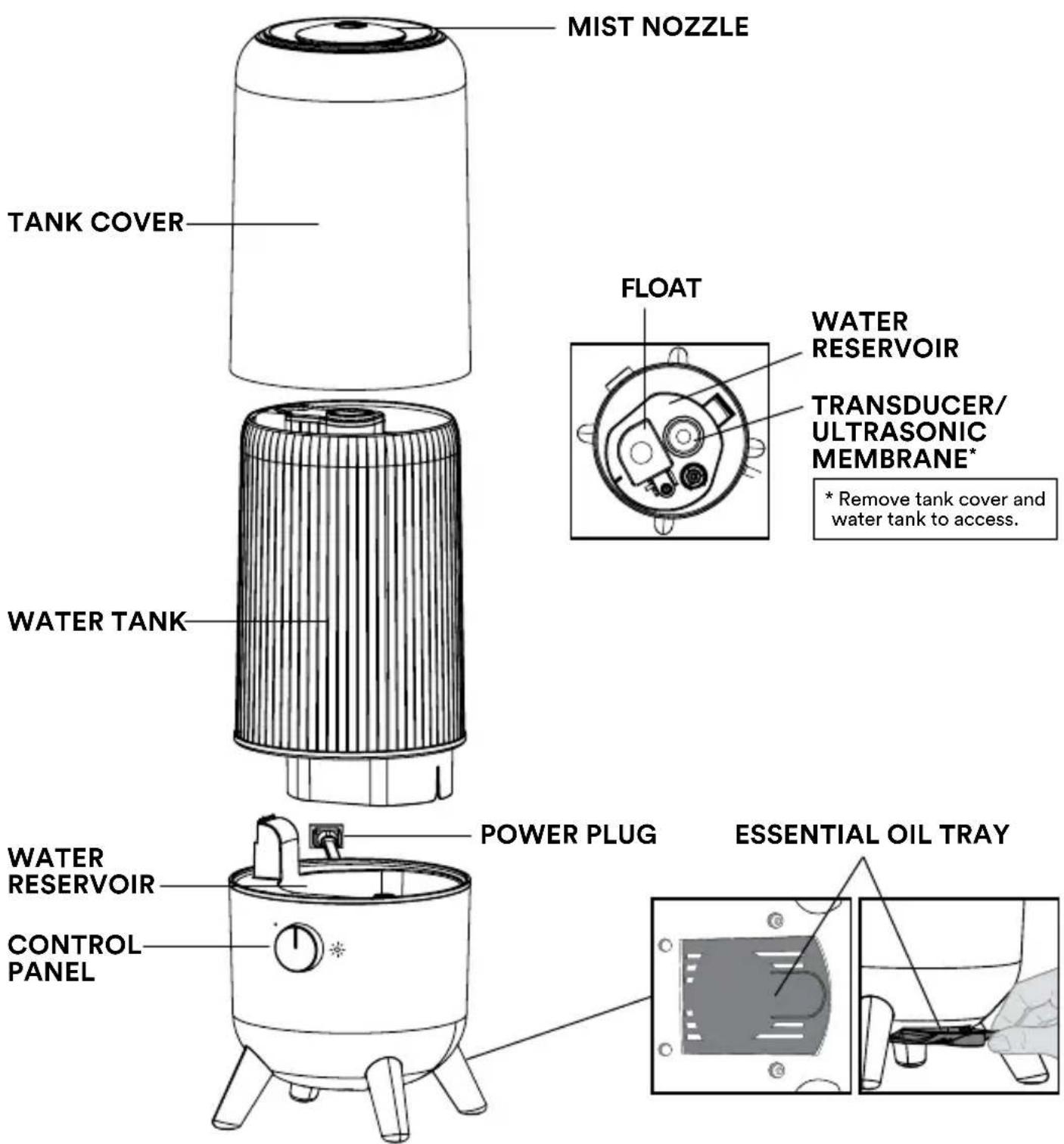

LOCATION OF PARTS AND CONTROLS

MIST NOZZLE TANK COVER FLOAT WATER RESERVOIR TRANSDUCER/ ULTRASONIC MEMBRANE* * Remove tank cover and water tank to access. WATER TANK POWER PLUG WATER RESERVOIR CONTROL PANEL ESSENTIAL OIL TRAY

HOW TO USE

BEFORE TURNING THE UNIT ON:

• Take the humidifier out of the box and remove all packing materials
- Place the humidifier on a firm level waterproof surface
- Plug the power cord into a household electrical outlet

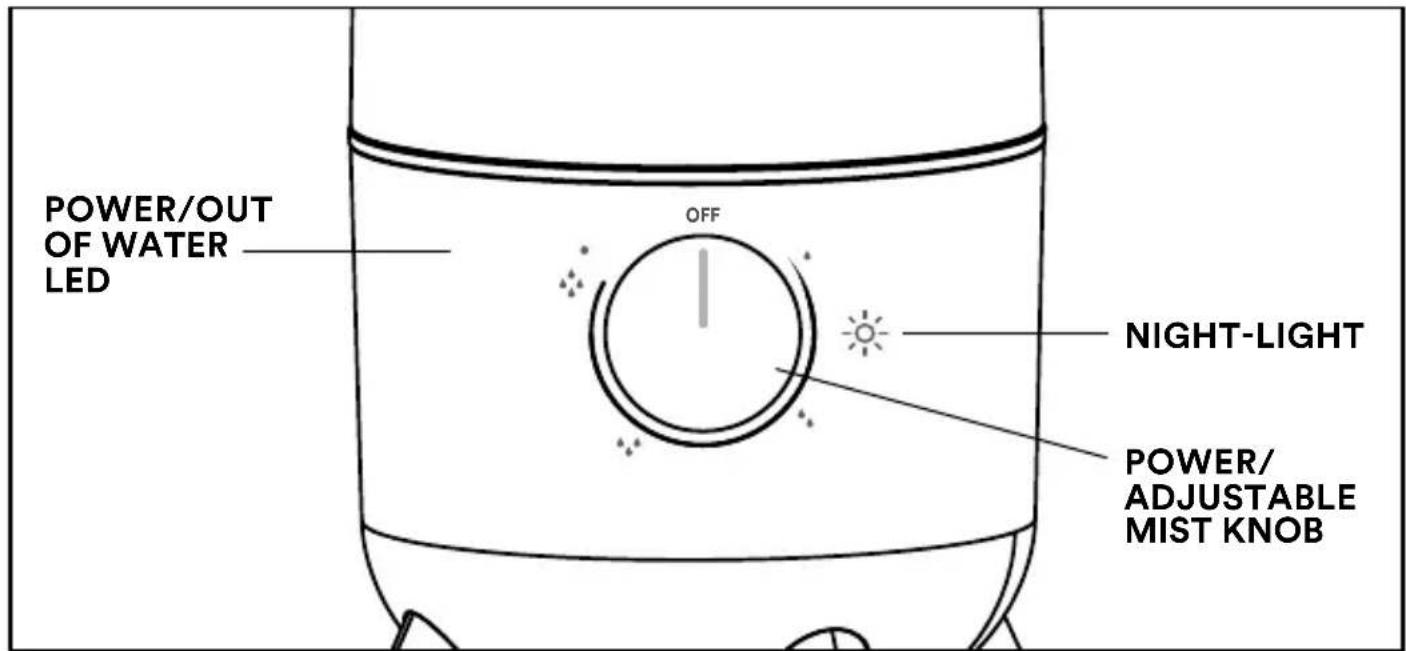

POWER/OUT OF WATER LED OFF NIGHT-LIGHT POWER/ ADJUSTABLE MIST KNOB

POWER ON/OFF BUTTON & OUT OF WATER INDICATOR

Plug unit into a 120-volt AC electrical outlet. Turn the ON/OFF knob to the right. The power/out of water LED will glow blue. Continue to rotate the knob to adjust the mist output level. Turn all the way to the left to turn the humidifier off.

NIGHT-LIGHT

Press the night-light button to turn the night-light on or off.

360° ROTATING MIST NOZZLE

Rotate the mist nozzle to adjust the mist output direction.

AUTO-SHUTOFF PROTECTION

When the water tank is almost empty, the humidifying function will power off and the power/out of water LED will illuminate red, indicating it is time to refill the tank.

NOTE: It is normal to have a small amount of water in the reservoir during and after use.

HOW TO FILL

CAUTION: Before filling the tank with water, turn the power off and unplug the unit from the outlet.

NOTE: The convenient top-fill tank can be filled with a pitcher or at the faucet.

TO FILL WITH A PITCHER

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

1. To fill using a pitcher, remove the tank cover.

Technical diagram showing a bucket pouring liquid into a cylindrical container with an arrow labeled 'MAX' indicating maximum level.

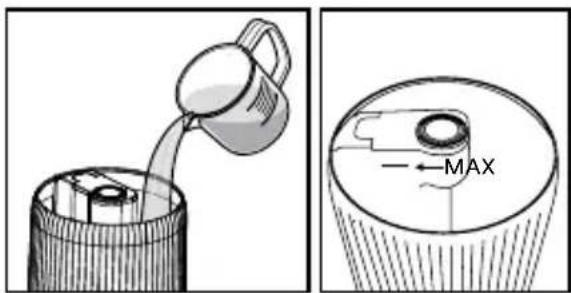

1. Fill the tank with clean, cool (not cold) water until the water level reaches the MAX fill line.
   CAUTION: Never add essential oils or any other additives to the water tank. Even a few drops will damage the unit.

Simple line drawing of a cylindrical object with a downward arrow, no text or symbols present

1. Replace the tank cover.

TO FILL AT THE FAUCET

Diagram of a cylindrical device with upward arrows indicating flow or movement, no text or symbols present

1. To fill at the faucet, remove the tank cover and water tank.

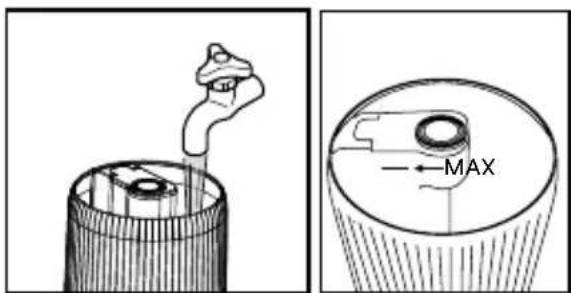

Technical diagram showing a faucet handle and its MAX component with labeled parts

1. Fill the tank with clean, cool (not cold) water until the water level reaches the MAX fill line.
   CAUTION: Never add essential oils or any other additives to the water tank. Even a few drops will damage the unit.

Diagram of a mechanical device with downward arrows indicating force or movement (no text or symbols)

1. Reassemble making sure all parts are firmly seated.

HOW TO USE

ESSENTIAL OIL

Use your favorite essential oil to deliver aroma into the air.

NOTE: For use with the included Homedics essential oil pads only.

NOTE: Do not leave a filled essential oil pad in the oil tray of the humidifier if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around pets. Keep all essential oil and aromatherapy products (like diffusers) out of the reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

WARNING: Putting oil anywhere but the oil tray will damage the humidifier.

Simple line drawing of a mechanical component with a cylindrical part and an arrow indicating direction (no text or symbols)

1. The oil tray is located on the back side of the humidifier at the bottom of the humidifier base.

Line drawing of a hand pressing down on a small object (no text or symbols)

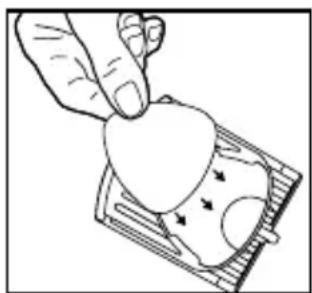

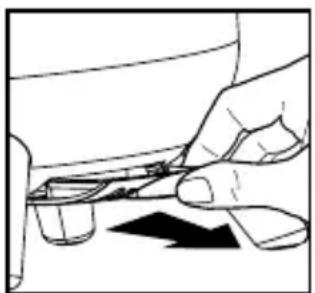

1. Push to open and remove the tray. Place 1 aroma pad (3 included) into the oil tray.

Illustration of a hand placing a heart-shaped object into a tray with arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

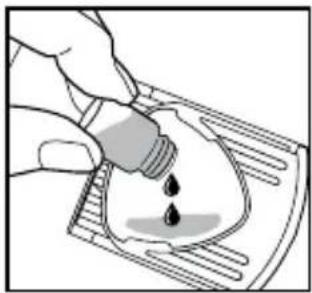

1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. WARNING: Only place essential oil on the pad and NOT directly into the tray.

Hand holding a small object with an arrow indicating direction (no text or symbols)

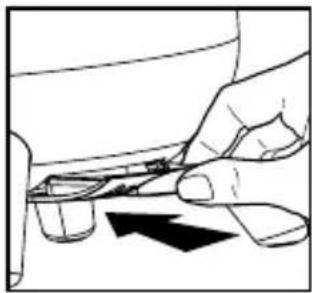

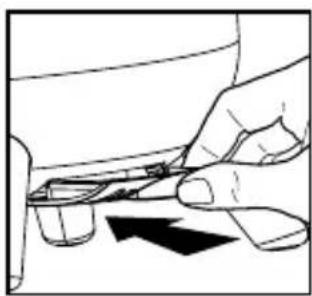

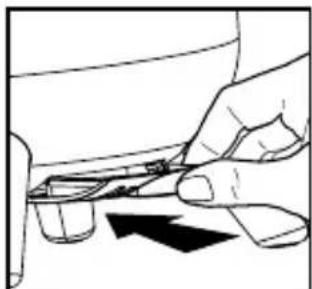

1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the mist is turned on.

ABOUT WHITE DUST

Use of high mineral content hard water may cause a white mineral residue to accumulate on surfaces in the room near the humidifier. The mineral residue is commonly called “white dust.” The higher the mineral content (or, the harder your water is), the greater the potential for white dust. The white dust is not caused by a defect in the humidifier. It is caused only by minerals suspended in the water.

HOW AND WHY TO USE DEMINERALIZATION CARTRIDGES

The Homedics demineralization cartridge will help reduce the potential for white dust, a deposit of minerals left behind from using hard water in your humidifier. The cartridge should be replaced every 30–40 fillings. The cartridge may need to be replaced more often if you are using very hard water. Replace the cartridge when you notice an increase in white dust buildup. If white dust still forms around the humidifier after a new cartridge has been installed, consider using distilled water.

If you live in an area with hard water or use a water softener, we recommend using distilled water for best results. Never use water-softening additives in your humidifier.

INSTALLATION INSTRUCTIONS

1. Remove demineralization cartridge from packaging and soak in water for 10 minutes.
2. Remove the tank cover.
3. Fill the tank with water as shown in the How to Fill section of this instruction book.
4. Add the soaked demineralization cartridge to the tank.
5. Replace the tank cover on the humidifier.

Close-up of a cylindrical object with internal parallel grooves and protruding lines (no text or symbols visible)

DEMINERALIZATION CARTRIDGE

To purchase genuine Homedics Replacement Essential Oil Pads, Model # UHE-PAD1, go to the retailer where you purchased your Homedics Ultrasonic Humidifier, or visit www.Homedics.com (US), www.Homedics.ca (CAN).

To purchase genuine Homedics Essential Oils, go to the retailer where you purchased your Homedics Ultrasonic Humidifier, or visit www.Homedics.com (US), www.Homedics.ca (CAN).

To purchase new Demineralization Cartridges, Model # UHE-HDC4, go to the retailer where you purchased your Homedics Ultrasonic Humidifier, or visit www.Homedics.com (US), www.Homedics.ca (CAN).

CLEANING AND CARE

CAUTION: Before cleaning the unit, turn power off and unplug unit from the outlet.

CLEANING THE TRANSDUCER/ULTRASONIC MEMBRANE

The transducer/ultrasonic membrane must be cleaned as necessary to remove water mineral deposits. Failure to do so may cause reduced or no mist output.

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

1. Remove the tank cover and set aside.

Technical illustration of a cylindrical mechanical component with internal structure (no text or symbols)

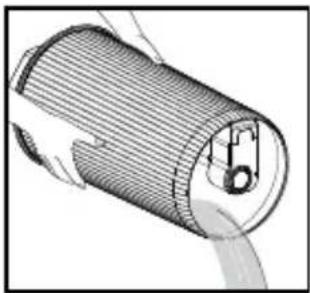

1. Remove the tank and pour out any water remaining in the tank.

Simple line drawing of a camera with lens and screen (no text or symbols)

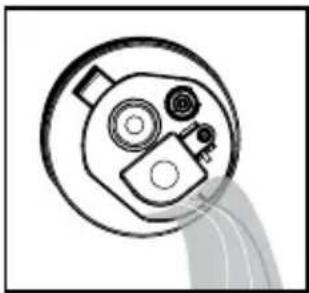

1. Pour out any remaining water inside the water reservoir by pouring in the direction of the drain arrow.

Hand holding a small mechanical component inside a circular housing (no text or symbols visible)

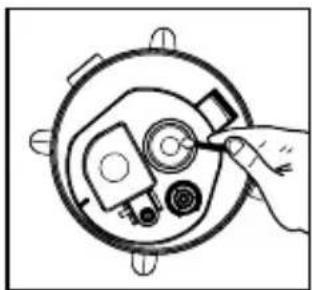

1. Clean the transducer/ ultrasonic membrane with a 50/50 mix of white vinegar and water on a cotton swab. Wipe off with a damp cotton swab. NEVER touch the transducer/ultrasonic membrane with your fingers; the natural oils in the skin can damage the surface.

Line drawing of a cylindrical water heater with three legs and a top-mounted control panel (no text or symbols)

1. After cleaning, reassemble the humidifier, fill with water, plug in, and turn on.
   NEVER submerge the base in water or any other liquid.

Top-down schematic of a mechanical device with no visible text or symbols

TO CLEAN THE FLOAT

Clean the float hinge with a 50/50 mix of white vinegar and water to remove any calcified water minerals as necessary.

Illustration of a hand holding a cylindrical object with a knob, no text or symbols present

TO CLEAN THE TANK

Remove the tank cover from the humidifier.

EVERY DAY: Empty and rinse the inside of the tank before refilling.

EVERY WEEK: To remove any scale or buildup, use a 50/50 mixture of white vinegar and lukewarm water to clean the inside of the tank.

Illustration of a hand washing a cup with a faucet in the background (no text or symbols)

TO CLEAN THE MIST TUBE AND AIR DUCT

ALWAYS PERFORM this function over a sink

Remove cover from the humidifier to access the water tank. Remove and flip upside down.

EVERY DAY: Rinse the inside of the mist tube and air duct before refilling.

EVERY WEEK: To remove scale or buildup, pour and swish a 50/50 mixture of white vinegar and water into the mist tube and air duct. Drain and rinse with water.

Line drawing of a hand pressing down on a curved object (no text or symbols)

TO CLEAN THE OIL TRAY

Wipe the inside of the oil tray with a soft cloth.

NOTE: Do not leave a filled essential oil pad in the oil tray if it will be out of use for a long period of time.

Line drawing of a hand cleaning a cylindrical device with a lid (no text or symbols)

TO CLEAN THE SURFACE

Clean the surface of the unit with a soft, damp cloth.

STORAGE

Follow the cleaning instructions for each part. Be sure to let all parts dry completely before storing. After storing, rinse the tank with water prior to operating.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
No power/no mist from spout	Unit is not plugged inUnit is not turned onNo power at unitLow water levelTransducer/ultrasonic membrane needs cleaning	Plug unit inTurn the power/mist knob to turn the unit onCheck circuits and fuses or try a different outletRefill the tank with waterFollow Cleaning the Transducer/Ultrasonic Membrane instructions in the Cleaning and Care section
Peculiar odor●Unitisnew	If unit is in use, the odor may be a dirty tank or old tank waterOld water in water reservoir	Remove the tank cover and let the tank air out in a cool, dry place for 12 hoursEmpty the old water, clean the tank, and fill with clean waterRemove the tank cover and tank. Pour out any remaining water in the water reservoir
Excessive noise●Unit is	not levelLow water level	Place unit on a flat, even surfaceCheck the water level; refill the tank if the water is low
White dust accumulation	HardwaterusedDemineralization cartridge needs to be replaced	Usedistilledwater and a demineralization cartridgeReplacedemineralization cartridge

CAUTION: ALL SERVICING OF THIS HUMIDIFIER MUST BE PERFORMED BY AUTHORIZED HOMEDICS SERVICE PERSONNEL ONLY.

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: ULTRASONIC HUMIDIFIER CMTF47

Model Number: UHE-CMTF47

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-001(B)/NMB-001(B)

Homedics

2-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 2 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30AM-7:00PM EST MONDAY-FRIDAY

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail]

8:30AM-5:00PM EST MONDAY-FRIDAY

1-888-225-7378

©2022-2023 Homedics, LLC. All rights reserved.

Homedics is a registered trademarks of Homedics, LLC.

Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-ÜHECMTF47B

Made in China

Homedics™

White portable water heater with three legs and a control knob, no visible text or symbols on the device body.

UHE-CMTF47 | L-03102, Rev. 3

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LORS DE L'UTILISATION DE PRODUITS ÉLECTRIQUES, DES MESURES DE SÉCURITÉ DE BASE DOIVENT TOUJOURS ÊTRE SUIVIES, DONT LES SUIVANTES :

LISEZ ET CONSERVEZ CES INSTRUCTIONS.

DANGER – POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE :

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

Technical diagram showing a bucket pouring liquid into a cylindrical container with an arrow labeled 'MAX' indicating maximum level.

Simple line drawing of a cylindrical object with a downward arrow, no text or symbols present

Diagram of a cylindrical device with two upward arrows indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical component with a faucet and a labeled MAX component in its cross-sectional view.

Diagram of a portable stove with a cylindrical top and downward arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical component with two cylindrical parts and an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Illustration of a hand placing a heart-shaped object onto a card (no text or symbols)

Hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

Top-down view of a cylindrical mechanical component with internal grooves and protrusions (no visible text or symbols)

CARTOUCHE DE DÉMINÉRALISATION

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

Technical illustration of a cylindrical mechanical component with internal threading and a handle (no text or symbols)

Simple line drawing of a circular device with internal components and a pointer (no text or symbols)

Hand holding a small object inside a circular device (no text or symbols visible)

Line drawing of a cylindrical water heater with three legs and a top-mounted lid (no text or symbols)

Top-down schematic of a mechanical device with no visible text or symbols

NETTOYAGE DU FLOTTEUR

Illustration of a hand holding a cylindrical object with a knob, no text or symbols present

NETTOYAGE DU RÉSERVOIR

Diagram of a hand washing a sink with a valve, showing mechanical components (no text or labels)

POUR NETTOYER LE TUBE DE BRUME ET LE CONDUIT D'AIR

Line drawing of a hand pressing down on a curved object (no text or symbols)

POUR NETTOYER LE BAC À HUILE

Line drawing of a hand pressing down on a cylindrical device with a lid and base (no text or symbols)

NETTOYAGE DE LA SURFACE

Adresse: 3000 N Pontiac Trail, Commerce Township, MI 48390

White portable water heater with three legs and a control knob, no visible text or symbols on the device body.

www.Homedics.com/register

UHE-CMTF47 | L-03102, Rev. 3

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

Technical diagram showing a bucket pouring liquid into a cylindrical container with an arrow labeled 'MAX' indicating maximum depth.

Simple line drawing of a cylindrical object with an arrow pointing downward (no text or symbols)

Diagram of a cylindrical device with upward arrows indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical component with labeled MAX and directional arrow, alongside its cross-sectional view.

Diagram of a portable stove with a cylindrical top and cooling unit, showing downward arrows indicating internal components (no text or symbols)

Simple line drawing of a mechanical component with a cylindrical part inserted and a pin inserted, showing an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small object with a black arrow indicating downward motion (no text or symbols)

Illustration of a hand placing a heart-shaped object onto a tray with decorative elements (no text or symbols)

Hand holding a small object with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

Top-down view of a cylindrical mechanical component with internal helical grooves and protruding blades (no text or symbols visible)

Simple line drawing of a cylindrical object with an upward arrow, no text or symbols present

Technical illustration of a cylindrical mechanical component with internal threading and a curved handle (no text or symbols)

Simple line drawing of a circular device with internal components (no text or symbols)

Top-down line drawing of a hand inserting a component into a circular device (no text or symbols)

Line drawing of a cylindrical water heater with three legs and a top-mounted control panel (no text or symbols)

Top-down schematic of a mechanical device with no visible text or symbols

PARA LIMPIAR EL FLOTADOR

Illustration of a hand holding a cylindrical object with a knob, no text or symbols present

PARA LIMPIAR EL TANQUE

Illustration of a hand washing a cup with a fork and handle, no text or symbols present

Line drawing of a hand pressing down on a curved object (no text or symbols)

PARA LIMPIAR LA CHAROLA PARA ACEITES ESENCIALES

Line drawing of a hand cleaning a cylindrical device with a lid (no text or symbols)

PARA LIMPIAR LA SUPERFICIE

[e-mail]

8:30 A. M. A 7:00 P. M. EST DE LUNES A VIERNES 1-800-466-3342

PARA SERVICIO EN CANADÁ

[e-mail]

8:30 A. M. A 5:00 P. M. EST DE LUNES A VIERNES

1-888-225-7378
