USER MANUAL CBWWS 240 A1 Cien BEAUTY

Operating instructions

FR BE

CHAUFFE-CIRE ET ACCESSOIRES

Mode d'emploi

CZ

ELEKTRICKÁ DEPILAČNÍ SADA

Návod k obsluze

SK

PRÍSTROJ NA OHRIEVANIE DEPILACNÉHO VOSKU

Návod na obsluhu

DK

S&T MED VARMVOKS

GB/IE Operating instructions Page 1

A ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

B

9 10

Contents

Introduction 2

Intended use 2

Package contents 2

Appliance description 2

Warnings and symbols used .... 3

Technical details 4

Safety information....4

Before first use ......

Automatic switch-off 8

Preparing the appliance 8

Epilation....9

Legs 10

Armpits 1 1

Bikini zone 12

After epilation 12

Cleaning....13

Storage 14

Disposal 15

Disposal of the appliance....15

Disposal of the packaging 16

Ordering replacement parts....17

KompernassHandelsGmbHwarranty....18

Service 20

Importer 20

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Keep these operating instructions as a reference and store them near the product. Please also pass these operating instructions on to any future owner.

Intended use

This appliance has been designed exclusively for the epilation of legs, armpits and the bikini zone on the human body. This appliance is intended solely for use in private households. Do not use it for commercial purposes.

Package contents

• Hot Wax Kit
• 6 wax discs
• Spatula
• Operating instructions

Appliance description

① Inner bowl
② Silicone bowl
3 Control lamp
4 Power plug
5 Socket
6 Groove (for locking the lid)
⑦ Tray (for the spatula)
8 Lid

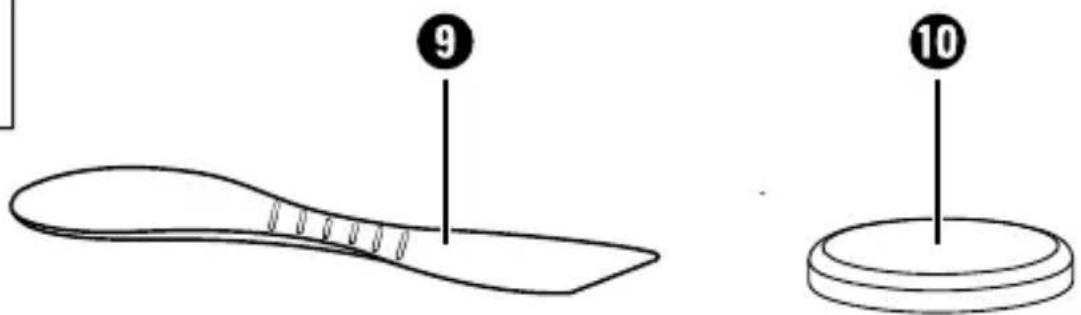

9 Spatula
10 Wax disc

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation that will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.
	Note: A note identifies additional information that facilitates the use of the appliance.
	Read the instructions.
	AC current/voltage
	Protection class II: Protection by double or reinforced insulation between live and touchable parts.
	Do not use this appliance in a bathtub, shower, washbasin, or other vessel containing water.

Technical details

Voltage 220 - 240 V	~ (AC), 50-60 Hz
Power consumption 35 W
Capacity approx. 530 ml
Protection class	II / ☐

Safety information

⚠️ DANGER! RISK OF ELECTRIC SHOCK!

■ Use the appliance only in dry indoor areas, not outdoors.
■ NEVER open the housing of the appliance.
■ Do not use the appliance in the vicinity of water, such as wash basins, showers or bath tubs.
■ Do not use the appliance while bathing, showering or sleeping.
■ Never touch the mains plug or the mains cable with wet hands.
- Check the appliance for visible external damage before use. Do not operate a appliance that has been damaged or dropped!
- Do not allow any liquid to run over the appliance’s plug connections.

WARNING! RISK OF INJURY!

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
■ Do not allow children to play with the appliance.
■ Cleaning and user maintenance tasks may not be carried out by children unless they are aged 8 or older and are supervised.
■ The appliance and its connecting cable must be kept away from children younger than 8 years old.
■ People who are insensitive to heat may not use this appliance.
■ If you are unsure whether you can safely use the appliance due to pre-existing conditions, consult a doctor before use.
■ After use, the surfaces of the heating elements will still have some residual heat.

There is a risk of injury if the appliance is misused. Use the appliance only as described in the instructions!
■ Do not use the appliance beneath blankets or towels.
If possible, set up the appliance close to a power socket. Ensure that the power plug is quickly reachable in case of danger, and that the cable poses no risk of tripping.
■ Provide a stable location for the appliance.
■ Never immerse the appliance in water or other liquids!
■ Do not use the appliance if you have heart disease, skin redness, inflammation, swelling, sensitive areas, diabetes, open wounds, burns, eczema or psoriasis.

ATTENTION! PROPERTY DAMAGE!

■ Never operate this appliance when it is empty (without wax).
■ Fill the appliance with wax only. Do not add any aggressive substances or substances containing solvents!
■ Always place the appliance on a heat-resistant, level surface.
■ Never heat the wax in the plastic packaging.
■ Never heat the wax in a microwave oven, over an open flame or on a stove.
■ Do not use an external timer switch or a separate remote control system to operate the appliance.
■ Never use pointed or sharp objects to remove solidified wax from the appliance.

Before first use

1) Wipe the appliance and silicone bowl ② with a damp cloth both inside and outside to remove any residual dust left over from transport. Dry it well so that there is no moisture left in the appliance.

2) Place the appliance on a level and heat-resistant surface. Also keep in mind that wax splashes may drip onto the surface. The surface should therefore be easy to clean.

Automatic switch-off

After 60 minutes, the appliance will switch off automatically. After 55 minutes, the control lamp ③ will start flashing to notify you that the appliance is about to switch off automatically.

The automatic switch-off is not intended as a substitute for removing the plug from the mains power after use! It is merely a safety feature! Always remove the plug from the mains power socket when the appliance is not in use!

Preparing the appliance

Once the appliance is set up on a suitable surface:

1) Remove the wax discs ⑩ from its packaging.
2) Add the required number of wax discs ⑩ to the silicone bowl ② and place this in the inner bowl ①. Make sure that the two tabs on the silicone bowl ② do not cover the tray ⑦ of the spatula ⑨ at the edge of the appliance.
Use the following guidelines for the number of wax discs ⑩, although these may vary slightly*:

Body region Number of wax discs 10
Lower leg approx. 2 pcs. lower leg
Armpits 1 pc.
Bikini zone 1 pc.
Entire body(lower leg, armpits, bikini zone)	6 pcs.

*These values refer to the empty silicone bowl ②, without wax residue.

This symbol, together with a date on the packaging, indicates how long the product will keep.

3) Put the lid ⑧ on the appliance by placing the plastic tab in the groove ⑥ and then turning the lid ⑧ clockwise slightly (see fold-out page).
4) Insert the plug ④ of the power cable into the socket ⑤ on the appliance.
5) Insert the plug into a mains power socket. The control lamp ③ in the base of the appliance comes on and the appliance heats up.
6) Stir the wax occasionally while it is melting.

As soon as the wax discs 10 have melted (this takes about 25–30 minutes for 6 discs), you can start epilating.

Note

▶ If you realise that you need more wax than you have melted, you can always add more wax discs ⑩ to the silicone bowl ②. Wait until the wax has melted before you start epilating.
▶ Melt a maximum of 6 wax discs ⑩ at once.

Epilation

The skin regions that you want to epilate should be dry, clean and free of care products, oils or fats.

Note

Before first use, carry out a skin test to find out whether your skin reacts to the treatment. Apply a small amount of melted wax to an inconspicuous area of skin. After removing the wax, check to see whether the skin reacts in any way over the course of the next 24 hours. If you notice any skin reactions, stop using this appliance. If in any doubt, seek medical advice.

▶ If you have a tendency towards ingrowing hairs, carry out regular peelings. These can prevent the hairs from growing inwards.

▶ Always pull off the wax strips as close as possible to the skin surface.

Make sure that you don't get any wax on your clothes. Wax residue can be very difficult to remove and may discolour clothing.

Legs

Once the wax discs 10 are completely melted:

1) Open the lid ⑧ by turning it anticlockwise slightly and lifting it upwards.
2) Pick up a little wax using the flattened edge of the spatula ⑨. You can wipe off excess wax on the rim of the appliance.
3) Apply the wax to the skin in the direction of hair growth (from the knee towards the heel). The wax strips should have the approximate thickness of an orange peel and the area of two spatulas ⑨ laid side by side. You may have to add wax. Try to make sure that one end of the applied wax strip (the end nearer to your heel) is a little thicker as you will need to be able to grip this end for removal.

4) After application, you can place the spatula ⑨ into the tray ⑦ on the edge of the appliance so that the spatula ⑨ projects over the inner bowl ①.

5) Wait about 30 - 60 seconds until the wax is dry.

6) Pull the skin taut with one hand. Grip the wax strip by the thicker end and pull it off with a rapid movement against the direction of hair growth (from your ankle towards your knee).

Repeat the process for the remaining areas of skin.

7) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp goes out.

Armpits

Once the wax disc 10 is completely melted:

1) Open the lid ⑧ by turning it anticlockwise slightly and lifting it upwards.

Note

As armpit hairs tend to grow in different directions, they need to be removed in at least two steps.

2) Raise your elbow upwards and hold it out behind you. This tightens the skin in the armpit.

3) Pick up a little wax using the flattened edge of the spatula ⑨. You can wipe off excess wax on the rim of the appliance.

4) Apply this immediately from the middle of the armpit upwards in the direction of the elbow. The wax strips should be roughly the thickness of orange peel. Try to make sure that one end of the applied wax strip (the end nearer to your elbow) is a little thicker as you will need to be able to grip this end for removal.

5) After application, you can place the spatula ⑨ into the tray ⑦ on the edge of the appliance so that the spatula ⑨ projects over the inner bowl ①.

6) Wait about 30-60 seconds until the wax is dry.

7) Grip the wax strip by the thicker end (the end nearer to your elbow) and pull it off downwards with a rapid movement against the direction of hair growth.

8) To depilate the lower part of the armpit, apply the wax from the middle of the armpit towards the bottom.

9) Wait about 30-60 seconds until the wax is dry.

10) Grip the wax strip at the lower end and pull it off upwards with a rapid movement against the direction of hair growth.

11) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp ③ goes out.

Bikini zone

Once the wax disc 10 is completely melted:

1) Open the lid ⑧ by turning it anticlockwise slightly and lifting it upwards.
2) Pick up a little wax using the flattened edge of the spatula ⑨. You can wipe off excess wax on the rim of the appliance.
3) After application, you can place the spatula ⑨ into the tray ⑦ on the edge of the appliance so that the spatula ⑨ projects over the inner bowl ①.

Note

▶ When epilating the bikini zone, treat only small areas at once. The skin is very sensitive.
4) Tighten the skin with one hand and apply the wax in the direction of hair growth (towards your inner thigh).
5) Wait about 30 - 60 seconds until the wax is dry.
6) Grip the wax strip by the thicker end (the end nearer to your inner thigh) and pull it off downwards with a rapid movement against the direction of hair growth.

Repeat the process for the remaining areas of skin.

7) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp ③ goes out.

After epilation

- Clean the spatula ⑨ (see section "Cleaning").

• You can remove small quantities of residual wax from your skin using baby oil. If you do not have any baby oil, you can also use olive oil or some other edible oil.
  ■ You skin may be slightly reddened after epilation. This is normal. Run cold water over affected areas. This soothes the skin. If your skin does not recover and/or you experience a burning sensation, contact a doctor.

Cleaning

⚠️ DANGER! RISK OF ELECTRIC SHOCK!

▶ Before cleaning the appliance, disconnect the power plug from the mains power socket!
▶ NEVER immerse the appliance in water or other liquids!

WARNING! RISK OF INJURY!

▶ Do not use any pointed or sharp objects to remove wax from the appliance / silicone bowl ②!
▶ Allow the appliance to cool down before cleaning it.

! ATTENTION! PROPERTY DAMAGE!

▶ Never use pointed or sharp objects to remove solidified wax from the appliance!
▶ Do not use any chemical, abrasive or aggressive cleaning agents to clean the appliance!

Note

You do not need to clean the inner bowl ① or the silicone bowl ② after each use and remove all wax residue. The wax remaining in the appliance can be melted and reused for the next application!
To reorder wax discs 10, contact our Customer Service (see section "Ordering spare parts").
- Scrape the surplus wax off the spatula ⑨ on the inside of the rim of the appliance immediately after use.

Wipe the spatula ⑨ as well as the rim of the appliance immediately after use with a cloth moistened with a little baby oil. This will allow you to remove any still-soft wax residue. Preferably use an old cloth as wax residue is extremely difficult to remove from textiles. If you do not have any baby oil in the house, you can also use olive oil or some other edible oil for cleaning. Make sure that no wax residue remains in the grooves ⑥ for locking the lid ⑧! Wipe the spatula ⑨ and the rim afterwards with a paper cloth to remove any remaining oil.
To clean the silicone bowl ②, remove it and wait until the wax has cooled completely and become hard again. Gently bend the silicone bowl ② in different directions to loosen the wax residue. You can store the wax residue for another application in a cool, dry, dark place, or dispose of it.
■ If there is any wax left on the outside of the appliance, proceed as follows:

—Ensure that the appliance is unplugged but still warm.

- Wipe the surface with a cloth moistened with a little oil.

- Make sure that no wax residue remains in the grooves ⑥ for locking the lid ⑧!

- Remove any oil residue with a clean paper towel.

Storage

Once the appliance and the spatula ⑨ have been cleaned as described in the "Cleaning" section:

• Lay the spatula ⑨ in the tray ⑦ on the edge of the appliance so that the spatula ⑧ protrudes over the inner bowl ①.
• Put the lid ⑧ on.
  — Store the cooled-down appliance in a clean, dry location.

Note

If you are unable to remove/turn the lid ⑧ when you remove it from storage, there is probably solidified wax between the lid ⑧ and the appliance. In this case, heat up the appliance for about 10 minutes (depending on the amount of wax) with the lid ⑧ closed. The wax will soften and the lid ⑧ can now be removed.

Disposal

Applies only to France:

FR

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

b a

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smartphone/tablet.

You can use this QR code to go directly to our website to view and order the available spare parts.

Note

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail.
▶ Always include the article number (IAN) 482287_2410 with your order.
▶ Please note that online ordering of replacement parts is not possible for all countries.

KompernassHandelsGmbHwarranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 482287_2410 available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.1idrservice.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 482287_2410.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 482287_2410

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 22

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 42

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 66

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod 86

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep....106

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod 126

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción 144

Uso previsto 144

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 164

Anvendelsesområde 164

Pakkens indhold .... 164

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....182

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 204

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

PDF ONLINE www.lidl-service.com

FR RECOCONOMATION

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
