NEDERLANDS

Attic Bedroom Hallway Wash Bathroom Living room Kitchen Garage Basement Smoke detector Heat detector CO detector

Thank you for your purchase. Please read this manual carefully before installation or use. Are you installing the detector for someone else? If so, please leave the manual with the end user.

IMPORTANT SAFETY INFORMATION

• This smoke alarm is not suitable for alerting people with hearing impairments.
  ■ Consumption of alcohol or narcotics may prevent you from hearing the alarm sound.
  ■ Fires in chimneys, walls or enclosed spaces may not be detected.
  ■ This detector only detects smoke; not flames, heat, carbon monoxide or other gases.

IMPORTANT WARNINGS

■ Never ignore an alarm signal. Not responding to smoke detection can lead to serious injury or death.
- Silent mode (pause) suppresses noise only. Always check for danger.
- Test the detector at least once a month. Does the test not work? Replace the detector immediately.

1. Product overview

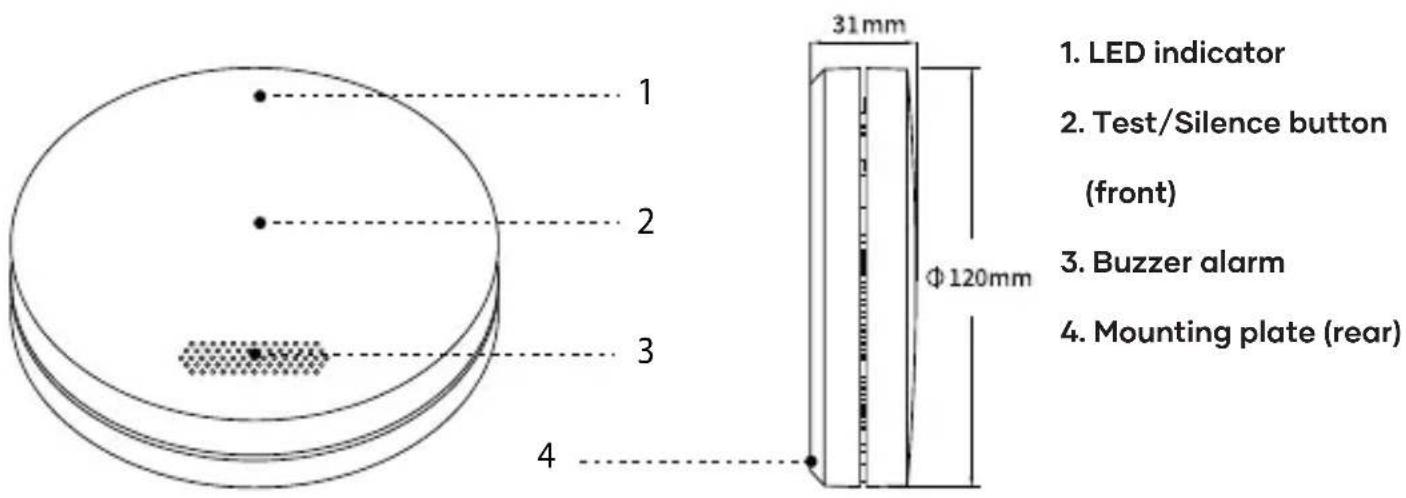

1. LED indicator 2. Test/Silence button (front) 3. Buzzer alarm 4. Mounting plate (rear) 31mm Φ 120mm

2. Activate detector

WARNING: This smoke detector is disabled by default! Activate the detector before using it.

2.1 Activate smoke detector

1. Press the test/silence button (in the middle of the front of the detector)
2. Press and hold the button for about 10 seconds. A beep sounds and the red LED lights up
3. Release the button as soon as this happens
4. The smoke detector is now switched on and ready for use

2.2 Deactivating smoke detector

Note that this switches off the detector. Press and hold the test/silence button for 10 seconds. The smoke detector beeps twice and the red LED flashes twice. Then, release. The detector is now switched off.

3. Connect detector to Wi-Fi

PLEASE NOTE: activate the smoke alarm before connecting to Wi-Fi. See [Activate detector].

PLEASE NOTE: a 2.4 GHz Wi-Fi network is required for the connection. Does your router also have a 5 GHz signal? If so, temporarily disable it via your router settings (refer to the manual).

3.1 What can you do with the Wi-Fi connection?

Once the alarm is connected to the app via Wi-Fi, you will have access to additional smart features:

• Instant push notifications on your phone when smoke is detected
  ■ The ability to pause the alarm remotely
  ■ Insight into the battery status and operation of the alarm
  ■ Manage multiple alarms in a single overview
  ■ Share access with other users (e.g. family members)

3.2 Setting up the Wi-Fi connection

1. Download the app

Scan the QR code below and install the free Tuya Smart or Smart Life app on your smartphone.

2. Create an account in the app

Please note: make sure Bluetooth and GPS are enabled on your smartphone.

3. Put the alarm in pairing mode

Press the test/silence button four times within one second. The red LED will flash rapidly, followed by the green LED. These will flash rapidly for one minute.

SAVS SM11W

4. Pair via the app

Open the app. Tap the “+” symbol in the top right corner and select “Add device”. The app will automatically search for detectors in pairing mode. Follow the instructions in the app to complete the connection.

PLEASE NOTE: if you receive the message "Complete the account", enter your email address to continue.

4. Test and mute

4.1 Test detector

Ensure that the smoke alarm is switched on as described in the section [Activate detector].

To test the alarm, proceed as follows:

1. Press the test/silence button in the centre of the front of the alarm.
2. Loud beeps will sound (2 times 3 times).
3. The red LED flashes approximately once per second.
4. If the detectors are wireless linked, all linked detectors will emit the same beep.

Note: This test checks the operation of the smoke detection system without smoke. Do you hear no sound?

Please see the [Troubleshooting] section later in this manual.

4.2 Mute alarm (Pause Mode)

During an alarm, press the test/silence button to temporarily to mute the alarm. The red LED then flashes once every 8 seconds. After 10 minutes, the detector automatically resumes normal operation.

1. LED lights and audible alarm

STATUS LED INDICATOR	LIGHT ACOUSTIC ALARM
Test Red LED flashes once	per second. Beep 1x per second.
Alarm Red LED flashes once	per second. Beep 1x per second.
Silent mode (pause) Red	LED flashes once every 8 seconds. No sound
Battery low Red LED flashes	once every 56 seconds. Beep once every 56 seconds.
Failure Red LED flashes	once every 40 seconds. Beep once every 40 seconds.

6. Installation location

The correct installation of a smoke detector is crucial for quick and reliable warning in case of fire. Follow the guidelines below to install the smoke detector as effectively as possible.

■ In the kitchen: place the smoke detector as far as possible from the cooker and sink to avoid false alarms
■ Make sure the test/silence button is easily accessible.
■ In bedrooms, corridors and escape routes: make sure the alarm is easily audible in each sleeping area.
- Only one smoke detector available? Then place it as close at all bedrooms, never in the basement or near the central heating system.

- At the top of stairs: install a smoke detector at the top of the stairs on each floor.

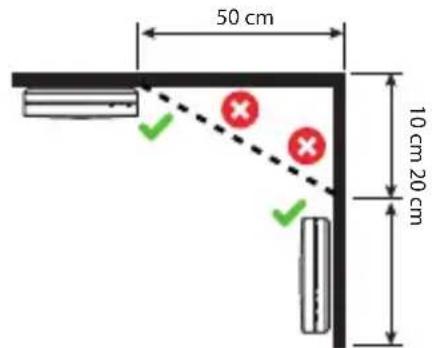

• On the ceiling: smoke rises and spreads horizontally. Preferably mount the smoke detector in the centre of the ceiling, at least 50 cm from walls or corners (see figure 2).
• On the wall: can't mount the detector on the ceiling? Install the detector 10 to 30 cm below the ceiling.
• Longer spaces: is a corridor or room longer than 10 metres? Then use multiple detectors for full coverage.
• Sloping ceilings: mount the smoke detector between 50 and 100cm from the highest point of the ceiling (see Figure 3).

50 cm 10 cm 20 cm

50 cm

Figure 2: min. 50 cm from wall Figure 3: min. 50 cm

Important warnings

■ Always have the smoke detector installed by a competent person.
- This smoke alarm is not a substitute for the proper installation, use and maintenance of fuel-burning appliances, such as stoves or boilers.

7. Install detector

This SAVS smoke detector can be attached in two ways: with screws and plugs or with the supplied tape strip.

SAVS SM11W


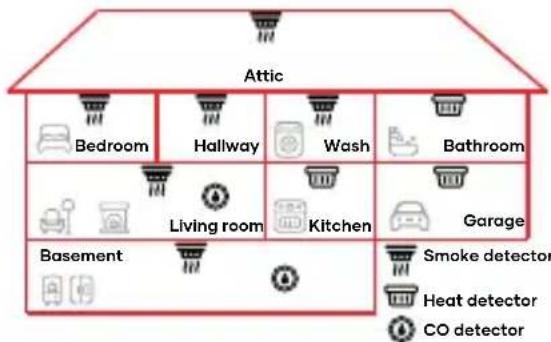

Figure 1: best locations

7.1 Installation with screws and dowels

■ Unscrew the mounting plate from the smoke detector.
■ Mark the screw holes on the wall or ceiling and drill ø 5 mm holes.
- Insert the dowels and fix the mounting plate with screws.
- Tighten the detector clockwise until it is tight.

7.2 Installation with tape strip

■ Unscrew the mounting plate from the smoke detector.
- Clean the surface where you want to attach the smoke detector so that it is dry and grease-free.
■ Remove one protective layer and stick the tape to the back of the mounting plate.
■ Remove the second protective layer, press the mounting plate into place and hold for 60 seconds.
- Place the smoke detector on the mounting plate and tighten it clockwise until it is secure.

8. Maintenance

■ Test the smoke detector every month. Check that the sound signal sounds and the LED light works.
- Clean the detector monthly with a hoover (soft brush) after removing the ceiling.
- Do not use cleaning agents or solvents.
- Do not use sprays such as air fresheners, hairspray or other aerosols near the detector.
■ Never paint the detector. This may block the sensors and interfere with operation.
- Do not open the detector or clean the inside. This will void the warranty.
■ Always replace the detector immediately after maintenance.

1. Technical specifications

Power supply CR14505 1600mAh
Battery life 10 years
Power consumption <10uA (standby); <70mA (alarm)
Sensor type Optical (photoelectric)
Max. number of interconnected units	30 wireless units (only compatible with SAVS SafeLink detectors)
Transmission range 100 m in open air
Standards EN 14604:2005+AC:2008
Coverage area 20-45 m^2
Temperature range 0-55 °C
Sound level alarm ≥ 85 dB at 3 metres
Pause Mode duration About 10 minutes

1. Troubleshooting

PROBLEM SOLUTION
No sound on activation Press in the centre of the detector and hold for 10 seconds until you hear a beep.
No sound during testing Check that the detector is activated. Press the test/silence button firmly.
False alarm when cooking or showering	Check the location of the detector. See 6. Installation position.Clean the detector. See 8. Maintenance.
Beeps every 56 seconds + red LED flashes The battery is low. Replace immediately.
Beeps every 40 seconds+ red LED flashes	The alarm is not functioning. Clean the detector or replace it immediately.

11. Environmental information

Electronic devices that are no longer used should not be disposed of in the ordinary waste. Deliver them to a collection point for recycling. Ask your local council or retailer for advice on recycling.

12. Contact details and customer service

SAVS® Saves Lives
