USER MANUAL CEMCSP10006L CONTINENTAL EDISON

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 07

INSTALLATION INSTRUCTIONS 08

OPERATION INSTRUCTIONS 13

CLEANING AND MAINTENANCE 16

TROUBLESHOOTING 22

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT PRECAUTIONS

CAUTION

• Read all the instructions
• This appliance is for household use only. Do not use outdoors.
• Appliances can be used by per-sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Children should be supervised to ensure that they do not play with the appliance;
• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, office and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.

- Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use;

• Do not immerse any part of the appliance in water or other liquid.
• The ducts in the pressure regulator allowing the escape of steam should be checked regularly to ensure that they are not blocked.
• The container must not be opened until the pressure has decreased sufficiently.
• The heating element surface is subject to residual heat after use, do not touch.
• Warning: Avoid spillage on the connector.
• Warning: Misuse may cause potential injury;
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• Do not put the pressure cooker into a heated oven.
• Move the pressure cooker under pressure with the greatest care. Do not touch hot surfaces. Use the handles and knobs. If necessary, use protection.
• Do not let children near the pressure cooker when in use.
• Do not use the pressure cooker for a purpose other than the one for which it is intended.
• This appliance cooks under pressure. Scalds may result from inappropriate use of the pressure cooker. Make sure that the cooker is property closed before applying heat, see “instructions for use”.
• Never force open the pressure cooker. Do not open before making sure that its internal pressure has completely dropped. See the “instructions for use”.
• Never use your pressure cooker without adding water or food, this would seriously damage it.
• Do not fill the cooker beyond 2/3 of its capacity. When cooking foodstuffs which expand during cooking, such as rice or dehydrate vegetables, do not fill the cooker to more than half of its capacity.
• Use the appropriate heat source(s) according to the instructions for use.

• After cooking meat with a skin (e.g. ox tongue) which may swell under the effect of pressure, do not prick the meat which the skin is swollen; you might be scalded.

- When cooking doughy food, gently shake the cooker before opening the lid to avoid food ejection.

- Before each use, check that the valves are not obstructed. See the instructions for use.

- Never use the pressure cooker in its pressurized mode for deep or shallow frying of food.

- Do not tamper with any of the safety systems beyond the maintenance instructions specified in the instructions for use.

- Only use manufacturer's spare parts in accordance with the relevant model. In particular, use a body and a lid from the same manufacturer indicated as being compatible.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Any repairs shall be performed by an authorized service representative.

- Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

- KEEP THESE INSTRUCTIONS.

SPECIFICATIONS

Product Model	CEMCSP10006L
Capacity	5.7L
Power Supply	220-240V~ 50/60Hz
Rated Power	1000W
Size of Inner Pot 8.66”
Working Pressure	70kPa
Keep Warm Temperature 60°C~80°C

Energy Consumption

Product information for power consumption and time to reach the applicable low power mode:
standby mode:	0.5W
off mode:	0.4W
The maximum time needed to reach the applicable low power mode:	5 minutes

PRODUCT OVERVIEW

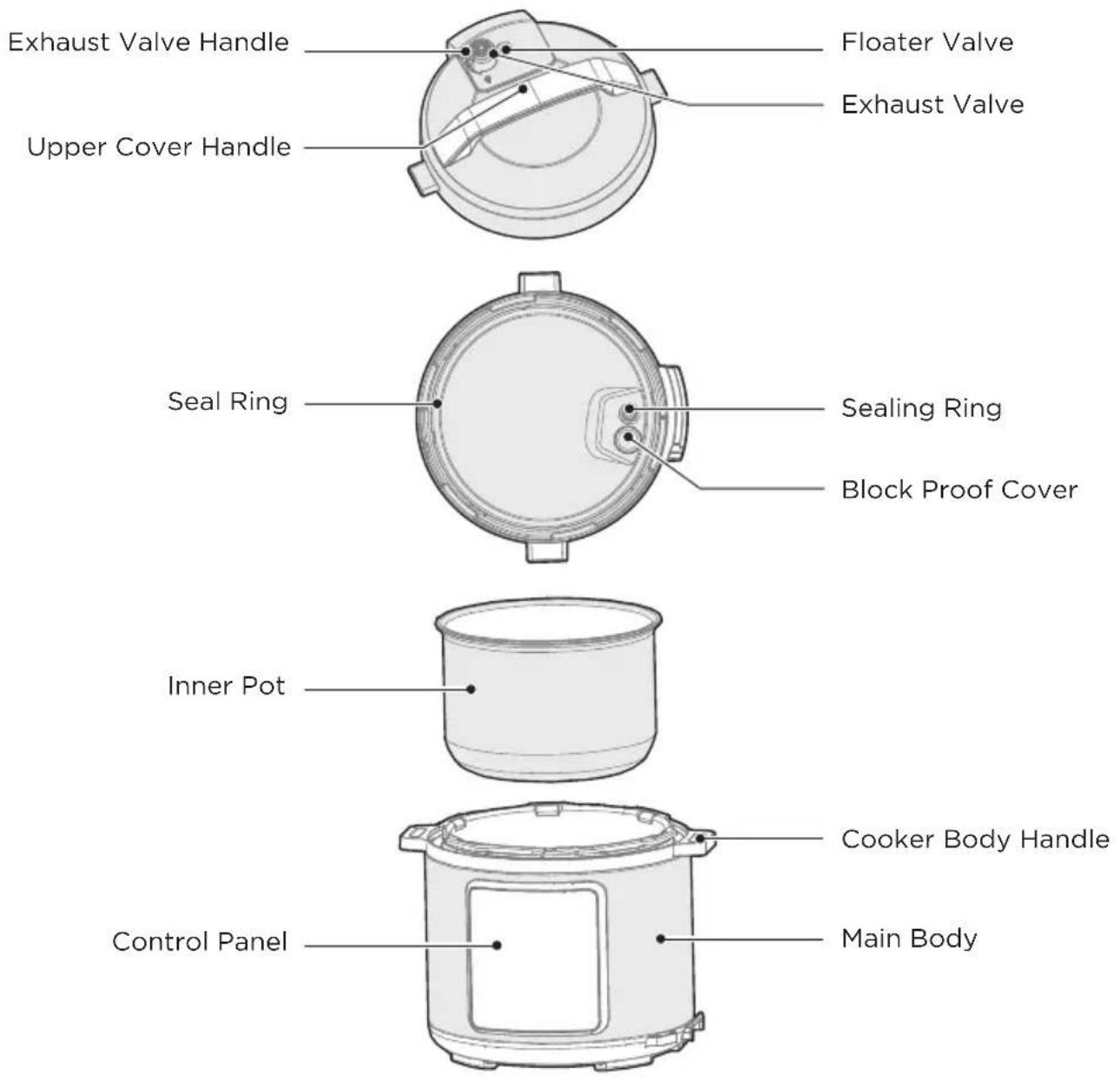

Component Name

Exhaust Valve Handle Upper Cover Handle Seal Ring Sealing Ring Block Proof Cover Inner Pot Cooker Body Handle Control Panel Main Body Floater Valve Exhaust Valve

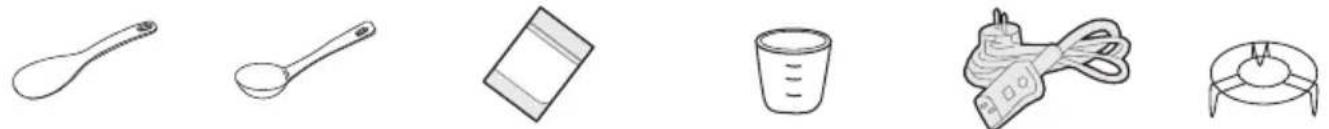

Parts List

Line drawings of six common kitchen utensils: spoon, spoon, plate, measuring cup, cooking tool, and pot (no text or symbols)

Spoon Soup Spoon Measuring Coup Manualer Cord steam rack

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

QUICK START GUIDE

Tips

• Please move the product with the handle of the cooker body;
• Please remove the water from the housing cover with cloth.

NOTE

• Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the exhaust valve and the exhaust valve and float valve of the lid with brush and cloth at least once a month.
• Sealing ring: Please remove oil and dirt from the sealing ring with detergent and brush.
• Water box: After cooking, the steam may stay in the water box of the external pot as water. Water in the box should be removed for avoiding bad odor, please clean it with clean cloth.

Disassemble and Install the Block Proof Cover and Seal Ring

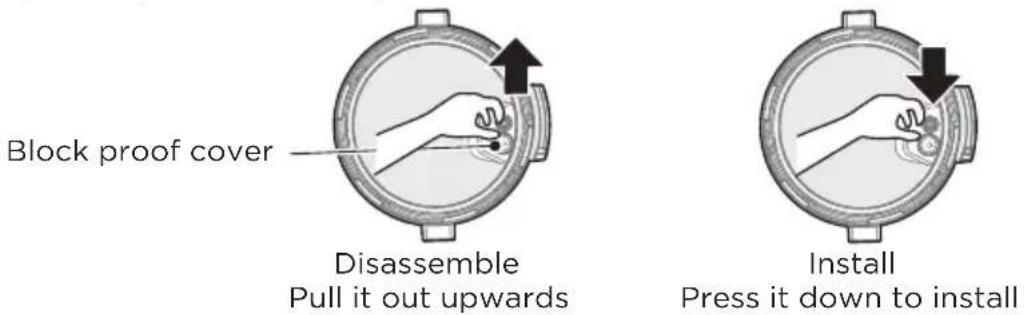

Disassemble and install the block proof cover

1. Check if the seal ring and block proof cover are correctly installed in the upper cover before use each time.
2. After use, please clean the seal ring and around of block proof cover for avoiding jamming the cover, keep it clean to avoid bad odor.

Block proof cover Disassemble Pull it out upwards Install Press it down to install

Disassemble and install the seal ring

1. Please do not pull the seal ring, otherwise, the distorted seal ring may influence the seal and pressure effect.

2. Do not use the dam aged seal ring, please replace it at the authorized repair office.

Seal ring Disassemble Pull it out upwards Install Press it down to install

Use and Maintain the Inner Pot

1. Do not empty

It may cause yellowish and spotted inner pot or distorted bottom if it is empty for a long time.

2. Do not use it to store the acid, alkali and preserved foods for a long period

Although the inner pot has excellent anti-corrosion performance, it may cause corrosion of certain degree, the suggested time of keep warm shall not exceed 2h.

3. Keep it clean to prolong the service life

Do not immerse it in water for a long period.

Clean the inner pot with soap, mild detergent or warm water to remove dust, oil and dirt.

Do not use a metal shovel or other hard tool, otherwise it will damage the inner surface of pot.

Prepare for Cooking

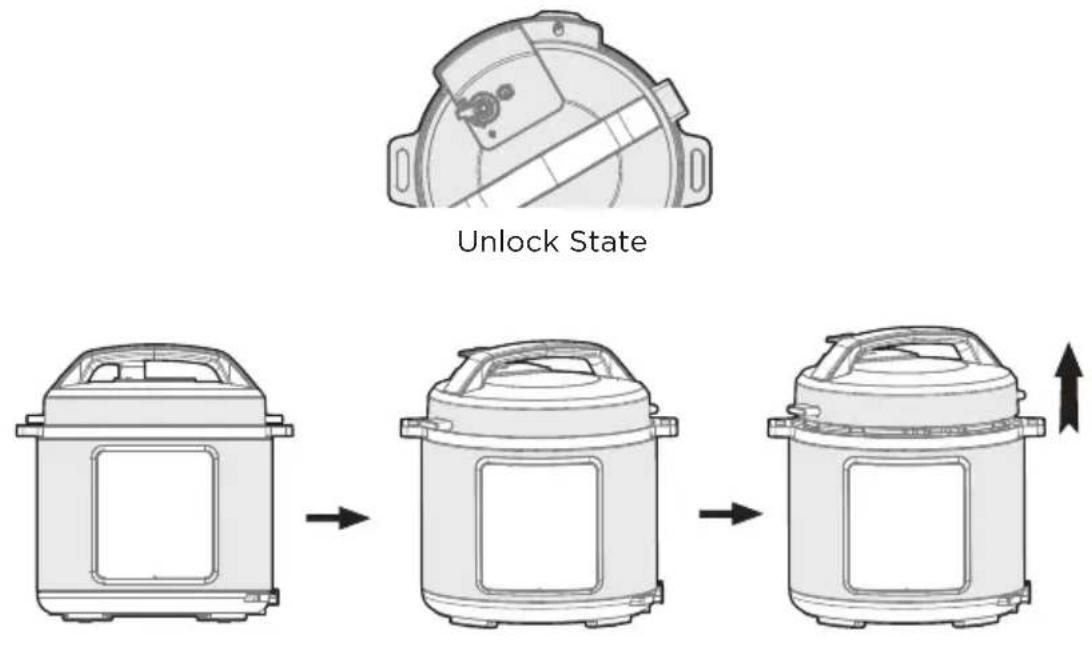

1 Opening the lid correctly

- Hold the handle of upper cover, turn it anticlockwise for about 30^ till the lid at unlock state, and then lift the upper cover.

2 Check if the parts and accessories of lid are well installed

- Check if the floater valve and exhaust valve are jammed, confirm if the sealing ring and block proof cover are well installed.

Unlock State

3 Take out the inner pot, put the foods and water into the inner pot

- The total amount of foods and water shall not exceed the Max marked on the inner pot.

Max Usable Capacity=2/3 Capacity

4 Put the inner pot into the cooker

• Wipe to clean the external surface of inner pot, foreign object and water are not allowed on the inner surface of electric pressure cooker;
• Turn the inner pot to left and right to ensure good contact with the heating plate.

Illustration showing a cooking step: dropping liquid into a pot with a hand, and adding a pan to a rice cooker (no text or symbols)

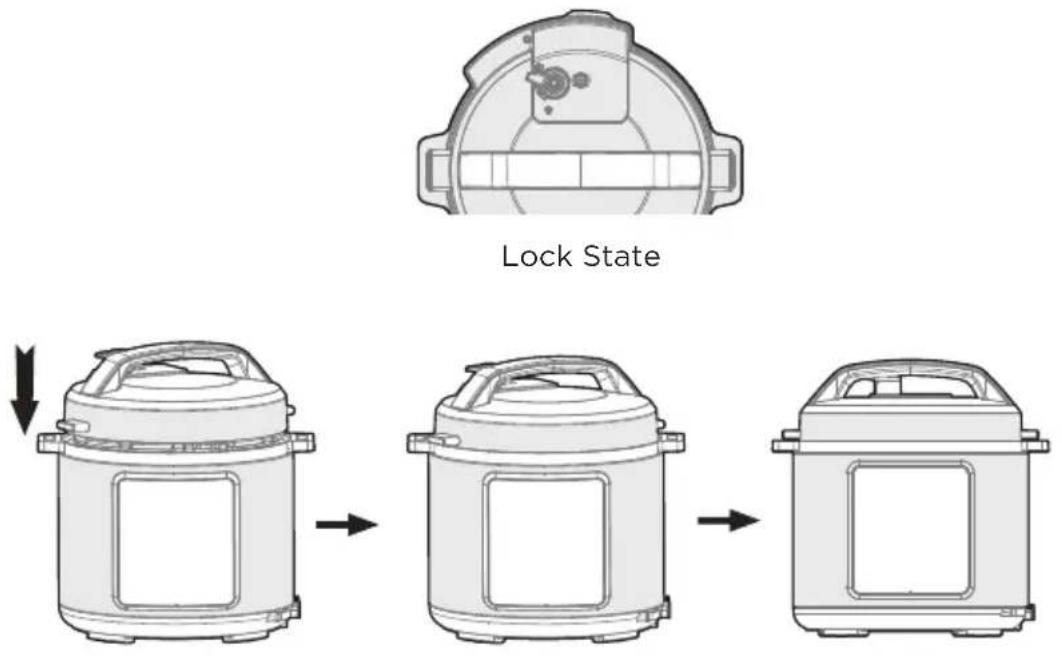

5 Safely close the lid

• Before closing the lid, check if the sealing ring is well installed.
• Hold the handle of upper cover, aim the lid as “unlock state”, put the top cover horizontally on the cooker body, turn the upper cover clockwise for about 30° to the lock place as “Lock State”.

Lock State

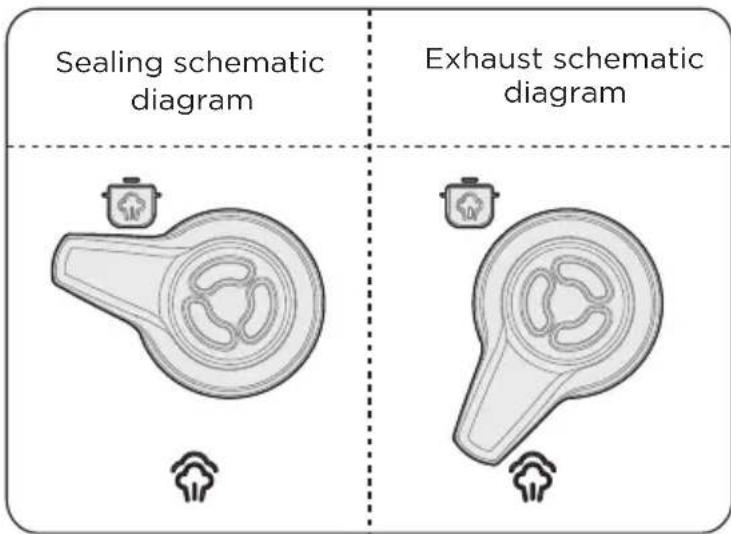

6 Put the exhaust valve well

• When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state;
• For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state; when exhausting, do not keep the hands or face above the exhaust opening;

Sealing schematic diagram Exhaust schematic diagram

- Check if the floater valve drops down before working (before heating, the floater valve is down).

NOTE

Picture are for reference only, atual product may differ from picture shown.

General Function

1. Switch on If the buttons are inactive when use, please confirm if the lid is closed at the right place, the buttons are inactive if the lid is not closed correctly for product of this series.
2. After cooking, the cooker may automatically enter into the keep warm state(Some funtion). and the indicator display "00:00(0 min), 00:01(1 min), 00:02(2 min)...

Tips

• When the cooker is working, it is normal that it makes "cluck" sound, please set your heart at relax when use.
• To cook a small amount of foods, the inner pot may possibly be lifted when opening the lid, please shake the lid to drop the inner pot in the cooker body and then remove the lid.

Safely Open the Lid

1. Cut off power supply or remove the power plug
2. Exhaust method

A. Quickly open the lid (For non-fluid foods)

Turn the exhaust valve to the exhaust place for exhausting, Some unit by pressing steam release button “💡” till the float valve drops down.
B. Generally open the lid

Keep the electric pressure cooker cool naturally till the float valve drops down.

1. Open the lid

Turn the upper cover anticlockwise with the left hand, turn it to the cover open limit place, lift the upper cover with the right hand to open the lid.

Do not open the lid before the pressure in the pot has been completely released, do not open the lid fiercely if it is difficult to open.

Do not pull out the exhaust valve when turning the exhaust valve.

After cooking fluid foods (porridge and soup), do not turn the exhaust valve or press the steam release button please cut off power supply to make it cool naturally till the float drops before opening the lid.

OPERATION INSTRUCTIONS

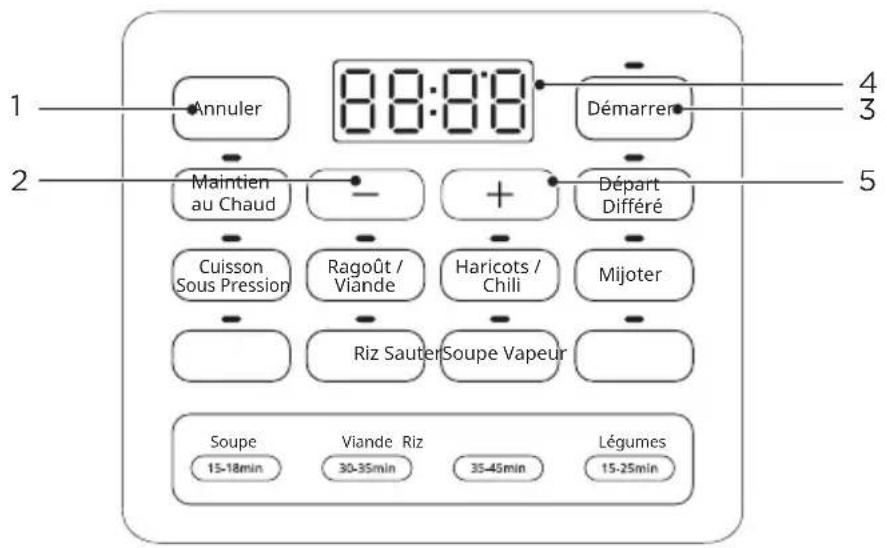

Operation Part

	Operation GuidelinesFunction
Annuler	• Press “Annuler” button to cancel the current work state and return standby state.
Maintien au chaud	• Under standby state, press “Garder Chaud” button to start keep warm funtion. “Garder Chaud” indicator light is on and the digital screen shows working time.
Démarrer	• Start cooking or delay.
Départ différé	• Delay cooking: Before the program start, press “Retard” button. The screen shows the preset beginning time. Then press “+” or “-” button to adjust the delay time. Press “Démarrer” button, the unit starts delay time count down. When it countdown to the end, the program starts working.Note: Sauté、Keep Warm function cannot set the delay.
Cuisson sous pression、Ragoût/Vi ande 、Haricots/Chili 、Soupe 、Riz 、Vapeur	• Under standby state, press the function button, the indicator light is on and the digital screen shows default pressure time. Press “+” or “-” button to adjust the pressure time. Press “Démarrer” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working pressure. Enters into keep warm when it finishes working.
Mijoter	• Under standby state, press the function button, the indicator light is on and the digital screen shows default working time. Press “+” or “-” button to adjust the working time. Press “Démarrer” button to enter into cooking state. The digital screen starts countdown and the unit enters to keep warm when it finishes working.
Sauter	·Under standby state, press “Sauté” button, the indicator light is on and the digital screen shows default working time. Press “+” or “-” button to adjust the working time. Press “Démarrer” button to enter into cooking state. Starts countdown and enters to standby state when it finishes working.
Soupe/Boeuf/Riz Mélangé/Légumes	·Under standby state, press the “Cuisson Sous Pression” button, the indicator light is on and the digital screen shows default pressure time. Press “+” or “-” button to adjust the pressure time according to the recommended time. Press “Démarrer” button to enter into cooking state. The digital screen starts countdown as soon as the pressure rise to working pressure. Enters into keep warm when it finishes working.

Function	Default Time
Cuisson sous pression	35mins
Soupe	30mins
Haricots/Chili	30mins
Ragoût/Viande	35mins
Riz	12mins
Vapeur	15mins
Mijoter	360mins
Sauter	30mins

CLEANING AND MAINTENANCE

1. Clean after each use.
2. Before cleaning and maintenance, please unplug the power cord until the product cools.
3. Remove the lid and inner pot, clean with detergent first, then rinse well with water, and wipe dry with a soft cloth.
4. Clean the internal side of the lid with water, the seal ring, block proof cover, exhaust valve core and float valve can be removed for washing, timely and correctly install them after washing, and then dry the internal side of lid with cloth.
5. Wipe clean the cooker body with a rag, and it is prohibited to soak the cooker body in water or spray water to it.

Daily Check and Maintenance

For use the product safely with a longer service life, please carefully check and maintain it.

	SolutionsIf followings oo
Power cord and plug is expanded, deformation, damaged and it color is changed.One part of the power cord and plug are hotter.Power cord is flexible with discontinuous power supply.The electric pressure cooker has abnormal heating and generates bad odor.There's abnormal noise or vibration when supply power.	Stop using, and repair it by the authorized repair center.
There's dust or dirt on the plug or socket. Remove	the dust or dirt.

Safety Precautions

To avoid personal injury and property loss, be sure to observe the following safety precautions.

- Meanings of the marks:

	Means“Forbidden” items		GeneralForbid		DisassembleForbidden		Wet handsForbidden
			ContactForbidden		Spray WaterForbidden
	Means“Mandatory” items		Must beexecuted		Remove thepower plug

- The danger caused by mistaken use if following warnings are neglected includes to two grades.

WARNING

It may possibly cause death or serious injury if the warming items are disobeyed.

CAUTION

It may cause physical injury or property damage if the caution items are disobeyed.

WARNING

AC

Use correct power outlet (Refer to the label)

• Failure to use correct electricity can cause fire or electric shock.
• Danger of fire if the bad socket is adopted.

Simple line drawing of a plug inserted into a socket (no text or symbols)

A socket shall be used alone

• A socket of more than 10A rated current with grounding wire shall be used alone;
• If shared with other electrical appliances, the socket may cause abnormal heat and result in fire.

Two identical 3D-rendered kitchen or oven models shown in side and top, with no text or symbols visible.

It is strictly prohibited to use other lid

• It is strictly prohibited to use other lid for heating, and in the (switching on) process, the use of non-original lid is not allowed.
• As this may cause electric shock or safety hazards.

Simple line drawing of two electrical plugs connected to a leaf with a starburst (no text or symbols)

Stop using if the power cord is damaged

- Replace the damaged power cord with special soft cord or replace it with special assembly purchased from the manufacturer or authorized repair center.

Illustration of a rice cooker with a hand pulling it from its side (no text or symbols)

Do not put foreign objects

• It is prohibited to insert metal shavings, needles and other foreign matter in the gap.
• As this may cause electric shock or movement anomalies.

Illustration of a child crawling next to a cooking pot (no text or symbols present)

Place the appliance in a location out of reach of infants

• Place the appliance in a location out of reach of infants.
  • To avoid electric shock and scald.

Line drawing of a rice cooker with a hand holding a tool near it (no text or symbols)

Modification is prohibited

• Modification or repair by non-professionals is prohibited.
  • Violation may cause a fire or electric shock.
• Repair or replacement of parts shall be made in a designated service center.

Illustration of a rice cooker with a faucet symbol above it (no text or labels)

Products may not be immersed or sprinkled in water

- Doing so could cause electric shock and electrical short circuits.

WARNING

Warning on Opening the lid

• When the electric pressure cooker is not working, there isn't pressure in the pot, the float valve is down;
• When the electric pressure cooker is working, pressure in the cooker rises, float valve ascends; do not fiercely open the lid before the pressure has been completely released;
• If it is difficult to open the lid, please do not open it fiercely, otherwise, it may cause scalding or physical injury.

Illustration of a rice cooker with a close-up view of its side panel (no text or symbols)

Check periodically

• Be sure to check periodically the block proof cover and exhaust valve core to make sure that they are not be blocked;
• Do not cover the exhaust valve with heavy object or replace it with other object.

CAUTION

Simple line drawing of a wall socket and a plug with liquid, no text or symbols present

Never pull the plug with a wet hand

• To avoid electric shock.

Illustration of a hand inserting a plug into a wall socket, with a black arrow indicating the plug's direction (no text or symbols present)

When pulling the plug, you must pinch the plug

- When pulling the plug, you must pinch the plug;

- Do not pull the power cord, otherwise it will damage the cord, causing electric shock and short circuit.

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Unplugging when not in use

- Otherwise, it may produce leakage, fire or failure.

Illustration of a hand reaching toward a rice cooker with smoke rising (no text or symbols)

In working, never move your hands to close to the exhaust port.

• In cooking process, never move your hands to close to the exhaust port to avoid burns.
• During cooking, do not cover the vent with a cloth and other items.

Illustration of a hand holding a small container with a handle, no text or symbols present

When the cooker is working, please do not touch the lid

• When the cooker is working, lid has high temperature, do not touch it;
• Otherwise, it may possibly cause scalding.

Simple line drawing of a cooking pot with steam rising from it (no text or symbols)

The total amount of food and water can not exceed Max scale

- The total amount of food and water can not exceed Max scale, otherwise food may be cooked unfamiliar, or cause malfunction.

Two cylindrical containers with perforated lids, one containing a liquid and the other with a lid (no text or symbols)

Do not use a pot other than the dedicated pot

• When there is foreign object on the bottom of pot and heating plate surface, remove the foreign object before use.
• Otherwise, it may cause overheating and work abnormalities etc.

Simple line drawing of a cooking pot on a saucer with steam rising from the side (no text or symbols)

Do not put the inner pot on other appliance for heating

• In order to avoid deformation or fault.
- Please use the special inner pot.

Illustration of two hands holding a small container with a lid, next to a larger open box (no text or symbols visible)

When moving the product, please hold the handle of cooker body

- When moving the product, do not directly hold the handle of lid for avoiding lid dropping.

Do not use in the following locations

• Do not use in unstable locations;
• Do not use in locations near water and fire;
• Do not use near walls and furniture;
• Do not use in locations exposed to direct sunlight and oil splatter.
• Do not approach the stove for avoiding fire.

Environment for Storing the Product

• Periodically clean the cooker and remove oil and dirt if it is stored on the table.
• Put the electric pressure cooker 30cm away from other kitchen appliances.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

			Reason SolutionProblem S/N
1	Difficult to close the lid		Sealing ring not installed properlyThe floater valve clamps the push rodLightly push the push rod
2	Difficult to open the lid		Float valve in the poppedup positionPress the float valve lightly with a chopstick.Pressure exists inside the cookerOpen the lid after the pressure is completely released.
3	Steam leaks from the lid		Sealing ring installed improperlyFood debris attached to the sealing ringClean the sealing ringSealing ring damagedReplace the sealing ringThe lid is not closed correctlyClose the lid correctly
4	Steam leaks from float valve.		Food debris on the float valve gasketClean the float valve gasketFloat valve gasket worn-outReplace the float valve gasket
5	Float valve unable to rise		Too little food and water in inner potAdd water and food according to the recipeSteam leaks from the lid or exhaust valveSend to the service center for repair
			Reason SolutionProblem S/N
6	Steam comes out from exhaust valve non-stop		· Exhaust valve not in sealing position	· Turn the exhaust valve to the sealing position
			· Pressure control fails	· Send to the service center for repair
7	Power indicator doesn't light on		· Power socket bad contact	· Please check the power socket
8	All indicators flas	Display screen displays E1	· Bottom sensor fault	· Send to the service center for repair
		Display screen displays E2
		Display screen displays E8	· Pressure switch fault	· Send to the service center for repair
9	Rice half cooked or too hard		· Too little water	· Add water accordingly
			· Lid opened prematurely	· After cooking cycle completes, leave the lid on for 5 more minutes.
10	Rice too soft		· Too much water	· Reduce water accordingly

— If the fault is not removed after above check, please contact our authorized service center for repair.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

Diagram of a hand pressing down on a circular mechanical component with an upward arrow (no text or symbols)

Illustration of a hand pressing down on a circular device with a black arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a circular mechanical component with a handle and control knob (no text or symbols)

Illustration of hands holding a circular object with a lid and a small inset showing internal components (no text or symbols)

Illustration showing a hand washing water in a pot and another holding a rice cooker with a lid (no text or symbols)

Technical illustration of a mechanical component with no visible text or symbols

Line drawing of a rice cooker with three sequential stages showing body, casing, and lid components (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Two identical line drawings of a cooking pot with lid and lid, shown from different angles (no text or symbols)

Simple line drawing of two electrical plugs connected to a leaf with a starburst (no text or symbols)

Illustration of a rice cooker with a hand operating it (no text or symbols)

Illustration of a child crawling next to a rice cooker (no text or symbols present)

Line drawing of a rice cooker with a hand holding scissors (no text or symbols)

Line drawing of a rice cooker with a faucet above it (no text or symbols)

Illustration of a kitchen appliance with a side view showing a bag and a front panel (no text or symbols)

Illustration of a hand holding a plug with liquid, next to a wall-mounted electrical outlet (no text or symbols)

Illustration of a hand inserting a plug into a wall socket, with an arrow indicating the plug's direction (no text or symbols present)

Illustration of a hand holding an electrical plug with a cable, showing the plug being inserted into a wall socket (no text or symbols present)

Illustration of a hand reaching toward a rice cooker with smoke rising (no text or symbols)

Illustration of a hand holding a small container with a handle, no text or symbols present

Simple line drawing of a cooking pot with steam rising from it (no text or symbols)

Two cylindrical containers with different internal patterns, one containing a liquid and the other with dots (no text or symbols)

Simple line drawing of a cooking pot on a tray with steam rising from the top (no text or symbols)

Illustration of two hands holding a small container with a lid, next to a larger open box (no text or symbols)
