USER MANUAL CEMCSP1000I CONTINENTAL EDISON

Read all the instructions. Retain it for future reference.

This appliance is for household use only. Do not use out- doors.

This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, office and other working envi -ronments; - farm houses; - by clients in hotels, motels and other residential type envi- ronments; - bed and breakfast type environments;

If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified per- sons in order to avoid a hazard.

Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.

Do not immerse any part of the appliance in water or other liquid.

The pressure regulator allowing the escape of steam should be checked regularly to ensure that they are not blocked.

The container must not be opened until the pressure has decreased sufficiently.

The heating element surface is subject to residual heat after use, do not touch.

Warning: Avoid spillage on the connector.

14.Warning: Misuse may cause potential injury.

15. The appliance is not intended to be operated by means of

an external timer or a separate remote-control system.

16. Do not put the pressure cooker into a heated oven.

17.Move the pressure cooker under pressure with the greatest care. Do not touch hot surfaces. Use the handles and knobs. If necessary, use protection. 18.Do not let children near the pressure cooker when in use. 19.Do not use the pressure cooker for a purpose other than the one for which it is intended.

20. This appliance cooks under pressure. Scalds may result

from inappropriate use of the pressure cooker. Make sure that the cooker is property closed before applying heat, see “instructions for use”.

21. Never force open the pressure cooker. Do not open before

making sure that its internal pressure has completely dropped. See the “instructions for use”.

22. Never use your pressure cooker without adding water or

food, this would seriously damage it.

23. Do not fill the cooker beyond 2/3 of its capacity. When

cooking foodstuffs which expand during cooking, such as rice or dehydrate vegetables, do not fill the cooker to more than half of its capacity.

24. Use the appropriate heat source(s) according to the

instructions for use.

25. After cooking meat with a skin (e.g. ox tongue) which may

swell under the effect of pressure, do not prick the meat which the skin is swollen; you might be scalded.

26. When cooking doughy food, gently shake the cooker

before opening the lid to avoid food ejection.

27. Before each use, check that the valves are not obstructed.

See the instructions for use.

28. Never use the pressure cooker in its pressurized mode for

deep or shallow frying of food.

29. Do not tamper with any of the safety systems beyond the

maintenance instructions specified in the instructions for use.

30. Only use manufacturer's spare parts in accordance with

the relevant model. In particular, use a body and a lid from the same manufacturer indicated as being compatible.

31. KEEP THESE INSTRUCTIONS.

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appli- ances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

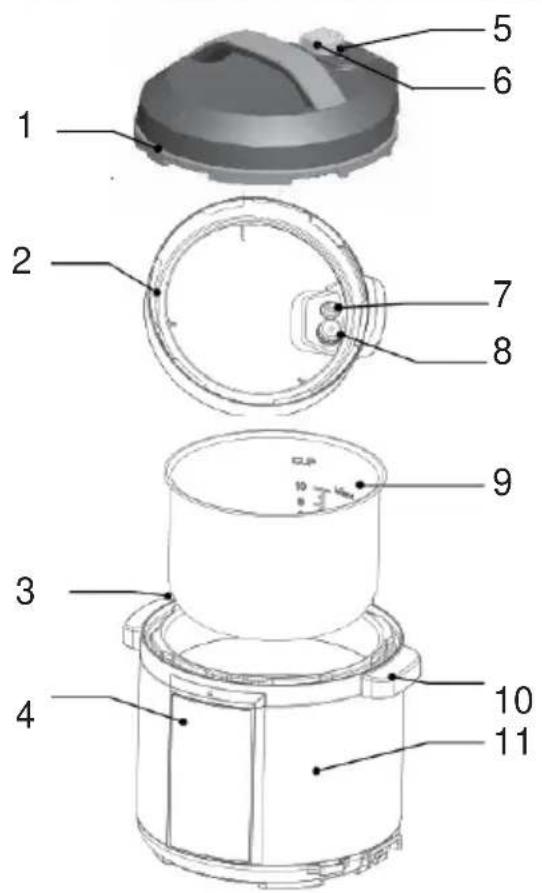

Disassemble and install the block proof cover and seal ring Disassemble and install the block proof cover Disassemble Install Pull it out upwards Press it down to install Block proof cover Disassemble and install the seal ring Disassemble Install Pull it out upwards Press it down to install

Check if the seal ring and block proof cover are correctly installed in the upper cover before use each time.

After use, please clean the seal ring and around of block proof cover for avoiding jamming the cover, keep it clean to avoid bad odor.

Please do not pull the seal ring, otherwise, the distorted seal ring may influence the seal and pressure effect.

Do not use the dam aged seal ring, please replace it at the autho rized repair office. Use and maintain the inner pot

Do not empty It may cause yellowish and spotted inner pot or distorted bottom if it is empty for a long time.

Do not use it to store the acid, alkali and preserved foods for a long period Although the inner pot has excellent anti-corrosion performance, it maycause corrosion of certain degree, the suggested time of keep warm shall not exceed 2h.

Please move the product with the handle

Please remove the water from the housing cover with cloth.

Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side

the exhaust valve and the exhaust valve and float valve

the lid with brush and cloth

Sealing ring: Please remove oil and dirt from the sealing ring with detergent and brush.

ater box: After cooking, the steam may stay

removed for avoiding bad odor

with clean cloth. Produc

Keep it clean to prolong the service life Do not immerse it in water for a long period. Clean the inner pot with soap, mild detergent or warm water to removedust, oil and dirt. 4.Do not use a metal shovel or other hard tool, otherwise it will damage the inner surface of pot.

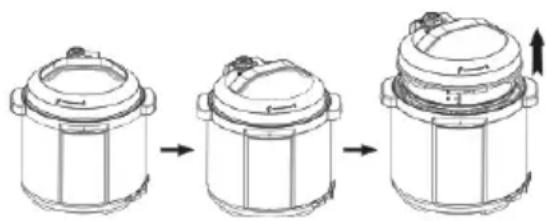

Hold the handle of upper cover, turn it anticlockwise for about 30°till the lid at unlock state, and then lift the upper cover.

Check if the parts and accessories of lid are well installed

Check if the floater valve and exhaust valve are jammed, confirm if the sealing ring and block proof cover are well installed.

3. Take out the inner pot, put the foods and

water into the inner pot

The total amount of foods and water shall not

exceed the Max marked on the inner pot.

Put the inner pot into the cooker

Wipe to clean the external surface of inner pot, foreign object and water are not allowed on the inner surface of electric pressure cooker;

Turn the inner pot to left and right to ensure good contact with the heating plate.

Before closing the lid, check if the sealing ring is well installed.

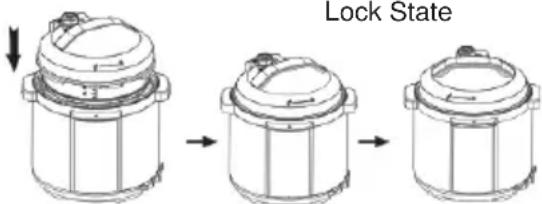

Hold the handle of upper cover, aim the lid as “unlock state”, put the top cover horizontally on the cooker body, turn the upper cover

Usable Capacity clockwise for about 30°to the lock place as “Lock State”.

Put the exhaust valve well

When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state;

For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state;

(Picture are for reference only, atual product may differ from picture shown) Prepare For Cooking6

when exhausting, do not keep the hands or face above the exhaust opening;

Check if the floater valve drops down before working (before heating, the floater valve is down).

Switch on If the buttons are inactive when use, please confirm if the lid isclosed at the right place, the buttons are inactive if the lid is not closed correctly for product of this series.

After cooking, the cooker may automatically enter into the keep warm state. After cooking, the cooker may automatically enter into the keep warm state(Some funtion). and the indicator display "0H(0 hour), 1H(1 hour), 2H(2 hour)... "or " L0:00(0 min), L0:01(1 min)...." Tips: When the cooker is working, it is normal that it makes "cluck" sound, please set your heart at relax when use. To cook a small amount of foods, the inner pot may possibly be lifted when opening the lid, please shake the lid to drop the inner pot in the cooker body and then remove the lid. Safely open the lid

Cut off power supply or remove the power plug

Quickly open the lid (For non-fluid foods) Turn the exhaust valve to the exhaust place for exhausting, Some unit by pressing steam release button “ ” till the float valve drops down.

Generally open the lid Keep the electric pressure cooker cool naturally till the float valve dropsdown.

Open the lid Turn the upper cover anticlockwise with the left hand, turn it to the cover open limit place, lift the upper cover with the right hand to open thelid. Do not open the lid before the pressure in the pot has been completely released, do not open the lid fiercely if it is difficult to open. Do not pull out the exhaust valve when turning the exhaust valve. After cooking fluid foods (porridge and soup), do not turn the exhaust valve or press the steam release button please cut off power supply to make it cool naturally till the float drops before opening the lid. Prepare For Cooking Sealing schematic Exhaust schematic diagram diagram7

Accessories Spoon Soup Spoon User Manual Measuring Cup Power cord steam rack

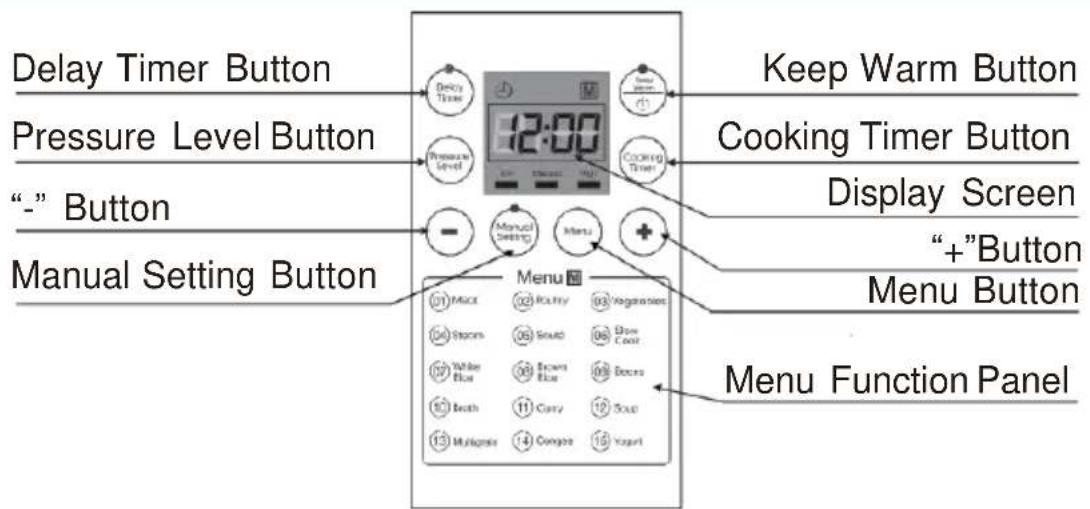

Function Operation Guidelines

Cancel Exit work state: Press the “Keep Warm/ ” button to exit the current work state.

Keep warm Keep warm: Under standby state, Press the “Keep Warm/ ” button to enter to keep warm state. The indicator display “0H (0 hour)/1H (1 hour)/2H (2 hours)... ” Meat Poultry Vegetable Steam White Rice Brown Rice Beans Broth Curry Soup Multigrain Congee

Normal cooking: Under standby state, press the “Menu” button, the digital screen flashes “P01”, then press “+” or “-” button, Select the program number you need. 10s later if no button is pressed, the product automatically starts cooking, and starts countdown when pressure rises to working pressure. When finish cooking, the product will enter to keep warm state.

Preset cooking: Before the product starts cooking, press the “Delay Timer” button to set the preset time, then press the“+” or “-” button to adjust the timer. 10s later if no button is pressed, the product automatically starts preset cooking, and starts count- down, when the countdown finishes, the cooking finish.

Normal cooking: Under standby state, press the “Menu” button, the digital screen flashes “P01”, then press “+” or “-” button to select the program number “P05”. 10s later if no button is pressed, the product automatically starts cooking, the digital screen displays countdown “0:30”, when finish, the product will come back to standby state.

Slow Cook Normal cooking: Under standby state, press the “Menu” button, the digital screen flashes “P01”, then press “+” or “-” button to select the program number “P06”. 10s later if no button is pressed, the product automatically starts cooking, the digital screen displays countdown “8:00”, when finish, the product will come back to standby state.

Yogurt Normal cooking: Under standby state, press the “Menu” button, the digital screen flashes “P01”, then press “+” or “-” button to select the program number “P15”. 10s later if no button is pressed, the product automatically starts cooking, the digital screen displays countdown “8:00”, when finish, the product will come back to standby state. Opera

Function Operation Guidelines

Normal cooking: Under standby state, press the “Manual Setting” button, the digital screen displays “30”. 10s later if no button is pressed, the product automatically starts cooking, and starts countdown when pressure rises to working pressure.

Preset cooking: Before the product starts cooking, press the “Delay Timer” button to set the preset time, then press the“+” or “-” button to adjust the timer. 10s later if no button is pressed, the product automatically starts preset cooking, and starts count- down, when the countdown finishes, the cooking finish.

Pressure selection: Before the product starts cooking, press the “Pressure Level” button to set the pressure level at “Low”/ “Medium” / “High” as you need. 10s later if no button is pressed, the product automatically starts cooking. Func

For use the product safely with a longer service life, please carefully checkand maintain it. If followings occur Solutions

Power cord and plug is expanded, deformation, damaged and it color is changed.

One part of the power cord and plug are hotter.

Power cord is flexible with discontinuous power supply.

The electric pressure cooker has abnormal heating and generates bad odor.

There's abnormal noise or vibration when supply power.

Stop using, and repair it by the authorized repair center.

There's dust or dirt on the plug or socket. Remove the dust or dirt.

To avoid personal injury and property loss, be sure to observe the following safety precautions.

Meanings of the marks:

Spray Water Forbidden

Remove the power plug

The danger caused by mistaken use if following warnings are neglectedincludes to two grades It may possibly cause death or serious injury if the warmingitems Warning Caution are disobeyed. It may cause physical injury or property damage if the caution items are disobeyed.

use correct electricity can cause fire

adopted. Safety Precau

A socket of more than 10A rated current with ground- ing wire shall be used alone;

If shared with other electrical appliances, the socket may cause abnormal heat and result in fire.

It is strictly prohibited to use other lid

It is strictly prohibited to use other lid for heating, and in the (switching on) process, the use of non-original lid is not allowed.

As this may cause electric shock or safety hazards.

Stop using if the power cord is damaged

Replace the damaged power cord with special soft cord or replace it with special assembly purchased from the manufacturer or authorized repair center.

Do not put foreign objects

It is prohibited to insert metal shavings, needles and other foreign matter in the gap.

As this may cause electric shock or movement anomalies.

Place the appliance in a location out of reach of infants

Place the appliance in a location out of reach of infants.

To avoid electric shock and scald.

Modification is prohibited

Modification or repair by non-professionals isprohibited.

Violation may cause a fire or electric shock.

Repair or replacement of parts shall be made in a designated service center.

Products may not be immersed or sprinkled in water

Doing so could cause electric shock and electrical short circuits. Safety Precau

When the electric pressure cooker is not working, there isn'tpressure in the pot, the float valve is down.

When the electric pressure cooker is working, pressure in the cooker rises, float valve ascends; do not fiercely open the lid before the pressure has been completely released.

If it is difficult to open the lid, please do not open it fiercely, otherwise, it may cause scalding or physical injury. Check periodically

Be sure to check periodically the block proof cover and exhaust valve core to make sure that they are not be blocked.

Do not cover the exhaust valve with heavy object or replace it with other object. Caution Never pull the plug with a wet hand

To avoid electric shock.

When pulling the plug, you must pinch the plug

When pulling the plug, you must pinch the plug;

Do not pull the power cord, otherwise it will damage the cord, causing electric shock and short circuit.

Unplugging when not in use

Otherwise, it may produce leakage, fire or failure.

In working, never move your hands to close to the exhaust port.

In cooking process, never move your hands to close to the exhaust port to avoid burns.

During cooking, do not cover the vent with a cloth and other items. Safety Precau

When the cooker is working, please do not touch the lid

When the cooker is working, lid has high temperature, do not touch it.

Otherwise, it may possibly cause scalding.

Max The total amount of food and water can not exceed Max scale

The total amount of food and water can not exceed Max scale, otherwise food may be cooked unfamiliar, or cause malfunction.

Do not use a pot other than the dedicated pot

When there is foreign object on the bottom of pot and heating plate surface, remove the foreign object before use.

Otherwise, it may cause overheating and work abnor- malities etc.

Max Do not put the inner pot on other appliance for heating

In order to avoid deformation or fault.

Please use the special inner pot.

When moving the product, please hold the handle of cooker body

When moving the product, do not directly hold the handle of lid for avoiding lid dropping. Do not use in the following locations

Do not use in unstable locations.

Do not use in locations near water and fire.

Do not use near walls and furniture.

Do not use in locations exposed to direct sunlight and oil splatter.

Do not approach the stove for avoiding fire.

Periodically clean the cooker and remove oil and dirt if it is stored on the table.

Put the electric pressure cooker 30cm away from other kitchen appliances. Environmen

Clean after each use.

Before cleaning and maintenance, please unplug the power cord until the product cools.

Remove the lid and inner pot, clean with detergent first, then rinse wellwith water, and wipe dry with a soft cloth.

Clean the internal side of the lid with water, the seal ring, block proof cover, exhaust valve core and float valve can be removed for washing, timely and correctly install them after washing, and then dry the internal side of lid with cloth.

Wipe clean the cooker body with a rag, and it is prohibited to soak the cooker body in water or spray water to it.

When followings occur, it is not the cooker fault, please carefully check once before sending it for repair. S/N Problem Reason Solution

Difficult to close the lid Sealing ring not installed properly Position the sealing ring well The floater valve clamps the push rod Lightly push the push rod

Difficult to open the lid Float valve in the popped- up position Press the float valve lightly with a chopstick. Pressure exists inside the cooker Open the lid after the pressure is completely released.

Steam leaks from the lid Sealing ring installed improperly Install the sealing ring as required Food debris attached to the sealing ring Clean the sealing ring Sealing ring damaged Replace the sealing ring The lid is not closed correctly Close the lid correctly

Steam leaks from float valve Food debris on the float valve gasket Clean the float valve gasket Float valve gasket worn-out Replace the float valve gasket

Float valve unable to rise Too little food and water in inner pot Add water and food according to the recipe Steam leaks from the lid or exhaust valve Send to the service center for repair

Steam comes out from exhaust valve non-stop Exhaust valve not in sealing position Turn the exhaust valve to the sealing position Pressure control fails Send to the service center for repair

Power indicator doesn’t light on Power socket bad contact Please check the power socket

Display screen displays C1 High temperature since there isn’t water in the inner pot Add water according to the requirement High temperature since there isn’t water in the inner pot

Rice half cooked or too hard Too little water Add water accordingly

Lid opened prematurely After cooking cycle completes, leave the lid on for 5 more minutes.

Rice too soft Too much water Reduce water accordingly

If the fault is not removed after above check, please contact our authorized service center for repair. Any other servicing should be performed by an authorized service representative.
