USER MANUAL ECV35-CA1 Essentiel B

Thank you for purchasing an Essentiel b branded product, and we thank you for your purchase. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products and we hope you will be completely satisfi ed with your new wine cellar.

Unpacking

• Remove the shipping box.
• Check that the appliance has not been damaged during transport. Do not plug in a damaged appliance under any circumstances! If the appliance is damaged, please contact your retailer.
• Remove all tape and packaging materials from the inside and outside of the appliance.

Before first use

• Clean the outside and the inside of the appliance including the racks with warm water and a mild detergent. When you have fi nished cleaning the appliance, dry it completely.
• Always unplug the appliance, remove the fuse or switch off the circuit breaker before cleaning.

Installation

Installation location

• Stand the wine cellar on a flat, even surface. As your appliance will be heavy when filled with wine, it must be placed on a strong, solid floor.
• The appliance must be installed in a dry, well-ventilated room at an ambient temperature between 10^ and 32^ .
• Do not place the appliance in direct sunlight or expose it to rain or high humidity environments, such as linen cupboards, laundry rooms, or bathrooms.
• Do not install the appliance next to radiators, cookers or other heat sources.
  Make sure the door can open to at least a 90^ angle.
• The ambient temperature affects energy consumption and appliance efficiency.
• The mains outlet must remain accessible when the appliance is installed.
  After installation, make sure that appliance does not rest on its power supply cable.
• IMPORTANT NOTE: To prevent tipping, make sure the appliance is secure in place as per the instructions.

Climate class

The appliance must only be installed in a location where the room temperature matches the climate class for which it was designed (see table below).

The climate class is on the rating plate located on the inside left panel of the appliance.

The table below sets out which ambient room temperatures are compatible with which climate class:

Climate class Room temperature

SN from +10 to +32°C

N from +16 to +32°C

ST from +16 to +38°C

T from +16 to +43°C

Your wine cellar ECV35-CA1 is rated "SN/N".

If the room temperature is below or above the rated room temperature, the performance of your appliance may be affected, and your wine may spoil.

Suffi cient ventilation

• Make sure that air can circulate freely around the appliance.

• To ensure your appliance functions properly, do not obstruct the vents. Maintain at least 150~cm of space on the sides and 100~cm above and behind the appliance.

• If your appliance has to be installed next to another refrigerator or freezer, make sure the appliances are not touching each other and at least 5cm apart to prevent condensation from forming on the outside.
• This appliance is a standalone appliance and should not be used as a built-in appliance.
• This appliance is intended to be used exclusively for the storage of wine.

the appliance

Level the appliance by screwing/unscrewing the adjustable feet at the front. Check that the wine cellar is level using a spirit level.

Moving the appliance

If the wine cellar has to be tilted when moving it, make sure that it is tilted towards the side with the power cable and by no more than 45^ .

Removable racks

You can adjust the storage height of the racks. Simply pull the rack out and tilt it upwards to remove the rack. Slide the rack into the slots at the desired location.

Use

Getting started

Before plugging the appliance into the mains socket for the first time, allow the appliance to rest for two hours if it was transported in an

upright position, or 24 hours if the appliance was transported in a horizontal position. This is to

allow the refrigerant gas to go back down into the compressor. Not complying with this waiting period may damage the compressor. Never use an extension cord or a multi-socket adapter with this product.

• Check the voltage stated on the rating label of the appliance matches the voltage in your home. Then, plug the appliance into a mains socket. The LED display screen will turn on.
• Whenever you unplug the wine cellar, wait at least 5 minutes before turning the appliance on again to avoid damaging the compressor.

Description and use of the control panel

1. On/Off button
   2.Light button
2. Temperature display screen
3. Centigrade/Fahrenheit Indicators
4. Increase/decrease temperature buttons, control panel lock

Touch-sensitive buttons

Your appliance has touch-sensitive buttons to control the various functions. A feature can be activated by lightly touching the button.

Do not scratch the control panel with any metallic, sharp or pointed objects.

Never use wet or damp hands when touching the buttons as this can damage them.

Turning the appliance on or off

• Press and hold the button for 3 seconds to turn on the wine cellar. The LED display screen will turn on.
• Press and hold the button for 3 seconds to turn off the wine cellar.

Setting the temperature

• Press the A or V button repeatedly to increase or decrease the temperature in 1^ increments from 5^ to 18^ / 41^ to 64^ . The set temperature fl ashes on the display for approximately 3 seconds, after which the display shows the current wine cellar temperature.
  To view the set temperature at any time, press the button.

We recommend setting the temperature to 12^ / 53^ (default temperature). However, the set temperature should take into the account the type of wine stored in the wine cellar. See the Wine storage temperature section for more information.

The appliance is most energy effcient when the shelves are placed in their original position as shown in the product overview diagram.

Changing the temperature measurement unit

Press and hold the button to toggle between Centigrade and Fahrenheit measurement units. The corresponding ^ C or ^ F indicator illuminates.

Locking/unlocking

To prevent accidental changes to the set temperature you can lock the buttons. Press and hold the and buttons simultaneously for 3 seconds until a beep sounds to lock or unlock the control panel buttons.

NOTE: After unlocking the display, if no button is pressed within 2 minutes, the temperature setting and display functions will be disabled. You will need to unlock the buttons again to use them.

Turning the light on or off

Press the button to turn the light on or off. Make sure the light is switched off after use.

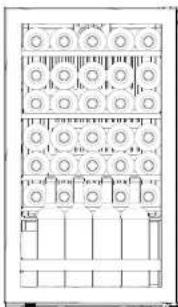

Storing bottles

Make sure that the bottles do not touch the back of the cavity, so that the air can flow freely inside.

The capacity of the wine cellar is 36 bottles.

The combination of drawers, baskets and shelves as shown above that result in the most efficient use of energy for the refrigerating appliance.

The storage capacity of the wine cellar is based on standard Bordeaux-style bottles (750 ml). Depending on the bottles you are keeping in your cellar, its capacity may vary.

If you don't have enough bottles to fill the wine cellar, distribute the bottles evenly using all the available shelves, rather than loading up the top or bottom of the appliance.

Given the variation in temperature caused by the flow of air inside the wine cellar, bear in mind that the lowest temperature will be at the bottom of the appliance and the highest temperatures at the top.

Going from top to bottom, the bottles should be arranged in the following order:
- Strong red wines
Rose or medium red wines
White wines

We recommend storing the wine at a temperature slightly lower than the serving temperature for decanting and drinking.

CAUTION: Only store unopened bottles. Never place food in the wine cellar to prevent bacterial contamination.

Practical tips for storing wine

Do not store bottles with their packaging.
- The cork of an old bottle should always be kept moist when it is placed in the wine cellar. There should be no air gap between the wine and the cork.
- An open-style bottle shelf is beneficial because it allows for air circulation, helping moisture that condenses on the bottle to dry quickly.
- Pour the wine into a carafe a few hours before drinking to allow it to settle and reach its ideal tasting temperature. For red wine, decant 4 to 5 hours before serving. White wine and most rose wines can be served directly from the bottle. Champagne should always be kept the coolest. Champagne should be kept the coldest; take it out just before drinking and store it in a cooler while serving.
- Please note that the wine storage temperature is always slightly lower than the ideal serving temperature, as the wine will warm up by several degrees once decanted.
- Keep the interior of the wine cellar dry.
- Wine does not have any expiry date and different wines have different aging times. Check with the producer for recommended storage times.
- In the event of a power cut, avoid opening the door as much as possible to protect your wines. If the power cut is for a long period of time, consider other refrigeration solutions to protect your wines.

Wine serving temperatures

These temperatures are given as a rough guide.

Red wine 15.5-18°C
White wine 10-15°C
Sparkling wine/Champagne 7.2-9.5°C
Rosé wine 9.5-10.5°C
Whiskey 16-18°C
Cognac 16-18°C

Cleaning and maintenance

For hygiene reasons, the inside of the appliance and accessories should be cleaned regularly.

IMPORTANT:

High ambient temperatures (e.g. on a hot summer's day) and a cold setting on the temperature control panel can cause the compressor to operate continuously in order to maintain a low temperature in the appliance. However, this can cause ice to form. If this happens, use the temperature control buttons to choose a warmer setting.

Switch off the appliance and unplug it before cleaning it.

Defrosting the appliance

During operation, the back wall of the wine cellar may become covered with frost when the compressor is running. When the compressor is not running, the frost melts and any condensation water drains through the drain hole into the drainage tank, where it evaporates.

Cleaning the appliance

The appliance must be cleaned twice a year.

• Turn off and unplug the appliance.
• Wipe the inner and outer surfaces of the appliance and its racks with a soft, damp cloth. If they are very dirty, rub them with a mild detergent, rinse with water and then wipe with a clean cloth.
• Check that the drain hole is clear and remove any blockages when cleaning.
• Remove the dust on the back of the appliance to prevent a fire hazard or overheating the appliance.
• Do not use abrasive or caustic detergents, or metal scrapers.
• Never spray water directly into the appliance. This could cause rust or reduce insulation.
  The rubber door seals (gasket) must be cleaned regularly and kept in good condition.
• Never use a steam cleaner to clean the appliance. The moisture generated can accumulate on the electrical components and could expose users to the risk of an electric shock! The hot steam can also damage the interior parts made of plastic.
  The appliance must be completely dry before being restarted.

In case of prolonged absence or non-use

• Turn off the appliance.
• Unplug, empty, and clean the appliance.
• Leave the door open to prevent odours or mould from arising.

Troubleshooting guide

Malfunctions

If the appliance malfunctions, it may be due to a minor problem that you can rectify by following the instructions below. Before you contact a technician, perform the following checks:

Problems Possible causes Solutions

The appliance is not working The plug is not plugged in or is incorrectly plugged in.	Remove (if necessary) and then plug the appliance back in to the mains socket.
A fuse has blown or is defective.	Check the fuse and replace it if necessary.
The electrical socket is defective.	Repairs to the electrical socket should be done by an electrician.
The appliance does not cool down enough.	The temperature is not set correctly. Please refer to the "Setting the temperature" section.
	The door was open too long or too frequently. Do not frequently open the door and keep it open any longer than necessary.
	A large amount of wine has been placed in the appliance. Wait a few hours depending on how many bottles have been added. You could also change the temperature setting to a cooler setting for a short period of time.
	The appliance is located near a heat source. Refer to the "Installation location" section.
The appliance is cooling excessively.	The set temperature is too high. Set the temperature to a warmer setting.

Problems Possible causes Solutions

There is a lot of frost on the compressor.	The door has not been closed properly.	Make sure the door is closed properly at all times.
	The door seal (gasket) is incorrectly positioned or damaged.	Check that the door seal is sealed correctly.
Water is spilling out of the bottom of the wine cellar.	The drain hole or drain hose is blocked.	Check and clean the drain hole / hose.
The door or front of the wine cellar is warm.	This is normal. To prevent condensation, the appliance has a pipe which heats up the front of the wine cellar.
Condensation forms on the outside.	The humidity in the room is high.	This is normal. Wipe off the condensation using a dry cloth.
Unusual noises Some noises are typical for refrigeration appliances.		Please refer to the "Noises while in use" section.
The appliance is not level. Adjust the feet.
The outer walls are hot. The ambient temperatures are hot causing the walls to heat up, the door is opened too frequently or there is insuff client ventilation space around the appliance.		Move the appliance to ensure there is suff client ventilation on all sides. Refrain from frequently opening the door. Please refer to the "Suff client ventilation section".
The EL error code displays on the screen.	The temperature sensor is faulty (open circuit).	Contact your retailer's after-sales department.
The EH error code displays on the screen.	The temperature sensor is faulty (short circuit).

Noises while in use

The following noises are typical of fridge type appliances:

• Clicking: When the compressor turns on or off, it makes a clicking sound.
• Whirring: As soon as the compressor is running, you hear it making a whirring sound.
  Gurgling/spluttering: When the refrigerant flows through the narrow tubes, gurgling and spluttering can be heard. Even after the compressor has switched off, these noises can be heard for a short time after.

Replacing the LED module (light)

WARNING: Do not attempt to replace the LED module yourself: risk of electric shock! The LEDs cannot be replaced by the user. Contact the after-sales service of your dealer for any work that needs to be done on the light of the appliance.

https://www.boulaer.com/info/assistance/

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors.

By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.
