USER MANUAL GLF18V-25 Professional BOSCH

Safety SymbolsThe definitions below describe the level of severity for each signal word.Please read the manual and pay attention to these symbols.
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Table of Contents

General Power Tool Safety Warnings ..... 3

Safety Instructions for Cordless Routers .. 5

Additional Safety Warnings....5

Disposal 6

Intended Use 6

Symbols 7

Getting to Know Your GLF18V-25

Cordless Trim Router 8

Specifications....10

Assembly....10

Router Bits 10

Replacing the Collet ..... 12

Installing and Removing

the Trim Router 12

Installing Dust Extraction Hood ..... 13

Extraction Hood and Chip Protection

Guide (optional accessories) ..... 13

Inserting and Removing the

Setting Depth of Cut. 14

Operating the Trim Router ..... 14

Feeding the Trim Router ..... 16

Using the Trim Router with Fixed

Base and Accessories ..... 17

Maintenance 20

General maintenance 20

Service 20

Cleaning 20

Storage and Maintenance ..... 20

Accessories....21

Troubleshooting 22

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed be-

low may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected

supply. Use of a GFCI reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

General Power Tool Safety Warnings

h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slip-

pery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.

g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

General Power Tool Safety Warnings

b. Never service damaged battery packs.

Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Instructions for Cordless Routers

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or

against the body leaves it unstable and may lead to loss of control.

Additional Safety Warnings

If cutting into existing walls or other blind areas where electrical wiring may exist is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

Always make sure the work surface is free from nails and other foreign objects. Cutting into a nail can cause the bit and the tool to jump and damage the bit.

Never hold the workpiece in one hand and the tool in the other hand when in use.

Never place hands near or below cutting surface. Clamping the material and guiding the tool with both hands is safer.

Never lay workpiece on top of hard surfaces, like concrete, stone, etc. Protruding cutting bit may cause tool to jump.

Always wear safety goggles and dust mask. Use only in well ventilated area. Using personal safety devices and working in safe environment reduces risk of injury.

After changing the bits or making any adjustments, make sure the collet nut and any other adjustment devices are securely tightened. Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

Never start the tool when the bit is engaged in the material. The bit cutting edge may grab the material causing loss of control of the cutter.

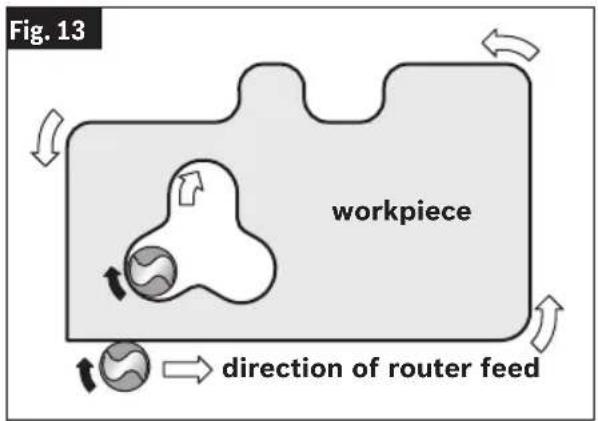

The direction of feeding the bit into the material is very important and it relates to the direction of bit rotation. When viewing the tool from the top, the bit rotates clockwise. Feed direction of cutting must be counterclockwise.

NOTE: Inside and outside cuts will require different feed direction, refer to section on feeding the router. Feeding the tool in the wrong direction, causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.

Never use dull or damaged bits. Sharp bits must be handled with care. Damaged bits can snap during use. Dull bits require more force to push the tool, possibly causing the bit to break.

Never touch the bit during or immediately after the use. After use the bit is too hot to be touched by bare hands.

Never lay the tool down until the motor has come to a complete standstill. The spinning bit can grab the surface and pull the tool out of your control.

Do not use Cutter diameter larger than 1-1/8". Using cutter larger than 1-1/8" may result in personal injury.

Use only router bits that have shank diameters that match the installed collet. Using a router bit that has a smaller shank could cause the bit to come loose during operation and become a projectile.

Never operate router bits at speeds that are higher than their maximum rated speed. Router bits running faster than their rated speed can break and fly apart.

GFCI and personal protection devices like electrician's rubber gloves and footwear will further enhance your personal safety.

Additional Safety Warnings

Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the power tool.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
  • Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Disposal

This section is part of Robert Bosch Tool Corporation's commitment to preserving our environment and conserving our natural resources.

Tool Disposal

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Battery Disposal

WARNING Do not attempt to disassemble the battery or remove any components projecting from the battery terminals. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting.

Lithium-Ion Batteries

If equipped with a lithium-ion battery, the battery must be collected, recycled, or disposed of in an environmentally sound manner.

The EPA certified RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicates Robert Bosch Tool Corporation is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Li-ion batteries into the trash or the municipal waste stream, which may be illegal in your area.

Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area or return your batteries to a Bosch/Dremel Service Center for recycling. Robert Bosch Tool Corporation's involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.

Intended Use

⚠ WARNING Use this trim router only as intended. Unintended use may result in personal injury and property damage.

This trim router is intended for edge trimming, edge forming, template routing as well as routing grooves, edges, profiles and elongated holes in wood, plastic and drywall using 1/4" (6.35mm) shank router bits having a diameter of up to 1 1/8" (28.6mm).

This trim router is not intended for routing in metals. This trim router is not intended for use in a router table.

Symbols

Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation/Explanation
V Volts (voltage)
lb Pounds (weight)
kg Kilograms (weight)
ft Feet (length)
in Inches (length)
m Meter (length)
cm Centimeter (length)
mm Minutes (time)
F Fahrenheit (temperature)
C Celsius (temperature)
RPM Revolutions per minute (speed)
	Arrow (action in the direction of arrow)
---	Direct current (type or a characteristic of current)
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
	Designates Li-ion battery recycling program.
	Alerts user to read manual.
	Alerts user to wear eye protection.
	Alerts user to wear hearing protection.
	Alerts user to wear respiratory protection.
	Alerts user to use eye, hearing, and respiratory protection.

Getting to Know Your GLF18V-25 Cordless Trim Router

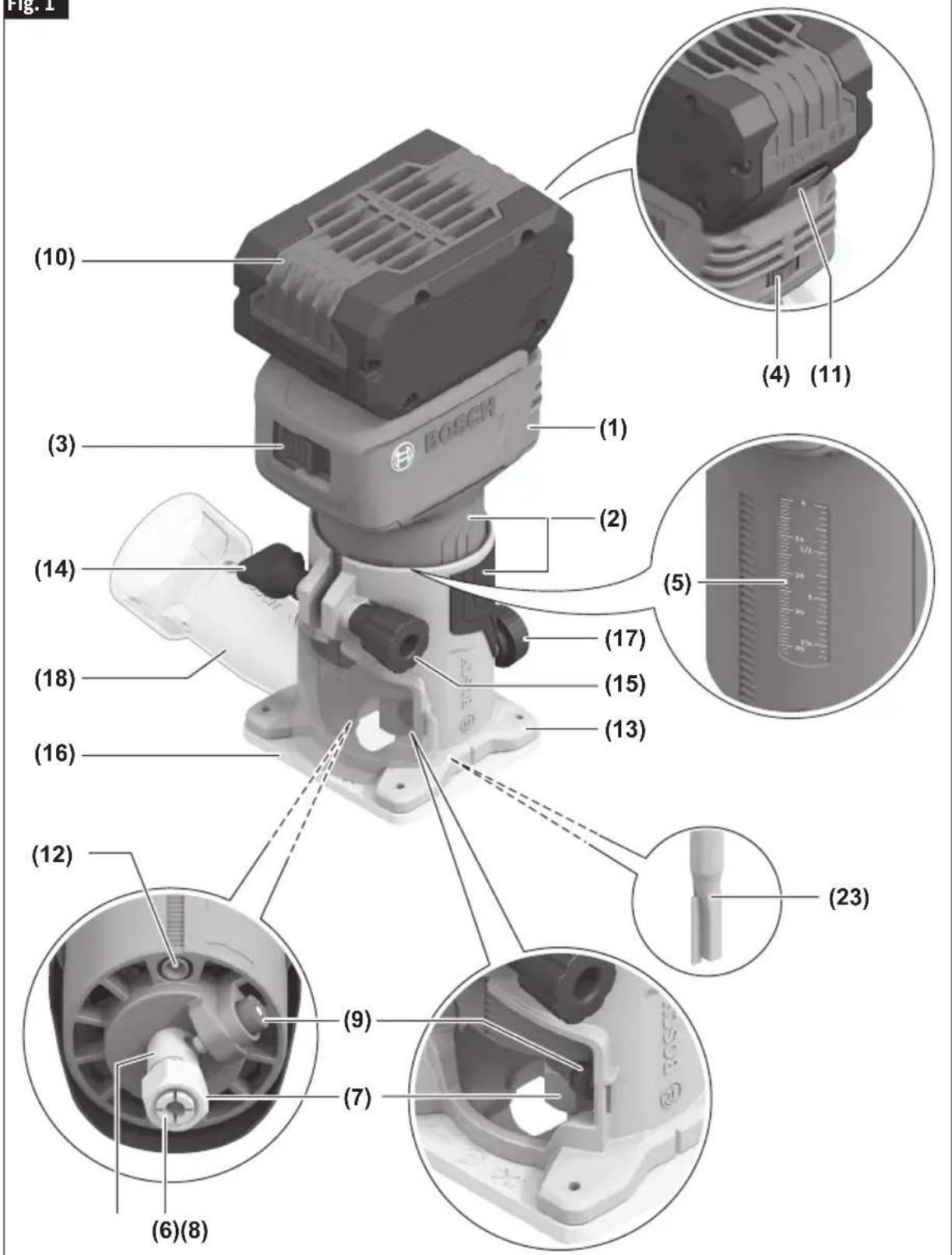

Fig. 1

Getting to Know Your GLF18V-25 Cordless Trim Router

Fig. 2

1 Trim Router

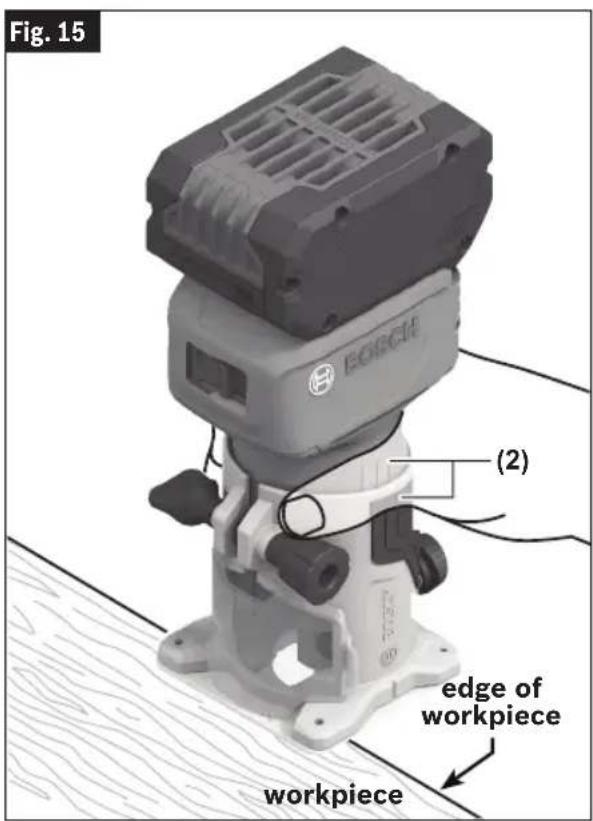

2 Gripping Area (insulated)

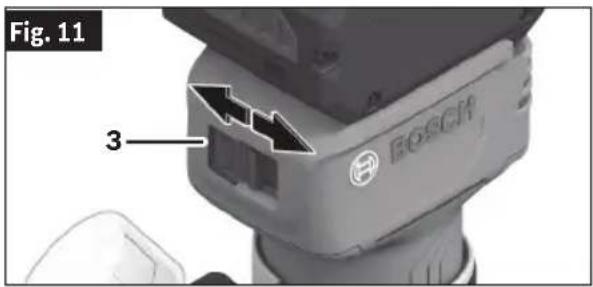

3 On/Off Switch

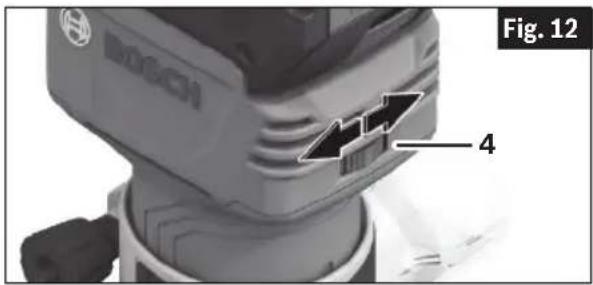

4 Variable Speed Dial
5 Depth Scale
6 Collet
7 Collet Nut
8 Spindle
9 Spindle Lock Button

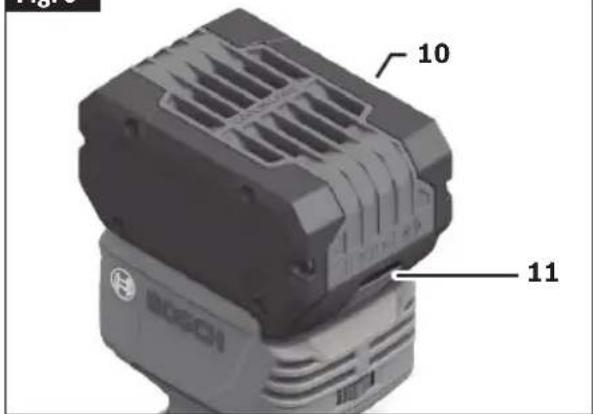

10 Battery Pack
11 Battery Pack Release Button
12 LED Work Light
13 Fixed Base

14 Clamping Knob
15 Depth Adjustment Knob
16 Subbase
17 Rear Accessory Thumb Screw

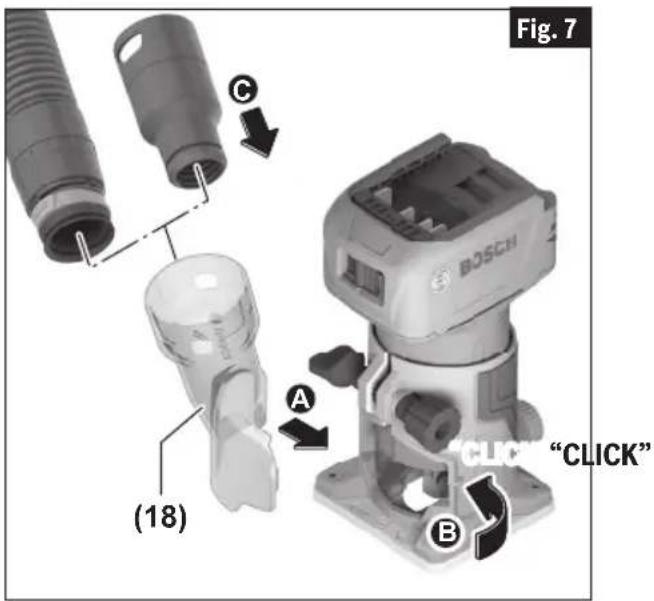

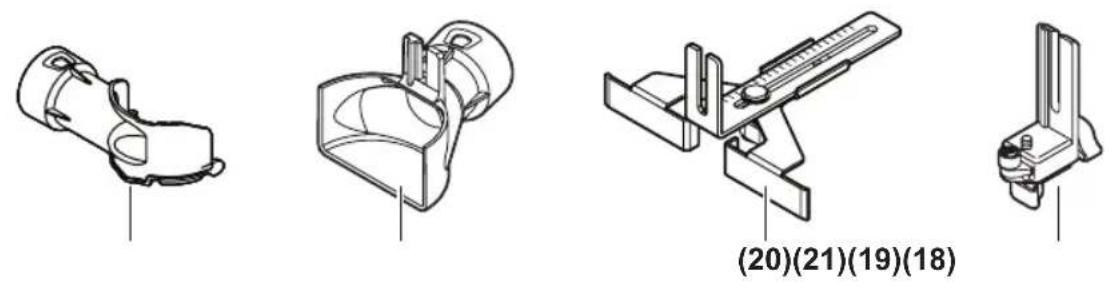

18 Surface Routing Dust Extraction Hood (RA1133)

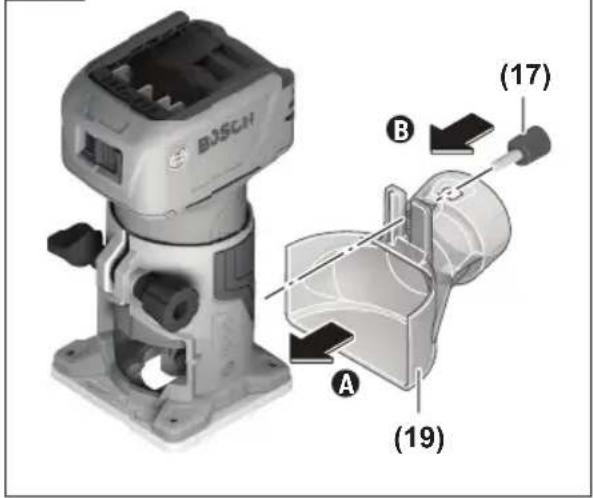

19 Fixed Base Edge Routing Dust Extrac tion Hood (RA1132)

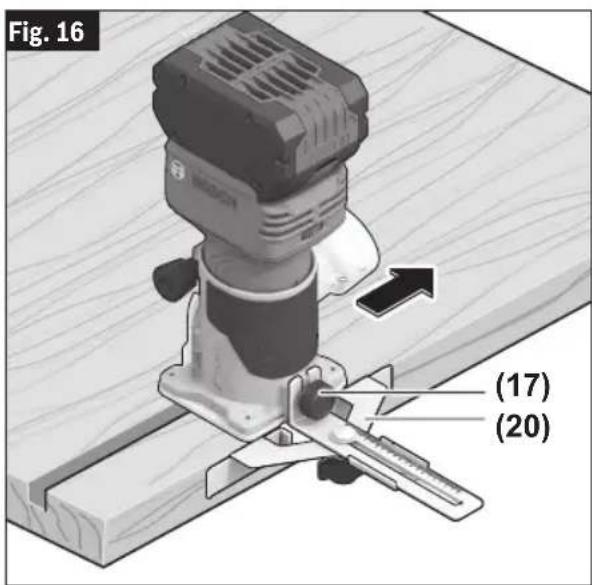

20 Straight Edge Guide (PR102)

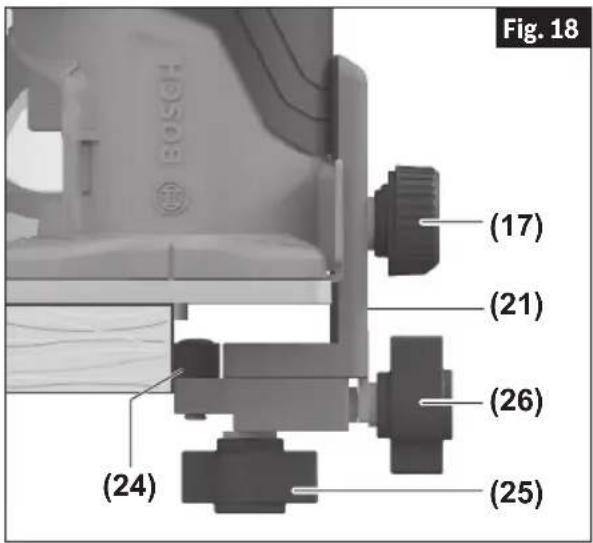

21 Fixed Base Roller/Bushing Guide (PR003)
22 Collet Nut Wrench
23 Router Bit*

* Optional accessory

Specifications

Model number GLF18V-25
Voltage 18V	---
No load speed 10,000 - 30,000 RPM*
Max bit size 1-1/8 in
Collet size 1/4 in
Permitted battery temperature during charging +32...+113°F (0...+45°C)
Permitted ambient temperature during operation** and storage	-4...+122°F (-20...+50°C)
Recommended ambient temperature during charging +32...+95°F (0...+35°C)

* Using Core18V battery packs 4.0 Ah, 8.0 Ah, 12 Ah ** Performance is limited at temperatures below +32°F (0°C).

Battery Packs/Chargers

Please refer to the battery/charger list included with your tool.

Assembly

WARNING Disconnect battery pack from tool before assembly, adjustments, troubleshooting or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally, which may result in personal injury.

Router Bits

WARNING Use only router bits that have shank diameters that match the installed collet. Using a router bit that has a smaller shank could cause the bit to come loose during operation and become a projectile.

WARNING Never operate router bits at speeds that are higher than their maximum rated speed. Router bits running faster than their rated speed can break and fly apart.

Selecting Router Bits

This tool is designed for a wide variety of routing applications that use 1/4" shank bits. These include woodworking applications such as edge forming and trimming. This

router is also ideal for trimming laminates, phenolics, and other materials that have been bonded to a substrate typically with an overhang of the substrate by about 1/8 in (3 mm). A wide assortment of router bits with different profiles are available as accessories. Only use good quality bits.

Note: Though the router bit may be installed and removed from the trim router while it is installed in a base, it is recommended that the trim router is removed from the base before installing a bit. See the corresponding section for the selected base in use on how to separate the trim router from the base.

Assembly

Installing/Removing a Router Bit

(Fig. 3, Fig. 4)

Do not use Cutter diameter larger than 1-1/8". Using cutter larger than 1-1/8" may result in personal injury.

Do not tighten collet without a bit. Tightening collet without a bit inserted may cause damage to the tool.

Before attaching selected Router Bit 23, ensure that the spindle, collet, collet nut, and bit shank are clean. The bit shank must be straight, undamaged, and an appropriate size in relation to the collet.

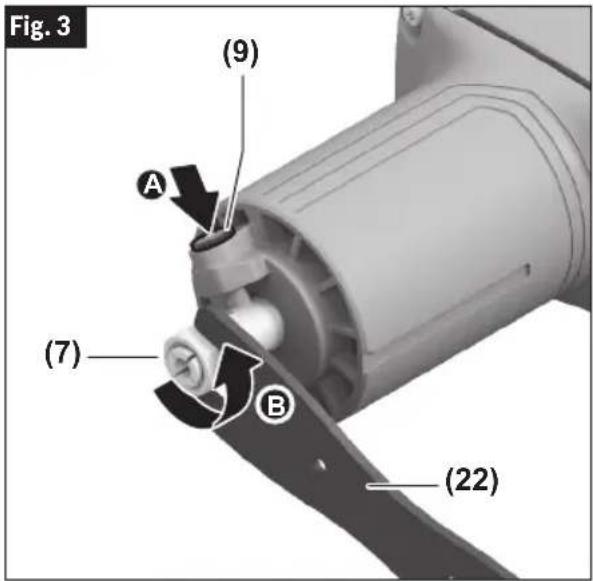

1. Push and hold in the Spindle Lock Button 9 A to prevent rotation of Collet Nut 7.

Note: It may be necessary to rotate the Collet Nut 7 to engage spindle lock.

1. Use the Collet Nut Wrench 22 to loosen the Collet Nut 7 in a counter-clockwise direction B.
2. If necessary, remove the installed router bit.
3. Insert the shank of the router bit into the Collet 6 as far as it will go, then back the shank out until the cutters are approximately 1/8" to 1/4" away from the collet nut face.
4. With the router bit inserted and the Spindle Lock Button 9 engaged Ⓒ, use the Collet Nut Wrench 22 to firmly tighten the Collet Nut 7 in a clockwise direction Ⓓ.
5. Release the Spindle Lock Button 9.

Note: To ensure proper gripping of the router bit and minimize run-out, the shank of the router bit must be inserted at least 5/8".

Fig. 3 (9) A (7) B (22)

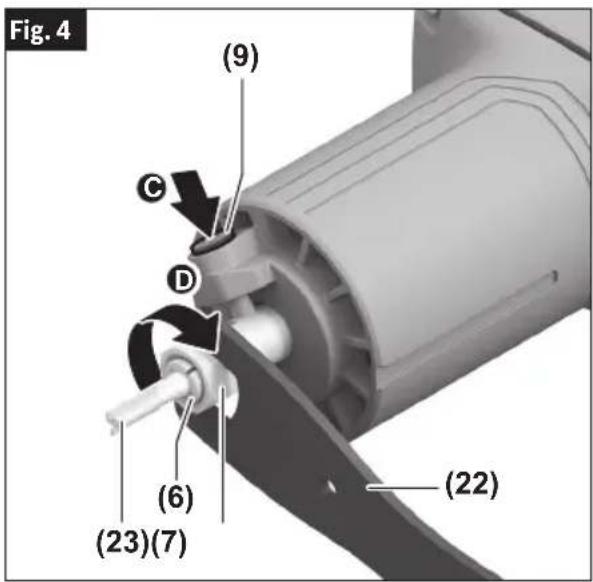

Fig. 4 (9) C D (6) (23)(7) (22)

Assembly

Replacing the Collet

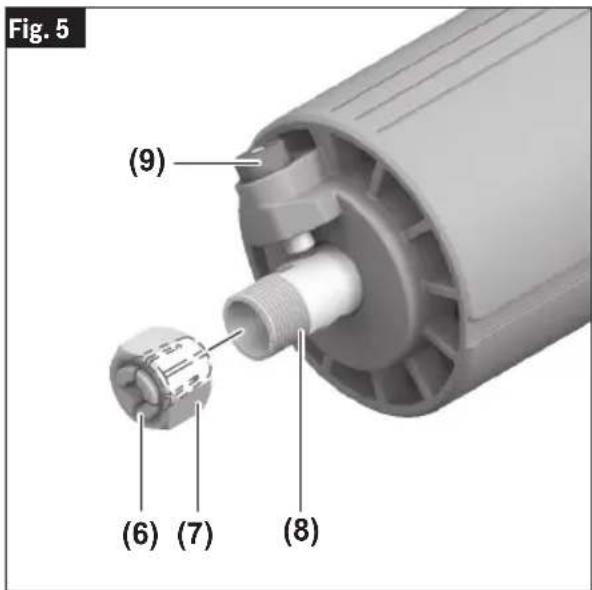

(Fig. 3, Fig. 4, Fig. 5)

This tool includes a pre-installed 1/4" collet within the collet nut, that must be used with a 1/4" diameter accessory shank.

To replace the collet assembly:

1. Push and hold in the Spindle Lock Button 9 A to prevent rotation of Collet Nut 7.

Note: It may be necessary to rotate the collet nut to engage spindle lock.

1. Use the Collet Nut Wrench 22 to loosen the Collet Nut 7 in a counter-clockwise direction B.
2. Unscrew and remove the collet nut assembly.
3. Ensure that the Spindle 8 threads are clean and the Collet 6 is properly fitted in the Collet Nut 7.
4. By hand, screw the new collet assembly onto the Spindle 8.

Installing and Removing the Trim Router

(Fig. 6)

Installing the Trim Router to the Fixed Base

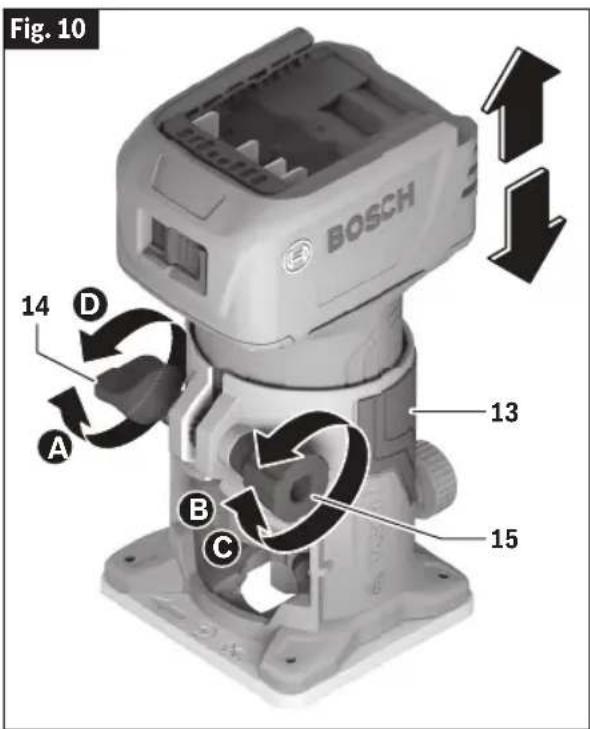

Loosen the clamping mechanism on the Fixed Base 13 by turning the Clamping Knob 14 A counter-clockwise.

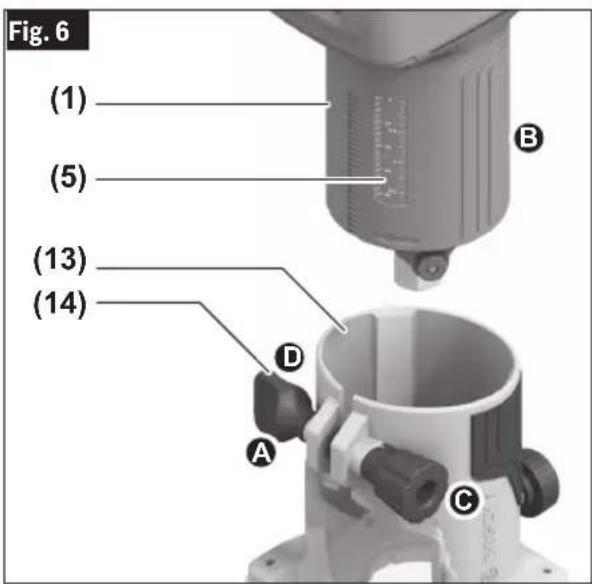

1. Align both the Trim Router 1 and the Fixed Base 13 B so they are facing forward.
2. Slide the Trim Router 1 into the Fixed Base 13 B.
3. Turn the Depth Adjustment Knob 15 to precisely reach the desired depth on the Depth Scale 5 ©.
4. Firmly tighten the Clamping Knob 14 by turning it clockwise D to secure the Trim Router 1 in place.

Fig. 5 (9) (6) (7) (8)

Fig. 6 (1) (5) (13) (14) A B D C

Removing the Trim Router from the Fixed Base

1. Loosen the clamping mechanism on the Fixed Base 13 by turning the Clamping Knob 14 A counter-clockwise.
2. Slide the Trim Router 1 out of the Fixed Base 13 B.

Assembly

Installing Dust Extraction Hood

(Fig. 7)

1. Place the small tab found on the bottom left of the Dust Extraction Hood 18 into the slot in the base A, then rotate the Dust Extraction Hood 18 towards the base until the tab on the right side snaps into the slot on the right side of the base B
2. Connect the hood to the vacuum using either a friction fit nozzle or the Bosch quick click system ©.

Extraction Hood and Chip Protection Guide (optional accessories)

(Fig. 8)

1. Attach the Fixed Base Edge Routing Dust Extraction Hood 19 to the back of the Fixed Base 13 A.
2. Secure the Fixed Base Edge Routing Dust Extraction Hood 19 in place using the Rear Accessory Thumb Screw 17 B.
3. Connect the hood to the vacuum using either a friction fit nozzle or the Bosch quick click system.

Inserting and Removing the Battery Pack

(Fig. 9)

To Insert the Battery Pack

Slide charged Battery Pack 10 onto the Trim Router 1 until the Battery Pack 10 locks into position.

Your tool is equipped with a secondary locking latch to prevent the Battery Pack 10 from completely falling out of the handle, should it become loose due to vibration.

To Remove the Battery Pack

Press the Battery Pack Release Button 11 and slide the Battery Pack 10 from the Trim Router 1.

Fig. 7 BOSCH (18) A B "CLICK" (B)

Fig. 8

BOSCH (17) A (19)

Fig. 9

10 11 BOSCI

Transportation

WARNING

Always remove the battery pack before transporting. Carry the tool by

the handles. Such preventive safety measures reduce the risk of starting

the tool accidentally, which may result in personal injury.

Operation

WARNING

Disconnect battery pack from tool before assembly, adjustments, trou-

bleshooting or changing accessories. Such preventive safety measures

reduce the risk of starting the tool accidentally, which may result in personal injury.

WARNING

Use personal protective equipment. Always wear eye protection. Protec-

tive equipment such as a dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions will reduce personal injuries.

Setting Depth of Cut

(Fig. 1, Fig. 10)

1. Install the desired router bit. See "Installing/Removing a Router Bit" on page 11.

2. Place the router/base assembly on the workpiece.

3. Loosen the clamping mechanism on the Fixed Base 13 by turning the Clamping Knob 14 A counter-clockwise.

4. Turn the Depth Adjustment Knob 15 B to slowly lower the router until the router bit touches the workpiece.

5. Note the reading on the Depth Scale 5 and add the desired depth-of cut to this value to determine the target scale value.

6. Lift the router/base assembly from the workpiece and turn the Depth Adjustment Knob 15 © to lower or raise the Trim Router 1 into the base until the target scale value is reached.

7. Firmly tighten the Clamping Knob 14 by turning it clockwise to secure the Trim Router 1 in place.

8. Ensure that the Trim Router 1 is secured tightly in the base.

9. Make a trial cut to verify that the Trim Router 1 is set to the desired depth.

Deep Cuts

For deep cuts, make several progressively deeper cuts by starting at one depth and then make several subsequent passes, increasing the cutting depth with each pass. To be certain that your depth settings are as

Fig. 10 BOSCH 14 D A 13 B C 15

desired, you may want to make test cuts in scrap material before beginning work.

Operating the Trim Router

(Fig. 11)

On/Off Switch

Your tool can be turned "ON" or "OFF" by the On/Off switch located on the motor housing. One side of the switch is marked "I" for "ON", and the other side of switch is marked "O" for "OFF".

1. TO TURN THE TOOL "ON": slide the Switch 3 to the left, the "I" marking will be revealed.

Operation

1. TO TURN THE TOOL "OFF": slide the Switch 3 to right, the "O" marking will be revealed.

Constant Electronic Control

The Constant Electronic Control helps maintain the router spindle speed under load.

Overload Protection

When an overload condition is detected, the trim router will shut down and the LED Work Light begins to flash.

To reset the overload protection, eliminate the overload condition and move the On/Off Switch to the OFF position.

Restart Protection

When the Battery Pack is discharged during operation, the trim router will shut down.

To reset the restart protection, insert a charged Battery Pack and move the On/Off Switch to the OFF position.

Variable Speed Dial

(Fig. 12)

The electronic speed control feature allows motor speed to be matched to cutter size and material hardness for improved finish, extended bit life, and higher performance. Speed can be changed while trim router is turned on. Be sure to adjust the speed only when the bit is not in contact with the cutting surface.

1. To increase the speed of the trim router, rotate the Variable Speed Dial 4 to the right; the numbers on the dial will increase.
2. To decrease the speed of the trim router, rotate the Variable Speed Dial 4 to the to the left; the numbers on the dial will decrease.

The chart below indicates RPM speed to the setting number on the dial.

Dial Position RPM Speed

1-2 10,000-14,000

3-4 18,000-24,000

5-6 26,000-30,000

Fig. 11 3

Fig. 12 BOSCH 4

The following speed chart indicates the recommended Variable Speed Dial 4 position for the given router bit diameter and material. Also refer to the router bit manufacturer speed and material recommendations.

WARNING Never operate router bits at speeds that are higher than their maximum rated speed. Router bits running faster than their rated speed can break and fly apart.

Material	Router Bit Diameter	Variable Speed Dial Position
Hardwood	0.16"-0.39" 5-6
	0.47"-0.78" 3-4
	>0.78" 1-2
Softwood	0.16"-0.39" 5-6
	0.47"-0.78" 3-6
	>0.78" 1-3
Particleboard	0.16"-0.39" 3-6
	0.47"-0.78" 2-4
	>0.78" 1-3
Plastics	0.16"-0.59" 2-3
	>0.59" 1-2

Operation

Feeding the Trim Router

(Fig. 13)

This section explains concepts of how to properly feed the trim router while in operation.

Make sure to read the corresponding sections for detailed operational steps for each base type.

As seen from the top of the trim router, the bit turns clockwise and the bit's cutting edges are positioned to best cut into the workpiece. Therefore, the most efficient cut is made by feeding the trim router so that the bit turns into the workpiece, not away. The following figure shows proper feed for various cuts. How fast you feed depends on the hardness of the material and the size of the cut. For some materials, it is best to make several cuts of increasing depth.

If the trim router is hard to control, heats up, runs very slowly or leaves an imperfect cut, consider these causes:

Fig. 13 workpiece direction of router feed

• Wrong direction of feed – hard to control.
• Feeding too fast – overloads motor.
  • Dull bit – overloads motor.
• Cut is too large for one pass — overloads motor.
• Feeding too slow – leaves friction burns on workpiece.

Feed smoothly and steadily (do not force).

Practice and experience will help with familiarizing how the trim router sounds and feels when it is working best.

Guiding the Trim Router

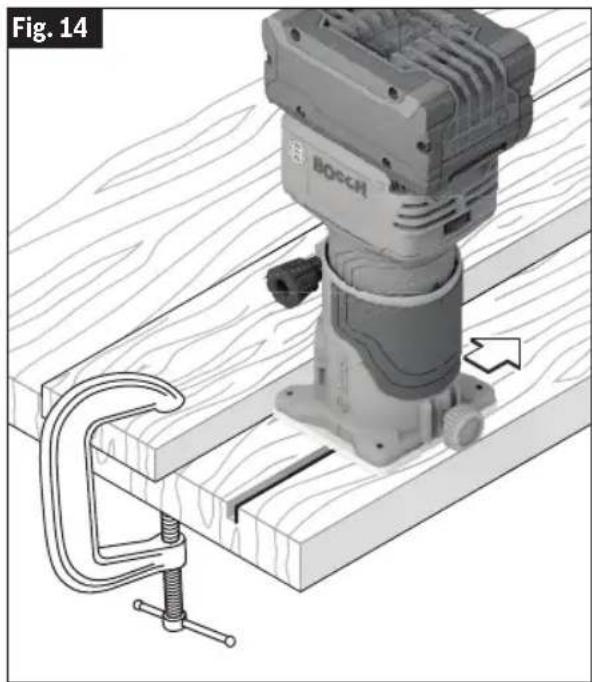

(Fig. 14)

The trimmer can be guided through the workpiece in any of several ways. The method you use depends, of course, on the demands of the particular job and on convenience. For routing operations such as grooves or dados, it is often necessary to guide the tool in a line parallel to a straight edge. One method of obtaining a straight cut is to securely clamp a board or other straightedge to the work surface, and guide the edge of the router sub-base along this path.

Always hold the trim router off the workpiece when turning the switch ON or OFF. Contact the workpiece with the router after the trim router has reached full speed, and remove it from the workpiece before turning the switch OFF. Operating in this manner will prolong switch and motor life and will greatly increase the quality of your work.

Mechanical assembly diagram showing a Bosch drill press on a wooden base with a clamping tool (no text or symbols)

Operation

Rate of Feed

When routing or doing related work in wood and plastics, the best finishes will result if the depth of cut and feed rate are regulated to keep the motor operating at high speed. Feed the trim router at a moderate rate. Soft materials require a faster feed rate than hard materials. The router may stall if improperly used or overloaded. Reduce the feed rate to prevent possible damage to the tool. Always be sure the collet nut is tightened securely before use. Always use router bits with the shortest cutting length necessary to produce the desired cut. This will minimize router bit run-out and chatter. It may be necessary to make the cut in more than one pass with progressively deeper settings to avoid overloading the motor. If the bit cuts freely and the motor does not slow down, the cutting depth is generally correct.

Using the Trim Router with Fixed Base and Accessories

Using the Trim Router with Fixed Base

(Fig. 1, Fig. 15)

1. Install the router bit. See "Installing/Removing a Router Bit" on page 11.

2. Adjust the cutting depth. See "Setting Depth of Cut" on page 14.

3. Install the Battery Pack 10.

4. Grip the Trim Router 1 firmly by Gripping Area 2.

5. Adjust the speed. See "Variable Speed Dial" on page 15.

6. Switch the Trim Router 1 on. See Fig. 11 on page 15.

7. Feed the Trim Router 1 into the workpiece. See "Feeding the Trim Router" on page 16.

Note: the speed may be adjusted while the trim router is in operation.

1. Once routing is complete, turn the Trim Router 1 off. See Fig. 11 on page 15.

Fig. 15 (2) edge of workpiece workpiece

Operation

Straight Edge Guide

(Fig. 16)

The Straight Edge Guide 20 can be used to guide the trim router parallel to a straight edge.

The guide features a scale for accurately positioning the edge guide relative to the bit. With the guide installed and adjusted, the router should be fed normally, keeping the guide in contact with the edge of the workpiece at all times.

The router guide can also be positioned directly under the router base for operations where a cut is needed close to or at the edge of the work, such as when rounding off deck planks. For complete instructions on installation and operation, please refer to the instructions included with this accessory.

ATTACHING THE EDGE GUIDE

Attach the Straight Edge Guide 20 to the Fixed Base 13 using the Rear Accessory Thumb Screw 17 and washer (Fig. 16).

OPERATING INSTRUCTIONS

- With the guide installed and adjusted, the trimmer should be fed normally, keeping the guide in contact with the edge of the workpiece at all times.

Self-Piloted Bits (sold separately)

(Fig. 17)

Self-piloted bits have an integral round tip or ball bearing which rides against the work surface above or below the cutter to control horizontal cutting depth. When using these bits, neither the roller guide or the straight edge guide is required. When guiding against a laminated surface, use wax or other lubricant and do not apply excess pressure or the piloted end may mar the work. Bearing pilots must be kept clean and free of adhesive or other residue. Router bit bearings are sealed and permanently lubricated, and should be replaced when they no longer turn freely to avoid damaging the work surface.

Fig. 16 (17) (20)

Mechanical assembly diagram showing a Bosch 3D model with mounting bracket and base mount (no text or symbols)

Operation

Roller/Bushing Guide

(Fig. 18)

The optional Fixed Base Roller/Bushing Guide 21 is used when edge-forming or trimming with unpiloted/non-bearing bits.

Attachment of Roller/Bushing Guide

Attach the Roller/Bushing Guide 21 using the Rear Accessory Thumb Screw 17 and washer.

Adjustment of Roller/Bushing Guide

Vertical Adjustment:

1. Loosen the Rear Accessory Thumb Screw 17 and adjust up or down as necessary to allow roller/bushing 24 to ride on the intended guiding surface.
2. Tighten wing screw.

Horizontal Adjustment:

Whether making straight or bevel cuts, the width of material removed is determined by the distance between the front of the router bit's cutter and the front of the roller/bushing.

Adjust the front of the roller/bushing as follows:

1. Loosen Wing Nut 25 at the bottom.
2. Rotate the Wing Nut 26 on the back of the guide to move the roller/bushing in or out to create the amount of cutter exposure needed to trim the laminate flush with the guiding surface or to create the desired bevel.
3. Be sure the bit clears the top of the roller/bushing guide by at least 1/8" (3 mm) to avoid damage.
4. Tighten Wing Nut 25 on the bottom of the guide assembly.
5. Make a trial cut to check the setting and re-adjust as necessary.

Use of the Roller/Bushing Guide

1. With the guide installed and adjusted, the router should be fed normally, keeping the guide in contact with the edge of the workpiece at all times.
2. To maintain a consistent width of cut, a consistent angle must be maintained between the router and the workpiece.

Fig. 18 (17) (21) (26) (24) (25)

Maintenance

WARNING

To avoid accidents, always disconnect the battery pack from the tool before cleaning or performing any maintenance.

WARNING

Never immerse your tool, battery pack, or charger in liquid, or allow liquid to flow inside them.

General maintenance

Keep your trim router, accessories, battery pack and charger in good working order by adopting a regular maintenance program. Inspect your trim router for issues such as undue noise, binding of moving parts, breakage of parts, or any other condition that may affect trim router operation.

If the trim router does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the trim router still does not work properly, return the trim router, charger and battery pack to a BOSCH service facility for repairs.

Service

WARNING

Have your power tool serviced by a qualified

repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Cleaning

Certain cleaning agents and solvents damage plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Periodically remove dust from the tool by wiping with a clean rag or using compressed air on the inside of the base and motor unit as well as the fine depth adjustment system.

Remove dust and debris from all vents. Keep the trim router clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean the trim router, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Storage and Maintenance

Store trim router and accessories in a cool dry place and avoid freezing. Before use, check router bits for cracks and fractures, do not use if damage is suspected.

Accessories

WARNING

Do not use attachments/accessories other than those specified by Bosch. Use of attachments/accessories not specified for use with the tool described in this manual may result in damage to tool, property damage, and/or personal injury.

Fig. 19

PR114

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

PR102

PR003

RA1133

Technical line drawing of a mechanical component with internal curved surfaces (no text or symbols)

RA1132

RA1151*

*sold separately

Troubleshooting

WARNING

Disconnect battery pack from tool before assembly, adjustments, troubleshooting or changing accessories. Such preventive safety measures

reduce the risk of starting the tool accidentally, which may result in personal injury.

Trouble Cause Corrective Action
Trim router does not operate.	No battery inserted/battery discharged.	Insert charged battery.
	Battery and tool temperature too high/low.	Allow battery and/or trim router to reach permitted operating temperature. See “Specifications” on page 10.
Trim router operates intermittently.	Battery not fully charged. Charge	battery.
	Internal error.	Return to Bosch service center for service.
Trim router operates for a short time or at a decreasing rate per battery charge.	Battery not fully charged. Charge	battery.
	Battery worn. Replace battery.
Trim Router is hard to control.	Incorrect direction of feed.	Reverse the direction of feed.See “Feeding the Trim Router” on page 16.
Trim router runs slow; rough cuts, poor cutting performance.	Dull or damaged router bit. Replace router bit.
	Trim router is overloaded.	Back off the workpiece to reduce the load.
		Feeding too fast, adjust the speed of feed or the trim router's speed setting.
		Cut is too large for one pass.Make multiple progressively deeper cuts.
Friction burns on the workpiece.	Feeding too slow.	Adjust the speed of feed or the trim router's speed setting.

Mechanical assembly diagram showing a Bosch drill press on a wooden workbench with a clamping tool (no text or symbols)

Mechanical assembly diagram showing a Bosch-branded component with mounting bracket and base mount (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

PR102

PR003

RA1133

Technical line drawing of a mechanical component with internal channels and a handle (no text or symbols)

RA1132

RA1151*

*accessoire en option

BASCH (17) A (19)

Fig. 9

10 11

Transporte

3D illustration of a Bosch drill press on wooden workbenches, showing clamping mechanism (no text or symbols)

Mechanical assembly diagram showing a TOSOM component mounted on a base with a bolted joint (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

PR102

PR003

RA1133

Technical line drawing of a mechanical component with internal channels and a handle (no text or symbols)

RA1132

This page was intentionally left blank

For details on the terms of the limited warranty for this product, go to https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.

GARANTIE LIMITÉE

© Robert Bosch Tool Corporation

1800 W. Central Road

Mt. Prospect, IL 60056-2230

1619PC5298 12/2024

1619PC5298
