USER MANUAL Town Square S 4216228 American Standard

INSTALLATION INSTRUCTIONS CARE AND MAINTENANCE

TOWN SQUARE® S

1.28 gpf / 4.8 Lpf 2-piece Toilet

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE! NOTE: Pictures may not exactly define contour of china and components.

BEFORE INSTALLING YOUR TOILET: please see your product spec page to verify the dimensions and water supply connections. Visit our website where you can search by Model number for the product spec page at: http://www.americanstandard-us.com/

4216.228 LEFT HAND TANK / 4216.823 RIGHT HAND TANK

Line drawing of a rectangular kitchen appliance with a lid and side panel (no text or symbols)

EZ-INSTALL KIT INCLUDED WITH TANK
Coupling Washer (1)
Plastic pling Nut (1)

Metallic (Brass) Tank Nuts (2)

Attachment Handle

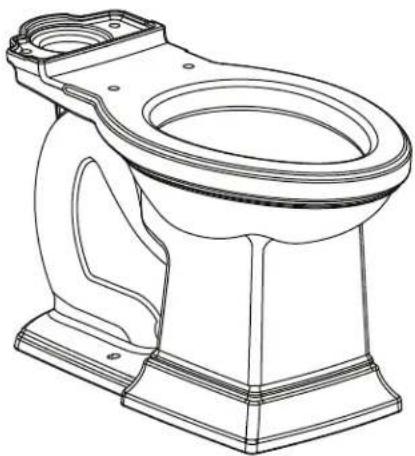

BOWL 3271.101 RIGHT HEIGHT® ELONGATED

Line drawing of a standard toilet with handle and gasket (no text or symbols)

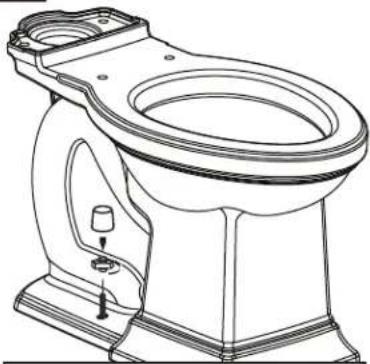

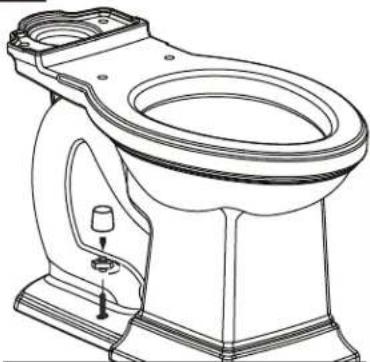

EZ-INSTALL KIT INCLUDED WITH BOWL
Bolt Caps (2)
Bowl-To-Floor Knobs (2)
T-Bolts with Retainer (2)
SOLD SEPARATELY

Water Supply Line

Wax Ring

Line drawing of a double-gall toilet (no text or symbols)

Toilet Seat

Before You Start:

Turn Off Water Supply

Illustration of hands operating a mechanical device with a cylindrical component and a curved handle (no text or symbols)

If Removing An Existing Toilet

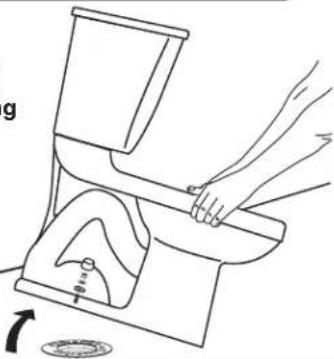

Flush to remove water from tank; sponge remaining water from bowl before removing toilet.

Line drawing of a toilet with hand pressing down and a coin partially visible below (no text or symbols)

Clean Flange

Caution: If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gases.

Pure technical line drawing of a Y-shaped pipe fitting (no text or symbols)

Recommended fitting type for back-to-back installations.

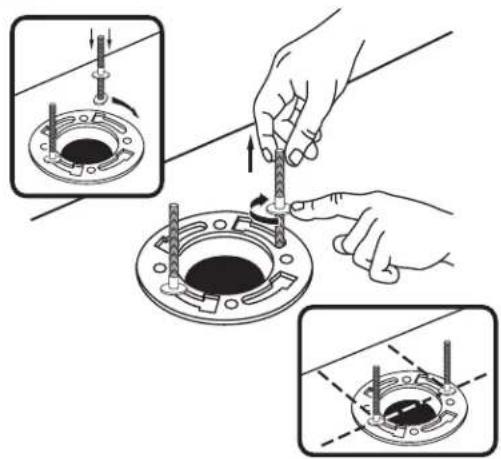

BACK-TO-BACK INSTALLATION

Depending upon your plumbing and venting conditions, the flow from the toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.

1

Illustration of hands installing or adjusting a mechanical component with three views (no text or symbols present)

2

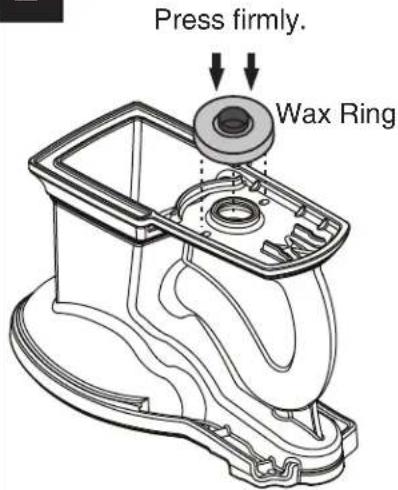

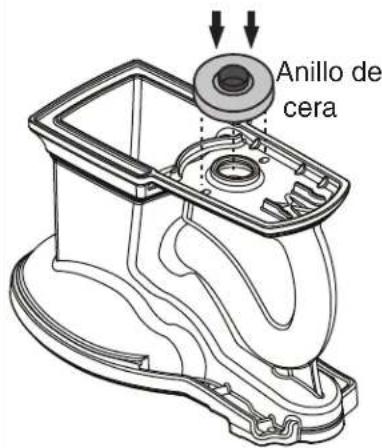

Press firmly. Wax Ring

3

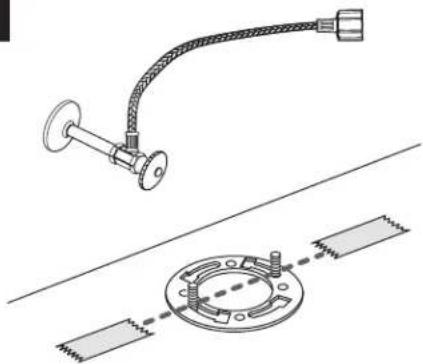

Technical illustration of a flexible hose assembly with a flange and bolted joint, shown above and below (no text or symbols)

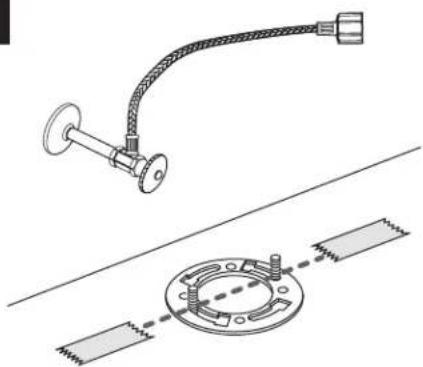

TIP: Place 2 pieces of masking tape on floor (as shown) to help with alignment in step 4.

4

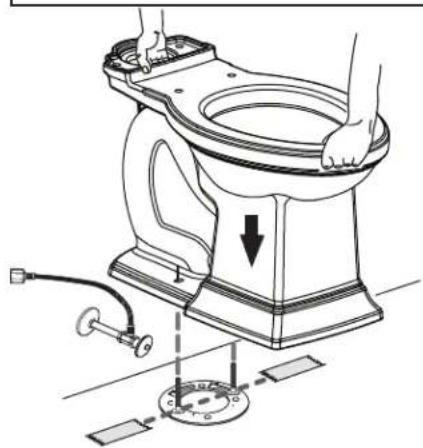

Apply weight evenly. Do not move after placement. Water tight seal may break.

Line drawing of a toilet with hands holding the cup and a valve, showing mechanical components (no text or symbols)

Line drawing of a standard toilet with handle and base plate (no text or symbols)

Hand Tighten Only. Do Not Overtighten.

Line drawing of a rectangular industrial container with a circular base and side connectors (no text or symbols)

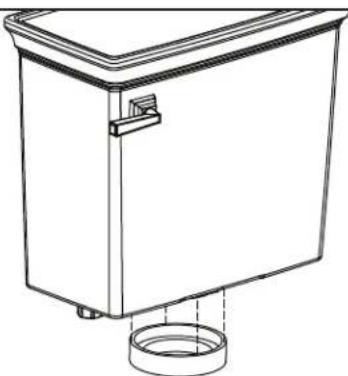

Tank-to-Bowl Gasket

Place the tank gasket over the tank nut ensuring there are not gaps between the gasket and the chinaware.

7

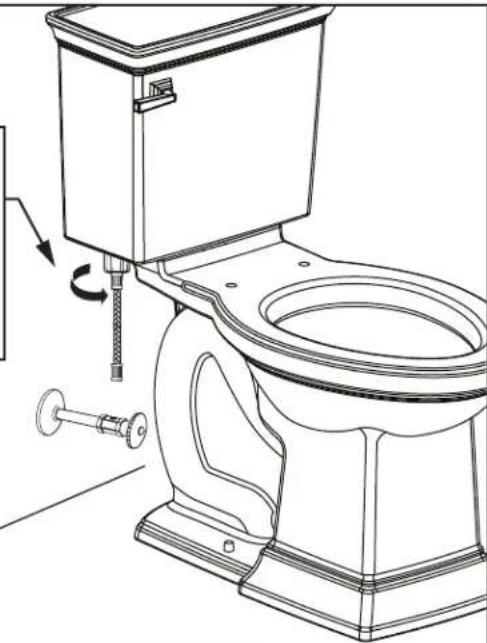

Before tightening tank down onto bowl, connect water supply line. (Water supply line sold separately.) Hand tighten nut.

Line drawing of a bathroom toilet with faucet and valve assembly (no text or labels)

8

Place tank washers and nut over tank bolts. Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china contact.

NOTE: To ease installation, push down on the top of the tank while tightening handles.

9

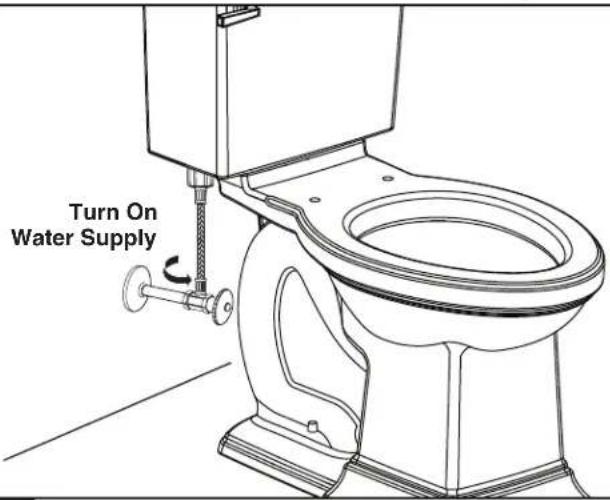

Turn On Water Supply

WARNING: Overtightening of water supply line nuts could result in breakage and potential flooding. If the connection leaks after hand tightening, replace the supply line. Do not use any type of sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.

10a

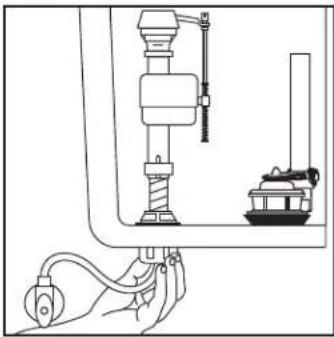

Before continuing, determine the type of water supply connecation you have from the chart below and use the appropriate assembly parts required to properly reconnect the water supply. DO NOT use plumber's putty to seal these fittings.

METAL / COPPER FLARED TUBING

These parts must be used as illustrated to insure water-tight connection. Use of existing coupling nut may result in water leakage. Water supply tube or pipe must extend at least 1/2" inside threaded shank of valve (does not apply to flanged tubing).

METAL FLANGED TUBING

LOCK NUT EXISTING WASHER EXISTING COUPLING NUT WATER SHUT-OFF

Use existing coupling nut and washer.

METAL SPIRAL TUBING

LOCK NUT EXISTING CONE WASHER COUPLING NUT WATER SHUT-OFF

Use existing spiral cone washer. Fluidmaster cone washer may not seal completely on spiral type supply line.

VINYL / BRAIDED CONNECTOR

Captive cone washers already included. No additional washers needed.

CAUTION: DO NOT USE CONE WASHER WITH PLASTIC SUPPLY LINE.

CAUTION: Overtightening of LOCK NUT or COUPLING NUT could result in breakage and potential flooding.

Technical line drawing of a mechanical device with a drill bit and base mount (no text or symbols)

With correct washers in place (see Step 10a), tighten COUPLING NUT 1/4 turn beyond hand tight.

DO NOT OVERTIGHTEN.

11

Adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down.

If bowl fails to siphon, an adjustment may be required with the lift chain. Simply remove the bead chain from the retainment clip and take up slack on the chain, and reinsert on lift rod. Make sure the chain is not too taught.

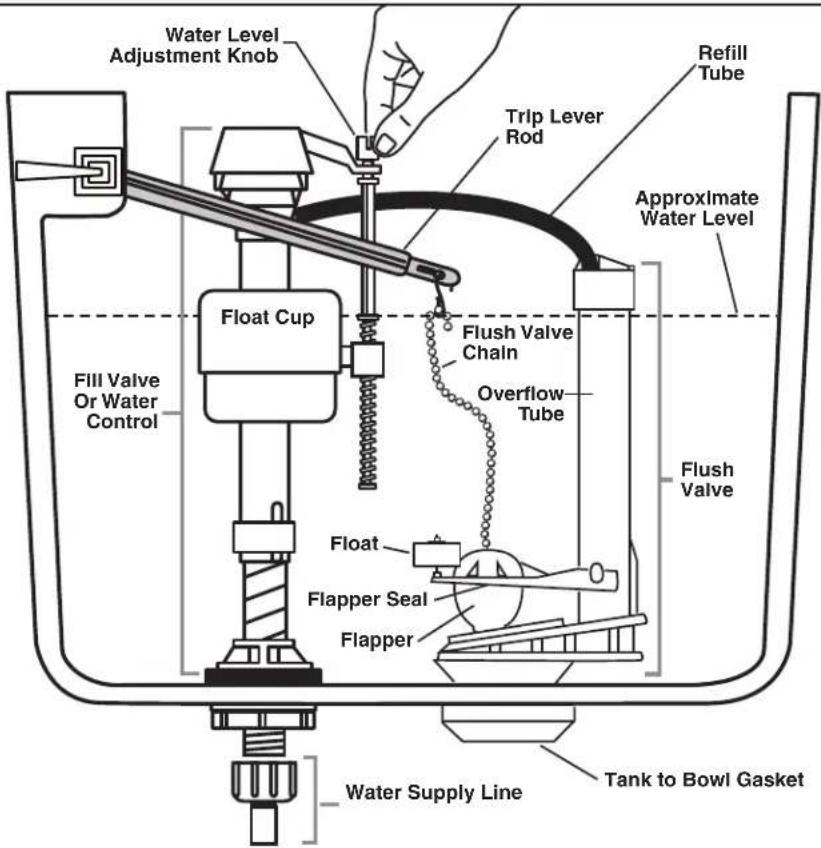

Water Level Adjustment Knob Trip Lever Rod Refill Tube Approximate Water Level Float Cup Flush Valve Chain Overflow Tube Flush Valve Fill Valve Or Water Control Float Flapper Seal Flapper Tank to Bowl Gasket Water Supply Line

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE	CORRECTIVE ACTION
Does not flush	a. Water supply valve closed.b. Supply line blocked.c. Flush valve chain too loose or disconnected.d. Sand or debris lodged in water control.	a. Open valve and allow water to fill tank.b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble. Also, see Fluidmaster maintenance at:www.americanstandard-us.com/enews/fluidmasterguide.pdfc. Readjust chain length as required.d. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf
Poor or sluggish flush	a. Bowl water level too low.b. Supply valve partly closed.c. Partially clogged trapway and/or drain pipe and/or vent.d. Supply pressure too low.	a. Check that refill tube is connected to water control and inserted into tank overflow without being kinked or damaged.b. Open supply valve fully. Be sure that proper supply tube size is used.c. Remove obstruction. Consult a plumber if necessary.d. Normal supply pressure must be at least 20 psi.
Toilet leaks	a. Poor supply line connection.b. Poor bowl to tank/floor connection.	a. Review Step 10 of installation procedure.b. Review Step 1 through 9 of installation procedure.
Toilet does not shut off	a. Flush valve chain too tight, holding flush valve open.b. Flush valve seat and/or flapper worn or deformed.c. Sand or debris lodged in water control.	a. Readjust chain length as needed. Review Step 11.b. Shut off water supply. Replace flush valve.c. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some bathroom chemicals and cosmetics may damage the seat's finish.

WARNING: Do not use in-tank cleaners. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the tank. This damage can cause leakage and property damage.

American Standard shall not be responsible or liable for any tank fitting damage caused by the use of cleaners containing chlorine (calcium hypochlorite).

In the United States:

American Standard Brands

1 Centennial Ave.

Piscataway, New Jersey 08854

Attention: Director of Customer Care

For residents of the United States, warranty

information may also be obtained by calling the

following toll free number: [phone]

www.americanstandard.com

In Canada:

LIXIL Canada, ULC

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.americanstandard.ca

In Mexico:

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 01-800-839-1200

www.americanstandard.com.mx

INSTRUCTIONS D'INSTALLATION ENTRETIEN ET MAINTENANCE

TOWN SQUARE ^MD S

Line drawing of a rectangular kitchen appliance with a lid and side panel (no text or symbols)

ENSEMBLE EZ-INSTALL INCLUS AVEC LE RÉSERVOIR

Line drawing of a standard brick toilet with handle and side panel (no text or symbols)

ENSEMBLE EZ-INSTALL INCLUS AVEC LA CUVETTE

Cache-boulons (2)

Boutons cuvette-sol (2)

Line drawing of a standard oval-shaped toilet or sink (no text or symbols)

Siège de toilette

Illustration of hands operating a mechanical device with a cylindrical component and a curved handle (no text or symbols)

Technical line drawing of a Y-shaped pipe fitting (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with three views (no text or symbols present)

2

Enfoncez fermement.

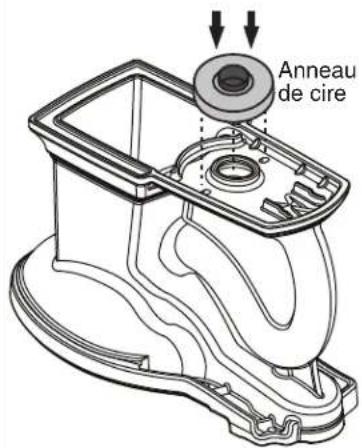

Anneau de cire
