USER MANUAL Silas TS210P TOTO

Pressure Balance Trim

TABLE OF CONTENTS

Thanks for Choosing TOTO!......2Before Installation......2Common Tools Needed......2Care & Cleaning......2Included Parts......3Installation Procedure......3-4Warranty......5Rough-In Dimensions......14-15

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

BEFORE INSTALLATION

4 Observe all local plumbing codes.4 Make sure the water supply is shut off.4 Read these instructions carefully to ensure proper installation.4 TOTO reserves the right to update the product design without notice.

COMMON TOOLS NEEDED

Screwdriver

CARE & CLEANING

Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

INCLUDED PARTS

Check to make sure that all these parts were included in your packaging:

Line drawing of a mechanical pump or lever assembly (no text or symbols)

Handle Assembly*

Hot Cold

Escutcheon*

Collar

Adapter Long Screws (2)Screw and Lock Washer

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

1. Confirm that the valve has been installed properly and pull the plaster guard outwards to remove.

N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSPTM installation manual for further information.

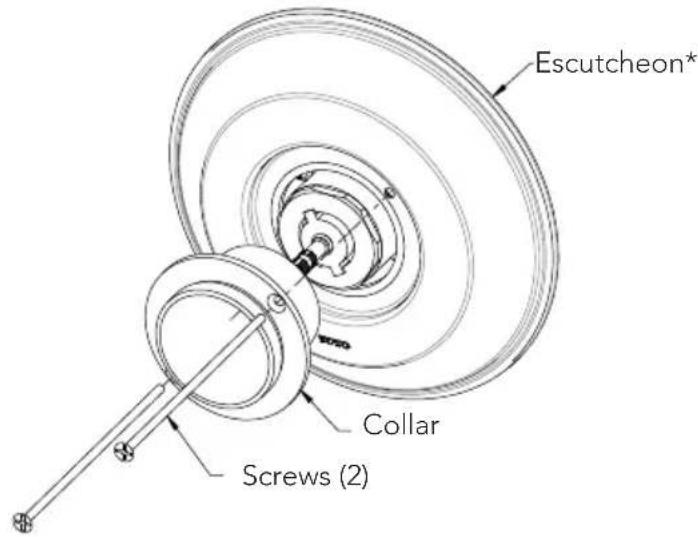

1. Hold the escutcheon against the wall with the TOTO logo at the bottom. Secure the collar and escutcheon by tightening the two screws into the valve.

Escutcheon* Collar Screws (2)

Installation Procedure (continued)

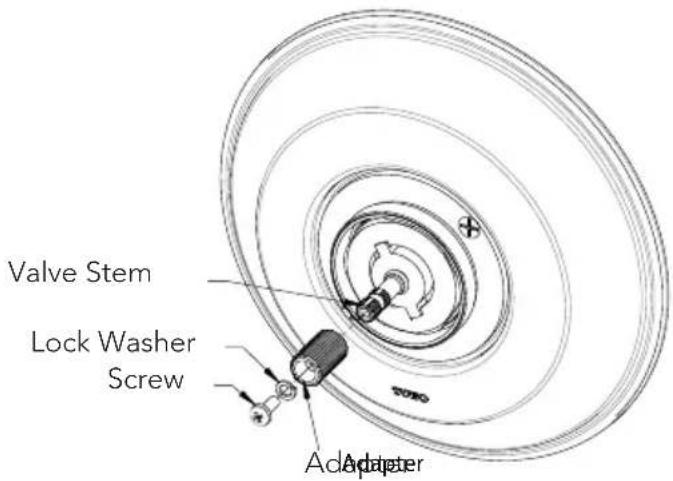

1. Secure adapter to the valve with the included screw and lock washer.

Valve Stem Lock Washer Screw Adapter

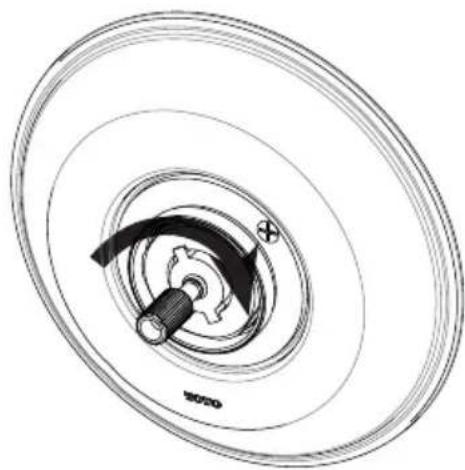

1. Turn the adapter clockwise manually until it stops.

Technical diagram of a mechanical component with concentric circles and a central knob (no text or symbols)

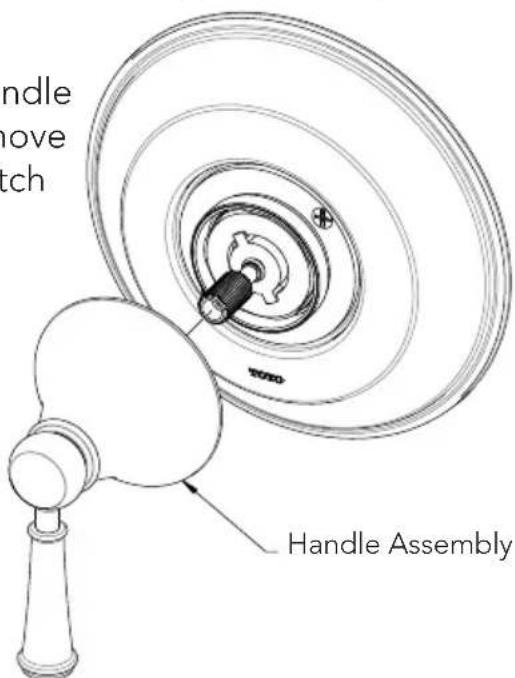

1. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.

If fine adjustment of handle position is desired, remove adapter, rotate one notch tooth, and reinstall.

handle move tch Handle Assembly

WARRANTY

1. TOTO® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:
   a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
   b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
   c. Damage or loss resulting from sediments or foreign matter contained in a water system.
   d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
   e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
   f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGARIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of a mechanical pump or lever assembly (no text or symbols)

Hot Cold

Installation Procedure (continued)

Technical diagram of a mechanical component with concentric circles and a central knob, labeled '2020' (no readable text or symbols beyond label)

Technical line drawing of a mechanical pump or lever assembly (no text or symbols)

Hot Cold

Technical diagram of a mechanical component with concentric circles and a central knob (no text or symbols)

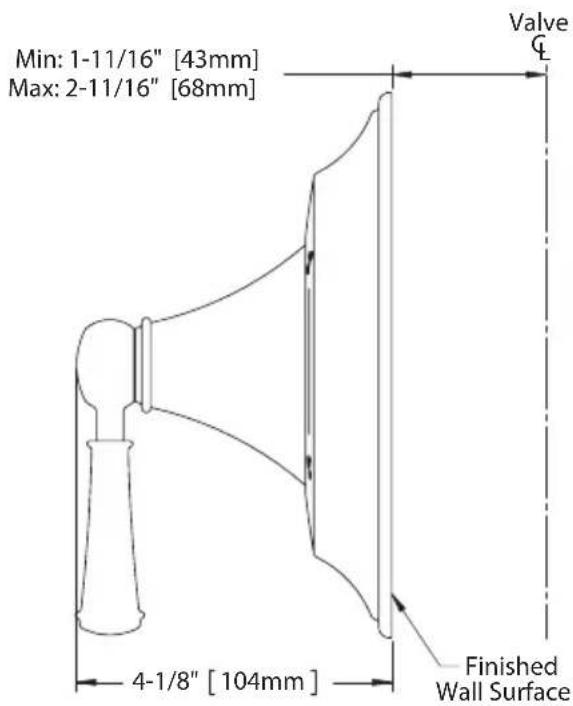

Min: 1-11/16" [43mm] Max: 2-11/16" [68mm] Valve 4-1/8" [104mm] Finished Wall Surface

TS220P1

Ø7-1/16" [180mm]

Min: 1-11/16" [43mm] Max: 2-11/16" [68mm] Valve 4-1/8" [104mm] Finished Wall Surface

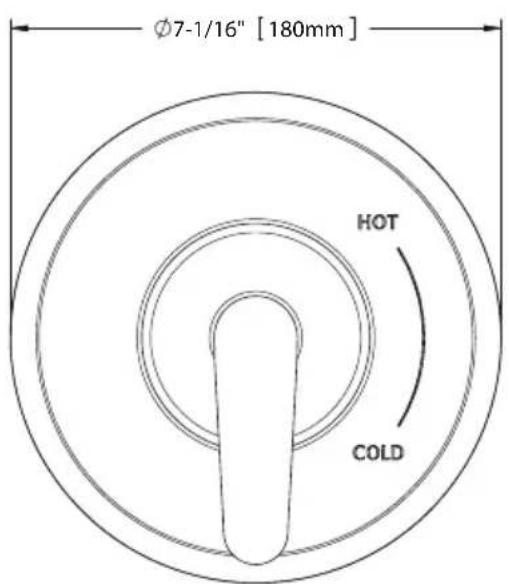

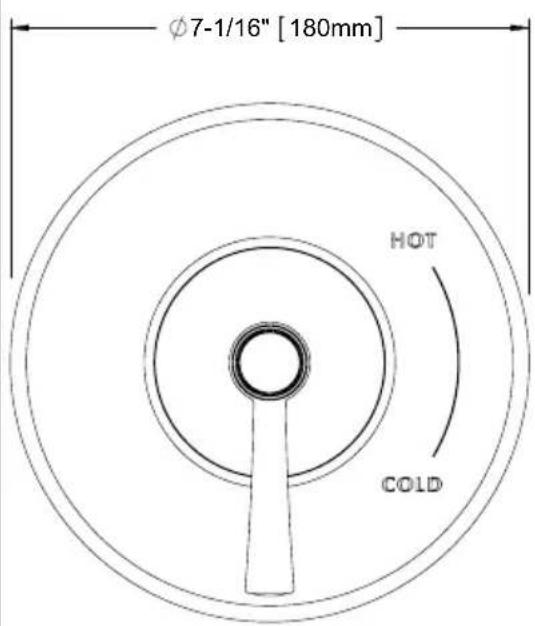

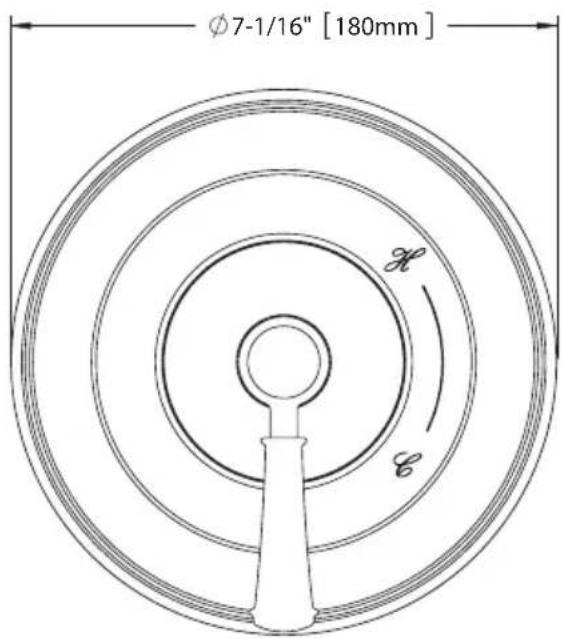

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

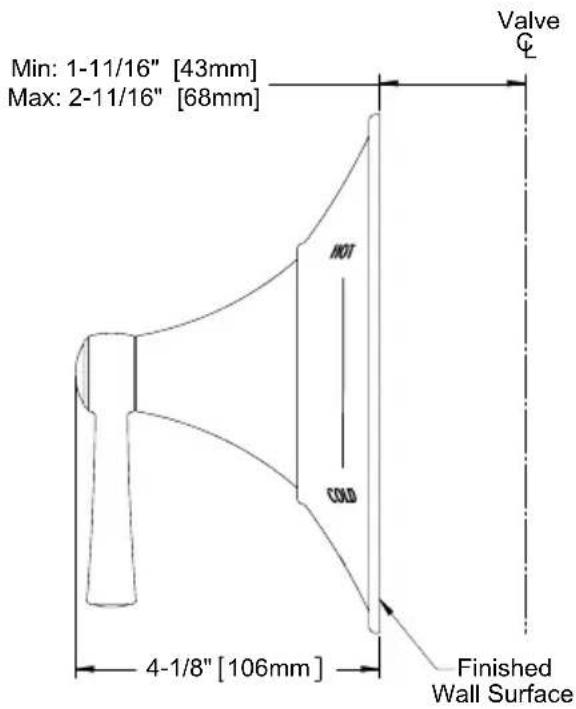

TS210P

Ø7-1/16" [180mm] HOT COLD

Min: 1-11/16" [43mm] Max: 2-11/16" [68mm] Valve NOT COLD 4-1/8" [106mm] Finished Wall Surface

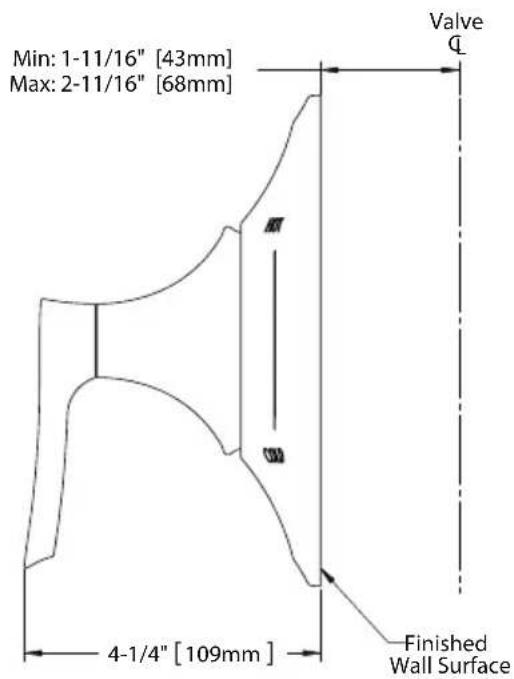

TS230P

Ø7-1/16" [180mm] HOT COLD

Min: 1-11/16" [43mm] Max: 2-11/16" [68mm] Valve 4-1/4" [109mm] Finished Wall Surface

TOTO®

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4206

Rev C
