Mod el No. P250070

Serial No. ____

Vendor No. 126900

785247248803

785247248797

□ 785247248810

PROGRESS LIGHTING™

Safety Rules....1.
Unpacking Your Fan 2.
Installing Your Fan .... 3.
Operating Your Transmitter 8.
Care of Your Fan 9.
Troubleshooting 10.
Specifications 11.

Table of Contents

1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.) Or Less" and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of light fixtures are not acceptable for fan support and may need to be replaced. Due to the complexity of the installation of this fan, a qualified licensed electrician is strongly recommended.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.

1. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked FOR FAN SUPPORT.
2. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from the trailing edge of the blades to the floor.
3. To operate the reverse function on this fan, press the reversing button while the fan is running.

4. Avoid placing objects in the path of the blades.

5. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

6. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
8. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL Listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the Instructions packaged with the light kits

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY OR AFTER INSTALLATION, DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

1. Safety Rules

NOTE READ AND SAVE ALL INSTRUCTIONS!

Exploded view diagram of a smart air conditioner with numbered parts for identification

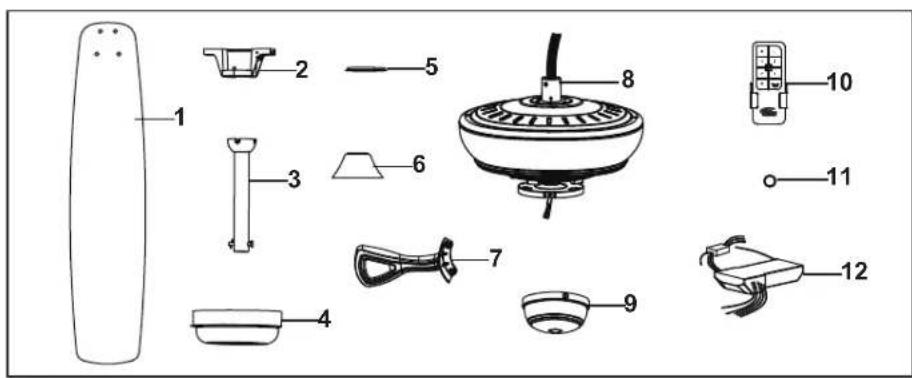

Unpack your fan and check the contents. You should have the following items:

1. Fan blades (5)
2. Hanger bracket
3. Ball/downrod assembly
4. Canopy
5. Decorative cover

6. Coupling cover

7. Set of blades bracket (5)

8. Fan motor assembly
9. Switch cover
10. Transmitter incl. holder + 2 mounting screws
    11.3V battery
11. Receiver with 6 wire nuts

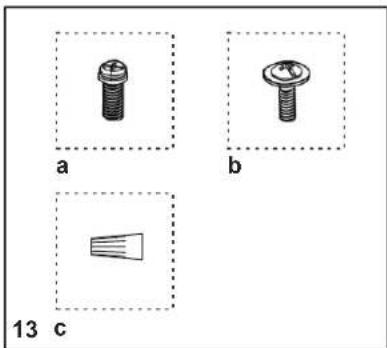

Three technical drawings of screw components labeled a, b, and c, shown with dashed outlines (no text or symbols beyond labels)

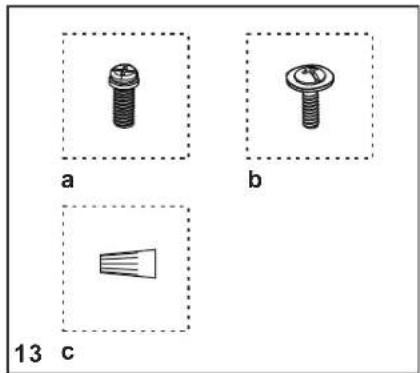

1. Loose parts bag containing:

a. Blade bracket attachment hardware (11 screws)
b. Blade attachment hardware (21 screws)
c. Mounting hardware Wire nuts (4)

Unpacking Your Fan 2.

Tools Required

Phillips screw driver, straight slot screw driver, adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs). Do not use plastic outlet boxes.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO AN OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT AND USE THE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES MAY NOT BE ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

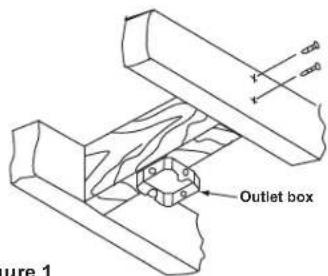

Figure 1 Outlet box

Figure 1

Outlet box

Figure 2

Angled ceiling maximum 25 angle Provide strong support Recessed outlet box Ceiling hanger bracket

Figure 3

Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling.

Outlet box Figure 4

Figure 4

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4 (available at your Progress Lighting Retailer).

3. Installing Your Fan

Hanging the Fan

downrod. Insert the lock pin through the hole near the end of the hanger pin until it snaps into its locked

REMEMBER to turn off the power. Follow position, and tighten set screws as shown in Fig.8. Cut the steps below to hang your fan properly: off excess fixture wires leaving approximately 6 to 9

Step 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger bracket as shown in Fig. 5.

Step 2. Secure the hanger bracket to the ceiling outlet box with the screws and washers provided with your outlet box.

Step 3. Remove the 5 motor screws preassembled at the bottom of motor assembly, discarding the screws and the preassembled shipping blocks. (Fig.6)

Step 4. Remove the hanger pin, lock pin and set screws from the top of the motor assembly. (Fig. 7)

Step 5. Route wires exiting from the top of the fan motor through the coupling cover, decorative cover, canopy and then through the downrod. (Fig. 8)

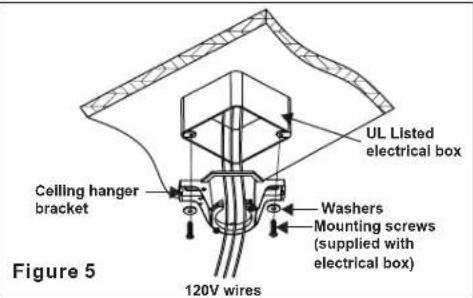

UL Listed electrical box Ceiling hanger bracket Washers Mounting screws (supplied with electrical box) 120V wires Figure 5

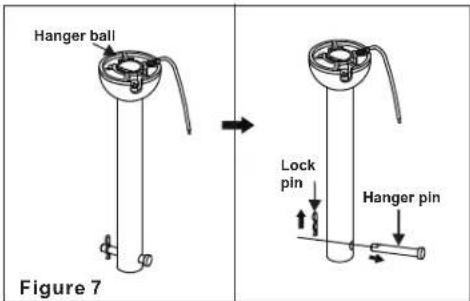

Hanger ball Figure 7 Lock pin Hanger pin

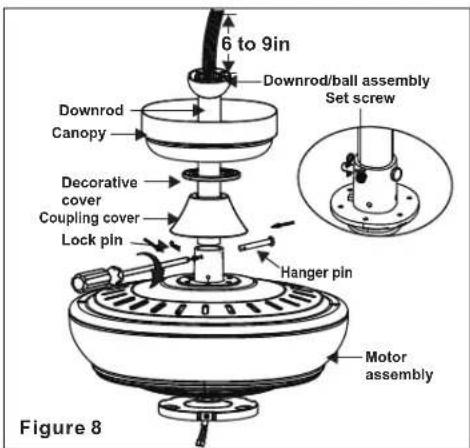

6 to 9in Downrod/ball assembly Set screw Downrod Canopy Decorative cover Coupling cover Lock pin Hanger pin Motor assembly Figure 8

WARNING

FAILURE TO PROPERLY INSTALL

LOCK PIN AS NOTED IN STEP 6

COULD RESULT IN FAN LOOSENING AND

POSSIBLY FALLING.

Step 6. Align the holes at the bottom of the downrod with the holes in the collar on top of the motor housing (Fig. 8). Carefully insert the hanger pin through the holes in the collar and downrod. Becareful not to jam the pin against the wiring inside the

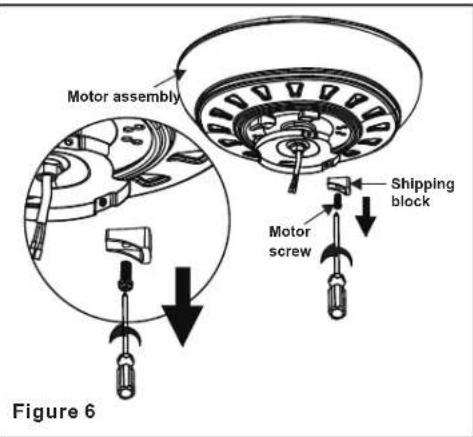

Motor assembly Motor screw Shipping block Figure 6

Step 7. Carefully lift the assembly and rest the hanger ball of downrod assembly on the hanger bracket attached to the outlet box. Be sure the groove in the hanger ball is lined up with the tab on the hanger bracket. (Fig.9)

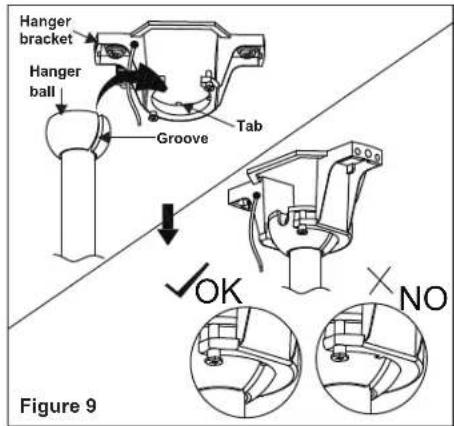

Hanger bracket Hanger ball Groove Tab ✓OK NO Figure 9

Make the Electric Connections

WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

WARNING: Fan must be installed at a maximum distance of 20 feet from the transmitting unit for

5.

proper signal transmission between the transmitting unit and the fan's receiving unit. If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

Step 1. Connect green wires from EMI filter and related parts according to the wiring diagram as shown in Figure 11, make sure EMI filter is properly seated in outlet box.

Step 2. Place the EMI filter into the ceiling box before installing the receiver into the bracket. Insert the receiver into the mounting bracket with the flat side of the receiver facing the ceiling. (Fig. 10)

Step 3. Motor to receiver electrical connections: Connect the grey wire from the fan to the grey wire from the receiver. Connect the red wire from the fan to the red wire from the receiver. Connect the yellow wire from the fan to the yellow wire from the receiver. Connect the blue wire from the fan to the blue wire from the receiver. Connect the white wire from the fan to the white wire from the receiver. (Fig.11)

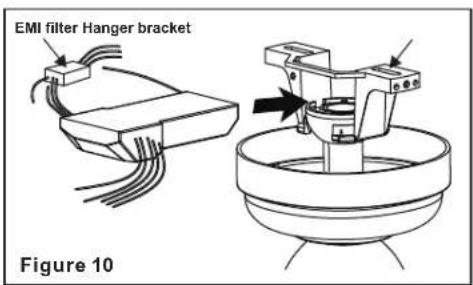

EMI filter Hanger bracket Figure 10

Step 4. Receiver to house supply wires electrical connections: Connect the black (hot) wire from the ceiling to the black wire marked "AC IN L" from the receiver. Connect the white (neutral) wire from the ceiling to the white wire marked "AC IN N" from the receiver. (Fig.11)

Secure all wire connections with the plastic wire nuts provided.

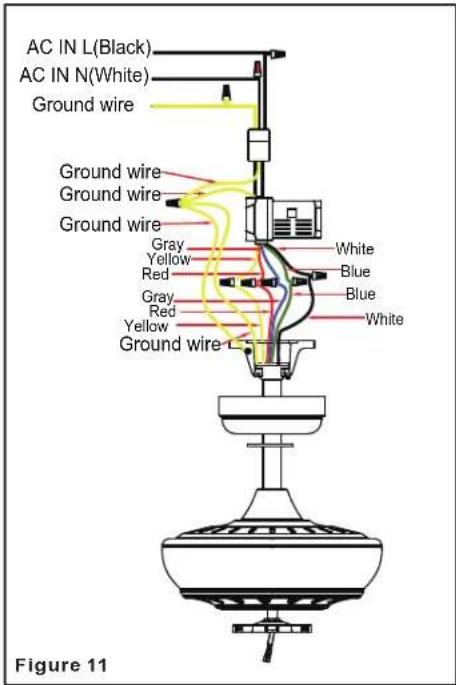

AC IN L(Black) AC IN N(White) Ground wire Ground wire Ground wire Gray Yellow Red Gray Red Yellow Ground wire White Blue Blue White Figure 11

Finishing the Installation

Step 1. Tuck connections neatly into ceiling outlet box.

Step 2. Slide the canopy up to mounting bracket and place the key hole on the canopy over the screw on the mounting bracket, turn canopy until it locks in place at the narrow section of the key holes. (Fig. 12)

Step 3. Align the circular hole on canopy with the remaining hole on the mounting bracket, secure by tightening the two set screws. Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.

WARNING Make sure the notch on the hanging bracket properly sits in the groove in the hanger ball before attaching the canopy to the bracket by turning the housing until it drops into place.

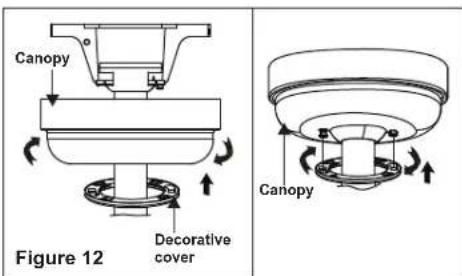

Canopy Decorative cover Figure 12 Canopy

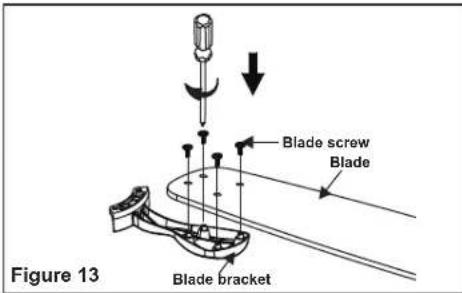

Blade screw Blade Blade bracket Figure 13

Attach the blades to the blade brackets using four (4) blade screws as shown in Figure 13. Repeat this step for the 4 remaining blades and blade brackets. Tighten the screws securely.

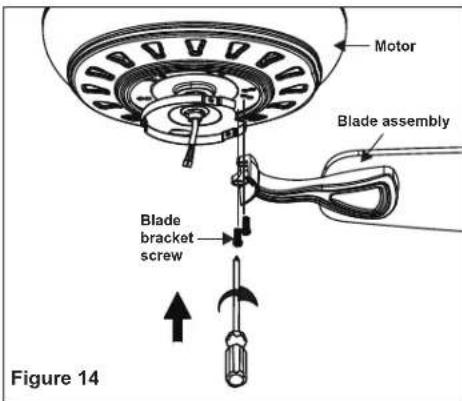

Motor Blade assembly Blade bracket screw Figure 14

Fasten the blade assembly to the motor using the blade bracket screws provided as shown in Figure 14. Repeat the same steps until all blades are installed.

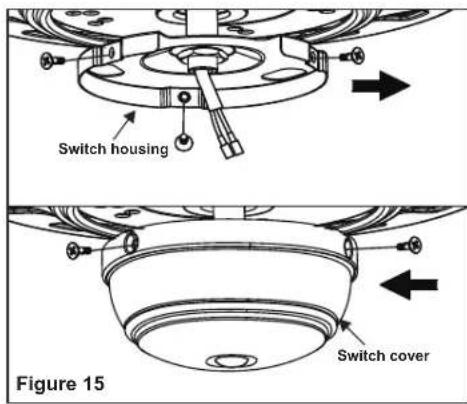

Switch housing Switch cover Figure 15

Attached the switch cover to the switch housing using the three screws from the switch housing. (Fig.15)

Blade Balancing

All blades are grouped by weight. Because natural woods vary in density, the fan may wobble even though the blades are weighed equally.

The following procedure should correct most fan wobbling problems. Check after each step.

1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure this distance as shown in Figure 16. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY. DO NOT BEND THE BLADE

HOLDERS WHILE INSTALLING.

BALANCING THE BLADES, OR CLEANING

THE FAN. DO NOT INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN

BLADES.

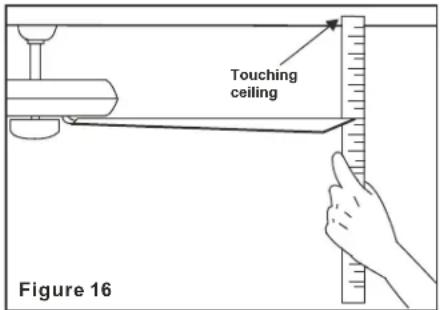

Touching ceiling Figure 16

Remote Control Button Definitions:

1. “0, 1, 2, 3, 4, 5, 6” buttons: These seven buttons are used to set the fan speed as follows:

0 = Turn the fan OFF

1 = Minimum speed

2 = Low speed

3 = Medium low speed

4 = Medium speed

5 = Medium high speed

6 = High speed

1. If using an optional light kit, The “☐” button turns the light ON or OFF and also controls the brightness setting. Press and release the button to turn the light ON or OFF. Press and hold the button to set the desired brightness.

2. “ ” button: Reverse switch (control the direction)

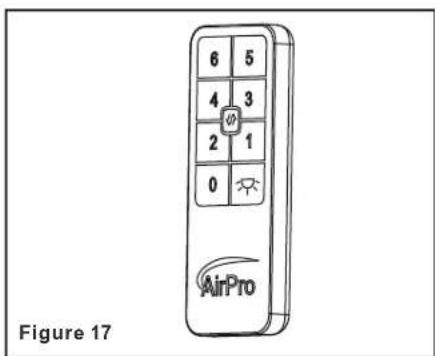

6 5 4 3 2 1 0 AirPro Figure 17

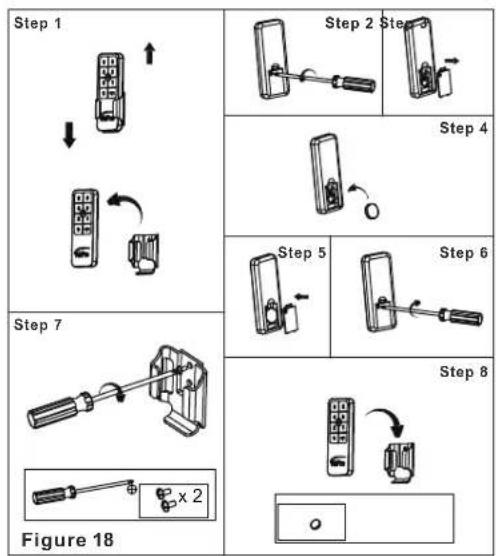

Installing the Remote Control Holder and Battery

Attach the remote control holder with the remote control holder mounting screw. (Figure 18)

Install a 3V battery (included) into the remote control. To prevent damage to the remote control, remove the battery if not use for long periods. (Figure 18)

Operating Your Transmitter 8.

Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans and so on.

NOTE: To operate the reverse function on this fan, press the reverse button on the remote while the fan is running.

Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. 19. This allows you to set your air conditioner on a warmer setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow moves warm air off the ceiling area as shown in Fig. 20. This allows you to set your heating unit on a cooler setting without affecting your comfort.

Diagram of airflow around a fan blade with directional arrows indicating motion (no text or symbols)

Diagram of airflow around a mechanical component, showing curved arrows indicating direction (no text or symbols)

Here are some suggestions to help you maintain your fan

1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.

IMPORTANT

MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS"

9. Care of Your Fan

Problem Solution

Fan will not start.

1. Check circuit fuses or breakers.

2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off.

Fan sounds noisy.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.

3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION: Make sure main power is off.

4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.

5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also secure.

6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

Remote control malfunction

1. Do not connect the fan with wall mounted variable speed control (s).

Troubleshooting 10.

Fan Size Speed		Volts	Amps	Watts	RPM	CFM	N.W. G.	W. C.F.
72"	Low	120	0.08	3.51	49	3467.15	21.38	25.08	3.40'
	High	120	0.54	33.45	122	8760.33	lbs	lbs

These are approximate measures. They do not include Amps and Wattage used by the light kit.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

©2020 Progress Lighting, Inc.

701 Millennium Blvd.,

Greenville, SC 29607

All Rights Reserved

11. Specifications

PROGRESS LIGHTING™

AirPro

Black and white image of a five-blade cabinet fan with a circular head and four blades (no text or symbols visible)

93140254_A

P250070

Exploded view diagram of a smart air conditioner with numbered parts for identification

Three technical diagrams showing different screw and pin configurations (a, b, c) with no visible text or symbols.

Diagram of a mechanical or fluid system with curved arrows indicating flow or movement, no text or symbols present.

©2020 Progress Lighting, Inc.

701 Millennium Blvd.,

Greenville, SC 29607

All Rights Reserved

Black and white image of a five-blade cabinet fan with a circular head and four blades (no text or symbols visible)

93140254_A

P250070

Exploded view diagram of a smart air conditioner with numbered parts for identification

Three technical diagrams showing different screw and nut configurations (a, b, c) with no visible text or symbols.

Diagram showing airflow around a mechanical component with curved arrows indicating direction (no text or symbols)

©2020 Progress Lighting, Inc.

701 MillenniumBlvd.,

Greenville, SC 29607

All Rights Reserved
