EY0214 - Battery charger PANASONIC - Free user manual and instructions

Product Type	Battery Charger
Brand	Panasonic
Model	EY0214
Weight	1.12 kg
Power Supply	Mains, voltage indicated on charger plate
Compatible Battery Types	Panasonic NiMH/NiCd batteries (models listed in the manual)
Typical Charging Time	Approximately 20 to 45 minutes depending on battery (standard charge)
Indicators	Red charging indicator, orange waiting indicator
Protection Function	Automatic shut-off at end of charge, thermal protection
Ventilation	Built-in fan for cooling
Charging Temperature Range	Between 0°C and 40°C
Safety	Disconnect by plug, do not use extension cord, do not expose to moisture
Maintenance	Unplug before cleaning, do not immerse, store in a dry place
Repairability	Contact an authorized Panasonic dealer for any repairs
General Information	Household use, charge only recommended batteries

Frequently Asked Questions - EY0214 PANASONIC

What types of batteries can I charge with the EY0214 charger?

The Panasonic EY0214 charger is designed to charge compatible Panasonic NiMH and NiCd batteries, including models EY9001, EY9006, EY9080, EY9065, EY9101, EY9180, EY9136, EY9106, EY9168, EY9230, EY9200, etc. Refer to the complete list in the manual.

What is the typical charging time?

The standard charging time varies by battery: approximately 20 minutes for small capacities (7.2V–12V) and up to 45 minutes for larger ones (15.6V–24V). A first charge or after prolonged storage may require up to 24 hours.

What do the indicator lights on the charger mean?

The red indicator shows charging status (steady on = charging, fast blinking = charge complete, slow blinking = protective charge). The orange indicator lights up when the battery is too hot and charging is on hold.

Can I charge a cold battery?

Yes, but if the battery is below 5°C, let it return to room temperature (about one hour) before charging. The charger will not start if the battery is too hot or too cold.

Can I use an extension cord with this charger?

No, it is not recommended to use an extension cord. Plug the charger directly into a standard mains outlet to avoid fire or electric shock.

How should I store the charger and battery?

Store them in a dry place, protected from rain and snow, where temperature does not exceed 50°C (avoid cars in summer or metal sheds). Unplug the charger when not in use.

What should I do if the charging indicator does not light up?

Check that the charger is properly plugged in and the battery is correctly inserted. If the indicator remains off, the charger or battery may be defective. Contact an authorized dealer for assistance.

The charger makes noise during charging, is that normal?

Yes, it's normal. The internal fan runs to cool the battery. If you hear no sound, stop charging and contact an authorized dealer.

Can I charge a battery of another brand?

No, use only recommended Panasonic batteries. Charging other types may cause risk of explosion, fire, or damage.

What is the difference between models EY0214, EY0225, and EY0230?

These models differ in weight and charging times for different voltage ranges. The EY0214 is heavier (1.12 kg) and supports 24V batteries, while the EY0225 (0.6 kg) is for 3.6V batteries and the EY0230 (0.83 kg) for 7.2V–15.6V.

USER MANUAL EY0214 PANASONIC

SAFETY INSTRUCTIONS Read All Instruction

1) SAVE THESE INSTRUCTIONS

This manual contains important safety instructions for battery charger.

2) Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery pack.

3) CAUTION - To reduce the risk of injury, charge only applicable battery pack. Other types of batteries may burst causing personal injury and damage.

4) Do not expose charger and battery pack to rain or snow or use in damp location.

5) Use of an attachment not recommended may result in a risk of fire, electric shock, or injury to persons.

6) To reduce risk of damaging the electric plug and cord, pull by plug rather than cord when disconnecting charger.

7) An extension cord should not be used.

8) Do not operate charger with damaged cord or plug - replace them immediately.

9) Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified service agent.

10) Do not disassemble charger; take it to a qualified service agent when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

11) To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.

12) Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

13) The charger and battery pack are specifically designed to work together. Do not attempt to charge any other cordless tool or battery pack with this charger. Do not attempt to charge the battery pack with any other charger.

14) Do not attempt to disassemble the battery charger and the battery pack housing.

15) Do not store the tool and battery pack in locations where the temperature may reach or exceed 50^ C ( 122^ F) (such as metal tool shed, or a car in the summer), which can lead to deterioration of the storage battery.

16) Do not charge battery pack when the temperature is BELOW 0°C (32°F) or ABOVE 40°C (104°F).

17) Do not incinerate the battery pack. It can explode in a fire.

18) The charger is designed to operate on standard household electrical power only. Charge only on the voltage indicated on the nameplate. Do not attempt to use it on any other voltage!

19) Do not abuse cord. Never carry charger by cord or yank it to disconnect from outlet. Keep cord away from heat, oil and sharp edges.

20) Charge the battery pack in a well ventilated place. Do not cover the charger and battery pack with a cloth, etc., while charging.

21) Do not short the battery pack. A battery short can cause a large current flow, over heating and burns.

22) NOTE: If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

23) The appliance is not intended for use by young children or infirm persons without supervision.

24) Young children should be supervised to ensure that they do not play with the appliance.

CHARGING THE BATTERY

Note: When you charge the battery pack for the first-time, or after prolonged storage, charge it for about 24 hours to bring the batteries up to full capacity.

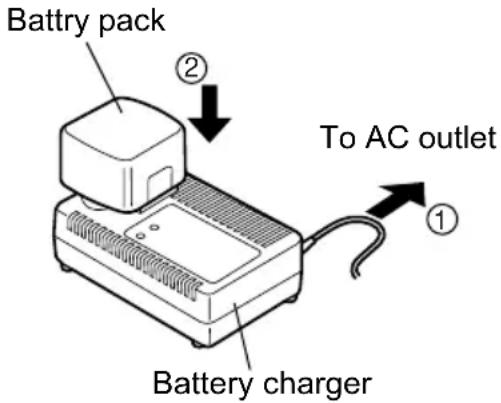

1. Plug the charger into an AC outlet.

EY0225:

- Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

1. Insert the battery pack firmly into the charger.

(* EY0230 is referred for illustration.)

EY0214:

- When charging, cooling fan in the charger functions to cool down the battery pack, and the sound of fan can be heard. This is normal. If this sound cannot be heard, it is a malfunction. Stop charging immediately and consult an authorized dealer.

1. During charging, the charging lamp will light up. When the charge is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

- Charging will not occur if the battery pack is warm (for example, immediately after heavy-duty operation). The orange standby lamp will light up until the battery becomes cool. Charging will then begin automatically.

1. When charging is completed, the charging lamp will start flashing quickly.

EY0230/EY0214:

- When the battery pack has not been used for a long time, the charging lamp starts flashing slowly to indicate protective charging. Protective charging takes longer to fully charge the battery pack, then the standard charging time. (Max. charging time is approx. 90 minutes.)

1. If a fully charged battery pack is inserted into the charger again, the charging lamp may light up. After several minutes, the charging lamp may flash quickly to indicate the charging is completed.

- If the charging lamp does not light immediately after the charger is plugged in, or if after the standard charging time the lamp does not go off, consult an authorized dealer.

Note: • When a cold battery (of about 5^ C or less) is to be charged in a warm room, leave the battery in the room for at least one hour. Charge the battery when the battery temperature has leveled with room temperature. (Failing to do so may result in less than a full charge.)

- Cool down the charger when charging more than two battery packs consecutively.

- Do not insert your fingers into contact hole, when holding charger or any other occasions.

CAUTION: • Do not use power source from an engine generator.

- Do not cover vent holes on the charger and the battery pack.

- Unplug the charger when not in use.

ONLY FOR U. K.

ELECTRICAL PLUG INFORMATION

FOR YOUR SAFETY PLEASE READ

THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 3 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 amp and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol 12

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover if it is removable.

This apparatus was produced to BS800.

LAMP INDICATIONS

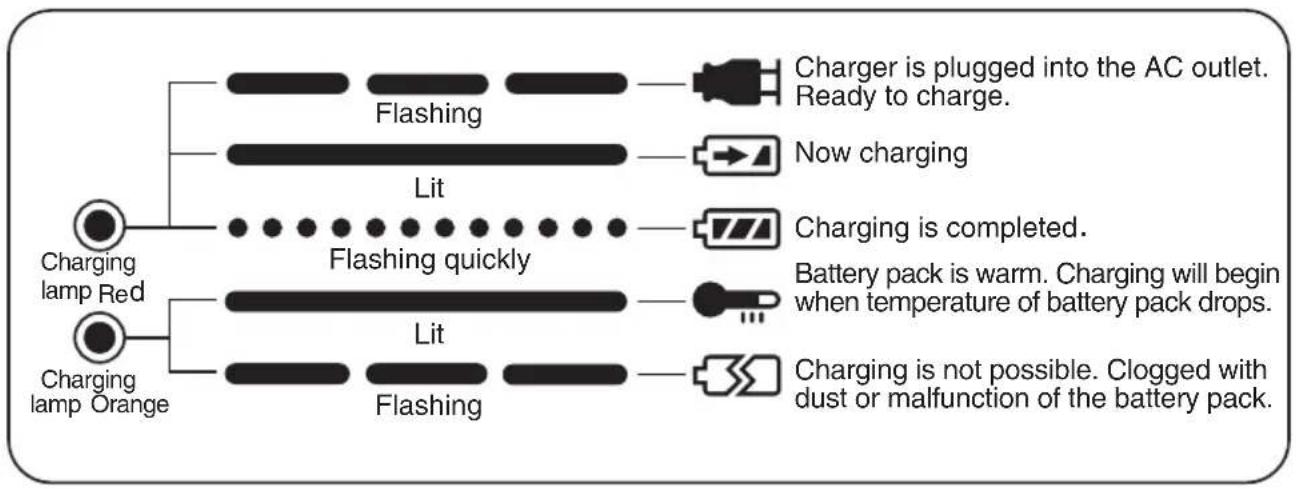

EY0225


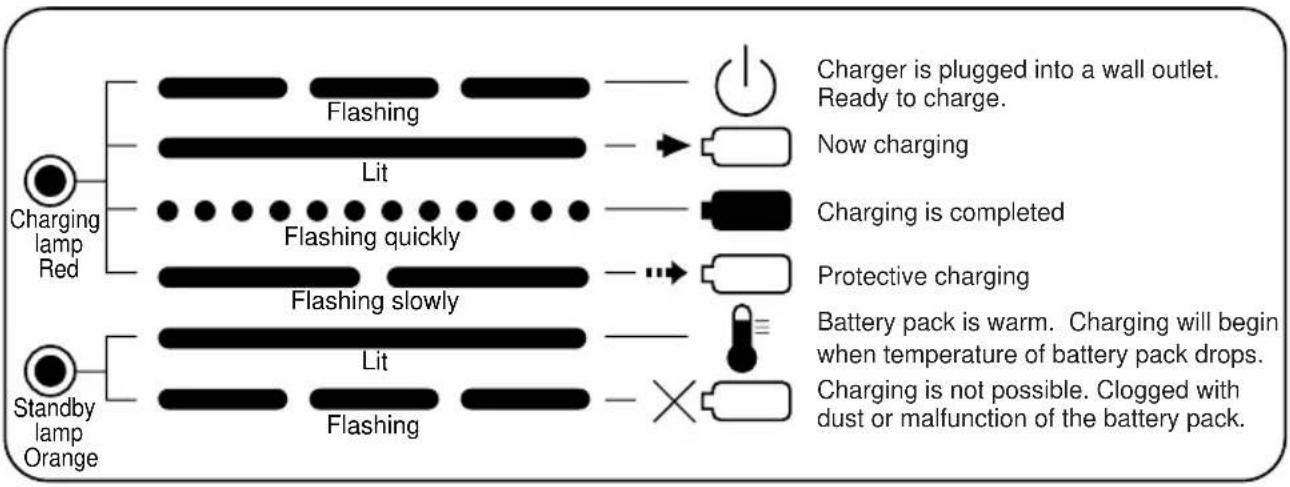

EY0230


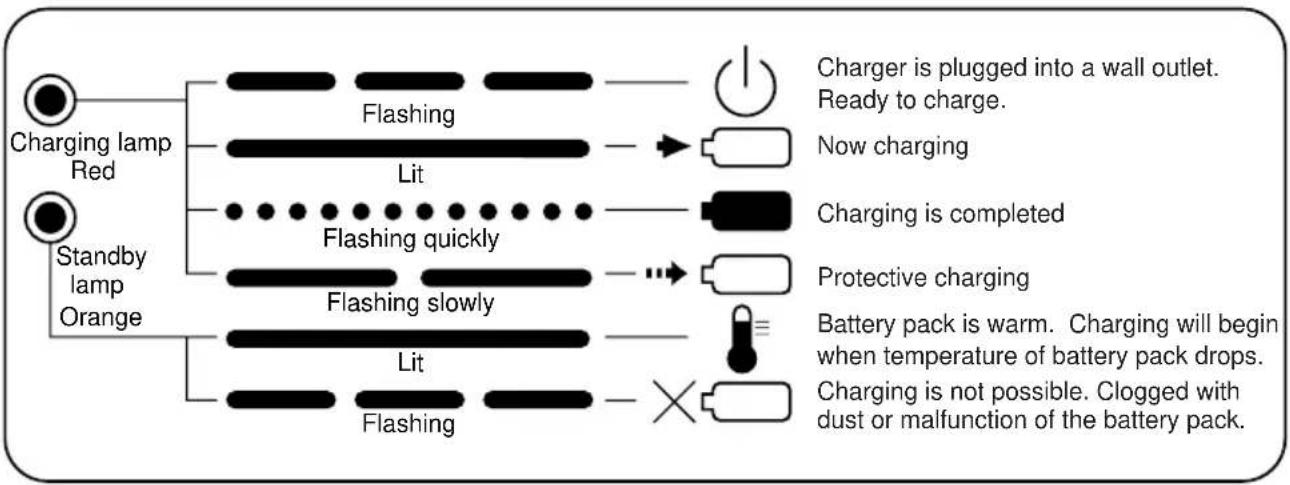

EY0214

SPECIFICATIONS

Model EY0225 EY0230 EY0214
Weight 0.6 kg (1.3 lbs) 0.83 kg (1.83 lbs) 1.12 kg (2.47 lbs)
Electrical Rating See the name plate on the bottom of the charger.
Charging time	EY0225:
	3.6 V 2.4 V Standard charging time
	EY9025 EY9021 Approx : 15 min
	EY0230:
	15.6 V 12 V 9.6 V 7.2 V Standard charging time
	-	EY9001 EY9006	EY9080 EY9068	EY9065 EY9066	Approx. 20 min.
	- EY9101		EY9180 EY9182	-	Approx. 25 min.
	EY9136	EY9106 EY9107 EY9108	- EY9168 Approx. 30 min.
	EY9230 EY9200 -		-	Approx. 45 min.
	EY0214:
	24 V 15	6 V 12 V 9.6 V 7.2 V Standard charging time
	-	-	EY9001 EY9006	EY9080 EY9086	EY9065 EY9066
	-	- EY9101		EY9180 EY9182	-
	EY9117 EY9136		EY9106 EY9107 EY9108	- EY9168 Approx. 30 min.
	EY9210 EY9230 EY9200 -			-	Approx. 45 min.

Note: This chart may include models that are not available in your area.
Please refer to the catalogue.

D

SICHERHEITSHINWEISE

Matushita Electric Works, Ltd.

Osaka, Japan

No.1 EN. GN. FR. IT. ND. ES. DN. SW. NR. FN. RUS. Uk

EY971002304 H1706 Printed in Japan
