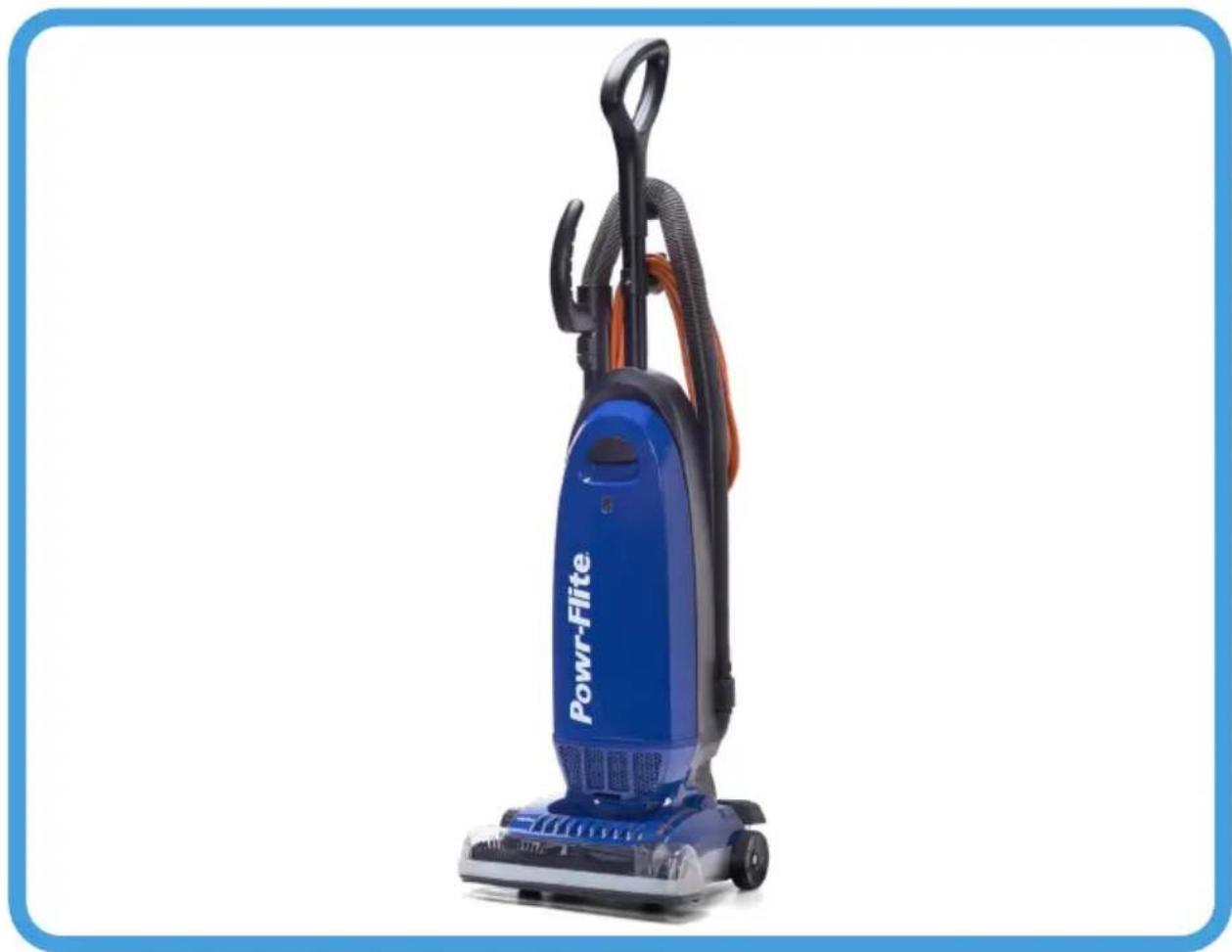

Blue Power-Flite vacuum cleaner with orange cable, displayed against a plain white background (no text or symbols visible on the device body)

Operating Instructions

PV090-W12-U

Getting Started

Introduction ....3

Warranty 3

Grounding Instructions....4

Important Safety Instructions....5

Parts Identification....7

Operation

Attach the Handle to the Vacuum 8

ON/OFF Pedal 8

Adjust the Handle 8

Attach the Cord to the Retainer Hook 9

Nozzle Height 9

Edge Cleaning 9

Cleaning with On-Board Tools 9

Maintenance

Full Bag Indicator....10

Change the Vacuum Bag....10

Secondary Filter 11

Change the Filters 11

Remove the Bottom Plate 12

Replace the Belt 12

Thermal Protector 13

Troubleshooting....13

For Best Performance....13

Record Of Purchase....14

Simple line drawing of a shield with a checkmark (no text or symbols)

Warranty

Please visit https://www.powr-flite.com/warranty-registration to learn more about your warranty and our warranty policy.

Simple line icon of a hand pointing at an open book (no text or symbols)

Warning Labels

Prior to operating the unit, read and understand completely this owner's manual paying special attention to warning labels. These labels indicate a potentially hazardous situation that could result in death or serious injury if not avoided. Use only as described in this manual.

Warning symbol with exclamation mark inside a circle

Important

There are no owner serviceable parts inside this machine. Removal of screws and accessing internal components will void all warranty claims.

Your new Powr-Flite unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt/invoice given at the time of purchase. If you experience any problems with your unit during the warranty period, the original receipt/invoice will act as proof of purchase.

Upon receipt, inspect outer box for exterior damage. Unpack all internal parts, ensure all items are present according to the owner's manual, and review components for damage.

Each unit is tested and thoroughly inspected prior to shipping. If damage is discovered, immediately notify the transportation company that delivered your machine and request an inspection. As a manufacturer, we are unable to act upon any claim for concealed damage and you must originate the claim. Be sure to keep the carton, packing inserts, and carrier's receipt until the inspector has verified your claim.

DANGER: Improper use of the grounding plug can result in a risk of electric shock.

WARNING!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

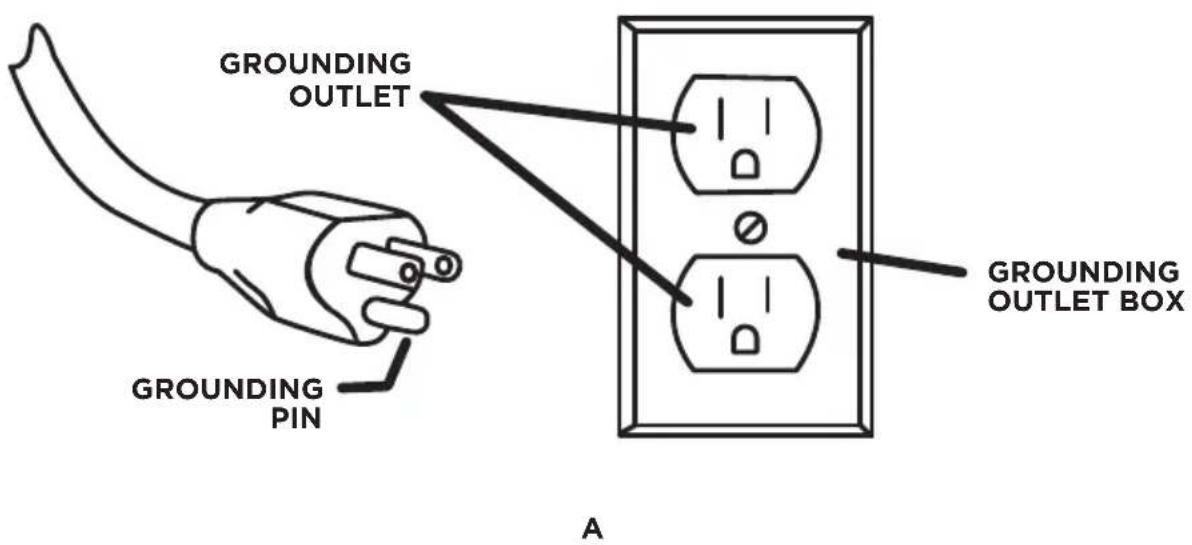

GROUNDING METHODS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This appliance is for use on a nominal 115-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A.

GROUNDING OUTLET GROUNDING PIN GROUNDING OUTLET BOX A

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner's manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert, and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer's recommended attachments. To reduce the risk of personal injury or damage to your unit use only recommended accessories.

WARNING To avoid fire, DO NOT use with a flammable or combustible liquid or floor cleaner.

WARNING To avoid electric shock, DO NOT expose to rain. Store Indoors.

When using this unit, basic precautions should always be followed, including the following:

• DO NOT leave unit when plugged in. Unplug from outlet when not in use and before servicing.
• DO NOT allow unit to be used as a toy. Close attention is necessary when used around or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• DO NOT use with damaged cord or plug. If unit is not working properly because it has been dropped, dropped into water, left outdoors, or damaged in any way, contact a service center
• DO NOT handle plug or appliance with wet hands.
  • DO NOT put any objects into openings.
• DO NOT use with any opening blocked: keep free of dust, lint, hair, or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• DO NOT pick up anything that is smoking or burning such as cigarettes, matches, or hot ashes.
• DO NOT use to pick up hazardous chemicals.
• Turn off all controls before unplugging.
• DO NOT use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• DO NOT use where oxygen or anesthetics are used.
• Replace damaged or worn parts immediately with genuine original equipment parts to maintain safety.
• This unit must be connected to a properly grounded outlet only. See grounding instructions.
• DO NOT use equipment out of doors or in the rain.
• DO NOT use equipment near or around flammable or explosive materials, fuels, or solvents.
  • DO NOT allow the unit to freeze.
• Anyone designated to operate this equipment must, without fail, read and thoroughly understand all instructions and precautions prior to use.
• Do not operate in standing water.
• Do not operate equipment under any unsafe condition.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

State of California Proposition 65 Warnings

WARNING: This product contains one or more chemicals known to the state of California to cause cancer.

WARNING: This product contains one or more chemicals known to the state of California to cause birth defects or other reproductive harm.

Intended Use

Do NOT modify this unit in any way or adapt it for any use. Modification of this unit in any way will void all warranties and could create safety hazards.

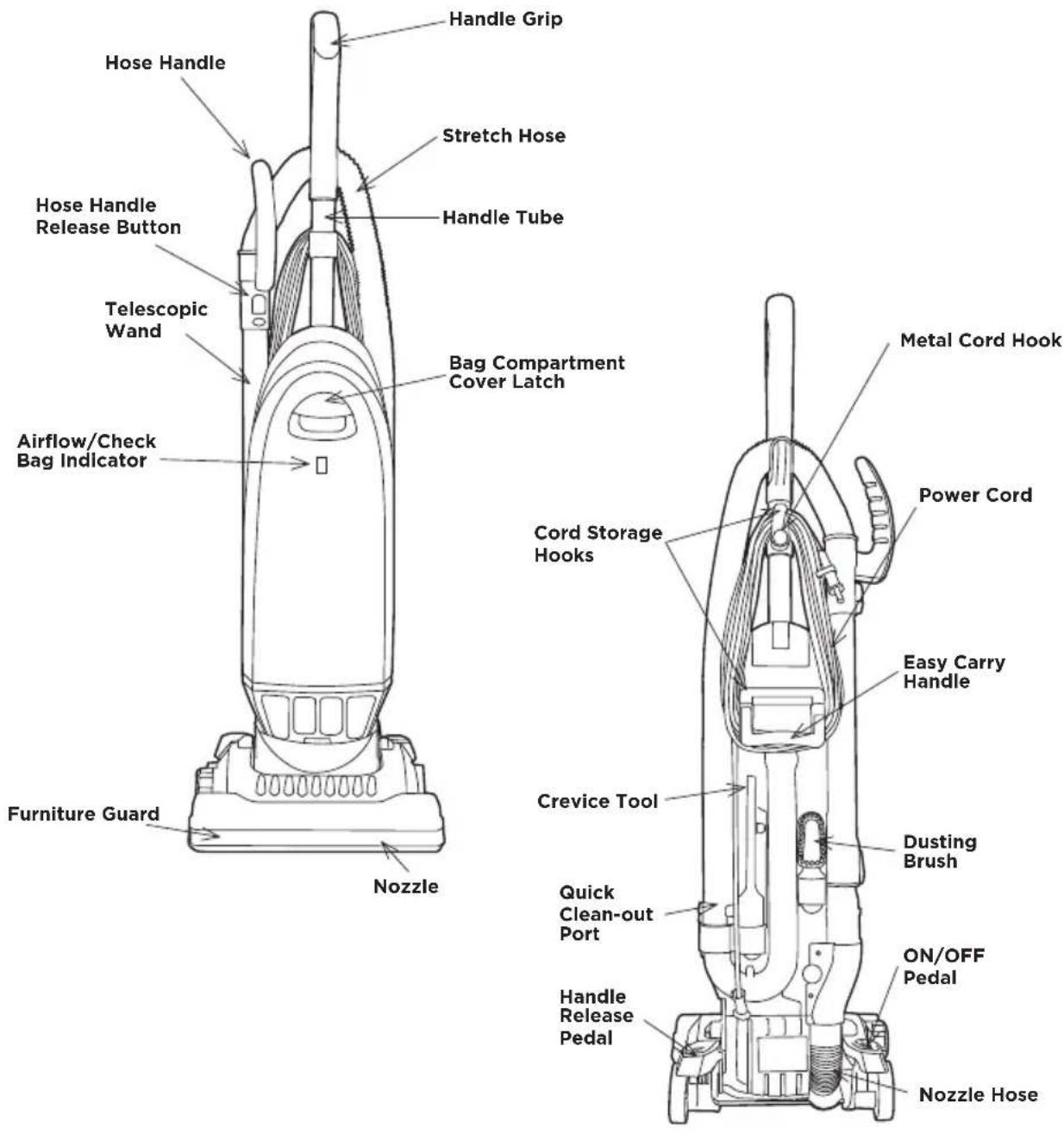

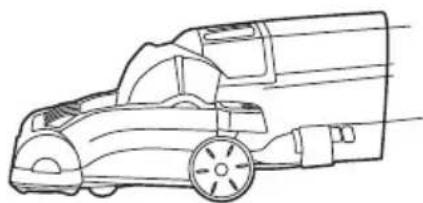

Handle Grip Hose Handle Stretch Hose Handle Tube Hose Handle Release Button Telescopic Wand Airflow/Check Bag Indicator Bag Compartment Cover Latch Metal Cord Hook Cord Storage Hooks Power Cord Easy Carry Handle Crevice Tool Dusting Brush Quick Clean-out Port ON/OFF Pedal Handle Release Pedal Nozzle Furniture Guard Nozzle

Replacement Bags, Belts, and Filters

• Genuine Powr-Flite HEPA Media Bags - Part # X1999, 25 per carton
• Genuine Belt - Part # B014-6900
- Filter Pack, Pre and Post Filter Set - Part # X0909

How to Attach the Handle to the Vacuum Cleaner

The vacuum and the handle are packed separately.

1. After first removing the handle screw, slide the handle into the slot on top of the vacuum cleaner.
2. Line up the small hole on the handle with the small hole on the vacuum cleaner and insert the screw. Make sure the screw is tightened securely (Fig. 1).

Diagram of a mechanical device with a curved handle and base, showing an arrow pointing to a component (no text or symbols present)

Fig. 1

ON/OFF Pedal

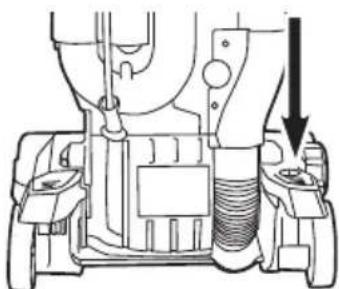

1. To turn the vacuum on, push the power pedal on the right side of the vacuum nozzle from the user's perspective (Fig. 1).

2. To turn the vacuum off, push the pedal again.

Technical diagram of a vehicle chassis showing structural components and a downward arrow indicating motion (no text or symbols present)

Fig. 1

The handle on this vacuum cleaner can be set to one of three positions - upright, middle or low.

How to Adjust the Handle

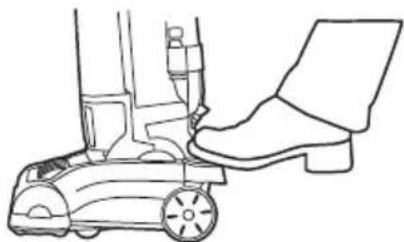

1. To release the handle, step on the handle release pedal on the left side of the vacuum cleaner nozzle from the user's perspective and pull back the handle (Fig.1).

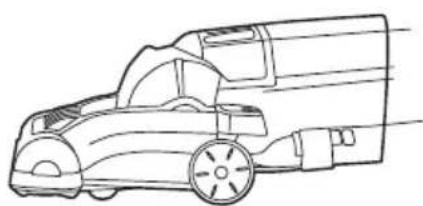

2. Upright position - for storage or when cleaning tools are used (Fig. 2). Handle locks in this position.

3. Middle position - for normal cleaning (Fig. 3).

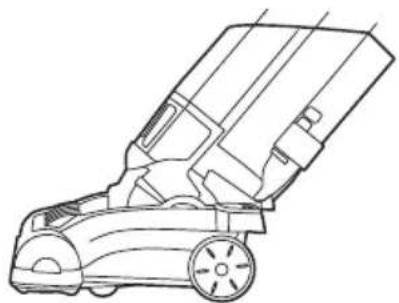

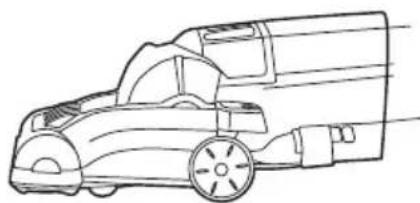

4. Low position - for cleaning under furniture (Fig. 4).

Line drawing of a manual lawn mower and foot, showing mechanical components without any text or symbols

Fig. 1

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

Fig. 2

Line drawing of a car with wheels and structural components (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a car with wheels and exhaust pipe (no text or symbols)

How to Attach the Cord to the Retainer Hook on the Handle

1. Create a loop in the power cord and push it through the slot and over the hook of the cord retainer (Fig. 1).
2. Pull down on the power cord to remove any slack (Fig. 2).

Line drawing of a decorative lamp or lamp with a flame-like opening, mounted on a stand (no text or symbols)

Line drawing of a hand holding a light bulb with a strap, enclosed in a rounded square frame (no text or symbols)

Fig. 1 Fig. 2

How to Adjust the Height Adjustment

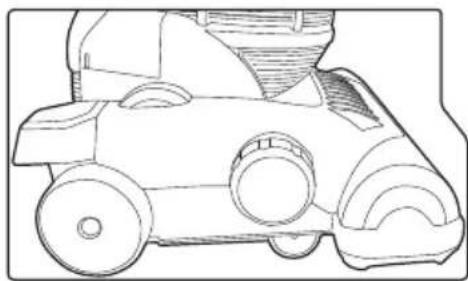

The height adjust dial should be on the LOW setting at all times for optional cleaning performance on commercial carpet (Fig. 1).

Line drawing of a toy car with wheels and a handle (no text or symbols)

Use LOW Settingfor Commercial Carpet
MAX	X-HIGH	HIGH	AUTO	LOW

Fig. 1

The edge cleaning feature provides improved cleaning near walls and stationary furniture. For maximum edge cleaning, position the right side of the vacuum from the user's perspective near walls or stationary furniture.

Cleaning with On-Board Tools

Your vacuum cleaner is equipped with on-board cleaning tools, including a telescopic wand, stretch hose, dusting brush and a crevice tool.

1. To use the cleaning tools, lift the hose handle straight up from the vacuum (Fig. 1).
2. Extend the wand by pulling the button back and pulling the smaller wand out of the larger wand (Fig. 2).
3. Attach any of the on-board tools to the end of the wand, or if you do not need the wand, any tool can be connected directly onto the hose handle.

Mechanical assembly diagram showing a lever mechanism with an upward arrow indicating motion (no text or symbols present)

Fig. 1

Illustration of a hand holding a pen or stylus with a downward arrow indicating compression (no text or symbols)

Fig. 2

Full Bag Indicator

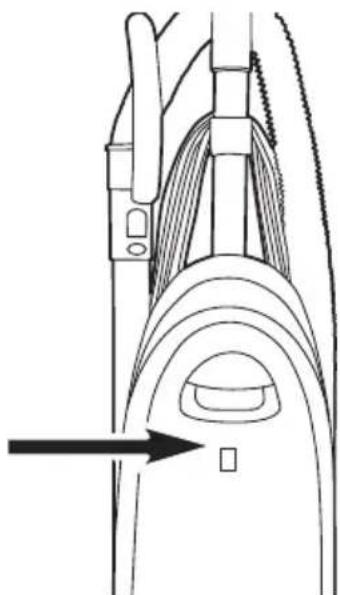

The full bag indicator is designed to show when the bag is full or when there is a clog in the vacuum.

• If the red indicator (Fig. 1) appears:
• Change the vacuum bag
• If the vacuum bag is not full, but the full bag indicator is red, check the hose for a clog.
• When cleaning with a tool (dusting brush or crevice tool), the red indicator may appear. In this case, continue cleaning.

Technical line drawing of a mechanical component with curved surfaces and a central oval feature (no text or symbols)

Fig. 1

Always operate the vacuum cleaner with a vacuum bag installed. Bags should be changed when they are 2/3 full.

How to Change the Vacuum Bag

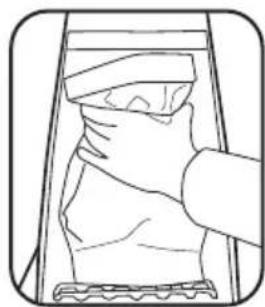

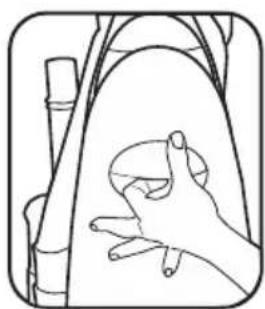

1. Unplug the vacuum cleaner. Remove the bag compartment cover (Fig. 1).
2. Remove the bag from the bag holder by grasping the sides of the bag collar and pulling straight off. Attach a new vacuum bag by pushing the collar onto the inlet (Fig. 2).
3. Pull out the bottom corners of the new vacuum bag to expand the bag capacity (Fig. 3).
4. Reinsert the tab on the end of the bag compartment cover into the groove on the bag compartment housing. Press the bag compartment cover into place, closing it tightly.

Line drawing of a hand holding a small object inside a curved container (no text or symbols)

Fig. 1 Fig. 2

Line drawing of a person holding a towel or towel, partially obscured by a hand (no text or symbols)

Simple line drawing of a folded garment with two arrows indicating measurement or alignment (no text or symbols)

Fig. 3

Your vacuum cleaner is equipped with a secondary filter and a Final filter. These filters capture fine dust particles and protect the motor from dirt. Accumulated dirt in the bag compartment will be collected on the filters and may restrict motor performance. It is important to change the filters regularly — approximately once a year or as needed.

How to Change the Secondary Filter

1. Unplug the vacuum cleaner. Remove the bag compartment cover and remove the vacuum bag.
2. Remove the secondary filter by sliding it out from under the bag supporter (Fig. 1).
3. Insert a new filter, replace the bag and bag compartment cover.

How to Change the Final Filter

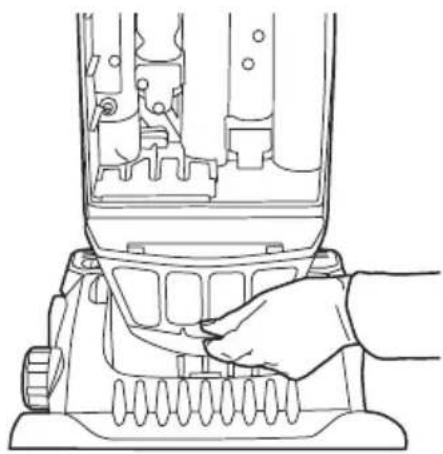

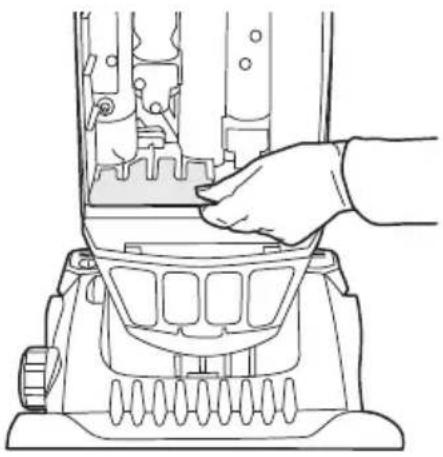

1. Unplug the vacuum cleaner. Remove the filter cover below the dust compartment cover (Fig. 2).

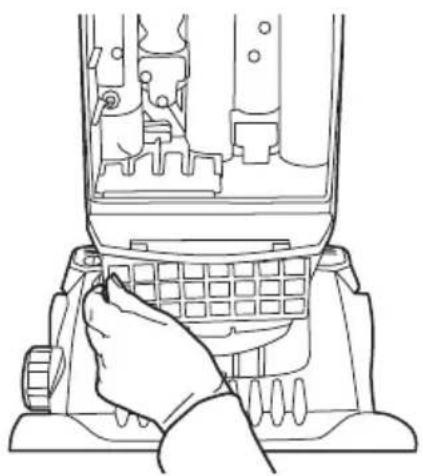

2. Remove the filter from the front of the vacuum (Fig. 3).
3. Vacuum or brush off any dirt on the filter. If needed, foam filter can be rinsed with warm water to clean. Allow the filter to air dry for 24 hours before re-installing in the vacuum.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Fig. 1

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Fig. 2

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

Fig. 3

CAUTION: First unplug the vacuum cleaner.

How to Remove the Bottom Plate

1. Place the vacuum cleaner in the lowest position by stepping on the handle release pedal (see "How to Adjust the Handle" on page 8). Turn the vacuum over on a flat surface, exposing the bottom plate.

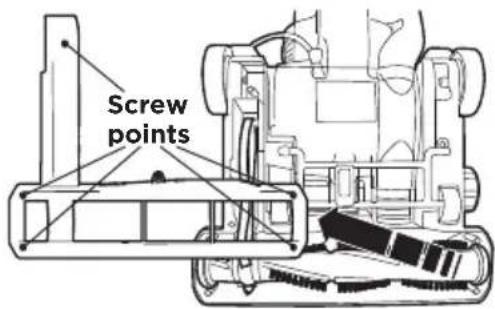

2. Remove the five screws holding the L-shaped bottom plate in place (Fig. 1).

3. Remove the bottom plate.

How to Replace the Belt

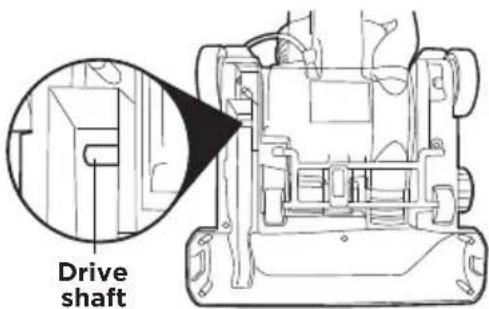

1. Turn over the unit and remove the bottom plate as described above.

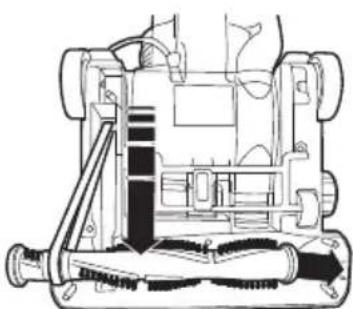

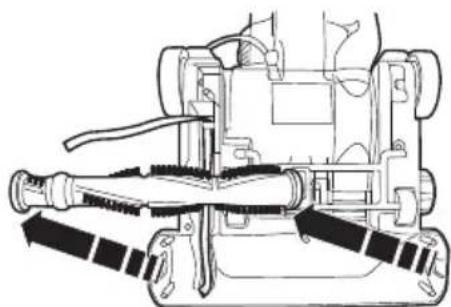

2. Lift out the brush roll and remove the old belt (Fig. 2).

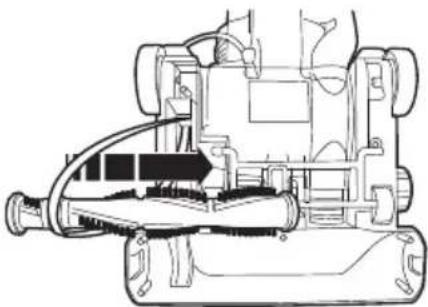

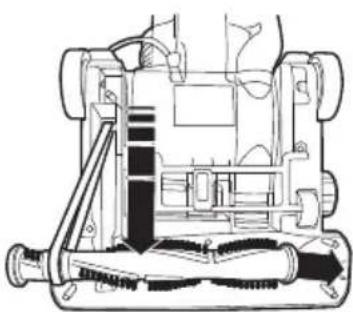

3. Loop the new belt around the drive shaft (Fig. 3) and the raised ring between the bristles on the brush roll (Fig. 4).

4. Pull the brush roll forward (against the pull of the belt) and reinsert the ends back into the nozzle (Fig. 5) making sure to line up the end opposite the belt so the flat edges slide down properly.

5. Turn the brush roll by hand, making sure the belt is not twisted and all rotating parts move smoothly.

6. Replace the bottom plate and the five screws.

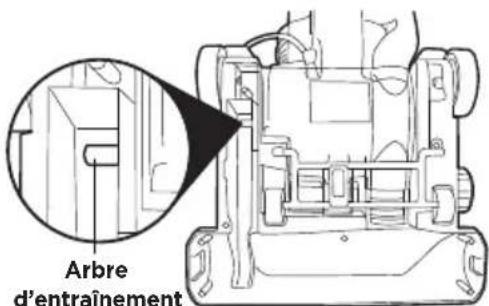

Screw points

Technical line drawing of a mechanical device with no visible text or symbols

Drive shaft

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Thermal Protector

Your Powr-Flite vacuum cleaner is equipped with a thermal protector designed to protect your vacuum cleaner from overheating due to restricted airflow (i.e. clogged hose). Should this situation occur, the thermal protector will automatically shut off the motor to prevent damage.

How to Reset the Thermal Protector

1. Unplug the vacuum cleaner.
2. Allow the vacuum cleaner to cool at least 30 minutes.
3. Check for blockages, change the vacuum bag and clean or replace the filters.
4. Plug in the vacuum cleaner and begin using.

TROUBLESHOOTING

Problem Check Point	Possible Solution
Suction power is weak.	Vacuum bagWand or hoseFilters	If the vacuum bag is 2/3 full, replace it.If clogged or blocked, remove the object.Clean or replace filters.
The vacuum does not work.	Power cord	Insert the power plug firmly into an electrical outlet.
Sudden loss of power.	Thermal reset	Turn off vacuum and unplug from electrical outlet. Let vacuum cool down for at least 30 minutes before turning back on. Check for clogs. Replace vacuum bag.
Dirt and debris are blowing through exhaust vent.	Filters	Make sure filters are clean, dry and installed correctly.
All other service should be performed by an authorized service center.

For Best Performance

• Keep machine and all accessories clean and in good operating condition.
• Replace the bag when it is 2/3 full.
• Replace the filters once a year or as needed.
• Always use genuine Powr-Flite filters and parts, as use of other products may result in poor cleaning or filtration performance. Powr-Flite filtration products are designed for maximum performance.
• Store machine carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner's manual.

Powr-Flite

Powr-Flite

3101 Wichita Court

Ft. Worth, TX 76140-1755

Phone: [phone]

WWW.POWR-FLITE.COM

Record of Purchase

Serial Number:

Purchase Date: ____

Dealer:

Phone Number:

Powr-Flite®

Solar Reach™

Blue Power-Flite vacuum cleaner with attached orange cable, displayed against a plain white background (no text or symbols visible on the device body)

Simple line drawing of a shield with a checkmark (no text or symbols)

Garantía

Simple line icon of a hand pointing at an open book (no text or symbols)

Warning symbol with exclamation mark inside a circle

Importante

Diagram of a mechanical device with a curved handle and base, showing an arrow pointing to a component (no text or symbols present)

Fig. 1

Technical diagram of a vehicle chassis showing engine components and a downward arrow indicating motion (no text or labels)

Fig. 1

Line drawing of a hand operating a small wheeled vehicle with a foot, no text or symbols present

Fig. 1

Line drawing of a small utility vehicle with wheels and legs (no text or symbols)

Fig. 2

Line drawing of a robotic lawn mower (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a car with wheels and exhaust pipe (no text or symbols)

Line drawing of a mechanical component or bracket with no visible text or symbols

Line drawing of a hand holding a light bulb against a vertical line (no text or symbols)

Fig. 1 Fig. 2

Line drawing of a toy car with wheels and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow indicating motion (no text or symbols present)

Fig. 1

Illustration of a hand holding a pen or stylus with a downward arrow indicating compression (no text or symbols)

Fig. 2

Technical line drawing of a mechanical component with curved surfaces and a central oval feature (no text or symbols)

Fig. 1

Line drawing of a hand holding a small object inside a container (no text or symbols)

Line drawing of a person holding a cloth or towel, partially obscured by a hand (no text or symbols)

Fig. 1 Fig. 2

Simple line drawing of a folded garment with two arrows indicating measurement or alignment (no text or symbols)

Fig. 3

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

Fig. 1

Line drawing of a hand operating a vacuum cleaner's base with mechanical components (no text or symbols)

Fig. 2

Line drawing of a hand operating a vacuum cleaner's base panel (no text or symbols)

Fig. 3

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Protector térmico

Blue Power-Flite vacuum cleaner with attached orange cable, displayed against a plain white background (no text or symbols visible on the device body)

Simple shield icon with a checkmark inside, no text or symbols present

Garantie

Simple line icon of a hand holding an open book (no text or symbols)

Warning symbol image with an exclamation mark inside a circle

Important

Diagram of a mechanical device with a lever and base, showing no text or symbols

Fig. 1

Pédale marche/arrêt

Technical diagram of a vehicle chassis showing structural components and a downward arrow indicating motion (no text or labels)

Fig. 1

Line drawing of a hand pressing down on a small wheeled vehicle (no text or symbols)

Fig. 1

Line drawing of a small electric vacuum cleaner with wheels and mounting feet (no text or symbols)

Fig. 2

Line drawing of a robotic car with wheels and a mounted device (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a car with motion lines indicating speed or velocity (no text or symbols)

Line drawing of a decorative lamp or lampshade with a handle and base, no text or symbols present

Line drawing of a hand holding a light bulb against a vertical line (no text or symbols)

Fig. 1 Fig. 2

Line drawing of a vintage car with wheels and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or labels)

Fig. 1

Illustration of hands holding a pen or stylus with a downward arrow indicating compression (no text or symbols)

Fig. 2

Technical line drawing of a mechanical component with curved surfaces and a central oval feature (no text or symbols)

Fig. 1

Line drawing of a hand holding a small object near a curved structure (no text or symbols)

Line drawing of a person holding a covered object through a container (no text or symbols)

Fig. 1 Fig. 2

Simple line drawing of a folded garment with two arrows indicating measurement or alignment (no text or symbols)

Fig. 3

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Fig. 1

Line drawing of a hand operating a cleaning or cleaning tool on a mechanical device (no text or symbols visible)

Fig. 2

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

Fig. 3

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols
