Product Type	Wet/Dry Vacuum Cleaner
Brand	Powr-Flite
Model	PF55
Tank Material	18 Gauge Stainless Steel
Tank Capacity	20 Gallons
Motor Power	1200 Watts Dual
Airflow (CFM)	114 CFM
Waterlift	100 Inches
Power Cord	Pigtail, 30 Feet
Primary Filter	Paper Pleet
Secondary Filter	Washable Cloth
Drain Type	Tip and Pour
Dolly	Heavy-Duty Polyethylene
Wheels	2" Non-Scuff Rear, 2-3" Swivel Caster Front
Hose	1.5" x 10' with Swivel Connector/Cuff Lock
Included Tools	14" Rug, Dust, Crevice, Squeegee
Weight	72 lbs
Voltage	120 V
Safety Features	Grounded plug, bypass motor, safety float shut-off
Maintenance	Clean cloth filter with water, empty tank, inspect float
Warranty	5 years tank, 2 years motor, 1 year parts/labor

Frequently Asked Questions - PF55 Powr-Flite

What is the tank capacity of the Powr-Flite PF55?

The tank capacity is 20 gallons.

Can the PF55 pick up liquids?

Yes, it is a wet/dry vacuum. For wet recovery, remove the paper filter, ensure the float cage assembly is in place, and use the cloth filter. Do not use the paper filter when picking up liquids.

How do I drain the tank?

Use the Tip and Pour mechanism. Remove the top head, take out the filter, unlock the knob, grip the handle, brace the dolly with your foot, and lift to empty.

What should I do if the vacuum loses suction?

Check the following: tank full (empty it), dry filter assembly clogged (clean cloth filter), clogged hose or wand (remove obstruction), dented tank rim (replace tank), loose fan or motor issue (contact service).

How do I clean the filters?

For the cloth filter, wash with water and allow to dry. After washing, remove excess water with a gentle squeegee. For the paper filter, replace when dirty; it is disposable.

What type of filter should I use for dry vacuuming?

Use the paper pleet filter for dry vacuuming. For fine dust, also install the cloth filter.

Is the PF55 grounded?

Yes, it has a grounding plug and must be plugged into a properly grounded outlet. Do not modify the plug.

What is the warranty coverage?

Warranty covers 5 years on tanks, 2 years on motors, and 1 year on parts/labor. It does not cover wear items like filters, belts, hoses, or damage from misuse.

Can I use an extension cord?

It is not recommended. If necessary, use a heavy-duty extension cord of proper gauge (e.g., 12 AWG) and keep it away from heat and sharp edges.

How should I store the vacuum?

Store the appliance on the floor, indoors, away from heated surfaces. Do not pull or carry by the cord, and store the cord properly when not in use.

USER MANUAL PF55 Powr-Flite

WET/DRY VACUUMS PF53, PF55, PF57

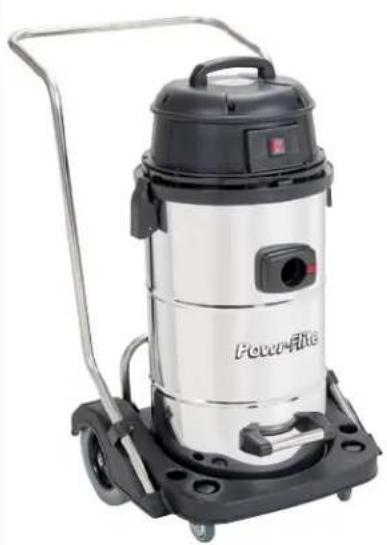

Exterior view of a power vacuum cleaner with black and silver casing (no visible text or symbols)

Exterior view of a power vacuum cleaner with black lid and control arm (no visible text or symbols)

Exterior view of a vacuum cleaner with black lid and metal frame (no visible text or symbols)

WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL

COMPLETELY BEFORE OPERATING THIS EQUIPMENT.

©Tacony Corporation, All rights reserved

X8683 03/2019

MODEL PF53 PF55 PF57
Tank 18 Gauge Stainless Steel		18 Gauge Stainless Steel	18 Gauge Stainless Steel
Motor 1200 Watts 1200	Watts Dual 1200 Watts
CFM 114 114 192
Waterlift 100” 100” 80”
Tank Size 15 20 20
Power Cord Pigtail with	30' Pigtail with 30' Pigtail with 30'
Primary Filter Paper Pleet	Paper Pleet	Paper Pleet	Pleet
Secondary Filter	Washable Cloth	Washable Cloth	Washable Cloth
Drain	Tip and Pour	Tip and Pour	Tip and Pour
Dolly	Heavy-Duty Ployethylene	Heavy-Duty Ployethylene	Heavy-Duty Ployethylene
Wheels	2-” Non-Scuff Rear, 2-3” swivel caster Front	2-” Non-Scuff Rear, 2-3” swivel caster Front	2-” Non-Scuff Rear, 2-3” swivel caster Front
Hose 1.5” x 10' With Swivel Connector/Cuff Lock		1.5" x 10' With Swivel Connector/Cuff Lock	1.5" x 10' With Swivel Connector/Cuff Lock
Tools	14" Rug, Dust, Crevice, and Squeegee	14" Rug, Dust, Crevice, and Squeegee	14" Rug, Dust, Crevice, and Squeegee
Weight	61 lbs.	72 lbs.	78 lbs.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

*When using a wet/dry vacuum, basic precautions should be followed.

*Read all instructions before using your vacuum

IMPORTANT SAFETY ADVICE

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

When using an electrical appliance, basic precautions should always be followed.

WARNING

To reduce the risk of fire, electric shock of injury; only use unit as described in this manual.

You must have training in the operation of this machine before using it.

Read all instructions carefully before use.

• Keep children and unauthorized persons away from the machine when in use.
• Do not leave the machine plugged in when not in use.
• Switch the machine off before removing the plug from the outlet.
• When unplugging, pull the plug, not the cord.
• The machine must be unplugged prior to cleaning or servicing the machine.
• Keep the power cord clear of moving parts.
• Do not run the machine over the power cord.
• Do not operate the machine with a damaged power cord or plug,
• or if the machine malfunctions or is damaged in any way.
• Do not use where hazardous dust is present.
• Do not use in an explosive atmosphere.
• Do not use where flammable liquids or gasses are present.
• Do not use or pick up flammable chemicals or liquids with this machine.
  • Take care when using the machine near the top of stairs to avoid overbalancing.
• Maintenance and repair must be done by authorized personnel only.
• Wear suitable footwear to avoid slipping.
• Do not operate this machine in bare feet or with open-toed shoes or sandals.
• Do not smoke when using the machine.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Store cord properly when not in use.

STORAGE INSTRUCTIONS

Store appliance on floor, indoors, away from heated surfaces. Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces. Store cord properly when not in use.

This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This appliance is for use on a nominal 120 volt circuit and has a ground plug (see illustration, below). Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

The wet/dry vacuums are equipped with bypass motors. Install the cloth filter, place the motor head on the canister and snap down the hold-down clamps.

The wet/dry vacuums are equipped with a bypass motor so that the working vacuum is separated from the cooling air flow. To pick up water, the dry filter must be removed and the float cage assembly must be in place, the motor head placed on the canister and the hold down clamps locked down. The safety float located in the protective wire frame in the tank stops the vacuum action of the motor head when the maximum recovery of liquids is reached.

IMPORTANT SAFETY NOTE

WHEN PICKING UP FLOOR STRIPPER WITH THESE UNITS IT IS NECESSARY TO USE ALL FILTERS. WHEN THE STRIPPER RECOVERY OPERATION IS COMPLETED, ALL FILTERS AND THE FLOAT CAGE MUST BE THOROUGHLY RINSED AND ALLOWED TO AIR DRY.

WAND AND ATTACHMENT INSTRUCTIONS

To assemble the two piece wand:

1. Match the alignment ridges of the upper and lower wand sections.
2. Push the upper wand into the lower wand.

To assemble tools:

1. Slide the swivel cuff of the tool onto the tapered lower wand.

2. Turn swivel cuff 1/4 turn to tighten.

DRAINING

When the tank is full, using the Tip and Pour mechanism to empty the tank.

1. Remove the top head.
2. Take out the filter with frame.

3. Unlock the knob.

4. Grip the handle with one hand, use one foot to brace the dolly and lift the handle by the other hand to empty the tank.

NOTE: When the water level in the tank exceeds the safety level, the safety devise will automatically block the inlet and motor turning sound will be changed, but power will remain ON. The power must be turned OFF before emptying the tank.

REMOVE THE PAPER FILTER

The paper filter must be removed for wet recovery. Push the metal ping counterclockwise to release the filter. Remove the paper filter.

Technical illustration of a mechanical component with two views, showing internal components and directional arrows (no text or symbols)

HOSE ATTACHMENT INSTRUCTIONS

The hose and swivel connector are pre-assembled at the factory.

To attach the swivel connector to the intake fitting of the canister:

1. Push the grooved cuff straight into the intake fitting.
2. To remove, press the release button on the intake fitting while pulling the grooved cuff out.

MAINTENANCE AND SERVICING

1. To dismantle, unclip both latches and remove top housing and filter with frame.
2. Wash the filter with water and allow it to dry.
3. After washing, remove excess water with a gentle squeegee.
4. Replace the filter and top housing and fasten the latches.

NOTE: This cleaner is designed with a powerful suction. Do not be alarmed if the motor noise increases when performing tougher cleaning work.

PARTS NAME

TROUBLE SHOOTING GUIDE

Loss of Suction

CAUSE:

SOLUTION:

1) Tank full. 1) Empty Tank
2) Dry filter assembly clogged. 2) Clean cloth filter.
3) Clogged hose or wand. 3) Remove obstruction.
4) Tank rim is dented. 4) Replace tank.
5) Loose or broken fan. 5) Contact manufacturer of service center.
6) Motor not working. 6) Contact manufacturer or service center.
7) Float not functioning. 7) Check to see if float moves freely or tank is full.
8) Seal worn. 8) Replace seal.

Motor is not running

CAUSE:

SOLUTION:

1) Broken switch. 1) Contact manufacturer or service center.
2) Defective power cord. 2) Contact manufacturer or service center.
3) Defective motor. 3) Contact manufacturer or service center.

Dust blowing from unit when running

CAUSE:

SOLUTION:

1) Cloth filter dirty. 1) Clean cloth filter.
2) Cloth filter is torn. 2) Replace filter.
3) Cloth filter is not installed. 3) Install cloth filter, when vacuuming very fine dust, chimney soot or sheet rock.

Water blowing from unit when running

CAUSE:

SOLUTION:

1) Tank is full of liquid. 1) Empty tank.
2) Sudsy or foamy liquid is being picked up. 2) Add defoamer to tank.

Powr-Flite Warranty Statement

All Powr-Flite equipment has been tested and inspected at the factory and is guaranteed to be free from defects in material and workmanship for the duration described below. For full details, contact your authorized Powr-Flite Distributor, Service Center, or the Powr-Flite Technical Service Department.

5 Years - Tanks

2 years - Motors

1 Year - Parts/Labor

IMPORTANT WARRANTY CONDITIONS:

Warranty starts from the date of sale to the consumer or, at Powr-Flite's discretion, six months after the dealer has purchased the unit from Powr-Flite, whichever comes first. All non-wear parts purchased after machine warranty expiration are warranted for one year. Proof of purchase is required to process all claims. Powr-Flite sales and service representatives are not authorized to waive, alter, or increase the terms of this warranty.

Warranty DOES NOT cover the following:

• Routine wear and tear items such as brushes, filters, points, plugs, bulbs, switches, brooms, wheels/tires, casters, fuses, belts, hoses, and sheer pins/motor couplings.
• Damage that occurs during shipping. A claim should be filed directly with the carrier to collect damages.
• Unauthorized machine modifications or parts not purchased directly from Powr-Flite or an authorized reseller.
• Failure to properly inspect, maintain, operate, and store the machine. Misuse/abuse is determined at Powr-Flite's sole discretion and examples include damage from pressure washing the machine, exposing the machine to rain, cold, or snow, and damage to the vacuum motor caused by failure to use defoamer.
• Cleaning and refinishing charges or machine downtime. Rentals and other replacement machines are not available from Powr-Flite during the repair period.

Powr-Flite®

A Tacony Company

3101 Wichita Court • Fort Worth, TX 76140-1755

1-800-880-2913 • Fax: [phone]
