USER MANUAL Bed Rail Deryan

Diagram of a simple folding panel with mesh pattern and support brackets (no text or symbols)

Bed Rail

User manual

Important: This product complies with GB29281 2012 please read instruction maual carefully and keep it for future reference

INDEX

Warnings & Maintenance (EN) 4

Assembly instructions

Fixing instructions 15

Disassemble instructions

Height adjust 18

Company info

WARNINGS

• Suffocation risk.
• No Gap: Ensure there is no gap between the mattress and the bed rail
• Distance Requirements: The distance between the bed rail and the footboard should be at least 9 inches. The distance between the bed rail and the headboard should be at least 9 inches. Avoid Placing Items in Gaps: Do not place pillows, blankets, plush toys, or other items in the gaps, as this Can lead to suffocation and potentially cause death.
• Intended Use: This product is only suitable for adult beds. It cannot be used with cribs, bunk beds, waterbeds, or inflatable mattresses.
  • Compatible Mattress Specifications:

Length: 120cm / 150cm / 180cm / 200Cm / 220cm

Thickness: ≥ 2cm For mattresses less than 30cm thick, adjust the height accordingly to fit the actual mattress height, ensuring the holes do not extend beyond the mattress.

- Small parts Warning: contains small parts, not suitable for children under 2 years old to use alone.

- Recommended Age: This product is recommended for children aged 18 months to 5 years.

- Entrapment Risk: Gaps in the bed rail can trap children causing suffocation and death. Do not leave any objects that could be used as a foothold or that might cause suffocation or strangulation between the bed rail and similar-purpose crib.

• Supervision Required:

Do not leave your child unattended. If the bed rail cannot be properly secured, do not use it.

- Installation: Incorrect installation can lead to the risk of child death. If the product is damaged, broken, or missing parts, stop using it

- Maintenance: Clean with a damp sponge and let it air dry naturally.

- Keep Distance: Keep the bed rail at a safe distance form fire sources and heat sources (such heaters, heat fans).

- Hazardous Objects: Do not leave hard objects, ropes, curtain cords, or other potentially dangerous items on the bed or hung on the rail.

• Maximum Weight: 50kg

• Supervision and Usage: This product is for preventive protection only does not replace adult supervision. It is not a toy, do not allow children to climb on it as a railing or ladder.
• Proper Installation: Read the manual carefully and install it according to the actual bed frame and mattress otherwise serious accidents may occur.
• Damaged Parts: Do not use if any part is severely damaged or missing.
• Compatibility: This product is a safety aid and may not be suitable for all bed types. Do not use if the bed rail does not fit with the bed or mattress.
• Parental Responsibility: Parents must ensure the bed rail is securely attached to the mattress and properly fixed before use.
• Limitations: This product does not eliminate all risks of accidents.
• Infants Under Two: Due to their limited mobility, infants under two require full parental supervision during use to prevent fatal risks.

The bed guardrail is specially designed for children to prevent babies from falling while sleeping or playing in bed. It is suitable for unprotected adult bed and needs to be used under the supervision of adults.

MAINTENANCE

Technical diagram of a mechanical assembly with numbered components and labeled parts

1. Column left
2. Column right
3. Upper side tubes
   4/5. Lower side tubes
4. Connection tubes
   7/8. Support tubes
5. Fabric cocver
6. Bed board fixing screws
   *Remark: 150 cm of less then without 6

ASSEMBLY INSTRUCTIONS

WARNING: Do not remove or discard the anti-collision padding.

Diagram showing two parallel pipes with directional arrows indicating movement or force (no text or symbols)

Diagram showing a circular object with two horizontal lines and directional arrows, no text or symbols present

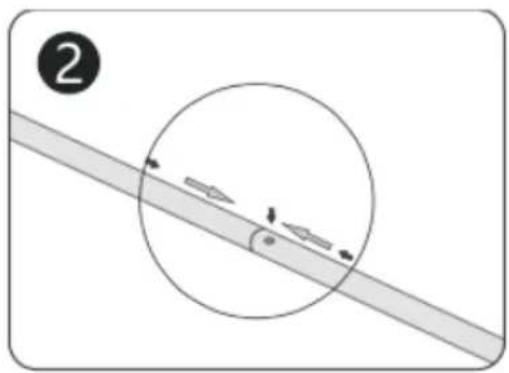

When the ball pops out of the slot, the connection is in place.

3D rendering of a rectangular electronic component with a recessed internal structure, labeled with number 3 (no text or symbols on the component itself)

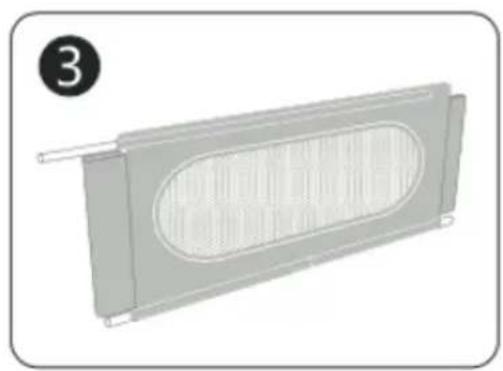

Put on fabric cover between upper and lower tubes.

Illustration of a medical or surgical device with a pointed tool and curved internal structure, labeled with number 4 (no text or symbols on the device itself)

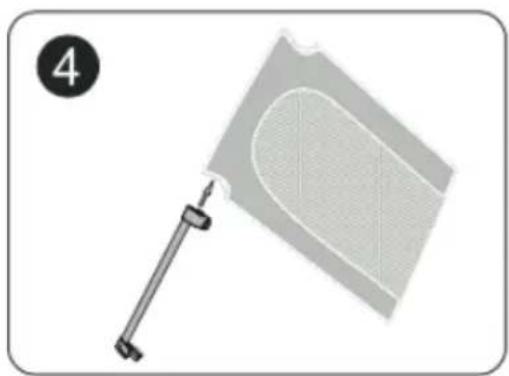

Put the stand tubes (Left & Right) get through the fabric.

Top-down view of a rectangular electronic component with a curved top surface and mounting feet (no text or symbols)

Connect the three side tubes in pairs (note the distinction between left and right columns and between upper and lower side tubes).

Diagram showing a mechanical assembly with arrows indicating motion, no text or symbols present

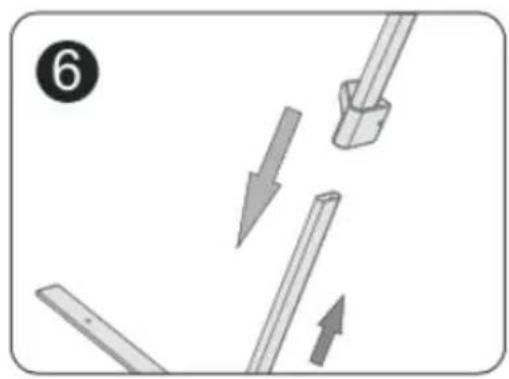

Insert the support legs into the corresponding holes on the columns (note the distinction between left and right columns).

Exterior view of a modern office building (no signage)

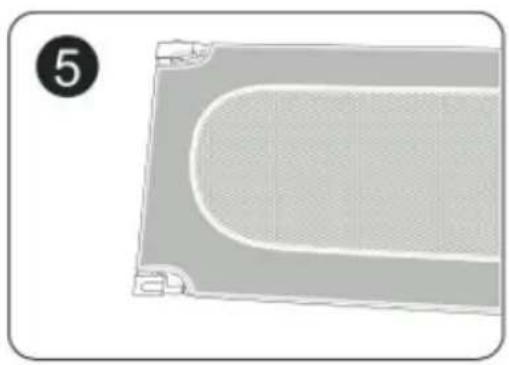

Pull the fabric cover tight and check the stability of the rail. If there is no significant shaking, the assembly is complete.

FIXING INSTRUCTIONS

Diagram of a door frame structure with no visible text or symbols

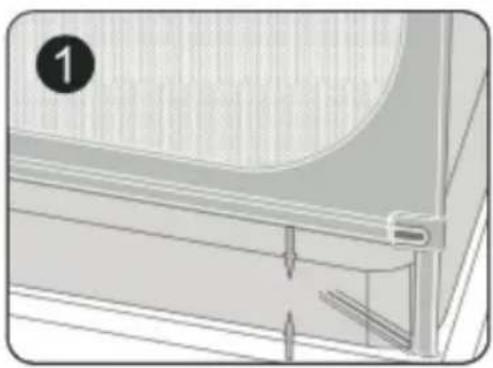

Lace the assembled bed rail support legs between the mattress and the bed frame (note: for mattresses within 10cm thickness, screw fixing of the support legs is recommended; for slatted beds, tying the support legs with a rope is recommended).

Diagram of a device with a switch and open lid, showing internal structure (no text or symbols)

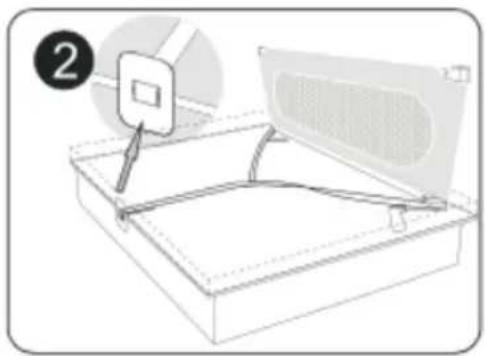

Use straps to tie with the 2 ends of stand tubes, pull straps under mattress and fixed to other side.

Illustration of a chair with a seat and a vertical shelf, no text or symbols present

For more than 2 pieces of bed rails, use the 1st L-shaped connector to fix the feet of stand tubes.

Technical line drawing of a mechanical component with two ports and a central hub, no text or symbols present

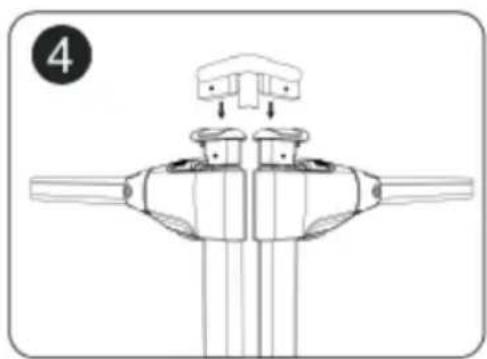

For more than 2 pieces of bed rails, remove the plastic parts then use the 2nd L-shaped connector to fasten the top of tubes.

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

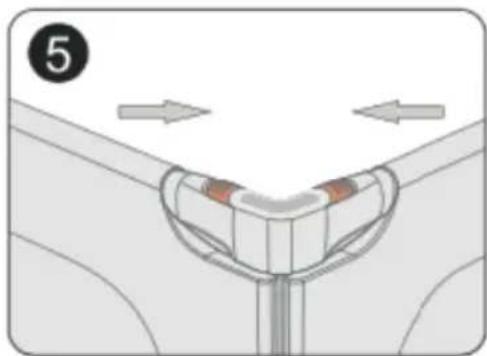

For more than 2 pieces of bed rails, use the L-shaped connector to maximize the stability and safety of the bed rail.

DISASSEMBLE INSTRUCTIONS

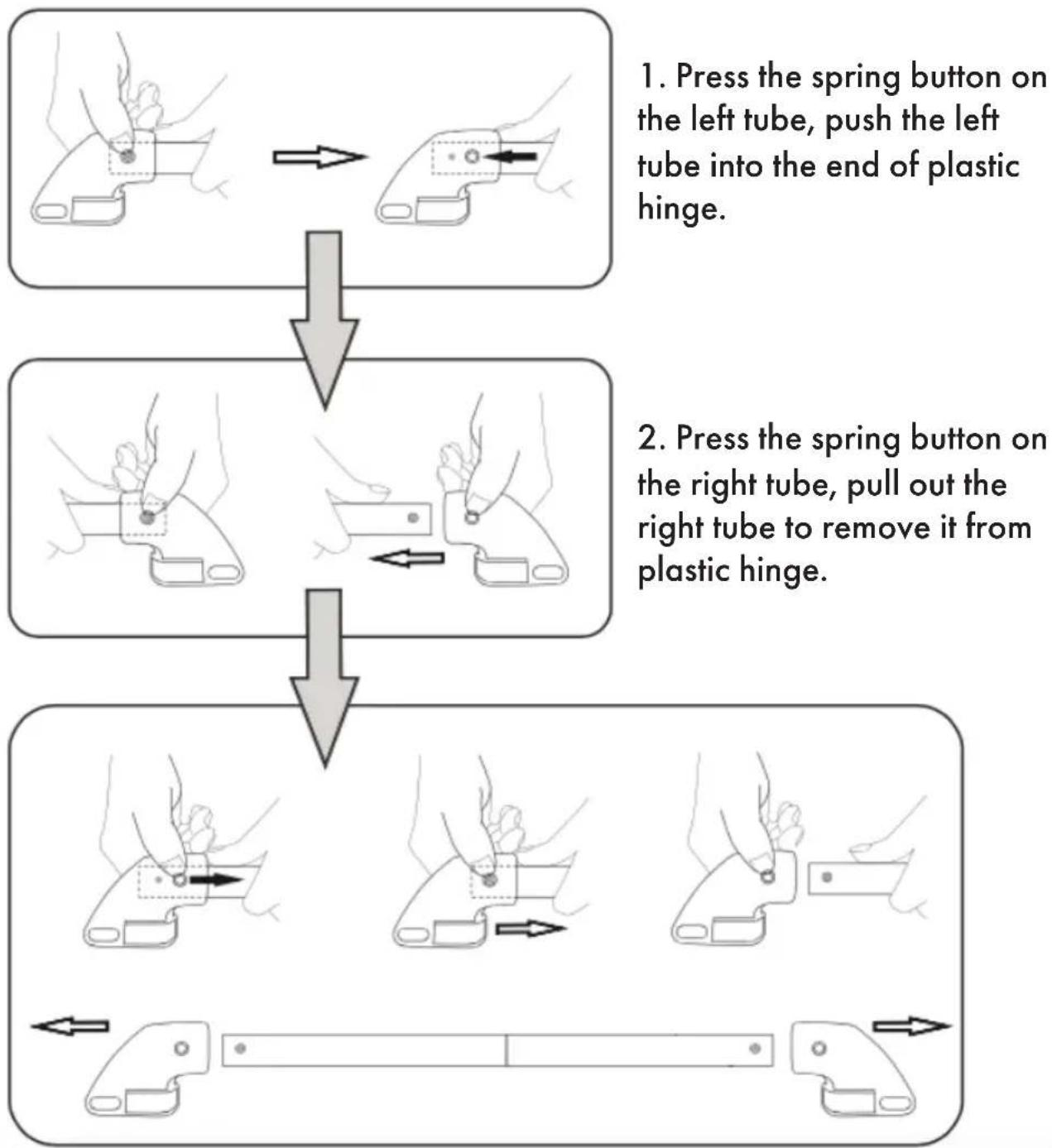


1. Pull the left tube to make the spring button back to hole place, again press the spring button and pull out the left tube, now 2 ends of tubes are removed the from plastic hinges.

HEIGHT ADJUST

Diagram of a mechanical device with an arrow indicating downward motion, no text or symbols present

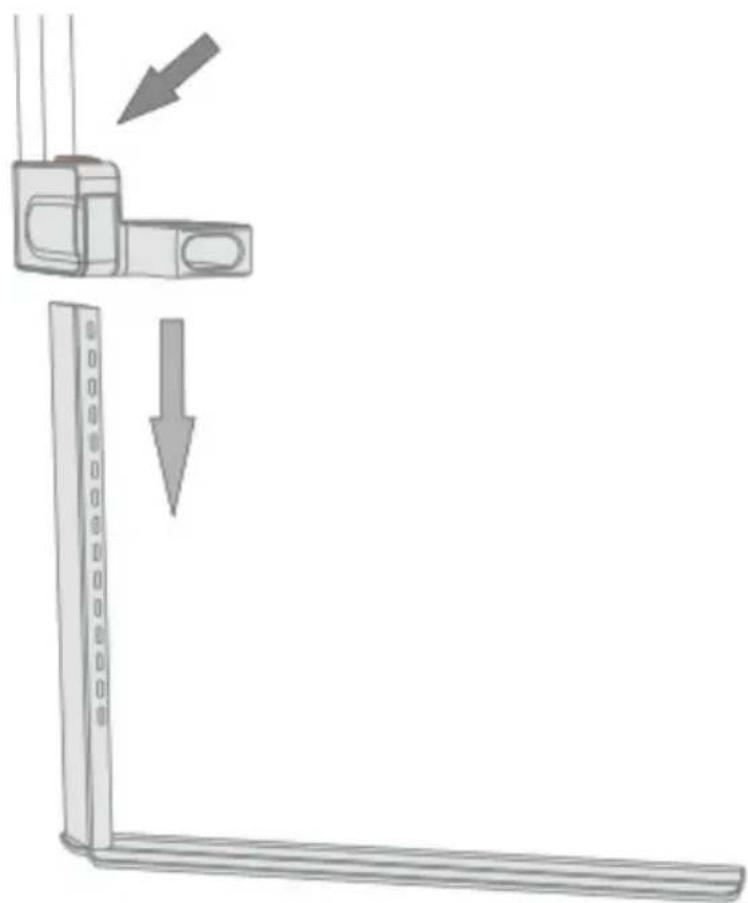

Press the button indicated by the arrow to assemble the support legs with the vertical tube, and adjust to the suitable position The product has 28 levels for adjustment to fit different bed and mattress heights.
