USER MANUAL Pet Stroller Deryan

Line drawing of a baby stroller with wheels and a back cover (no text or symbols)

IMPORTANT FOR FUTURE REFERENCE.

Read the following instructions carefully before use.

IMPORTANT ! À CONSERVER POUR TOUTE RÉFÉRENCE ULTÉRIEURE.

Line drawing of a wheeled cart with wheels and attached sensors (no text or symbols)

Frame

Line drawing of a backpack with visible internal compartments and straps (no text or symbols)

Pet carrycot

Simple line drawing of a mechanical component resembling a wheel or impeller (no text or symbols)

Simple line drawing of a mechanical component resembling a wheel or gear (no text or symbols)

Front wheels

Simple rounded rectangle outline with no text, numbers, or symbols

Mattress

UNFOLD FRAME

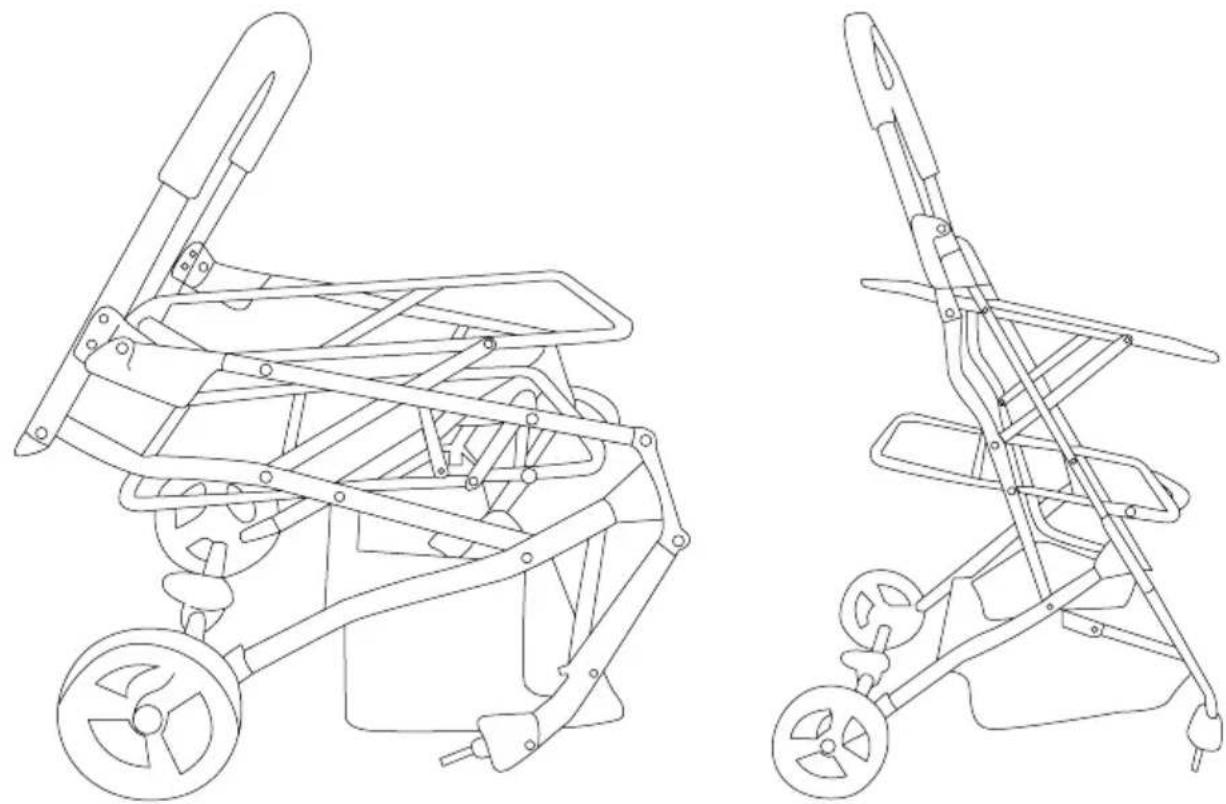

Orient the pet stroller with the handle facing upward. Remove the pet carrier from the stroller and put it aside for later assembly. Pull upwards on the handle. Keep pulling until the pet stroller is fully erected and the locking mechanism has fully engaged. Gently push downward on the handle to ensure that the pet stroller is completely opened and locked before any use of the product.

Line drawings of two children's strollers with wheels and handlebars, shown from different angles (no text or symbols)

INSTALLING WHEELS

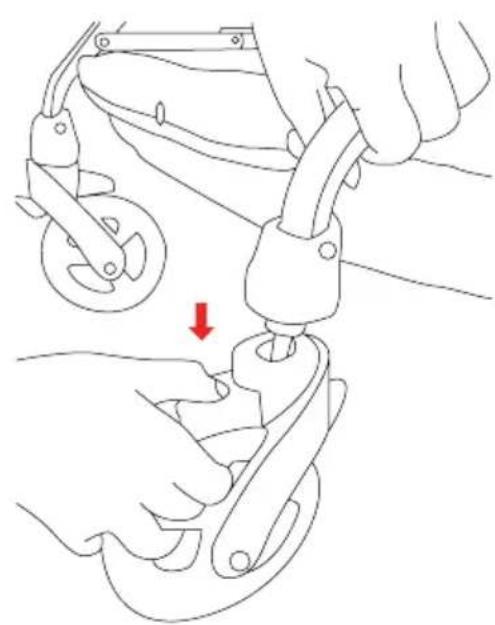

Slide one front wheel into the front wheel housing until it clicks into place. Repeat for the other wheel. Pull on the wheels to ensure they are installed properly. To remove the wheel, press the release button on the front wheel housing and pull the wheel away from the pet stroller.

Line drawing of hands using a pulley device to adjust a seatbelt, with a red arrow indicating the adjustment (no text or symbols present)

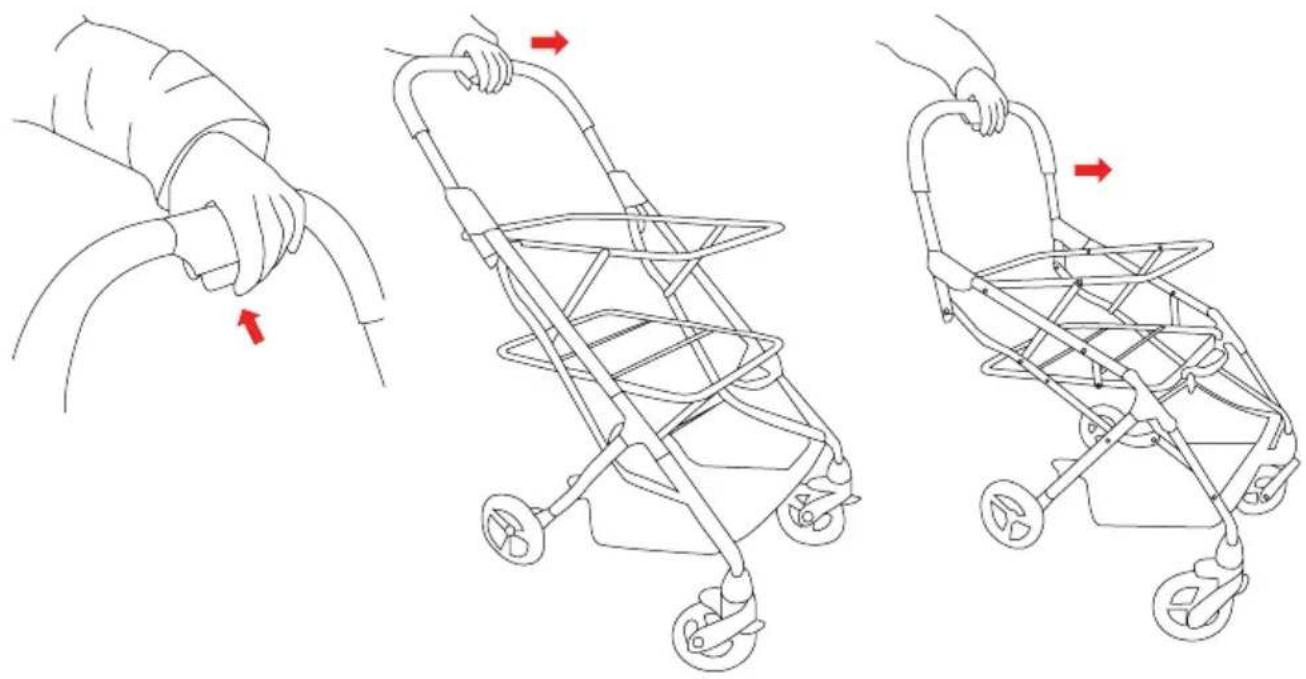

Keep children away from the pet stroller while folding, the rear wheel brakes must be engaged before folding the pet stroller. The carrier must be removed from the frame.

Push the folding release lock on the handle to the left and squeeze the button on the inside of the handle.

Slowly push the handle forward until the product is completely folded. Do not force the pet stroller.

Line drawings of a baby stroller with hand positioning and side arm placement (no text or symbols)

Caution! While folding the pet stroller, be careful to keep your fingers from being pinched by moving parts.

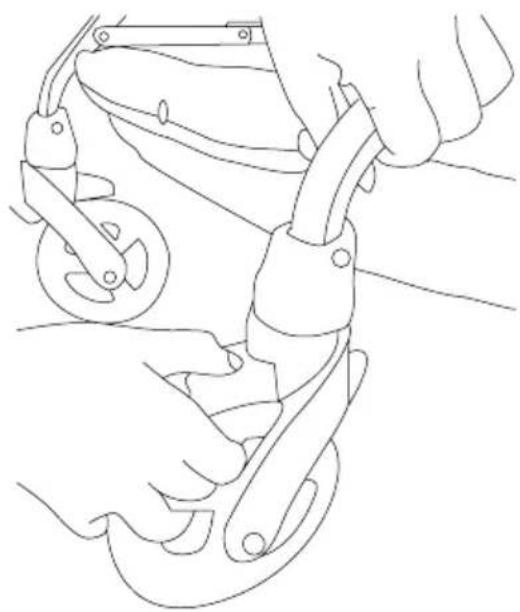

REMOVING FRONT WHEELS

Release the button to remove the front wheels.

Line drawing of a person using a bicycle pulley system (no text or symbols)

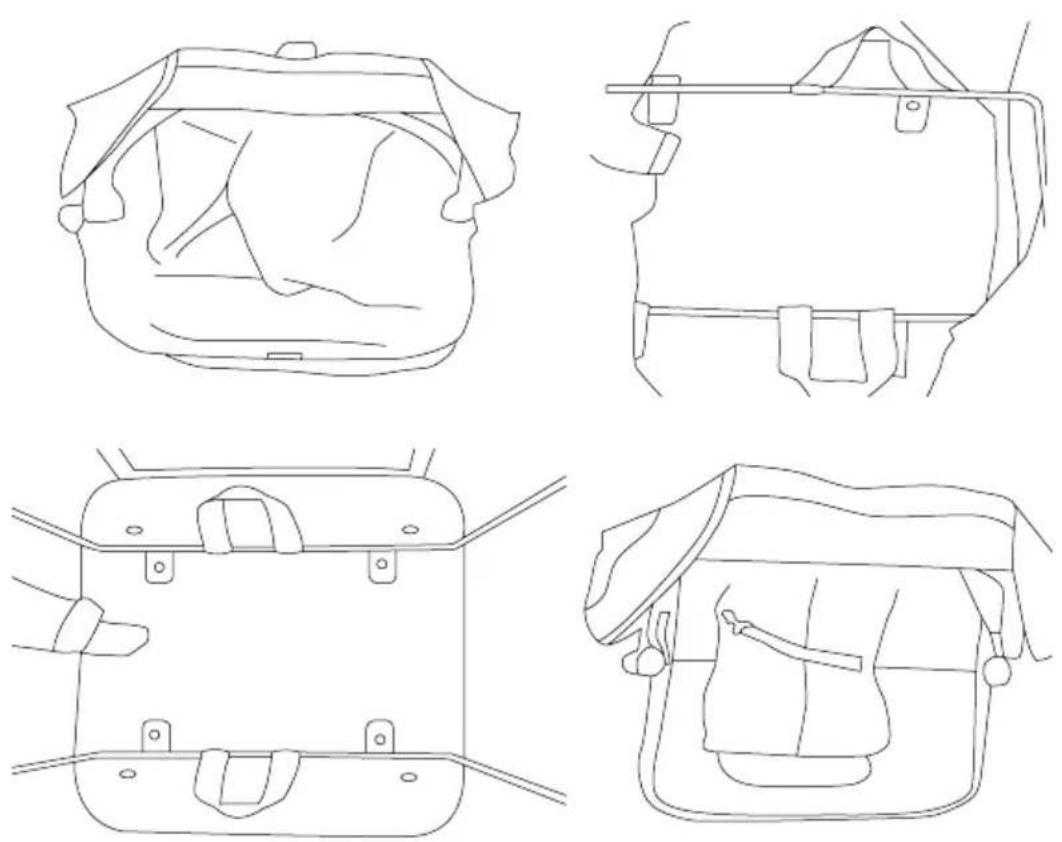

ASSEMBLING THE PET CARRIER

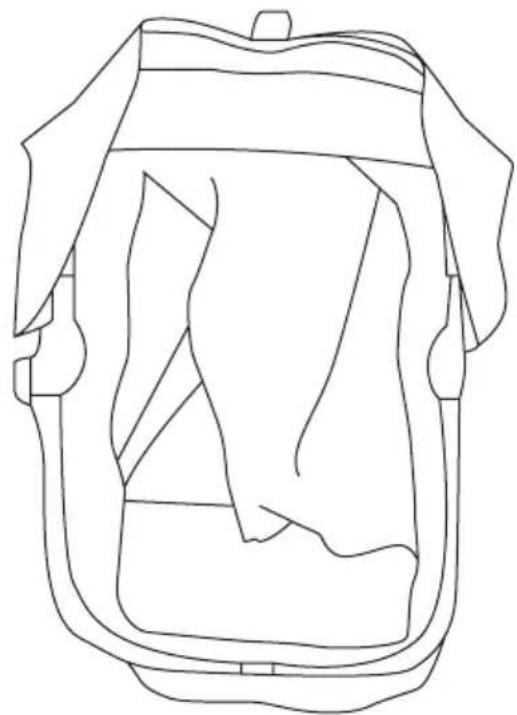

For the pet carrier that was previously put aside, lift up on the sides of the carrier to fully expand it. Keeping it fully expanded, gently place it on the floor or a table. Remove the pad and pad support from the carrier and put them aside.

Open the fabric pocket on the bottom of the carrier, use your other hand to firmly pull the loop on one of the support legs towards one end of the carrier until the support leg fits into the groove on the bottom panel of the carrier. Repeat for the other support leg. The carrier should now hold its shape.

Close the pocket using the velcro strips. Place the pad inside the carrier with the pocket side facing down. To attach the carrier to the stroller frame, hold the carry handle and place the carrier into the frame so that the clamp on both ends of the carrier fits between the bracket tabs on the stroller frame bar. Push down the clamp on both sides of the carrier frame to lock the pet carrier tot the stroller frame. Pull up on the carrier to ensure it is secure.

FOLDING THE PET CARRIER

To prepare the carrier for storage or travel, remove the pad and pad support from the carrier. Open te pocket on the bottom of the carrier. With one hand braced against the bottom of the carrier, use your other hand to firmly pull on the loop attached to one of the support legs until it releases from the groove and lays flat.

Repeat for the other side as well. Collapse the carrier by pushing down on all sides so that it lies flat for storage or travel.

The tether should never be removed. Place your pet in the carrier and attach the tether to the collar to secure them. The tether can be adjusted using the sliding plastic ring.

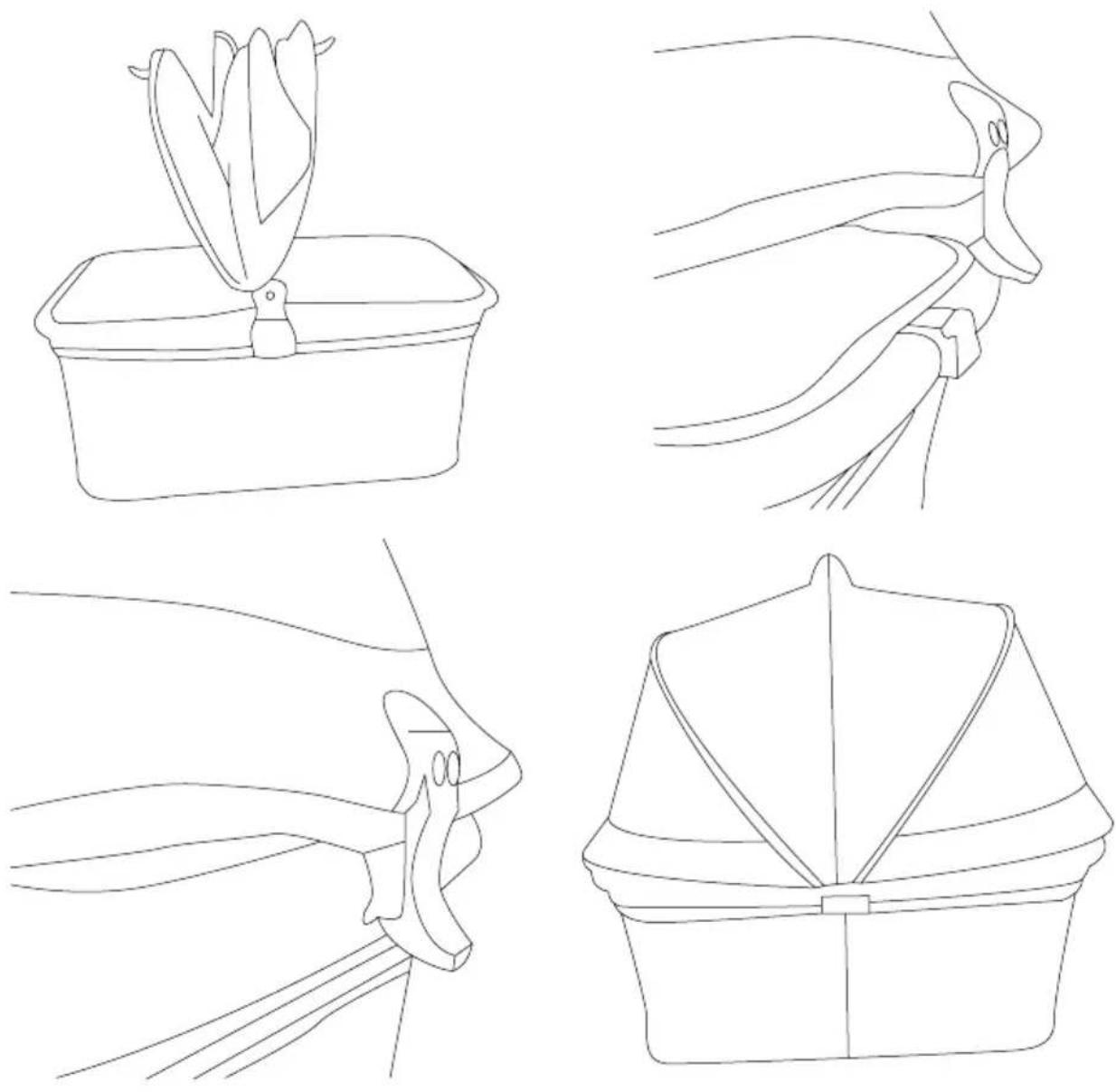

CANOPY

The canopy can be positioned between fully opened and fully closed. To open the canopy, unlock the clamp on both ends of the canopy and rotate the canopy to the desired position.

To lock the canopy, close the canopy all the way down and push the clamp on both sides to secure it to the carrier frame.

Line drawings of four different techniques for handling a plant, including a flower bud, hand positioning, and a bucket handle (no text or symbols)

PUTTING IT TOGETHER

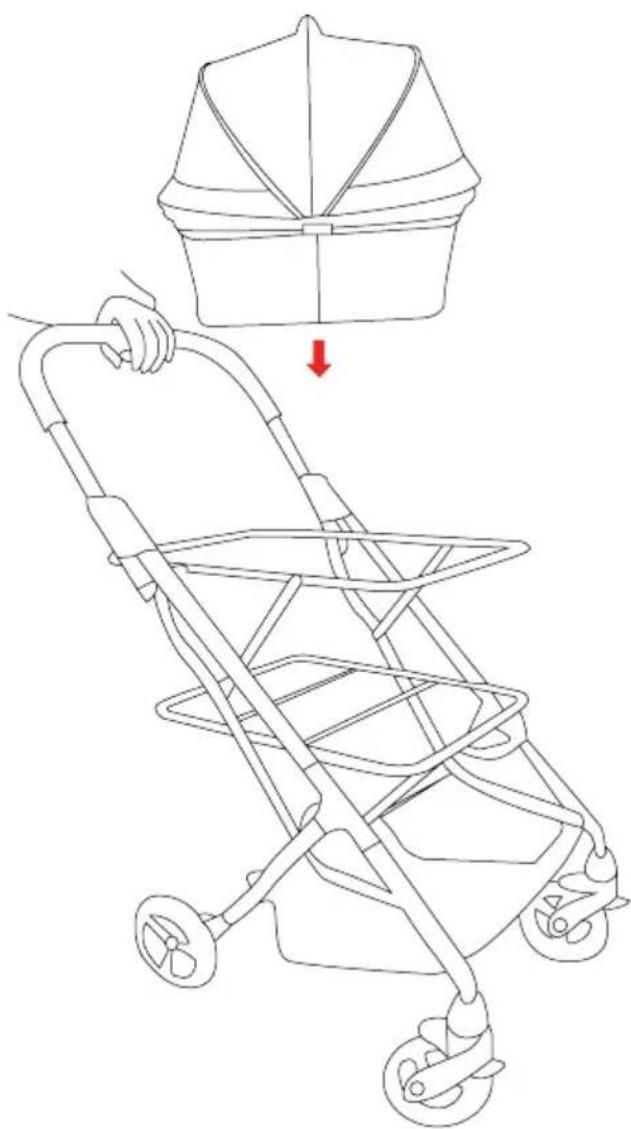

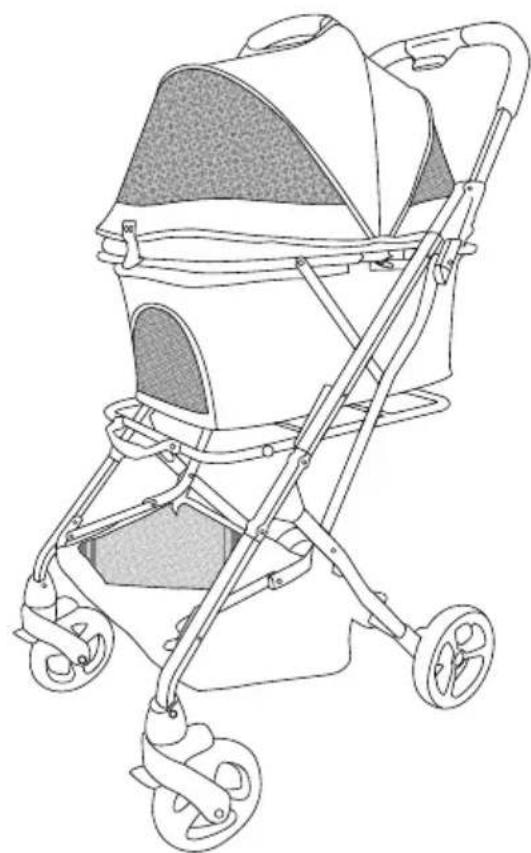

To attach the carrycot to the frame, slowly lift it into the center of the frame and lower the carrycot. Snap the carrycot into place using the locking clamps on both sides.

Line drawing of a baby stroller with a hand holding the basket, showing body positioning and a red arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and a back cover (no text or symbols)

USE AS HANDHELD

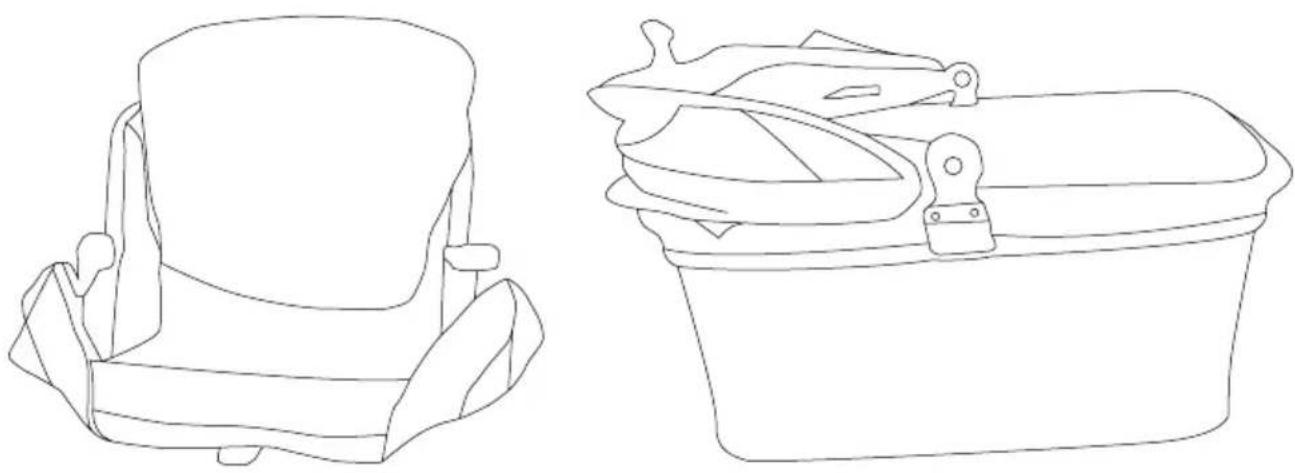

Using the pet carrier as a hand held product, remove the carrier from the stroller, unlock the clamp on both sides of the carrier frame. Hold the carry handle and lift it up until it is completely out of the frame.

Line drawings of two different buckets, one with a bucket cover and the other with a bucket handle (no text or symbols)
