Product type	Animal trailer
Brand	Deryan
Model	Pet Trailer
Maximum load	20 kg
Recommended maximum speed	12.5 km/h
Intended use	Hitching to a bicycle, transporting pets
Target audience	Pets (not children)
Fabric material	Polyester with waterproof coating
Safety	Safety harness, safety flag, red reflectors
Tire pressure	Check before each ride, range indicated on tire sidewall
Maintenance	Clean with warm water and mild soap, lubricate moving parts
Storage	Dry place, away from direct sunlight
Assembly	Adults only
Minimum driver age	18 years
Driver condition	Good physical condition, helmet required
Hitching	Check correct connection before each use
Rear door	Must stay closed while riding
Safety leash	Adjust to appropriate length for the animal
Reflectors	Red, visible from the rear
Night lighting	Required by local law
Accessories	Only those approved by the manufacturer are allowed
Regular inspection	Check for damage to metal parts and fabric

Frequently Asked Questions - Pet Trailer Deryan

What is the maximum load of the Pet Trailer?

The total maximum load is 20 kg, including the weight of the animal and accessories.

What is the recommended maximum speed?

The recommended maximum speed is 12.5 km/h. Always maintain a safe speed, especially on turns and wet surfaces.

Can I use the trailer to transport children?

No, this trailer is intended only for pets, not children.

How do I maintain the trailer?

Clean regularly with warm water and mild soap. Lubricate exposed moving parts with grease or oil. Inspect the fabric and fasteners for any damage.

How do I inflate the tires correctly?

Check pressure before each ride. Use a foot or hand pump and follow the pressure range indicated on the tire sidewall. Do not exceed the maximum pressure.

What to do if the trailer is damaged?

Do not use the trailer if damaged. Replace cracked, deformed, or worn parts. Contact the manufacturer for replacement parts.

Can I use the trailer with an electric bike?

No, it is not recommended to use the trailer with motorized vehicles (including electric bikes), as increased speed may damage the trailer and cause injury.

How do I secure my pet inside?

Use the provided safety leash to secure your pet inside. Adjust it to the correct length so it cannot jump out. The rear door must remain closed.

Where to store the trailer in winter?

Store the trailer in a dry place, away from direct sunlight. Make sure it is clean and dry before storing to prevent mold.

Is my bike compatible with this trailer?

The trailer attaches to most standard bikes. Make sure the bike is in good working condition and the hitch is properly connected. Refer to the manual for assembly details.

USER MANUAL Pet Trailer Deryan

Black Deryan pet dog cart with a wheeled body and wheels, no visible text or symbols on the device itself.

IMPORTANT FOR FUTURE REFERENCE.

Read the following instructions carefully before use.

IMPORTANT ! À CONSERVER POUR TOUTE RÉFÉRENCE ULTÉRIEURE.

• The maximum total load: 20kgs
• Max recommended trailer speed is 12.5km/h. Always maintain a safe speed.
- Do not use the trailer on rocky roads or other dangerous roads.
- Always ride with the rear door closed. When riding, you pet should always be secured with the safety leash adjusted to the correct length.
• This trailer use for pet not for Child.
- Bicycle riders using the trailer must be 18 years old or older and must be in good physical condition.
- Riders must wear approved safety helmets.
- Assemble trailer strictly according to this instruction manual.
- Never park the trailer near a trench or dangerous road.
• Check tire air pressure before every trip
- If necessary inflate the tires to within the range shown on the tire sidewall. Always use a foot or hand pump to inflate the tires.
• Overinflation of tires may result in failure and risk of serious injury. Do not exceed maximum pressure as shown on tires.
- Check that the bicycle is in proper technical condition.
• Always check the proper connection of the coupling.
• Always have the canopy in place.
• Take proper precautions while riding in traffic, especially when turning.
• Always check that all parts of the trailer are connected properly and tightly.
- Do not use trailer with motorized vehicles. Increased speed of motorized bicycles can damage the trailer and cause injury.
- Avoid serious injury from falling or sliding out. Always use the safety harness.
- Take extra precautions when using in the rain. Ride slowly and allow a greater margin of safety when starting, stopping, and turning.
- Do not ride on surfaces where sand, gravel, ice, oil, or slippery substances are present.
- Never tow the trailer over curbs, stairs or escalators. If you must travel through stairs, have children get out of the trailer, disconnect the trailer from the bike and take it over the stairs independently.
- Never use bike trailer without provided safety flag and reflectors.
- Do not make any modifications to the trailer which may increase the risk of failure.
- Check the trailer for damage. Do not use if damaged.
- Be sure the fasteners are tight. Tighten if necessary.
- Be sure the brakes work properly. Braking distance is increased when pulling a trailer.
- The trailer requires a wide turning radius. Do not turn sharply. Sharp changes in
• direction may cause a tip over.

• The assembly can only be carried out by an adult.
- Use caution when turning on loose or uneven surfaces and when going downhill.
- Allow extra clearance for the trailer when near curbs, parked cars, and other obstacles.

- Do not ride over curbs, bumps or holes.

- Do not use the trailer in hazardous weather.

- Do not pull or push the trailer with a vehicle.

• This product is not suitable for running or skating (max. 12.5 km/h).

- Red reflectors must be visible on the rear of the trailer.

- Never ride a bicycle at night without adequate lighting. Obey all local legal requirements for lighting.

- Any load attached to the handle and/or on the back of the backrestand/or on the sides of the vehicle will affect the stability of the vehicle.

• Accessories which are not approved by the manufacturer shall not be used. •

WAARSCHUWINGEN

• Maximale totale belasting: 20 kg

Main frame Wheels Tow Bar Front wheel Blue Clamp Flag Handle bar

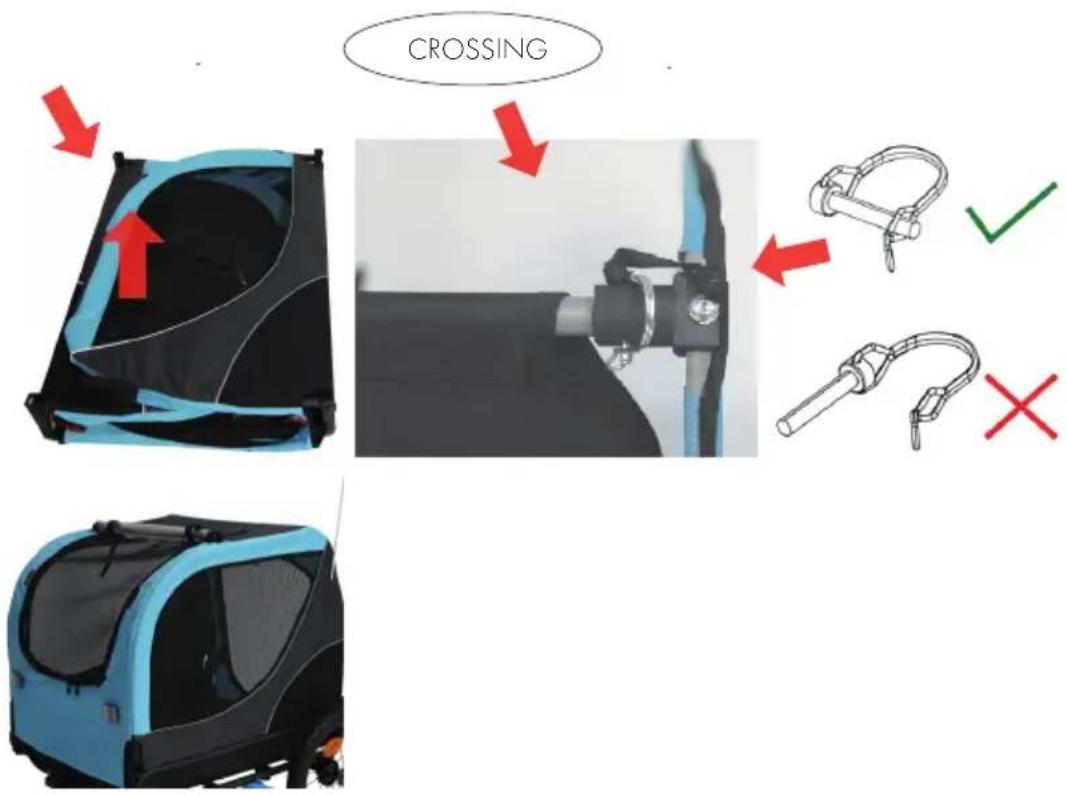

ASSEMBLY

CROSSING ↓ ↑ ↓ ← ✓ ×

1. Raise both side panels to an upright position
2. Wearing the top of back seat cloth into the cross bar and locking the pin into the latch.
3. Ensure the cross bar is locked into place by pulling up and down on it.

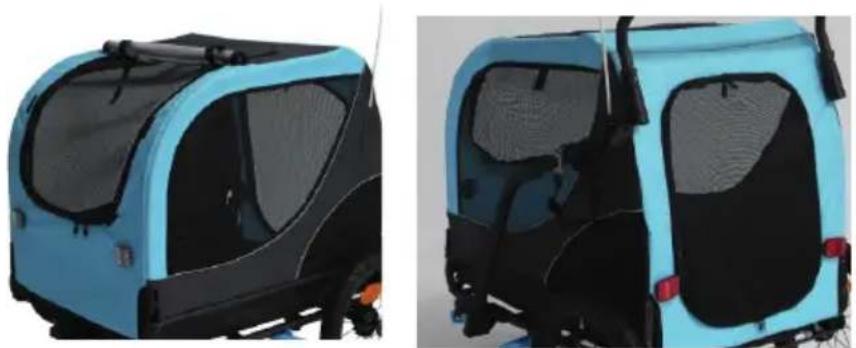

Two views of a light blue and black pet dog car (no text or symbols visible)

1. Close all the zippers and check the cover is installed.
2. Roll the weather shield up into the velcro at the top of the canopy if you are not using it.

Close-up of hands cleaning a bicycle wheel with a tool, no visible text or symbols

Technical diagram showing two mechanical assembly steps: left with a bolt and red arrows indicating direction, right with a pin inserted into a textured cylindrical component (no text or symbols)

1. Raise both side panels to an upright position
2. Wearing the top of back seat cloth into the cross bar and locking the pin into the latch.
3. Ensure the cross bar is locked into place by pulling up and down on it.

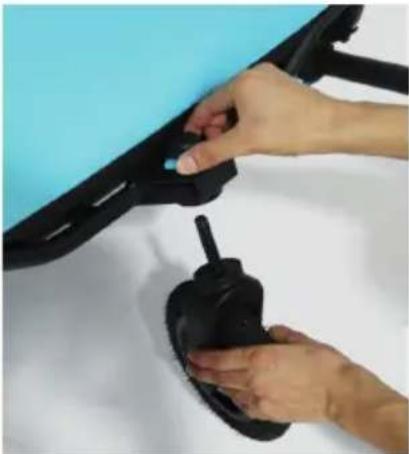

WARNING

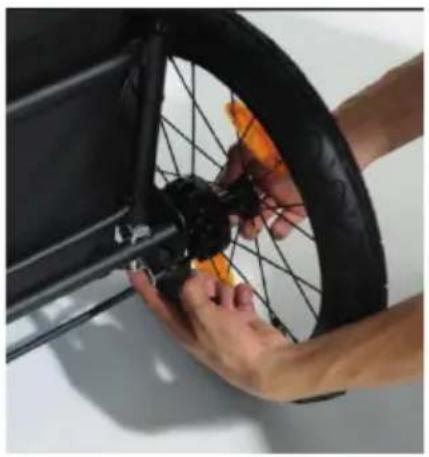

Wheels that are not securely locked in place may fall off the trailer and cause serious injury or death. Always ensure the wheels are securely locked in place before use!

Close-up of a metallic mechanical component with a U-shaped groove and two small protrusions (no visible text or symbols)

Hand holding a blue plastic clip attached to a wall-mounted device (no visible text or symbols)

Close-up of a metallic mechanical component with a blue bracket and lever mechanism (no visible text or symbols)

1. Insert the drawbar into the opening on the frame. The opening is located under the front reflector.
2. Secure the drawbar with the blue clamp. To do this, insert both steel bolts of the clamp into the holes on the side of the bicycle trailer and close the clamp. The clamp is securely closed as soon as you hear a loud clack.

Note

Opening and closing the clamp is not smooth and requires a certain amount of force. This is necessary to guarantee a secure hold of the clamp.

WARNING

1. Both steel bolts must always be locked with the clamp when the trailer is used.
2. Always make sure that the drawbar is securely mounted. Failure to do so may result in serious accidents and injuries.

Two-panel image showing a hand holding a vertical pole with an orange bar, and a small red flag on a pole with arrows indicating direction (no text or symbols)

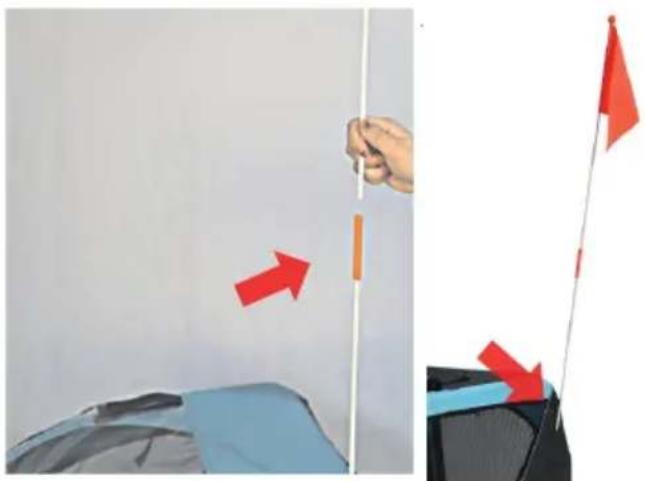

Assemble the flag pole sections by sliding the top half of the pole into the opening of the bottom half of the pole.

1. Insert the flag pole into the sleeve located at the rear corner of the trailer.

WARNING

The safety flag is an important safety feature that warns others a trailer is present and on the bicycle. Always have the safety flag on the trailer when in use!

Close-up of a bicycle rear wheel and side-mounted suspension system, showing red arrows indicating motion (no text or symbols)

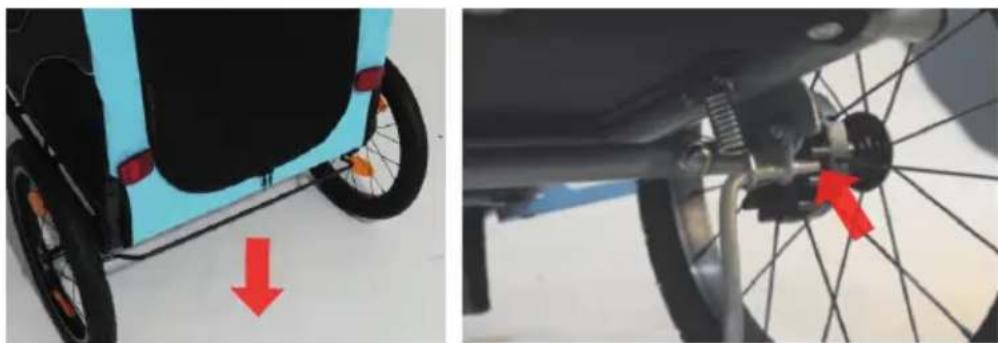

The parking brake prevents the bicycle trailer from unintentionally rolling away when stationary. It is not suitable for braking a rolling bicycle trailer. Always apply the parking brake when you:

1. Park the jogger or buggy.
2. Allow your pet to get in and out of the trailer when using it as a jogger, buggy or bicycle trailer.
3. Push down the brake rod by foot until the end of rod slides into the socket attached to the rear wheels.
4. Pull up the brake rod by foot or hand when releasing the brake.

WARNING

Always apply the parking brake after parking the trailer and when getting in and out of the trailer with the pet. Check that the trailer cannot roll away by pulling it slightly forwards and backwards.

An unsecured trailer could cause accidents with life-threatening injuries by rolling away or could roll away when getting in or out of the trailer, causing serious injuries to the pet. Always engage parking brake at each stopover.

• If the rod can't be slid into socket easily, try to move the trailer forward slowly until brake is working.
• Never drive with the parking brake applied! This can damage the brake mechanism.

Close-up of hands cleaning a black plastic bag on a white surface (no text or symbols visible)

Hand adjusting a black bicycle seat with visible wheels and handle (no text or symbols)

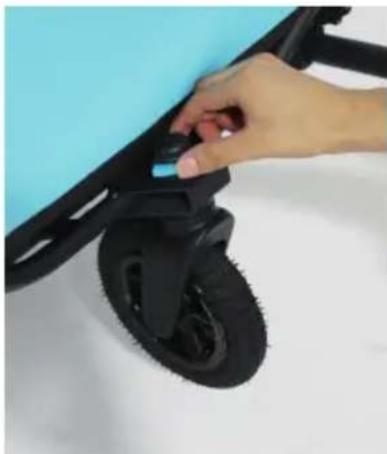

Press the button and hear a click

Close-up of a light blue pet care kit with black handle and mesh mesh, no visible text or symbols

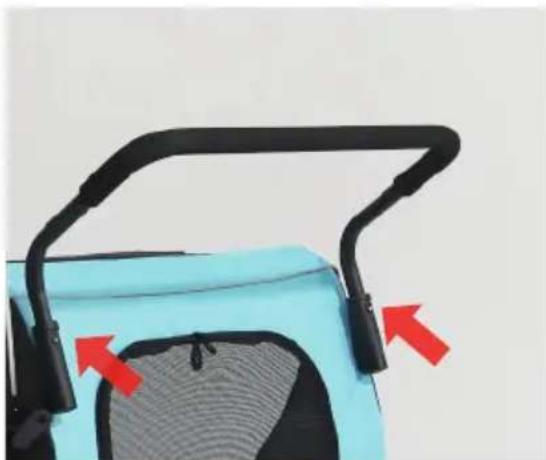

Press the clip on two side, and hear a click

Technical line drawing of a mechanical assembly with no visible text or symbols

Check whether the towing bike is approved by the manufacturer for towing trailers! Pulling trailers with an unsuitable towing bike can lead to frame fractures and accidents with life-threatening injuries.

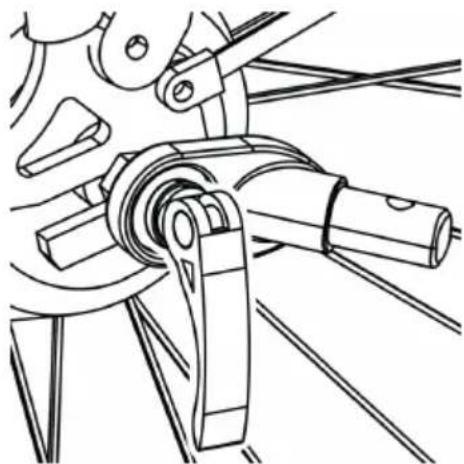

Quick-release Axle: Remove the quick-release from the left side of bike's rear axle. Install the hitch between the quick-release and frame. Tighten the quick-release following the bike manufacturer's manual. Hitch can remain on the bike when the trailer is removed.

WARNING

The tension-adjusting nut must engage the threads for at least five full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the tension-adjusting nut fully may result in accidents with serious injury or death. If the quick-release skewer is too short, it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

Mechanical linkage diagram showing a chain with joints and rods (no text or labels)

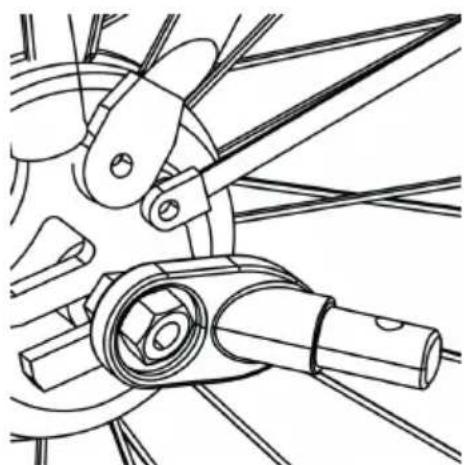

Unscrew the nut with washer from the left side of bike's rear axle. Install the hitch onto the axle and screw the nut back on with the washer.

WARNING

The axle nut must engage the threads for at least five full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result in accidents with serious injury or death. If the axle is too short, the Universal Hitch cannot be used! Consult a professional bicycle mechanic for the appropriate parts and assistance.

The universal hitch doesn't fit a bike with thru axle. Please consult the retailer for possible solution.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

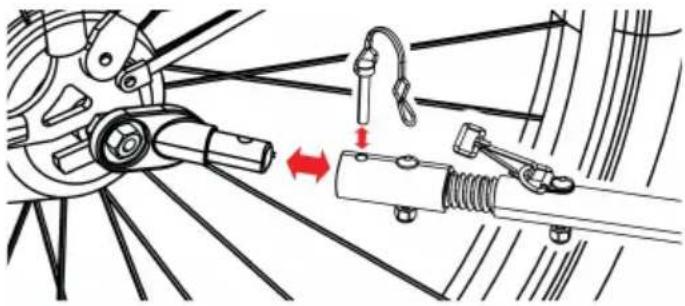

Connect the coupler on the tow bar and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow (no text or labels)

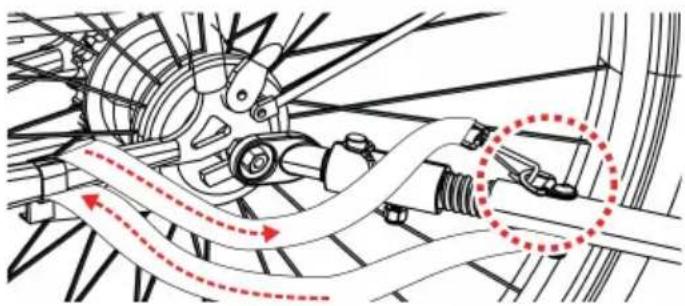

Once the tow bar is attached, wrap safety belt around the frame of the bike and hook onto the D-ring on the tow bar.

Check before each use

1. Wheels are properly secured to the trailer.
2. Tires are inflated to recommended pressure on the tire side wall.
3. Tow bar is properly secured to the trailer.
4. Hitch is properly secured to the bicycle.
5. All safety pins are securely locked in place.
6. Safety strap on the tow bar is properly installed.

7. Safety flag is in place.

8. Make sure that bicycle is in proper working order, especially brakes and tires (refer to bicycle manufacturer's instructions).

MAINTENANCE

Maintain and clean the trailer regularly to keep it in good condition for a long time.

Check your trailer and accessories regularly for damage and signs of wear.

Check all metal components for possible breaks or cracks. Do not use the trailer if any metal components are cracked or damaged.

Check the trailer for bent, defective, missing or loose fasteners or catches. Tighten loose fasteners or catches and replace damaged or missing parts.

Inspect the fabric regularly for tears, worn spots or other signs of damage.

Clean the pet carrier regularly with warm water and a mild soap solution. Never use aggressive cleaning agents or solvents.

Clean the wheel axles and lubricate all exposed moving parts with grease or oil.

Always check the wheels and carry out maintenance at least once a year.

Storage

Store your trailer and accessories in a dry place out of direct sunlight.

Before storage, the child carrier must be dry to prevent the formation of mould or bacteria.

Fabric Care

Trailer is manufactured from a tough, durable polyester. The fabric is coated for waterproofness. It can be easily cleaned with any mild soap or detergent and warm water. To remove persistent stains, use a nylon bristle brush. When not in use, store your trailer in a dry, well-ventilated area; wipe it dry before storing to help avoid mildew.
