Bike Trailer Bassinet - Bike rack Deryan - Free user manual and instructions

Brand	Deryan
Model	Bike Trailer Bassinet
Category	Bike rack (bike trailer accessory)
Product type	Bassinet for bike trailer
Maximum load	9 kg
Recommended maximum speed	12.5 km/h
Compatibility	Deryan carrier compatible only
Allowed use	Paved paths and roads
Child supervision	Never leave unattended
Maintenance	Clean with lukewarm water and mild soap solution
Prohibited cleaners	Harsh chemicals or solvents
Storage	Dry place, away from direct sunlight
Damage inspection	Regularly, before each use
Parts to inspect	Metal parts, fabric, attachments, latches
Action in case of damage	Stop using, replace damaged or missing parts
Number of manual pages	14
Available languages	FR, EN, DE

Frequently Asked Questions - Bike Trailer Bassinet Deryan

What is the maximum load for the Deryan Bike Trailer Bassinet?

The total maximum load is 9 kg. Never exceed this limit to avoid risk of injury.

What is the recommended maximum speed for the trailer with this bassinet?

The recommended maximum speed is 12.5 km/h. Always adapt speed to road conditions.

Can I leave my child unattended in the bassinet?

No, never leave your child unattended in the bassinet. Unforeseen and potentially dangerous situations can occur.

How to clean the bassinet?

Clean the bassinet with lukewarm water and a mild soap solution. Never use harsh cleaning products or solvents.

How to store the bassinet when not in use?

Store the bassinet in a dry place, away from direct sunlight. Make sure it is dry before storing to prevent mold or bacteria.

What types of terrain are suitable for the bassinet?

The bassinet should only be used on paved paths and roads. Use on other terrains is not allowed.

How to check if the bassinet is in good condition?

Regularly inspect the metal parts, fabric, attachments and latches. Look for cracks, tears, worn spots or loose fasteners.

What to do if the bassinet is damaged?

If the bassinet is damaged due to a fall, accident or otherwise, stop using it. Tighten loose fasteners and replace damaged or missing parts.

Is the bassinet compatible with all Deryan trailers?

The bassinet can only be used with a compatible Deryan carrier. Check compatibility before use.

What are the essential safety precautions?

Respect the maximum load of 9 kg and the maximum speed of 12.5 km/h. Never leave the child unattended and check the bassinet condition before each use.

USER MANUAL Bike Trailer Bassinet Deryan

Line drawing of a car seat assembly with no text or symbols

Bike Trailer Bassinet

User manual

Important: Read the following instructions carefully before use and keep them for future reference.

Cleaning (EN - FR) 5

Cleaning (DE-NL) 6

Part List 7

Folding mechanism 8

Folding 9

Lower mounting clamps 10

Safety carabiner 10

Upper mounting clamps 11

Adjust seat to body height 11

Strap the child in 12

Company info

WARNINGS

• Do read instructions before using. Failure to comply with the instructions and warnings in this manual could result in serious injury or death.
  • The maximum total load: 9kgs.
• Max recommended trailer speed is 12.5km/h. Always maintain a safe speed.
• If this product shows any damage, be it due to a fall, accident or other external influences, it must no longer be used.
• The hammock may only be used after proper installation. Use in this configuration is only permitted in a compatible Deryan transporter and only on paved paths and roads. If you use this product in any other way or do not follow the instructions in the user manual, we not responsibility for this.
• Never leave your child unattended in the hammock! Unforeseen life-threatening situations can arise in your absence.
  • Make sure there is sufficient ventilation and a comfortable temperature.

AVERTISSEMENTS

MAINTENANCE AND CLEANING

• Check your hammock regularly for damage and signs of wear.
• Check all metal components for possible breaks or cracks. Do not use the hammock if any metal or fabric components are cracked or damaged.
• Check the hammock for bent, defective, missing or loose fasteners or catches. Tighten loose fasteners or catches and replace damaged or missing parts.
• Inspect the fabric regularly for tears, worn spots or other signs of damage.
• Clean the hammock regularly with warm water and a mild soap solution. Never use aggressive cleaning agents or solvents.

Storage:

- Store your hammock in a dry place out of direct sunlight.

- Before storage, the hammock must be dry to prevent the formation of mould or bacteria.

- Store your hammock in a dry place out of direct sunlight. - Before storage, the hammock must be dry to prevent the formation of mould or bacteria.

MAINTENANCE ET NETTOYAGE

Top-down view of a car seatbelt device (no text or symbols visible)

Top-down schematic of a car interior showing seatbelt, front panel, and exhaust pipe (no text or symbols)

FOLDING MECHANISM

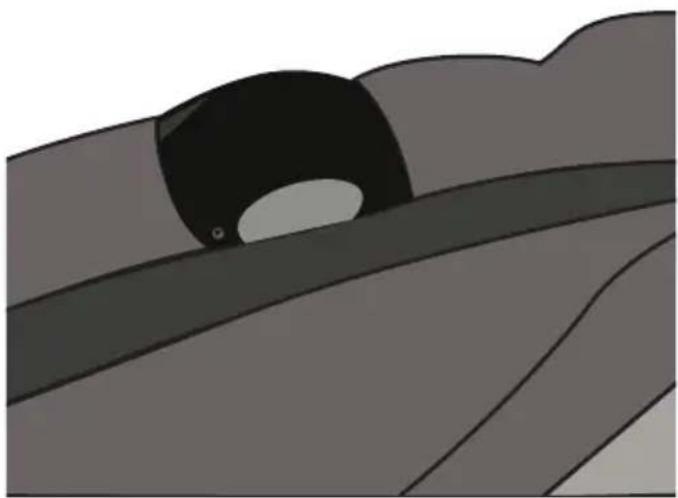

Open.

Illustration of a car wheel resting on a curved surface (no text or symbols)

Press the buttons on both of the safety frame.

Keep the buttons pressed and unfold the two parts of the safety frame.

Illustration of a mechanical component inside a layered structure (no text or symbols)

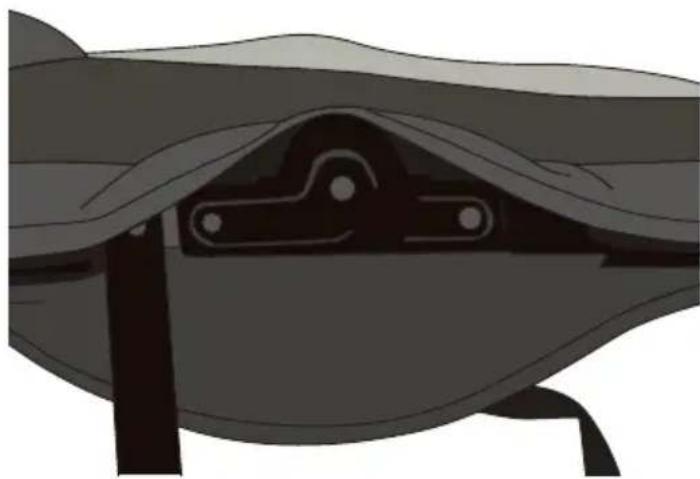

The joints have to be straight when unfolded(180' angle).

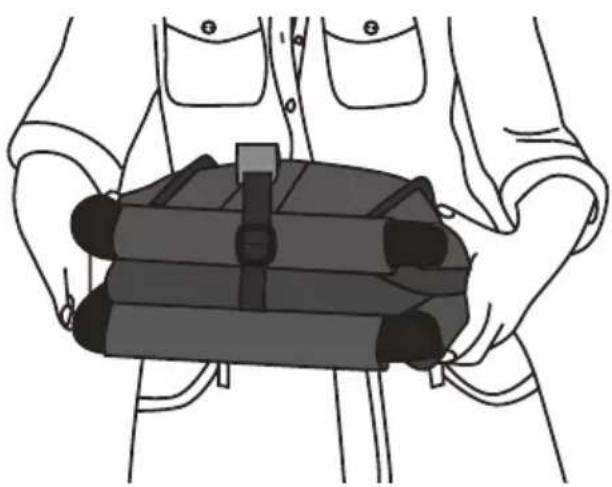

FOLDING

Illustration of a person holding a dark mechanical device with a belt buckle (no text or symbols)

Press the buttons on both side.

Keep the buttons pressed and unfold the two parts of the safety frame.

MOUNTING THE BASSINET

Line drawing of a pelvic pelvic region with two identical objects and connecting rods (no text or symbols)

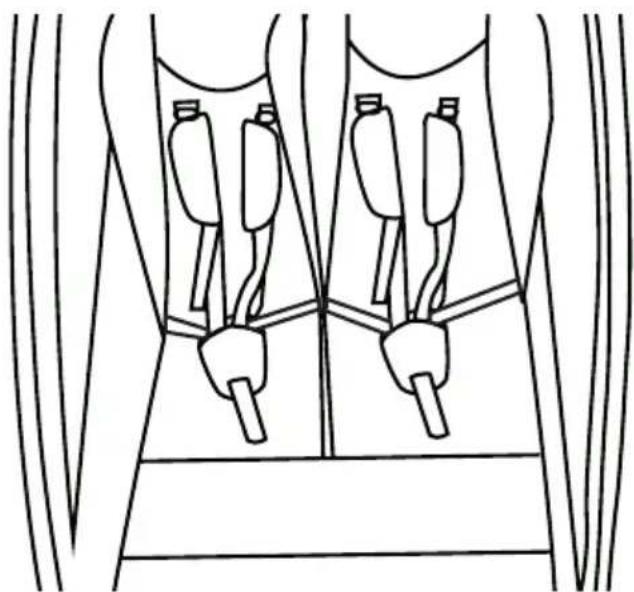

The hammock is connected to the transporter at 4 points to ensure a safe and stable position during baby transport.

LOWER MOUNTING CLAMPS

Illustration of a person's seat with hands placed on the lower leg (no text or symbols)

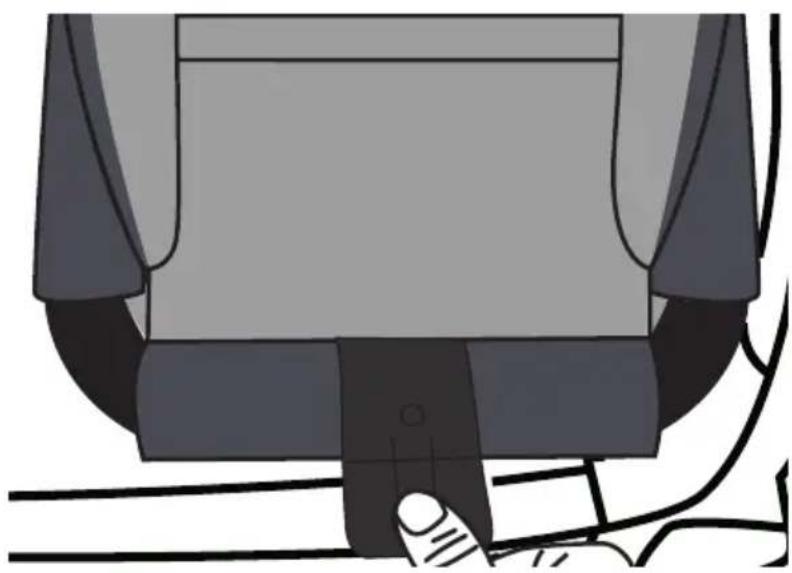

Push the screw in the transporter front tube ensure fixed.

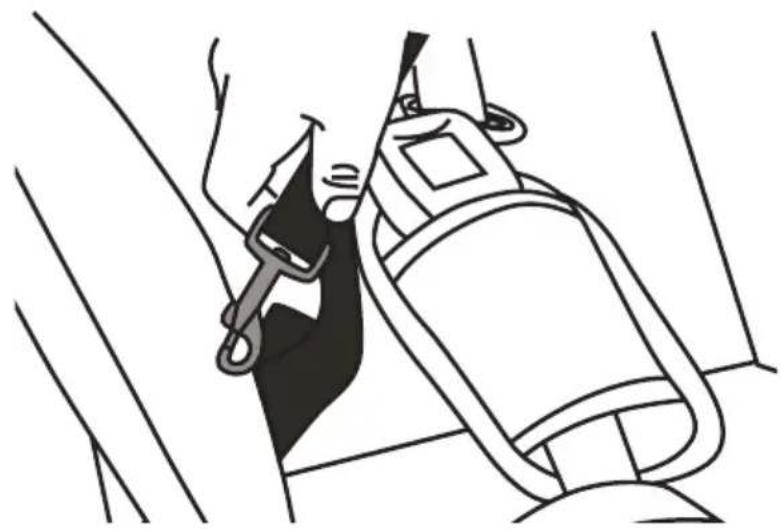

SAFETY CARABINER

Line drawing of a person using a safety harness to lift a vehicle (no text or symbols)

Hook the safety carabiner into the fixing strap on the crotch strap. Check that the safety carabiner is firmly attached(left and right)

UPPER MOUNTING CLAMPS

Illustration of a hand holding a black tool over a car wheel, with no visible text or symbols

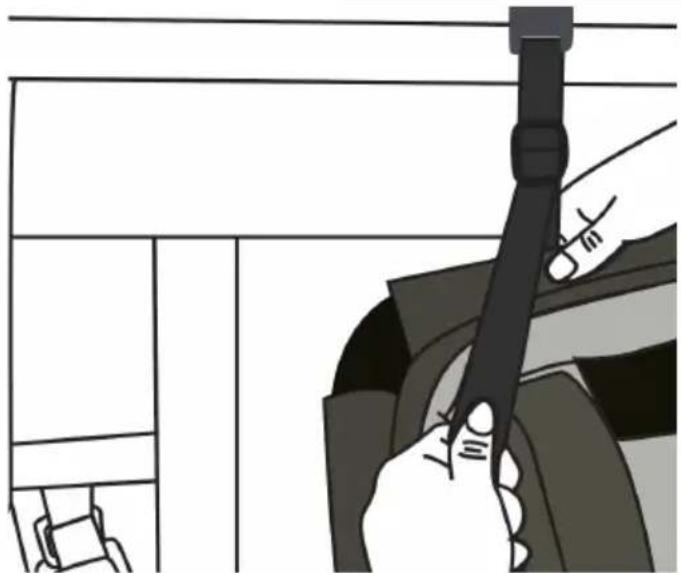

Press the upper mounting clamps onto the upper cross tube of the seat.

Check the firmess of clamps.

Thread the loose strap back through the buckle

The tighten the straps so that the safety shell is mounted firmly between the upper and lower mounting clamps.

ADJUST SEAT TO BODY HEIGHT

Diagram of a car interior showing dashboard and seatbelt mechanism (no text or symbols)

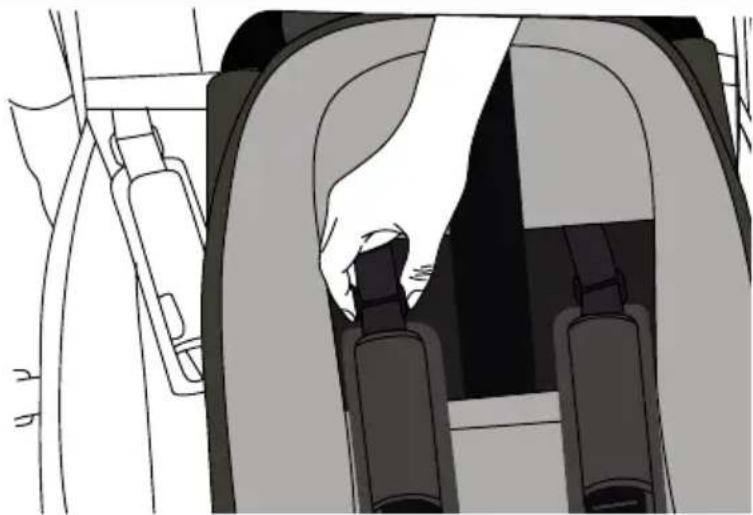

The headrest and the safety belts of the seating system can be adjusted to the baby's height.

Hold the strap and move the buckle vertically to adjust the height of the shoulder strap.

The height of the headrest can be adjusted using the velcro strap.

STRAP THE CHILD IN

Illustration of hands adjusting a car seatbelt (no text or symbols visible)

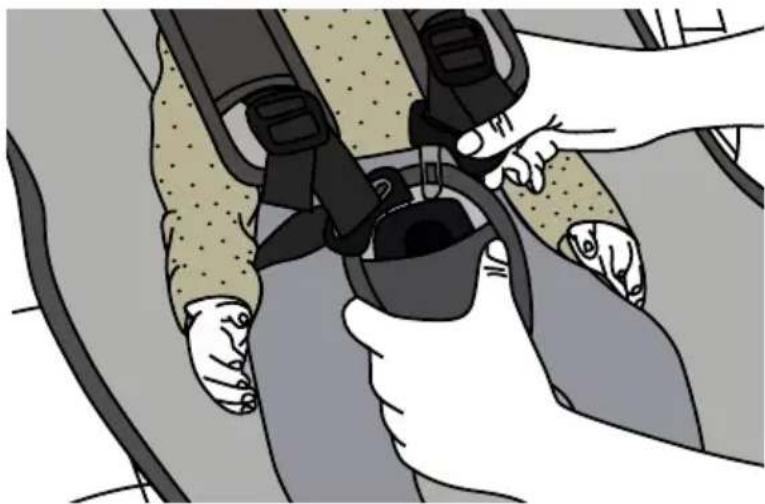

The hammock has a 5-point safety harness with a metal buckle to ensure the safety of the bbay during transport.

Help the baby to put his arms through the two lateral parts of the 5-point safety belt.

Adjust the seat belt, the belt pad and so on.

Company address

DERYAN B.V.

Marithaime 8

6662 WD Elst

The Netherlands

Telephone

[phone]

Email

[e-mail]

Website

www.deryan.com

Made in China
