USER MANUAL B600 Air King

IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

Models: B300, B500, B600

AirKing

Ventilation Products

Professional Series

Blower

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following:

WARNING: THIS BLOWER ASSEMBLY MUST BE

INSTALLED WITH TRANSFORMER ASSEMBLY MODEL XFMR129:

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction.

b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR

EXPLOSIVE MATERIALS AND VAPORS.

c) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
d) Read all instructions before installing or using range hood.
e) Refer to the instructions included with the Range Hood Canopy for additional safety information.

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

WARNING: THIS BLOWER IS INTENDED FOR USE ONLY IN AIR KING PROFESSIONAL SERIES RANGEHOOD CANOPIES

MARKED SUITABLE FOR USE WITH THIS BLOWER. DO NOT INSTALL IN ANY OTHER APPLICATION.

SECTION 1

Preparing for installation

NOTE: Before installing blower, make sure range hood canopy is properly installed and securely in place. See "Range Hood Mounting Instructions".

1. Unpack blower from the carton and confirm that all pieces are present. In addition to the blower you should have:

8-#8-32 Screws
8- Flat Washers
8 - Star Washers
2 - #10-32 Serrated Flange Nuts

1-Fuse

1 - Capacitor Cover
2-#6 Screws
1 - Instruction/Safety Sheet

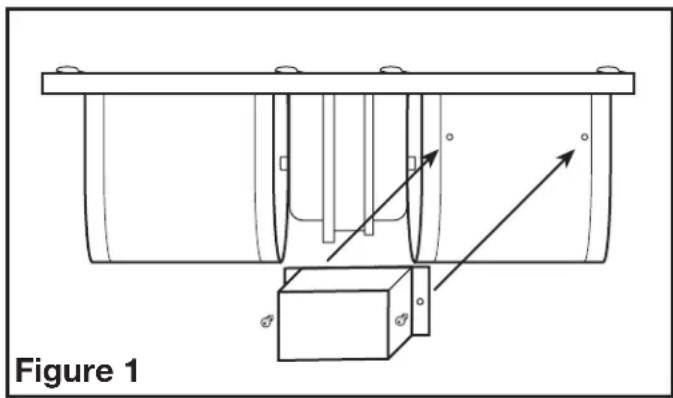

1. Position the capacitor cover over the two holes in the blower housing & attach using the two #6 screws provided (Figure 1).

1. The installation of the blower is slightly different from one canopy height to another. For 18^ high canopies proceed to Section 2, for 10^ high canopies proceed to Section 3.

SECTION 2

Installation into 18" High Canopy

1. Loosely install the two #10-32 serrated flange nuts (included) onto the studs located inside the top center of the hood.

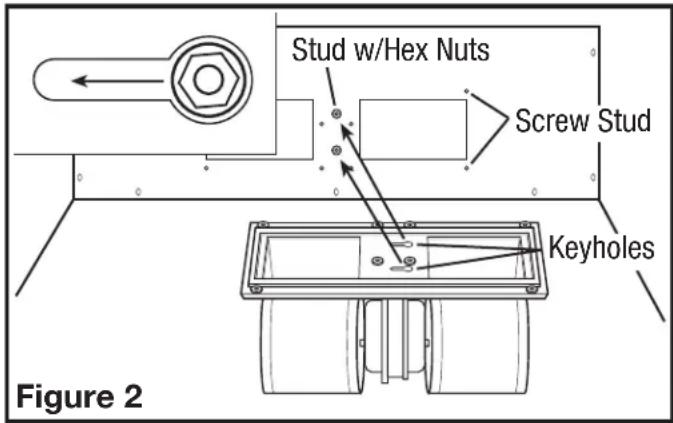

2. Lift blower up into the hood canopy and slide the keyhole slots in the motor mounting flange over the two studs of the hood. Slide the motor into place and tighten the hex nuts on the mounting stud while lining up the 8 holes in the motor mounting flange to the 8 screw studs of the hood (Figure 2).

1. Using 8 of the included #8-32 screws, flat washers and star washers, mount the blower in place and tighten all screws. Confirm that the blower is securely seated in place and there are no air gaps around the blower gasket.

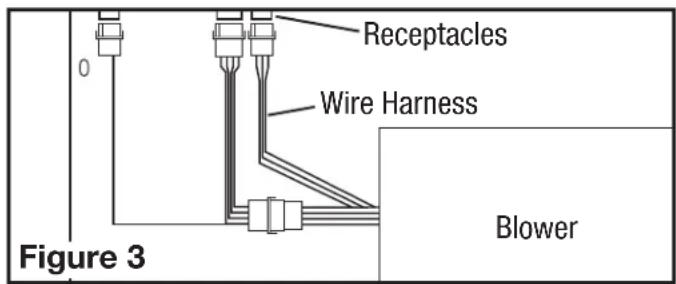

2. Plug the 2, 3 wire and 4 wire quick connect cords from the blower into the appropriate receptacles located on the inside front of the hood canopy. These cords will only fit into the receptacles one way (Figure 3).

SECTION 3

Installation into 10^ High Canopy

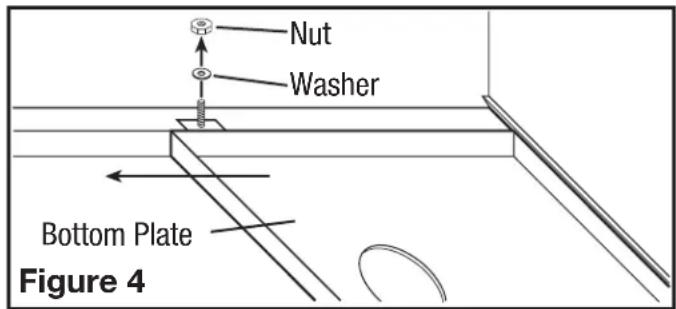

1. Remove the rear bottom plate of the hood canopy. It is secured in place with a nut and washer on either side (Figure 4).

1. Loosely install the two #10-32 serrated flange nuts (included) onto the studs located inside the top center of the hood.
2. Lift blower up into the hood canopy and slide the keyhole slots in the blower mounting flange over the two studs of the hood. Slide the blower into place and tighten the hex nuts on the mounting stud while lining up the 8 holes in the blower mounting flange to the 8 screw studs of the hood (Figure 2).

3. Using 8 of the included #8-32 screws, flat washers and star washers, mount the blower in place and tighten all screws. Confirm that the blower is securely seated in place and there are no air gaps around the blower gasket.

4. Plug both the 3 wire and 4 wire quick connect cords from the blower into the appropriate receptacles located on the inside front of the hood canopy. These cords will only fit into the receptacles one way (Figure 3).

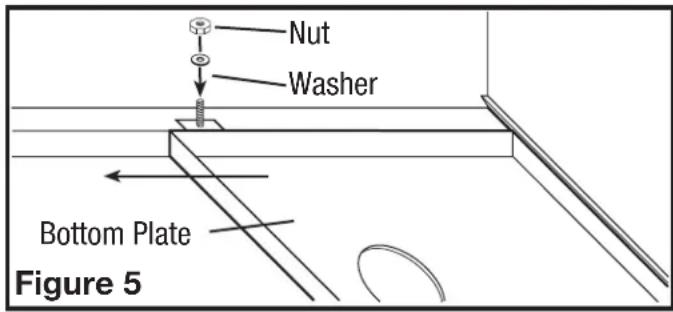

5. Reinstall the rear bottom plate by fitting the back edge of the plate into the channel located on the back of the hood and reinstalling the two nuts and washers removed in Step 1 (Figure 5).

NOTE: If you need to replace the fuse, replace with a 1/4'' x 1-1/4" Bussman MDA-3 or equivalent 3 amp, 250V ceramic, time delay fuse only.
2. Refer to the hood instruction manual to complete the installation, for maintenance, and before restoring power.
3. The blower is covered under the range hood's warranty.

SECTION 4 Finishing the Installation

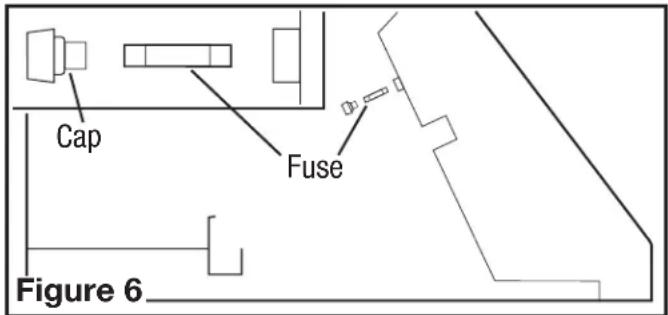

1. Install the included fuse into the electrical panel by turning the fuse cap counter clockwise and pulling out. Insert the included 1/4'' x 1-1/4" time delay fuse in the holder and reinstall into the panel (Figure 6).

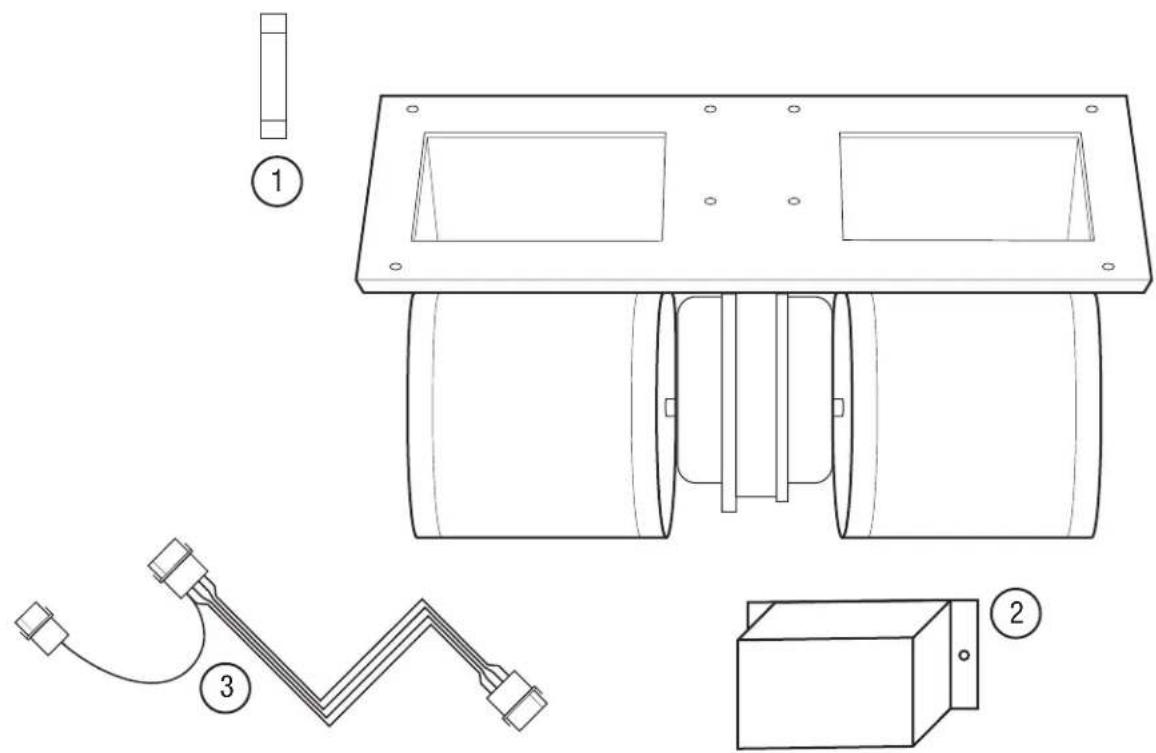

REPLACEMENT PARTS DIAGRAM

#	Qty.	Description	Replacement Part #
1		Fuse 5S1136106
2	1	Capacitor Box 5S1136114
3		Wire Harness (B300)	5S1136403
		Wire Harness (B500)	5S1136402
		1 Wire Harness (B600)	5S1136401
