Shadow 2.0 - Gaming chair X Rocker - Free user manual and instructions

Product type	Gaming chair
Brand	X Rocker
Model	Shadow 2.0
Maximum user weight	120 kg
Power supply	Power adapter 100-240 V~, 50/60 Hz, 0.5 A; output 5 V DC, 1 A
Included cables	3.5 mm audio cable (3 m), power cable, RCA female-female adapters, 3.5 mm to male RCA audio cable (0.15 m)
Audio connection type	Wired via 3.5 mm headphone jack
Built-in speakers	Yes
Control panel	Volume knob, on/off switch, audio input/output ports
Features	Built-in sound for gaming immersion
Compatibility	Television, game consoles (PS4, etc.), controllers
Recommended use	Video games, movies, music
Care and cleaning	Clean with a soft, dry cloth; avoid contact with liquids
Safety	Do not exceed 120 kg, do not stand on it, do not lean back excessively, do not use armrests to sit or stand
Spare parts and repairability	Contact X Rocker after-sales service; do not disassemble electrical components without assistance
General information	User manual and instructions available for free download in PDF format

Frequently Asked Questions - Shadow 2.0 X Rocker

How to connect the chair to a television?

Connect one end of the 3.5 mm audio cable to the INPUT port on the control panel and the other end to the headphone jack on the television. Set the TV volume to 50% for optimal sound.

How to connect the chair to a PS4 controller?

Plug the 3.5 mm audio cable from the chair into the headphone jack on the controller. On the PS4, hold down the PS button, go to Adjust sound and devices, select output to headphones and choose All audio. Set the volume to maximum.

What to do if the control panel does not turn on?

Check that the power cable is properly connected and that the wall outlet is working. Set the switch to ON. If the problem persists, contact X Rocker support.

What to do if there is no sound?

Check the connections and try other modes if possible. Make sure the source device is correctly configured (e.g., audio output). Check that the channel switch is in the correct position (AUX for wired connection).

What to do if the speakers produce no sound or low sound?

Contact X Rocker support at [e-mail] for assistance.

What to do if my television does not have a headphone jack?

You will need to purchase a TOSlink adapter to connect the TV to the console. For more information, contact X Rocker at [e-mail].

What is the maximum weight supported by the chair?

The maximum user weight is 120 kg.

What cables are included with the chair?

The chair comes with: a 3.5 mm audio cable (3 m), a power cable, RCA female-female adapters, and a 3.5 mm to male RCA audio cable (0.15 m).

How to clean the chair?

Clean the chair with a soft, dry cloth. Avoid any contact with liquids to prevent damage to electrical components.

Where to find spare parts?

To obtain spare parts, contact X Rocker after-sales service at [e-mail]. Do not discard damaged parts without complying with applicable regulations.

USER MANUAL Shadow 2.0 X Rocker

www.xrockeruk.com/pages/support

IMPORTANT: You must keep your original retail receipt as proof of purchase.

Contents

English 3

French 10

German 17

Spanish 24

Dutch 31

Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio!

To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking!

Table of contents

4 Box contents and control panel overview
5 Wired Connection guide: TV (All consoles)
6 Connect by controller (PS4 only)
7 Troubleshooting tips
8 Health and safety information
9 Power supply safety information

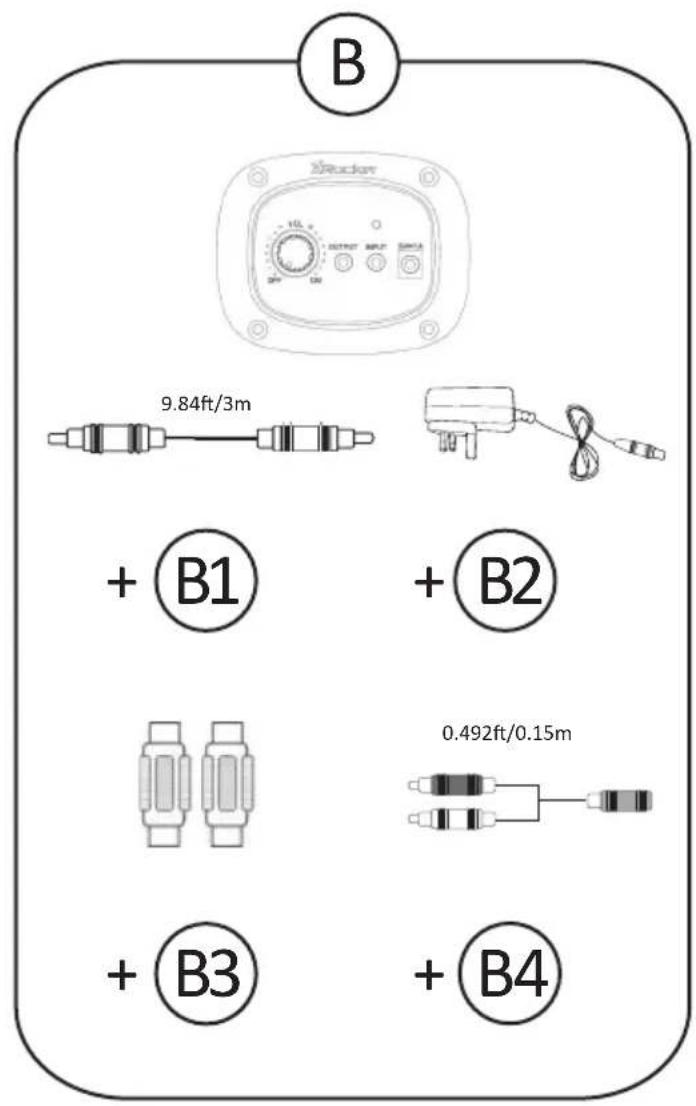

B 9.84ft/3m +B1 +B2 0.492ft/0.15m +B3 +B4

B1 - 3m RCA to RCA Audio cable
B2 - Power supply cable
B3 - RCA female to female adapters
B4 - 0.15m 3.5mm RCA to female audio cable

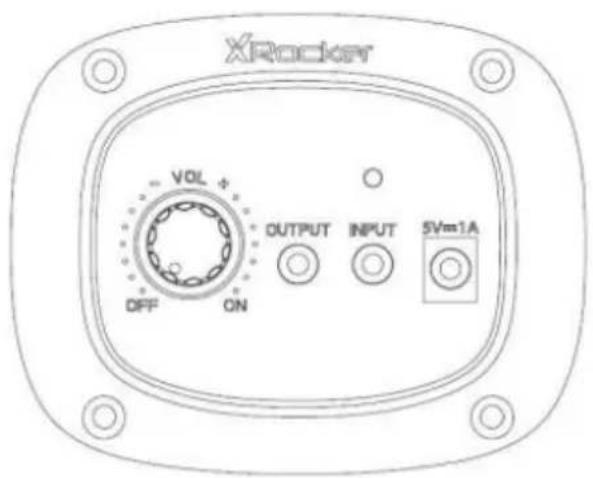

Control panel overview

XRocket VOL + OUTPUT INPUT 5V=1A OFF ON

Wired connection guide: TV (All consoles)

XRocket VOL OUTPUT INPUT 5V=1A OFF ON TV/Mobile/Tablet B1

1. Connect B1 Cable to X Rocker control panel 3.5mm INPUT socket
2. Connect other end of the B1 cable to the TV headphone socket.
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

*N.B: If your TV does not feature a headphone socket then you may need to purchase an additional TOSlink adapter to get connected directly to a console for audio.

**Depending on your TV you may need to Increase the headphone volume separately in the TV sound settings.

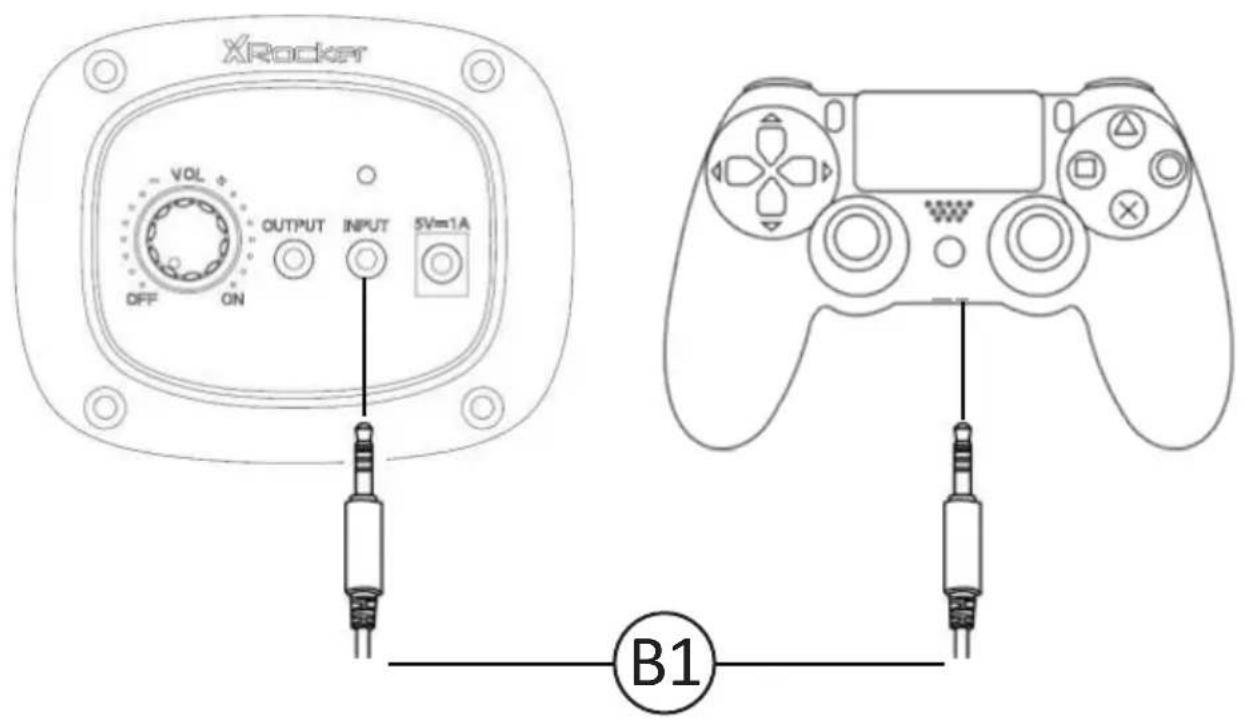

Connect by controller: (PS4 systems only)

XRocker VOL OUTPUT INPUT 5V=1A OFF ON B1

1. Connect the B1 cable to the bottom of the PS4 controller via the headset socket.
2. Connect the other end of the B1 cable to the chair via the green port.
3. With the PS4 turned on and in the main menu, press and hold the black PS button until the quick menu appears.
4. In this menu select [Adjust sound and devices]
5. Then select [output to headphones]
6. Change the setting from [Chat Only] to [All audio]
7. Make sure the volume in the previous menu is set to the maximum.

Troubleshooting tips

Issue Troubleshooting steps

No power going to control panel	Make sure that the power cable is connected correctly.Make sure that the power supply at the power source is working correctly.With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any lights flicker (or not) then please contact support (details below).
No sound	Connect a mobile phone to the X Rocker using the phone connection guidelines in the manual to test the chair for sound.Confirm that the device/system is correctly configured as per previous connection guide.Make sure that you indeed have a headphone socket on your TV. This will typically be marked with a headphone symbol or “H/P OUT”
Stereo speakers do not produce sound / sound is faint	Please make sure that the volume of the source device is at a higher level to strengthen the audio signal.
The cables connected to my X Rocker have been broken accidentally	Please contact X Rocker support ([e-mail]) regarding this issue.
Don’t have a headphone socket on your TV?	You may need to purchase a TOSlink adapter. If you are unsure as to which to purchase then please contact X Rocker at [e-mail] regarding this issue.

Health and safety information

• Avoid immersing or allowing the X Rocker to come into contact with liquids.
• Please consult X Rocker Support before unscrewing any of the electrical components on the chair.
• Please be mindful of any cabling laid out between the X Rocker and power source/audio device.
• Please be mindful of cabling attached when moving/swivelling the X Rocker.
• If the cables or electrical equipment are broken then this may present a choking risk, please contact Support for replacements and dispose of these parts safely.
• Do not stand on the X Rocker or exceed the 120kg weight limit via other means.
• Do not lean back on the chair to the point in which the pedestal would lift off the ground.
• X Rocker armrests are designed for support and comfort during gameplay, please do not use these as support for getting in/out of the chair.
• Playing audio for long periods at loud volumes may contribute to difficulties in hearing.
• Please be considerate to others when playing audio through the X Rocker speakers at higher volumes.

Power supply safety information

ATTENTION:

A. For Power Adapter, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus;
B. For Power Adapter, the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable;
C. Only use the a achments/accessories specified by manufacturer.

Power Supply unit trademark: BI;

Model name: BI12T-050100-I/BI12T-050100-IU/BI12T-050100-BdBU;

Input: 100-240V\~, 50/60 Hz, 0,5A;

Output: 5 VDC, 1A;
