Product Type	Gaming Chair
Brand	X Rocker
Model	Vision 2.1
Power Supply	Mains adapter 100-240 V, 50/60 Hz, output 12 V, 1.5 A
Maximum Supported Weight	120 kg
Connectivity	Wireless (via converter) and wired (RCA, 3.5 mm jack)
Speakers	Integrated with subwoofer
Functions	Vibration, bass adjustment, volume, channel selector (1,2,3, AUX)
Included Accessories	RCA cables, jack, adapters, wireless converter, power cable
Safety	Do not expose to water, do not exceed 120 kg, do not lean back excessively
Maintenance	Wipe with a dry cloth
Spare Parts	Contact after-sales service ([e-mail])
Repairability	Do not unscrew electrical components without assistance

Frequently Asked Questions - Vision 2.1 X Rocker

How to connect the chair to my TV wirelessly?

Connect the wireless converter (B7) to your TV via the 3.5 mm jack cable (B2 or B5). Set the control panel and converter to the same band (1, 2 or 3). Make sure the TV volume is at about 50%.

How to connect the chair to my TV using a cable?

Use the RCA cable B1, adapters B3, and cable B5. Plug B1 into the INPUT jacks, then B3, then B5 into the TV headphone jack. Set the TV volume to 50%.

How to connect the chair to a PS4 console?

Connect the B2 cable (3.5 mm jack) from the PS4 controller to the green port on the chair. In the PS4 menu, go to Adjust sound and devices, select Output to headphones and change from Chat Only to All Audio. Set the wireless switch to OFF.

What to do if I have no sound?

Check the connections according to the guides. Make sure the source device is correctly configured and that the channel selector matches the connection mode (1,2,3 for wireless, AUX for wired). Increase the source volume to about 50%.

What if the control panel does not light up?

Make sure the power cable is properly plugged in and the source is working. If the lights flicker when moving the cable, contact technical support.

Why does the wireless converter turn off?

This may be due to a weak audio signal. Increase the volume of the source device to strengthen the signal and improve reception of vibrations and the subwoofer.

How to avoid wireless interference?

Try changing the band on the converter and control panel (1, 2 or 3) to isolate the signal from interference.

What is the maximum supported weight?

The maximum weight supported by the chair is 120 kg. Do not stand on the chair and do not exceed this limit.

How to clean the chair?

Wipe the chair with a dry cloth. Avoid any contact with liquids to prevent damage to electronic components.

What to do if a cable is broken?

Contact X Rocker support by email at [e-mail] to get replacement parts. Do not attempt to repair damaged cables yourself.

USER MANUAL Vision 2.1 X Rocker

Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio!

To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking!

Table of contents

4 Box contents and control panel overview
5 Wireless Connection guide: TV (All consoles)
6 Wired Connection guide: TV (All consoles)
7 Connect by controller (PS4 systems only)
8 Troubleshooting tips
9 Health and safety information
10 Power supply safety information

B 9.84ft/3m 3.28ft/1m +B1 +B2 0.492ft/0.15m +B3 +B4 0.492ft/0.15m +B5 B6 + + B7

B1 - 3m RCA to RCA Audio cable

B2 - 1m 3.5mm to 3.5mm Audio cable

B3 - RCA female to female adapters

B4 - 15cm RCA to 3.5mm audio cable

B5 – 15cm 3.5mm to 3.5mm audio cable

B6 – Power Supply Cable

B7 – Wireless Transmitter

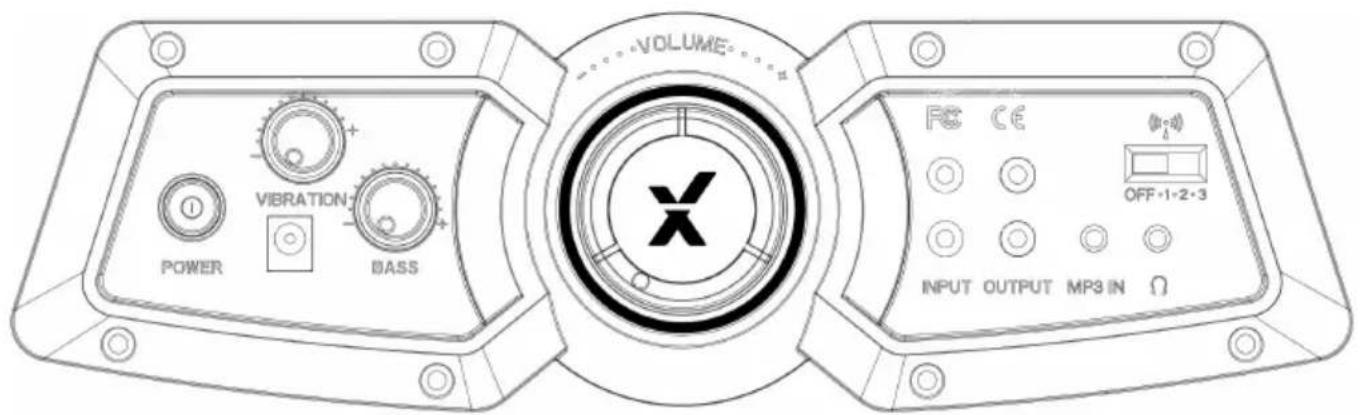

Control panel overview

POWER VIBRATION BASS VOLUME FC CE OFF·1-2·3 INPUT OUTPUT MP3 IN Ω

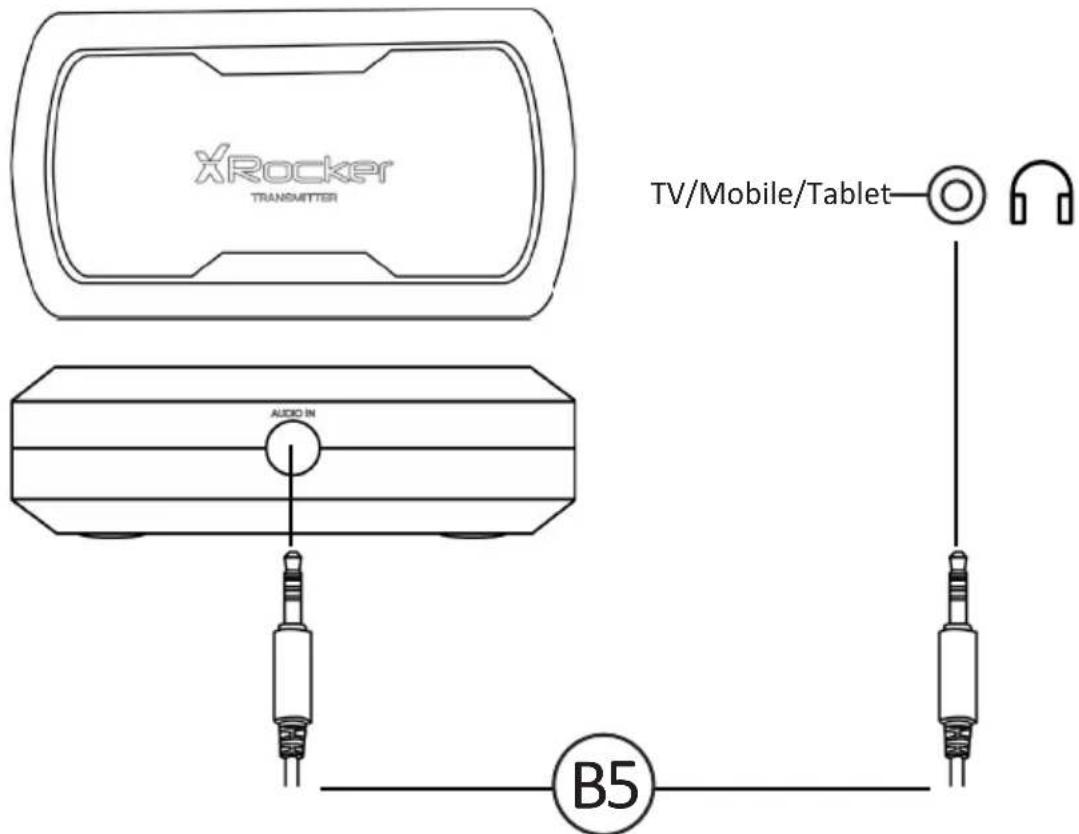

Wireless connection guide: TV (All consoles)

To connect using the wireless transmitter, connect the Wireless transmitter (B7) to your TV set using the 3.5mm to 3.5mm cable (B2/B5)

XROCKER TRANSMITTER TV/Mobile/Tablet AUDIO IN B5

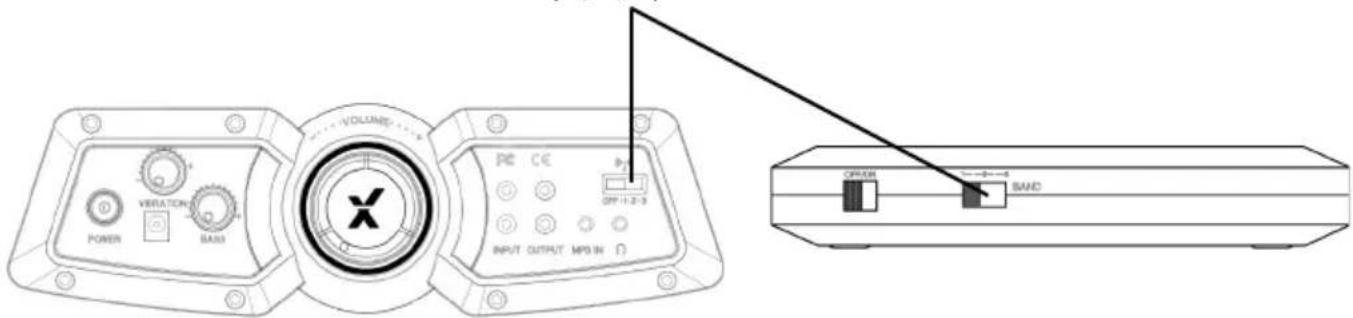

Once connected, Set the control panel on the chair and the Wireless transmitter to the same band (1,2,3)

POWER VIBRATION SAND VOLUME RCC OFF 1-2-3 INPUT OUTPUT MPB IN OFFON SAND

To get the best sound, make sure that the volume on the TV is set to approximately 50% of the maximum. Depending on the TV you may need to set the volume level separately in the TV sound settings menu. (Please refer to TV manual for guidelines.)

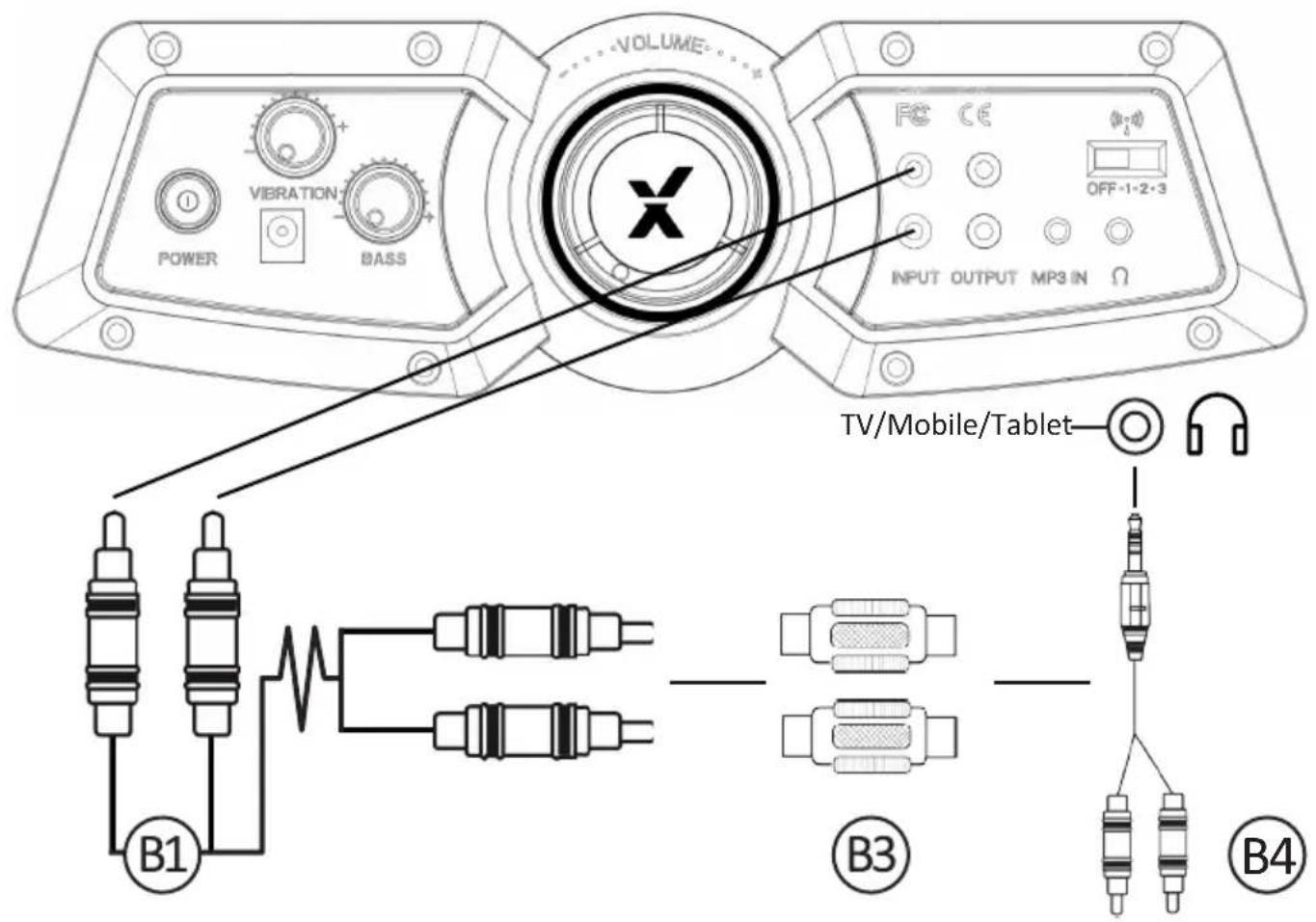

Wired connection guide: TV (All consoles)

VOLUME POWER VIBRATION BASS FC CE OFF-1-2-3 INPUT OUTPUT MP3 IN Ω TV/Mobile/Tablet B1 B3 B4

1. Connect B1 Cable to X Rocker control panel RCA INPUT sockets
2. Connect B3 RCA adapters to other end of B1 RCA cable
3. Connect B4 RCA cable to B3 Adapter.
4. Connect B4 3.5mm end into the headphone socket of your Television
5. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

*N.B: If your TV does not feature a headphone socket then you may need to purchase an additional TOSlink adapter to get connected directly to a console for audio. Contact support for more details.

**Depending on your TV you may need to Increase the headphone volume separately in the TV sound settings.

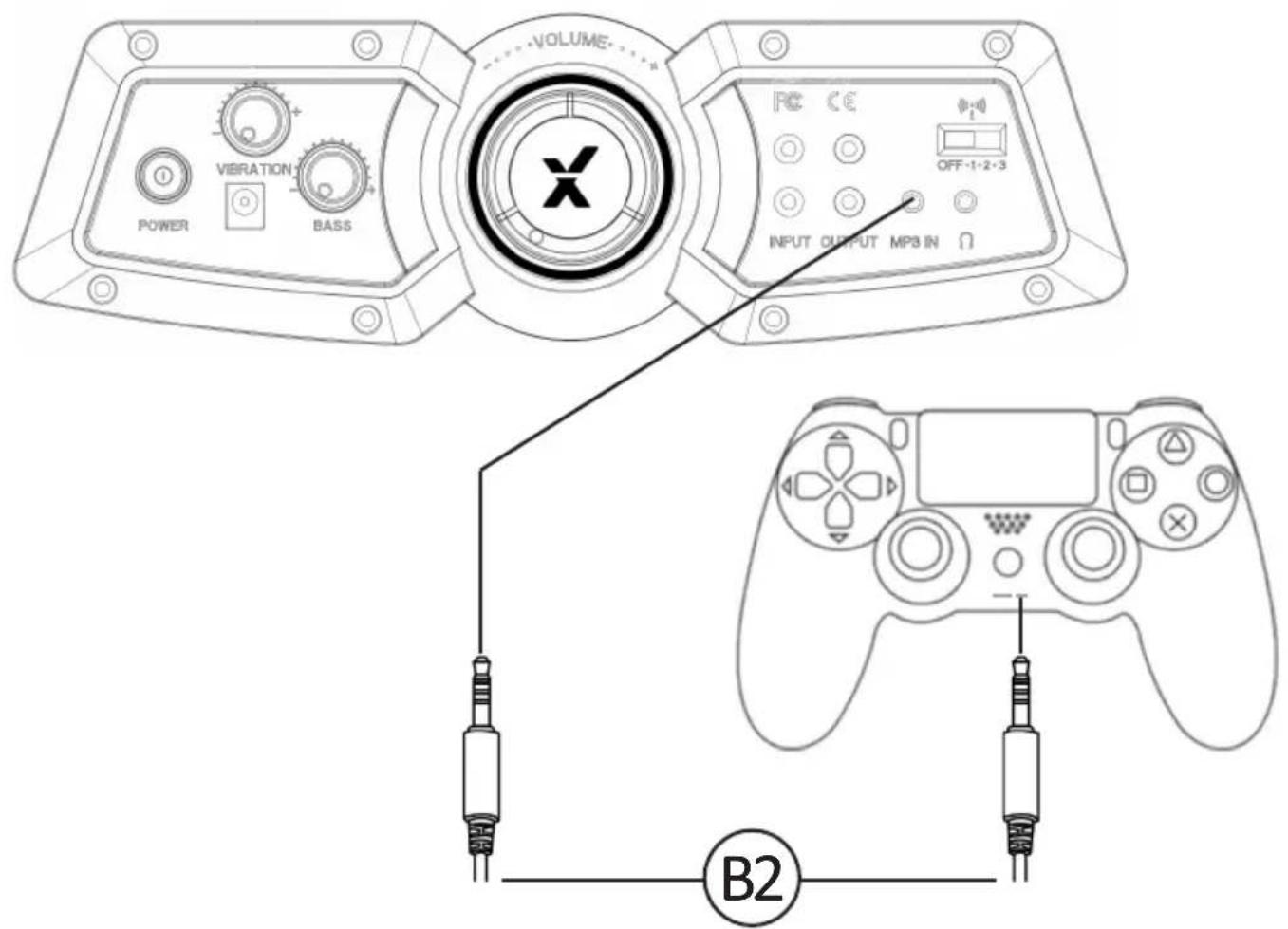

Connect by controller: (PS4 systems only)

POWER VIBRATION BAS6 VOLUME PC CE OFF-1-2-3 INPUT OUTPUT MPB IN B2

1. Connect the B2 cable to the bottom of the PS4 controller via the headset socket.

2. Connect the other end of the B2 cable to the chair via the green port.

3. With the PS4 turned on, go to the main menu (or locate the main menu screen). Press and hold the PS button on the PS4 controller until the quick menu appears on screen.

4. In this menu select [Adjust sound and devices]

5. Then select [output to headphones]

6. Change the setting from [Chat Only] to [All audio]

7. Make sure the volume in the previous menu is set to the maximum.

8. Set the control panel Wireless switch to the 'OFF' position.

Troubleshooting tips

Issue Troubleshooting steps

No power going to control panel	Make sure that the power cable is connected correctly.Make sure that the power supply at the power source is working correctly.With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any lights flicker (or not) then please contact support (details below).
No sound	Review the connection methods on the previous page and try alternative connection methods if possible.Confirm that the device/system is correctly configured as per previous connection guide.Make sure that the wireless channel switcher is in the corresponding position that suits your connection method.(1,2,3 for wireless and AUX for wired connections).
Wireless transmitter cuts out during gameplay/No vibration or subwoofer sound via analogue connection	Please make sure that the volume of the source device is at a higher level to strengthen the audio signal.
The cables connected to my X Rocker have been broken accidentally	Please contact X Rocker support ([e-mail]) regarding this issue.
Interference over wireless connection	In this case, try another of the three wireless bands to isolate the signal.

Health and safety information

- Avoid immersing or allowing the X Rocker to come into contact with liquids.

- Please consult X Rocker Support before unscrewing any of the electrical components on the chair.

- Please be mindful of any cabling laid out between the X Rocker and power source/audio device.

- Please be mindful of cabling attached when moving/swivelling the X Rocker.

- If the cables or electrical equipment are broken then this may present a choking risk, please contact Support for replacements and dispose of these parts safely.

- Do not stand on the X Rocker or exceed the 120kg weight limit via other means.

- Do not lean back on the chair to the point in which the pedestal would lift off the ground.

- X Rocker armrests are designed for support and comfort during gameplay, please do not use these as support for getting in/out of the chair.

- Playing audio for long periods at loud volumes may contribute to difficulties in hearing.

- Please be considerate to others when playing audio through the X Rocker speakers at higher volumes.

Power supply safety information

ATTENTION:

A. For Power Adapter, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus;
B. For Power Adapter, the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable;
C. Only use the a achments/accessories specified by manufacturer.

Power Supply unit trademark: BI;

Model name: BI18-120150-Adb;BI24-120150-I;

Input: 100-240V\~, 50/60 Hz, 0,8A;

Output: 12 VDC, 1.5A;

Need Help? Email: [e-mail]

Phone: [phone]

www.XRockerNation.co.uk

IMPORTANT: You must keep your original retail receipt as proof of purchase.
