Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Scope of Delivery 12

Installation 12

Operation of the Control Unit 14

Disposal Considerations 16

Manufacturer & Importer (UK) 16

TECHNICAL DATA

Item number 10034626
Power supply Lithium battery

SCOPE OF DELIVERY

Solar panel and control unit	Hose (7/9) Hose	(4/6) Y-shaped four- piece coupling
1x 18 m 12 m 1x

Four-piece coupling	Dropper Hose plug Filter
20x 40x 3x 1x

INSTALLATION

1 Cut the thick hose according to the depth of the water container and insert the filter into the hose.
2 Insert the other end of the hose into the inlet of the control unit.
3 Cut another piece of thick hose according to the distance between the control unit and the first plant. Attach the Y-shaped four-piece coupling to the end of the hose.
4 Then cut the thick and thin tubes according to the distances between the plants. Use the hose connections to connect all the potted plants. Connect one end of the tube to a drip and insert the drip into the potting soil. If the plant is very large, use more than one dripper to get enough water.
5 Finally, insert the hose plugs into the open hose ends.

Note: The parts shown may differ from the actual scope of delivery.

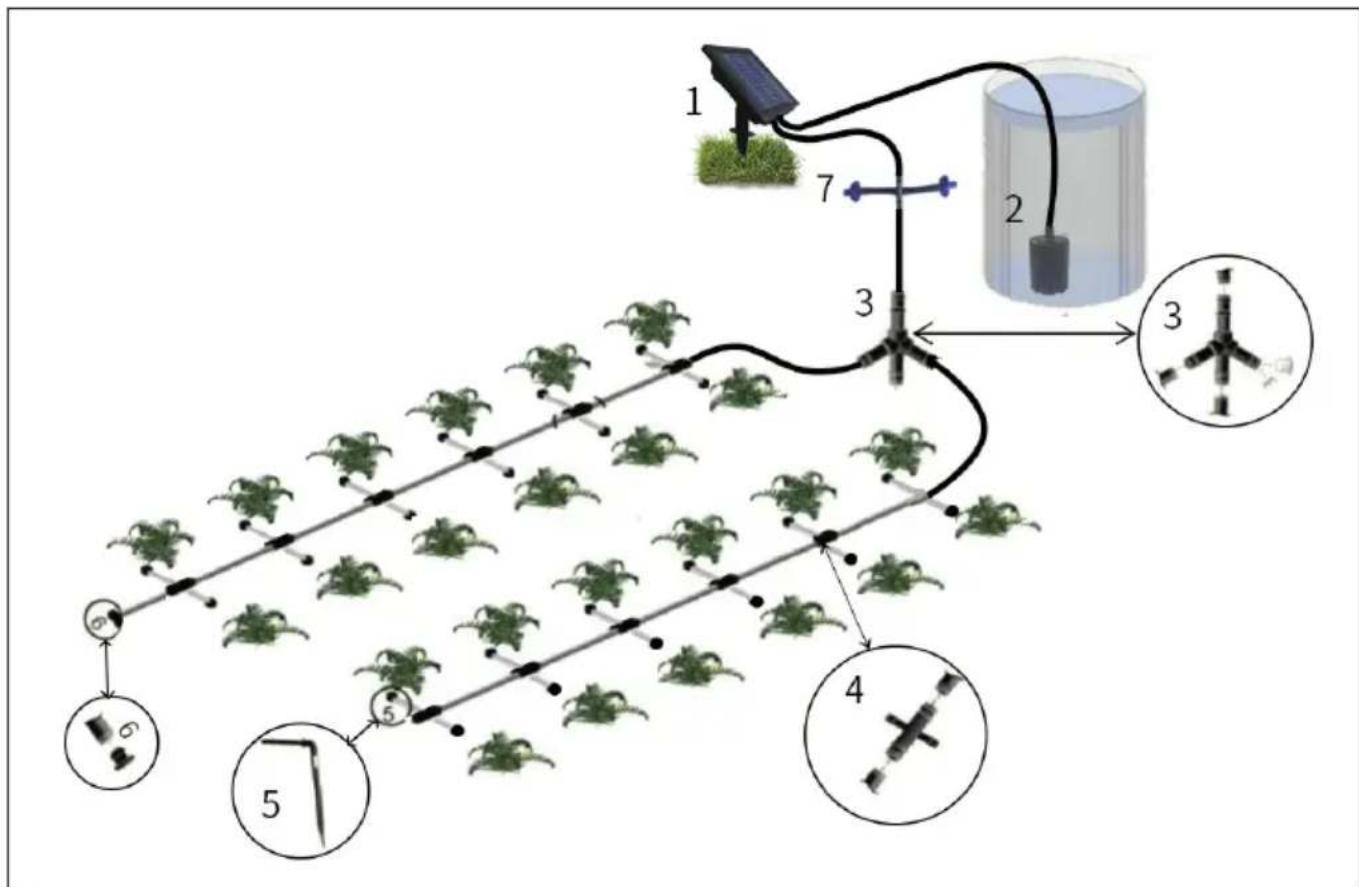

1	Solar Irrigation System	6	Hose plug
2	Filter	7	Anti-siphon
3	Y-shaped four-piece coupling	8	Hose (7/9 mm)
4	Four-piece coupling	9	Hose (4/6 mm)
5	Dropper

Important: Place the Anti-Siphon in a place higher than the water barrel.

Note: The control unit is intended for outdoor use in gardens and on balconies. It can be mounted on the wall or plugged into the floor.

How it works

You can set the controller to water and humidify your flowers and plants early in the morning or late at night when the water evaporates least. The control unit will water your garden and flower boxes fully automatically according to the program you set. This way you can ensure that your plants are watered even when you are on holiday.

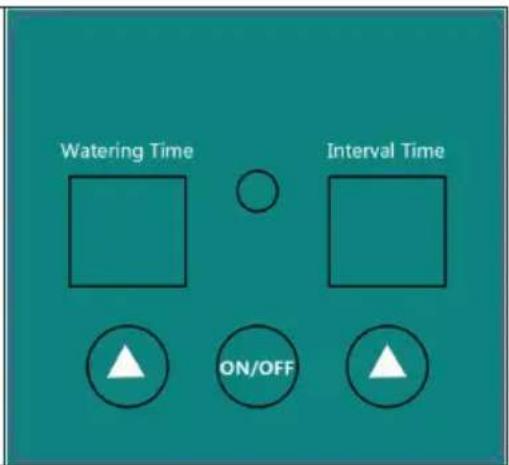

Display

The [Watering Time] window displays how long the pump is running. The numbers 10-50 stand for 10-50 seconds. H1-H9 for 1-9 minutes.
The [Interval Time] window displays the time intervals. HH means every 12 hours, the numbers 1-15 stand for every 1-15 days.

Status of the control lamp on the control unit

• The indicator light flashes slowly (every 10 seconds): The control unit has been programmed.
• The indicator light flashes quickly: The pump is working.
• The indicator light lights up continuously: The control unit is waiting for programming.
• The indicator light illuminates red: The battery is empty. The pump stops and waits until the batteries are recharged. As soon as the batteries are charged, the indicator light illuminates green.

How to use the keys

• Press the ON/OFF button to manually turn the pump on and off.
• During programming, press the ON/OFF button to increase or decrease the Watering Time and Interval Time.
• Press the arrow key to set the time.
• Press both arrow keys simultaneously to lock or unlock all keys.

Note: If there is too little water in the water tank, an alarm sounds. Press any button to stop the alarm.

Programming example

Press one of the buttons. The light turns on and the control unit is ready for programming.

Example: You want your plants to be watered every morning at 9 am for 50 seconds.

• Start programming at 9 am.
• Press the left arrow key and set the Watering Time to 50 (= 50 seconds).
• Press the right arrow key and set the watering time to 50 (= 50 seconds).
  Interval Time) to 1 (= daily)
• Wait 5 seconds for the setting to be saved automatically. Watering will start and your plants will be watered for 50 seconds. The next watering will take place at 9 a.m. next day and the following days.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
