Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Specifications 17

Safety Instructions 18

Installation 20

Product Overview 22

Operations Instruction 23

Device Control by Smartphone 23

Cleaning and Care 26

Product Information 27

Disposal Considerations 28

Declaration of Conformity 28

TECHNICAL SPECIFICATIONS

Power supply 230V~ / 50 Hz
Power 500 W
Size 50x90
Mounting wall
Accessories for wall mounting • 4 hooks• 4 plastic rails• 4 metal screws
FrequencyMax. radio-frequency power	2.400–2.4835 GHz<20 dBm

• 4 plastic rails
• 4 metal screws

Frequency

Max. radio-frequency power

2.400-2.4835 GHz

<20 dBm

SAFETY INSTRUCTIONS

Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9 m (3 feet) from the front of the heater and keep them away from the sides and rear.

• Always unplug heater when not in use.

- Do not operate the heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return it to authorized service facility for examination, electrical or mechanical adjustment, or repair.

- Indoor use only, wall mounted use only.

- This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into bathtub or other water container.

- Do not run cord under material. Do not cover cord with throw rugs, runners, or similar coverings.

- To prevent a possible fire, do not block the space between the heater and the wall which is for air intake or exhaust in any manner.

- A heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.

- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

- Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be rated not less than 800 W (under 220-240 V).

- To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working. Do not install the heater under the wall socket.

• It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
• The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
• In order to avoid overheating, do not cover the heater.

WARNING

Danger of scalding

This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

Explanation of symbols on the device

Do not cover.

INSTALLATION

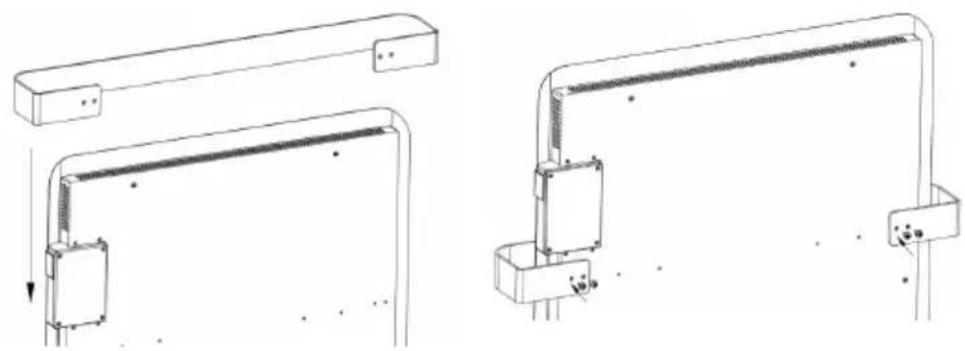

Unpack your package and find the heater together with the towel rack and wall mounting accessories pack.

Put the towel rack at the right position on the heater as showing in below photos, and screw it tightly.

Technical line drawing of two mechanical or electrical components with no visible text or symbols

Install the 4 hanging hooks onto the back of the heater.


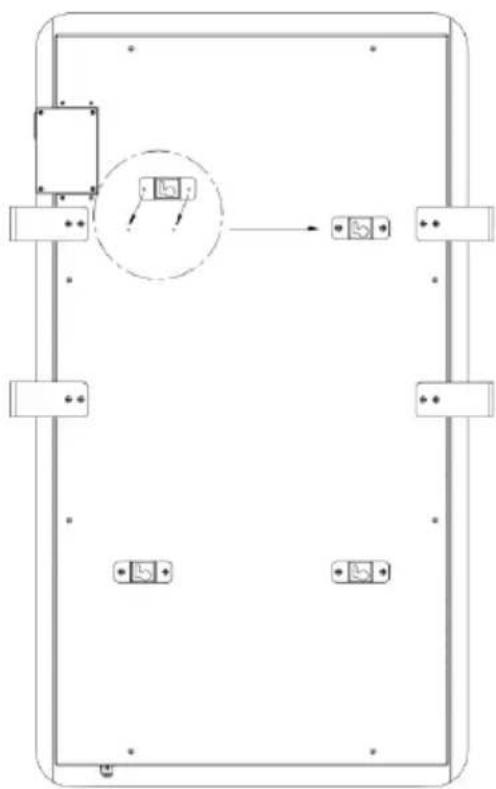

Then wall mount it as below:

1. Mark the positions of the four holes to be drilled on the wall, and drill the holes with the drill bit (picture 1). Make sure the distance between each holes is same as the round holes on the brackets at back of the heater.
2. Insert the plastic rails fitting into the holes (picture 2).
3. Insert the metal screws into the plastic rails (picture 3).
4. Lift the heater and aim the four round holes on the brackets at back of the heater to the 4 screws on the wall (picture 4), and slide the screw from Position A to Position B by moving the heater slightly (picture 5).
5. Make sure the distance between the bottom of the heater and the floor is no less than 20 cm when the heater is installed.

Line drawing of a hand holding a drill bit with a pointed tip (no text or symbols)

Simple line drawing of a cylindrical mechanical component with internal springs, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a circular object with a cross symbol, no text or labels present

Simple line drawing of a 3D box with a small circular object inside, no text or symbols present
    note right of A: 5

PRODUCT OVERVIEW

Control panel and display

Simple diagram with a blank box containing four icons: power button, clock, plus sign, and minus sign.

1 LED display area
2 Power button
3 Timer button
4 Temp./Timer UP key
5 Temp./Timer DOWN key

Remote control

ECO blumfeldt

+	Temp./Timer Up button
-	Temp./Timer Down button.
	Defrost mode button(the heater will set a running temperature of 5degree automatically under this mode.
	Temperature setting button
ECO	ECO mode button (the heater will set a running temperature of 16 °C automatically under this mode).
	Count-down timer setting button
	Power button

OPERATIONS INSTRUCTION

Use and working

1. Check the heater to be sure it is not damaged.
2. Insert the plug in the socket
3. Press the button: the heater will start working. The display will show the room temperature.
4. After use, press button first in order to switch the device off. Finally remove the plug from the socket.

Thermostat

1. If you press the + or - key, the temperature setting will flash 5x on the display.
2. You can adjust the temperature setting by pressing the + or - key while it is flashing. With each key press, the temperature will be increased (+) or decreased (-) by one degree.
3. The device will retain the temperature setting by switching itself on and off automatically.
4. The symbol on the LED display will be lighten when the heater is heating, and off when stop heating

Timer

Briefly pressing once on the button will switch the timer on. You can set the countdown timer by pressing the + or - buttons: with each press it will go an hour forward or backward. The timer will be set after 5x unchanged blinking. The display will now alternately show the room temperature and the set number of hours. The heater will switch itself off after the set number of hours.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WLAN, you can conveniently operate it via the associated Blumfeldt app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Blumfeldt device:

1. Download the Blumfeldt app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WLAN network that your Blumfeldt device is to be connected to.

3. Open the Blumfeldt app.

4. Sign in to your account. If you do not have an account, sign up in the Blumfeldt app.

5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Connecting to WLAN

• On the heater LED display, the WLAN indicator light will blink rapidly. If not, please press and hold 'M' button until the WLAN light start blink rapidly.
• When the lamp on the heater is blinking rapidly, select in the App: confirm indicator rapidly blinking
• Enter the correct WLAN password
• A connection will now be made between the App and the heater
• Select 'Done' once the connection has been successfully established
• The screen for operating the heater will now appear
• Press the button at top right in the control screen, then select Modify Device Name to give your heater a logical name so that it is clear to you which heater it is.
• Your heater now can be controlled by the App, you can set the temperature and one week timer in the App.
• After connected, the WLAN indicator light() on the heater LED display will stop blink and keep on.

- You can switch off/on the WLAN function by long press the button

Troubleshooting connection problems

If your Blumfeldt device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your device is plugged into an electric socket.
2. The device is not in pairing mode. Make sure that the WLAN indicator (LED) on the smart device control panel is blinking as described in the 'Reset WLAN settings' instruction of your smart device (instructions are usually available on device connection process).
3. The WLAN access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WLAN router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

1. Firewall settings of your WLAN network; the firewall setting of your WLAN network may not allow the Blumfeldt app to configure the WLAN settings on your smart device. Please make sure that you are not using a public WLAN network, e.g. airports, dormitories, companies, etc.
2. Different credentials used in smartphone and the app. Make sure that the WLAN credentials entered in the Blumfeldt app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

CLEANING AND CARE

WARNING

Risk of electric shock

Do not open the cover. There are no customer serviceable parts inside.

• Ensure that the power supply to the device is disconnected before any installation or maintenance.
• Clean the device with a soft, non-abrasive, damp cloth while warm.
• Once the device has cooled, lightly polish with a soft, dry cloth.
• Do not use abrasive cleaning powders, metal polish, or chlorine based cleaners on any part of the device.

PRODUCT INFORMATION

Model identifier: 10046481, 10046482
Item Symbol Value Unit Type of heat input, for electric storage local space heaters
Heat output
Nominal heat output	P_nom	0.5 kW Manual heat charge control, with integrated thermostat		No
Minimum heat output (indicative)	P_min		kW Manual heat charge control with room and/or outdoor temperature feedback No
Maximum continuous heat output	P_max	0.5 kW Electronic heat charge control with room and/or outdoor temperature feedback No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	el_max	N/A kW Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW Single stage heat output and no room temperature control		No
In standby mode	el_SB	0.26 W Two or more manual stages, no room temperature control		No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control No
				Electronic room temperature control plus day timer No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type BathRadiant Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10046481

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type BathRadiant Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10046481

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical line drawing of two mechanical or electrical components with no visible text or symbols

Line drawing of a hand holding a drill bit with a pointed tip (no text or symbols)

Simple line drawing of a cylindrical mechanical component with internal springs, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a circular object with a cross symbol, no text or labels present

Simple line drawing of a 3D box with a small circular object inside, no text or symbols present
    note right of A: 5

APERÇU DU PRODUIT

Simple diagram with a blank box containing four icons: power button, clock, plus sign, and minus sign.

1 Zone d'affichage LED
2 Bouton d'alimentation
3 Touche de minuterie
4 Touche Temp./minuterie UP
5 Touche Temp./minuterie DOWN

Contrôle à distance

ECO blumfeldt

INFORMATIONS SUR LE PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Limited

Boîte postale 42

272 Kensington High Street

Londres, W8 6ND

Royaume-Uni

QR code image containing encoded data, no visible human-readable text

INDICE

Technical line drawing of two mechanical or electrical components with no visible text or symbols

Line drawing of a hand holding a drill bit with a pointed tip (no text or symbols)

Simple line drawing of a cylindrical spring with a circular end, labeled '2' at bottom right (no text or symbols on the spring itself)

Simple line drawing of a circular object with a cross symbol, no text or labels present

Simple line drawing of a rectangular box with a circular hole and a small protrusion, labeled '4' (no text or symbols on the diagram itself)
    note right of A: 5

Simple diagram with a blank box containing four icons: power button, clock, plus sign, and minus sign.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited PO Box 42

272 Kensington High Street Londra, W8 6ND

Regno Unito

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 53

Technical line drawing of two mechanical or electrical components with no visible text or symbols

Line drawing of a hand holding a drill bit with a pointed tip (no text or symbols)

Simple line drawing of a cylindrical spring with a circular end, labeled '2' at bottom right (no text or symbols on the spring itself)

Simple line drawing of a circular object with a cross symbol, no text or labels present

Simple line drawing of a 3D rectangular box with a circular hole and an arrow pointing to it, labeled '4' (no text or symbols on the diagram itself)
    note right of A: 5

Simple diagram with a blank box containing four icons: power button, clock, plus sign, and minus sign.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido
