USER MANUAL LED-Projektor Auna

Black projector with blue circular lens and ventilation grilles (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Technical Data

Item number 10007483, 10007484
Power adapter 12 V / 2 A
Native resolution 320*240 Pixel
Aspect Ratio 16:9 / 4:3
Contrast 300:1
Projection 17-60 inch
Weight 0.46 kg
Machine size 12,7 cm x 12,6 cm x 6,9 cm
Input port 12 V Strom, AV, VGA, HDMI
Output port Speaker 1 W x 2, Headphone
Multimedia player Image play, audio play, video play
AV video play PAL and NTSC system
Energy saving mode Listen sperately (only sound in this mode)
Projector system LCD
Brightness	40 lumens
Power consumption	24 W

Packing Content

• 1 Projector
• 1 Powercable
• 1 AV cable
  • 1 VGA cable (optional)
  • 1 Remote control (optional)

Safety Instructions

• Never look directly into the projector lens. The very bright lamp can permanently damage your eyes.
• To avoid electric shock, do not use the unit in damp locations.
• When you turn off the projector, the fan will still run for 90 seconds to cool down the unit and the projector lamp. Do not disassemble the appliance before the end of this cooling process, otherwise the lamp will be damaged.

Product Description

IMPORTANT: Do not block the air-out ventilation!

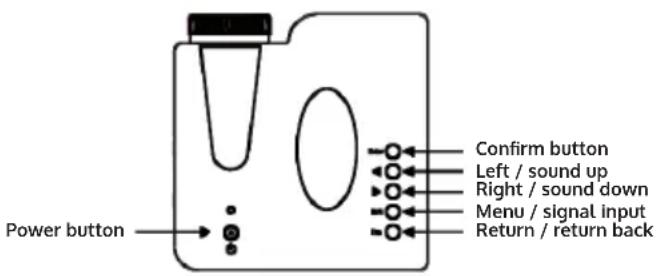

Power button Confirm button Left / sound up Right / sound down Menu / signal input Return / return back

Technical line drawing of a mechanical device with no visible text or symbols

AV
VGA
Infrared-Transmitter

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

Headphone
Power
HDMI

Diagram of a projector with labeled ports and arrows indicating orientation (no text or symbols present)

Operation

Turn on or off Ready: When projector connect the Power via the AC adapter, the indicator light is red, the projector go into stand by situation. Press the „power“ key one time, the indicator light is normal on. The projector turn on, no need to wait. Press the „power“ key one time against the indicator light is off. The projector turn off, no need to wait.

Focus adjustment: The projector can throw 17-60 inch image size according to different distance between projector and screen. Put the projector toward to center of the screen. Turn on the focus of the lens till the image is clear.

Source selection: Press „S/M“ key to enter the signal Input selection, press the „SI M“ key to select the source selection (AV, PC-RGB, multimedia), press the „enter“ key to enter the selected input signal.

Hints on Disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
