Supertronic 4 SE - Machine tool ROTHENBERGER - Free user manual and instructions

Product type	Professional threading machine
Brand	Rothenberger
Model	Supertronic 4 SE
Threading capacity	1/4" to 2" (straight and tapered threading)
Compatible materials	Steel, stainless steel, copper, aluminum, PVC
Rotation speed	Variable 12-36 rpm
Motor	Electric, 230 V / 50 Hz, 1.5 kW
Motor protection	Integrated thermal protection
Dimensions (L x W x H)	70 x 50 x 50 cm
Weight	Approximately 80 kg
Main functions	Threading, cutting, deburring
Clamping system	Centered jaw chuck
Lubrication type	Automatic by pump (cutting oil)
Safety	Emergency stop, protective cover, overload protection
Noise level	82 dB(A)
Maintenance and cleaning	Clean after each use, check oil level, replace worn dies
Spare parts and repairability	Dies, jaws, oil pump, motor available at Rothenberger
General information	Robust machine tool for construction and workshop
Included accessories	Set of dies, chuck, pipe cutter, deburrer, wrenches

Frequently Asked Questions - Supertronic 4 SE ROTHENBERGER

What is the threading capacity of the Rothenberger Supertronic 4 SE?

The machine can thread pipes from 1/4" to 2" with suitable dies. It supports straight and tapered threading.

What materials can it handle?

It is suitable for steel, stainless steel, copper, aluminum, and PVC, provided the appropriate dies are used.

How to adjust the rotation speed?

The speed is variable between 12 and 36 rpm via a selector on the control box. Turn the knob to adjust the speed to the tube diameter.

How to change the threading dies?

Unplug the machine, remove the fixing screws of the die holder, insert the new dies respecting the cutting direction, then tighten the screws. Refer to the manual for tightening torques.

What to do if the motor does not start?

First check the power supply (230 V). If the thermal protection has tripped, wait for the motor to cool before resetting. If the problem persists, contact after-sales service.

How to maintain the machine?

Clean chips after each use, check the oil level of the lubrication pump and replace the oil every 6 months. Grease moving parts regularly.

Which oil to use for lubrication?

Use a special cutting oil for threading, viscosity ISO VG 68. Do not use engine oil.

Is the machine equipped with an emergency stop?

Yes, a red emergency stop button is located on the front panel. Press it if needed; to reset, turn it clockwise.

What accessories are supplied?

The delivery includes a set of dies (for common diameters), a chuck, a pipe cutter, a deburrer, and service wrenches.

Where to find spare parts?

Spare parts (dies, jaws, oil pump, etc.) are available from authorized Rothenberger dealers or on the official website. Use model number Supertronic 4 SE to order.

USER MANUAL Supertronic 4 SE ROTHENBERGER

Industrial printing machine with red and gray components, no visible text or symbols on the device itself.

EN Instructions for use

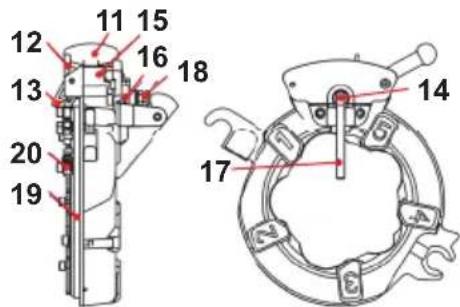

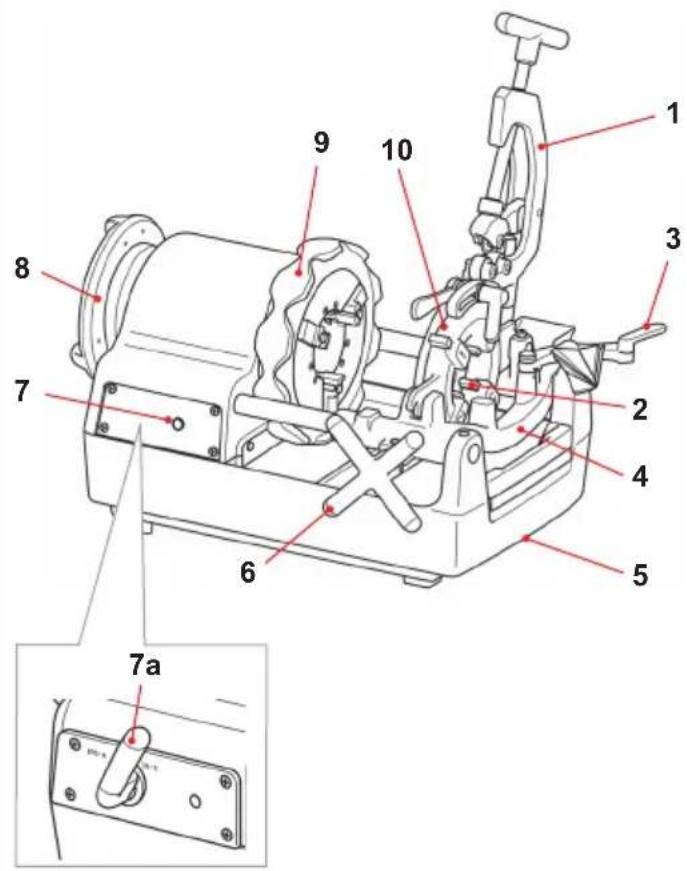

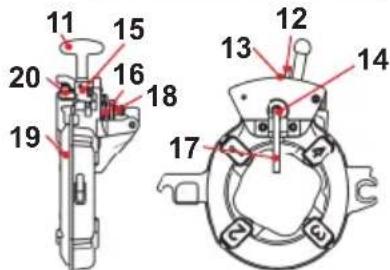

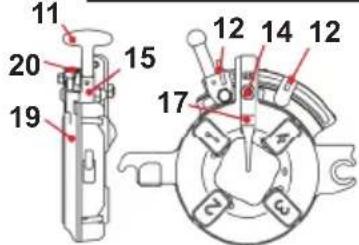

A Overview

SUPERTRONIC 2SE:

SUPERTRONIC 3SE:

SUPERTRONIC 4SE:

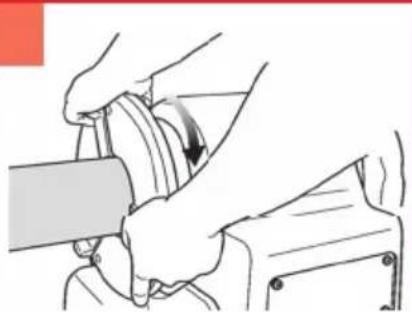

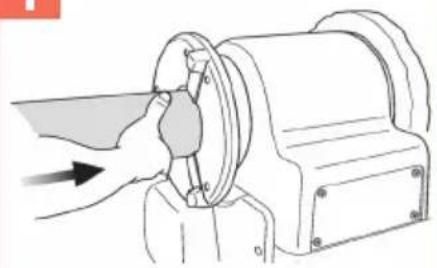

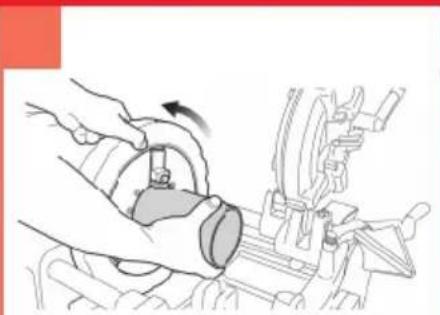

B Clamping

1

Technical line drawing of a mechanical device with a tool and directional arrow (no text or symbols)

Illustration of hands performing a mechanical shift or grip operation (no text or symbols visible)

Illustration of a hand operating a mechanical device with a rotating knob (no text or symbols visible)

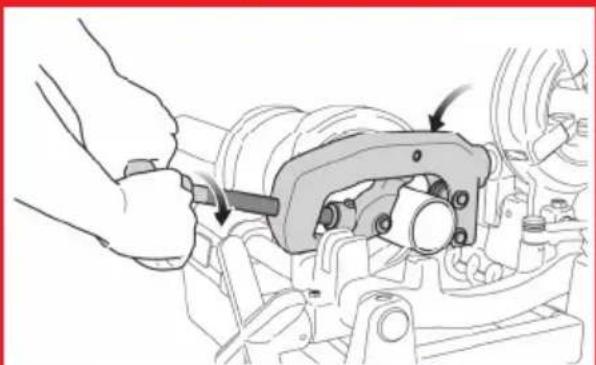

C Cutting

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

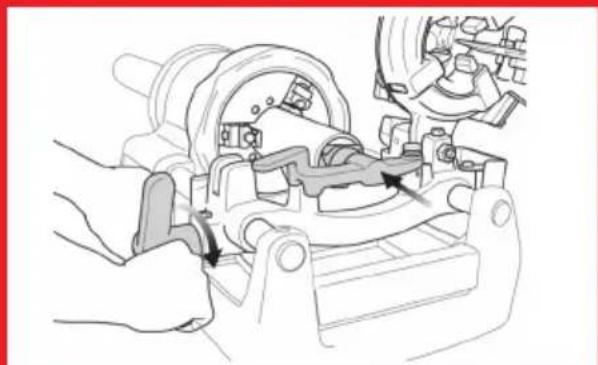

D Reaming

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

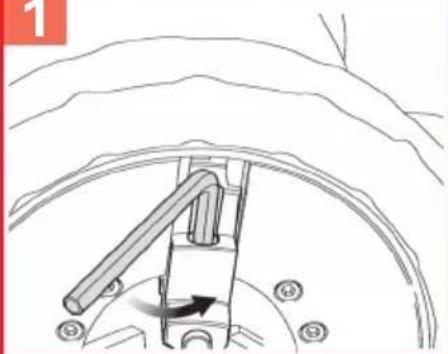

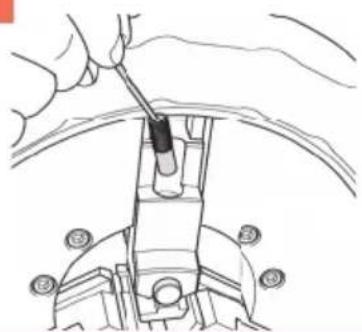

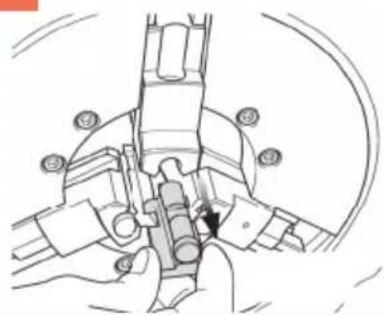

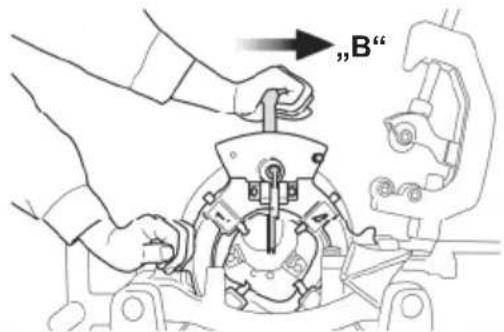

Changing thread size

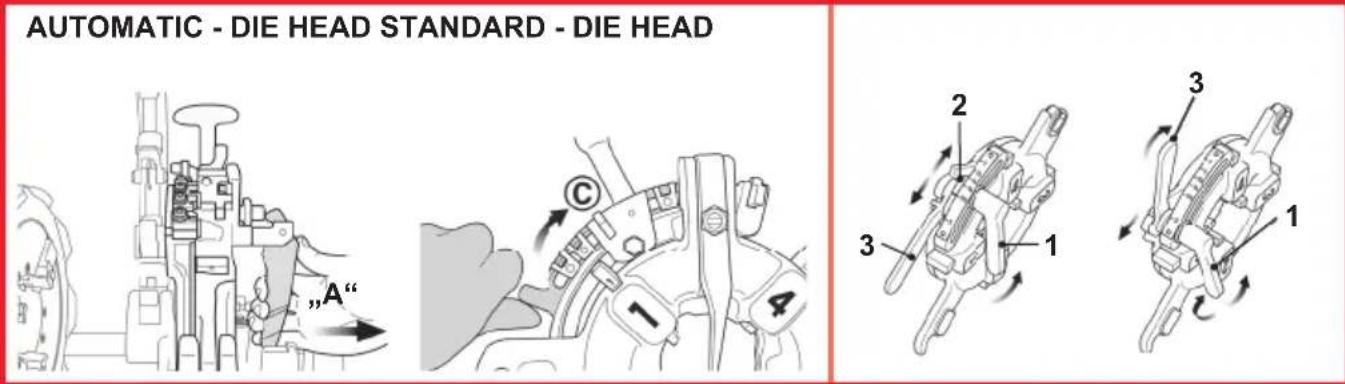

AUTOMATIC - DIE HEAD

STANDARD - DIE HEAD

AUTOMATIC - DIE HEAD

STANDARD - DIE HEAD

Technical line drawing of a mechanical clamp or tool assembly (no text or symbols)

1

Mechanical assembly diagram showing a lever mechanism with rotating components (no text or labels)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Technical line drawing of a mechanical assembly with hands and components (no text or symbols)

Intro

EU-DECLARATION OF CONFORMITY

We declare on our sole accountability that this product conforms to the standards and guidelines stated.

DECLARATION EU DE CONFORMITÉ

Manufacturer/ authorized representative signature

ppa. Thorsten Bühl Kelkheim, 25.08.2016

Director Corporate Technology

Technische Unterlagen bei/ Technical file at:

D-65779 Kelkheim/Germany
