USER MANUAL TIS65621RW BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Fully automatic espresso machine

TIS6....

[en] Information for Use Fully automatic espresso machine 6
[fr] Manuel d'utilisation Machine à expresso automatique 33
[ru] Руководство пользователя Автоматическая кофемашина 63
[tr] Kullanım kılavuzu Tam otomatik kahve pişirme makinesi 93
[kk] Пайдаланушы нүсқаулықтар Толық автоматты кофе демдегіш 122
[pt] MManual do utilizador Máquina de café 150
[ar] 179 ماكينة تحضير القهوة الأوتوماتيكية دليل المستخدم

A C HF D G I

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Diagram of a refrigerator interior showing a double door with a downward arrow indicating flow or movement (no text or symbols present)

3

Diagram illustrating a procedure for using a test tube to measure time and eye detection, with numbered steps and visual cues.

4

① ② press

5

Diagram illustrating a water drain system with labeled components and flow directions

6

Diagram of a device with arrows indicating process flow, showing a lid and container (no text or symbols)

7

Diagram showing two labeled components with arrows indicating movement, likely illustrating a mechanical or electrical assembly process.

8

Illustration of a blue robot interacting with a mechanical device (no text or symbols visible)

9

Diagram illustrating a showerhead system with labeled components and directional arrows indicating movement or force.

10

CLICK

11

Technical diagram showing mechanical assembly steps with labeled parts and directional arrows

The image is too blurry to recognize any text content.

Diagram illustrating the internal structure and internal movement of a device, showing a device with internal components and directional arrows.

13

Illustration of a hand inserting a blue plastic component into a white rack (no text or symbols)

The image is too blurry to recognize any text content.

Technical diagram showing four steps of a mechanical assembly with numbered instructions and directional arrows indicating motion.

15

Diagram illustrating a kitchen appliance with liquid flow and water displacement, showing the drain level and water outlet.

The image is too blurry to recognize any text content.

Two-panel illustration showing a mechanical device with blue components and directional arrows, no text or symbols present.

17

Diagram illustrating two steps of a device operation: adding a blue component to a screen, then adjusting a grid.

The image is too blurry to recognize any text content.

Illustration of a blue clipboard with arrows indicating document movement (no text or symbols)

19

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

The image is too blurry to recognize any text content.

Diagram of a blue mechanical device inside a container, showing internal components and a black arrow indicating motion (no text or symbols present)

21

Diagram illustrating a mechanical device with labeled parts and water spray application, showing fluid flow from a drain to a sink.

The image is too blurry to recognize any text content.

Diagram of a water purifier with liquid flow and a pipe outlet (no text or labels)

23

CLICK

The image is too blurry to recognize any text content.

Diagram of a car interior showing directional arrows and labeled parts, likely illustrating vehicle or mechanical components.

25

Illustration of a blue folder with a downward arrow indicating compression or download (no text or symbols)

The image is too blurry to recognize any text content.

You can find additional information and explanations online. Scan the QR code on the title page.

Table of contents

1 Safety 7

1.1 General information 7
1.2 Intended use 7
1.3 Restriction on user group ..... 7
1.4 Safety information 8

2 Environmental protection and saving energy .... 10

2.1 Disposing of packaging ..... 10
2.2 Tips for saving energy 10

3 Installation and connection ..... 11

3.1 Scope of delivery 11
3.2 Installing and connecting the appliance .... 11

4 Familiarising yourself with your appliance .... 11

4.1 Appliance 11
4.2 Control panel 12
4.3 Display 12

5 Drinks overview 12

6 Accessories 13

6.1 Storing the measuring spoon 13

7 Before using for the first time .. 13

7.1 Preparing and cleaning the appliance 13
7.2 Checking the water hardness 13
7.3 Overview of water hardness levels 14
7.4 Water filter ^1 14
7.5 General information ..... 15

8 Basic operation ...... 15

8.1 Switching the appliance on or off 15
8.2 Dispensing drinks 15
8.3 Dispensing a coffee drink made from fresh beans ..... 16
8.4 Dispensing a coffee drink made from ground coffee ..... 16
8.5 Dispensing drinks with milk .... 16
8.6 Dispensing a coffee drink with milk 17
8.7 Dispensing milk froth 17
8.8 Dispensing special drinks ..... 17
8.9 Dispensing hot water 18
8.10 Dispensing "Warm milk"2 ..... 18
8.11 Dispensing "Americano"2 ..... 18
8.12 Dispensing a "Flat White", "Café Cortado" or "Kleiner Brauner" ^2 18
8.13 Using "Pot function"2 19
8.14 Drink settings 19
8.15 Grinder 20
9.1 Activating the childproof lock 20
9.2 Deactivating the childproof lock 21
10.1 Setting a favourite 21
10.2 Changing a favourite 21
10.3 Dispensing a favourite ..... 21
11.1 Changing the basic settings 21
11.2 Overview of the basic settings 21

9 Childproof lock 20

10 Favourites ...... 21

11 Basic settings ...... 21

12 Cleaning and servicing ...... 23

12.1 Dishwasher-safe components 23
12.2 Cleaning agent 23
12.3 Cleaning the appliance ..... 24
12.4 Cleaning the drip tray and coffee dregs container ..... 24
12.5 Cleaning the milk system ..... 25
12.6 Cleaning the ground coffee drawer 25
12.7 Cleaning brewing unit ...... 25

13 Troubleshooting 27

14 Transportation, storage and disposal 31

15 Customer Service 31

12.8 Service programmes ..... 26
14.1 Activating frost protection ..... 31
14.2 Disposing of old appliance ... 31
15.1 Product number (E-Nr.) and production number (FD) ..... 32
16 Technical specifications ..... 32

Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

en Safety

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer service. → Page 31

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

The appliance will become hot.

▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cabinet.

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
• Only use adapters and power cords approved by the manufacturer.
• If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- After use, allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

- To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door.

The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance.
- This minimum distance of 10 cm must also be observed for the water tank when removed.

⚠ WARNING – Risk of harm to health!

During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease.

- Consult a doctor before use if you have kidney disease or follow a special potassium diet.

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Water from the hot water circuit can be harmful to health.

▶ Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 21

If the appliance is not being used, switch it off using the on/off button on the front.

√ Switched-off appliances do not use any energy.

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→Fig. 1

A Fully automatic coffee machine
B Milk tube and suction pipe
C User manual
D Milk container ^1
E Measuring spoon
F Water hardness testing strip
G Cleaning tablet ^1
H Descaling tablet ^1
Water filter ^1

3.2 Installing and connecting the appliance

ATTENTION

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

▶ Use the appliance in frost-free rooms only.
- If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.
▶ After plugging in, always wait approx. 5 seconds.

1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.
2. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.
3. The appliance's ventilation slits must not be covered or obscured.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→Fig. 2

1 On/off button
2 Water tank
3 Control panel
4 Display
5 Drink selection
6 Storage compartment for measuring spoon with insertion aid for water filter
7 Cover for water tank
8 Aroma lid
9 Bean container
10 Beverage outlet cover
11 Milk system
12 Brewing unit

13 Beverage outlet, height-adjustable
14 Rating plate
15 Drip tray

4.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Note: If you press a symbol, a touch key tone sounds. You can switch the touch key tone on or off in the basic settings.

→ "Overview of the basic settings", Page 21

Symbol Explanation

start stop	Start or stop the processNote: To interrupt the beverage dispensing pro-cess prematurely, press again in the meantime.
menu	Open or exit the menuNote: The menu buttons are only visible when the menu is open.
	Go back in the menu
	Navigate downwards in the menu
ok√	Confirm in the menu or save
	Dispense two cups
	Set coffee strength
ml	Set per-cup quantity

Symbol Explanation

Press briefly to call up the favouritesPress for at least 3 seconds to activate or deactivate the childproof lock

4.3 Display

The display shows the selected beverages, settings and setting options, as well as messages about the appliance's operation status.

The display shows additional information and action steps. The information is hidden after a short period or by pressing a button. The action steps are hidden when they have been completed.

Note: If no display language is available in your national language, select a display language that is available, e.g. English.

5 Drinks overview

You can prepare a wide range of different drinks with your appliance.

Note: Pre-warm cups with hot water, e.g. small, thick-walled espresso cups.

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service

Cleaning tablets TCZ8001A 00312096

Descaling tablets TCZ8002A 00312093

Water filter TCZ7003 17000705

Care set TCZ8004A 00312107

Milk container with freshLock lid TCZ8009N 00576165

6.1 Storing the measuring spoon

Your appliance has a special compartment for storing the measuring spoon.

To store the measuring spoon, remove the water tank and place the spoon in the preformed recess.

7 Before using for the first time

Prepare the appliance for use.

7.1 Preparing and cleaning the appliance

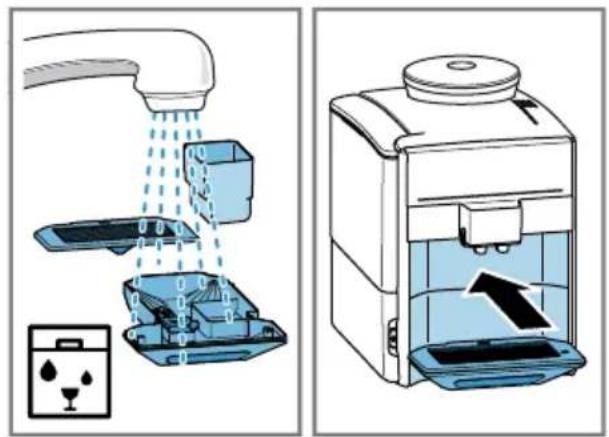

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION

Unsuitable beans can block the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.

• Do not use glazed coffee beans.

• Do not use caramelised coffee beans.

• Do not use coffee beans that have been treated with additives containing sugar.
  ▶ Do not add instant coffee.

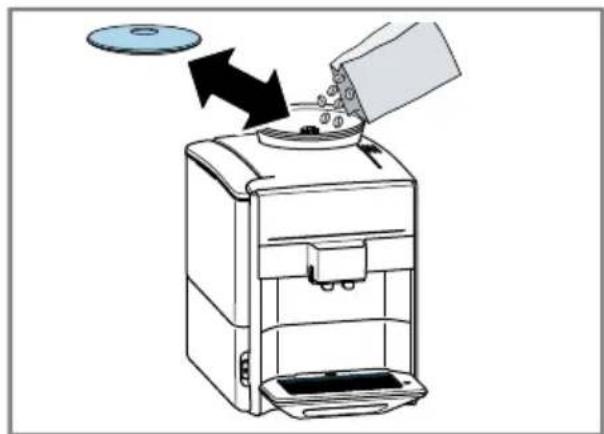

→Fig. 3 - 11

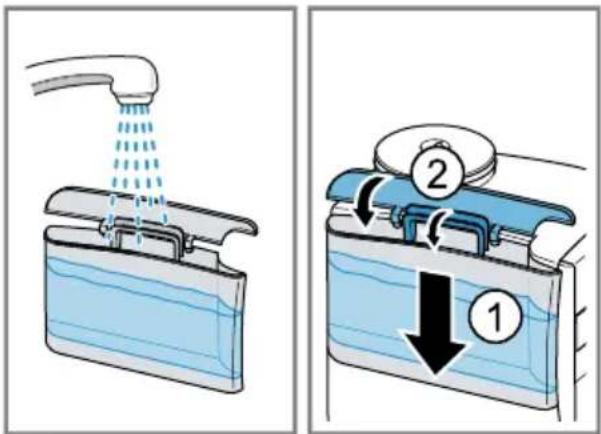

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma.

7.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

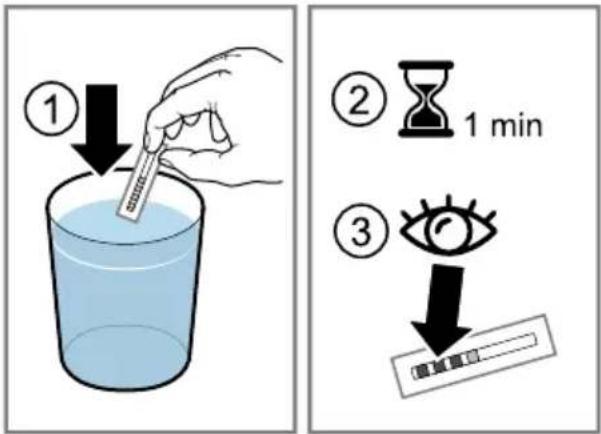

1. Briefly dip the test strip in fresh tap water.
2. Allow the water to drain off the test strip.

en Before using for the first time

3. Read the water hardness off the test strip after 1 minute.

→ "Overview of water hardness levels", Page 14

Note: If a water softening system is installed in your house, you can select "Water softening system".

Tips

• You can change the settings at any time.
  → "Basic settings", Page 21
• If the water hardness exceeds 21 °dH (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

7.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter		German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4^1	C 22 - 30 > 3.8

7.4 Water filter ^2

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

Inserting and activating the water filter

ATTENTION

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

Note: If you are not inserting a new filter, select "No filter" and confirm with ok√

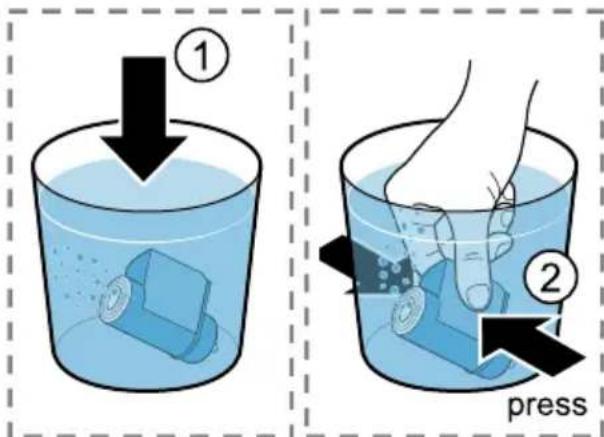

1. Immerse the water filter in a glass of water with the opening facing up and press the sides together lightly until no more air bubbles rise to the surface.
   →Fig. 5

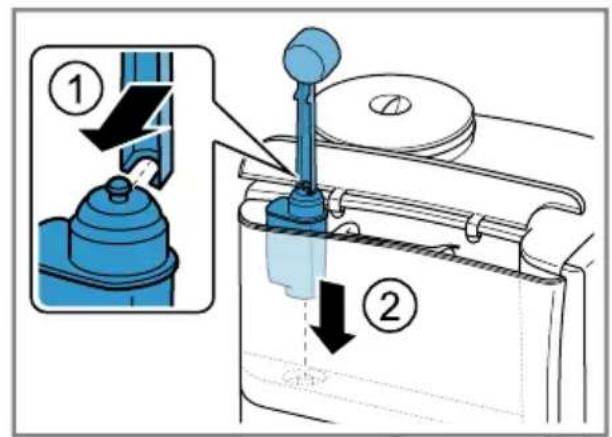

2. Use the measuring spoon to press the water filter firmly into the water tank.
   →Fig. 12
3. Fill the water tank with water up to the "max" mark and press ok√

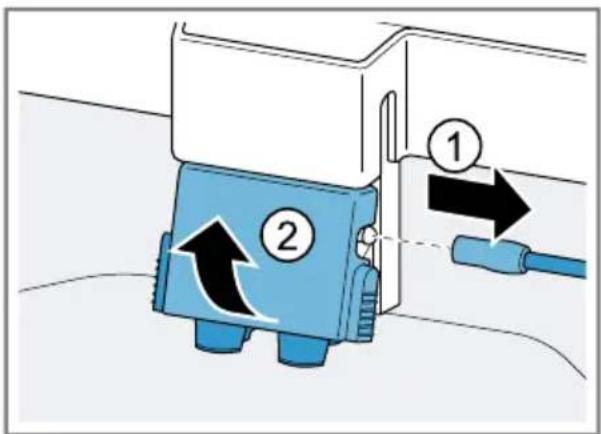

4. Connect the milk tube to the milk system and the suction pipe.
5. Insert the end of the suction pipe in the drip plate.
6. Press menu

7. Use \ to select "Water filter".

8. Press and use to select "Activate new filter".

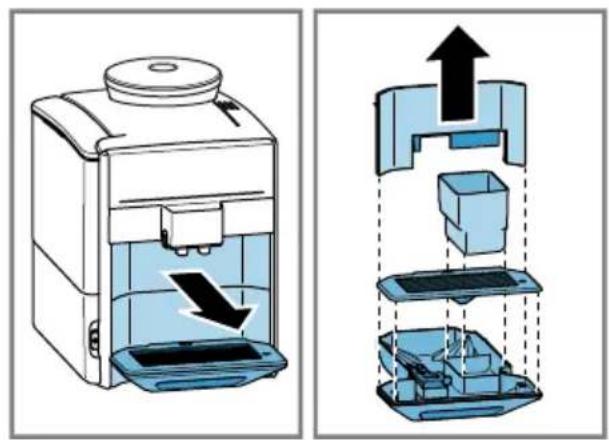

9. Empty and insert the drip tray.

10. Press ok to start the process.

√ The filter is rinsed.

√ The appliance is ready to use.

1. Empty and insert the drip tray.

Tips

• You should also change your water filter for reasons of hygiene.
• With a water filter you need to de-scale your appliance less frequently.
  ■ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
• The water filter can be purchased from retailers or customer service. → "Accessories", Page 13

Note: If "Please change water filter" is shown on the display, replace the water filter.

If you are not inserting a new filter, select "No filter" and follow the instructions on the display.

7.5 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.
- The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.
→ "Adjusting the grinding level", Page 20

■ During operation water droplets may form at the ventilation slits.
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 21
■ For technical reasons steam can escape from the appliance.
■ The first beverage will not yet have its full aroma if:
- You are using the appliance for the first time.
- You have run a service programme.
- You have not used the appliance for a long time.
Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

8 Basic operation

8.1 Switching the appliance on or off

▶ Press ①
When the appliance is switched on or off, it will rinse automatically.
The appliance will not rinse if it is still warm when switched on or if no coffee was dispensed before it was switched off.

8.2 Dispensing drinks

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.

en Basic operation

- Do not let escaping liquids or steam come into contact with your skin.

Tips

- You can directly select the drink you want using the quick-selection buttons. The display shows you the drink and the current settings.

- Your appliance has other drinks besides the ones that you can obtain via the quick-selection buttons.

- You can adapt your drink to your personal taste.

→ "Drink settings", Page 19

Notes

- If you do not change any settings for approx. 5 seconds, the appliance will exit settings mode. The settings will be automatically saved.

- With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.

8.3 Dispensing a coffee drink made from fresh beans

1. Place your pre-warmed cup under the outlet system.

2. Press the drinks symbol for a coffee drink without milk, e.g. "Espresso" or "Coffee".

√ The display will show the beverage and your current beverage settings.

→ "Drink settings", Page 19

1. Change the settings where necessary:

▶ To adjust the per-cup quantity, press ml

▶ To adjust the coffee strength, press Ⓞ

1. Press start stop

The coffee beans are freshly ground for each brewing process.

√ The coffee is brewed and then dispensed into the cup.

1. To stop dispensing prematurely, press start stop

8.4 Dispensing a coffee drink made from ground coffee

You can also operate your appliance using ground coffee.

ATTENTION

The ground coffee compartment can become blocked.

- Do not use coffee beans.

▶ Do not use instant coffee.

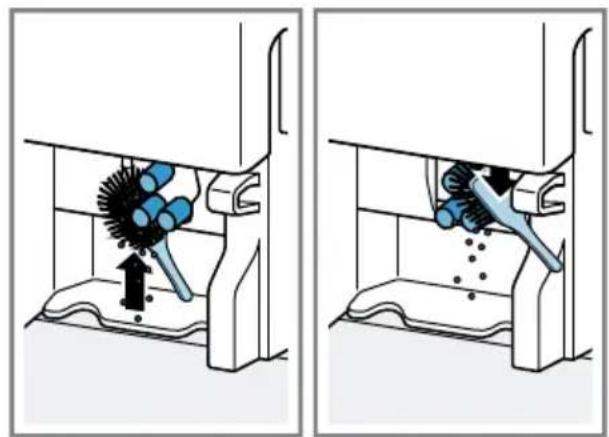

- Use a soft brush to gently direct the ground coffee residue into the shaft.

Note

When using ground coffee, the following selections are not available:

■ Two cups at once

- Coffee strength

1. Place your pre-warmed cup under the outlet system.

2. Press the symbol for the required beverage.

3. Press ∅repeatedly until the display shows "ground coffee".

4. Open the ground coffee drawer.

5. Add no more than 2 level measuring spoons of ground coffee.

6. Close the ground coffee drawer.

7. Press start to start dispensing.

√ The coffee is brewed and then dispensed into the cup.

1. To stop dispensing prematurely, press start stop

8.5 Dispensing drinks with milk

Your appliance features a milk system. You can use it to prepare coffee

drinks with milk and milk froth as well as warm milk.

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

ATTENTION

Milk residues can dry on surfaces and are difficult to remove.

- Clean the milk system after every use.

Note: When dispensing drinks with milk, the milk system may produce whistling noises for technical reasons.

Tips

• You can also use plant-based alternatives to milk, e.g. soya milk.
  ■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

8.6 Dispensing a coffee drink with milk

Requirements

■ The milk tube is connected.
■ The suction pipe is connected.
1. Insert the suction pipe in the milk.
2. Place your pre-warmed cup under the outlet system.
3. Press the drinks symbol for a coffee drink with milk.
√ The display will show the drink and your current settings.
→ "Drink settings", Page 19

1. Change the settings where necessary:

2. To adjust the per-cup quantity, press ml
   ▶ To adjust the coffee strength, press 🔒
   ▶ Use the ground coffee compartment. Dispensing a coffee drink made from ground coffee
   →Page 16

3. Press start to start dispensing.

√ The milk or milk froth is dispensed into the cup or glass first. The coffee is then brewed and dispensed into the cup or the glass.

√ After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.

Tip: If you want to stop dispensing milk early, press start stop If you want to stop the dispensing process altogether, press ① twice.

8.7 Dispensing milk froth

Requirements

■ The milk tube is connected.
■ The suction pipe is connected.
1. Insert the suction pipe in the milk.
2. Place your pre-warmed cup under the outlet system.
3. Press the symbol for "Milk froth".
4. To set the per-cup quantity, press ml.
5. Press start to start dispensing.
6. To stop dispensing prematurely, press start stop

8.8 Dispensing special drinks

Your appliance has other drinks besides the ones that you can obtain via the quick-selection buttons.

- Press repeatedly until the display shows your desired drink.

en Basic operation

You can choose from the following drinks:

• "Hot water"
• "Warm milk" 1
• "Pot function" ^1
• "Kleiner Brauner" 1
• "Americano" 1
• "Flat White" 1
• "Café Cortado" 1

8.9 Dispensing hot water

WARNING Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Note: If the milk system has not been cleaned, small amounts of milk may be dispensed with the water.

Requirements

■ The milk system has been cleaned.
■ The milk tube has been removed.

1. Place a cup or glass underneath the beverage outlet.

2. Press repeatedly until the display shows "Hot water".

3. Change the setting if necessary:

▶ To adjust the per-cup quantity, press ml

1. Press start to start dispensing. If the following message appears: "Please remove suction hose", remove the milk hose and press start stop

√ Hot water will run out of the outlet system.

1. To stop dispensing prematurely, press start stop

8.10 Dispensing "Warm milk" ^1

1. Press repeatedly until the display shows "Warm milk".
2. Change the setting if necessary:
   ▶ To adjust the per-cup quantity, press ml
3. Press start to start dispensing.
   √ Warm milk is dispensed from the beverage outlet.
4. To stop dispensing prematurely, press start stop

8.11 Dispensing "Americano" ^1

1. Place a pre-warmed cup underneath the beverage outlet.
2. Press repeatedly until the display shows "Americano".

3. When the display shows "Please remove suction hose", pull off the milk hose and the suction pipe.

4. Change the setting if necessary:

▶ To adjust the per-cup quantity, press ml
To adjust the strength, press Ⓐ → "Adjusting the coffee strength", Page 19

1. Press start to start dispensing.

√ The coffee is brewed and then dispensed into the cup.

1. To stop dispensing prematurely, press start stop

8.12 Dispensing a "Flat White", "Café Cortado" or "Kleiner Brauner" ^1

1. Place a cup or glass underneath the beverage outlet.
2. Press repeatedly until the display shows "Flat White" ^1 ; "Café Cortado" ^1 , or "Kleiner Brauner" ^1 .
3. Change the setting if necessary: ▶ To adjust the per-cup quantity, press ml

To adjust the strength, press "Adjusting the coffee strength", Page 19

1. Press start to start dispensing.

√ The coffee is brewed and runs into the cup or glass. Milk or milk froth is dispensed depending on the beverage. The sequence in which coffee or milk is dispensed depends on the beverage.
5. To stop dispensing prematurely, press start stop
6. Press start stop again to stop the dispensing process altogether.

8.13 Using "Pot function" ^1

1. Place a coffee pot underneath the beverage outlet.
2. Press repeatedly until the display shows "Pot function".
3. Change the setting if necessary:

▶ To adjust the per-cup quantity, press ml
▶ To adjust the strength, press Ⓠ → "Adjusting the coffee strength", Page 19

1. Press start to start dispensing.

√ The coffee is brewed and then dispensed into the coffee pot.
5. To stop dispensing prematurely, press start stop

8.14 Drink settings

Prepare a drink according to your taste.

Adjusting the coffee strength

1. Press the symbol for the required beverage.
2. Press ☐ repeatedly until the display shows your desired coffee strength.

You can select the following coffee strengths:

• "very mild"
• "mild"
• "regular"
• "strong"
• "very strong"
• "doubleshot strong"
• "doubleshot strong+"

Tip: For a strong taste of coffee, select a high coffee strength when setting a large capacity.

Selecting ground coffee

- Press ∅repeatedly until the display shows "ground coffee". → "Dispensing a coffee drink made from ground coffee", Page 16

AromaDouble Shot

You can make your coffee extra strong by using the setting "doubleshot strong".

The longer coffee is brewed, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee. To ensure that only pleasant-tasting and easily digestible aromatic substances are released, fresh coffee beans are ground and brewed when half the quantity has been prepared.

Note: The setting "doubleshot strong" is not available for every drink and drink volume.

Adjusting the amount

1. Press the symbol for the required beverage.
2. Press m _1 repeatedly until the required per-cup quantity is shown on the display.

en Childproof lock

You can choose from the following per-cup quantities:

• "small"
• "medium"
• "large"

√ An arrow or multiple arrows next to the per-cup quantity indicate(s) that the preset per-cup quantity has been changed, e.g. "large".

Dispensing two cups at once

With certain drinks you can dispense 2 cups at once.

Note: Depending on your type of appliance the function may be available only for black coffee, not for milky coffee drinks.

1. Press the symbol for the required beverage.
2. Press

√ The setting is shown on the display.
3. Place two cups on the left and right underneath the beverage outlet.
4. Press start stop

The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.

√ The beverages are brewed and then run into the cups.
5. Wait until the process is complete.

8.15 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

▶ Never reach into the grinder.

ATTENTION

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.
- Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise

Coarse grinding level for dark-roasted beans

Turn rotary selector clockwise

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

9 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

9.1 Activating the childproof lock

Requirement: The appliance is switched on.

▶ Press 📁 for at least 3 seconds.
√ The display shows [key symbol] and the childproof lock is activated.

9.2 Deactivating the childproof lock

▶ Press 📄 for at least 3 seconds.
√ The display no longer shows [key symbol] and the childproof lock is de-activated.

10 Favourites

Save and edit individual beverages in the menu "Favourite". The number of favourites depends on the model of the appliance.

Note: To exit the settings, press ↻

10.1 Setting a favourite

1. Press menu
2. Use to select "Favourite" and press ok
3. To set a new favourite, press √ and confirm with ok√
4. Select your desired beverage, press the relevant symbol and confirm with ok√
   √ The display shows the selection of beverage settings for that specific drink, e.g. the per-cup quantity ml or the ratio of coffee to milk.
5. Select the beverage settings and press ok√
   √ The settings are saved.

10.2 Changing a favourite

1. Briefly press to call up the menu "Favourite".

2. Use \ to select "Favourite" and press ok

3. Select the favourite 1-4 that you want to change and press ok√
4. Select your desired beverage, press the relevant symbol and confirm with ok√
5. Select the beverage settings and press ok√
   √ The settings are saved.

10.3 Dispensing a favourite

1. Briefly press into call up the menu "Favourite".
2. To select an existing favourite, press √
3. To begin dispensing the drink, press start stop

11 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

11.1 Changing the basic settings

1. Press menu
2. Use to select the desired basic setting and press ok
   √ The display will show the setting options and the navigation symbols will light up. The display indicates the current setting.
   √ The setting has been saved.
3. Use ↻ to go back.
4. Press men exit the menu.

11.2 Overview of the basic settings

You can find an overview of the basic settings here.

Setting Selection Description
Cleaning and care Rinse the milk systemDescaleCleancalc'nClean		Start service programmes
Info on service programmes1	CoffeeMilk beverages	Display the number of beverages that can still be dispensed before one of the service programmes needs to be run
Coffee-milk ratio1	See selection on the appliance	Set "Coffee-milk ratio" in stages
Favourite Add or change favourites→ "Favourites", Page 21
Set cup size Set the per-cup quantity in stages
Water hardness 1 soft■2 medium■3 hard■4 very hard2■Water softening system		Set the appliance to the local water hardness→ "Overview of water hardness levels", Page 14
Automatic shut-down See selection on the appliance		Set how long the appliance should wait after preparing the last drink before automatically switching itself off
Coffee temperature normal■high■max.		Set the temperature for coffee drinksNote: The setting is effective for all preparation types.
Water filter Activate new filter■No filter		Set the use of the water filter→ "Water filter", Page 14
Languages Set the menu language		The display shows any changes you make immediately.
Frost protection Set the frost protection
Key tones Key tones ON■Key tones OFF		Switch the touch key tones on or off
Beverage statistics^1	See selection on the appliance	Display the number of beverages dispensed
Factory settings Full reset?■ Continue: Press start■ Cancel: Press ←		Restore settings to the factory settingsNote: The appliance deletes all individual settings and resets to the factory settings.

12 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

12.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

▶ Follow the operating instructions of the dishwasher.
▶ Only clean dishwasher-safe components in the dishwasher.
▶ Only use programmes that do not heat the components above 60 °C.

Suitable:

■ Drip tray
■ Drip plate
■ Coffee dregs container
■ Measuring spoon
■ Top and bottom section of the milk system

Not suitable:

■ Panel of drip tray
■ Beverage dispenser cover
■ Brewing unit
■ Water tank

12.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION

Unsuitable cleaning products may damage the surfaces of the appli- ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.

en Cleaning and servicing

• Do not use hard scouring pads or cleaning sponges. Unsuitable cleaning and descaling agents may damage the appliance.
• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
• Do not use descaling agent with phosphoric acid.
• Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance. → "Accessories", Page 13

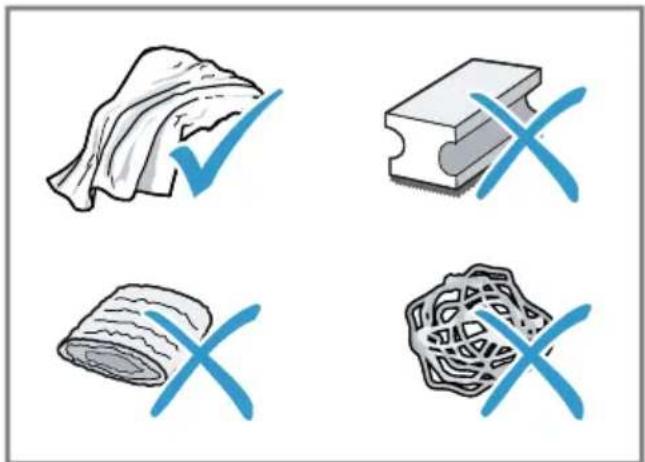

Four hand-drawn icons showing different types of household items: towel, rectangular block, rolled towel, and patterned cloth (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

12.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.

- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.
2. Rinse the water tank with fresh, clean water.
3. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

12.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

1. Pull the drip tray and the coffee dregs container forwards and out.

$$ \rightarrow \text { Fig. } 1 3 $$

1. Take off the panel of the drip tray and the drip plate.

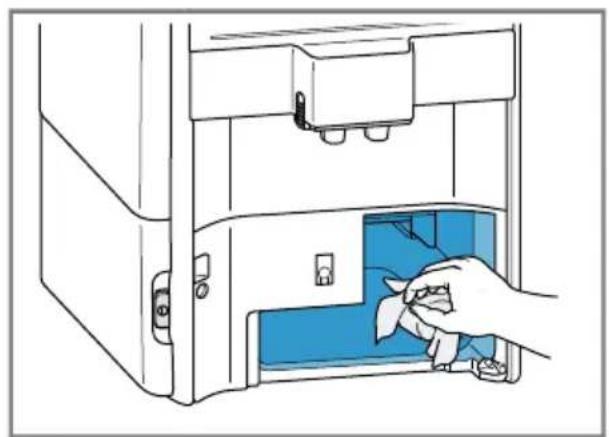

2. Clean the appliance interior.

$$ \rightarrow \text { Fig. } 1 4 $$

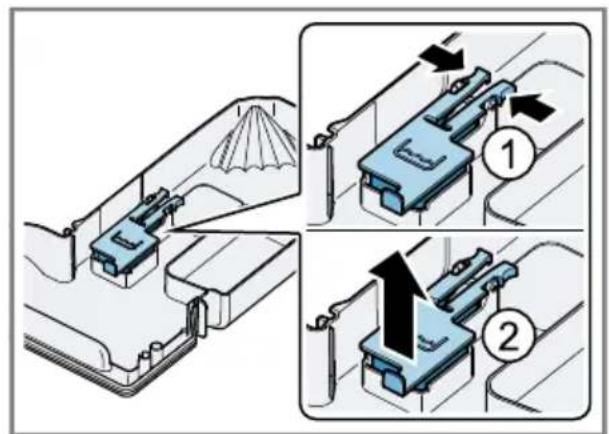

1. To remove the mechanical fill level indicator, press both brackets in- wards.

$$ \rightarrow \text { Fig. } 1 5 $$

1. Clean the mechanical fill level indicator with a damp cloth.
2. Clean the drip tray and the coffee dregs container and re-insert them in the appliance.

→Fig. 16

12.5 Cleaning the milk system

Clean the milk system regularly.

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

ATTENTION

The appliance may be damaged by improper cleaning.
- Do not put the cover of the outlet system in the dishwasher.

Note: Immediately after preparing the beverage, the milk system will clean itself with a jet of steam.

Tip: If you want to give the milk system a particularly thorough clean, you can use the [Clean milk system] service programme.

1. Push the beverage outlet completely down.
2. Pull the cover forwards and remove the milk tube.

→Fig.8

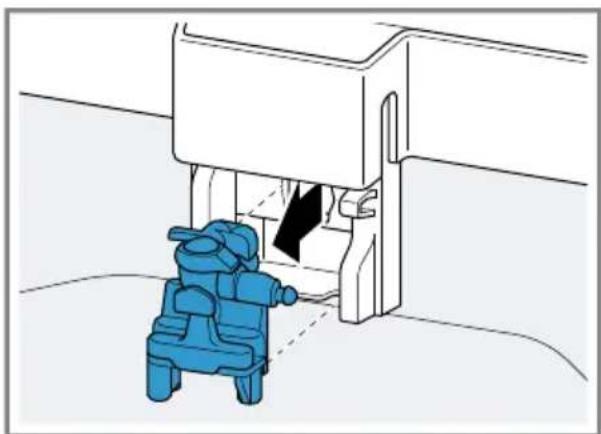

1. Remove the milk system by pulling straight forwards.
   →Fig. 9
2. Remove all coffee residues from the milk system holder.
   →Fig. 17

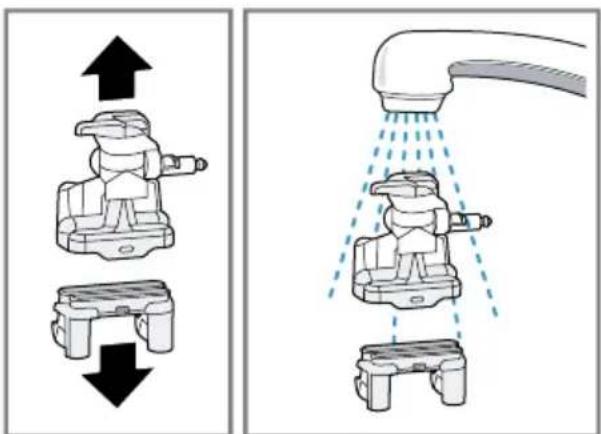

3. Take the top and bottom section of the milk system apart.
   →Fig. 10

4. Detach the milk tube from the suction pipe.

5. Clean the components with detergent solution and a soft cloth.
6. Rinse all appliance parts with clean water and dry.

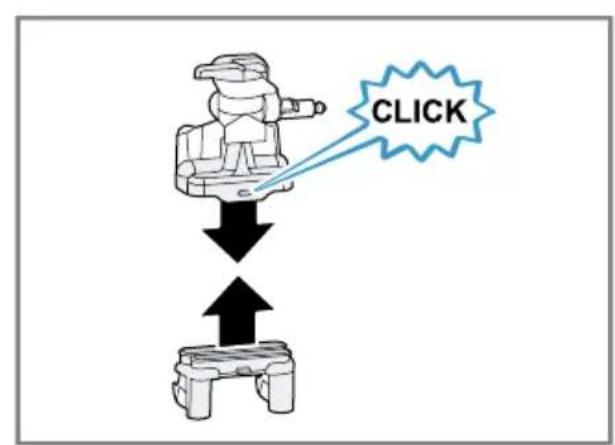

7. Place the milk system back in the appliance from the front, making sure it is straight.
8. Replace the cover.

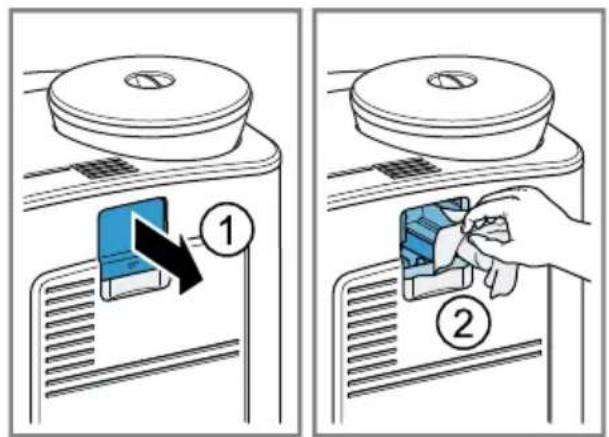

12.6 Cleaning the ground coffee drawer

1. Open the ground coffee drawer.
   →Fig. 18
2. Clean the ground coffee drawer with a cloth.

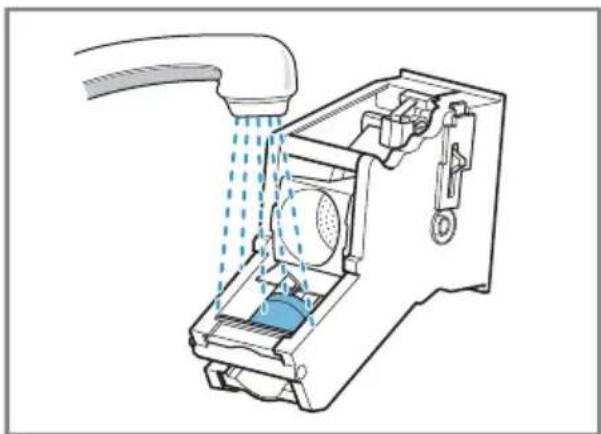

12.7 Cleaning brewing unit

In addition to the automatic rinsing process, regularly remove and clean the brewing unit.

Note: Do not clean the brewing unit in the dishwasher and do not use detergent.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- After use, allow hot appliance parts to cool down before touching.

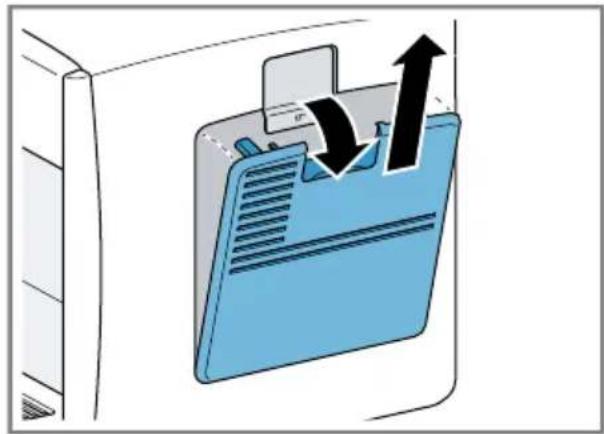

1. Press ① to switch the appliance off.
2. Open the brewing chamber door.
   →Fig. 19

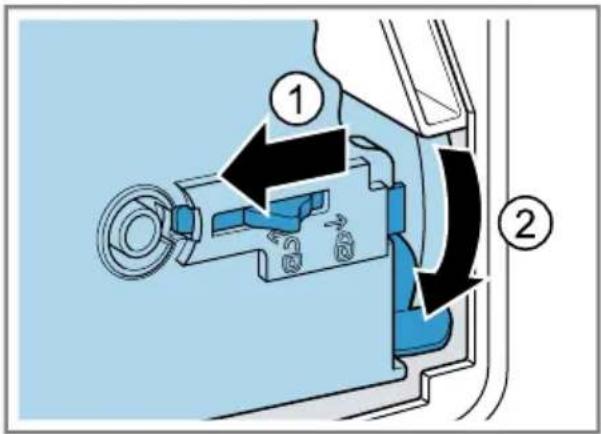

3. Slide the red locking mechanism on the brewing unit all the way to the left.
   →Fig. 20
4. Press the eject lever right down.
   √ The brewing unit is released.

en Cleaning and servicing

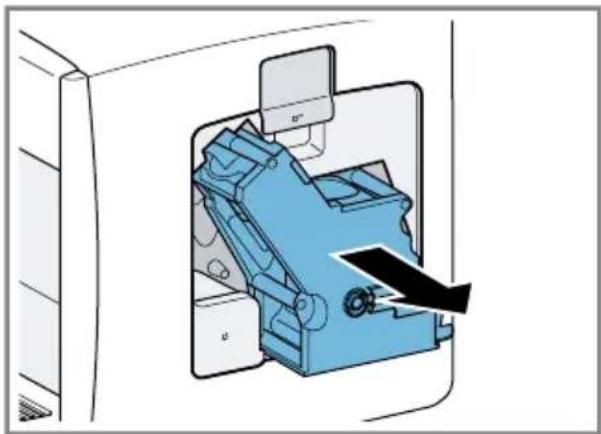

1. Take hold of the brewing unit by the recessed grips and carefully remove it.

→Fig. 21

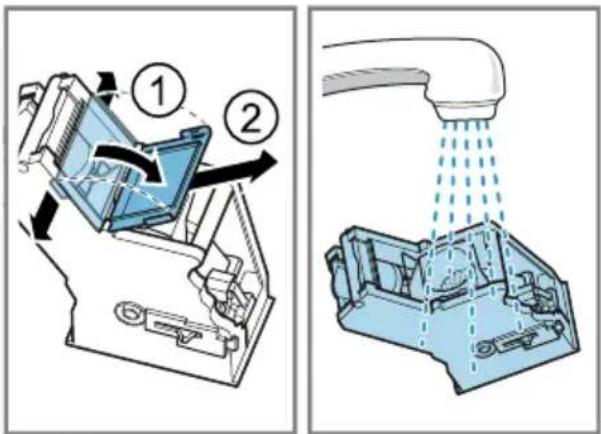

1. Remove the cover of the brewing unit and clean the brewing unit thoroughly under running water.

→Fig. 22

1. Thoroughly clean the sieve of the brewing unit under the water jet.

→Fig. 23

1. Clean the appliance interior with a damp cloth and remove any coffee residues.

2. Leave the brewing unit and the appliance interior to dry.

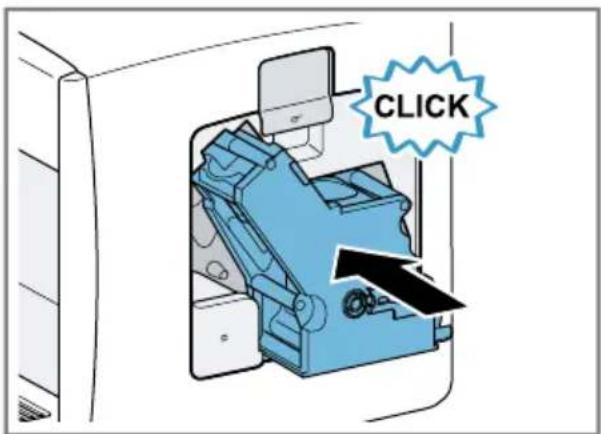

3. Place the cover of the brewing unit back on the brewing unit and then push the brewing unit all the way into the appliance.

→Fig. 24

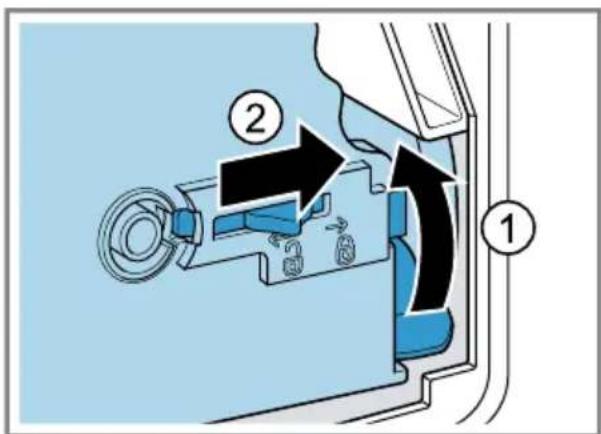

1. Press the eject lever right up.

2. Slide the red locking mechanism all the way to the right.

→Fig. 25

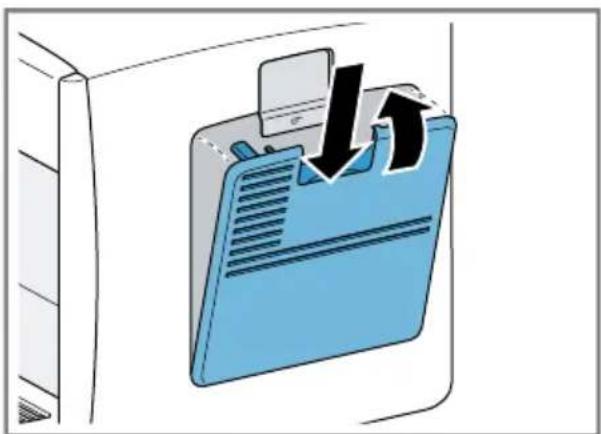

1. Close the brewing chamber door.

→Fig. 26

12.8 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION

Improper cleaning and descaling or a delay in doing so may damage the appliance.

- Immediately perform the descaling process in accordance with the instructions.

- Never put descaling tablets or other descalers into the ground coffee drawer.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tip: In addition to the automatic rinsing process, also remove and clean the brewing unit regularly.

Using the service programmes

1. Press menu
2. Use to select "Cleaning and care" and press ok
3. Use to select the desired service programme and press ok
4. To start the programme, press start stop
   √ The display indicates the progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Rinse the milk system

The display shows optimum cleaning of the milk system step by step.

Note: Once the programme has finished, empty the glass and clean the suction pipe.

Tip: If you want to clean the milk system particularly thoroughly, clean it regularly by hand.

Descale Remove residues of limescale from the pipes

Note: To prevent corrosion, remove any residual descaling solution on the appliance using a soft, damp cloth. Thoroughly clean the suction pipe of the beverage outlet.

Clean Remove residues of coffee from the pipes

calc'nClean Combine cleaning and descaling

■ Remove residues of limescale and coffee from the pipes

Tips

• If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l at the ready.
  ■ If you use a water filter, this will prolong the time until you have to run a service programme.

- You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

Resetting a service programme

Perform the following steps if a service programme is interrupted, e.g. due to a power failure.

1. Empty the container, place it under the beverage outlet and put the end of the suction pipe in the container.
2. Empty the container and put the end of the suction pipe in the container.
3. Rinse out the water tank.
4. Fill the water tank with fresh, cold, non-carbonated drinking water up to the max mark.
5. Press start stop
   √ The appliance rinses for approx. 2 minutes.
6. Empty and clean the drip tray.
7. Restart the service programme.

13 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.

Appliance has a fault.1. Pull out the mains plug and wait 60 seconds.2. Re-insert the mains plug.

Fault Cause and troubleshooting
Grinder won't start. Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.► Descale the appliance.→ "Service programmes", Page 26
Milk froth quality var-ies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Appliance is not dis-pensing hot water.	Milk system or milk system holder is soiled.► Clean the milk system or the milk system holder.→ "Cleaning and servicing", Page 23
Too little milk froth, none at all, or the milk system is not taking in any milk.	Milk system or milk system holder is soiled.► Clean the milk system or the milk system holder.→ "Cleaning and servicing", Page 23
	Milk is not suitable.Note: Do not use milk that has already been boiled.► Use cold milk with a fat content of at least 1.5%.
	The milk system is assembled incorrectly.► Assemble the milk system correctly.
	Build-up of limescale in the appliance.► Descale the appliance.→ "Service programmes", Page 26
Milk or milk-based drinks are too cold.	Milk is too cold.► Use lukewarm milk.
Coffee is not dis-pensed or has slowed to a trickle.	Grinding level or ground coffee is too fine.► Set the grinding level coarser or use coarser-ground coffee.
Set quantity is not reached.	Heavy build-up of limescale in the appliance.► Descale the appliance.→ "Service programmes", Page 26
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.

Fault Cause and troubleshooting

Coffee is too acidic. Grinding level or ground coffee is too coarse. ▸ Adjust the grinding level to a finer setting or use finer ground coffee.
Coffee is too bitter. Grinding level or ground coffee is too fine. ▸ Set the grinding level coarser or use coarser-ground coffee.
Coffee tastes burnt. Brewing temperature is too high. ▸ Set the brewing temperature lower. → "Basic settings", Page 21
Type of coffee is not optimal. ▸ Change the coffee variety.
Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
Water filter does not stay in position in water tank.	Water filter is not properly secured. ▸ Firmly press the water filter straight into the tank connection.
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. ▸ Adjust the grinder to a coarser or finer setting. → "Adjusting the grinding level", Page 20
	Too little ground coffee. ▸ Use 2 level measuring spoons of ground coffee.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon. ▸ Wait a few seconds after the last drink was dispensed before removing the drip tray.
Display shows "Please refill bean" despite the bean container being filled.	Beans are too oily and do not fall into the grinder. ▸ Gently tap the bean container. ▸ Change the coffee variety. ▸ Do not use oily beans.
Fault Cause and troubleshooting
Display shows "Please refill bean" despite the bean container being filled.	▸ Clean the empty bean container with a damp cloth.
Display shows "Please empty drip tray" despite the drip tray being empty.	Appliance is switched off and does not detect emptying.1. Switch the appliance on, and remove the drip tray.2. Re-insert the drip tray.
	Drip tray is soiled.▸ Clean the drip tray thoroughly.
Display shows "Refill with still water or change filter".	Water tank is wrongly inserted.▸ Insert the water tank correctly.
	Carbonated water is in the water tank.▸ Fill the water tank with fresh drinking water.
	Float is stuck in the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions.1. Rinse the water filter according to the instructions.2. Place the water filter into operation.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Water filter is old.▸ Insert a new water filter.
Display shows "De-scaling necessary" very frequently.	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Beverage outlet is soiled.▸ Clean the beverage outlet.→ "Cleaning and servicing", Page 23
Display shows "Please clean brewing unit, then replace".	Brewing unit is soiled.▸ Clean the brewing unit.
	Too much ground coffee in the brewing unit.▸ Use no more than 2 level measuring spoons of ground coffee.
	Mechanism of brewing unit is stiff.▸ Clean the brewing unit.
Display shows "Please restart appliance".	Brewing unit is soiled.▸ Clean the brewing unit.

Fault Cause and troubleshooting

Display shows "Please restart appliance".	► Restart the appliance.
Display shows "De-scaling insufficient Repeat process".	Incorrect or too little descaling agent used. ► Run the descaling programme again.
Display shows "Please let appliance cool down".	Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Display shows "Error Please contact hotline".	Appliance has a fault. ► Call .→ "Customer Service", Page 31

14 Transportation, storage and disposal

14.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION

Residues of liquid in the appliance may damage it during transport or storage.

▶ Empty the pipe system before transport or storage.

Requirements

■ The appliance is ready to use.
■ The water tank has been filled.

1. Press menu

2. Use to select "Frost protection" and press ok

3. Press start stop

4. Remove the water tank.

√ The appliance will automatically empty its pipe system and switch itself off.

1. Empty the water tank and drip tray.

14.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

15 Customer Service

BSH Hausgeräte GmbH is extending the availability of spare parts to 10 years. This refers to all functionally relevant and storable parts for appli-

ances produced after 1st January 2023.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

15.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

16 Technical specifications

Voltage 220-	240 V ~
Frequency 50 / 60 Hz
Connection rating 1500 W
Maximum static pump pressure	15 bar (TE651.., TE653.., TE654..); 19 bar (TE655.., TE657..)
Maximum capacity of water tank (without filter)	1,7 l
Maximum capacity of bean container	≈300 g
Length of the power cable	100 cm
Appliance height 385 mm
Appliance width 280 mm
Appliance depth 468 mm
Weight, empty ≈10-12 kg
Type of grinder Ceramic

Four symbolic illustrations: a rolled document, a block with X marks, a rolled paper, and a textured surface (no text or symbols)

Conseils

Four hand-drawn icons showing different types of household items: a roll, a block, a rolled-up document, and a woven basket, each with a blue checkmark (no text or symbols)

Рекомендации

QR code image containing encoded data, no visible human-readable text

e-mail: [e-mail]

Four symbolic illustrations: a rolled-up cloth, a rectangular block with X marks, a rolled-up dough, and a textured surface (no text or symbols)

İpuçları

Four hand-drawn icons showing different food items: rolled cheese, rectangular prism, rolled bread, and patterned bread (no text or symbols)

Кенестер

Rinse the milk system

Four hand-drawn icons showing different food items: rolled dough, rectangular prism, rolled bread, and instant noodles (no text or symbols)

Dicas

Kleiner" gÍ "Cortado

191 Brauner" 2

^21 استفادام

افصل "remove suction hose

gÍ 'Café Cortado"1" gÍ 'Flat White"1"

.Kleiner Brauner"1"

Illustration of a white fabric swatch with a blue checkmark (no text or symbols)

نصائم

electronic equipment -

.(WEEE

وهذه المواصفة تدد

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001320337 (050326)

en, fr, ru, tr, kk, pt, ar
