[en-us] Installation instructions Dishwasher 2

1 IMPORTANT SAFETY IN-STRUCTIONS .... 3

1.1 Safety definitions ...... 3
1.2 General information 3
1.3 Safe Installation 3
1.4 Electrical safety 4
1.5 State of California Proposition 65 Warnings 6

2 Preventing material damage ..... 7

3 Before you begin 7

3.1 Inspect the Dishwasher 7
3.2 Parts Included 7
3.3 Tools and Parts Needed 8
3.4 Pre-install Checklist 9
3.5 Electrical Requirements 9
3.6 Cabinet Requirements 10

4 Installation Preparation ...... 10

5 Installation Procedure ...... 10

5.1 Pre-level the Dishwasher ..... 11
5.2 Attach Power Cord 11
5.3 Mounting Brackets 11
5.4 Install Dishwasher in Cabinet Space 12
5.5 Level the Dishwasher 13
5.6 Outer Door Assembly ^1 ...... 14
5.7 Secure Top and Side Mount ... 14

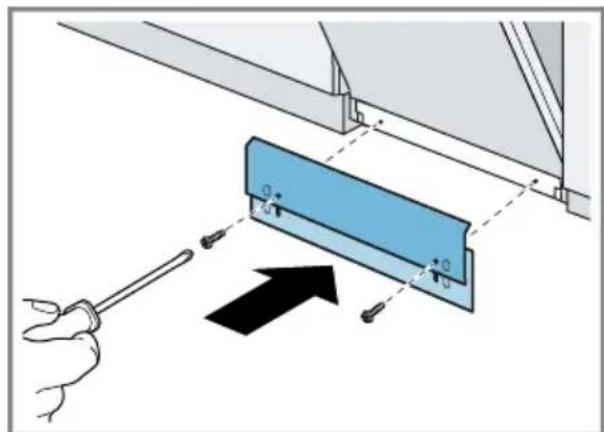

5.8 Attach the 2-part Toe Panel .... 15

6 Dishwasher Connection ..... 15

6.1 Installing the Water Inlet Connection 15
6.2 Installing the Drain Connec- tion 17
6.3 Electrical Connection and Test Cycle 18

7 Customer Service .... 18

7.1 Model number (E-Nr.) and production number (FD) 18

Read all of the instructions carefully before using the appliance. In order to reduce the risk of fire, electric shocks and personal injuries when using the appliance, follow the basic safety precautions, including the following safety instructions.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information.

1.2 General information

To reduce the risk of fire, electrical shock, or serious injury, observe the following.

■ This appliance is provided with installation instructions and this use and care manual. Read and understand all instructions before using the appliance.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
■ Do not connect the appliance if it has been damaged in transit.
■ Product damage and/or injury could result from the use of unqualified service technicians or non-original parts. All repairs should be performed by an authorized service provider using only original equipment factory replacement parts.
■ NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.

1.3 Safe Installation

Follow these safety instructions when installing the appliance.

■ These instructions are intended for use by qualified installers only. The dishwasher must be installed by a qualified technician or installer.

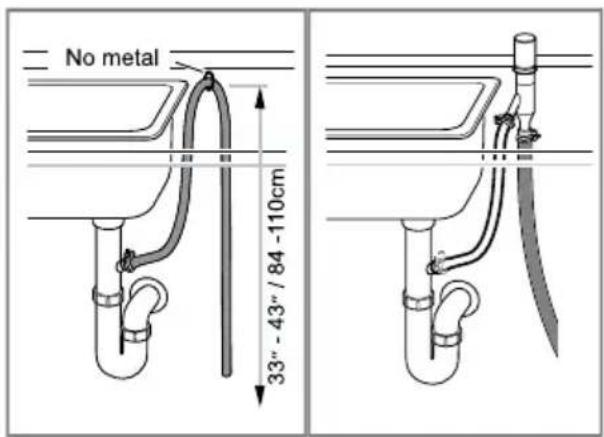

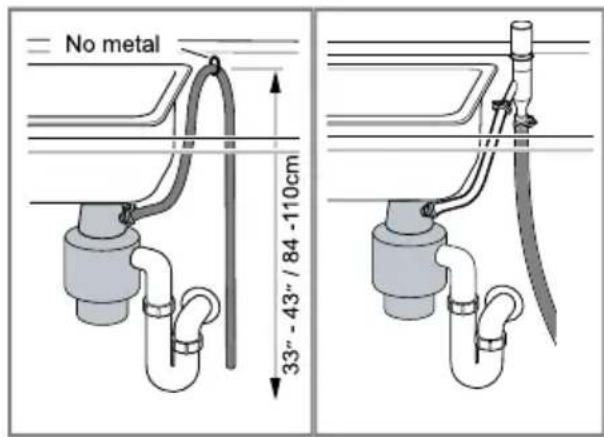

■ The dishwasher drain hose must be installed with a portion of it at least 33" (84 cm) off the floor; otherwise the dishwasher may not drain properly.
■ This dishwasher is not for outdoor use. It is intended for indoor residential use only, and should not be used in commercial food service establishments.
■ This dishwasher is designed to be enclosed on the top and both sides by cabinetry.
■ NEW INSTALLATION - If the dishwasher is a new installation, ensure all connections are properly made before the dishwasher is moved into place.
■ REPLACEMENT - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.
■ This appliance has been found to be in compliance with CAN/CSA-C22.2 No. 167/UL 749. It is the responsibility of the owner and the installer to determine if additional requirements and standards apply in specific installations.

WARNING

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive.

Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.

1.4 Electrical safety

Follow these safety instructions to avoid electrical shock.

■ The dishwasher must be properly grounded before operating. This appliance must be connected to a grounded metal permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher.
■ DO NOT use an extension cord
■ DO NOT reuse an old power cord; only use the cord provided.
■ Make sure that the dishwasher is connected to a suitable ground in compliance with all local codes or, in the absence of a local code, with the NATIONAL ELECTRICAL CODE in the United States or the CANADIAN ELECTRIC CODE C22.1-latest edition in Canada as well as any provincial/state or municipal or local codes that apply
■ Installations requiring hard wiring and terminal block - The accessory terminal block/junction box model, SMZPCJB1UC, designed for permanent wire

connection, is not included but can be ordered through Customer Service by calling 1-800-944-2904. Follow the instructions included with the kit.

WARNING

Avoid Electrical Shock

• Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized.
  ▶ To avoid possible injury or property damage, care should be exercised when the dishwasher is installed or removed to reduce the likelihood of damage to the power cord.

WARNING

Avoid Fire Hazard

▶ Make sure electrical work is properly installed and checked by qualified electricians.
▶ Make sure there are no loose electrical connections. Make sure all electrical connections are properly made. Loose and improperly installed electrical connections can result in overheating!

Wall outlet connections

▶ Only use the provided power cord for wall socket connections.
▶ DO NOT attach an extension cord or any type of modified cord or adapter with this appliance.
▶ DO NOT cut or splice the power cord.
▶ DO NOT alter the power cord in any way.

Permanent wire connections (in addition to the warnings above)

▶ Only use the junction box power cord, sold as Accessory kit #SMZPCJB1UC.

- Carefully review the terminal block installation instructions.

▶ DO NOT remove, alter or bypass the terminal block.

1.5 State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Preventing material damage

NOTICE

To avoid damage to the appliance or property damage, observe the following.

- Do not connect the appliance to the water line during construction or if the water appears cloudy or contains visible particles. Failure to follow these instructions may result in foreign materials entering the appliance, which could impair its performance, or cause water leakage.

3 Before you begin

Read these instructions before you begin to install your appliance.

3.1 Inspect the Dishwasher

After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately. Cosmetic defects must be reported within 30 days of installation. NOTE: Do not discard any bags or items that come with the original package until after the entire installation has been completed.

3.2 Parts Included

After unpacking all the parts, check for any damage in transit or missing parts.

Line drawing of a coiled electrical plug with terminal connectors (no text or symbols)

Power Cord

		Screw Clamp
	9/16"15mm	Mounting Brackets Mounting Bracket wood screws for attaching to cabinetry
		Toe Panel *depending on your model Toe Panel Screws
		Fully integrated panel kit and instructions *depending on your model
		Water Supply Adapter
		Rubber Drain Hose Adaptor
		Toe Panel Brackets *depending on your model

en-us Before you begin

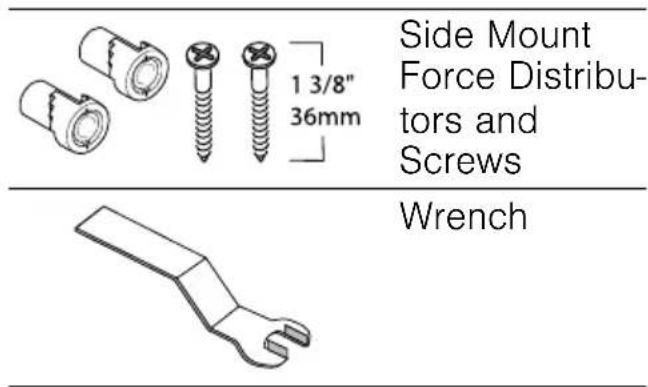

Side Mount Force Distribu- tors and Screws 1 3/8" 36mm Wrench

3.3 Tools and Parts Needed

Gather these tools and additional parts before beginning the installation of your appliance.

Tools

Power drill
m	Measuring tape
+	Crosshead screwdriver
-	Flat screw-driver
T-20	T-20 Star-head screwdriver
	Adjustable wrench

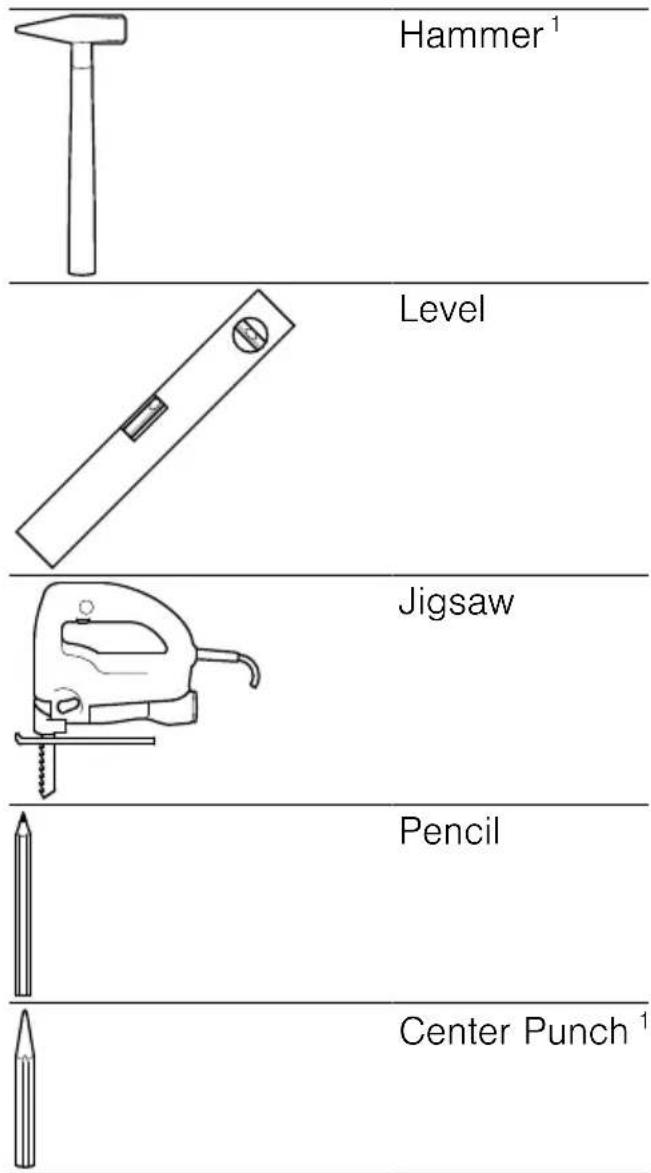

Hammer¹ Level Jigsaw Pencil Center Punch¹

Parts

Water supply hose - minimum 3/8" outer diameter copper tubing or metal braided dishwasher supply line.

Shut-off valve and fittings appropriate for hot water supply line.

3.4 Pre-install Checklist

Ensure that the following requirements are met when planning the installation of your appliance.

WARNING

Avoid Scalding or Electric Shock Hazard

• Make sure the water supply and electrical supply are shut off before installation or service.
• Do not allow the electrical and supply lines to touch.

- Select a location as close to the sink as possible for easy access to water supply and drain lines. Be sure the unit is installed close enough to the sink so the drain hose length does not exceed 92" (2337 mm) and so that a portion of the drain hose is raised at least 33" above the floor level.

■ Ensure that the enclosure is square and the opening is at least 34 1/16" (865 mm) high and 23 5/8" (600 mm) wide.

Check that the opening in the cabinet is large enough for routing the electric cable, water line, and drain hose, and if not, create a new opening. See

→ "Installation Preparation", Page 10

If the opening is wood, be sure it is sanded smooth. If it is metal, be sure it is covered by a protective gasket.

Be sure that your water heater set at 120^ F ( 49^ C) and the water pressure measures at 15-145 psi (1-10 bar)

Determine the mounting method based on the dishwasher model and counter-top type. See .

→ "Mounting Brackets", Page 11

Only use the included hardware for the installation. If you are replacing a dishwasher, dispose of old hose and other equipment properly. To avoid scratching the floor, have floor protection ready for when the dishwasher will be slid into the cabinet.

3.5 Electrical Requirements

Ensure that the following electrical requirements are met.

Dishwasher electrical rating

Volts 120

Hertz 60

Amperes 12

Watts 1,440 (max)

Electrical Supply

The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated 15 or 20 amps.

3.6 Cabinet Requirements

Ensure that the cabinet space for the installation meets the required dimensions.

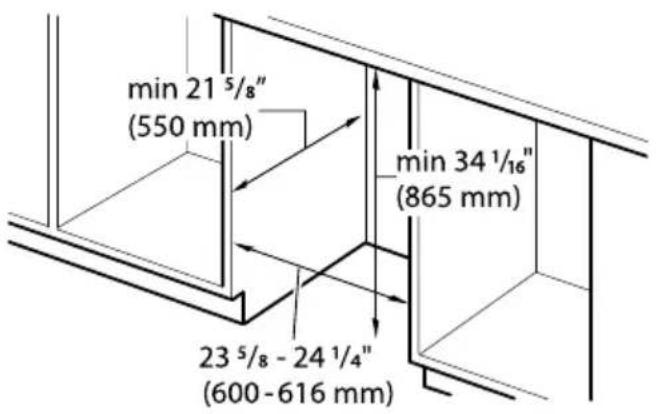

min 21 5/8" (550 mm) min 34 1/16" (865 mm) 23 5/8 - 24 1/4" (600-616 mm)

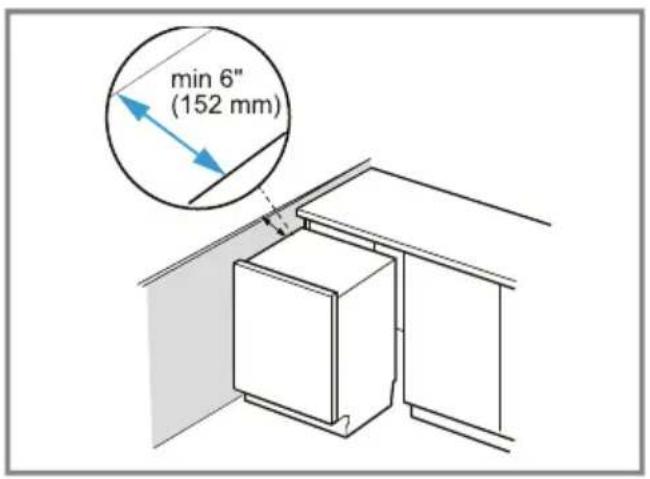

If the dishwasher is to be installed in a corner, ensure that there is adequate clearance to open the door as shown.

min 6" (152 mm)

4 Installation Preparation

After locating the proper place for your dishwasher, create an opening to allow for water, drain and electrical lines on the appropriate side.

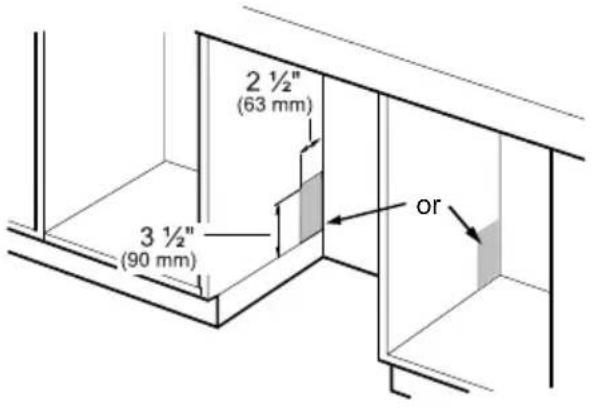

1. Cut a rectangular hole 2.5" x 3.5" in the rear corner on the sink facing side.

2 ½" (63 mm) 3 ½" (90 mm) or

If the opening is made through wood, sand it smooth. If the opening is made through metal, use the Edge Protector with Power Cord clips Kit SMZEPC-C1UC.

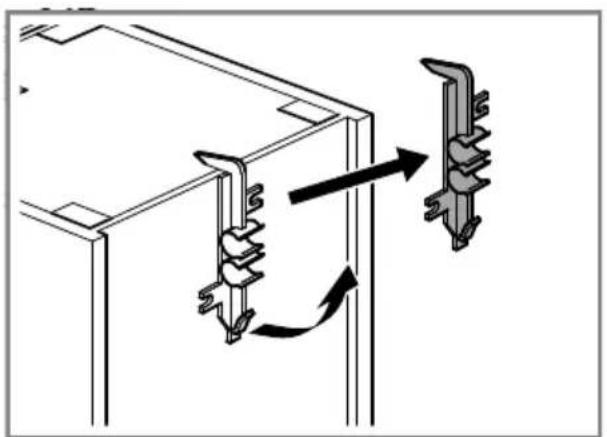

1. Remove the hose clip from the back of the dishwasher.

Diagram showing two electrical insulator connections with arrows indicating rotation or movement (no text or symbols)

It can be used later to hold the drain hose inside your cabinet.

5 Installation Procedure

Follow these instructions to install the dishwasher.

5.1 Pre-level the Dishwasher

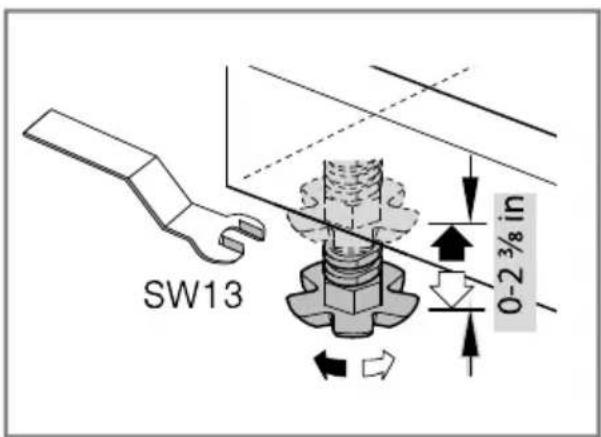

Set the dishwasher to the correct height before it goes into the cabinet.

1. Measure the height of the cabinet opening.
2. Raise the front of the dishwasher to approximately 1/2" lower than the height of the opening by turning the feet clockwise.

SW13 0-2 ¾/₈ in

You can raise the rear foot after the unit is in the cabinet opening.

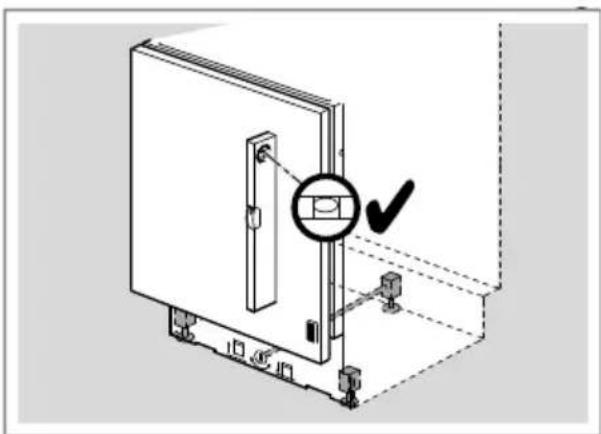

1. Use a level on the top front to see that both feet are even.

Technical diagram of a door lock assembly with a circular component and a checkmark indicating inspection (no text or symbols present)

5.2 Attach Power Cord

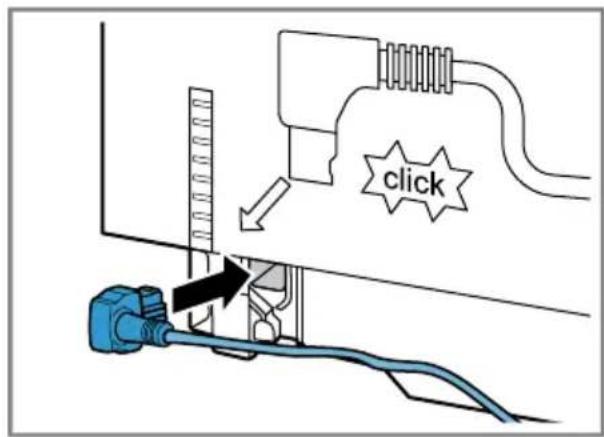

• Plug the end of the supply cord into the back of the dishwasher.
  ▶ Be sure to push it all the way in until fully seated.

click

The outlet for the power supply cord should be located in a cabinet or wall adjacent to the dishwasher cabinet.

Do not plug dishwasher into the wall outlet until all the steps of the installation are complete.

Notes

■ If you require a permanent wiring connection, order kit junction box accessory kit SMZPCJB1UC.
■ If local electrical codes require clips to secure the power cord wire to the dishwasher, use accessory kit SMZEPCC1UC.

5.3 Mounting Brackets

Before installing the supplied mounting brackets, decide which method of securing the dishwasher into its enclosure will be used, top (wood or porous material) or side (stone or solid surface). Once the mounting brackets are installed on the dishwasher, removing them is difficult and will damage the mounting brackets and the dishwasher. If you have a Fully Integrated Panel, do not attach

mounting brackets until after attaching the panel to the door.

WARNING

Avoid tip over hazard

- Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can result in serious injury.

Top and Side Mount

For openings wider than 23 5/8" (600 mm), use the metal mounting brackets. Top mount is for wood or other materials that can easily be drilled into. Side mount is for stone countertops or another hard material that cannot easily be drilled. Both use the same mounting brackets, but the difference is the screw placement.

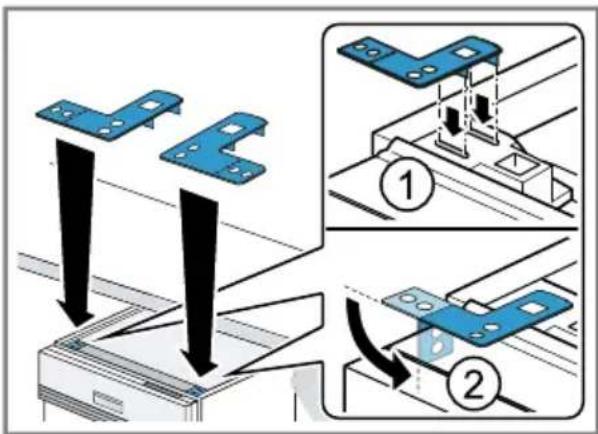

- Orient the mounting brackets as shown and position the tabs into openings on the dishwasher's front corners.

- For side mount, bend the brackets down at the perforation.

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion or assembly.

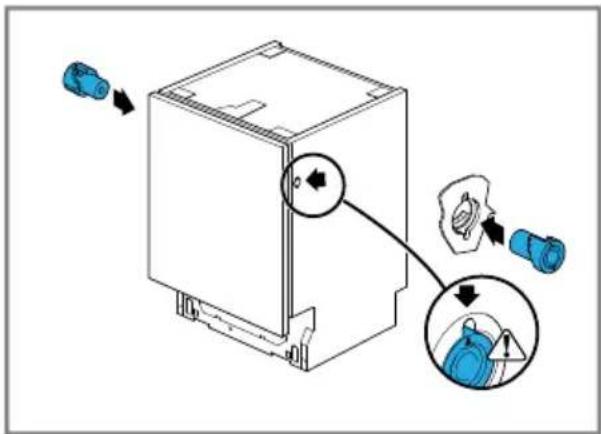

Side Mount Force Distributor

The side mount force distributors are for cabinet openings that are 23 5/8".

- Insert a side mount force distributor into the opening in each side.

Make sure it is flush with the dishwasher.

Diagram showing a device with blue connectors and a magnified inset highlighting a component with directional arrows.

5.4 Install Dishwasher in Cabinet Space

To avoid scratching the floor, use floor protection and caution when sliding the dishwasher into the cabinet.

NOTICE

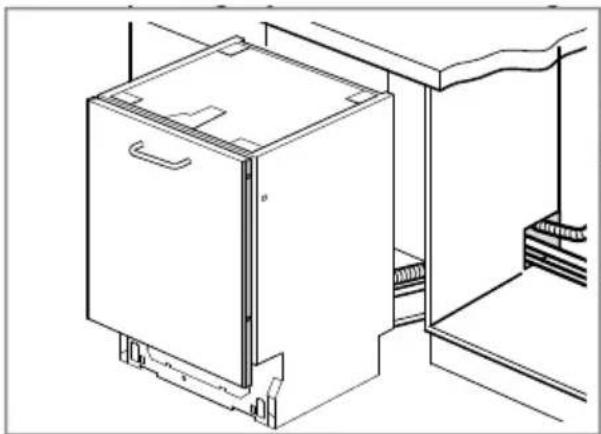

Avoid Hose Kinks

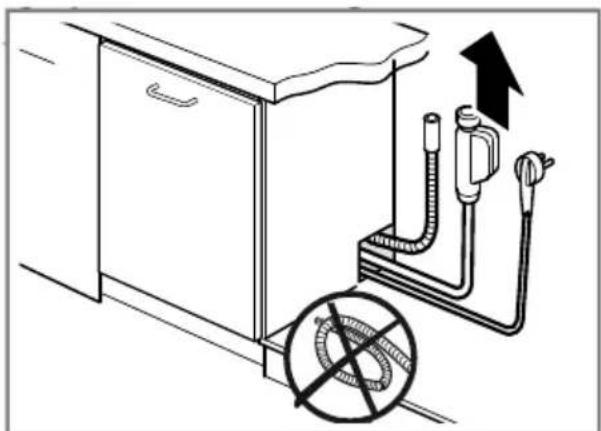

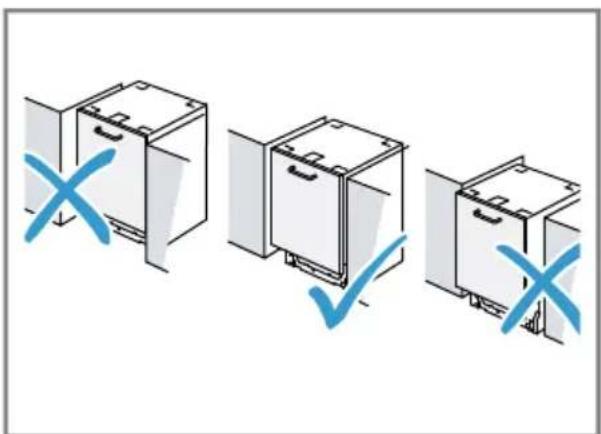

- Be careful while pushing dishwasher in. The hoses can fold, kink or break, potentially causing an obstruction or leak.

1. Feed the power cord and hoses through the low hole in the cabinet.

Technical line drawing of a refrigerator unit with doors and shelves (no text or symbols)

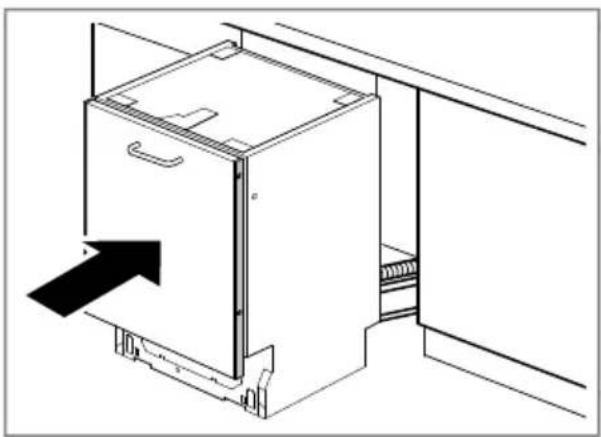

1. Carefully and slowly push the dishwasher into the cabinet space.

Line drawing of a refrigerator interior with a black arrow pointing to the door (no text or symbols)

1. Reach into adjacent cabinet and pull hoses and excess power cord through completely so they do not get kinked.

Diagram of a kitchen sink with pipes and a circular component, no text or symbols present

1. Finally, push the unit in until flush with cabinet door.

Diagram showing three steps of a washing machine with blue X marks indicating inspection or status.

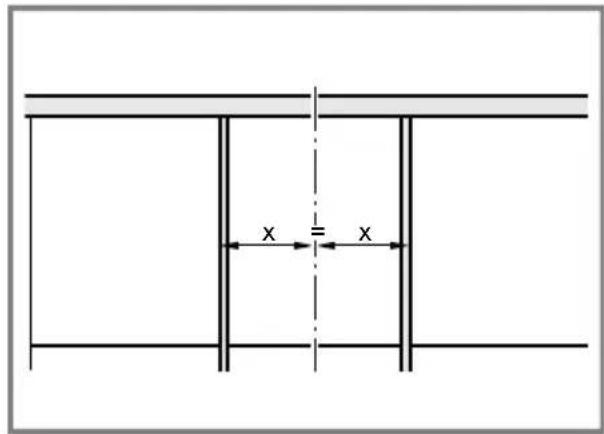

1. Center the dishwasher in the opening.

x = x

5.5 Level the Dishwasher

Now that the dishwasher is in the cabinet, check the levels again.

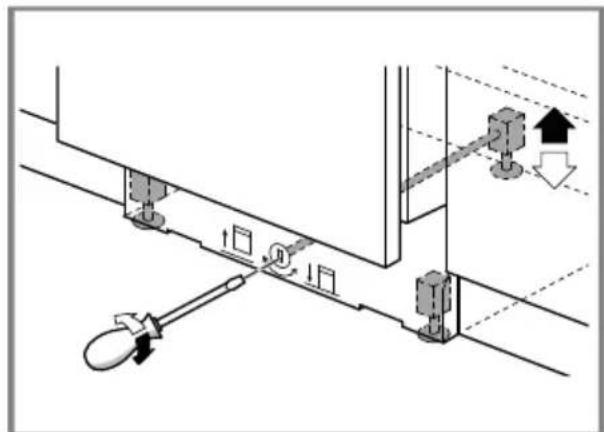

1. Level side to side by turning feet clockwise to raise or counterclockwise to lower front.

SW13 0-2 3/8 in

1. Level front to back by turning center screw clockwise to raise or counter-clockwise to lower the back.

Technical diagram of a mechanical assembly with no visible text or symbols

en-us Installation Procedure

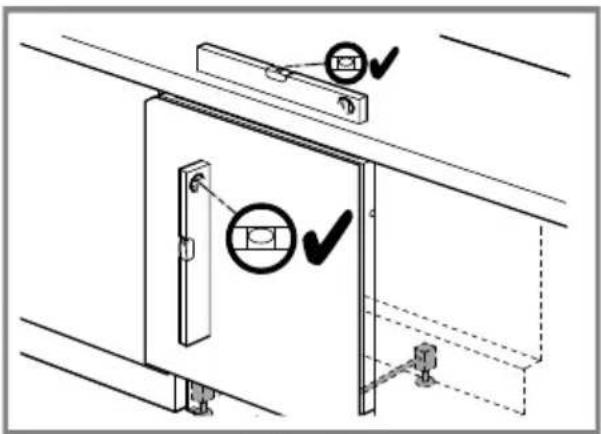

1. Use a level to check that your dishwasher is level.

- Ensure that the countertop is level and adjust the dishwasher to the countertop.

Technical diagram showing a door lock mechanism with checkmarks indicating selection or confirmation points.

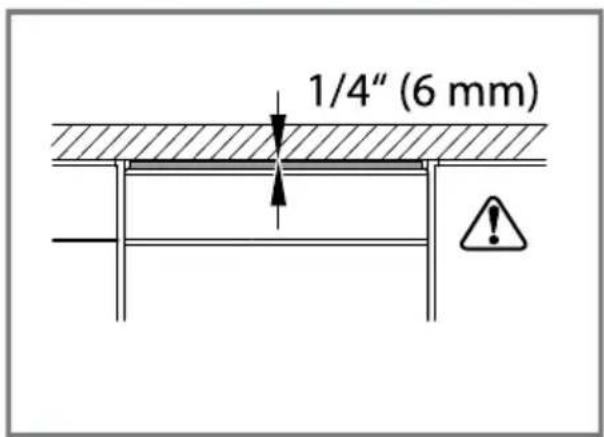

1. Make sure the top of the door is no less than 1/4" (6 mm) from the underside of the counter.

1/4" (6 mm)

5.6 Outer Door Assembly ^1

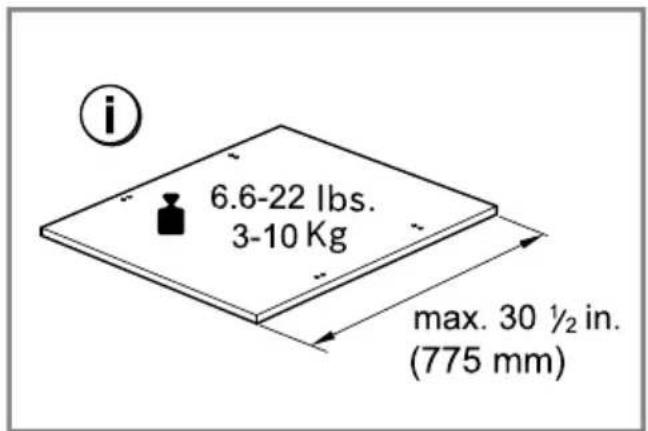

- Follow the instructions for outer door assembly on the fully integrated template.

6.6-22 lbs. 3-10 Kg max. 30 ½ in. (775 mm)

5.7 Secure Top and Side Mount

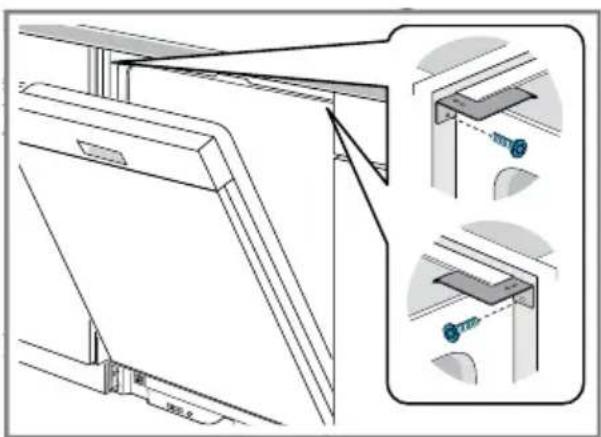

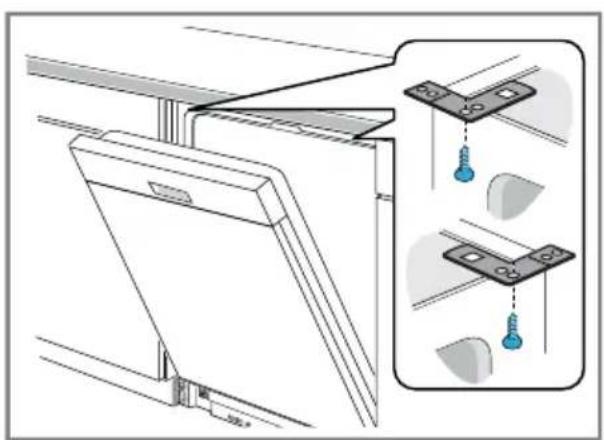

1. For top mount, drive the mounting screws through the holes in the bracket into the countertop.

Technical line drawing of a cabinet or shelf assembly with two inset views showing screw fasteners (no text or symbols present)

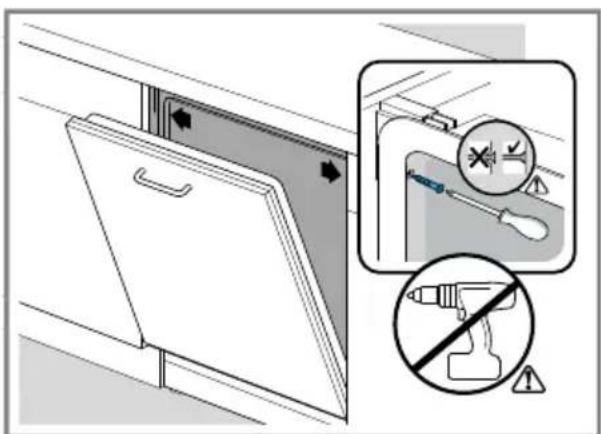

1. For side mount, drive the mounting screws through the holes in the sides of the cabinetry.

Technical line drawing of a mechanical assembly with two views and mounting brackets (no text or symbols)

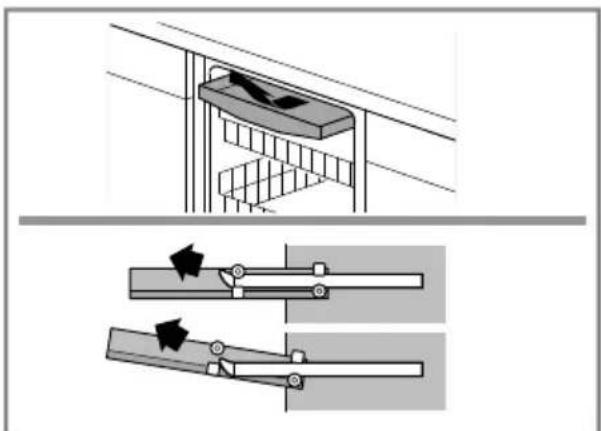

1. If using the force distributor side mounts, first remove the cutlery rack. ^1

Mechanical assembly diagram showing two configurations of a lever mechanism with arrows indicating motion (no text or symbols present)

1. Drive the mounting screws through the holes inside the dishwasher.

Diagram illustrating a door lock system with an icon of a screwdriver and a warning symbol, accompanied by explanatory text.

1. Re-insert the cutlery rack.

5.8 Attach the 2-part Toe Panel

1. Place the slotted toe panel on the dishwasher.

It should rest on the floor.

1. Position the mating front toe panel on top of the rear toe panel with the angled edge on the mating edge of the dishwasher.

2. To secure the toe panels, drive the two black torx screws through the holes in the toe panel and the dishwasher base.

▶ To avoid damaging the dishwasher, use the supplied screws.

Diagram showing a hand holding a tool interacting with a blue panel mounted on a structural beam, with an arrow indicating direction of movement.

Follow these instructions to connect the dishwasher.

6.1 Installing the Water Inlet Connection

The hot water heater should be set to deliver approximately 120 °F (49 °C) [max. 140 °F/ (60 °C)] water to the dishwasher. Water that is too hot can cause some detergents to lose effectiveness. Lower water temperatures will increase run times. The hot water

supply pressure must be between 7.25 - 145 psi (0.5 - 10 bar).

WARNING

Scalding Hazard

- Do not perform any work on a pressured hot water line. Serious injury could result. Only qualified plumbers should perform plumbing work. Do not attempt any work on the dishwasher hot water supply plumbing until you are certain the hot water supply is shut off.

NOTICE

Soldering plumbing lines

- Temperatures required for soldering and sweating will damage the dishwasher. If plumbing lines are to be soldered or sweated, keep the heat source at least 6 inches (152.4 mm) away from the dishwasher.

Plumbing codes

- Check local plumbing codes for approved plumbing procedures and accessories. All plumbing should be done in accordance with national and local codes.

Note

Preparing for water connection:

■ If using a solder joint instead of a compression fitting, be sure to complete all solder connections before connecting the water supply line to the dishwasher.
■ Use an approved dishwasher water supply hose with the correct fittings for this connection.
- If using copper tubing or other material not depicted in this manual for water supply, defer to a licensed plumber for proper installation.
■ Always use appropriate seals when making plumbing connections.

■ Install a shut off valve if one isn't already in the supply line.

1. Flush the incoming water line for at least one minute, or until free of debris and foreign material.

2. NOTICE: Hand tighten only.

- Do not use pliers on the plastic nut and avoid overthightening as either will cause a leak.

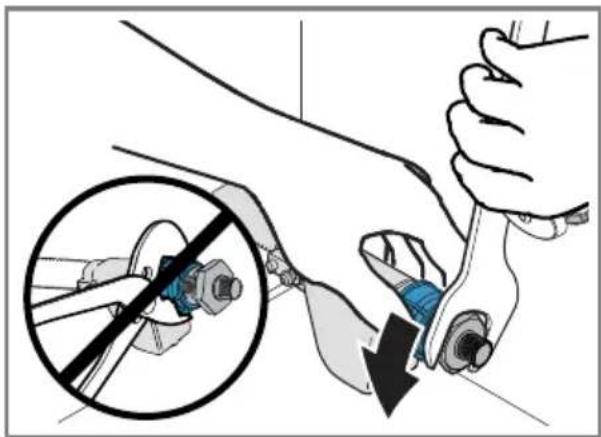

Hold the water supply adapter securely in place by using a wrench. Use your hand to tighten the plastic nut of the AquaStop onto the adapter.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a component (no text or symbols present)

Make sure there are no sharp bends or kinks in the water line that might restrict water flow.

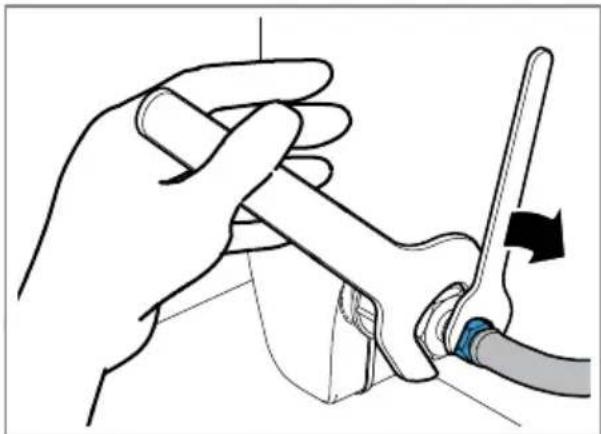

1. Connect the customer supplied hose onto the threaded metal adapter by using a wrench.

Illustration of a hand holding a tool with a blue clip, no text or symbols present

1. NOTICE: Overtightening may cause a leak.

▶ Do not overtighten.

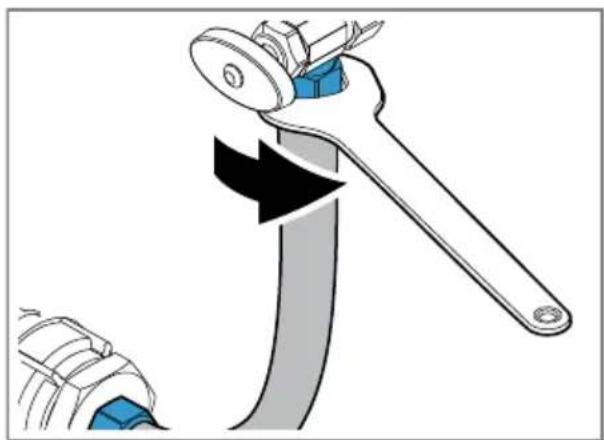

Connect the customer supplied hose onto the shut-off-valve by using a wrench.

Illustration of a mechanical wrench tool with a blue handle and black arrow indicating motion (no text or symbols)

1. After all connections are made, turn on the hot water and check for leaks.

6.2 Installing the Drain Connection

The drain hose must be installed with either a high loop or an air gap.

NOTICE

Proper drain hose installation

- The dishwasher drain hose must be installed with a portion of it at least 33" (84 cm) off the floor; otherwise the dishwasher may not drain properly.

Remove garbage disposal plug

If the dishwasher drain hose will be connected to a garbage disposal connection, first remove the plug from the disposal connection.

Note

Important notes for drain connection:

• If local ordinance require an air gap, install it according to the manufacturer's instructions.
• The drain hose length can be extended if necessary. Use kit #SGZ1010UC. The maximum length of the drain hose, including the hose leading to the air gap, is 150" (380 cm).

- You may attach the hose clip to the inside of the adjacent cabinet to hang the drain hose (screws are not supplied) in place of using a nonmetallic tie as pictured in the next illustrations. Do not exceed 43" in drain hose height.

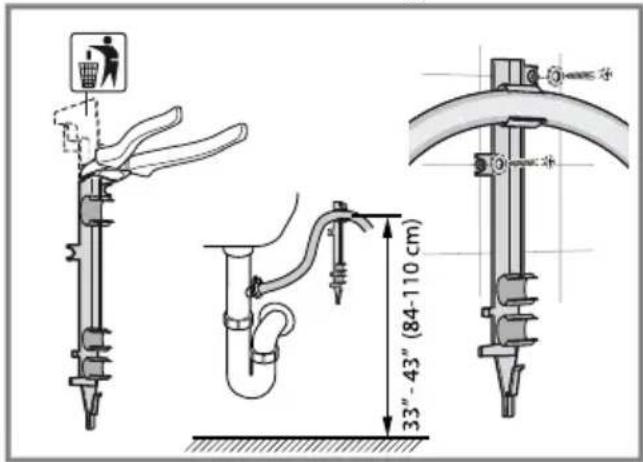

Technical diagram showing three different mechanical or piping installation methods with labeled dimensions and components.

1. Place hose clamp around end of drain hose BEFORE connecting to the plumbing.
2. If you have a garbage disposal, connect the drain hose to the garbage disposal with either a high loop or an air gap.

No metal 33" - 43" / 84 - 110cm

1. If you do not have a garbage disposal, connect the drain hose to

the drain connection with either a high loop or an air gap.

No metal 33"-43"/84-110cm

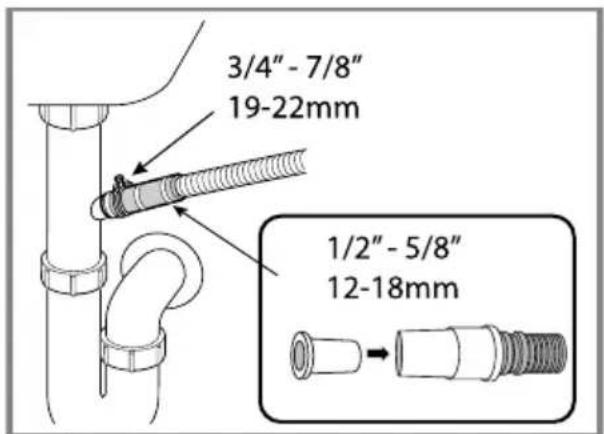

1. Insert the included drain hose adaptor before connecting to the plumbing.

2. Tighten the hose clamp around the house plumbing.

3/4" - 7/8" 19-22mm 1/2" - 5/8" 12-18mm

6.3 Electrical Connection and Test Cycle

1. For wall outlet connections, plug the dishwasher into the outlet.
2. Turn on power supply.
3. Make sure the water supply is on.
4. Turn the dishwasher on and run a test cycle for 15 minutes.
5. Check to make sure the cycle operates and there are no leaks while it is running.
6. Stop the cycle and turn off the dishwasher.
7. Your installation is complete.

7 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.

You can obtain function-relevant and storable genuine spare parts from our Customer Service for up to 15 years from the date on which your appliance was placed on the market. For more information, please contact our Customer Service team.

Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.

USA:

1-800-944-2904

www.bosch-home.com/us/owner-support/get-support

www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/

cleaners-and-accessories

7.1 Model number (E-Nr.) and production number (FD)

If you contact Customer Service, you will need the product number (E-Nr.) and production number (FD), which you can find on the appliance's rating label.

The rating plate is located inside the appliance door.

Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.

Table des matières

1 IMPORTANTES CONSIGNES DE SÉCURITÉ .... 20

Diagram showing two electrical connector assemblies with arrows indicating rotation or assembly (no text or symbols)

SW13 0-2 3/8 in

Technical diagram of a door assembly with a circular component and mounting base (no text or symbols)

Technical diagram showing two steps of metal bracket assembly with downward arrows indicating assembly direction

Diagram showing a device with blue connectors and a magnified inset highlighting a component with warning symbols.

Line drawing of a double door cabinet and adjacent shelf with stairs (no text or symbols)

Technical line drawing of a refrigerator with an arrow indicating a component (no text or symbols present)

Diagram of a kitchen sink with pipes and a wheel, showing no text or symbols (no readable text or labels)

Diagram showing three steps of cleaning a refrigerator with blue X marks indicating removal or check.

Pure structural diagram showing two vertical columns with a central horizontal bar and dimension 'X' marked, no text or symbols present.

SW13 0-2 ¾/₈ in

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or force

Technical diagram showing a door lock mechanism with checkmarks indicating inspection or status indicators.

1/4" (6 mm)

6.6-22 lbs. 3-10 Kg max. 30 ½ in. (775 mm)

Technical line drawing of a cabinet or shelf assembly with mounting brackets and a close-up inset showing two labeled components (no text or symbols present)

Technical line drawing of a mechanical assembly with two views and mounting brackets (no text or symbols)

Mechanical assembly diagram showing two configurations of a lever mechanism with directional arrows (no text or labels)

Diagram illustrating a door lock mechanism with warning symbols and safety instructions

Diagram showing a hand holding a tool interacting with a blue panel mounted on a structural beam, with an arrow indicating direction of movement.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of a pipe fitting (no text or symbols present)

Illustration of a hand holding a tool with a blue clip, no text or symbols present

Illustration of a wrench tool interacting with a mechanical component, showing a blue handle and black arrow (no text or symbols)

Technical diagram showing water spray system components with labeled dimensions and a trash bin

3/4"-7/8" 19-22mm 1/2"-5/8" 12-18mm

www.bosch-home.com/us/owner-

support/get-support

www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/

cleaners-and-accessories

QR code image containing encoded data, no visible human-readable text

BOSCH

Register your appliance to enjoy customized benefits.

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

• Discounts for filters, cleaners, accessories & parts
- Easy access to manuals & appliance specifications
- Easy access to part lists
- Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2025 BSH Home Appliances Corporation

9002048492 (051121) 650

en-us, fr-ca
