USER MANUAL SHE43DM5N BOSCH

bosch-home.com/us/mybosch

Dishwasher

100, 300 and 500 series with PrecisionWash®

[en-us, fr-ca] Quick Start and Safety Guide

Home Connect

Connect

your

dishwasher

with Home

Connect

today!

Get the app

Download on the

App Store

GET IT ON

Google Play

Google Play and the Google Play logo are trademarks of Google LLC. Apple and the Apple logo are trademarks of Apple Inc.

Scan QR code

QR code with a central logo, likely linking to a digital resource or website.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

To reduce the risk of fire, electrical shock, or serious injury, observe the following.

• Read and understand all instructions before using the appliance.
• Keep the provided documents in a safe place for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.
  ■ Severe product damage and/or injury could result from the use of unqualified service technicians or non-original parts. All repairs must be performed by an authorized service provider using only original equipment factory replacement parts.
  ■ NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.

1.3 Intended use

Only use this appliance:

■ for cleaning household dishware.
■ In private households and in enclosed spaces in a residential environment.

■ Up to an altitude of 13,100 ft (4000 m) above sea level.

1.4 Restrictive Use

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1.5 Grounding instructions

This appliance must be grounded to a metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.

WARNING

Improper connection of the equipment grounding conductor can result in risk of electric shock.

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor. Check with a qualified electrician or authorized service representative if you are in doubt whether the appliance is properly grounded.

1.6 Safe use

Follow these safety instructions when using the appliance.

WARNING

To reduce the risk of serious injury, observe the following.

▶ Read all instructions before using this dishwasher.
▶ Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware rated as dishwasher safe.
▶ Only use detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children.
- Do not abuse, sit or stand on the door or dish racks of the dishwasher.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive.

Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.

WARNING

To avoid risk of electric shock, observe the following.

▶ Only use the appliance in enclosed residential space according to the installation manual.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use any steam cleaners or high-pressure cleaners to clean this appliance. If not followed, excess moisture can accumulate.

WARNING

To avoid risk of injury, when loading items to be washed, observe the following.

• Locate sharp items so they are not likely to damage the door seal.
  ▶ Load knives and other sharp utensils with their handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
• Do not operate your dishwasher unless all enclosure panels are in place.
  ▶ Do not tamper with or override controls and interlocks.

WARNING

For safe care and operation of your appliance, observe the following.

▶ Follow the safety instructions and directions for use on the detergent and rinse aid product labels.
▶ Do not use harsh chemicals such as bleach-based products to clean your dishwasher. Some bleach-based products can damage your dishwasher and may present health hazards!

▶ Always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.
To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

NOTICE:

Water and power shut off

It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the installation instructions or contact your installer for more information.

1.7 Risk to children

Follow these safety instructions if there are children in your home.

WARNING

To reduce risk of injury to children, observe the following.

▶ Do not allow children to play in or on the dishwasher.
When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the children are instructed in safe practices by qualified persons.
Remove the dishwasher door to the washing compartment when removing an old dishwasher for service or discarding.

1.8 State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Getting started

Download the Home Connect® app to access the full Use and Care Manual or visit:

www.bosch-home.com/us/service/get-support/owner-manuals

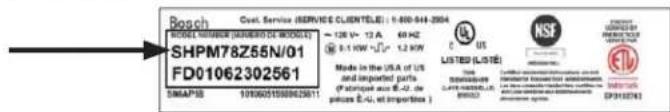

Type in the Model Number which begins with 'S' and can be found inside the dishwasher door:

Bosch MODEL NUMBER (NUMBER OF MODELS) SHPM78Z55N/01 FD01062302561 SMAPIS 10106021089425611 Coat. Service (SERVICE CLIENTE): 9-800-844-2004 126 V - 12 A 60 Hz 9.1 MWh - 1.2 MWh Made in the USA of US and imported parts (4 stipted use & E-42 de plices E-42, et importants) LISTED (LISTE): US NSF HENSERTAINMENT FOR CHINA'S INDUSTRY AND COMPLIANCE FOR CHINA'S INDUSTRY AND COMPLIANCE FOR CHINA'S INDUSTRY AND COMPLIANCE COP3103743

Tip: Connect your appliance to the Home Connect® app. You can conveniently adjust the settings and download additional cycles and options with the app.

2.1 Add detergent

Use detergent tabs, fresh powdered detergent or liquid detergent. For quick cycles, use powdered or liquid detergent instead of tabs.

Tip: The dispenser lid should slide closed easily.

Illustration of a hand pressing down on a device component (no text or symbols visible)

3 Tbsp. max. 1.75 Tbsp. (25 ml) 1 Tbsp. (15 ml)

To close the cover, push until it clicks.

CLICK

2.2 Add rinse aid

This dishwasher is designed to be used with rinse aid, which enhances drying results and shine.

Tip: Remove lid of the bottle for easier pouring and avoid the air vent.

NOTICE: The amount of rinse aid dispensed can be adjusted in the settings. Only change the setting if streaks remain on the dishes (lower the amount), or if dishes are not getting dry enough (increase the amount).

air vent Max

2.3 Start your dishwasher

1. Press the On/Off button with a short 1 second press.
2. Select a cycle and option if desired.
3. Press Start.

Note: All buttons have 'Touch' control and require only a short gentle touch.

Important: After pressing Start, the door must be shut within 4 seconds, otherwise the operation will be paused. If the door is open for more than 4 seconds, or there is any other cycle interruption, press the Start button again. This is to protect against unintentional operation, e.g. by children.

3 Tips

3.1 Loading tips

Scan the code with your smart phone to watch the video on the best practices for loading dishes and avoiding some common mistakes.

Scan here for loading tips for models with

2 racks

Scan here for loading tips for models with

3 racks

WARNING

▶ Load sharp items (knives, skewers, etc.) pointing down. Failure to do so may result in injury.
▶ To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.

3.2 Maintenance tips

1. Clean surfaces with damp cloth and mild soap. NOTICE: Do not use abrasives or bleach based cleaners. Do not use stainless steel cleaner on black stainless or anti-fi nger print surfaces.
2. Clean the fi Iter 3-12 times a year, depending on usage.

Scan here for how to clean the fi Iter

Scan here for how to clean the spray arms

1. It is also recommended to run Machine Care program to keep the tub clean. It is accessible through the Home Connect® app.

3.3 Usage tips

■ Use rinse aid.
■ Scrape food off dishes, but do not rinse.

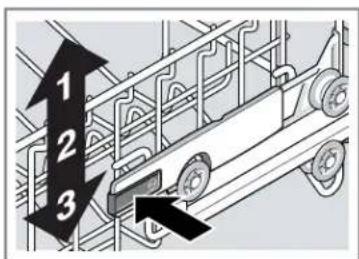

■ If equipped with an adjustable upper rack, adjust height as needed for large items.

Hand holding a water tap with a cross mark symbol (no text or labels)

Note: Rack confi guration may vary depending on model. For instance, there are 2 types of adjustable upper racks as shown below. Download the full Use and Care Manual for specifi c instructions relating to your model's confi guration.

→ "2 Getting started"

1 2 3

Diagram of a car wheel system with blue wheels and an arrow indicating clockwise motion (no text or symbols)

4 Cycles and Options

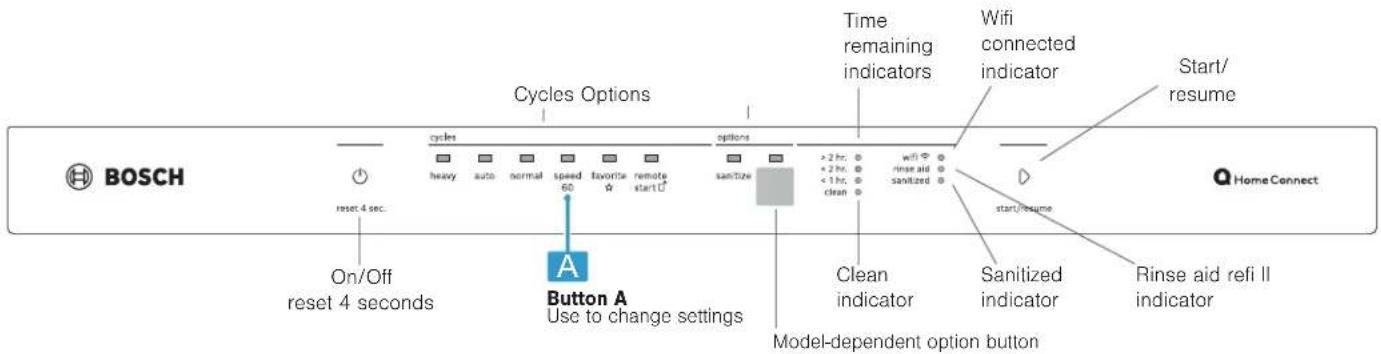

BOSCH Cycles Options Cycles heavy auto normal speed 60 favorite remote start U options reset 4 sec. On/Off reset 4 seconds Button A Use to change settings Time remaining indicators >2 hr. >2 hr. <1 hr. clean wifi connected indicator rinse aid sanitized Start/resume Q HomeConnect Clean indicator Sanitized indicator Rinse aid refi II indicator Model-dependent option button

Cycles	Level of dirt	What it does Examples of dishes
Heavy Baked-on/greasy	Cleans intensively, increases cycle length and temperature	Baked-on lasagna casserole
Auto Not baked-on	Adjusts time and intensity automatically by soil sensing	Everyday load
Normal Not baked-on	Cleans using less energy and water	Everyday load
Speed60®Light, not dried on	Shortens cycle to 1 hour, includes drying	Everyday load
Favorite At one touch, access a saved Cycle and Option combination. Set this up in the Home Connect app or press Favorite for 3 seconds and it stores the currently selected program/option combination.
Remote Start	Allows user to start the dishwasher remotely. See the Home Connect®app.
Rinse* Fresh, not dried on	Quick rinse, using less water than hand rinsing	Everyday load, to use between cycles
Machine Care*	An intense program to clean the tub. Run without dishes.

* Available through the Home Connect® app and depending on your model.

Tip: You can use the Home Connect ^® app to access additional cycles and options and save them. Additionally, you can use the Smart Cycle feature in Home connect app to help choose the best cycle and options for you.

Options	Level of dirt	What it does Examples of dishes
Sanitize Any Increases cycle length and temperature for disinfection		Cutting boards, bottles
Model-dependent options highlighted in light gray below. Refer to your model's control panel for the available option.
Extra DryTM	Any Raises the temperature and extends the drying time	Everyday loads
or
Eco* Any Increases run time but reduces energy and water consumption		Any
or
Extra Quiet*	Any Reduces the noise level for 30 minutes. Can be be activated at any time and multiple times. Run time is extended.	Any
Fast Forward*	Any Shortens the run time and can be activated at any time during the cycle	Any
HalfLoad* Light Shortens cycle, for lightly soiled dishes		Everyday dishes
Delay* Any Allows you to delay the start of the cycle up to 24 hours		Any

Note: The Energy Guide label was based on the Normal cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser. A single dose of detergent was inserted into the detergent dispenser, and no detergent was used in the prewash.

5 Settings

5.1 Available Settings

Below are some commonly used settings. To see all the settings refer to the full online manual or go to Dishwasher » Settings in the Home Connect® app.

Setting Factory setting Description
Rinse AidOff /Low/Medium/High	Medium Setting to adjust the amount of rinse aid used in each cycle.
Intensive dryingOff /On	Off Setting to increase drying ability for glasses or plastic.Increases cycle length and temperature.
End of cycle toneOff /Low/Medium/High	Medium The volume of the tone signalling the end of cycle.

5.2 Adjusting the settings

First Steps to adjust any setting:

1. Open the door and press the ON/OFF button.
2. Hold down Button A for 3 seconds, until the Rinse Aid indicator light fl ashes.
3. Release button, then follow steps below to adjust specific setting.

To adjust the rinse aid:

1. Press the Start button repeatedly until the right amount of rinse aid has been set. 0 (off), 1(low), 2(medium), or 3(high) LEDs above cycle buttons will light up accordingly.
2. Press button A for 3 seconds to save the setting.

To turn on intensive drying:

1. Press button A until the Clean and Sanitize lights flash.
2. Press the Start button until 1 LED light above the heavy cycle button is on (intensive dry is on).
3. Press button A for 3 seconds to save the setting.

To adjust the signal volume:

1. Press button A until the Clean and Rinse Aid lights flash.
2. Press the Start button repeatedly until the preferred volume level has been selected. 0 (off), 1(low), 2(medium), or 3(high) LEDs above cycle buttons will light up accordingly.
3. Press button A for 3 seconds to save the setting.

To reset to factory settings:

1. Press button A until the Clean, Sanitize and Rinse Aid lights flash.
2. Press the Start button. The 3 LEDs above cycle buttons will blink alternatively for 1 minute. The factory settings have been restored.

Tip: The simplest way to change the settings is with the Home Connect® app.

6 Frequently Asked Questions

Q: Why is food remaining on dishes after I run the cycle?

It is possible the dishes do not have adequate clearance between them. Also, be sure nothing is blocking the spray arms and that the fi Iter is clean. Select the Heavy cycle.

Q: Why does the cycle run a long time?

■ Sensors in the dishwasher automatically increase the cycle time to ensure a good wash when heavy soil is detected.
■ Incoming water may not be hot enough and dishwasher has to heat it.

Illustration of a hand pressing down on a device component (no text or symbols visible)

3 Tbsp. max. 1.75 Tbsp. (25 ml) 1 Tbsp. (15 ml)

Hand holding a water tap with a cross mark symbol (no text or labels)

Diagram of a shopping cart with blue circular components and an arrow indicating direction (no text or symbols)

Thank you for being a Bosch customer!

Register your new device on MyBosch now and profit directly from: Simply create a MyBosch account, then register your appliance.

• Expert tips & tricks for your appliance

• Warranty extension options accessories & parts
  • Discounts for accessories & spare parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service (sent by mail after appliance registration)

Registered easy registration – also on mobile phones:

www.bosch-home.com/welcome-support/mybosch

BOSCH

HOME APPLIANCES

SERVICE

Looking for help?

You'll find it here.

ExperatteltvichefomyoamaBoschlhermBasophianbesehtelpupithnproblems

We are repaire froms Bosch® expensive instructions, cleaning tips,

Find out everything, about the many ways and Repairs can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your Model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2025 BSH Home Appliances Corporation

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

9001997555 650A-B.US (050318) 650 E5

en-us, fr-ca
