USER MANUAL RCB169DS2 COMFEE

Simple line drawing of a two-tier refrigerator (no text or symbols)

RCB231DK2

RCB231DS2

RCB231WH2

RCB169DK2(E)

RCB169DS2(E)

RCB169WH2(E)

Warning:

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

1. SAFETY INFORMATION ....1

2.PROPER USE OF REFRIGERATOR 9

2.1 Placement 9
2.2 Energy Saving Tips 10
2.3 Changing The Light 10
2.4 Start To Use 10
2.5 Names Of Components 11
2.6 Functions 12
2.7 Doors reversal 13
2.8 Leveling Feet 14

3. MAINTENANCE OF REFRIGERATOR .... 15

3.1 Overall Cleaning 15
3.2 Defrosting 16
3.3 Out Of Operation 16

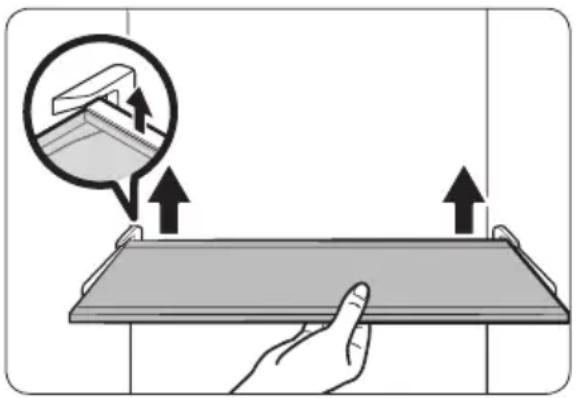

3.4 Cleaning The Glass Shelf.... 16

4. TROUBLE SHOOTING .... 17

5. APPENDIX 18

1. SAFETY INFORMATION

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Cautioning symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Risk Of Fire / Flammable Materials

WARNING

• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Do not use extension cords or ungrounded two prong adapters.

- WARNING: Connect to potable water supply only. (suitable for ice cube maker)

DANGER

• The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.
• Rerigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

WARNING

- Risk of child entrapment.Before you throw away your old refrigerator or freezer:

-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.

WARNING

For EU standard:

• This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. (Note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (Note 2)

- One- *, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- For appliances without a 4-star ✦ *** compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

- For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov.

PROPER DISPOSAL

WARNING

Suffocation Hazard

Before you throw away your old freezer or refrigerator:

• Remove the door or lid so that children cannot hide or get trapped inside your old appliance.
• Leave any shelves in place so that children may not easily climb inside.
• Failure to follow these instructions can result in death or brain damage.

IMPORTANT:

Flammable gas and refrigerant used. It is the consumer's responsibility to comply with Federal and Local regulations when disposing of this product. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

ELECTRICITY RELATED WARNINGS

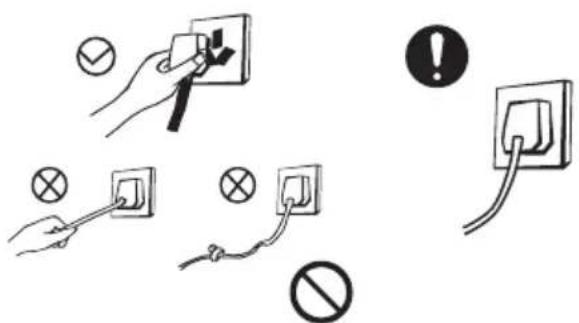

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out from the socket.
  • To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
• Please use a dedicated power socket; the power socket shall not be shared with other electrical appliances.

Safety warning illustration showing electrical installation and disassembly with symbols for no protection, switch, and power outlet.

• The power cord should be firmly contacted with the socket, otherwise fire may be caused.
• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• Please turn off the valve of leaking gas and then open doors and windows in case of leakage of gas and other flammable substances. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Illustration of two kitchen appliances: a refrigerator with a warning icon and a microwave oven with warning symbols (no text or labels)

- Do not use electrical appliances on top of the appliance, unless they are of the type recommended by the manufacturer.

WARNINGS RELATED TO PLACING ITEMS

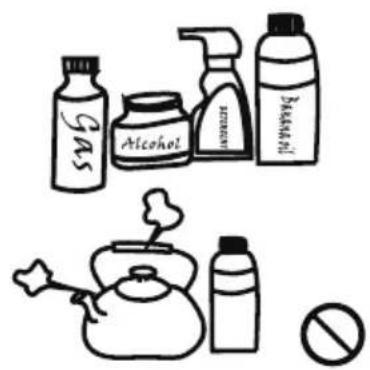

• Do not place flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

Illustration showing two food safety scenarios: one with a bottle and container, the other with a milk carton and warning symbols.

• This product is a household refrigerator and is only suitable for the storage of foods. According to national standards, a household refrigerator shall not be used for other purposes, such as storage of blood, drugs or biological products.
• Do not store beer, beverages or other fluids contained in bottles or enclosed containers in the freezing chamber of the refrigerator, otherwise the bottles or enclosed containers may crack due to freezing and cause damages.

Diagram showing a hand holding stacked cylindrical objects with a magnifying glass and an exclamation mark, alongside a warning symbol.

WARNINGS FOR USE

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• A damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Illustration of a refrigerator with facial expressions and warning symbols, including a crossed-out cross, sad face, and a broken object.

• The gaps between refrigerator doors and between doors and refrigerator body are small, do not place your hands in these areas to prevent squeezing your fingers. Please be gentle when opening the refrigerator door to avoid articles falling out.
• Do not pick up food or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

• Do not allow children to enter or climb inside the refrigerator to prevent that children are sealed in the refrigerator or injured by the falling refrigerator.
• Do not spray or wash the refrigerator; do not place the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Illustration of a child hanging from an open refrigerator with no symbols or text present

• Do not place heavy objects on top of the refrigerator considering that objects may fall when opening the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

Cartoon illustration of a distressed, anthropomorphic object with a sad face and a warning symbol (no text or labels)

ENERGY WARNINGS

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when set for an extended period of time below the cold end of the temperature range for which the refrigerating appliance is designed.

2. Effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets because some products such as water ice should not be consumed too cold;

3. Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets

4. Prevent an undue rise in temperature of frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. A rise in temperature of frozen food during manual defrosting, maintenance or cleaning can shorten the storage life

DISPOSAL

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They take this product in for environmental safe recycling.

2. PROPER USE OF REFRIGERATOR

2.1 PLACEMENT

- Before use, remove all packing materials, including bottom pads, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Illustration showing a person loading a cardboard box to an refrigerator, and a sad refrigerator with a sun and potted plant nearby (no text or symbols)

• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or wet places to prevent rust or reduction of the insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

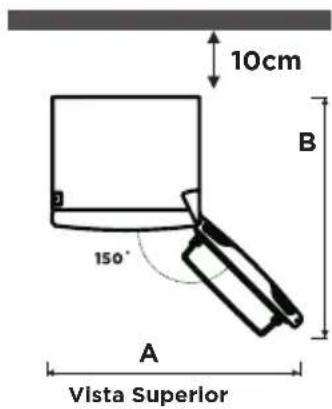

- The space on top of the refrigerator shall be greater than 10cm, and the refrigerator should be placed against a wall with a distance of more than 10cm to facilitate heat dissipation.

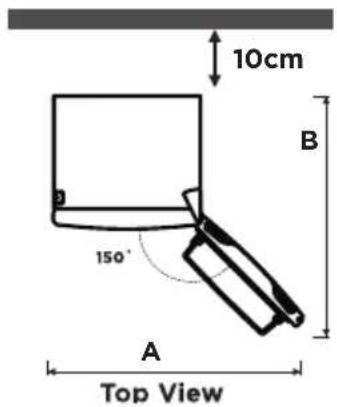

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

10cm 10cm 10cm W Front View

10cm H 10cm D Side View

10cm B 150° A Top View

Width “w”	470
Depth “D”	$11
Height “H”	1500
A 865
B 794

(unit: mm)

The measurements in the above table may differ, depending on the measuring method.

NOTE:

This refrigerator needs to be installed independently and cannot be used as a built-in. Otherwise, it will cause problems such as failure to install into the cabinet, the performance and life of the product are reduced. And the manufacturer does not provide basic product warranty.

2.2 ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

2.3 CHANGING THE LIGHT

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.4 START TO USE

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before placing any fresh or frozen foods, the refrigerator should have run for 2 - 3 hours, or for above 4 hours in summer when the ambient temperature is high.

NOTE

This product is not recommended for use with sockets or main switch with the A/GFCI function, otherwise it may cause false tripping.

1. it's not pose a safety risk when tripped.
2. If tripping persists, it is recommended to replace the sockets or main switch without A/GFCI function.

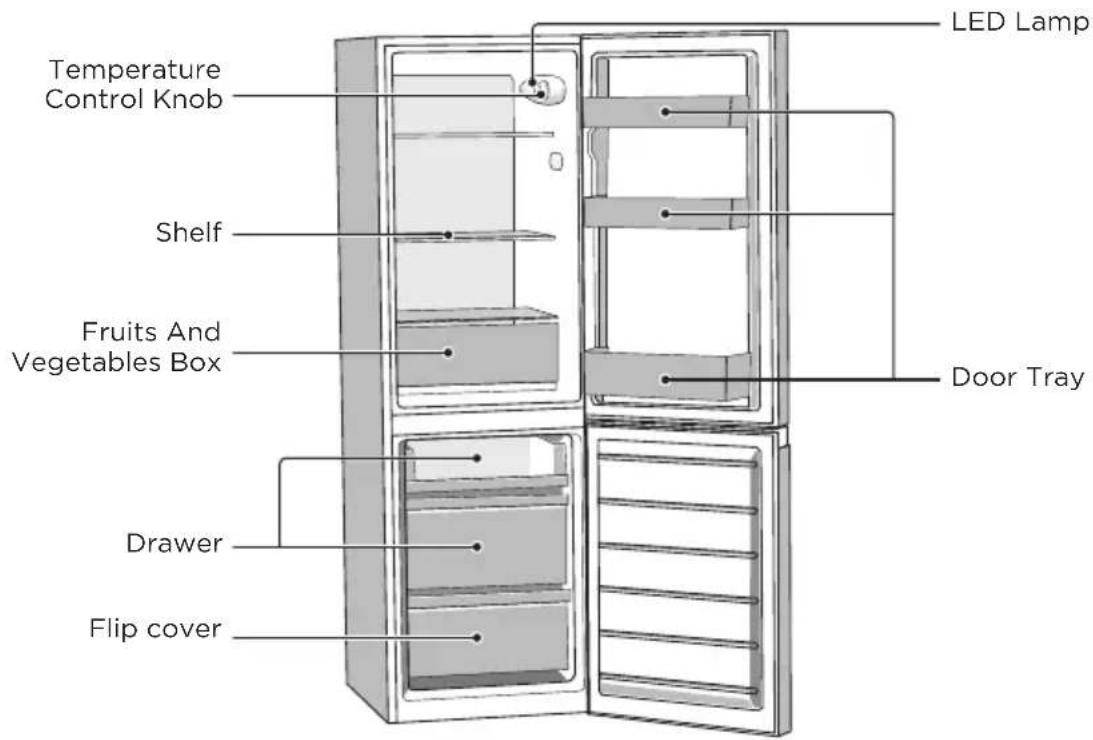

2.5 NAMES OF COMPONENTS

Temperature Control Knob Shelf Fruits And Vegetables Box Drawer Flip cover LED Lamp Door Tray

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
  • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a proper storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

NOTE

Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected

2.6 FUNCTIONS

1 2 3

O Nω

• Turn the temperature control knob to 3, the internal temperature of the refrigerator becomes lower.
• Turn the temperature control knob to 1, the internal temperature of the refrigerator becomes higher.
• The letter on the knob only represents the temperature level, but does not mean the specific temperature, the "O" means stop working.

NOTE

Please adjusting and using between "1" and "3". Above gear 3 will cause that the internal temperature of the refrigerator is too low, so it is not recommended for users.

NOTE

• When storing food normally, please adjust the temperature setting between "1" and "3".
• The coldest gear can quickly freeze food in a short period of time. If a large amount of food is frozen at one time, it is recommended to adjust the gear to the coldest gear 12 hours in advance before adding the food. After the food is quickly frozen, please adjust the gear back to the normal range.
• The temperature range for cooled food is generally 2 \~ 8°C, and the temperature range for frozen food is generally -12°C \~ -26°C.

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

2.7 DOORS REVERSAL

Parts included with the hinge kit:

Left stopper (2) Spacer

Parts already mounted on the refrigerator (as shipped):

Right stopper Right stopper screw

Hole cap (2)

Top hinge cover

Top hinge screw

Top hinge

Middle hinge

Middle hinge screw

Bottom hinge

adjustable foot

• Power off the refrigerator, and remove all articles from the door trays.
- Remove the top hinge cover, then remove the top hinge screws, top hinge ,and hole cap which is fixed on another side.

Line drawing of a two-door refrigerator with a handle (no text or symbols)

- Remove the refrigerating door, the middle hinge and the hole caps.

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

• Remove the freezer door, remove the bottom hinge, and adjustable foot on another side.
• Exchange the fixed position of the adjustable foot and the bottom hinge, then fix them again.

Line drawing of a refrigerator with open doors and shelves, showing internal compartments and a directional arrow (no text or symbols)

• Remove the screws and stoppers which are fixed on the bottom cover of the refrigerating door and the freezer door.
• Take out two stoppers from the attached palstic bag, fix the stoppers with screws on another side of the bottom cover of the refrigerating door and the freezer door.

Simple line drawing of a rectangular frame with a handle and arrow indicator (no text or symbols)

• Place the freezer door from top to bottom, take out the spacer from the attached plastic bag and put it on the axle hole of another side of the freezer door.
• Fix the middle hinge with screws and install 2 hole caps.

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

- Put the refrigerating door on the middle hinge, assemble the top hinge on another side, fix the hinge cover on the top hinge and fix hole cap, as below pictures shows.

Line drawing of a two-tier refrigerator with lid and frontrest (no text or symbols)

NOTE

NOTE: The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.8 LEVELING FEET

1) Precautions before operation:

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power.

Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.

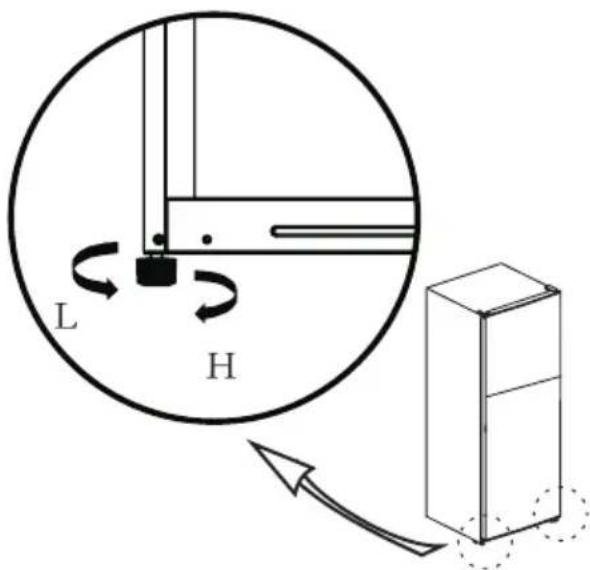

2) Schematic diagram of the leveling feet

L H

3) Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

IMPORTANT:

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

3. MAINTENANCE OF REFRIGERATOR

3.1 OVERALL CLEANING

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Gas Alcohol Sprout Biscuits oil No

Please unplug the refrigerator for defrost and cleaning.

3.2 DEFROSTING

This product requires manual defrost.

• Power off the refrigerator.
- Remove the food from the refrigerator and place it properly to prevent food from melting.
- Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water containers for defrosting.(pay attention to clean the compressor compartment water draining tray, Avoding overflow to the ground).
- You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (to use plastic or wooden ice shovel, for avoiding damage to the liner or pipe)
- You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.
• After defrosting, put back the foods in cabinet, and power on the refrigerator.

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

- Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

IMPORTANT:

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

3.4 CLEANING THE GLASS SHELF

• Remove the drawer on the glass shelf;
• Lift up the front of glass shelf (about 60^ ), and then pull out;
• Remove the glass shelf and clean as needed;
• The reverse operation is for installation of glass shelf.

Illustration of a hand holding a tray with arrows indicating upward motion, and an inset showing a small object on a surface (no text or symbols)

4. TROUBLE SHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is high It is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Door can not be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tiltedr.
Loud noises	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored containstoo much water,resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of airand increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage oftoo much food or shutdown of the compressor is shut down, provide soundventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator isnormal when the ambient humidity is too high. Just wipe the condensatewith a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and thebuzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, whichis normal.

5. APPENDIX

Installation Instructions

For refrigerating appliances with climate class

Depending on the climate class, this refrigerating appliance is intended to be used at ambient temperature ranges as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specified range.

You can find the climate class on the label inside your refrigerator.

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502)	ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before being refrigerated.

Placement of Foods

Shelves Shelves are adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruit and vegetables. Vegetables require higher humidity while fruit requires lower humidity Crispers are equipped with control devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don’t store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freezer fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product Refrigerator Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month -

Meat

Product Refrigerator Freezer
Fresh roasts, steaks, chops 3-4 days	2-3 months
Fresh ground meat, stew meat	1-2 days 3-4 months
Bacon	7 days	1 month
Sausage, Raw from pork, beef, turkey	1-2 days	1-2 months

Poultry / Eggs

Product Refrigerator Freezer
Fresh poultry	2 days	6-8 months
Poultry salad	1 day	-
Eggs, Fresh in shell	2-4 weeks	Not recommended

Fish / Seafood

Product Refrigerator Freezer
Fresh fish	1-2 days	3-6 months
Cooked fish	3-4 days	1 month
Fish salad	1 day	Not recommended
Dried or pickled fish	3-4 weeks -

Fruits

Product Refrigerator Freezer
Apples	1 month	-
Peaches	2-3 weeks	-
Pineapple	1 week	-
Other fresh fruit	3-5 days	9-12 months

Vegetables

Product Refrigerator Freezer
Asparagus	2-3 days	-
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week	-
Carrots, beets, radishes	2 weeks -

SPECIAL FOR NEW EUROPEAN STANDARD

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by Minimum time required for
		Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users		At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

NOTE

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

Coldest zone in the refrigerator

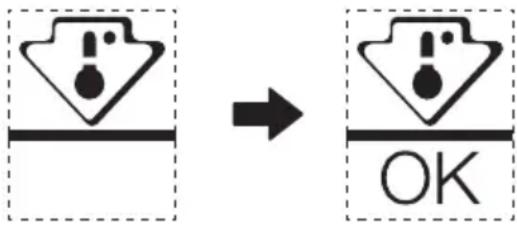

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate “OK”.

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation, indicating a change in system status.

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

• To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.
• WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

• With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.
• When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.
• If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

1. CONSIGNES DE SÉCURITÉ.... 1

2. UTILISATION APPROPRIÉE DU RÉFRIGÉRATEUR......9

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

MISE AU REBUT APPROPRIÉE

AVERTISSEMENT

Safety warning illustration showing electrical installation and disassembly with symbols for no protection, switch, and power outlet.

Simple line drawing of a refrigerator with an open door and a warning symbol (no text or labels)

Simple line drawing of a refrigerator with a smokestack and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a container, and an exclamation mark symbol

Relaxed Drugs Relaxed product !

Diagram showing a hand holding a cylindrical object labeled 'Paser' with an exclamation mark and an exclamation mark symbol nearby.

Simple line drawing of a refrigerator with a sad face, broken into a pencil and a warning symbol (no text or labels)

Illustration of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Illustration of a child climbing inside an open refrigerator with no text or symbols present

Cartoon illustration of a distressed trash can with a sad face and warning symbol (no text or labels)

AVERTISSEMENTS RELATIFS À L'ÉNERGIE

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Illustration showing a worker loading a cardboard box to an refrigerator, with a sun and potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Line drawing of a two-door refrigerator with a chimney (no text or symbols)

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Line drawing of a refrigerator with open doors and internal shelves, showing no text or symbols

Simple line drawing of a rectangular frame with a small arrow at the bottom (no text or symbols)

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a two-door refrigerator with a handle and top-mounted lid (no text or symbols)

REMARQUE

Gas Alcohol Bicarbonate No. No.

Illustration of a hand pressing down on a flat surface with an inset showing a small object (no text or symbols)

FR-17

4. DÉPANNAGE

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation

Warning sign depicting a flame symbol in yellow and black on a white background

Safety warning illustration showing electrical installation and disassembly with symbols for no protection, switch, and power outlet

Illustration of a refrigerator with a door, warning symbols, and an outdoor appliance (no text or labels)

Illustration showing two food safety scenarios: one with a hand holding a tray of milk and boxes, the other with a packet labeled 'Blood' and packaging labeled 'Drugs', both marked with exclamation symbols.

Diagram showing a hand holding a beer bottle with a cross symbol and an exclamation mark, alongside a warning symbol.

Simple line drawing of a refrigerator with a sad face, accompanied by an exclamation mark and a pencil (no text or symbols)

Hand holding a book with a starburst effect, no text or symbols present

Illustration of a baby hanging from an open refrigerator with no text or symbols present

Cartoon illustration of a distressed trash can with a sad face and warning symbol (no text or labels)

WARNUNGEN BZGL. STROMS

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Illustration showing a person loading a cardboard box to a refrigerator, with a sun and potted plant nearby (no text or symbols)

Simple line drawing of a smiling refrigerator and a door (no text or symbols)

Diagram showing a sequence of symbols or labels, possibly representing data or process steps in a machine learning or programming tool.

Line drawing of a two-door refrigerator with a side door and top handle (no text or symbols)

Line drawing of a refrigerator with open doors and internal shelves (no text or symbols)

Line drawing of a refrigerator with open door and side shelves, showing internal compartments and mounting base (no text or symbols)

Simple line drawing of a rectangular frame with a small arrow at the bottom (no text or symbols)

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

Line drawing of a two-tier refrigerator with top and front panels (no text or symbols)

HINWEIS

Gas Alcohol Sistering Bilirfenol No

Illustration of a hand pressing down on a flat surface with an inset showing a magnified view of a textured surface (no text or symbols)

4. FEHLERBEHEBUNG

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation, indicating a change in system status.

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Safety warning illustration showing electrical installation and disassembly with symbols for no protection, switch, and power outlet.

Illustration of a kitchen appliance with warning symbols (no text or labels)

Illustration showing two food safety scenarios: one with a tray holding bottled water and a box, the other with a packet labeled 'Billogical product' and warning symbols.

Illustration showing a hand holding a beer mug with a cross symbol and an exclamation mark, next to stacked bottles and a warning symbol.

ADVERTENCIAS DE USO

Simple line drawing of a refrigerator with a sad face, broken into a pencil and a warning symbol (no text or labels)

Hand holding a book with a starburst effect, no text or symbols present

Illustration of a child climbing inside an open refrigerator with no symbols or text present

Cartoon illustration of a distressed trash can with a sad face and warning symbol (no text or labels)

ADVERTENCIAS RELATIVAS A LA ENERGÍA

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration showing a person loading a cardboard box to a refrigerator, with a sun and potted plant nearby (no text or symbols)

Simple line drawing of a smiling refrigerator and a closed door (no text or symbols)

10cm 10cm 10cm W Vista frontal

10cm H D 10cm Vista lateral

10cm B 150° A Vista superior

Anchura "W" 470
Profundidad "D" 511
Altura "H" 1500
A 865
B 794

(unidad: mm)

Line drawing of a two-door refrigerator with a handle and top-mounted lid (no text or symbols)

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a refrigerator with open doors and internal shelves, showing no text or symbols

Simple line drawing of a rectangular frame with a small arrow at the bottom (no text or symbols)

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

Line drawing of a two-door refrigerator with handles and lid (no text or symbols)

NOTA

Gas Alcohol Stresser Stresser No. 10

Illustration of a hand pressing down on a flat surface with an inset showing a building outline (no text or symbols)

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation, indicating a change in system status.

Warning sign depicting a flame symbol in yellow and black on a white background

Safety warning illustration showing electrical installation and disassembly with symbols for check, no power, and no power.

Illustration of a refrigerator with warning symbols indicating no text or labels (no readable text or symbols present)

Illustration showing two food safety scenarios: one with a bottle and tray, the other with a milk carton and a warning symbol.

Diagram showing a hand holding a cup labeled 'Pccr' with a crossed-out circle and an exclamation mark, alongside a broken cylindrical object and a warning symbol.

AVVERTENZE PER UN USO CORRETTO

Simple line drawing of a refrigerator with a sad face, accompanied by icons for cleaning tools and an exclamation mark (no text or symbols on main elements)

Hand holding a book with a starburst effect, no text or symbols present

Illustration of a child hanging from an open refrigerator with no symbols or text present

Cartoon illustration of a distressed trash can with a sad face and warning symbol (no text or labels)

AVVERTENZE PER LA SICUREZZA ENERGETICA

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no text or symbols present)

Illustration showing a worker handling a cardboard box and a refrigerator with a sad face, alongside a sun and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Diagram showing a sequence of symbols or patterns with arrows, possibly representing a mathematical or logical process.

Line drawing of a two-door refrigerator with a handle and top mount (no text or symbols)

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a refrigerator with open doors and internal shelves, showing a downward arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular frame with a tab and arrow, no text or symbols present.

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a two-door refrigerator with front and back panels (no text or symbols)

NOTA

Gas Alcohol Bottle Bottle No. 100% No. 100%

Illustration of a hand pressing down on a flat surface with an inset showing a building under construction (no text or symbols)

4. RISOLUZIONE DEI PROBLEMI

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation, indicating a change in system status.

Warning sign depicting a flame symbol in a yellow triangle with black border

Safety warning illustration showing electrical installation and disassembly with symbols for no protection, switch, and power outlet.

Illustration of a refrigerator with warning symbols indicating absence or hazard (no text or labels present)

Illustration showing two food safety scenarios: one with a hand holding a tray of milk and a bottle, the other with a packet labeled 'Blood' and a cart of milk.

Diagram showing a hand holding a mug labeled 'Peer' with a cross symbol and an exclamation mark, alongside stacked cylindrical objects and a warning symbol.

Simple line drawing of a refrigerator with a sad face, accompanied by icons for cleaning, tools, and an exclamation mark (no text or symbols on main elements)

Hand holding a book with a starburst effect, no text or symbols present

Line drawing of a child hanging from an open refrigerator with no text or symbols

Cartoon illustration of a distressed trash can with a sad face and warning symbol (no text or labels)

AVISOS ENERGÉTICOS

Symbol of a trash bin with no text or numbers present

Illustration showing a worker handling a cardboard box and a refrigerator with a sad face, alongside a sun and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10cm 10cm 10cm W Vista Frontal

10cm H D 10cm Vista Lateral

10cm B 150° A Vista Superior

Line drawing of a two-door refrigerator with lid and frontrest (no text or symbols)

Line drawing of a refrigerator with open doors and internal compartments (no text or symbols)

Line drawing of a refrigerator with open door and side shelves, showing internal compartments and directional arrows (no text or symbols)

Simple line drawing of a rectangular book or document with no text or symbols visible

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Line drawing of a two-tier refrigerator with front panel and side door (no text or symbols)

NOTA

Gas Alcohol Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle Bottle

Illustration of a hand holding a flatboard with arrows indicating upward motion, and an inset showing a roof structure (no text or symbols)

Diagram showing a warning symbol with exclamation marks before and after an 'OK' operation
