USER MANUAL RCC270WH2 COMFEE

Simple line drawing of a rectangular box or container (no text or symbols)

RCC141WH2

RCC270WH2

RCC197WH2

RCC395WH2

Comfee

CE

Warning:

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

CONTENTS

1 Safety warnings

2 Proper use of freezer

3 Maintenance of freezer

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

1 Safety warnings

1.1 Warning

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

For EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. (See chapter 2.4 for lamp replacement)

Warning: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Warning: Connect to potable water supply only. (Suitable for ice making machine)

To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

1.2 Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Electrical safety instructions showing three steps: switch, power plug, and plug with checkmark and no symbol.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and door, no text or symbols present

Diagram of a box with a small container and warning symbol, including an exclamation mark.

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacturer-authorized maintenance stations.

- The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances on the top of the freezer, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pan.

1.4 Related warnings for use

Diagram showing a box with a magnified view and a warning symbol, including a cross and a plus sign.

• Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

• The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when open the freezer door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.

Illustration of a child climbing inside a cube with a sad face and warning symbols (no text or labels)

• Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer.
• Do not spray or wash the freezer; do not put the freezer in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

• Do not place heavy objects on the top of the freezer considering that objects may fall when open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings related to placing items

Illustration showing hands holding a tray with a bottle, a box, and a cross symbol, with an exclamation mark and a warning icon.

• Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.
• Do not place flammable items near the freezer to avoid fires.

E.I.vod Driven Unlequil rebleet

- This product is household freezer and shall be only suitable for the storage of foods. According to national standards, household freezer shall not be used for other purposes, such as storage of blood, drugs or biological products.

Diagram showing a hand holding a cylindrical object labeled 'Bar' with a cross symbol and an exclamation mark at the bottom right.

- Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

1.6 Warnings for energy

1) Freezer might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the freezer appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings related to disposal

The freezer's refrigerant and cyclopentane foam materials are combustible materials and discarded freezers should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of freezer

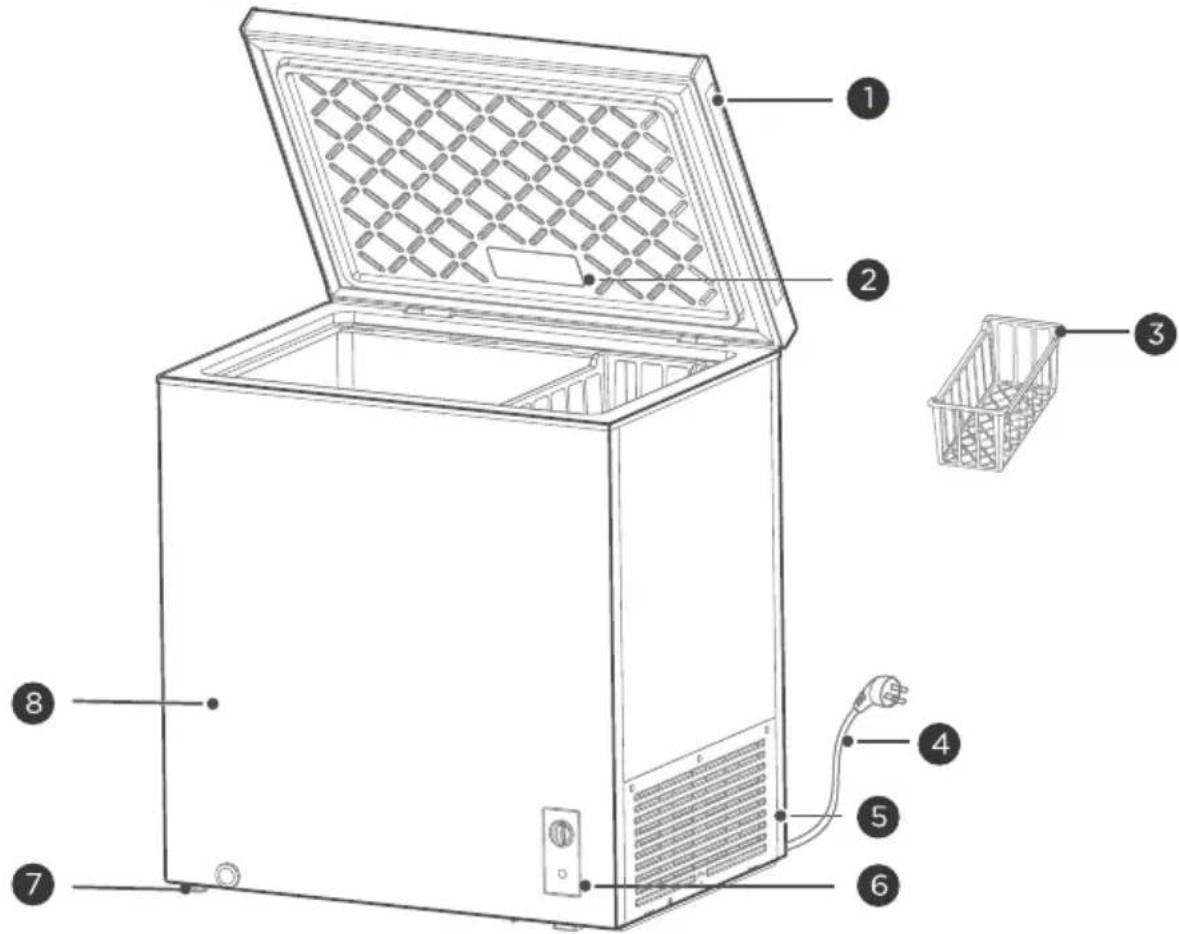

2.1 Names of components

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the basket structure.

1	Door handle	5	Shutter
2	Lamp (optional)	6	Temperature control panel
3	Shelving basket	7	Leveling foot
4	Power cord	8	Cabinet

(The above pictures are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

• The freezer can maintain the freshness of food for a long time at low temperatures. It is mainly used for storing frozen food and making ice cubes.
• The freezer is suitable for storing meat, fish, shrimp, and pastries that are not to be consumed in the short term. It is not suitable for storing fluids in bottled or sealed containers, such as bottled beer or beverages.
• Please note that the food should be consumed by its expiration date.
• The freezing speed of the product depends on the amount of food stored and the ambient temperature. If too much food at room temperature is placed at once, it is recommended to set the temperature controller to the maximum level and operate it for 24 hours in advance or use ice cubes for cooling. Moreover, large pieces of food should be divided into small pieces and stored separately to ensure proper freezing. Otherwise, certain parts of large or excessive food may not freeze properly, leading to potential spoilage.

Reminder:

Due to the wear and tear of the hinge during long-term opening and closing, the hinge's service life could be affected and noise may occur. It is recommended that users regularly apply lubricating oil to the hinges for maintenance, which can effectively eliminate noise and extend the service life of the hinges.

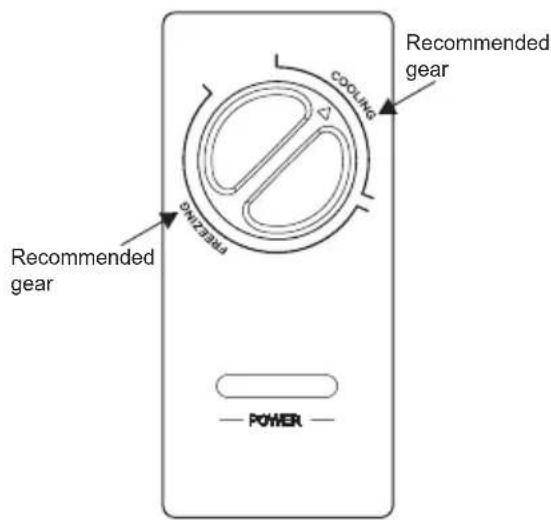

2.2 Temperature Control

COOLING Recommended gear UNITED Recommended gear POWER

• After power on the "POWER" indicator light will be light( blue ).
• The temperature in the box is adjusted by the temperature control knob; when knob adjusted within the scope of "COOLING", the box is refrigerator; when knob is adjusted within the scope of "FREEZING" the box is frozen. The knob rotates clockwise to reduce the temperature in the box.
• "Recommended gear" see the schematic marking position

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.3 Placement

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

● Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

Simple line drawing of a box next to a door with a handle (no text or symbols)

● The freezer should be placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

Cartoon illustration of a sad cube character with sun and potted plant nearby (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

20.5 30.5 30.5

- The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate heat dissipation.

2.4 Changing the Light (optional)

Any replacement o maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.5 Start to use

Simple line drawing of a mechanical assembly or mounting bracket with diagonal braces (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical component with a lever and guide (no text or symbols)

• Taking a tool (flat screwdriver or cone), insert it into the gap at the arrow position in the figure and gently pry it outward to open the flip.
  • After opening, the freezer is as shown in the figure. Next, take out the power line from the hole.
  • After removing the power line, cover the cover plate again.

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

- After transportation, please let the freezer stand for at least 2 hours before connecting to the power supply, otherwise it may cause performance degradation or damage to the freezer. Before storing fresh or frozen food in the freezer, run the freezer for 2 to 3 hours; in hot summer days, users should run the freezer for 4 hours in advance. During the power cut or cleaning, users should pull the plug off and plug in again after a 5-minute interval in case the continuous start damage the compressor.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
  ● Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Maintenance of freezer

3.1 Cleaning

• Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the freezer should be cleaned regularly to avoid odor.

- Please turn off the power before cleaning, remove all food, basket, container, etc.

- Use a soft cloth or sponge to clean the inside of the freezer, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

GAS Alcohol Watercolor

- For areas that are difficult to clean in the freezer(such as gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

- Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the freezer or contaminated food.

- Clean the baskets with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

- Wipe the outer surface of the freezer with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the freezer surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

3.2 Defrost

• Freezer shall be manually defrosted.
  Unplug the freezer and open the freezer door, remove foods and shelving basket before defrosting; Open the outflow hole and drainage hole (and place water container at the drainage hole); indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper might be used to the accelerate de-icing process.

- Please remove the food and put in a cool place when defrosting before removing accessories.

Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the (▲) refrigerant circuit.

3.3 Stop using

• Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.
• Please unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odor.
• Do not turn upside or vibrate the freezer, the carrying angle can not be greater than 45^ . Do not hold the door and hinge when moving this unit.

Continuous operation is recommended when the freezer is started. Please do not stop the freezer under normal circumstances so as not to affect the freezer's service life.

4 Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Whether temperature control knob is in the work area;Failure power or tripping circuit.
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of freezer door;Thick frost layer (defrost is needed).
Illuminating light does not shine	Whether the freezer is connected to power, whether the light is damaged.
The freezer door can not be properly closed	The freezer door is stuck by food packages;Too much food;Unbalanced freezer.
Loud noises	Whether the floor is flat, whether the placement of freezer is stable;Whether the freezer accessories are properly placed.
Transient difficulty in door opening	After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in transient difficulty in door opening. This is a normal physical phenomenon.
Freezer enclosure heat Condensation	The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Airflow soundBuzzClatter	Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.Buzz will be generated by running compressor specially when starting up or shutting down.The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

Table 1 Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard

The ordered parts in the following table can be acquired from channel :

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

SOMMAIRE

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing three electrical installation methods: one using a switch, another with a bulb, and a third with a bulb.

Simple line drawing of a wall socket with a cable and warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and control panel, no text or symbols present

Diagram of a battery with warning symbol and warning label, showing electrical hazard and safety warning

Diagram showing a box with a warning symbol and a broken-out package, accompanied by a crossed-out circle and a prohibition sign.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Diagram showing a hand holding a tray with a bottle labeled 'Zevilone', a cross, and a block, with an exclamation mark in the corner.

Blood Cigarette Insulated

Technical diagram of an open refrigerator with numbered parts and a wire rack inset for scale reference.

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Cartoon illustration of a sad cube character with a potted plant nearby, no text or symbols present

Simple line drawing of a cube next to a door with a lid (no text or symbols)

Diagram showing a 3D cube with labeled dimensions and directional arrows, likely illustrating a geometric or physical concept.

Simple line drawing of a mechanical clamp or bracket with two blades (no text or symbols)

Pure mechanical diagram showing a bracket and rod assembly without any text or symbols

Simple line drawing of a door handle with a diagonal line, no text or symbols present

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

Illustration of various cooking and beverage items including a gas jar, spray bottle, alcohol container, and kettle (no text or symbols)

4 Dépannage

Warning sign depicting a flame symbol in a yellow triangle with black border

Electrical safety instructions showing three steps: switch, power plug, and plug-in circuit with checkmarks and no symbols.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room interior with a monitor and equipment, no text or symbols present

Diagram of a box with warning symbols and a warning sign, indicating an accident or hazard.

Diagram showing a box with a magnified view and a warning symbol, alongside a broken object and a circular symbol.

Simple line drawing of a box with a starburst on the lid and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with water molecules and a warning symbol (no text or labels)

Cartoon character with sad expression, holding a stack of boxes, with warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and an '×' symbol, alongside a warning icon.

Bread Drout Betaine product

Diagram showing a hand holding a cylindrical object labeled 'BEAT' with a cross symbol and an exclamation mark, likely illustrating a warning or safety instruction.

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the basket structure.

1	Türgriff (optional)	5	Ventilationsgitter
2	Lampe (optional)	6	Temperaturregler
3	Korb	7	Halt sie still
4	Netzkabel	8	Ablauf

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box and a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face, surrounded by sun and a potted plant (no text or symbols)

Simple line drawing of a cube with vertical lines and dimension labels (no text or symbols)

Simple line drawing of a sewing machine needle and base (no text or symbols)

Simple line drawing of a mechanical device with two blades inserted (no text or symbols)

Simple line drawing of a door with a handle and vertical bars, no text or symbols present

Simple line drawing of a smiling cube with a wavy line and a small electrical outlet (no text or symbols)

Illustration of various household items including a spray bottle, alcohol container, and a kettle (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

Electrical safety instructions showing three steps: switch, power plug, and plug with checkmark and no symbol.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room with a window and a box, no text or symbols present

Diagram of a box with a labeled component and warning symbol, including an exclamation mark.

Diagram showing a box with a warning symbol and a broken-out box, accompanied by a prohibition sign.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Diagram showing a hand holding a tray with a bottle labeled 'Zevilone', a cross, and a block, with an exclamation mark in the corner.

Blood Crown Animally sliced

Diagram showing a hand holding beer bottles with a cross symbol and an exclamation mark, likely illustrating a warning or warning about the process.

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the basket structure.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube character with a potted plant nearby, no text or symbols present

Diagram showing a 3D cube with labeled dimensions and directional arrows indicating measurements.

Simple line drawing of a sewing machine needle and base (no text or symbols)

Simple line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Simple line drawing of a door with a handle and vertical bars (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Illustration of various household items including a bottle, spray bottle, alcohol container, and kettle (no text or symbols)

1.1 Advertencia ....1

Warning sign depicting a flame symbol in a yellow triangle with black border

Electrical safety diagram showing three installation methods: switch, power socket, and plug-in socket with checkmarks indicating no protection.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a door and control panel, no text or symbols present

Simple line drawing of a box with a small rectangular object on top and a warning symbol below (no text or labels)

Diagram showing a box with a warning symbol and a broken-out package, accompanied by a crossed-out circle and a prohibition sign.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Three-step cooking instruction showing a bottle being added to a tray, a packet labeled 'Blood' being mixed with liquid, and a hand holding a beer mug.

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the basket structure.

Illustration of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube character with a sprout and water droplets around it, next to a potted plant (no text or symbols)

20mm x 1.5mm 20mm x 2.5mm

Simple line drawing of a mechanical clamp or tool inserted into a square component (no text or symbols)

Simple line drawing of a mechanical device with lever and handle (no text or symbols)

Simple line drawing of a door with a diagonal line and a small inset showing a handle (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

Illustration showing various chemical products including syngs, alcohol spray bottle, and gas stove with a warning symbol

Warning sign depicting a flame symbol in a yellow triangle with black border

Electrical safety instructions showing installation of a switch and plug with checkmarks and no symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and equipment (no text or symbols)

Diagram of a box with a warning sign and warning symbol, indicating an accident or hazard.

Diagram showing a box with a circular symbol and a warning symbol, alongside a diagram of a battery plug and a switch.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with sad expression, carrying a stack of boxes, with warning symbols (no text or labels)

Diagram showing a hand holding a tray with a bottle labeled 'Zevilone', a cross, and a block, with an exclamation mark in the corner.

Blood Cigarette Animal preserved !

Diagram showing a hand holding beer bottles with a cross symbol and an exclamation mark, likely indicating incorrect warning or error.

Technical diagram of an open refrigerator with numbered parts and a wire basket inset for scale.

Illustration of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face, surrounded by sun and a potted plant (no text or symbols)

Simple line drawing of a mechanical assembly with diagonal braces and a central component (no text or symbols)

Simple line drawing of a door with a handle and lever mechanism (no text or symbols)

Simple line drawing of a mechanical assembly with a bracket and rod (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

Safety warning illustration showing electrical installation and disassembly with symbols for check, no, and no signs

Illustration of a computer setup and a refrigerator with warning symbols (no text or labels)

Illustration showing two food safety scenarios: one with a bottle on a tray and another with a bag labeled 'Blood', both marked with warning symbols.

Safety warning illustration showing a box with a broken cross symbol and no prohibition signs, accompanied by icons for incorrect use.

Simple line drawing of a box with a hand pointing at it and an exclamation mark in the corner (no text or symbols on the box itself)

Simple line drawing of a child climbing inside a rectangular box with a falling object and warning symbols (no text or labels)

Cartoon character with sad expression, holding a stack of boxes, and warning symbols (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a person handling a large cardboard box next to a smaller box (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a sun, next to a water tap (no text or symbols)

Simple line drawing of a cube and a door (no text or symbols)

Three-step diagram showing a mechanical assembly with tool tips and a device, no text or symbols present.

Simple line drawing of a cardboard box with a smiling face and a small plug, no text or symbols present.

2.5 ΣΤΟΙΧΕΙΑ

Technical diagram of an open refrigerator with numbered parts and a wire basket inset for scale reference.

Hand-drawn sketch showing various chemical and beverage items including cans, alcohol spray bottle, and a kettle with a prohibition symbol.

Warning sign depicting a flame symbol in yellow and black on a white background

Electrical safety instructions showing hand installation, switch protection, and electrical circuit breakers with checkmarks

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room with a monitor and wall-mounted device, no text or symbols present.

Simple line drawing of a box with a small electronic component and warning symbol (no text or labels)

Simple line drawing of a cube with a magnified view showing a small object and a circular symbol (no text or labels)

Simple line drawing of a box with a starburst on the lid and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing a cube with a broken object inside, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, standing on a platform (no text or symbols)

Diagram showing a hand holding a tray with a bottle labeled 'Zeflon' and a cross symbol, alongside a warning icon.

Bilend Drugs Bilend product

Diagram showing a hand holding a beer bottle next to stacked bottles, with warning symbols and an exclamation mark.

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the interior structure.

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube with flames and sun, next to a potted plant (no text or symbols)

Simple line drawing of a 3D cube with labeled dimensions (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical component with a lever and base (no text or symbols)

Simple line drawing of a smiling cube with a small plug attached to its side (no text or symbols)

Illustration of various household items including a glass, alcohol spray bottle, and a kettle (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing three electrical installation methods: switch, two switches with internal circuit, and one switch with grounding.

Simple line drawing of a wall socket with a cable, no text or symbols present

Simple line drawing of a computer monitor with an open screen and a warning symbol (no text or labels)

Simple line drawing of a box with a small box on top and a warning symbol below (no text or labels)

Simple line drawing of a cube with an open lid and scattered fragments, no text or symbols present.

Simple line drawing of a box with a starburst on the side and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with a broken object, no text or symbols present

Cartoon illustration of a sad, anthropomorphic object with a grid on top and a frowning face, accompanied by a warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross, and a small box, indicating a warning or inspection scenario.

Diagram showing a hand holding a cylindrical object with a cross symbol, next to stacked cylindrical objects and a warning sign.

Technical diagram of an open refrigerator with numbered parts and a wire basket inset for scale reference.

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door with a handle (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and sun emerging from its side, next to a potted plant (no text or symbols)

Simple line drawing of a mechanical device with lever and base (no text or symbols)

Simple line drawing of a door with a handle and vertical lines (no text or symbols)

Simple line drawing of a door handle with a diagonal line, no text or symbols present

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing three electrical installation methods: switch, two switches with internal circuit, and one switch with grounding.

Simple line drawing of a wall socket with a cable, no text or symbols present

Simple line drawing of a computer monitor with an open screen and a warning symbol (no text or labels)

Simple line drawing of a box with a small box on top and a warning symbol below (no text or labels)

Simple line drawing of a cube with an open lid and scattered fragments, no text or symbols present.

Nerozoberajte mrazničku ani ju sar

Simple line drawing of a box with a starburst on the side and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with a broken object, no text or symbols present

Cartoon illustration of a sad, anthropomorphic object with a grid on top and a frowning face, accompanied by a warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a warning icon with an exclamation mark.

Polled Crown Polled/Polled

Diagram showing a hand holding a cylindrical object labeled 'Egg' with stacked cylindrical parts and an exclamation mark, likely indicating a warning or error.

Technical diagram of an open refrigerator with numbered parts and a separate inset showing the basket structure.

Illustration of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to an open door (no text or symbols)

Cartoon illustration of a sad cube character with a potted plant nearby, under a sun (no text or symbols)

Simple line drawing of a sewing machine needle and base (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Simple line drawing of a door handle with a diagonal line, no text or symbols present

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.
