USER MANUAL Evy V2 Seat Deryan

Line drawing of a mechanical device with articulated arms and a central body (no text or symbols)

EVY Seat

User manual

Important: Read carefully and keep for future references

INDEX

Warnings (ENG) 3

Canopy adjustments 13

Backrest adjustments 14

Footrest adjustments 15

Harness 16

Reversible seat 18

Pram configurations 19

Care and maintenance 20

• Read these instructions carefully before assembly and use and keep for future reference. The child may be hurt if you do not follow these instructions.
• Before using, remove and dispose of any plastic bags and other packaging (e.g. fasteners, fixing ties, etc.) and keep them out of reach of children.
  • This product is suitable from 6 months, up to 15 kg.
  • Never leave the child unattended.
• Ensure that all locking devices are engaged before use.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• Do not add an additional mattress to the pram.
  • ALWAYS USE THE HARNESS RESTRAINT SYSTEM.
• Always use the crotch strap in combination with the waist belt section of the harness.
• Check that the pram body or seat unit attachment devices are correctly engaged before use.
  • This product is not suitable for running or skating.
• The seat unit is not suitable for children under 6 months.
• Do not let other children play unattended near the product.
• Any load attached to the handle affects the stability of the stroller.
• Do not use this product if any part is broken, torn or missing.
• Do not place the product near an open fire or other source of strong heat.
• Use only on a firm, horizontal level and dry surface.
• When using as a tandem, load primary child into the main seat first. After child is secured in the main seat, place second child into the lower seat.

• DO NOT place a child in the lower seat without a child in the main seat.

• Not all tandem seat positions may be available in all configurations. Do not force the tandem seat into an unsuitable position or damage may occur.

• YOUR CHILD'S SAFETY IS YOUR RESPONSIBILITY.
  • Adult assembly is required.
• When in use, the head of the child in the product should never be lower than the body of the child.
• Ensure that the parking brake is engaged during the loading and unloading of children.
• Do not overload the pram with additional children, goods or accessories.
  • Always apply the parking brake when the pram is stationary.
  • Take care when going up or down kerbs.
• Use only replacement parts supplied or approved by the manufacturer.
• Any additional or replacement parts should only be obtained from the manufacturer or distributor.
• Never substitute parts.
• Keep the plastic packaging away from children to avoid danger of suffocation.
  • Take extra care in windy conditions.
• Remove your child and fold the pram when going up or down stairs or escalators.
• Do not use this pram near an open fire or exposed flame.
• For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
  • This product conforms to EN 1888-1:2018

WAARSCHUWINGEN

Line drawing of a device inside a container with handles and cables (no text or symbols)

Line drawing of a curved cable or strap structure with connectors (no text or symbols)

Simple line drawing of a curved beam with two vertical supports at both ends (no text or symbols)

ASSEMBLY

1a 1b

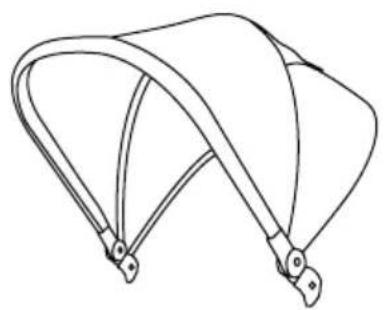

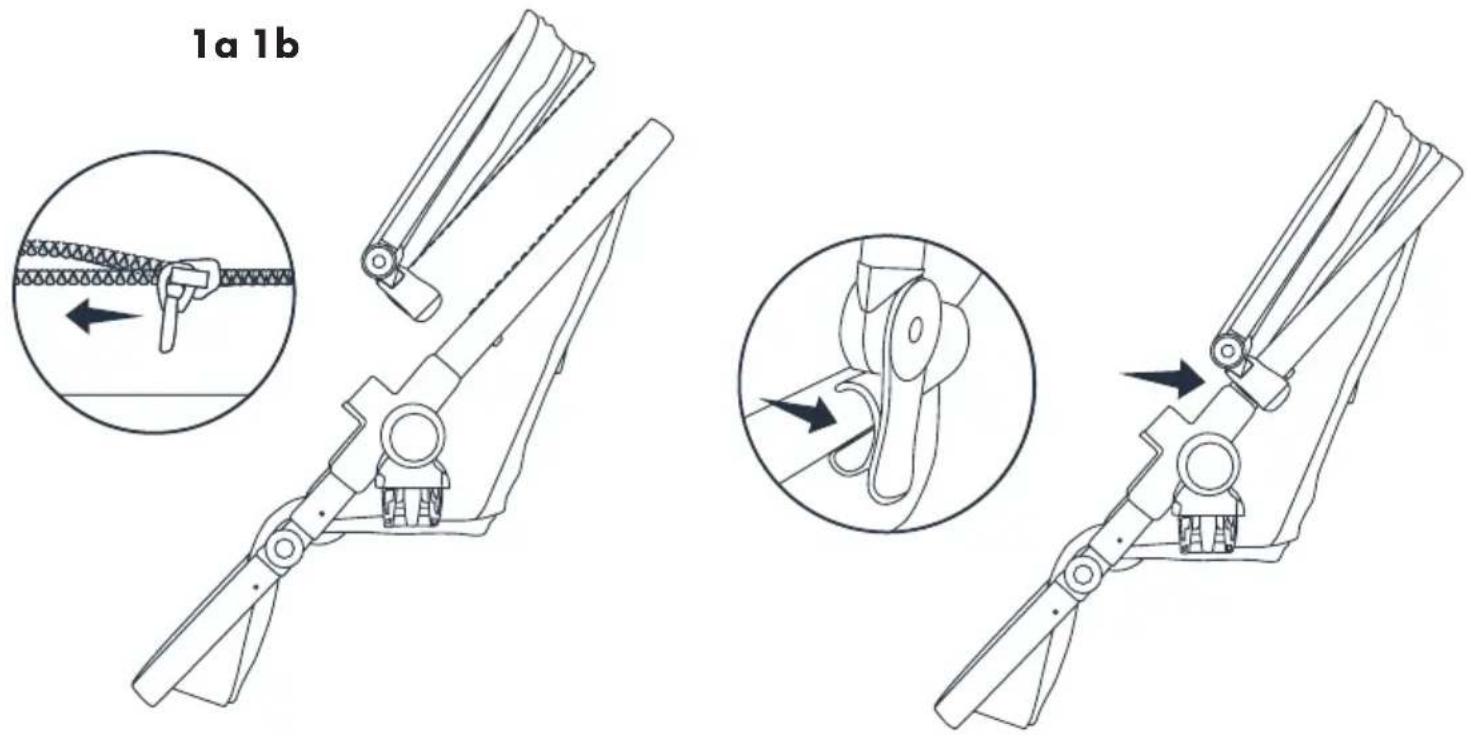

1a. Attach the canopy to the seat unit. First secure the canopy to the frame with the zip.
1b. Next attach the plastic canopy clips to their respective sides.

Technical diagram of a robotic arm with lock mechanism and close-up view showing hand positioning and lock mechanism

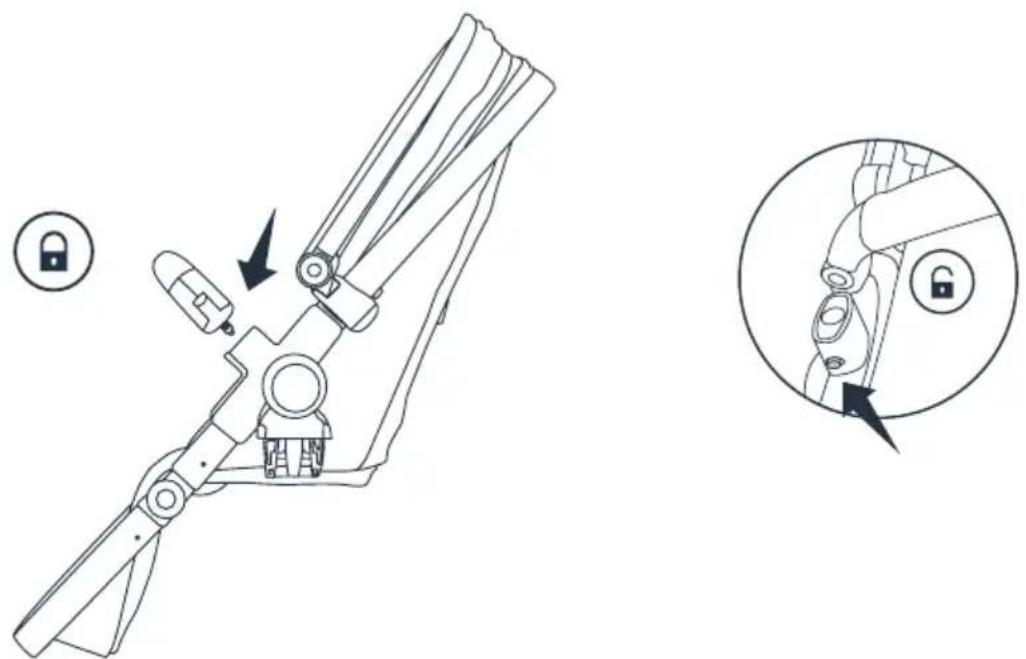

1. Attach the bumper bar onto the connection posts. Listen for the "click" signalling correct assembly. Give the bumper bar a tug to ensure it's secured in place. To remove the bumper bar, simply press the release buttons on either or both sides and lift up.

CANOPY ADJUSTMENT

Technical line drawings of a stroller with directional arrows indicating motion (no text or symbols)

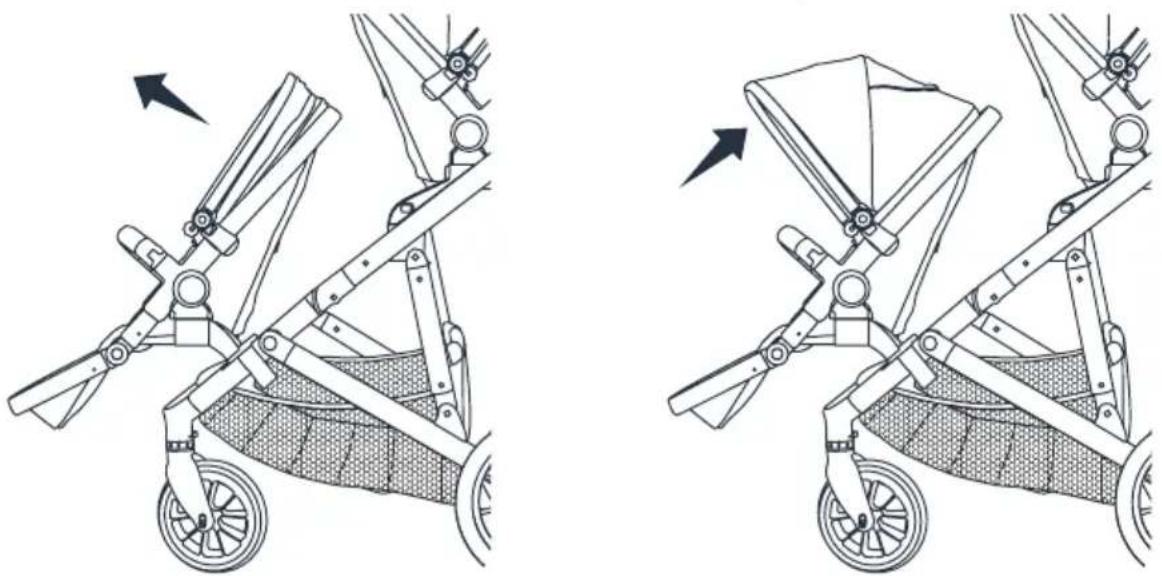

1. The canopy can be opened or closed by pulling or pushing on the canopy rim.

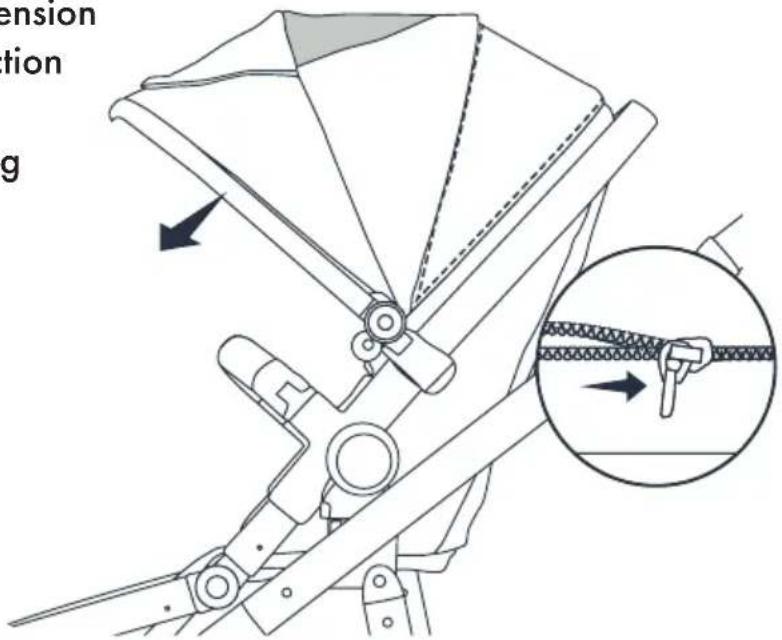

2. The canopy features an extension panel for maximum sun protection and a window to keep an eye on your baby in forward facing position.

Technical diagram showing two stroller designs with labeled parts and instructional arrows indicating assembly or maintenance.

Lift the lever at the back of the tandem seat unit to adjust the recline. Ensure you hear a "click" as the seat engages at your desired position.

FOOTREST ADJUSTMENT

Technical diagram showing two stroller configurations with labeled parts and directional arrows indicating movement or assembly.

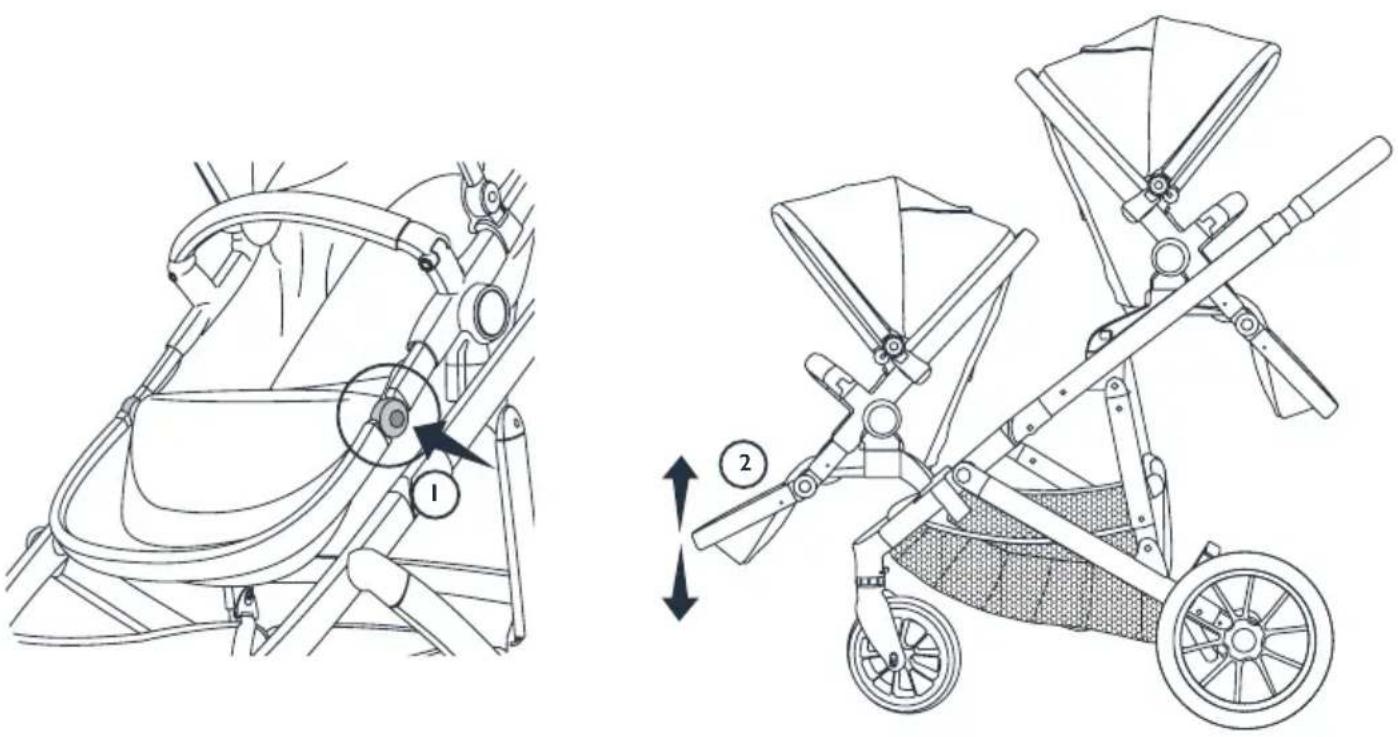

Press both the footrest buttons simultaneously and adjust the footrest to the desired position. Listen for the "click" signalling that the footrest is locked into position.

HARNESS

Diagram of a mechanical component with multiple hands and a lock icon, no text or symbols present

Diagram of a circular mechanical component with radial arms and a central arrow, no text or symbols present

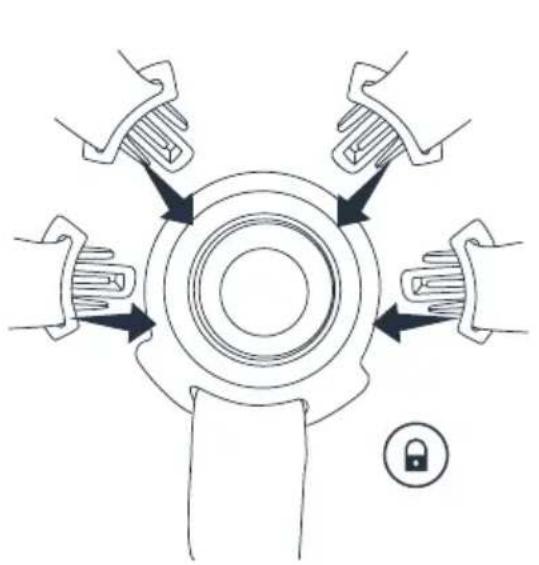

1. Insert all buckle clips into the buckle housing until they engage securely in place. Listen for the "click".

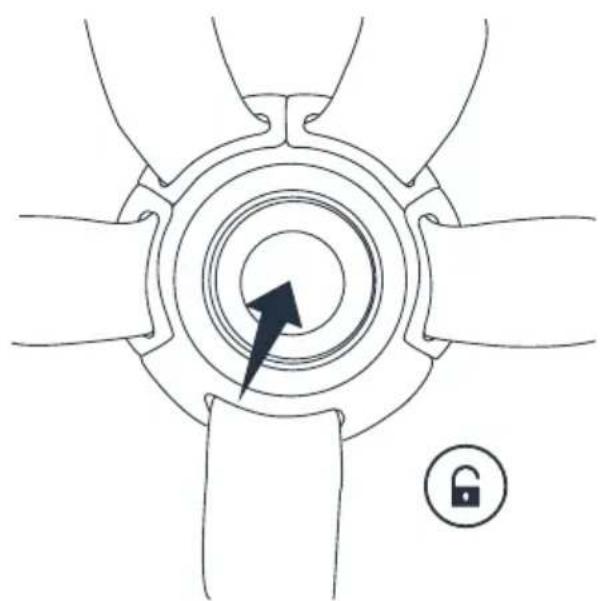

2. Press the centre button to release child from harness.

Diagram of a four-bar seatbelt with directional arrows indicating airflow or force (no text or symbols)

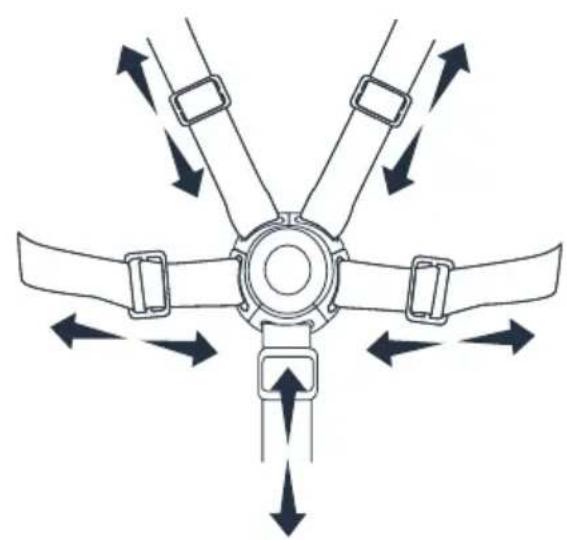

1. To adjust the harness, move the slides as shown.

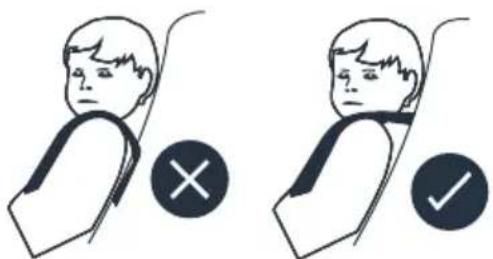

Warning! Always adjust the harness to fit your child correctly for their comfort and safety. A loose fitting harness can be very dangerous.

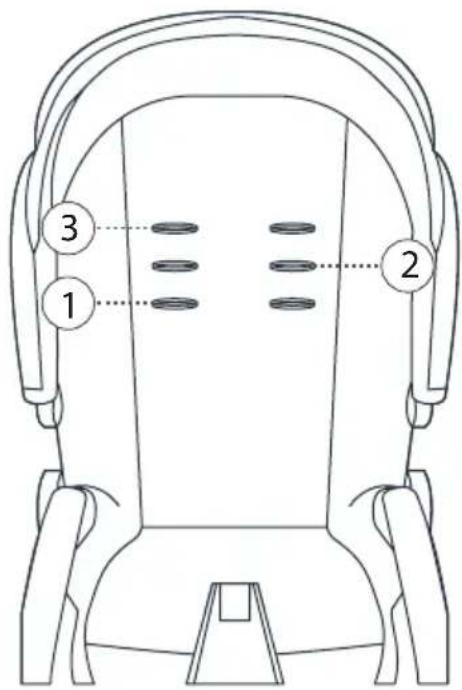

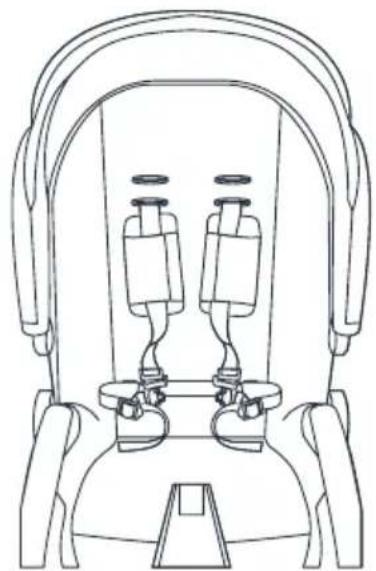

1. The tandem seat unit has 3 shoulder height positions. The harness is assembled in the lowest position which is suitable for a 6 month old baby. Before using always check your baby is comfortable and adjust the shoulder strap height as required.

WARNING! Adjust the shoulder strap height according to baby height.

1 2 3

Illustration showing correct and incorrect posture with a cross symbol indicating incorrect posture

Line drawing of hands fastening a seatbelt using a device (no text or symbols)

Line drawing of a car seat with two seats and directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with two seats and a double plate, no text or symbols present

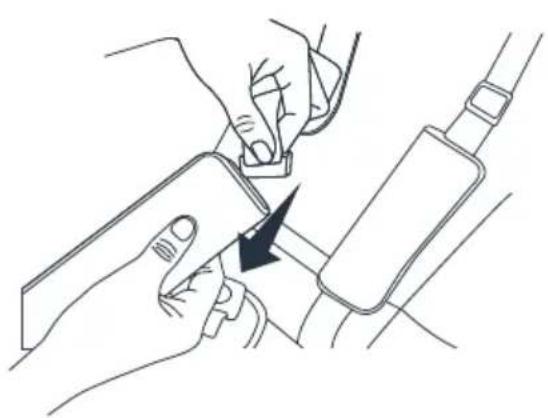

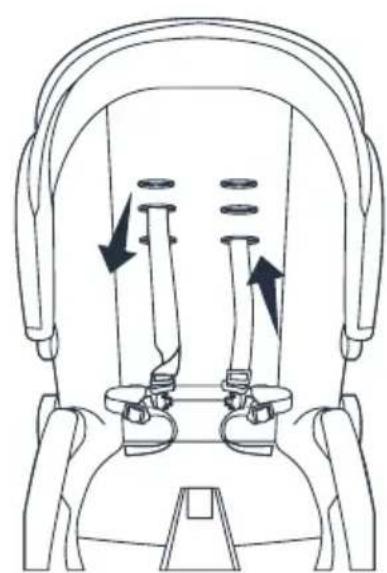

1. Open the harness and remove the chest pads to adjust the shoulder height position.

2. To increase the shoulder height, feed harness tabs through slots in thandem seat unit. Re-insert the harness tabs through slots at desired height. Pull out from front of seat. Reverse the process to lower shoulder height. Re-attach the chest pads.

WARNING! Adjust the shoulder strap height according to baby height.

REVERSIBLE SEAT

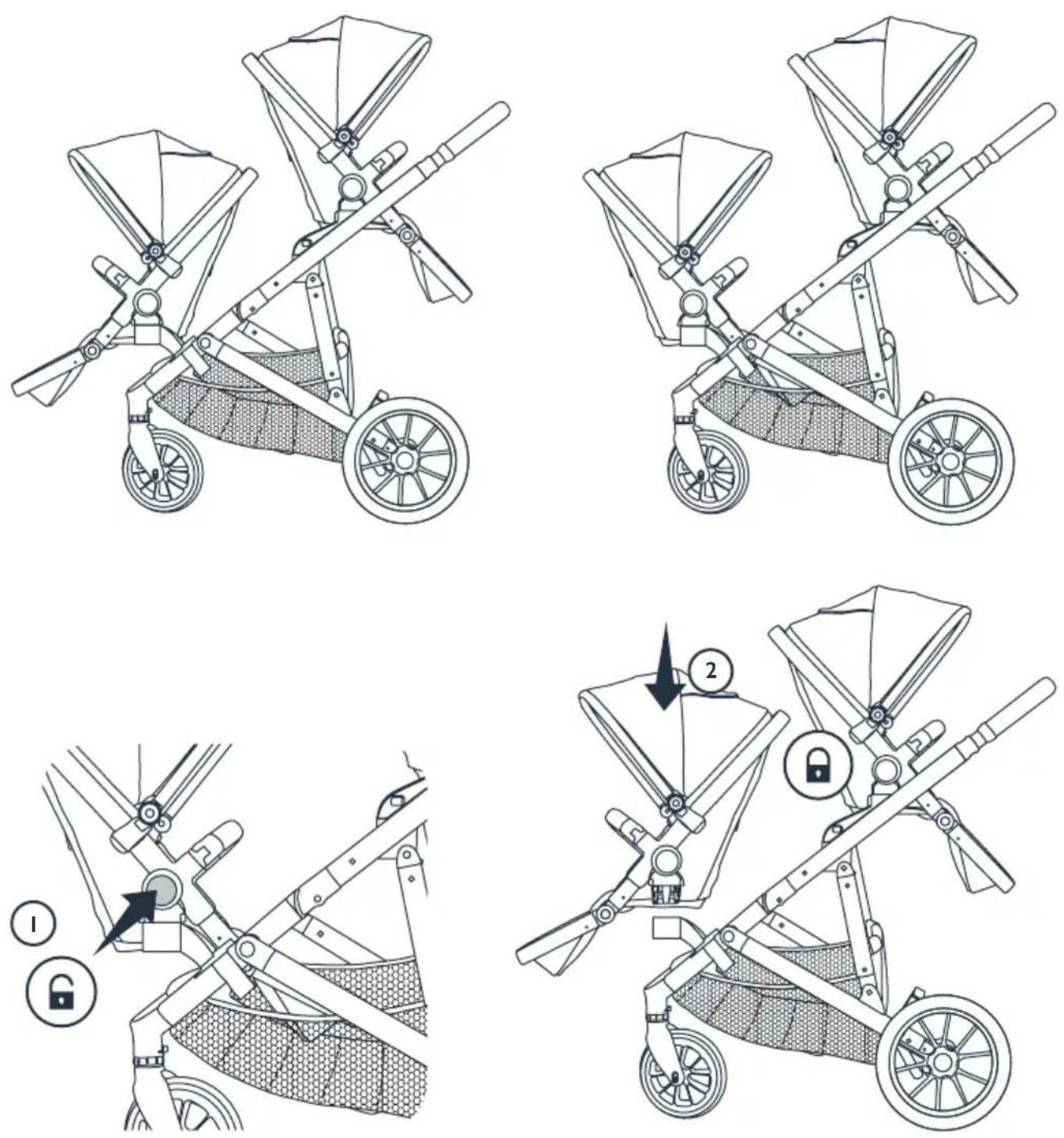

Press the button both sides of the seat connectors to remove the seat unit from the chassis. To re-attach the seat unit to the chassis, line up the seat connectors with the chassis connection points and press downwards. Listen for a "click" to signal correct assembly.

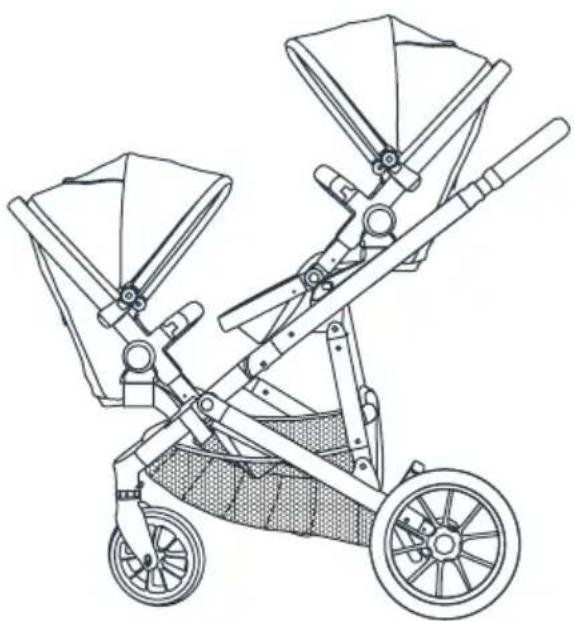

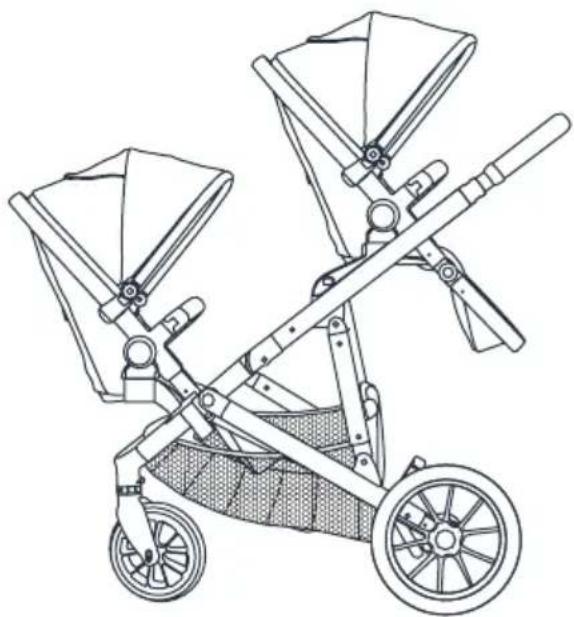

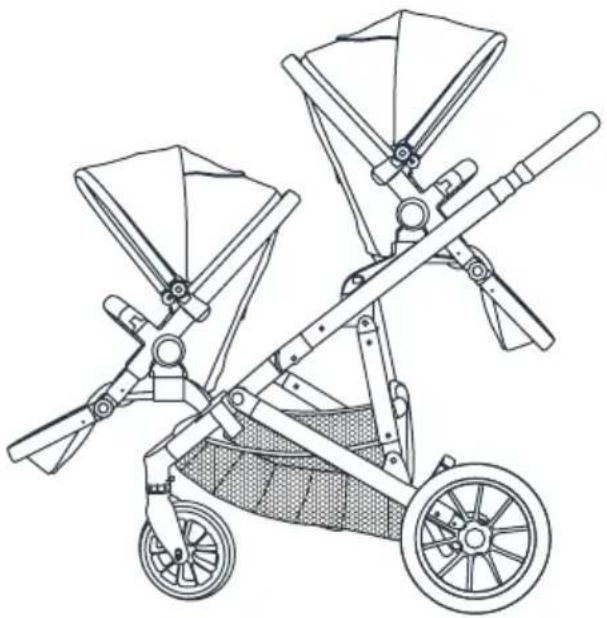

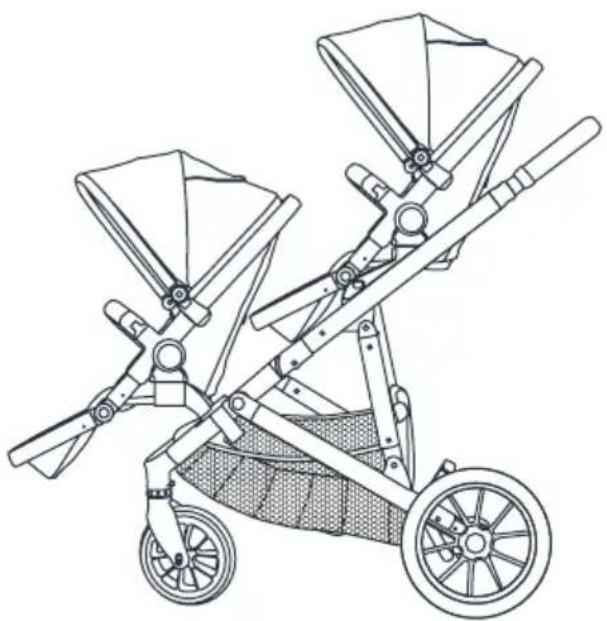

PRAM CONFIGURATIONS

Line drawing of a two-wheeled baby stroller with twin canopyers and wheels (no text or symbols)

Tandem seat unit x1 (included) Seat unit x1 Elevate adaptors x1 set Tandem adaptors x1 set Chassis x1

Line drawing of a two-wheeled baby stroller with canopy and wheels (no text or symbols)

Tandem seat unit x1 (included) Seat unit x1 Elevate adaptors x1 set Tandem adaptors x1 set Chassis x1

Line drawing of a two-wheeled baby stroller with twin canopy and wheels (no text or symbols)

Tandem seat unit x1 (included) Seat unit x1 Elevate adaptors x1 set Tandem adaptors x1 set Chassis x1

Line drawing of a two-wheeled baby stroller with twin canopy and wheels (no text or symbols)

Tandem seat unit x1 (included) Seat unit x1 Elevate adaptors x1 set Tandem adaptors x1 set Chassis x1

CARE AND MAINTENANCE

• This product requires regular maintenance to ensure correct and safe
• performance.
• All assembly fittings are to be tightened properly.
  • Always check your pram for loose screws, worn parts, torn material or
• stitching.
• Replace or adjust parts as needed.
• Lubricate moving parts regularly, especially the wheels.
• Wipe metals and plastics clean with a damp cloth.
• Sponge clean fabrics with warm soapy water. Rinse well with clean water
  • to avoid staining. Dry in shade.
• Do not bleach.
• Do not iron.
• Do not dry clean.
• Do not use abrasive pads, bleach or strong household cleaners.
