USER MANUAL Evy V2 Deryan

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCES!

Languages

Nederland 3

English 12

Deutsch 21

30

Waarschuwing

1. Ensure that all the locking devices are engaged before use.
2. To avoid injury, ensure that the child is kept away when unfolding and folding this product.
3. Do not let the child play with this product.
4. This seat unit is not suitable for children under 6 months.
5. Always use the restraint system.
6. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
7. This product is not suitable for running or skating.
8. Be certain that the stroller is fully opened, the safety latch is in position, and the wheel brakes are on before allowing children near the stroller.
9. The parking device should always be engaged during the loading and unloading of children.
10. The primary seat is intended for a child from 6 months of age up to a weight of 22kg .
11. When the front seat is installed in the front position and facing toward the rear of the stroller, DO NOT use any of this seat's recline positions unless there is already a child occupying one of the rear positions (such as in an infant car seat, in another seat or on the bench seat.)
12. When used for carrying 2 children at the same time or 3 children at the same time, each single weight shall not exceed 15kg , the total weight of all children must not exceed 30kg . Exceeding this total weight will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition.
13. When carrying 3 children at the same time, one of which is in the bench seat, note specifically that the rear bench seat is designed for a child that is at least 3 years old but LESS than 112 cm tall and less than 22 kg.
14. Never use this stroller to carry more than 3 children at the same time.
15. Never allow a child to step on the leg support or footrest to get into or out of the stroller.
16. Do not use the stroller on stairways or escalators.
17. The maximum weight that can be carried in the storage basket is 11 kg. Excessive weight may result in a hazardous unstable condition.

18. Discard all packaging materials properly. Do not allow children to play with them.

19. Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.

20. Discontinue use of the stroller should it malfunction or become damaged.
21. CAUTION: While unfolding the stroller, be careful to keep your fingers from being pinched by moving parts.
22. This vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Maintenance

1. To ensure your baby's safety, please check and keep good maintenance periodically.
2. Please use brush to clean the covers, use neutral detergent solution or the best natural soap powder for cleaning.
3. Please periodically check the product in case of losing parts, broken components or wearing thread. Please change damaged parts if necessary.
4. Please operate or disassemble the stroller according to the instruction manual.

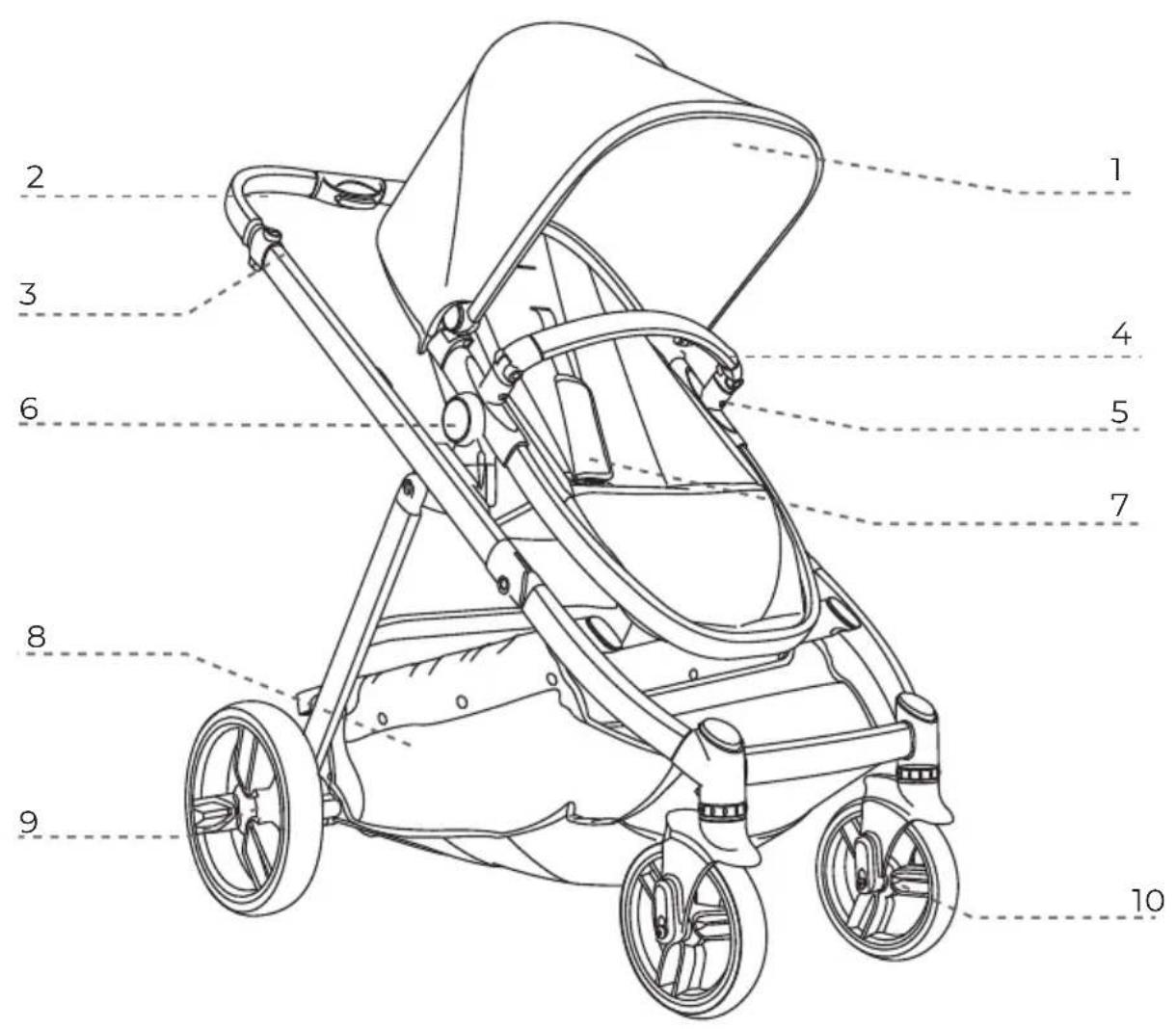

Components

1. Canopy 6. Function button
2. Handle bar 7. Harness
3. Folding mechanism 8. Basket
4. Bumper bar 9. Rear wheel
5. Release button 10. Front wheel

Additional accessories

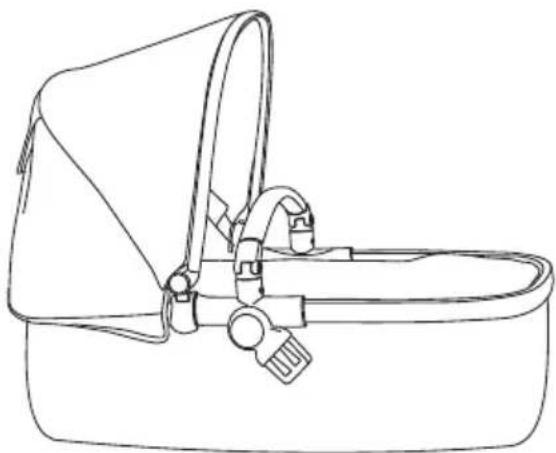

Bassinet

Frontadapter required

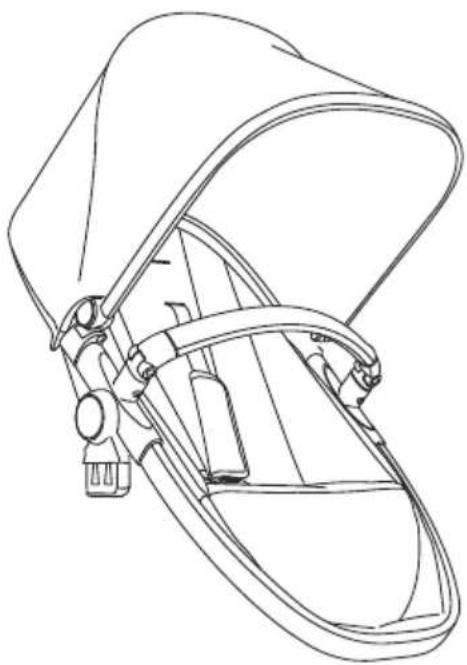

Second seat

Frontadapter required

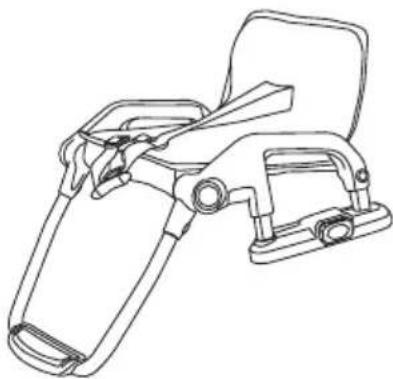

Bench seat

Front adapters

Compatible with bassinet, second seat and the car seat adapter.

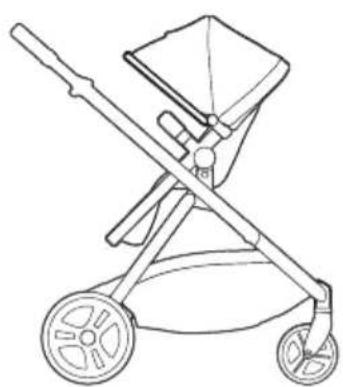

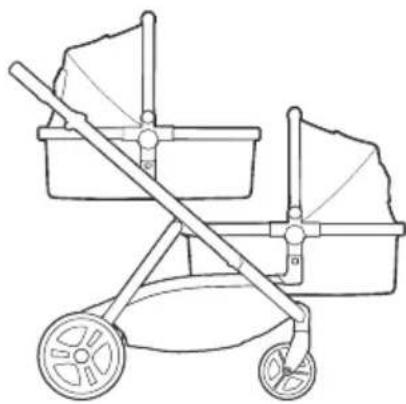

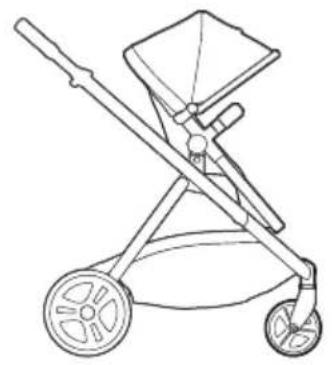

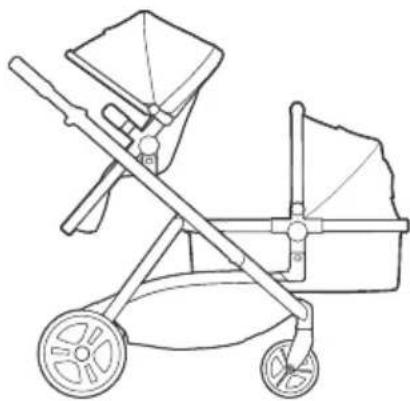

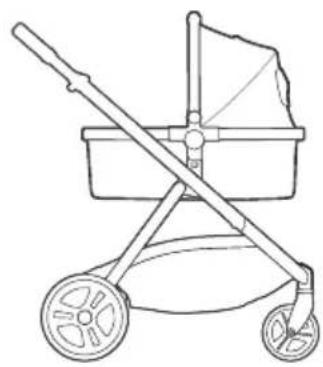

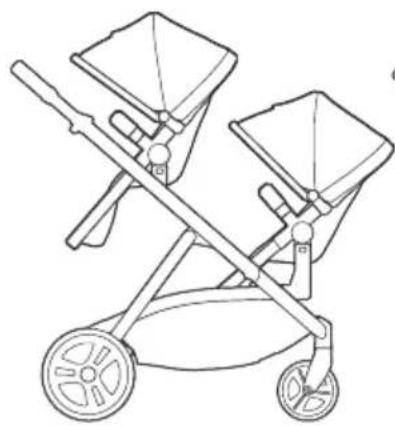

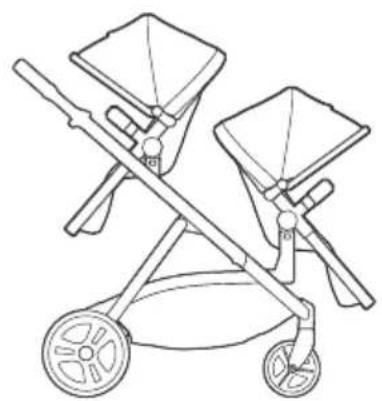

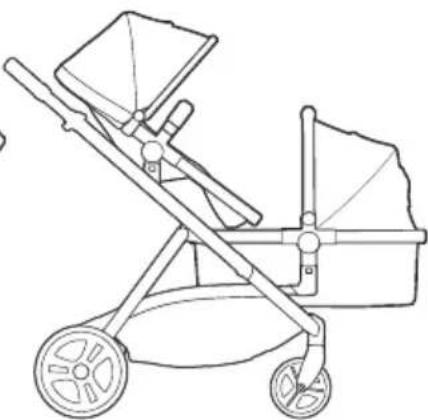

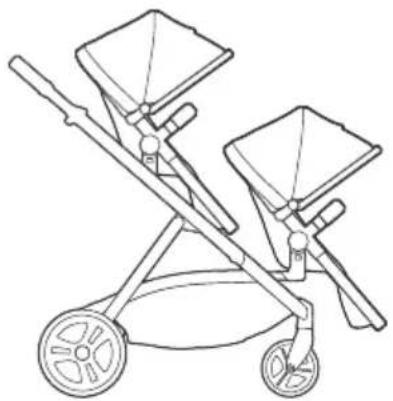

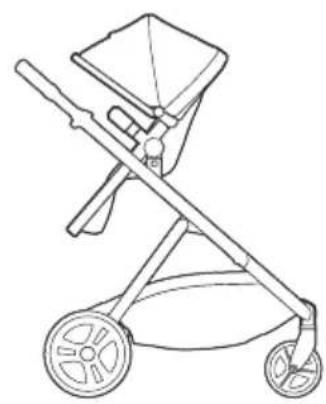

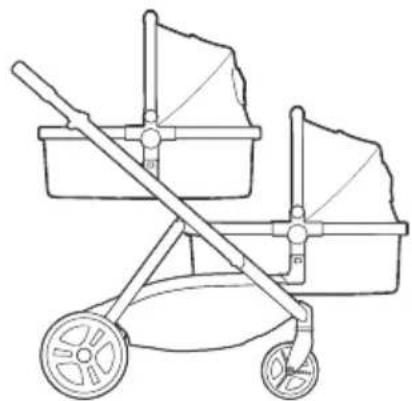

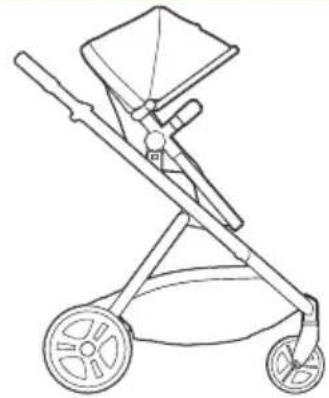

Possibilities

Installation

Folding lock

Opening the stroller

Take the frame out of the box, unlock the folding lock.

Raise the handlebars until the tube clicks into place.

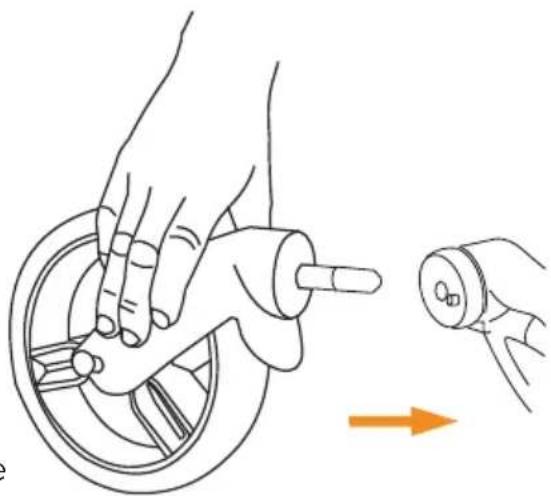

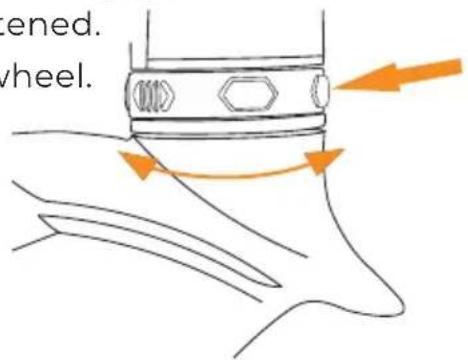

Attaching the front wheels

Insert the front wheel into the housing until it clicks into the knuckle and make

sure make sure the wheel is securely fastened. turn the swivel locker to straighten the wheel.

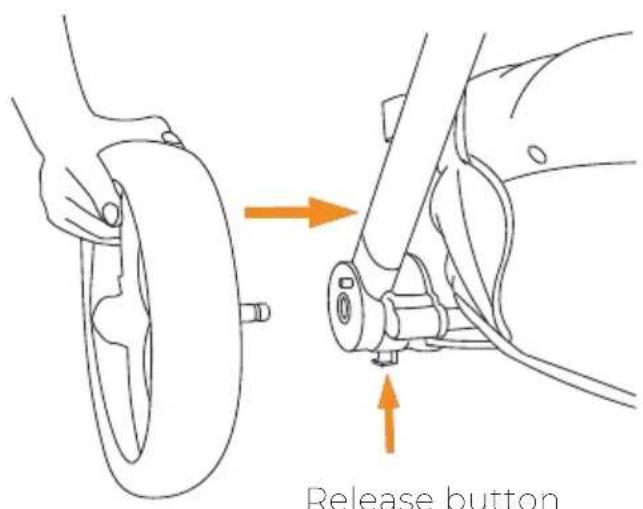

Fixing the rear wheels

Place the wheel set as shown inside the housing, make sure it snaps into place and secures.

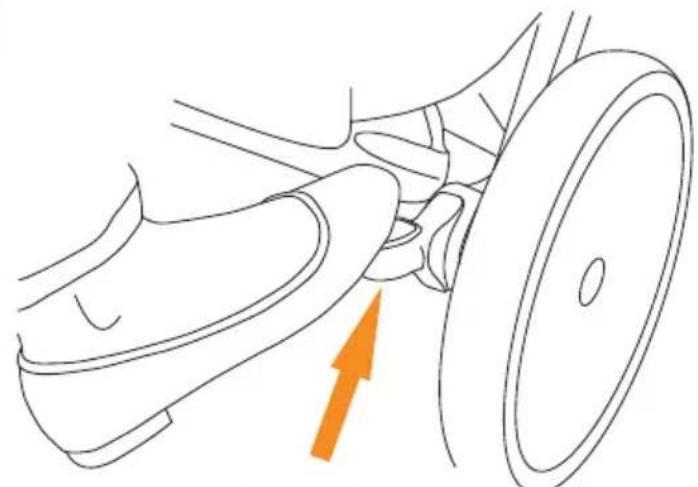

Brake pedal

Tuning the wheel brake

Step on the back part of the brake to stop, to brake release, step on it front part.

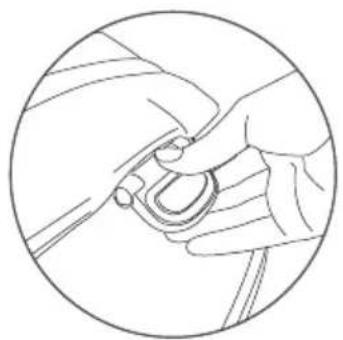

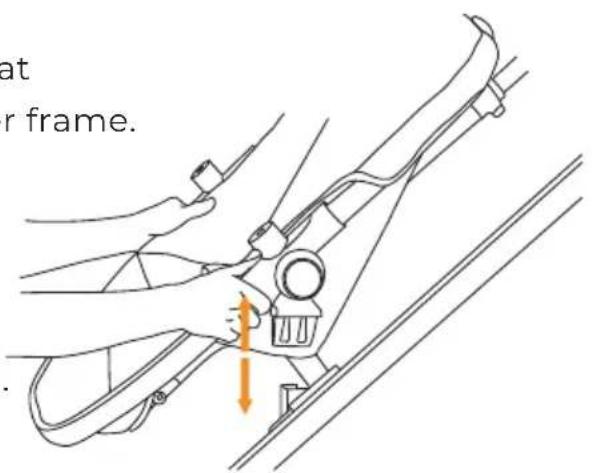

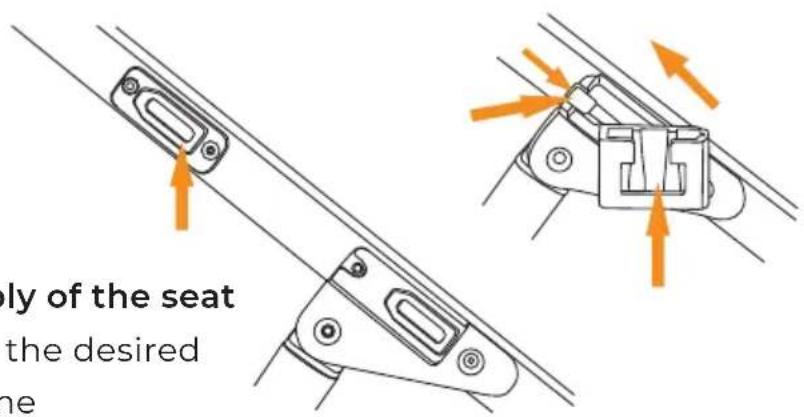

Assembly and disassembly of the seat

Slide the seat brackets to the desired height on the stroller frame until they click into place. Post it seat on the pram so that the male brackets on the underside of the seat align with the stirrups on the stroller frame.

Push both sides of the seat to down until both sides are up click into place. pull the seat up on both sides to make sure to make sure it is securely fastened.

Install the canopy

Attach the hood brackets to the sides of the seat frame by turning them to take their place. The canopy can be adjusted to completely be opened or closed.

Adjust seat

The chair has 4 positions. To adjust, pull the mechanism and pull the seat to the desired position. When it reclining mechanism is pulled out, the chair can also be moved all the way to be pushed forward.

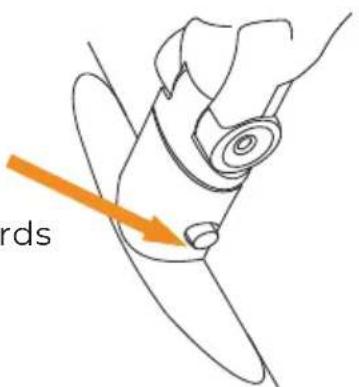

Installing and Removing the Bumper Bar

Click the bumper bar into the plastic housing and make sure it is tight. To delete, press the buttons on the bottom of both fasteners inwards and pull the bumper bar away from the seat.

Unfasten harness

Press the button on the buckle, pull to open.

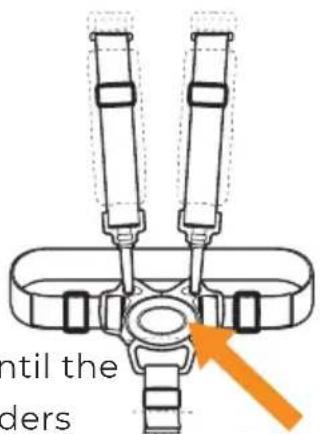

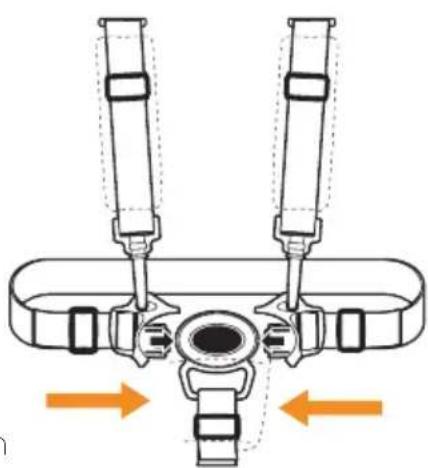

Fasten harness

Insert the two locks on both sides in the buckle until the click for lock is audible. Sliders are fitted and must be carefully

adjusted on each side so that the harness fits your child comfortably.

Button

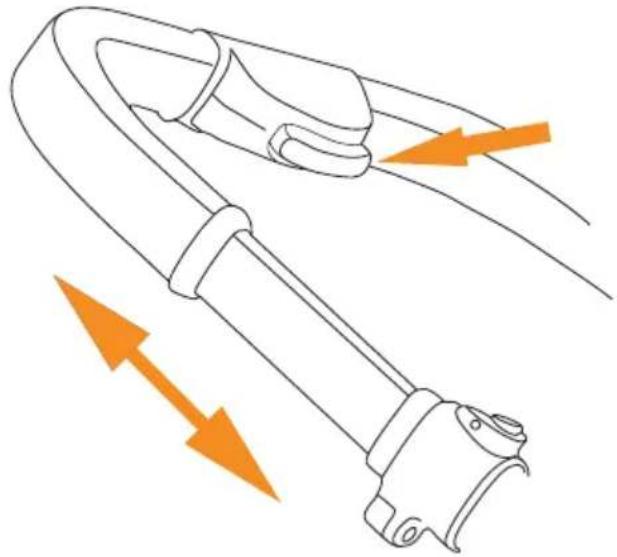

Adjust the handle

The handle can be adjusted to 3 positions. To adjust the handle height, press and hold the button in the middle of the handle grip, and slide the handle to the desired position.

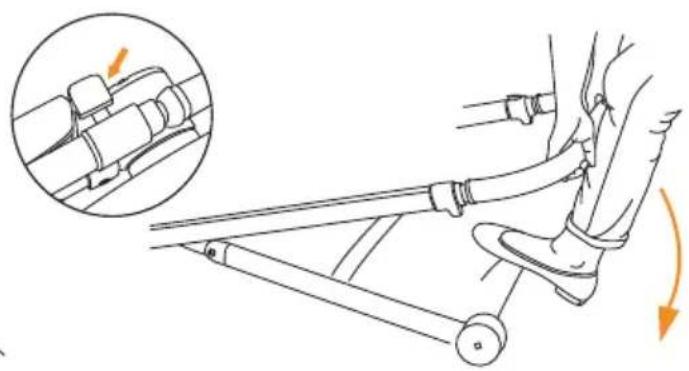

Folding the stroller

Push the handlebar to its lower position. Press the gray button on the right side of the stroller, below the handle. Pull up on the triggers on both sides of the handle and slowly guide the handle down towards the rear wheels and safety latch.

Warning
