USER MANUAL Rolo X2 Deryan

Line drawing of a two-tier baby stroller with twin canopy and matching seats (no text or symbols)

Rolo X2

User manual

Important: Read carefully and keep for future references

INDEX

Warnings & Maintenance (EN) 3

• Failure to follow these instructions could result in serious injury.
  • Make sure all latches are locked before use.
• Avoid serious injury from falling or slipping.
• Always use the restraint system and ensure that children are placed according to these instructions.
• Make sure the stroller is fully opened, locked securely in place and the wheel brakes are engaged before children approach the stroller.
• The parking device must always be switched on when loading and unloading children.
• The maximum weight of a child for which the product is designed is 22 kg per seat.
• Never use this pushchair to transport more than 2 children at the same time.
  • Never leave your child unattended.

MAINTENANCE

• To ensure the safety of your baby, please check the maintenance regularly and maintain it properly.
• Use a brush to clean the covers, use neutral detergent or the best natural soap powder to clean.
• Regularly check the product for loss of parts, broken parts or wire wear. Replace damaged parts if necessary.
• Operate or disassemble the pushchair according to the instructions for use.

WAARSCHUWINGEN

Technical line drawing of a two-wheeled baby stroller with numbered components for identification.

1. Canopy 7. Footrest adjust button
2. Bumper bar 8. Folding lock
3. Backrest 9. Rear wheel
4. Harness 10. Front wheel
5. Release button 11. Basket
6. Footrest

INSTALLATION

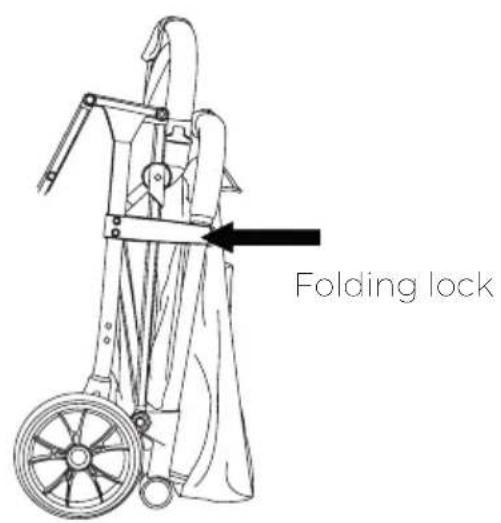

Folding lock

Line drawing of a two-tier baby stroller with wheels and a curved arrow indicating rotation (no text or symbols)

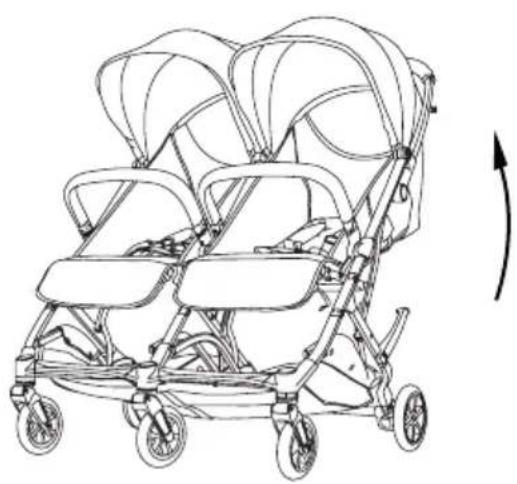

Unfolding the stroller

Take the frame out of the box, unlock the folding lock. Lift the handlebars until the tube clicks into place.

Line drawing of hands using a tool to adjust or install a circular component, with an arrow indicating direction (no text or symbols)

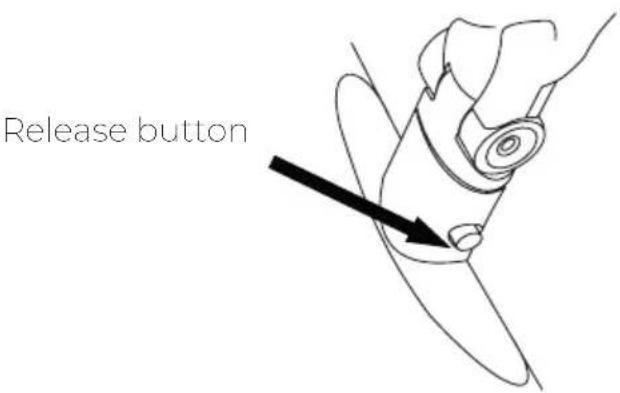

Release button

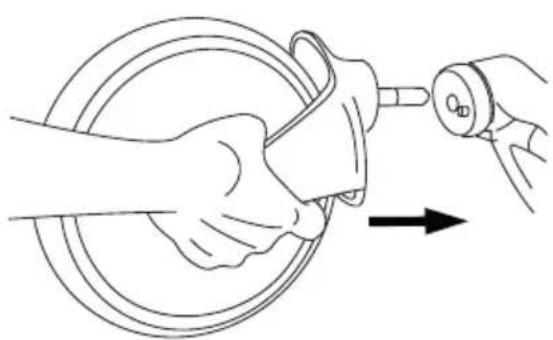

Installing the front wheel Slide one front wheel into the front wheel housing until it clicks into place. Repeat for the other two wheels. Pull on the wheels to ensure they are installed properly.

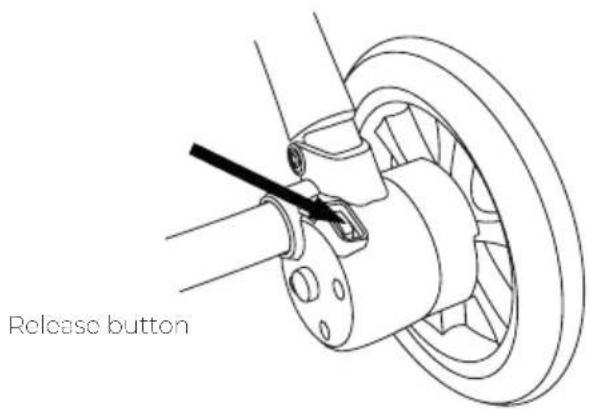

Installing the rear wheel

Slide the rear wheel into the rear wheel housing until it clicks into place. Pull the wheels to ensure they are correctly are installed.

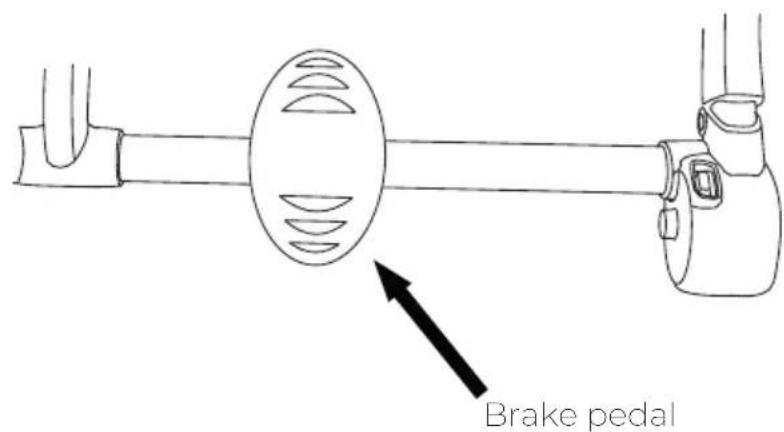

Brake pedal

Rear wheel brakes

To engage, push down on the brake lever. To release push down on the back of the brake leaver.

Release button

Installing the bumper bar

Click the bumper bar into the plastic housing and make sure it is locked in place. Press the release button to unlock the bumper bar.

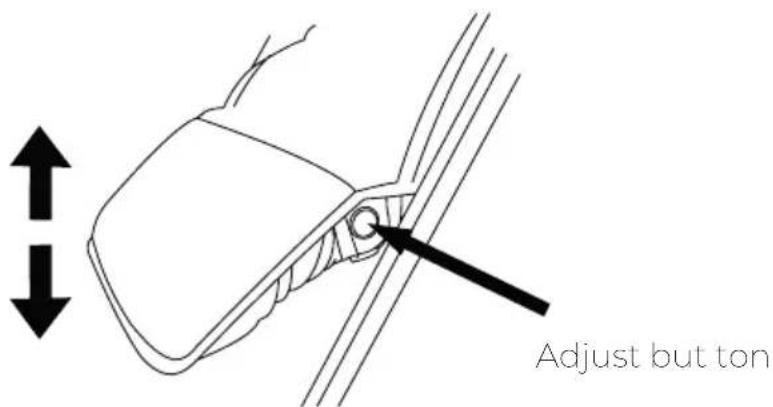

Adjust but ton

Adjusting the footrest

To adjust the footrest, press the two buttons on both sides and place the footrest in the desired position.

Diagram of hands holding a circular object with arrows indicating rotation or movement, no text or symbols present

Diagram of a circular mechanical component with radial arms and a central arrow, no text or symbols present

Harness

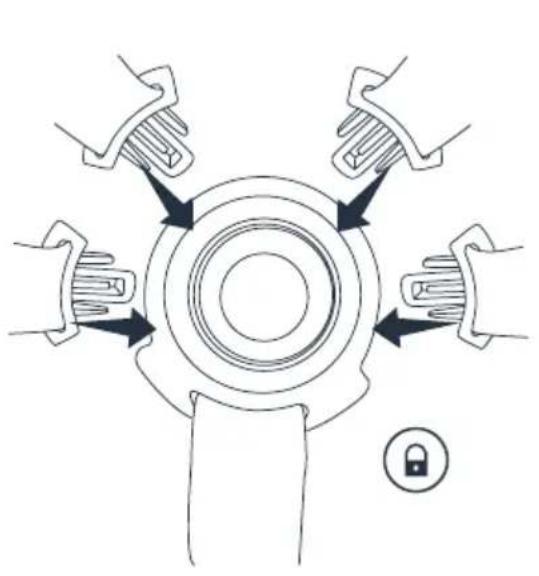

Insert all buckle clips into the buckle housing until they engage securely in place. Listen for the "click".

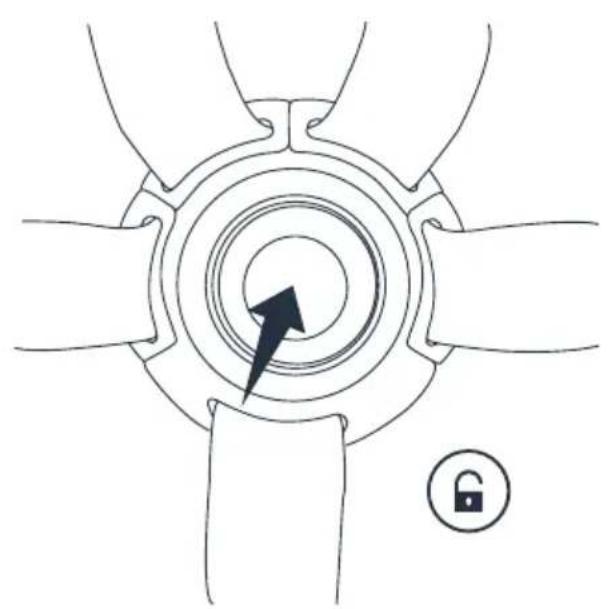

Press the centre button to release child from harness.

Diagram of a fan or seatbelt mechanism with directional arrows indicating airflow or movement (no text or symbols)

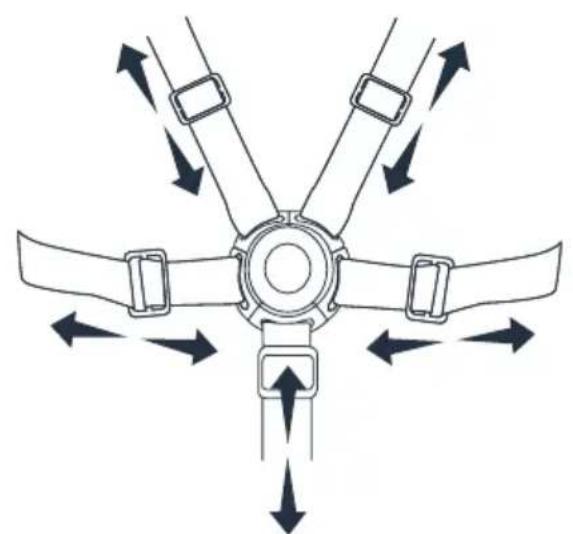

To adjust the harness, move the slides as shown.

Warning! Always adjust the harness to fit your child correctly for their comfort and safety. A loose fitting harness can be very dangerous.

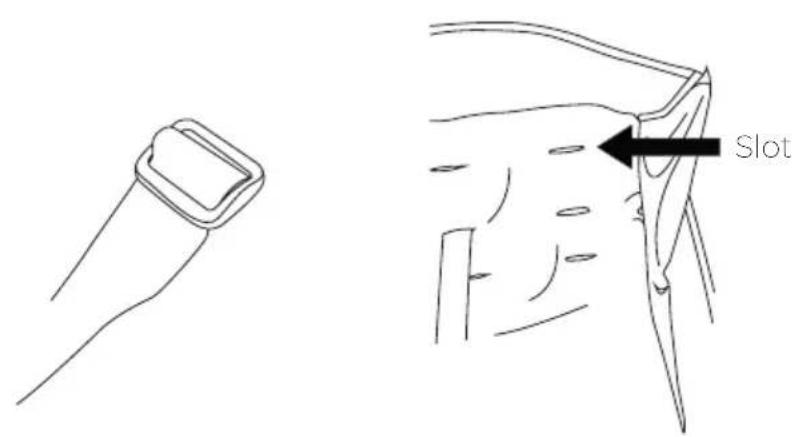

Slot

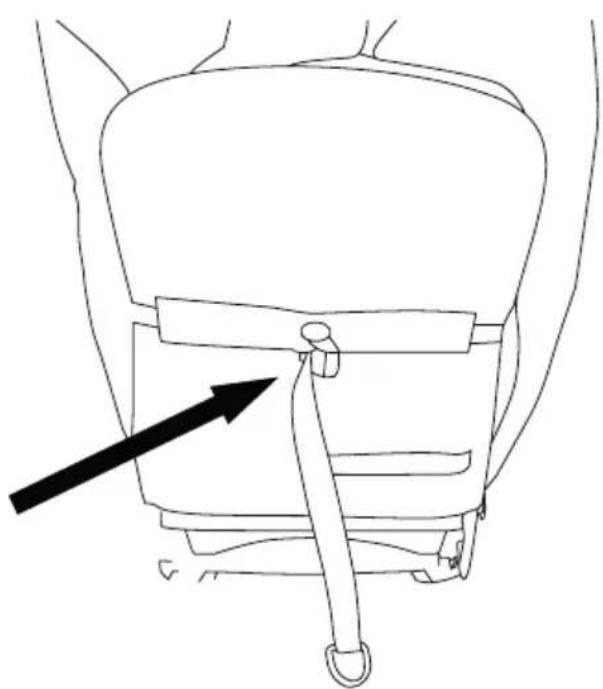

Securing seated child

Attach the harness at the correct height by threading the plastic ends back through to cross the slots. Make sure both tires are the same height.

Line drawing of a car seatbelt buckle with a black arrow pointing to the seat (no text or symbols)

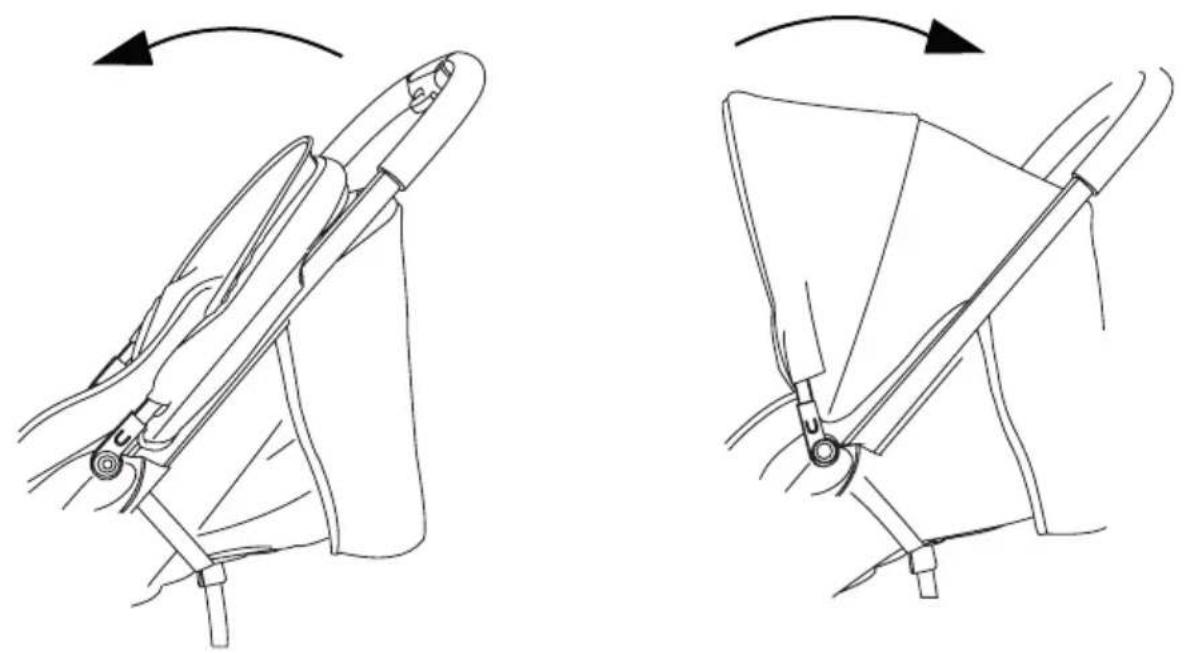

Adjusting the seat

Grab it with one hand tilting mechanism and with the other hand the plastic D-ring on the Belt. Squeeze the reclining mechanism and push or pull to the desired position.

Canopy

Pull the hood forward to stretch out. Push back to fold.

Diagram illustrating the change in stroller usage from a device to a multi-wheeled car, with an inset showing the device's internal structure.

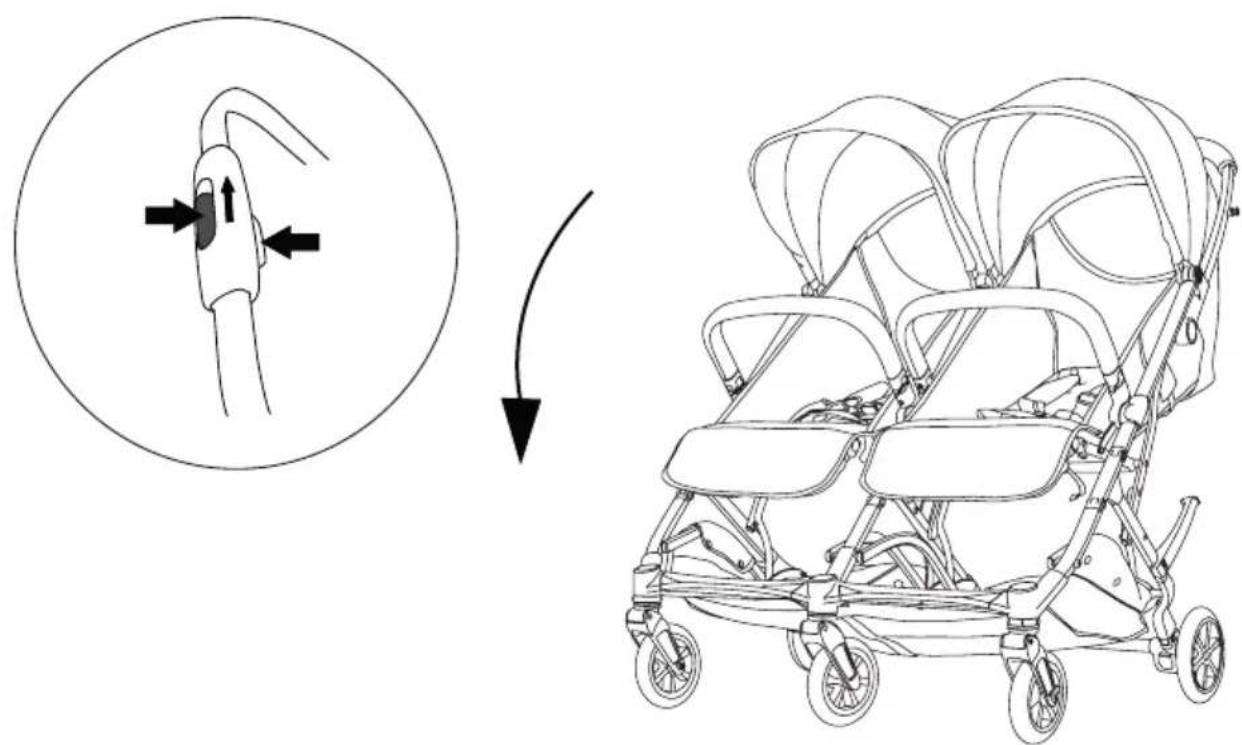

Folding the stroller

Push the secondary lock on the handle to the left and press the button on the inside of the handle. Push the handle forward and slowly guide it towards the rear wheel.

DERYAN B.V.

Marithaime 8

6662 WD Elst

The Netherlands
