Quuby - High chair Deryan - Free user manual and instructions

Product type	Convertible high chair
Brand	Deryan
Model	Quuby
Dimensions (L × W × H)	480 × 675 × 855 mm
Main materials	Polypropylene, rubber, PU, PE fibers
Maximum user weight (high chair mode)	15 kg
Maximum user weight (other modes)	30 kg (normal chair, low chair), 70 kg (stool)
Recommended age (high chair mode)	6 to 36 months
Recommended age (other modes)	12 months and up (low chair), 36 months and up (normal chair, stool)
Number of use modes	5 modes: high chair, normal chair, low chair, low chair + table, stool
Restraint system	5-point harness with shoulder straps, waist belt, and crotch strap
Removable tray	Yes
Adjustable footrest	Yes (3 positions corresponding to the 3 seat levels)
Removable backrest	Yes
Removable and washable seat cushion	Yes
Care and cleaning	Clean with a damp cloth; for stubborn stains, use a diluted neutral detergent. Do not use gasoline or solvents.
Assembly	For adults only. Check that each part clicks properly into place.
Storage	Disassemble and store all components in the lower seat for compact storage.
Spare parts and repairability	Use only original parts provided by the manufacturer. Contact your local retailer.

Frequently Asked Questions - Quuby Deryan

From what age can I use the high chair?

The high chair can be used as soon as the child can sit without assistance, usually from 6 months, until 3 years or 15 kg.

What are the different use modes?

The Quuby chair offers 5 modes: high chair (6-36 months, 15 kg max), normal chair (36 months+, 30 kg), low chair (12 months+, 30 kg), low chair with table (12 months+, 30 kg), and stool (36 months+, 70 kg).

How to assemble the high chair?

Assembly must be done by an adult. Follow the illustrations in the manual: slide the seats onto each other until you hear a click, then pull to check the fastening. Attach the footrest and tray in the same way.

How to properly secure my child?

Always use the 5-point harness. Thread the shoulder straps, fasten the left and right buckles to the crotch strap buckle until it clicks. Adjust the tension for a snug fit.

How to clean the high chair?

Clean with a damp cloth. For stubborn stains, use a diluted neutral detergent. Do not use gasoline, solvents, or harsh detergents. The cushion can be removed and washed.

Can I use the high chair without the tray?

Yes, but the tray is not a restraint device. The child must always be fastened with the harness even if the tray is removed.

What are the important safety instructions?

Never leave the child unattended. Always use the harness. Place the chair on a flat surface, away from stairs, windows, and heat sources. Do not lift the chair with the child seated.

How to store the high chair when not in use?

Disassemble the parts in reverse order of assembly. Place the footrest in the lower seat, then the middle seat, the upper seat, the backrest, and finally the tray in front. Keep parts out of reach of children.

What to do if a part is broken or missing?

Do not use the chair. Contact your local retailer to obtain original spare parts. Do not modify the product.

Can I use the high chair as a booster seat?

No, do not place the upper seat on a normal chair as a booster seat. It could fall and injure the child.

USER MANUAL Quuby Deryan

Line drawing of a baby height seat with a single plate, showing internal compartments and base structure (no text or symbols)

BELANGRIJK! LEES ZORGVULDIG DOOR EN BEWAAR VOOR TOEKOMSTIG GEBRUIK!

LANGUAGES

NL

Instruction manual 11

DE

Technical diagram illustrating a mechanical assembly with labeled parts and directional indicators (✓ and ×)

Click! 2 3 4

Click! Click! 5 6 7 8

Diagram of a car seatbelt buckle with four straps and a central seat (no text or symbols)

Technical illustration of a babyhood seat assembly with highlighted components (no text or symbols)

Technical line drawing of a baby seat with visible seat covers and orange arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with orange arrows indicating features (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical device with an inset showing a tool interacting with a component (no text or symbols present)

Technical line drawing of a mechanical component with internal grating and housing (no text or symbols)

Cross-sectional diagram of a microwave oven with internal grating and cooling fins (no text or labels)

Cross-sectional diagram of a microwave oven with internal compartments and a labeled part (17), no text or symbols present.

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and ventilation slots (no text or symbols)

Technical line drawing of a mechanical device with internal components and a highlighted section (no text or symbols)

ONDERDELEN

Technical diagram of a baby seat with numbered parts and exploded view of the seat structure

Three types of metal bracket components labeled D, E, and F (no text or symbols beyond labels)

Illustration of two children: one sitting in a high chair, the other sweeping with a broom (no text or symbols)

Illustration of a baby being placed inside a high chair with a cross symbol (no text or labels)

Illustration of a baby sitting in a high chair with a cross symbol (no text or labels)

3

1
2

Line drawing of a woman kneeling beside a baby on a baby table (no text or symbols)

Illustration showing a child eating at a table with an orange 'X' symbol, indicating a food safety or safety warning.

Illustration of a child in a high chair using a spoon, with a warning symbol and an orange 'X' on the table (no text or symbols present)

4
5
6

OPBOUW QUUBY

⚠ WAARSCHUWING

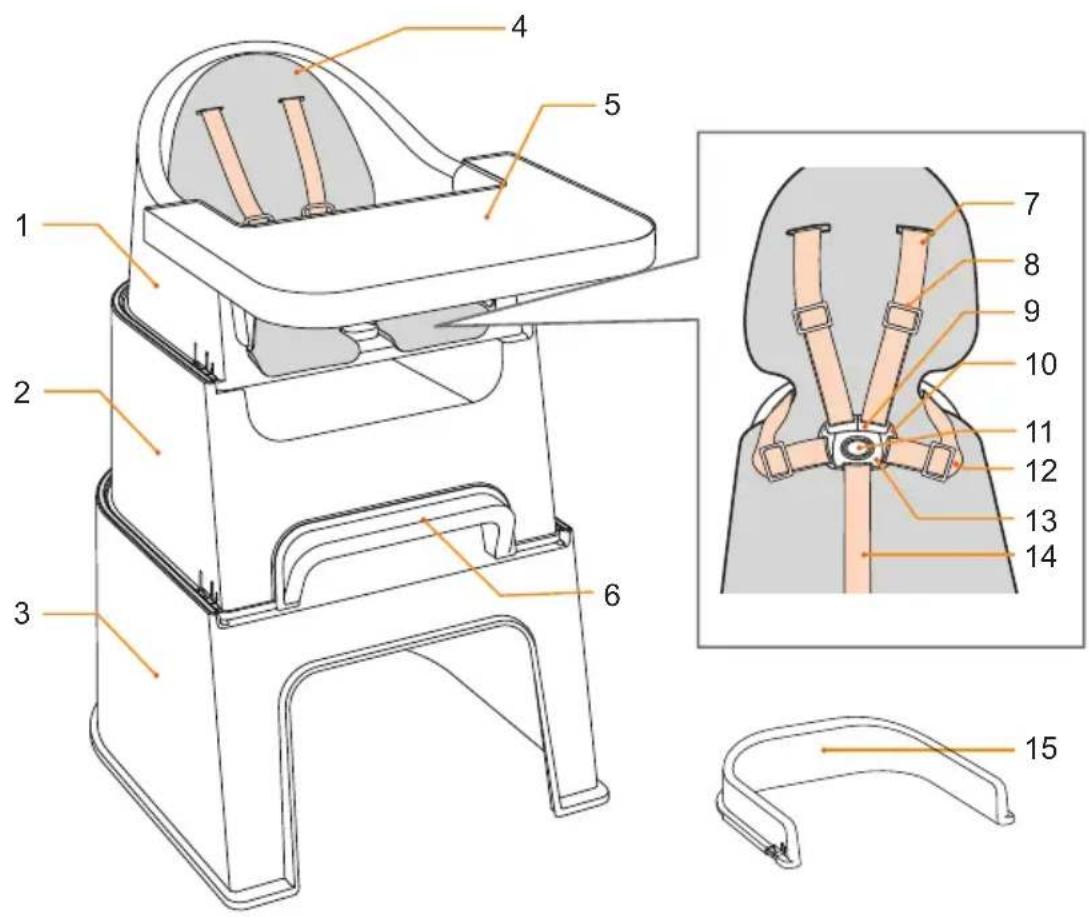

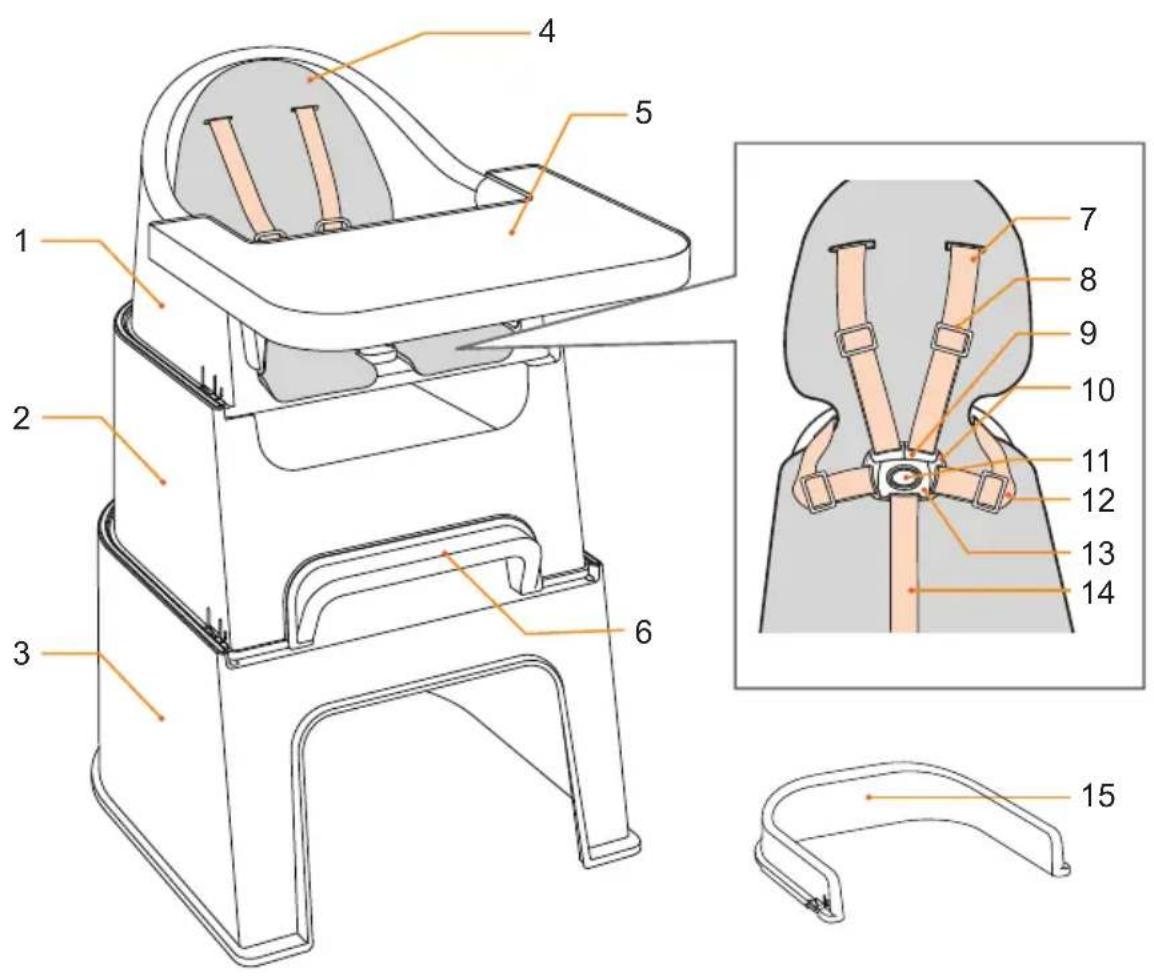

Technical diagram of a baby seat with numbered parts and exploded view, showing internal structure and component layout.

1. Seat above
2. Seat cushion
3. Shoulder strap
4. Center seat 5. Tray 8. Adjuster

5. Seat low 6. Footrest 9. Shoulder strap closure

6. Center Closure 13. Cross closure

7. Buckle 14. Crotch Strap

8. Center Buckle 15. Backrest

FOR USE

WARNING

• Please read this instruction manual carefully and use the product accordingly. Failure to follow these instructions may result in injury.
• Please keep this instruction manual for future reference.

A | Seat upper B | Deat middle C | Seat lower D | Tray E | Footrest F | Backrest

Technical line drawings of four different mechanical bracket components labeled D, E, F, and an unlabeled middle part (no text or symbols beyond labels)

Guidelines to use

This product can be used in 5 modes. Please choose suitable using mode according to your and your child's needs.

Using mode	Illustration	Weight	Age reference	Using Condition	Parts used
High chair		up to 15 kg	6~36 months	The child can sit up unaided.	A B C D E
Normal chair		up to 30 kg	36 months +	The child knows how to use a chair.	B C F
Low chair		up to 30 kg	12 months +	The child can walk unaided and possesses good coordination skill.	B F
Low chair + Table		up to 30 kg	12 months +	The child can walk unaided and possess good coordination skill.	B F + C
Stool		up to 70 kg	36 months +	The child knows how to use a chair.	C

WARNING

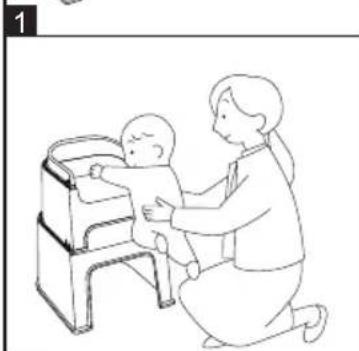

• The high chair is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15kg.
• Keep all components not in use out of the reach of children.

WARNING

• Do not use the product until the child can sit up unaided.
• Keep plastic covering away from children to avoid suffocation. Break plastic covering first.
• The assembly should be performed by adults only. Keep out of the reach of children.
• Do not use the product unless all components are correctly fitted and adjusted.

FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• Always use restraints, and adjust to fit snugly.
• The child should be secured in the high chair at all times by the restraining system.
• The tray is not designed to hold the child in the chair.

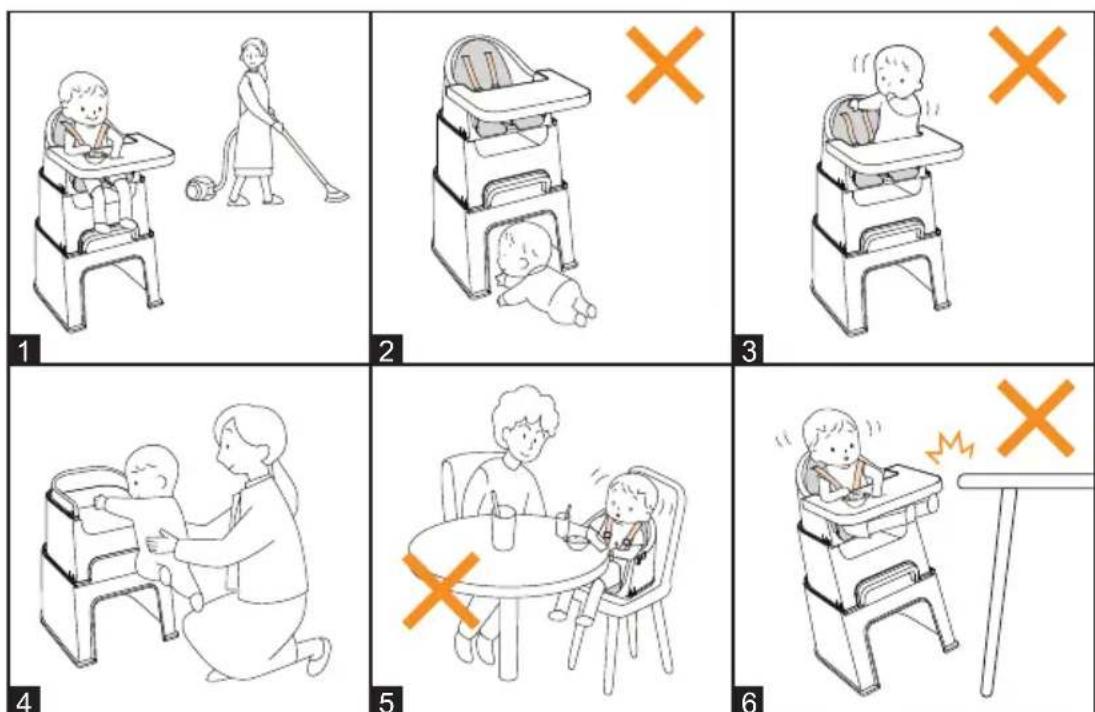

• Stay near and watch child during use. Never leave the child unattended. (Fig.1)
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• Do not use the product if any part is broken, torn or missing.

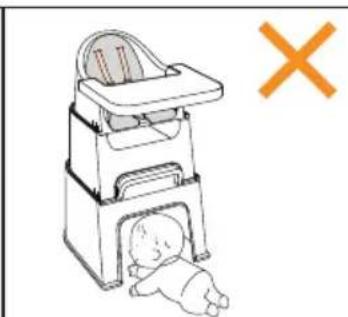

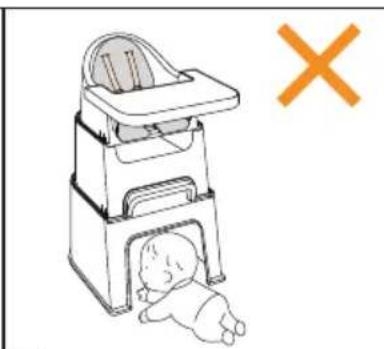

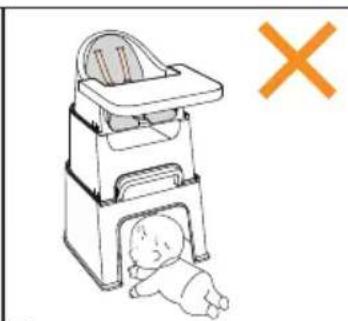

- Do not let a child play close to the high chair. Falling hazard: Prevent your child from climbing on the product. (Fig.2)

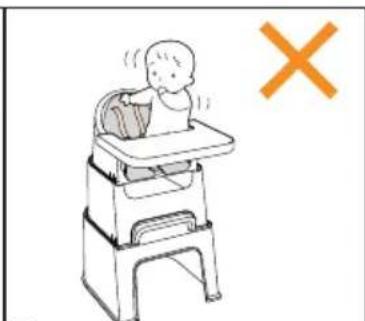

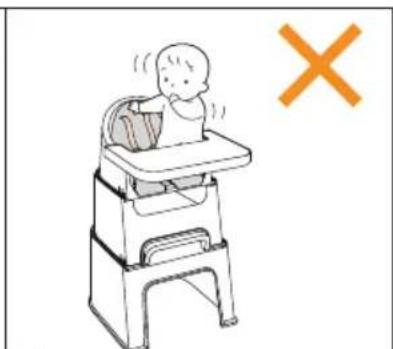

- Do not let a child stand on the high chair or tray. (Fig.3)

- Be sure to use this high chair indoors and always on a flat, stable and non-slippery surface.

- Always keep this high chair away from steps, stairs, windows and walls.

- Do not apply heavy load to the high chair or tray. It may cause the high chair to tip over.

- Do not lift or move the high chair while the child is sitting in it.

- Always help the child to get on the chair and get off the chair when used as a normal chair. (Fig.4)

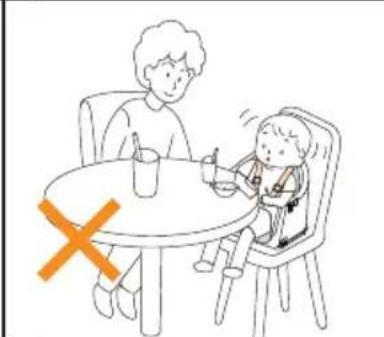

- Do not put the seat upper on a normal chair and use it as a booster seat, or it may fall off from the chair and injure the baby. (Fig.5)

- Use original parts and accessories provided by the manufacturer only. Do not make any modification to the product.

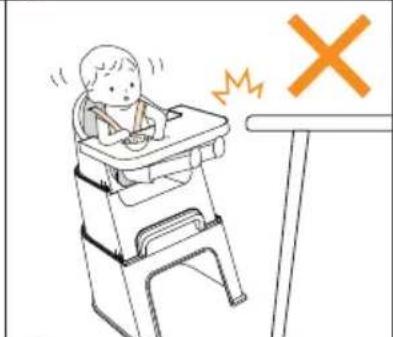

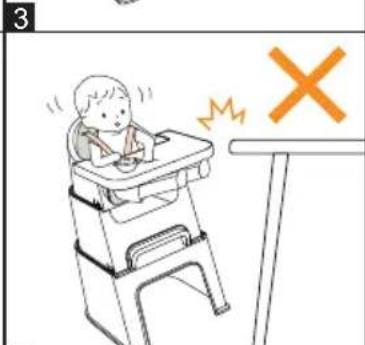

- Be aware of the risk of tilting when your child can push its feet against a table or any other structure. (Fig.6)

- Do not let another child shake and stand on the high chair while a child is seated.

ASSEMBLING QUUBY

WARNING

• Make sure that you have all the parts needed before assembling.
• The assembly should be performed by adults only.
• Keep the parts and accessories which are not required to use temporarily out of reach of the children.

Refer to the illustrations provided at the beginning of this instruction manual.

Assemble the seats / footrest

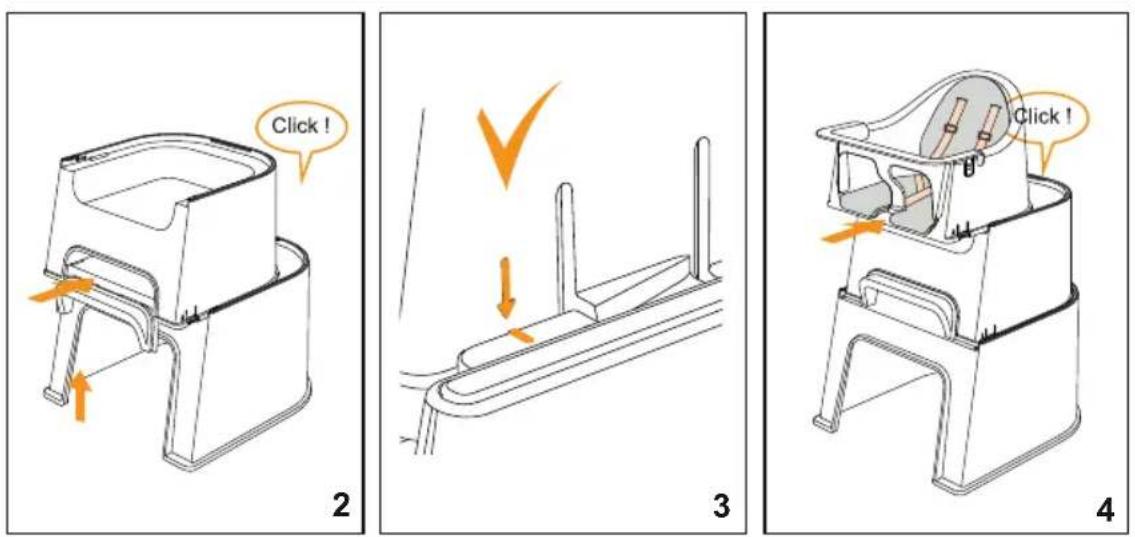

1. Slide the seat middle on top of the seat lower from the front backward, leaving a distance of a few centimeters. Make sure the protruded parts on the seat lower can't be seen. (Fig.1)
2. Slide the footrest in the seat middle from the bottom up until a "click" sound is heard, then slide the seat middle backward until a "click" sound is heard. (Fig.2)
3. Make sure the 2 checking lines on both sides of the seat middle match with the 2 checking lines on both side of the seat lower. (Fig.3)
4. Pull the seat middle back and forth to make sure it is securely fastened.
5. Slide the seat upper on top of the seat middle from the front backward until a "click" sound is heard. (Fig.4)
6. Make sure the 2 checking lines on both sides of the seat upper match with the 2 checking lines on both side of the seat middle. (Fig.3)
7. Pull the seat upper back and forth to make sure it is securely fastened.

WARNING

- If the seats can't be fastened securely, do not use. Contact the local distributor.

Attaching the tray

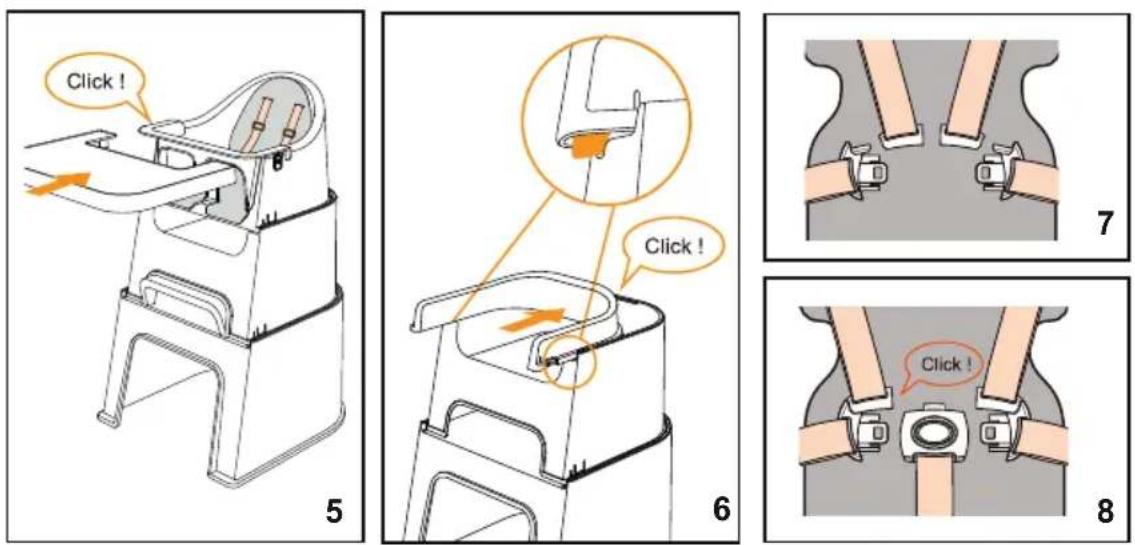

1. Slide the tray over the safety bar from the front backward until a "click" sound is heard. (Fig.5)
2. Pull the tray back and forth to make sure it is securely fastened.

WARNING

- Please be careful when you assemble the tray with a child seated in the chair. The child's fingers may be pinched by the moving tray and the safety bar.

The above assembly method is based on high chair mode. When the product is used in other modes, please also refer to this method. Please refer to below to assemble the backrest.

Assemble the backrest to the seat middle

1. Slide the backrest on top of the seat middle from the front, let protruded part of the backrest match with the groove in the seat middle, push backward until a "click" sound is heard. (Fig. 6)
2. Make sure the 2 checking lines on both sides of the backrest match with the 2 checking lines on both side of the seat middle. (Fig.3)
3. Pull the backrest back and forth to make sure it is securely fastened.

Assemble the seat cushion (The seat cushion has been installed on the product already.)

1. Release the seat belt.
2. Put the seat cushion onto the seat.
3. The shoulder belt pass through the shoulder belt outlet on the seat cushion from backside to front.

USE CHILD CHAIRv

Use the seat belt Adjust the seat belt

WARNING

The child should be secured in the high chair at all times by the restraining system.

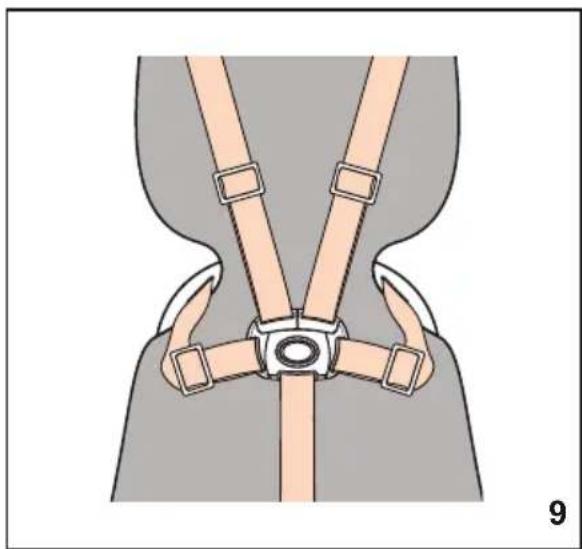

1. Assemble the left and right shoulder belt buckles to the left and right waist belt buckles. (Fig.7)

2. Fasten the left and right waist belt buckles into the crotch belt buckle until a "click" sound is heard. (Fig.8)

3. Adjust the ladder to adjust the fitness of the seat belt. Be sure to secure the seat belt and let the seat belt fit the child snugly. (Fig.9)

Release the seat belt

1. Press on the buckle button to release the waist belt buckles.

DISASSEMBLE QUUBY

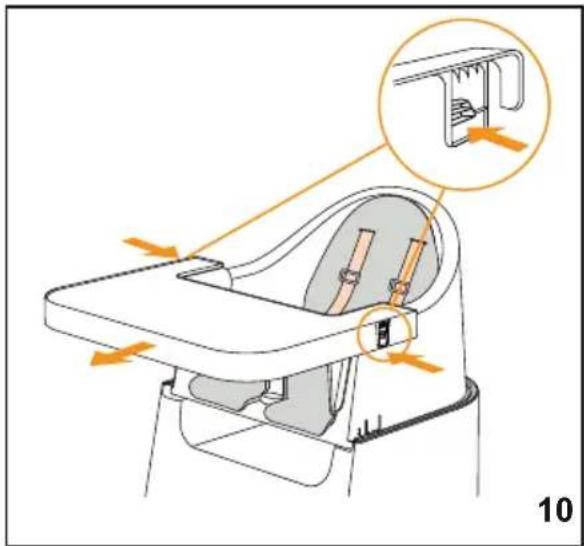

Detaching the tray

1. While press the two hooks on both sides of the safety bar inward, push the tray forward for a few centimeters. (Fig.10)
2. Hold the tray from front side and pull it forward to release it from the safety bar.

Removing the seat upper

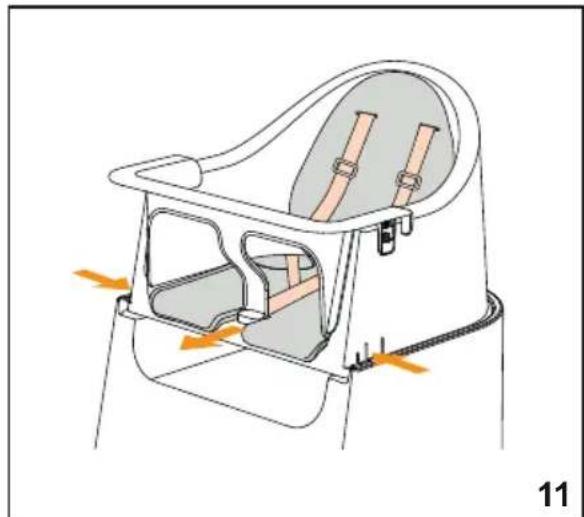

1. While press the two hooks on both sides of the seat upper inward, pull it forward to release it from the seat middle. (Fig.11)

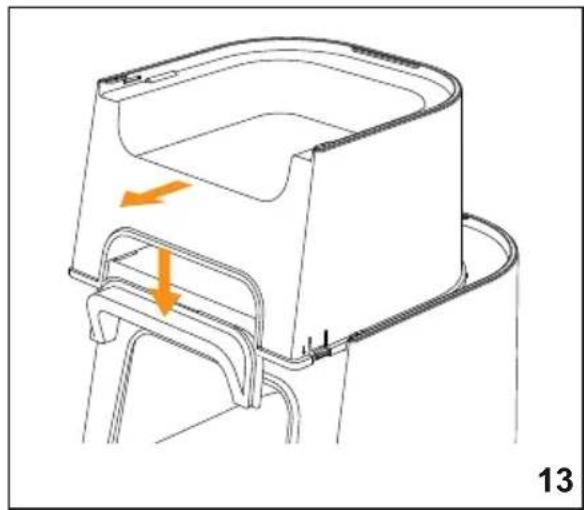

Removing the footrest and the seat middle

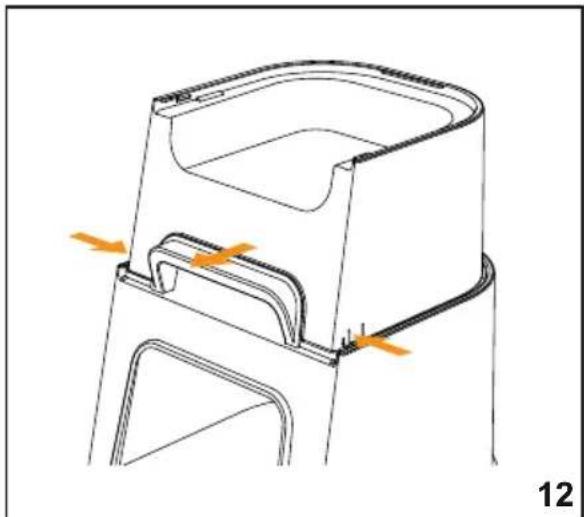

1. While press the two hooks on both sides of the seat middle inward, pull it forward for a few centimeters. (Fig. 12)
2. Press the foot rest down from center surface and release it from the seat middle. (Fig.13)
3. Pull out the seat middle completely from the seat lower.

The above disassembly method is based on high chair mode.

Removing the backrest

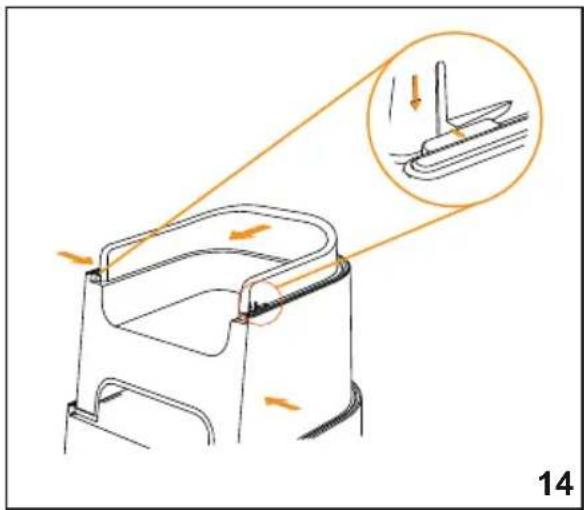

1. While press the hook on one side of the backrest inward hard, pull it forward for unlock. (Fig. 14)
2. Repeat above process for another side.
3. Hold both sides of the backrest, pull it out.

Removing the seat cushion

1. Release the seat belt.
2. Take off the shoulder belt from the seat cushion.
3. Remove the seat cushion.

Storage

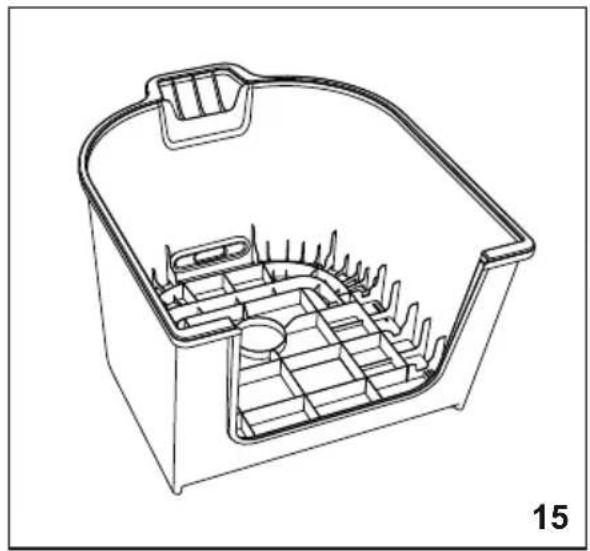

1. Put the seat lower downwards on the floor. (Fig.15)

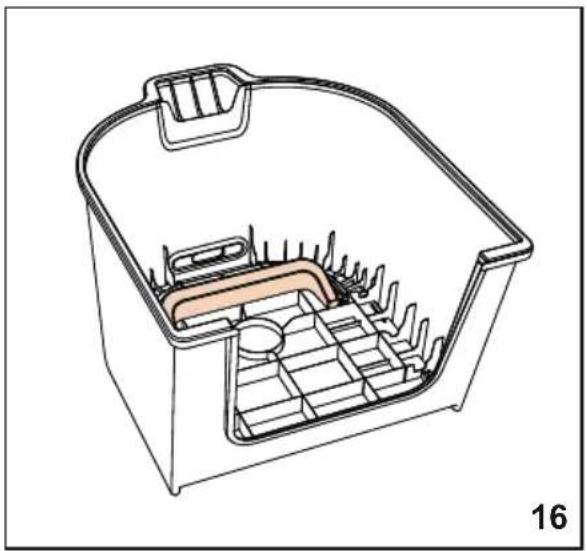

2. Put the footrest into the seat lower. (Fig. 16)

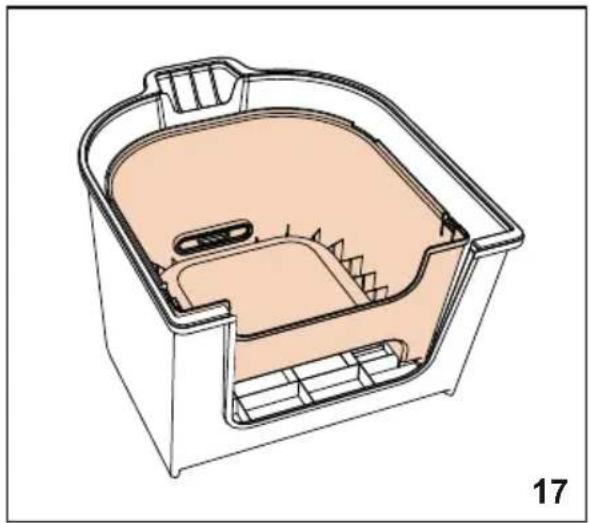

3. Put the seat middle into the seat lower. (Fig. 17)

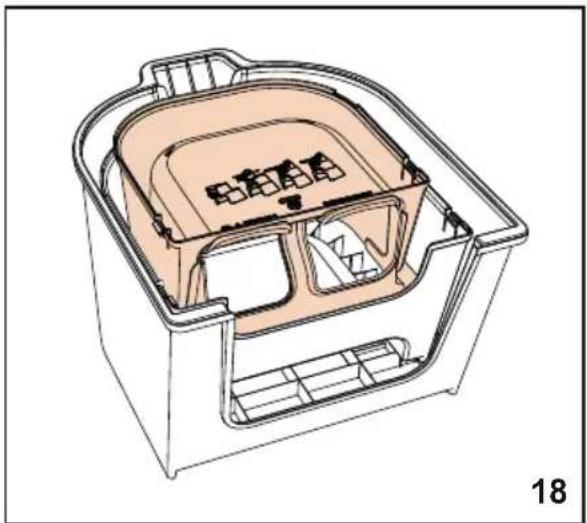

4. Put the seat upper into the seat middle. (Fig. 18)

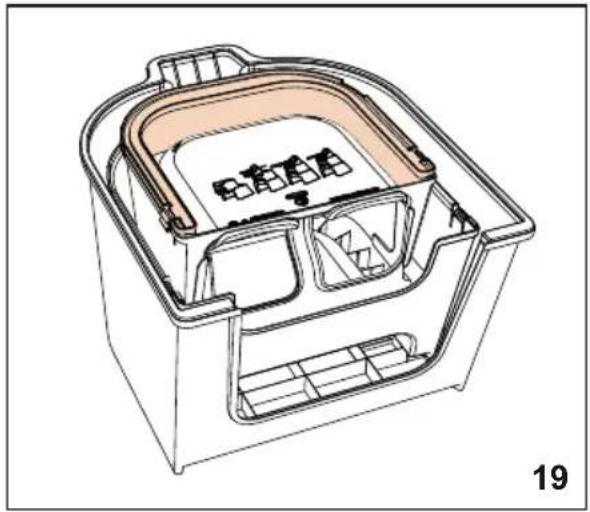

5. Put the backrest into the seat upper. (Fig. 19)
6. Put the tray into the front side of the seat lower. (Fig.20)

CAUTION

- Keep the disassembled product out of children's reach. - Please keep all disassembled parts and accessories into the seat lower for compact storage.

MAINTENANCE

Clean the high chair and accessories with a damp cloth. For stubborn stains, clean with diluted neutral detergent.

PRODUCT INFORMATION

Material

Body: Polypropylene, Rubber

Seat cushion: PU, PU fibre, PE

Size: 480×675×855mm

KOMPONENTEN

Technical diagram of a baby seat with numbered parts and exploded view, showing internal structure and component layout.

Three types of metal bracket components labeled D, E, and F (no text or symbols beyond labels)

Illustration of a child in a high chair and a woman sweeping the floor (no text or symbols)

Illustration of a baby being placed inside a high chair with an orange X symbol (no text or symbols on the diagram itself)

Illustration of a baby sitting in a high chair with a 'X' symbol (no text or labels)

Line drawing of a woman kneeling beside a baby on a babyplate (no text or symbols)

2

3 X

MONTAGE QUUBY

⚠️ WARNING

Technical diagram of a baby seat with numbered parts and exploded view, showing internal structure and component layout.

Three types of U-shaped metal clips labeled D, F, and E (no text or symbols on the clips themselves)

Illustration of a child in a high chair and a woman sweeping the floor (no text or symbols)

Illustration of a baby in a low chair with an open door, accompanied by an orange 'X' symbol (no text or labels)

Illustration of a baby sitting in a high chair with a cross symbol (no text or labels)

Line drawing of a woman kneeling beside a baby on a babyplate (no text or symbols)

2

3 ×

ASSEMBLAGE QUUBY

WARNING

The child should be secured in the high chair at all times by the restraining system.
