USER MANUAL Air Buggy Deryan

Line drawing of a stroller with canopy and wheels (no text or symbols)

IMPORTANT FOR FUTURE REFERENCE.

Read the following instructions carefully before use.

IMPORTANT ! À CONSERVER POUR TOUTE RÉFÉRENCE ULTÉRIEURE.

• Failure to follow these instructions could result in serious injury.
  • Make sure all latches are locked before use.
• Avoid serious injury from falling or slipping.
• Always use the restraint system and ensure that children are placed according to these instructions.
• Make sure the stroller is fully opened, locked securely in place and the wheel brakes are engaged before children approach the stroller.
• The parking device must always be switched on when loading and unloading children.
• The maximum weight of a child for which the product is designed is 22 kg per seat.
• Never use this pushchair to transport more than 1 child at the same time.
  • Never leave your child unattended.
  • This product complies with EN 1888-2:2018 + A1:2022

MAINTENANCE

• To ensure the safety of your baby, please check the maintenance regularly and maintain it properly.
• Use a brush to clean the covers, use neutral detergent or the best natural soap powder to clean.
• Regularly check the product for loss of parts, broken parts or wire wear. Replace damaged parts if necessary.
• Operate or disassemble the pushchair according to the instructions for use.

WAARSCHUWINGEN

Line drawing of a car seat with three wheel rim components and a separate inset showing the same wheel rim (no text or symbols)

1. Frame
2. Front wheels 2x
3. Rear wheels 2x
4. Bumper bar

INSTALLATION

Line drawings of two different backpacks with hands adjusting straps (no text or symbols)

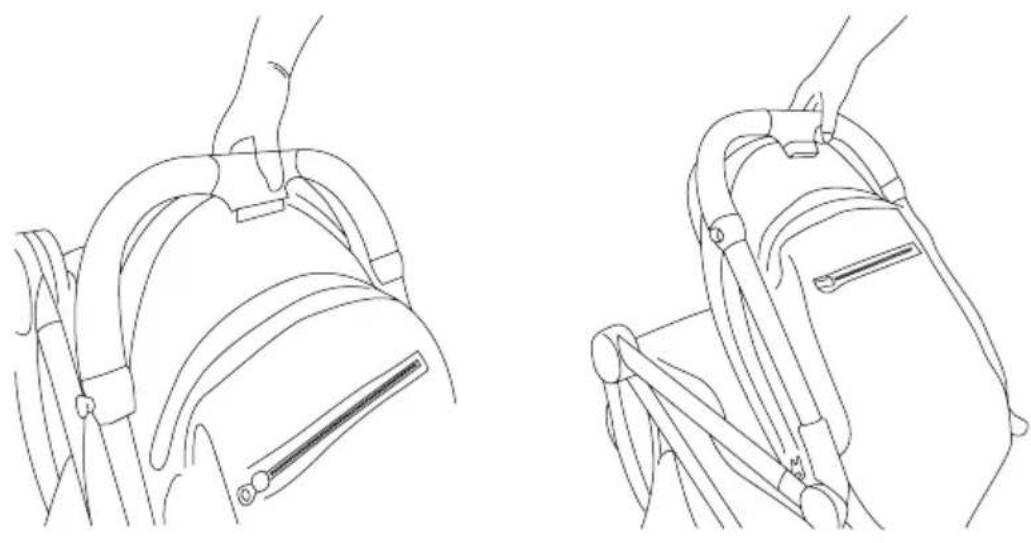

Unfolding the stroller

Take the frame out of the box, unlock the folding lock. Lift the handlebars until the tube clicks into place.

Illustration of hands using a tool to adjust or install a circular component, with an arrow indicating direction (no text or symbols present)

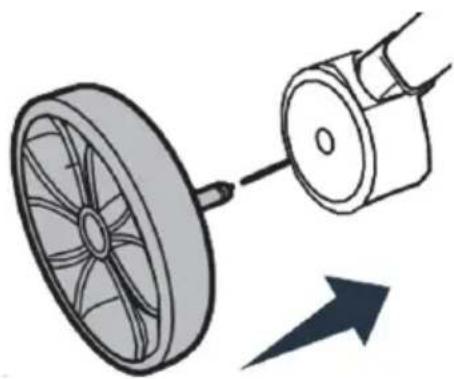

Installing the front wheel

Slide one front wheel into the front wheel housing until it clicks into place. Repeat for the other two wheels. Pull on the wheels to ensure they are installed properly.

Diagram showing a wheel being inserted into a motor, with an arrow indicating direction (no text or symbols)

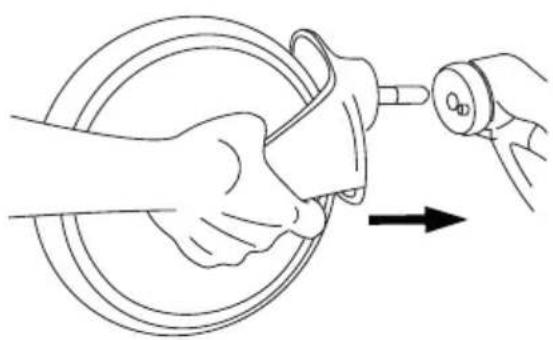

Installing the rear wheel

Slide the rear wheel into the rear wheel housing until it clicks into place. Pull the wheels to ensure they are correctly are installed.

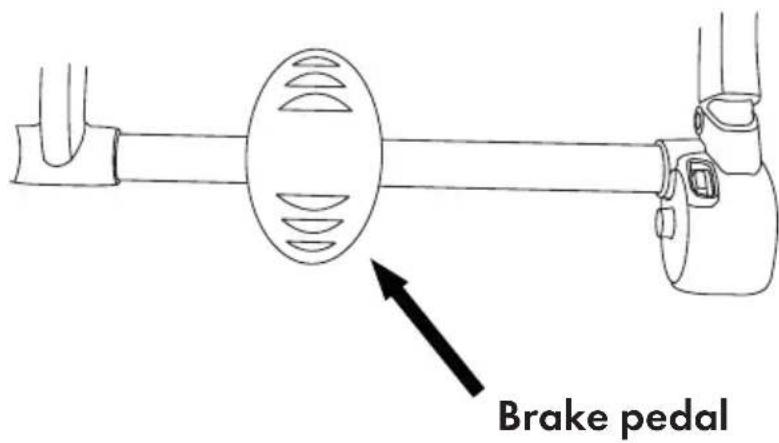

Brake pedal

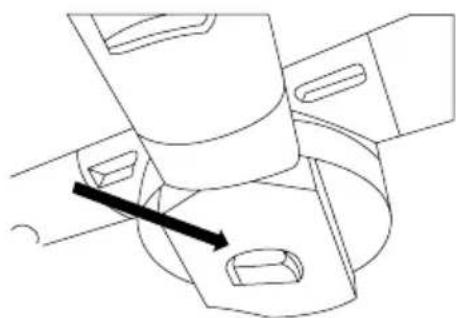

Rear wheel brakes

To engage, push down on the brake lever. To release push down on the back of the brake leaver.

Release button

Pure mechanical diagram showing a rotating component with a directional arrow, no text or symbols present

Installing the bumper bar

Click the bumper bar into the plastic housing and make sure it is locked in place. Press the release button to unlock the bumper bar.

Adjust button

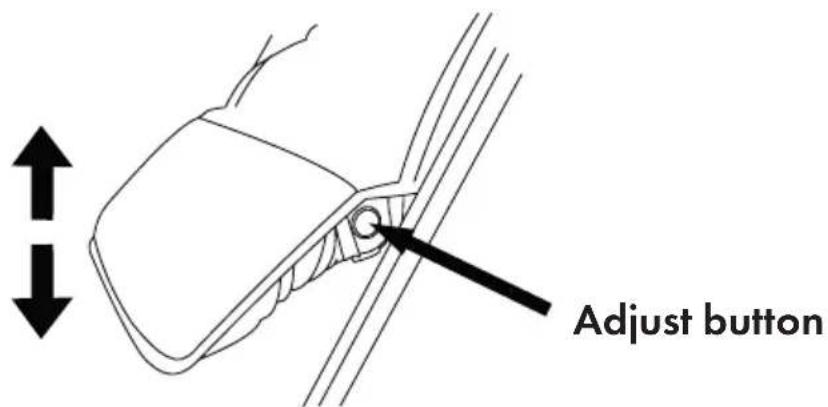

Adjusting the footrest

To adjust the footrest, press the two buttons on both sides and place the footrest in the desired position.

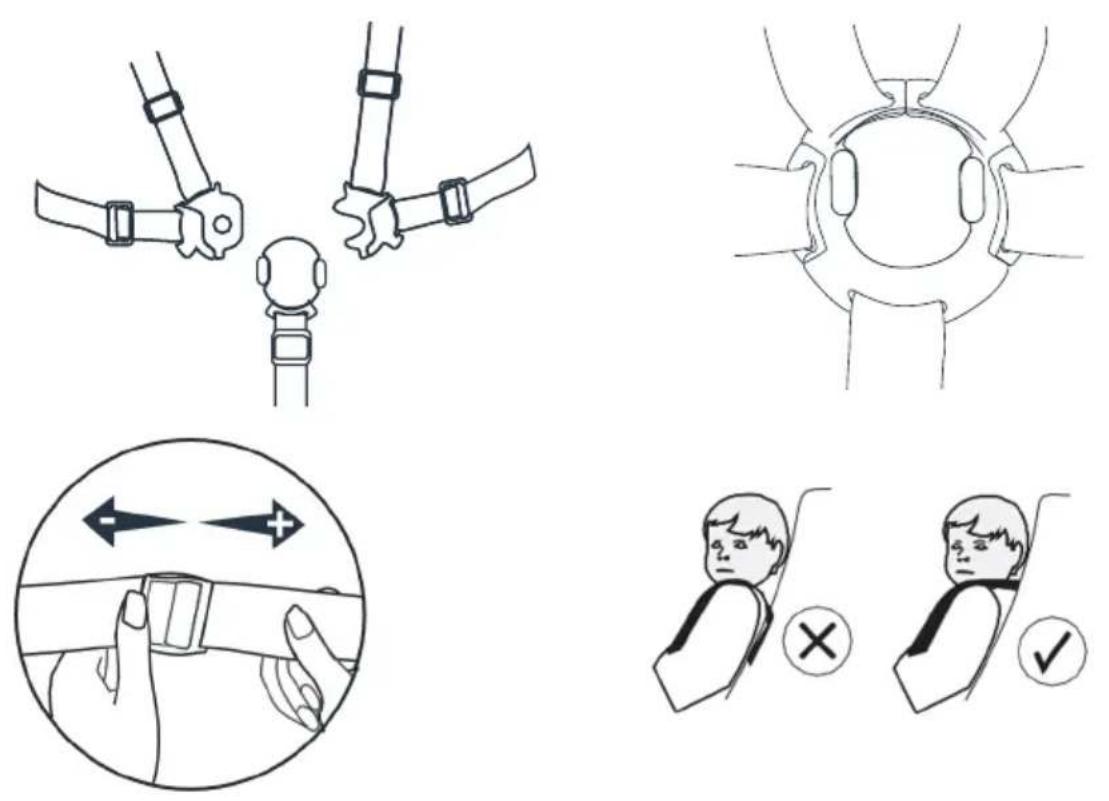

Harness

There are three height adjustment positions for the shoulder harness. Adjust the height to the closest height above your child's shoulders.

To remove the shoulder harness, at the rear of the seat turn the plastic ends sideways and push them through the slots in the seatback. Re-attach the harness at the proper height by reinserting the plastic ends through the slots. Ensure both straps are the same height.

Carefully place the child in the seat with the shoulder straps over their shoulders and chest. Then place the crotch strap between the childs legs.

To unlatch the buckle, press the buttons on both sides and remove the male ends of each side.

Combine the shoulder/waist buckles together, then place the crotch buckle on top of the combined buckles until all parts are in place.

Warning! Always use the crotch strap in combination with the waist belt.

Warning! Avoid serious injury from falling or sliding out. Always use the restraint system.

Technical diagram showing three steps of a stroller with hand positioning and adjustment arrows, including zoomed-in detail.

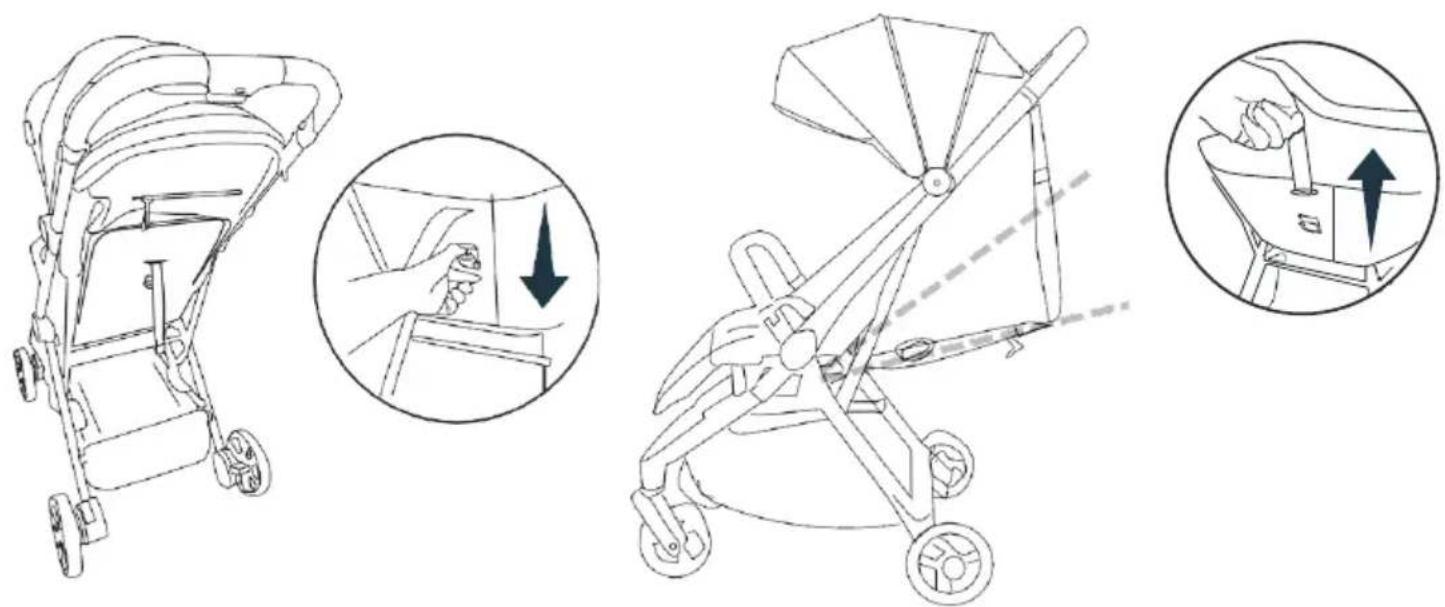

Adjusting the seat

Grab it with one hand tilting mechanism and with the other hand the plastic D-ring on the Belt. Squeeze the reclining mechanism and push or pull to the desired position.

Line drawings of two mechanical device configurations with arrows indicating rotation (no text or symbols)

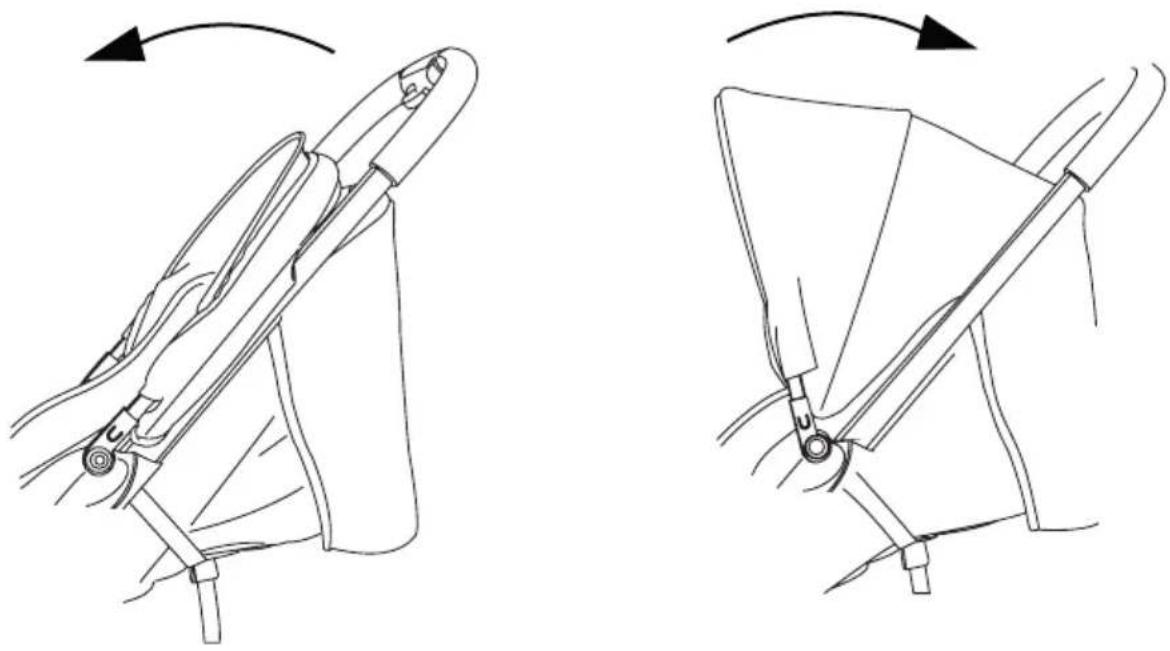

Canopy

Pull the hood forward to stretch out. Push back to fold.

Diagram illustrating a mechanical device with two labeled parts and an arrow indicating rotation or assembly.

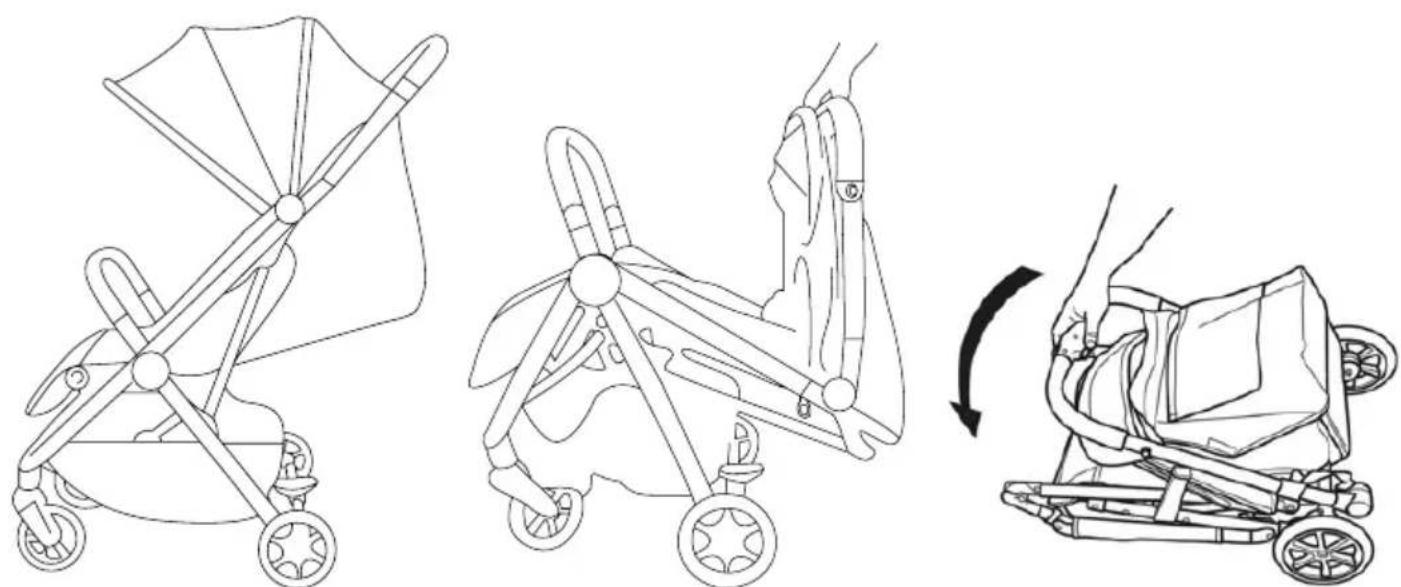

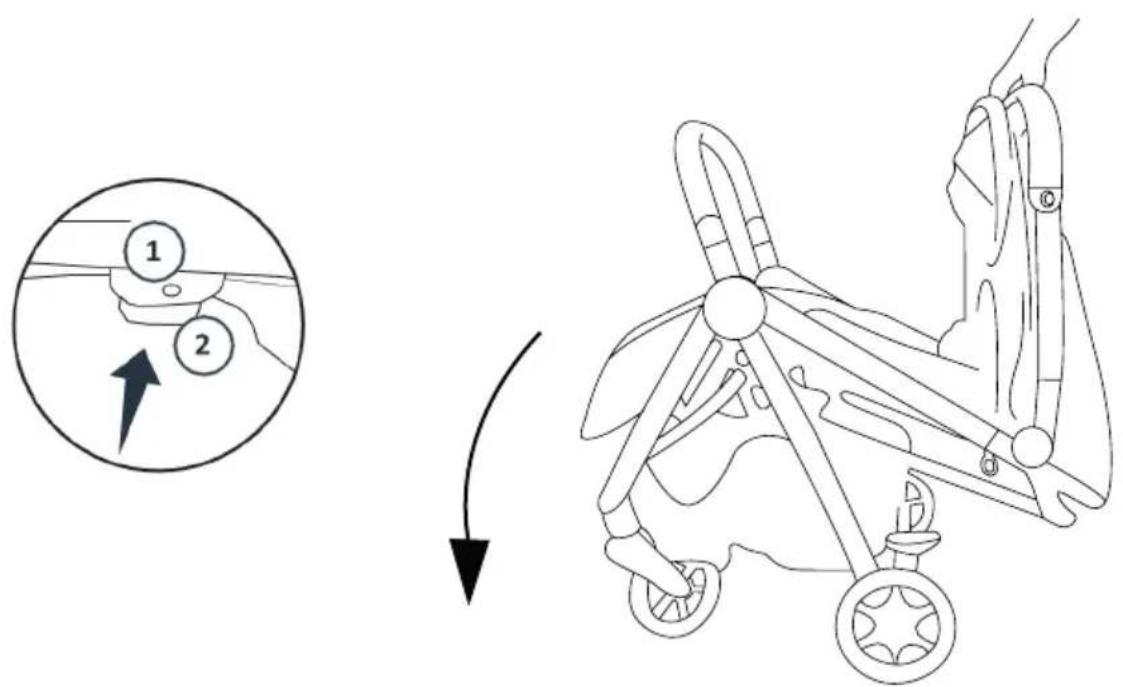

Folding the stroller

Hold the handle and press the second lock button 1 while pressing button 2 at the same time. Push the handle forward and slowly guide it towards the rear wheel.

GATE CHECK BAG

Line drawings of a stroller with three different views and a hand holding a cart, showing motion changes (no text or symbols)

Step 1

Fold the stroller.

Line drawing of a backpack with a black 'GATE' patch and a skull icon on the front (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a human seatbelt device (no text or symbols)

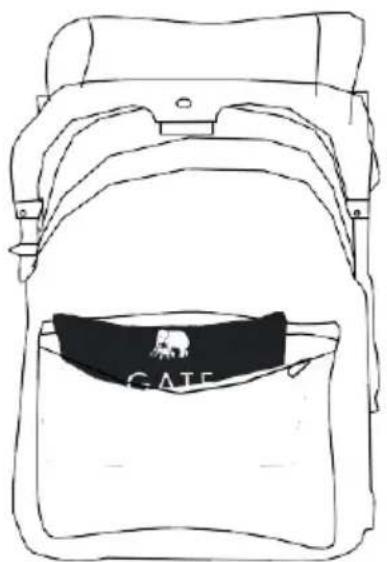

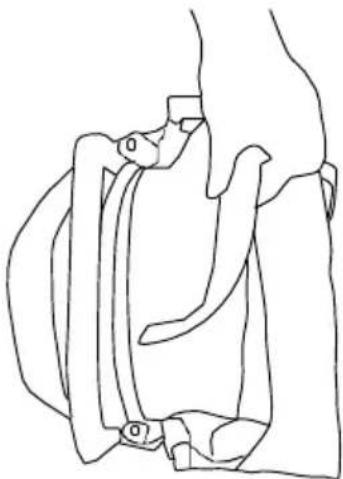

Step 2

Take the gate check bag and unfold it.

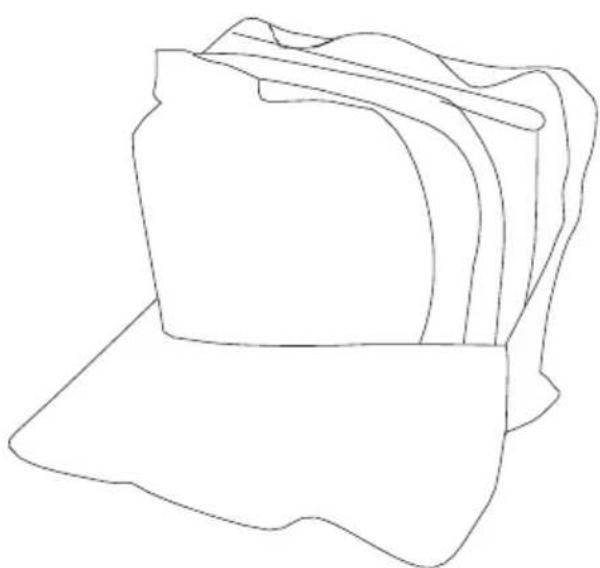

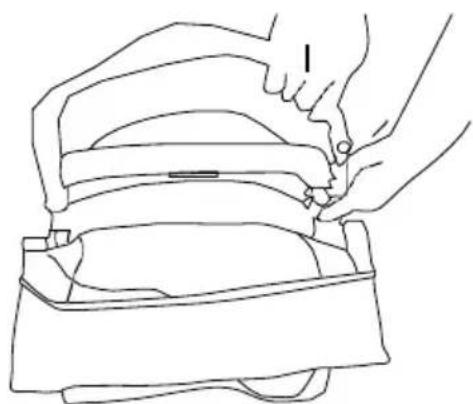

Step 3

Take off the bumper bar and put it in the bag.

Line drawing of a folded paper or document with no text or symbols

Simple line drawing of a closed book or notebook with a bookmark (no text or symbols)

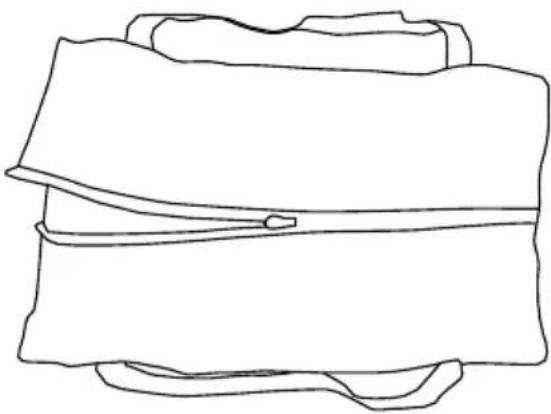

Step 4

Make sure the stroller fits nicely in the bag. Close the zipper.
