USER MANUAL HS5180 Campbell Hausfeld

Operating Instructions HS5180

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

CAMPBELL HAUSFELD®

Air Compressors

Description

Air compressor units are intended to provide compressed air to power pneumatic tools, operate spray guns and supply air for pneumatic valves and actuators. The pumps supplied with these units have oil lubricated bearings. A small amount of oil carryover is present in the compressed air stream. Applications requiring air free of oil vapor should have the appropriate filter installed. The air compressor units are to be mounted per the instructions provided on a solid floor. Any other use of these units will void the warranty and the manufacturer will not be responsible for problems or damages resulting from such misuse. Refer to the enclosed Replacement Parts Manual to identify compressor as single stage or two-stage.

Safety Guidelines

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

DANGER

Danger an imminently

hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING

Warning a potentially

hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION

Caution a potentially

hazardous situation which, if not avoided, MAY result in minor or moderate injury.

NOTICE

Notice important

information, that if not followed, may cause damage to equipment.

Unpacking

When unpacking unit, inspect carefully for any damage that may have occurred during transit. Make sure any loose fittings, bolts, etc., are tightened before putting unit into service. In case of questions, damaged or missing parts, please call 1-800-543-6400 for customer assistance. Have the serial number, model number, and parts list (with missing parts circled) before calling.

DO NOT RETURN THE PRODUCT TO THE RETAILER!

Do not operate WARNING

unit if damaged

during shipping, handling or use. Damage may result in bursting and cause injury or property damage.

READ & FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS DO NOT DISCARD

General Safety

CALIFORNIA PROPOSITION 65

This product or its WARNING

power cord may

contain chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

WARNING indicates

You

dust when you cut, sand, drill or grind materials such as wood, paint,

metal, concrete, cement, or other masinolica this dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm. Wear protective gear.

indicates

DANGER

Breathable Air Warning

This compressor/pump is NOT equipped and should NOT be used "as is" to supply breathing quality air. For any application of air for human consumption, you must fit the air compressor/pump with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Association Commodity Specification G 7.1, OSHA 29 CFR 1910. 134, and/or Canadian Standards Associations (CSA).

DISCLAIMER OF WARRANTIES In the event the compressor is used for the purpose of breathing air application and proper in-line safety and alarm equipment is not simultaneously used, existing warranties are void, and the manufacturer disclaims any liability whatsoever for any loss, personal injury or damage.

Record the Model No., Serial No. and date of purchase in the space below.

Model No. ____

Serial No. ____

Date of purchase ____

Retain these numbers for future reference.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

General Safety (Continued)

Since the air compressor and other components (material pump, spray guns, filters, lubricators, hoses, etc.) used make up a high pressure pumping system, the following safety precautions must be observed at all times:

1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipment.
2. Follow all local electrical and safety codes as well as the United States National Electrical Codes (NEC) and Occupational Safety and Health Act (OSHA).
3. Only persons well acquainted with these rules of safe operation should be allowed to use the compressor.
4. Keep visitors away and NEVER allow children in the work area.
5. Wear safety glasses and use hearing protection when operating the unit.
6. Do not stand on or use the unit as a handhold.
7. Before each use, inspect compressed air system and electrical components for signs of damage, deterioration, weakness or leakage. Repair or replace defective items before using.
8. Check all fasteners at frequent intervals for proper tightness.

WARNING

Motors, electrical equipment and controls can cause electrical arcs that will ignite a flammable gas or vapor. Never operate or repair in or near a flammable gas or vapor. Never store flammable liquids or gases in the vicinity of the compressor.

WARNING

Never operate

compressor without a beltguard. This unit can start automatically without warning. Personal injury or property damage could occur from contact with moving parts.

1. Do not wear loose clothing or jewelry that will get caught in the moving parts of the unit.

CAUTION

Compressor parts may be hot even if the unit is stopped.

1. Keep fingers away from a running compressor; fast moving and hot parts will cause injury and/or burns.
2. If the equipment should start to vibrate abnormally, STOP the engine/motor and check immediately for the cause. Vibration is generally an indication of trouble.
3. To reduce fire hazard, keep engine/motor exterior free of oil, solvent, or excessive grease.

An ASME code WARNING

safety relief valve

with a setting no higher than 200 psi for two-stage compressors or 150 psi for single stage compressors MUST be installed in the air lines or in the tank for this compressor. The ASME safety valve must have sufficient flow and pressure ratings to protect the pressurized components from bursting. The flow rating can be found in the parts manual. The maximum safe pressure rating for the pump is 200 psi (two-stage) or 150 psi (single stage). The safety valve in the intercooler does not provide system protection.

CAUTION

Maximum operating

pressure is 175 psi for two-stage compressors and 135 psi for single stage compressors. Do not operate with pressure switch or pilot valves set higher than 175 psi (two-stage) or 135 psi (single stage).

1. Never attempt to adjust ASME safety valve. Keep safety valve free from paint and other accumulations.

DANGER

Never

attempt to repair or modify a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from rupture or explosion. Always replace worn, cracked or damaged tanks.

1. Tanks rust from moisture build-up, which weakens the tank. Make sure to drain tank regularly and inspect periodically for unsafe conditions such as rust formation and corrosion.

Drain liquid from NOTICE

tank daily.

1. Fast moving air will stir up dust and debris which may be harmful. Release air slowly when draining moisture or depressurizing the compressor system.

SPRAYING PRECAUTIONS

WARNING

Do spray

flammable materials in vicinity of open flame or near ignition sources including the compressor unit.

1. Do not smoke when spraying paint, insecticides, or other flammable substances.
2. Use a face mask / respirator when spraying and spray in a well ventilated area to prevent health and fire hazards.
3. Do not direct paint or other sprayed material at the compressor. Locate compressor as far away from the spraying area as possible to minimize overspray accumulation on the compressor.
4. When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer.

The DANGER, WARNING, CAUTION, and NOTICE notifications and instructions in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that caution is a factor which cannot be built into this product, but must be supplied by the operator.

Installation

WARNING

Disconnect, tag and lock out power source then release all pressure from the system before attempt install, service, relocate any maintenance.

Do not lift or CAUTION

move unit without

appropriately rated equipment. Be sure the unit is securely attached to lifting device used. Do not lift unit by holding onto tubes or coolers. Do not use unit to lift other attached equipment.

Never use the CAUTION

wood shipping

skids for mounting the compressor.

Install and operate unit at least 24 inches from any obstructions in a clean, well ventilated area. The surrounding air temperature should not exceed 100°F. This will ensure an unobstructed flow of air to cool compressor and allow adequate space for maintenance.

Do not locate the CAUTION

compressor air

inlet near steam, paint spray, sandblast areas or any other source of contamination.

NOTE: If compressor operates in a hot, moist environment, supply compressor pump with clean, dry outside air. Supply air should be piped in from external sources.

TANK MOUNTING

The tank should be bolted into a flat, even, concrete floor or on a separate concrete foundation. Vibration isolators should be used between the tank leg and the floor. Model MP367700AJ isolator pads are recommended for horizontal units. Model MP345700AJ isolator pads are recommended for vertical units. When using isolator pads, do not draw bolts tight. Allow the pads to absorb vibrations. When isolators are used, a flexible hose or coupling should be installed between the tank and service piping.

WARNING

Failure to properly install the tank can lead to cracks at the welded joints and possible bursting.

PIPING

Never use plastic WARNING

(PVC) pipe for

compressed air. Serious injury or death could result.

Any tube, pipe or hose connected to the unit must be able to withstand the temperature generated and retain the pressure. All pressurized components of the air system must have a pressure rating higher than or equal to the 200 psi for two-stage compressors or 150 psi for single stage compressors ASME safety valve setting. Incorrect selection and installation of any tube, pipe or hose could result in bursting and injury. Connect piping system to tank using the same size fitting as the discharge port.

Chart 1: Minimum Pipe Size for Compressed Air Line (in inches)

	Length Of Piping System (in feet)
CFM 25 50 100 250
10 1/2	1/2 3/4	3/4
20 3/4	3/4 3/4	1
40 3/4	1 1 1
60 3/4	1 1 1
100 1	1 1-1/4

INSTALLING A SHUT-OFF VALVE

A shut-off valve should be installed on the discharge port of the tank to control the air flow out of the tank. The valve should be located between the tank and the piping system.

Never install a WARNING

shut-off valve

between the compressor pump and the tank. Personal injury and/or equipment damage may occur. Never use reducers in discharge piping.

When creating a permanently installed system to distribute compressed air, find the total length of the system and select pipe size from the chart. Bury underground lines below the frost line and avoid pockets where condensation can gather and freeze.

Apply air pressure to the piping installation and make sure all joints are free from leaks BEFORE underground lines are covered. Before putting the compressor into service, find and repair all leaks in the piping, fittings and connections.

WIRING

WARNING

All wiring and electrical

connections must be performed by a qualified electrician. Installations must be in accordance with local and national codes.

CAUTION

Overheating, short circuiting and fire t from inadequate

Wiring must be installed in accordance with National Electrical Code and local codes and standards that have been set up covering electrical apparatus and wiring. These should be consulted and local ordinances observed. Be certain that adequate wire sizes are used, and that:

1. Service is of adequate ampere rating.
2. The supply line has the same electrical characteristics (voltage, cycles and phase) as the motor.

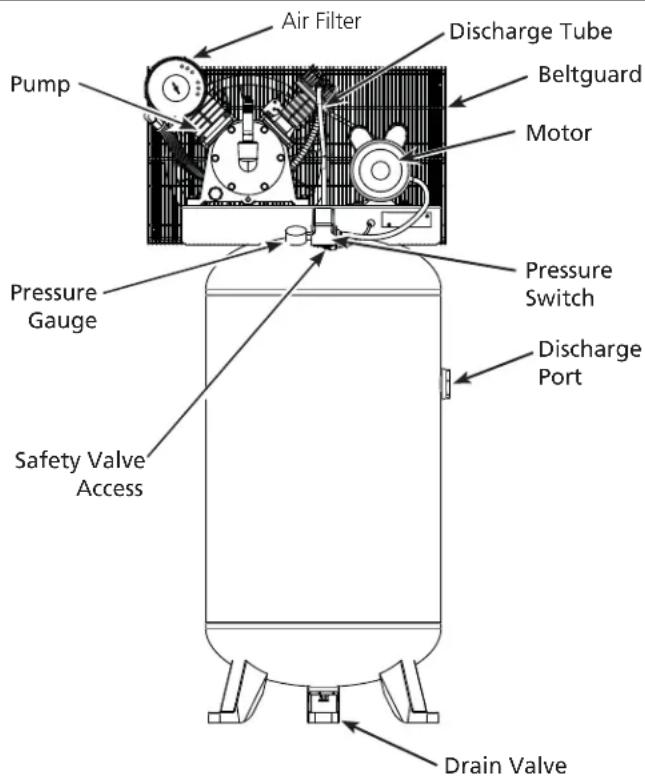

Air Filter Discharge Tube Beltguard Motor Pump Pressure Gauge Pressure Switch Discharge Port Safety Valve Access Drain Valve

Figure 1 - Vertical Unit Identification

Installation (Continued)

1. The line wire is the proper size and that no other equipment is operated from the same line. The chart gives minimum recommended wire sizes for compressor installations.

Chart 2: Minimum Wire Size Use 75°C Copper Wire

HP Amps 230		Single PhaseV	Three Phase
			208/230 V	460/575 V
SPL	Up to 22.0	10 AWG
5.0		8 AWG	12 AWG	14 AWG
7.5		8 AWG	10 AWG	12 AWG
10.0			8 AWG	12 AWG
15.0			6 AWG	10 AWG
25.0			3 AWG	8 AWG

Recommended wire sizes may be larger than the minimum set up by local ordinances. If so, the larger size wire should be used to prevent excessive line voltage drop. The additional wire cost is very small compared with the cost of repairing or replacing a motor electrically "starved" by the use of supply wires which are too small.

GROUNDING

DANGER

Improperly grounded electrical components are shock hazards. Make sure all the components are properly grounded to prevent death or serious injury.

This product must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electric current if short circuit occurs. This product must be installed and operated with a power cord or cable that has a grounding wire.

MOTOR HOOKUP

Branch circuit protection must be provided as specified in the United States National Electrical Code, Chapter 2, "Wiring Design and Protection." Article 210, using the applicable article

"For Motors and Motor Controllers," (Article 430, Table 430-1 52).

IMPORTANT: Overload protection is required for all motors. Certain motors have this protection built-in. To determine if a motor has built-in overload protection, refer to the frame size on the motor nameplate.

Motors with frame size R56HZ, Y56Y or L143T include built-in overload protection. No additional protection is required. Use Figure 2 wiring diagram.

DIRECTION OF ROTATION

NOTE: Improper rotation will result in reduced unit life.

The direction of rotation must be counterclockwise (as shown by the arrow on the flywheel) while facing the flywheel side of the pump. The motor nameplate will show wiring information for counterclockwise rotation.

Operation

IMPORTANT: Check motor rotation before operating the compressor.

All lubricated compressor pumps discharge some condensed water and oil with the compressed air. Install appropriate water/oil removal equipment and controls as necessary for the intended application.

Single Phase / Three Phase Wiring Diagram

LINE MOTOR L1 - → - L2 240V - MotorM PRESSURE SWITCH GROUND

Figure 2 - For Motor Frame Sizes R56HZ, Y56Y or L143T. Refer to Motor Nameplate

Failure to install NOTICE

appropriate

water / oil removal equipment may result in damage to machinery or workpiece.

GUARDING

DANGER

The belt

guard provided must be installed before operating the unit.

All moving parts must be guarded. All electrical covers must be installed before turning on the power.

LUBRICATION

CAUTION

THIS CONTAINS NO OIL.

Before operating compressor, fill crankcase with compressor oil according to the oil capacity chart.

Some residual oil may still be in the pump leaving a thin coat on the sight glass, however; there is not enough oil to operate the unit. Fill pump with single-viscosity, ISO100, non-detergent, compressor oil. Use part number ST126700AV, compressor oil or Mobil 1® 5W30 or 10W30 synthetic oil may also be used. Add oil only through the oil fill plug. Do NOT fill the pump through breather cap opening as this may cause to leak or spray out during operation. Fill to the center of the sight gauge (see Figure 3).

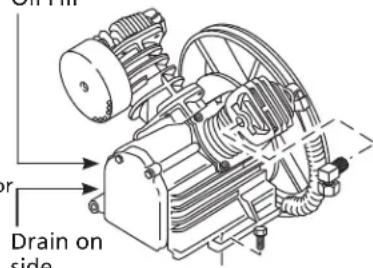

Dipstick and Oil Fill

On Air Drain on side

Figure 3 - Oil Fill Diagrams

Using any other CAUYION

type of oil may

shorten pump life and damage valves.

Operation (Continued)

The compressor should be run continuously for one hour to allow proper seating of the piston rings.

1. Open drain valve completely and run the compressor for 60 minutes (See Figure 4).

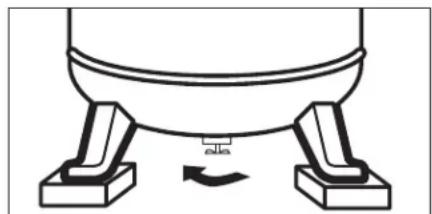

Simple line drawing of a bowl with two legs and a central arrow indicating rotation (no text or symbols)

Figure 4 - Opening Drain Valve

1. Turn off the compressor and close drain valve. The compressor is now ready for use.

If the compressor is run under humid conditions for short periods of time, the humidity will condense in the crankcase and cause the oil to look creamy. Oil contaminated by condensed water will not provide adequate lubrication and must be changed immediately. Using contaminated oil will damage bearings, pistons, cylinders and rings and is not covered under warranty. To avoid water condensation in the oil, periodically run the compressor with tank pressure near 150 psi for two-stage compressors or 120 psi for single stage compressors by opening the drain valve or an air valve connected to the tank or hose. Run the pump for an hour at a time at least once a week or more often if the condensation reoccurs.

IMPORTANT: Change oil after first 50 hours of operation.

PRESSURE SWITCH, START - STOP

NOTE: This compressor has a maximum operating pressure of 175 PSI for two-stage compressors or 135 PSI for single stage compressors. Do not alter pressure settings on control components above this limit.

The compressor unit starts and stops based on preset pressure switch settings. The pressure switch contains an unloader which is a small valve that vents air to allow the motor to start easily (See Figure 5).

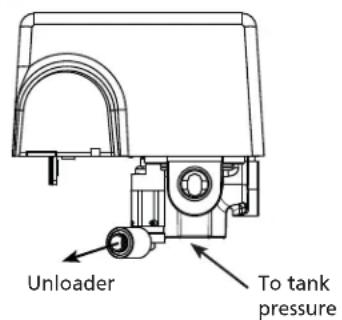

Unloader To tank pressure

Figure 5 - Pressure Switch

CRANKCASE BREATHER

During severe operating conditions or initial start-up, some oil may accumulate at the crankcase breather opening. This is normal and will diminish as the pump accumulates run time and the piston rings become fully seated.

MOISTURE IN COMPRESSED AIR

Moisture in compressed air will form into droplets as it comes from an air compressor pump. When humidity is high or when a compressor is in continuous use for an extended period of time, this moisture will collect in the tank. When using a paint spray or sandblast gun, this water will be carried from the tank through the hose, and out of the gun as droplets mixed with the spray material.

IMPORTANT: This condensation will cause water spots in a paint job, especially when spraying other than water based paints. If sandblasting, it will cause the sand to cake and clog the gun, rendering it ineffective. A filter in the air line, located as near to the gun as possible, will help eliminate this moisture.

Maintenance

WARNING

Disconnect, tag and lock out power source then release all pressure from the system before attempt, install, service, relocate any maintenance.

In order to maintain efficient operation of the compressor system, check the air filter and oil level before each use. The ASME safety valve should also be checked daily (See Figure 6). Pull ring on safety valve and allow the ring to snap back to normal position. This valve automatically releases air if the tank pressure exceeds the preset maximum. If valve does not automatically shut at any pressure below the units max rating the valve should be replaced. If air leaks after the ring has been released, or the valve is stuck and cannot be actuated by the ring, the ASME safety valve must be replaced.

DANGER

to

tamper with the

ASME safety valve.

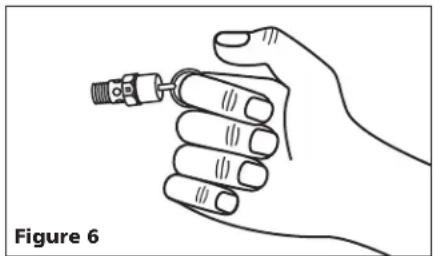

Line drawing of a hand holding a small mechanical component, labeled 'Figure 6' (no text or symbols on the diagram itself)

TANK

DANGER

Never attempt to repair or modify a tank! Welding, drilling or any other modification will the tank resulting in damage rupture or explosion. All replace worn, cracked or tanks.

Drain liquid from NOTICE

tank daily.

The tank should be carefully inspected at a minimum of once a year. Look for cracks forming near the welds. If a crack is detected, remove pressure from tank immediately and replace.

COMPRESSOR LUBRICATION

See Operation. Add oil as required. The oil should be changed every three months or after every 500 hours of operation; whichever comes first.

AIR FILTER

Never run the compressor pump without an intake air filter nor with a clogged intake air filter. Use compressed air to blow the filter clean. Do not wash or oil the element. If it cannot be blown clean, the filter must be replaced. Operating compressor with a dirty filter can cause high oil consumption and increase oil contamination in the discharge air.

INTERCOOLER (TWO-STAGE COMPRESSORS ONLY)

WARNING

Intercooler are sharp, always

wear gloves and use care when you clean or work near the intercooler.

Weekly, check the intercooler to be sure all fittings are secure and tight. Blow all dirt, dust and other accumulations from the intercooler fins.

COMPONENTS

Turn off all power and use light air pressure to blow dust and foreign material from cylinder head, motor, fan blades, air lines, intercooler and tank on a monthly basis.

BELTS

WARNING

Lock out and tag the power then

release all pressure from the tank to prevent unexpected movement of the unit.

Check belt tension every 3 months. Adjust belt tension to allow 3/8 to 1/2 inch deflection with normal thumb pressure. Also, align belts using a straight edge against the face of the flywheel and touching the rim on both sides of the face. The belts should be

parallel to this straight edge (see Figure 7). Dimension A should be the same as B and C to ensure proper alignment of the belts.

Slots in the bed-plate allow for sliding the motor back and forth to adjust belt tension.

STORAGE

If compressor is to be stored for a short period of time, make sure that it is stored in a normal position and in a cool protected area.

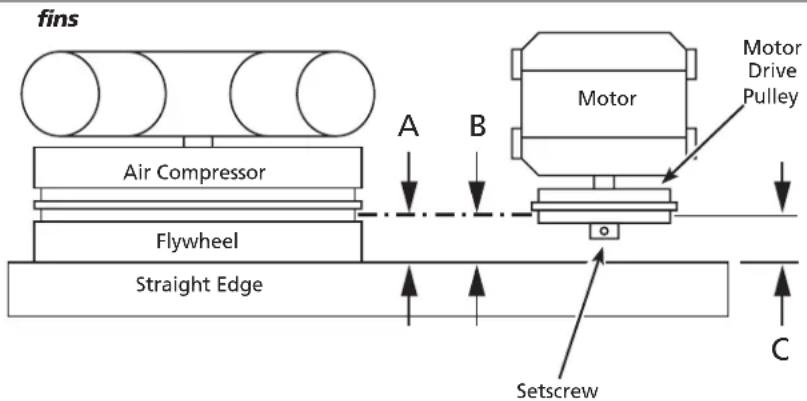

fins Air Compressor Flywheel Straight Edge A B Motor Motor Drive Pulley Setscrew C

Figure 7 - Top View

MAINTENANCE SCHEDULE

Operation Daily Weekly	Monthly	3 Months
Check Safety Valve	●
Drain Tank (See Figure 4)	●
Check Oil Level	●
Clean or Change Air Filter			●
Check Intercooler (two-stage compressors only)		●
Clean Unit Components			●
Check Belt Tightness
Change Oil (See Figure 3)

Troubleshooting Chart

Symptom Possible Cause(s) Corrective Action

Motor hums and runs slowly or not at all	1. Low voltage or no voltage 1. Check with voltmeter, check reset switch on motor. If reset switch trips repeatedly, find and correct the cause. See next item
	2. Shorted or open motor winding 2. Replace motor
	3. Malfunctioning check valve or unloader valve 3. Replace check valve or unloader valve
	4. Malfunctioning pressure switch - contacts will not close 4. Repair or replace pressure switch
Reset mechanism cuts out repeatedly or fuses blow repeatedly	1. Pressure switch set too high 1. Adjust or replace
	2. Malfunctioning check valve 2. Clean or replace faulty valve
	3. Incorrect fuse size 3. Be sure that fuses are rated properly
	4. Malfunctioning motor 4. Replace motor
	5. Loose Wiring 5. Check all electrical connections

Troubleshooting Chart (Continued)

Symptom	Possible Cause(s)	Corrective Action
Excessive noise in operation	1. Loose pulley, flywheel, belt, belt guard, etc2. Lack of oil in crankcase 2. Check for damage to bearings, replenish oil3. Compressor floor mounting loose 3. Shim to level and tighten or place on isolator pads4. Malfunctioning check valve 4. Replace check valve5. Unit not on vibration pads 5. Install vibration pads under compressor feet	1. Tighten
Milky oil in oil reservoir	Water condensing in crankcase due to high humidity	Pipe air intake to less humid air source. Run pump continuously for one hour
Excessive oil consumption or oil in air lines	1. Be sure there is a problem 1. Diagnose oil contamination problems by testing the discharge air or measuring oil consumption from the crankcase2. Restricted air intake 2. Clean or replace air filter3. Wrong oil viscosity 3. Drain oil. Refill with oil of proper viscosity4. Worn piston rings 4. Replace rings5. Oil leaks 5. Tighten bolts, replace gaskets or o-rings6. Scored cylinder 6. Replace cylinder
Water in discharge air	1. Excessive water in tank 1. Drain tank2. Hot, humid weather 2. Purchase dryer
Air blowing out of inlet	Broken first stage inlet valve (two-stage unit)	Replace valve assembly
Insufficient pressure	1. Air demand too high 1. Limit air usage2. Leaks or restrictions in hoses or piping3. Slipping belts 3. Tighten belts	2. Check for leaks or restriction in hose or piping
Tank does not hold pressure when compressor is off and shutoff valve is closed	1. Worn check valve 1. Replace check valve	△DANGER Do not disassemble check valve with air in tank
	2. Check all connections and fittings for tightness3. Check tank for cracks or pin holes	2. Tighten3. Replace tank. Never repair a damaged tank
Excessive belt wear. (Light dust from start is normal. Worn belts separate at layers)	1. Pulley out of alignment2. Belts too tight or too loose	1. Realign motor pulley2. Adjust tension
Tank pressure builds slowly	1. Dirty air filter 1. Clean or replace filter element2. Blown cylinder head gasket3. Worn/broken intake/discharge valves4. Air leaks	2. Install new gasket3. Install new valve plate assembly4. Tighten joints
Tank pressure builds up quickly on compressor	Excessive water in tank	Drain tank, check speed. See Performance table
ASME safety valve pops open while compressor is running	1. Pressure switch exceeding maximum pressure2. Malfunctioning ASME safety valve3. Pressure switch contacts welded	1. Replace pressure switch2. Replace ASME safety valve3. Replace pressure switch
Pressure switch continuously blows air out the unloader valve	Malfunctioning check valve	Replace the check valve if the unloader valve bleeds off constantly
Pressure switch unloader valve does not release air when the unit shuts off	Malfunctioning unloader valve on pressure switch	Replace the pressure switch if the unit does not hiss for a short period of time when the unit shuts off
Interstage safety valve pops off while the unit is running	1. Head gasket or the gasket in the valve plate assembly blown2. Valve not seating properly 2. Replace valve plate and gaskets3. Malfunctioning safety valve	1. Replace valve plate and gaskets3. Replace safety valve
Interstage safety valve pops off after the unit shuts off	Malfunctioning tank check valve	Replace the check valve

Limited Warranty

1. DURATION: From the date of purchase by the original purchaser as follows: Three Years as indicated on product specification label.
2. WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld a Marmon/Berkshire Hathaway Company, 100 Production Drive, Harrison, Ohio, 45030, Telephone: [phone].
3. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld compressor.
4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: This Campbell Hausfeld air compressor.
5. WHAT IS COVERED UNDER THIS WARRANTY: Parts and Labor to remedy substantial defects due to material and workmanship during the first year of ownership with the exceptions noted below. Parts only to remedy substantial defects due to material and workmanship during remaining term of coverage with exceptions noted below.
6. WHAT IS NOT COVERED UNDER THIS WARRANTY:

A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If the compressor is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Two-stage compressors are not limited to a ninety (90) day warranty when used in commercial or industrial applications. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you

B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

C. Any failure that results from an accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions provided in the owner's manual(s) supplied with compressor.

D. Pre-delivery service, e.g. assembly, oil or lubricants, and adjustment.

E. Items or service that is normally required to maintain the product, e.g. lubricants, filters and gaskets, etc.

F. Gasoline engines and components are expressly excluded from coverage under this limited warranty. The Purchaser must comply with the warranty given by the engine manufacturer which is supplied with the product

G. Additional items not covered under this warranty:

1. Excluded items pertaining to All Compressors

a. Any component damaged in shipment or any failure caused by installing or operating unit under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
b. Pump or valve failure caused by rain, excessive humidity, corrosive environments or other contaminants.
c. Cosmetic defects that do not interfere with compressor functionality.
d. The following components are considered normal wear items and are not covered after the first year of ownership. Electric motor, check valve, pressure switch, regulator, pressure gauges, hose, tubing, pipe, fittings and couplers, screws, nuts, hardware items, belts, pulleys, flywheel, air filter and housing, gaskets, seals, oil leaks, air leaks, oil consumption or usage, piston rings.

e. Damage due to incorrect voltage or improper wiring.

f. Other items not listed but considered general wear parts.

g. Pressure switches, air governors, load/unload devices, throttle control devices and safety valves modified from factory settings.

h. Damage from inadequate filter maintenance.

1. Excluded items specific to Lubricated Compressors:

a. Pump wear or valve damage caused by using oil not specified.
b. Pump wear or damage caused by any oil contamination.
c. Pump wear or damage caused by failure to follow proper oil maintenance guidelines, operation below proper oil level or operation without oil.

H. Labor, service call, or transportation charges after the first year of ownership.

1. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor's option, compressor or component which is defective, has malfunctioned and/or failed to conform within the duration of the specific warranty period.

2. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A. Provide dated proof of purchase and maintenance records.
B. Call Campbell Hausfeld (800-543-6400) to obtain your warranty service options. Freight costs must be borne by the purchaser.

C. Use reasonable care in the operation and maintenance of the products as described in the owner's manual(s).

D. Repairs requiring overtime, weekend rates, or anything beyond the standard manufacturer warranty repair labor reimbursement rate.

E. Time required for any security checks, safety training, or similar for service personnel to gain access to facility.

F. Location of unit must have adequate clearance for service personnel to perform repairs and easily accessible.

1. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

This Limited Warranty applies in the U.S., Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from State to State or country to country.

NE PAS RENVOYER LE PRODUIT AU MARCHAND!

No nas utiliser AVERTISSEMENT

un modèle

Installation (Suite)

INSTALLATION D'UNE SOUPAPE D'ARRÊT

Simple line drawing of a bowl with two legs and a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small mechanical component (no text or symbols)

RÉSERVOIR

DANGER

Ne jamais

Simple line drawing of a bowl with two legs and a small object inside, no text or symbols present.

Line drawing of a hand holding a small electronic device (no text or symbols)

TANQUE

▲ PELIGRO
