USER MANUAL AF010400 Campbell Hausfeld

CH CAMPBELL HAUSFELD.

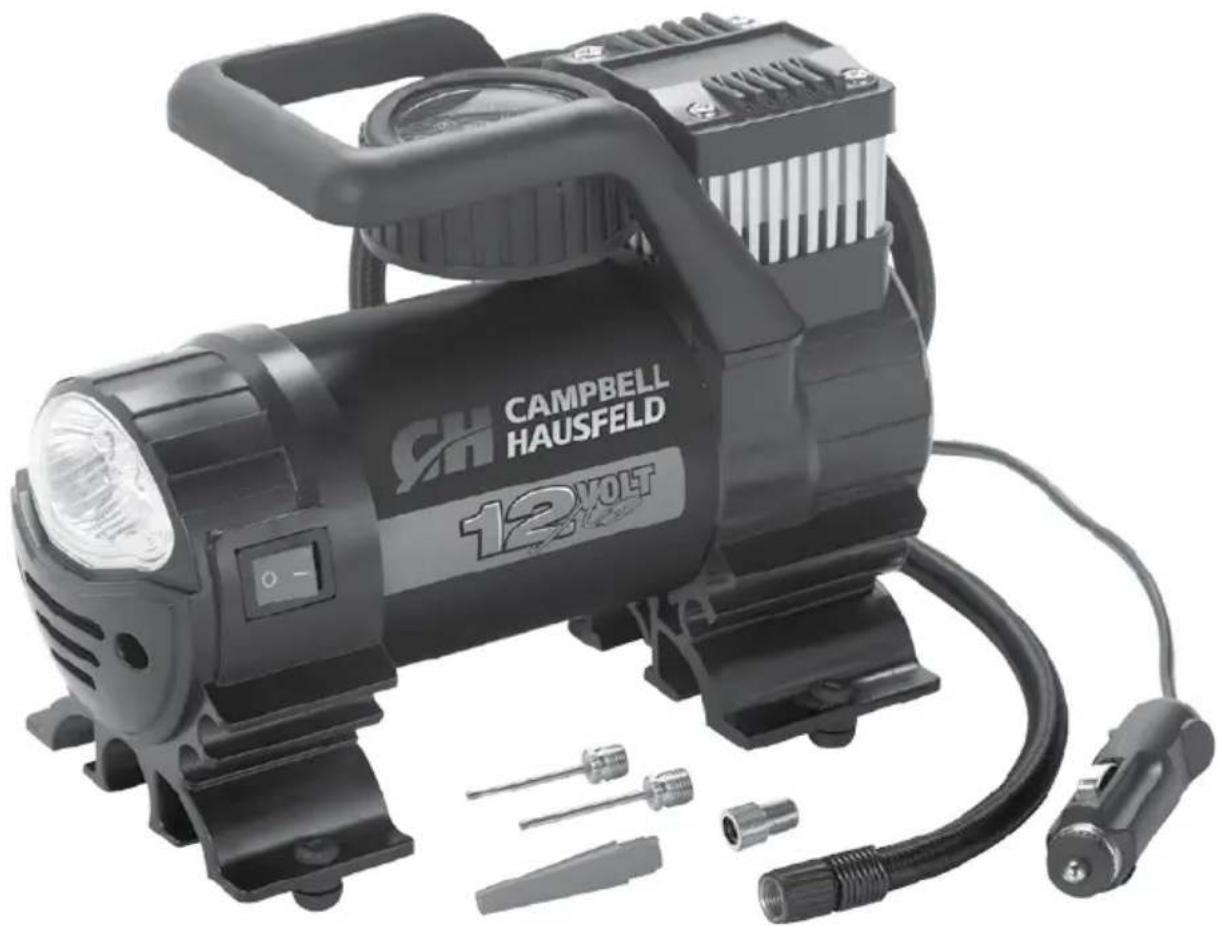

12-Volt Inflator

Operating Instructions

Black Campbell Hausfeld 120V power expander with attached circuit board and accessories (no visible text or symbols on main body)

Model: AF010400

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.

Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

Please see page 6 for Safety Glossary and Safety Symbols.

For parts, product & service information visit www.campbellhausfeld.com

Model #: ____

Purchase Date:

Campbell Hausfeld

100 Production Drive

Harrison, Ohio 45030

BEFORE YOU BEGIN

Description

This 12-volt inflator comes with an inflation nozzle, sports needles, and PRESTA valve adaptor. The inflator can be used for emergency roadside tire inflation and to inflate bike tires, soccer balls, beach balls and other sporting equipment.

UNPACKING

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing or damaged parts. Check to be sure all supplied accessories are enclosed with the unit. In case of questions, damaged or missing parts, please visit www.campbellhausfeld.com for customer assistance.

if damaged during shipping, handling or use. Damage may result in bursting and

cause injury or property damage.

Other Parts (Not Provided)

You will need the following to operate this Campbell Hausfeld inflator:

• 12-volt DC power outlet rated 15 amps or higher
- Separate tire gauge to confirm pressure in tires.

SPECIFICATIONS

	AF010400
Maximum Pressure 150 PSI
Voltage 12V, DC
Fuse 15A
Cord Length 10 ft.
Hose Length 31 in.
Flashlight LED
Gauge Analog
Air Outlet Shrader Valve
Flow Rate @ 0 PSI 0.9 CFM
Flow Rate @ 35 PSI 0.6 CFM
Inflation Speed * 4 minutes
Weight	4.2 lbs.

Includes: (2) sports needles, inflation nozzle, and PRESTA valve adaptor.
* Inflation speed is the average time measured to inflate a 195/65/R15 tire from 0 psi to 35 psi

DIMENSIONS

Length 8 in.

Width 3.5 in.

Height 6.25 in.

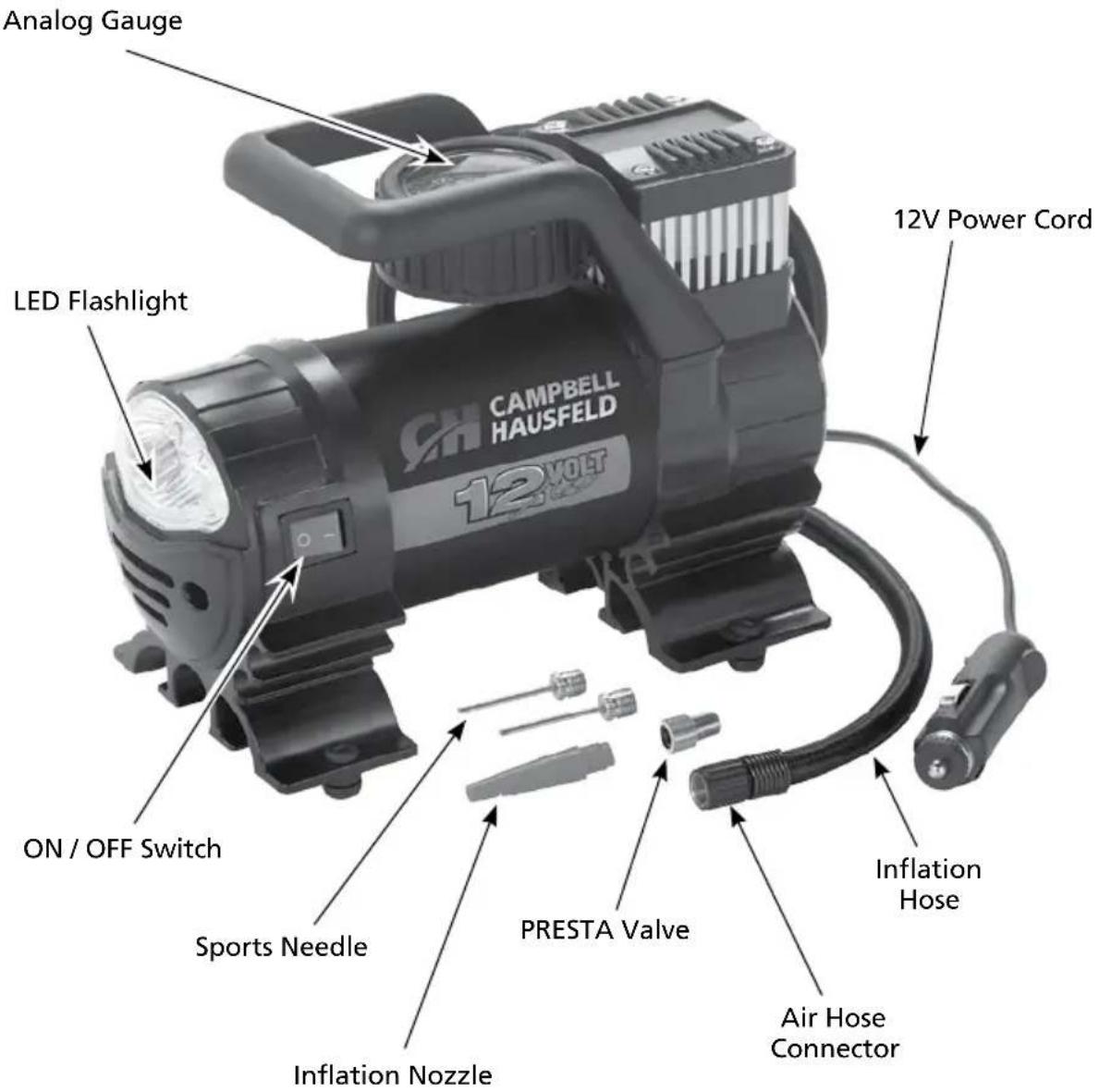

GETTING TO KNOW YOUR UNIT

Analog Gauge LED Flashlight ON / OFF Switch Sports Needle PRESTA Valve Inflation Nozzle Air Hose Connector CAMPBELL HAUSFELD 12V V Power Cord

Figure 1

OPERATION

Tires

1. Before inflating the tire, review all warnings listed in the GENERAL SAFETY INSTRUCTIONS section of this operating manual.
2. Remove valve stem cap.

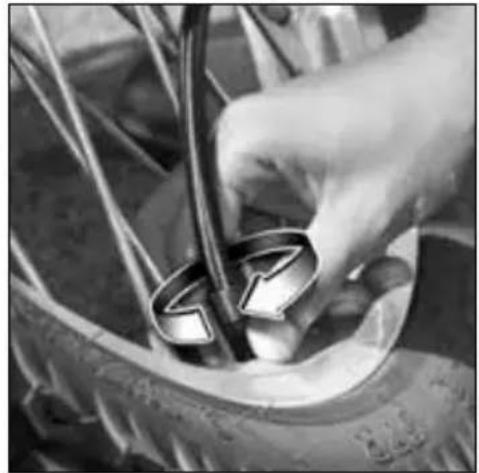

3. Turn the air hose connector onto the valve stem in a clockwise direction until snug (See Figure 2).
4. Plug power cord into 12-volt DC power outlet.

Close-up of a hand holding a metal tool over a cylindrical object, possibly a container or mechanical component (no visible text or symbols)

Figure 2

NOVICE

t DC power outlets rated 15 amps or higher. Do not use with older 8 amp cigarette

lighter receptacles or fuse will blow and inflator will not work.

1. Turn power switch on.
2. Stop inflation when the proper pressure has been reached. Recommended tire inflation pressure for the vehicle can typically be found in the vehicle's owner's manual or on the driver's side door jamb.
3. Do not over inflate tires as tires may rupture/explode causing serious injury and/or property damage.
4. Tire inflation should only be done in a safe area, well off roadway and away from traffic. Use reflective warning triangles and/or safety flares to alert other drivers of roadside emergency. Always follow the tire inflation safety advice and procedures noted in the vehicle's operating manual.

Inflatables

1. To use the inflation accessories, screw appropriate inflation accessory into the air hose connector until snug.
2. Insert the inflation accessory into the inflatable object (tire, football raft, etc.) and turn on the inflator.
3. When the object is firm, switch the inflator off. Do not over inflate objects as objects may rupture/explode causing serious injury and/or property damage.

Fuse Replacement

Never replace a blo CAUTION

wn fuse with a fuse having a higher rating. Using a higher rated fuse will transmit

too much current to the inflator's wiring causing it to overheat, melt or, possibly, catch fire.

1. Unscrew end of plug counter-clockwise to remove fuse.
2. If fuse is blown, replace with a new 15-amp fuse. Always replace a blown fuse with the same size fuse.
3. Reassemble plug. Do not over-tighten.

TECHNICAL SERVICE

For information regarding the operation or repair of this product, please visit www.campbellhausfeld.com

GENERAL SAFETY INSTRUCTIONS

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the symbols found on page 6. The Safety Symbols throughout this manual are to alert you to important safety hazards and precautions.

The DANGER, WARNING, CAUTION, and NOTICE notifications and instructions in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that caution is a factor which cannot be built into this product, but must be supplied by the operator.

With any piece of equipment, new or used, the most important part of its operation is SAFETY!

Campbell Hausfeld encourages you to familiarize yourself with your new equipment and stresses safe operation.

The next few pages of this manual are a summary of the main safety aspects associated with this unit. Be sure to read and understand completely before operating the machine.

The symbols used throughout the operation and maintenance sections of this manual call attention to safety procedures.

California Proposition 65

WARNING

- This product or its power cord may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Important Safety Information

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

This manual contains important safety, operational and maintenance information. If you have any questions, please visit www.campbellhausfeld.com for customer assistance.

General Safety

DANGER

- Always operate this tire inflator in an open and well-ventilated area and not inside a confined area, such as a garage. Doing so may lead to bodily harm or asphyxiation resulting in death.

WARNING

- Do not leave the inflator unattended while the unit is running.

- Wear eye protection during the inflation process. Never exceed the recommended pressure for any inflatable object. Do not over inflate objects as objects may rupture/explode causing serious injury and/or property damage.

- The air hose connector must be properly connected to secure the inflation accessories. Use extreme caution when using inflation accessories.

- Always put the car in park; set the emergency brake; and "chock" the wheels before using the inflator as personal injury and/or property damage may occur.

- Tire inflation should only be done safely away from the roadway, with use of triangles or flares, and in compliance with the vehicle's operating manual.

CAUTION

- Always use a separate pressure gauge to check the actual pressure in tires and in low pressure inflatable objects.

- Inflator must cool for 20 minutes after 20 minutes of continuous operation. The inflator is not designed to operate continuously for more than 20 minutes. Exceeding recommended run-time or not allowing for adequate cooling will cause inflator to overheat and could damage or destroy inflator.

- When using inflator on high pressure tires, such as those used on large trucks, trailers or tractors, tire inflation must be executed in stages--NOT exceeding the 20 minutes of run-time and NOT omitting the 20 minutes of cooling required for proper use of this inflator.

- Make sure the air hose connector is properly connected to the valve stem. Failure to properly connect the air hose will result in slower inflation and/or no air getting to the tire.

- Inflator will get hot to the touch and may cause serious injury--do not hold or touch while operating. Keep away from flammable materials.

GENERAL SAFETY INSTRUCTIONS (CONTINUED)

Safety Glossary

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

potentially hazardous situation which, if not avoided, COULD result in death or

serious injury.

potentially hazardous situation which, if not avoided, MAY result in minor or

moderate injury.

important information, that if not followed, may cause damage to equipment.

IMPORTANT or NOTE: Information that requires special attention.

Safety Symbols

The following Safety Symbols appear throughout this manual to alert you to important safety hazards and precautions.

Read Manual First

Risk of Pressure

SAVE THESE INSTRUCTIONS DO NOT DISCARD

SYMPTOM CORRECTIVE ACTION

Inflator does not turn on or blows fuses

1. Push the power plug firmly into the receptacle and twist it back and forth.

2. Check receptacle and plug terminal for dirt. Use a non-conductive probe—not fingers or anything metal—to check and clean receptacle and/or terminal.

3. Check vehicle power outlet fuse; should be a minimum of 15 amps.

4. Check inflator fuse, located in the plug adaptor. To access fuse, unscrew the tip of the plug adaptor, remove old fuse and inspect. Replace fuse, if needed.

Close-up of hands holding small metallic components with a tool, no visible text or symbols

Inflator runs but tire/article does not inflate

1. Ensure air hose connector is properly seated on the valve stem and tightened.

2a. Check tire/article for leaks. Check inflator hose for cracks and leaks at fittings.

2b. Inspect tire/article to confirm there are no punctures or sidewall tire damage.

1. If the tire is completely flat, it is possible that the tire has separated from the rim. If so, the tire inflator will not deliver the volume of air needed to inflate tire.

Inflator runs slowly 1. Inflator is overheated from too much use. Shut inflator off and allow to cool for 20 minutes.

1. Voltage powering the 12V outlet is too low. Check the condition of (car) battery.

Reminder: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

LIMITED WARRANTY

1. DURATION: From the date of purchase by the original purchaser as follows: One (1) Year.
2. WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld a Marmon/Berkshire Hathaway Company, 100 Production Drive, Harrison, Ohio, 45030. Visit www.campbellhausfeld.com
3. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld product.
4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld nailer, stapler, air tool, spray gun, inflator or air accessory supplied or manufactured by Warrantor.

5. WHAT IS COVERED UNDER THIS WARRANTY: Substantial defects in material and workmanship which occur within the duration of the warranty period.

6. WHAT IS NOT COVERED UNDER THIS WARRANTY:

A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If this product is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Some States do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you.
B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
C. Any failure that results from an accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions provided in the owner's manual(s) supplied with product. Accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions shall also include the removal or alteration of any safety devices. If such safety devices are removed or altered, this warranty is void.
D. Normal adjustments which are explained in the owner's manual(s) provided with the product.
E. Items or service that are normally required to maintain the product, i.e. o-rings, springs, bumpers, debris shields, driver blades, fuses, batteries, gaskets, packings or seals, fluid nozzles, needles, sandblast nozzles, lubricants, material hoses, filter elements, motor vanes, abrasives, blades, cut-off wheels, chisels, chisel retainers, cutters, collets, chucks, rivet jaws, screw driver bits, sanding pads, back-up pads, impact mechanism, or any other expendable part not specifically listed. These items will only be covered for ninety (90) days from date of original purchase. Underlined items are warranted for defects in material and workmanship only.

1. RESPONSIBILITIES OF WARRANTY: Repair or replace, at Warrantor's option, products or components which are defective, have malfunctioned and/or failed to conform within duration of the warranty period.

2. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A. Provide dated proof of purchase and maintenance records.
B. Deliver or ship the Campbell Hausfeld product or component to the nearest Campbell Hausfeld Authorized Service Center. Freight costs, if any, must be borne by the purchaser.
C. Use reasonable care in the operation and maintenance of the products as described in the owner's manual(s).

1. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

This Limited Warranty applies in the United States, Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from state to state or country to country.
