USER MANUAL DC130000 Campbell Hausfeld

See Warranty on page 12 for important information about commercial use of this product.

Operating Instructions and Parts Manual

DC1300

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

CAMPBELL HAUSFELD.

Description

This oil-lubricated compressor is designed for do-it-yourselfers with a variety of home and automotive jobs. These compressors power spray guns, impact wrenches and other tools. Compressed air from this unit will contain moisture. Install a water filter or air dryer if application requires dry air.

Unpacking

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc., before putting unit into service. In case of questions, damaged or missing parts, please call 1-800-543-6400 for customer assistance. Have the serial number, model number, and parts list (with missing parts circled) before calling.

DO NOT RETURN THE PRODUCT TO THE RETAILER!

⚠ WARNING Do not operate unit if damaged during shipping, handling or use. Damage may result in bursting and cause injury or property damage.

READ & FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS DO NOT DISCARD

Record the Model No., Serial No. and date of purchase located on the base below the pump in the space below. Model No. ____ Serial No. ____ Date of purchase Retain these numbers for future reference.

Safety Guidelines

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

DANGER Danger indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING Warning indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Oil-Lubricated Compressors

DANGER

Breathable Air Warning This compressor / pump is not equipped and should not be used "as is" to supply breathing quality air. For any application of air for human consumption, the air compressor / pump will need to be fitted with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Association Commodity Specification G 7.1 - 1966, OSHA 29 CFR 1910, 134, and / or Canadian Standards Associations (CSA).

DISCLAIMER OF WARRANTIES In the event the compressor is used for the purpose of breathing air application and proper in-line safety and alarm equipment is not simultaneously used, existing warranties shall be voided, and the manufacturer disclaims any liability whatsoever for any loss, personal injury or damage.

CAUTION Caution indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.

NOTICE Notice indicates Important information, that if not followed, may cause damage to equipment. NOTE: Information that requires special attention.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

© 2015 Campbell Hausfeld A Marmon/Berkshire Hathaway Company

For parts, product & service information, visit www.campbellhausfeld.com

IN641400AV 12/15

Operating Instructions and Parts Manual

General Safety Information

CALIFORNIA PROPOSITION 65

This product or it is warning

WARNING power cord may contain chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

A WARNING

You

dust when you cut, sand, drill or grind materials such as wood, paint, metal, concrete, comont, or other masonry. This dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm. Wear protective gear.

GENERAL SAFETY

Since the air compressor and other components (material pump, spray guns, filters, lubricators, hoses, etc.) used, make up a high pressure pumping system, the following safety precautions must be observed at all times:

Do not WARNING

unattended. Leaving compressor in AUTO position may allow it to turn on inadvertently. To prevent this and possible damage from power surge, turn to OFF position after each use.

1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipme

1. Follow all local electrical and safety codes as well as in the United States, the National Electrical Codes (NEC) and Occupational Safety and Health Act (OSHA).

2. Only persons well acquainted with these rules of safe operation should be allowed to use the compressor.

3. Keep visitors away and NEVER allow children in the work area.

4. Wear safety glasses and use hearing protection when operating the unit.

1. Do not stand on or use the unit as a handhold.

2. Before each use, inspect compressed air system and electrical components for signs of damage, deterioration, weakness or leakage. Repair or replace defective items before using.

3. Check all fasteners at frequent intervals for proper tightness.

WARNING Motors, electrical can equipment and controls can cause electrical arcs that will ignite a fl ammable gas

or vapor. Never operate or repair in or near a fl ammable gas or vapor. Never store fl ammable liquids or gases in the vicinity of the compressor.

CAUTION Compressor parts may be hot even if the unit is stopped.

1. Keep fingers away from a running compressor, fast moving and hot parts will cause injury and/or burns.

2. If the equipment should start to vibrate abnormally, STOP the engine motor and check immediately for the cause. Vibration is generally a warning of trouble.

3. To reduce fire hazard, keep engine/motor exterior free of oil, solvent, or excessive grease.

Never remove of WARNING

attempt to adjust

safety valve. Keep safety valve free from paint and other accumulations.

WARNING

(PVC) pipe for

compressed air. Serious injury or death could result.

▲ DANGER

Never

attempt to repair or modify a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from rupture or explosion. Always replace worn, cracked or damaged tanks.

NOTICE

tank daily

Drain liquid from

Exploded view diagram of an automotive electrical component with numbered parts for identification

Refer to Figure 1 to locate the following items.

Pressure Switch - Auto/Off Switch - In the "AUTO" position, the compressor shuts off automatically when tank pressure reaches the maximum preset pressure. In the "OFF" position, the compressor will not operate. This switch should be in the "OFF" position when connecting or disconnecting the power cord from the electrical outlet.

Regulator - The regulator controls the amount of air pressure at the hose outlet.

ASME Safety Valve · This valve automatically releases air if the tank pressure exceeds the preset maximum.

Exhaust Tube - This tube carries compressed air from the pump to the check valve. This tube becomes very hot during use. To avoid the risk of severe burns, never touch the discharge tube.

Outlet Pressure Gauge - Will show air pressure at the outlet in pounds per square inch (psi). Make sure this gauge reads ZERO (by adjusting regulator knob fully counterclockwise) before changing air tools or disconnecting air hose from outlet.

Tank Pressure Gauge - Will show air pressure in tank while the compressor is running, indicating compressor is building pressure properly. This gauge will show maximum pressure of compressor when it shuts off automatically at the pressure switch. Check Valve - One-way valve that allows air to enter the tank, but prevents air in the tank from flowing back into the compressor pump. Handle - Designed to move the compressor.

Never uses the WARNING

units to lift the unit completely off the ground.

Drain Valve - This valve is located on the bottom of the tank. Use this valve to drain moisture from the tank daily to reduce the risk of corrosion.

Motor Reset - (not shown, located inside motor). Designed to keep the motor from overheating. The motor has an auto reset protector. To reset once the motor has cooled, turn the pressure switch to the OFF position, then to the AUTO position.

This compressor is A CAPTION

- equipped with an overload protector which will shut off motor if it becomes overloaded.

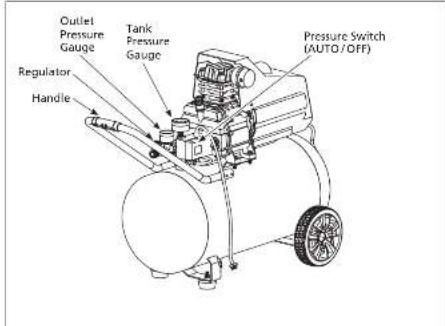

Outlet Pressure Gauge Tank Pressure Gauge Regulator Handle Pressure Switch (AUTO/OFF)

Figure 1 - Unit Identification

If the overload CAUTION

protactor is actuated, the motor must be allowed to cool down for approximately 30 minutes before it will reset.

Installation

LOCATION

It is extremely important to install the compressor in a clean, dry, and well ventilated area. The compressor must be placed on a firm, level surface where the surrounding air temperature will not be more than 100°F. A minimum clearance of 18 inches between the compressor and a wall is required because objects could obstruct air flow.

Do not locate the CAUTION™

compressor air inlet near steam, paint spray, sandblast areas or any other source of contamination. This debris will damage the motor.

ELECTRICAL INSTALLATION

⚠ WARNING All and electrical connections should be performed by a qualified electrician. Installation must be in accordance with local codes and national electrical codes.

WIRING

1. Local electrical wiring codes differ from area to area. Source wiring, plug and protector must be rated for at least the amperage and voltage indicated on motor nameplate, and meet all electrical codes for this minimum.
2. Use a slow blow fuse or a circuit breaker.
3. This product is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated in Figure 2.

Figure 2 - Grounding Method

Operating Instructions and Parts Manual

Installation (Continued)

Make sure the product is connected to an outlet having the same configuration as the plug. This product must be grounded. In the event of an electrical short circuit, grounding reduces risk of electrical shock by providing an escape wire for electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. Plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

CAUTION Overheating, circuiting and fire damage will result from inadequate wiring.

Minimum Gauge of Extension Cord 25 ft. 50 ft. 100 ft. 14 12 10 Use of an extension cord may cause excess heat to motor. This could lead to tripped breaker (at electrical panel) or tripped thermal overload (on compressor motor). If this occurs, eliminate extension cord and plug compressor directly into electrical outlet. Avoid using extension cords; use longer air hose(s) instead.

LUBRICATION

THIS UNIT IS SWIPPED A CAUTION WITHOUT OIL! Follow lubrication instructions before operating compressor.

Use oil shipped with the compressor. Do not use regular automotive oil such as 10W-30. Additives in regular motor oil can cause valve deposits and reduce pump life. For maximum pump life, drain and replace oil after the first hour of run time.

The compressor pump takes approximately 175mL (6 oz.) of oil. The sight glass, located on the crankcase portion of the pump, is used to determine proper oil level. Fill the crankcase with oil until the level is in the middle of the sight glass. Avoid overfilling by adding oil gradually and checking the oil level with the sight glass several times. Add enough oil to reach the "max" level on the sight glass. Proper oil level is illustrated in Figure 3.

Figure 3 - Proper Oil Level

Operation

BEFORE FIRST START-UP

BREAK-IN PROCEDURE

(Complete this procedure before using compressor for the first time. Once completed, it is not necessary to repeat.)

1. Open drain valve located on bottom of tank.

2. Turn AUTO/OFF switch to OFF position.

3. Plug in power cord

4. Turn AUTO/OFF switch to AUTO position and run compressor for 30 minutes.

5. Turn AUTO/OFF switch to OFF position.

6. Unplug power card.

7. Close drain valve

The compressor is now ready for use.

OPERATING PROCEDURE

1. Turn switch to OFF position and plug in power cord.

2. Turn regulator knob

counterclockwise to close air flow.

1. Turn switch to AUTO position.

2. Compressor will build to maximum pressure and shut off.

3. With hose attached to outlet of compressor, attach tire chuck or other tool to open end of hose.

4. Adjust regulator to proper pressure for tool or tire. Operate tool per instructions.

As air is depleted from the tank by use of a tire chuck, tool, etc., the compressor will restart automatically at its preset "cut-in" pressure. When a tool is being used continuously, the compressor will cycle on and off automatically.

1. Turn switch to OFF position, unplug power cord and drain tank of air when finished using compressor.

CYCLING OF COMPRESSOR

In the AUTO position, the compressor pumps air into the tank. When a shut-off (preset "cut-out") pressure is reached, the compressor automatically shuts off.

If the compressor is left in the AUTO position and air is depleted from the tank by use of a tire chuck, tool, etc., the compressor will restart automatically at its preset "cut-in" pressure. When a tool is being used continuously, the compressor will cycle on and off automatically.

In the OFF position, the pressure switch cannot function and the compressor will not operate. Make sure switch is in OFF position when connecting or disconnecting power cord from electrical outlet.

Maintenance

WARNING

Disconnect, tag and lock out

power source, then release

all pressure from the system before attempting to install, service, relocate or perform any maintenance

Check compressor often for any visible problems and follow maintenance procedures each time compressor is used.

ASME SAFETY VALVE

Do not remove of WARNING

attempt to adjust

[Non-Text]

Check the safety valve by performing the following steps:

1. Plug the compressor in and run until shut off pressure is reached.

2. Wearing safety glasses, pull the ring on the safety valve to release pressure from compressor tank. Use your other hand to defl ect fast-moving air from being directed toward your face.

Figure 4

Attn: Customer Service

100 Production Drive

Harrison, OH 45030 U.S.A.

Lista de Repuestos

No. de Ref.	Descripción	DC1300	Ctd.
1	CONJUNTO DE BOMBA/MOTOR	DC130001AV	1
2	FILTRO	DC130054AV	1
3	CONECTOR TIPO T	▲	1
4	VALVULA DE ARRANQUE EN FRIO	▲	1
5	TUBO DE ESCAPE	■	1
6	EMPAQUE DE ANILLO	■	2
7	ENSAMBLAJE DE VALVULA DE RETENCIÓN	—	1
8	TUBO DE DESCARGA	—	1
9	INTERRUPTOR DE PRESIÓN	●	1
10	MEDIDOR DE TANQUE	●	1
11	VALVULA DE SEGURIDAD	●	1
12	CONECTOR	●	1
13	MEDIDOR DE SALIDA	●	1
14	REGULADOR	●	1
15	ACOPLADOR	●	1
16	TANQUE	—	1
17	CABLE DE ALIMENTACIÓN	—	1
18	MANUA	—	1
19	AGARRADERA DE MANUA	—	1
20	CONECTOR	—	1
21	PERNO M8X30	—	4
22	ARANDELA M8	—	6
23	ARANDELA DE PRESIÓN M8	—	4
24	TUERCA M8	—	4
25	CUBIERTA	—	1
26	TORNILLO M5X16	—	2
27	ARANDELA M5	—	2
28	TUERCA M10	—	2
29	ARANDELA M10	—	2
30	RUEDA DE 7 PULGADAS	—	2
31	PERNO M10X56	—	2
32	CUBIERTA	—	2
33	VALVULA DE DRENADO	DC130052AV	1
34	TUERCA M8	—	2
35	SOPORTE DE CAUCHO	—	2
36	ARANDELA M8	—	2
37	PERNO M8X25	—	2
38	PERNO DE LLAVE DE DADO M6X10	—	4

JUEGOS DE REPUESTOS

▲	CONJUNTO DE VALVULA DE ARRANQUE EN FRIQ	DC130053AV
■	CONJUNTO DE TUBO DE ESCAPE	DC130050AV
●	INTERRUPTOR DE PRESIÓN Y CONJUNTO REGULADOR	DC130051AV
—	NO DISPONIBLE
*	ARTICULO ESTANDAR DE FERRETERÍA - DISPONIBLE EN SU FERRETERÍA LOCAL

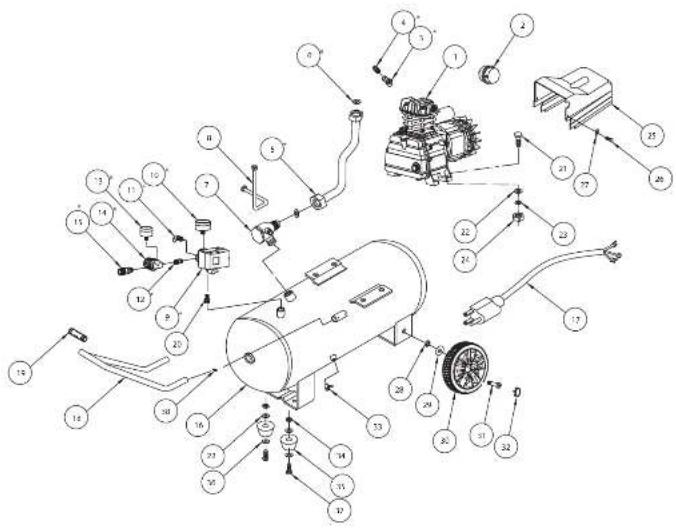

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Maintenance (Continued)

1. The safety valve should

automatically close at approximately 40 psi - 50 psi. If the safety valve does not allow air to be released when you pull on the ring, or if it does not close automatically, it MUST be replaced.

Safety warning must be

*WARNING replaced if it cannot be actuated or it leaks air after ring is released.

DRAIN TANK

1. Turn compressor off and release pressure from system. (To release pressure from system, pull ring on ASME safety valve. Deflect escaping air by shielding valve with one hand as you pull ring with other hand.) Pull ring until tank is empty.

A large amount of A CAUTION

fast moving air will be released when the safety valve is opened with pressure in the tank. Wear ANSI approved Z87.1 safety glasses.

1. Drain moisture from tank by opening drain valve underneath tank. Tilt tank to remove all moisture.

Figure 5

1. Clean dust and dirt from tank, air lines and pump cover while compressor is still OFF.

OIL CHANGE

1. Allow compressor to run and warm up oil. Unplug unit.
2. Position a pan under pump end of unit.
3. Remove drain plug. Allow oil to collect in pan. Tilt unit to completely drain.
4. Replace drain plug, fill pump to center of sight glass. Use Chevron synthetic 5W-30, Mobil 1 5W-30 or 10W-30 synthetic motor oil. Using

other types of oil will cause starting problems.
5. Change oil after every 50 hours of use.

INTAKE AIR FILTER MAINTENANCE

Removal, Inspection and Replacement (Figure 6).

Figure 6 - Intake filter maintenance

The intake filter element should be removed and checked periodically. A clogged intake filter can decrease compressor performance and cause the compressor to overheat.

1. Rotate the filter cover counter-clockwise and remove.
2. Remove the filter element and inspect.

3. If the filter element is dirty or clogged, replace it.

4. Reinstall filter and cover. IMPORTANT: Locate unit as far from spraying area as hose will allow to prevent overspray from clogging filter.

1. Turn AUTO/OFF switch to the OFF position.
2. Unplug power cord from wall outlet and wrap around handle to prevent damage when not in use.
3. Wearing safety glasses drain tank of air by pulling the ring on the safety valve. Use other hand to deflect fast moving air from being directed toward your face.
4. Drain tank of condensation by opening drain valve on bottom of tank. Tank pressure should be below 10 psi when draining tank.
5. Air hose should be disconnected from compressor and hung open ends down to allow any moisture to drain.
6. Compressor and hose should be stored in a cool, dry place.

TECHNICAL SERVICE For information regarding the operation or repair of this product, please call 1-800-543-6400.

MOISTURE IN COMPRESSED AIR

Moisture in compressed air will form into droplets as it comes from an air compressor pump. When humidity is high or when a compressor is in continuous use for an extended period of time, this moisture will collect in the tank. When using a paint spray or sandblast gun, this water will be carried from the tank through the hose, and out of the gun as droplets mixed with the spray material.

IMPORTANT: This condensation will cause water spots in a paint job, especially when spraying other than water based paints. If sandblasting, it will cause the sand to cake and clog the gun, rendering it ineffective.

A filter in the air line, located as near to the gun as possible, will help eliminate this moisture.

MAINTENANCE SCHEDULE
OPERATION DAILY WEEKLY MONTHLY 3 MONTHS

Check Oil Level	●
Drain Tank	●
Check Air Filter		●
Check Safety Valve		●
Clean Unit		●
Change Oil			●

Operating Instructions and Parts Manual

Troubleshooting Chart

Symptom Possible Cause(s) Corrective Action
Compressor will not run	1. No electrical power 1. Plugged in? Switch on? Check fusebreaker2. Breaker open 2. Reset, determine cause of problem3. Pressure switch had 3. Replace4. Motor over worked 4. Turn off, let cool, turn on.5. Tank pressure above cut-in 5. Bleed tank pressure down to cut-in.
Fuses blow / circuit breaker trips repeatedly	1. Incorrect size fuse, circuit overloaded2. Extension cord usage - wrong gauge wire and/or too long.3. Worn check valve 3. Replace check valve.4. Defective unloader valve (on pressure switch)5. Defective motor capacitor(s) 5. Replace capacitor(s)6. Defective motor 6. Replace motor	1. Check for proper fuse, use time-delay fuse. Disconnect other electrical appliances from circuit or operate compressor on its own branch circuit.2. Remove extension cord or refer to Extension Cord Chart on page 4.A DANGERble check valve with air pressure in tank; blood tank.4. Replace unloader valve.4. Replace unloader valve.
Tank pressure drops when compressor shuts off	1. Loose connections (fittings, tubing, etc.)2. Open tank drain valve 2. Close tank drain valve3. Tank leaks4. Worn check valve 4. Replace check valve	1. Check all connections with soap and water solution. Tighten; or remove and apply pipe dope or pipe tape to the threads, then reassemble.2. Check tank for leaks with soap and water solution. If leak is detected, tank must be replaced with genuine replacement part.3. Check tank for leaks with soap and water solution. If leak is detected, tank must be replaced with genuine replacement part.4. Worn check valve 4. Replace check valve
		A DANGERble check valve with air pressure in tank; bleed tank.
Compressor runs continuously and/or air output is lower than normal/low discharge pressure	1. Excessive air usage2. Clogged intake filter3. Open tank drain valve 3. Close tank drain valve4. Air leaks in piping (on machine or in outside system)5. Piston ring worn6. Broken valve (in pump)7. Tank leaks8. Defective pressure switch	1. Decrease air usage; compressor not large enough for air requirement.2. Clean or replace filter3. Check all connections with soap and water solution. Tighten; or remove and apply pipe dope or pipe tape to the threads, then reassemble.4. Replace piston and cylinder.5. Replace piston and cylinder.6. Replace valve7. Check tank for leaks with soap and water solution. If leak is detected, tank must be replaced with genuine replacement part.8. Replace switch
Excessive moisture in discharge air	1. Excessive water in tank2. High humidity	1. Drain tank2. Move to area of less humidity; use air line filter

Troubleshooting Chart (Continued)

Symptom	Possible Cause(s)	Corrective Action
Compressor shuts off unexpectedly or won't start	1. Circuit overloaded2. Low voltage3. Extension cord usage - wrong gauge wire and/or too long.4. Loose electrical connections5. Worn check valve6. Defective unloader valve (on pressure switch)7. Defective motor capacitor(s)8. Defective motor9. Lack of proper ventilation/ room temperature too high10. Clogged intake filter	1. Disconnect other electrical appliances from circuit or operate compressor on its own branch circuit2. Check voltage at wall outlet with voltmeter.3. Remove extension cord or refer to Extension Cord Chart on page 44. Check all electrical connections5. Replace check valve ▲DANGERDo not disassemble check valve with air pressure in tank; bleed tank.6. Replace unloader valve7. Replace capacitor(s)8. Replace motor9. Move compressor to well ventilated area10. Clean or replace filter
Knocks, rattles, and/or excessive vibration	1. Loose mounting bolts2. Tank not level3. Cylinder or piston is worn/ scored	1. Tighten bolts.2. Use sturdy wedge/object to bring tank to level position.3. Replace or repair as necessary.
Compressor runs continuously and safety valve opens as pressure rises	1. Defective pressure switch2. Defective safety valve	1. Replace switch.2. Replace safety valve with genuine replacement part.
Air leaking from unloader valve on pressure switch	1. Check valve stuck in an open position2. Unloader valve stuck in open position	1. Replace check valve.2. Replace unloader valve. ▲DANGERDo not disassemble check valve with air pressure in tank; bleed tank.

Operating Instructions and Parts Manual

Exploded view diagram of a mechanical device with numbered components for identification

Figure 7 - Repair parts illustration

Please provide following information:

• Model number
• Serial number (if any)
• Part description and number as shown in parts list

Address any correspondence to:

Attn: Customer Service

100 Production Drive Harrison, OH 45030 U.S.A.

Replacement Parts List

Ref.No.	Description	DC1300	Qty.
1	PUMPMOTOR ASSEMBLY	DC130001AV	1
2	FILTER	DC130054AV	1
3	T TYPE CONNECT	▲	1
4	COLD START VALVE	▲	1
5	EXHAUST TUBE	■	1
6	O-RING	■	2
7	CHECK VALVE ASSEMBLY	—	1
8	UNLOAD TUBE	—	1
9	PRESSURE SWITCH	●	1
10	TANK GAUGE	●	1
11	SAFFETY VALVE	●	1
12	CONNECT	●	1
13	OUTLET GAUGE	●	1
14	REGULATOR	●	1
15	COUPLER	●	1
16	TANK	—	1
17	POWER CORD	—	1
18	HANDLE	—	1
19	HANDLE GRIP	—	1
20	CONNECT	—	1
21	M8X30 BOLT	—	4
22	MB WASHER	—	6
23	M8 SPRING WASHER	—	4
24	MB NUT	—	4
25	SHROUD	—	1
26	M5X16 SCREW	—	2
27	MS WASHER	—	2
28	M10 NUT	—	2
29	M10 WASHER	—	2
30	7 INCH WHEEL	—	2
31	M10XS6 BOLT	—	2
32	COVER	—	2
33	DRAIN VALVE	DC130052AV	1
34	MB NUT	—	2
35	RUBBER FOOT	—	2
36	MB WASHER	—	2
37	MBX25 BOLT	—	2
38	M6X10 HEX SOCKET BOLT	—	4
REPLACEMENT PARTS KITS
▲	COLD START VALVE KIT	DC130053AV
■	EXHAUST TUBE KIT	DC130050AV
●	PRESSURE SWITCH AND REGULATOR KIT	DC130051AV
—	NOT AVAILABLE
*	STANDARD HARDWARE ITEM - AVAILABLE AT YOUR LOCAL HARDWARE STORE

Operating Instructions and Parts Manual

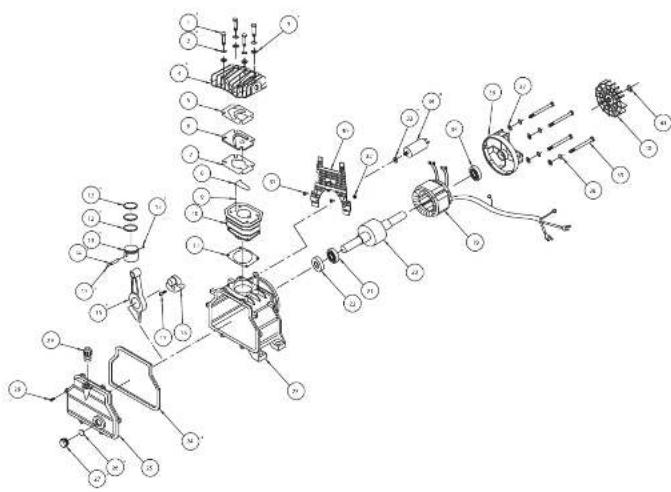

Exploded view diagram of a mechanical assembly with numbered components for identification

Figure 8 - Repair parts illustration for pump / motor

Please provide following information:

- Model number

- Serial number (if any)

- Part description and number as shown in parts list

Replacement Parts List

Ref.No.	Description	PartNumber	Qty.
1	M8X110 BOLT	▲	4
2	MB SPRING WASHER	▲	4
3	M8 WASHER	▲	4
4	CYLINDER HEAD	▲	1
5	CYLINDER HEAD GASKET	▲ ■	1
6	VALVE PLATE AND VALVEASSEMBLY	■	1
7	CYLINDER GASKET (UPPER)	■	1
8	INTAKE VALVE REED	■	1
9	M3X6 ROUND PIN	■	2
10	CYLINDER	—	1
11	CYLINDER GASKET(LOWER)	—	1
12	PISTON RING	●	3
13	PISTON	●	1
14	PISTON PIN	●	1
15	EXTERNAL RETAININGRING FOR 12MM SHAFT	●	2
16	CON ROD	●	1
17	M8X22-LH SCREW	—	1
18	ECCENTRIC	—	1
19	STATOR	—	1
20	ROTOR	—	1
21	BEARING	—	1
22	BEARING SEAL RING	—	1
23	CRANKCASE	—	1
24	SEAR RING	●	1
25	CRANKCASE COVER	—	1
26	O-RING	◆	1
27	OIL GLASS	◆	1
28	M5X1BSCREW	—	6
29	BREATHER	DC13005SAV	1
30	BAFFLE	—	1
31	M4X12 SCREW	—	4
32	M4 NUT	—	4

Address any correspondence to:

Attn: Customer Service

100 Production Drive

Harrison, OH 45030 U.S.A.

Ref.No.	Description	Part Number	Qty.
33 M8 NUT		▼	1
34 CAPACITOR		▼	1
35 BEARING		—	1
36 REAR BEARING CRANK		—	1
37 M5 WASHER		—	4
38 M5 SPRING WASHER		—	4
39 M5X110 MOTOR BOLT		—	4
40 COOLING FAN		△	1
41	EXTERNAL RETAININGRING FOR 14MM SHAFT	△	1
REPLACEMENT PARTS KITS
▲	PUMP HEAD KIT	DC1300564V
■	VALVE PLATE KIT	DC130057AV
●	PISTON ASSEMBLY KIT	DC130058AV
◆	SITE GLASS KIT	DC1300614V
▼	CAPACITOR KIT	DC1300594V
—	MOTOR FAN KIT	DC130060AV
—	NOT AVAILABLE
*	STANDARD HARDWARE ITEM - AVAILABLE ATYOUR LOCAL HARDWARE STORE

Operating Instructions and Parts Manual

REGISTER YOUR PRODUCT ONLINE NOW! http://www.campbellhausfeld.com

Limited Warranty

1. DURATION: From the date of purchase by the original purchaser as follows: One Year.

2. WHO GIVES THIS WARRANTY (WARRANTOR):

Campbell Hausfeld a Marmon/Berkshire Hathaway Company, 100 Production Drive, Harrison, Ohio, 45030, Telephone: [phone]

1. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld

compressor.

1. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld air compressor.

2. WHAT IS COVERED UNDER THIS WARRANTY: Parts and Labor to remedy substantial defects due to material and workmanship during the first year of ownership with the exceptions noted below. Parts only to remedy substantial defects due to material and workmanship during remaining term of coverage with exceptions noted below.

3. WHAT IS NOT COVERED UNDER THIS WARRANTY:

A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If the compressor is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Two-stage compressors are not limited to a ninety (90) day warranty when used in commercial or industrial applications. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you

B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

C. Any failure that results from an accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions

provided in the owner's manual(s) supplied with compressor.

D. Pre-delivery service, i.e. assembly, oil or lubricants, and adjustment.

E. Items or service that is normally required to maintain the product, i.e. lubricants, filters and gaskets, etc.

F. Gasoline engines and components are expressly excluded from coverage under this limited warranty. The Purchaser must comply with

the warranty given by the engine manufacturer which is supplied with the product

G. Additional items not covered under this warranty:

1. Excluded items pertaining to All Compressors

a. Any component damaged in shipment or any failure caused by installing or operating unit under conditions not in accordance

with installation and operation guidelines or damaged by contact with tools or surroundings.

b. Pump or valve failure caused by rain, excessive humidity, corrosive environments or other contaminants.

c. Cosmetic defects that do not interfere with compressor functionality.

d. Rusted tanks, including but not limited to rust due to improper drainage or corrosive environments.

1. The following components are considered normal waste items and are not caused after the first use of ownership. Electric

c. The following components are considered normal wear items and are not covered after the first year of ownership: a minor check valve, pressure switch, regulator, pressure pump, hors, tubing, pipe fittings and crumbers, travel, rugs

motor, check valve, pressure switch, regulator, pressure gauges, hose, tubing, pipe, fittings and couplers, screws, huts, hardware items, belts, pulleys, floorwheel, air filter and housing, gaskets, seals, oil leaks, air leaks, oil consumption or usage.

pictur, sivu

piston rings. 5. Tank drain valves

1. Tank drain valves.
2. Pampore due to instrument voltage or instrument wiring

g. Damage due to incorrect voltage of improper wiring.

1. Other items not listed but considered general wear parts.

2. Pressure switches, air governors, load/unload devices, throttle control devices and safety valves modified from factory

settings

j. Damage from inadequate filter maintenance.

k. Induction motors operated with electricity produced by a generator.

. Excluded items specific to Lubricated Compressors:

a. Pump wear or valve damage caused by using oil not specified

b. Pump wear or damage caused by any oil contamination

c. Pump wear or damage caused by failure to follow proper oil maintenance guidelines, operation below proper oil level or

operation without oil.

H. Labor, service call, or transportation charges after the first year of ownership of stationary compressors. Stationary compressors are

defined as not including a handle or wheels.

1. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor's option, compressor or component which is

defective, has malfunctioned and/or failed to conform within duration of the warranty period.

1. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A. Provide dated proof of purchase and maintenance records

1. Call Campbell Hausfeld (800,543,640) to obtain your warranty service options. Freight costs must be borne by the purchaser.

C. Use reasonable care in the operation and maintenance of the products as described in the owner's manuals

C. Use reasonable care in the operation and maintenance of the products as described in the owner's管理办法. D. Repairs requiring overtime, weekend rates, or anything beyond the standard manufacturer warranty repair la

1. Time sanctioned for anti-certain charges, safe training, or similar for cardiac personnel to gain access to facilities

E. Time required for any security checks, safety training, or similar for service personnel to gain access to facility F. Location of unit must have adequate clearance for service personnel to perform repair and easily appropriably

1. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and

2. In the following section, we will further detail a real-time one in the following issue of replacement will be restructured the required according to the normal work flow at the existing location and depending on the availability of replacement parts

This Limited Warranty applies in the U.S., Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from State to State or country to country.

A Marmon/Berkshire Hathaway Company

25 Sp

IN641400AV 12/15

Line drawing of a mechanical device with gears and housing (no text or symbols)

NE PAS RENVOYER LE PRODUIT AU MARCHAND!

© 2015 Campbell Hausfeld A Marmon/Berkshire Hathaway Company

13 Fr

IN641400AV 12/15

2.1.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

Attn: Customer Service

100 Production Drive

Harrison, OH 45030 U.S.A.

Exploded view diagram of a mechanical assembly with numbered components for identification

Installation (Suite)

Attn: Customer Service

100 Production Drive

Harrison, OH 45030 U.S.A.

Exploded view diagram of a mechanical device with numbered components for identification

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting \`\_\_\_\_\` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

HUMIDITÉ DANS L'AIR COMPRIMÉ
