USER MANUAL Active Christopeit

Assembly and operating instructions

Order No.: 2561 GB

Page: 13-22

Line drawing of a stationary exercise bike with adjustable arms and control panel (no text or symbols)

Technical diagram of a stationary exercise bike with labeled parts and a circular inset showing the dial.

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

13 Important recommendations and safety instructions

14-16 Assembly instructions

17 Use of the device

18 Computer

19 Cleaning, checks and storage

19 Troubleshooting

20 General training instructions

21-22 Parts list – Spare parts list

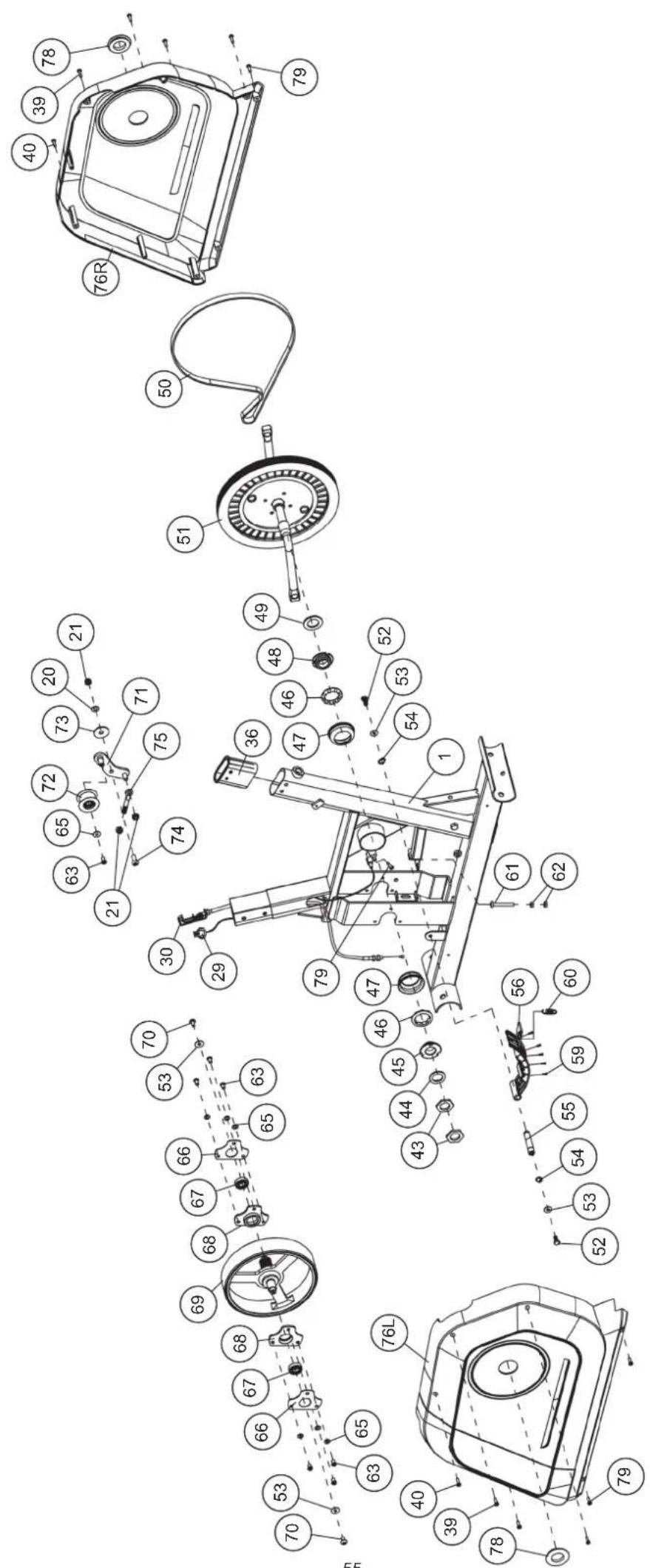

54-55 Exploded drawing

We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use. Please do not hesitate to contact us at any time if you should have any questions.

IMPORTANT RECOMMENDATIONS AND SAFETY INSTRUCTIONS

Our products are all TÜV tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the assembly steps in the installation and operating instructions.

2. Before the first use and at regular intervals (approximately every 50 Operating hours) check the tightness of all screws, nuts and other connections and the access shafts and joints with some lubricant so that the safe operating condition of the equipment is ensured. In particular, the adjustment of saddle and handlebar need smooth function and good condition.

3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.

4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.

5. Before beginning training, remove all objects within a radius of 2 metres from the machine.

6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after finishing training.

7. Attention! Systems of the heart frequency supervision can be inexact. Excessive training can lead to serious health damage or to the death. Consulta doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. This item is not suitable for therapeutically purposes!

8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs. Attention! Replace the worm parts immediately and keep this equipment out of use until repaired.

9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.

10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time. The exercise time should not overtake 45 min/daily.

11. Wear training clothes and shoes which are suitable for fitness training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.

12. Attention! If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.

13. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.

14. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.

15. It must be ensured that the user and other people never go or stand with any body parts in the area of still moving parts.

16. At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may find the symbol on the product, on the instructions or on the packing. The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.

17. To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.

18. This machine is a speed-dependant machine, i.e. the power increases with increasing speed, and the reverse.

19. The machine is equipped with 14-speed resistance adjustment. This makes it possible to reduce or increase the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 1 reduces the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 14 increases the braking resistance and thereby the training exertion.

20. This machine has been tested in compliance with wird EN ISO 20957-1:2025 and EN ISO 20957-5:2017 „H/C“. The maximum permissible load (=body weight) is specified as 110 kg. The classification of H/C means this exercise bike is designed for home use only and with good accuracy class. This item's computer corresponds to the basic demands of the directive of EMC 2014/30/EU.

21. The assembly and operating instructions is part of the product. If selling or passing to another person the documentation must be provided with the product.

ASSEMBLY INSTRUCTIONS

Remove all the separate parts from the packaging, lay them on the floor and check roughly that all are there on the base of the assembly steps. Please note that a number of parts have been connected directly to the main frame and preassembled. The screw material required for assembly is located on the components to be assembled. This will make it easier and quicker for you to assemble the equipment. Assembly time: 35 - 40 min.

STEP 1

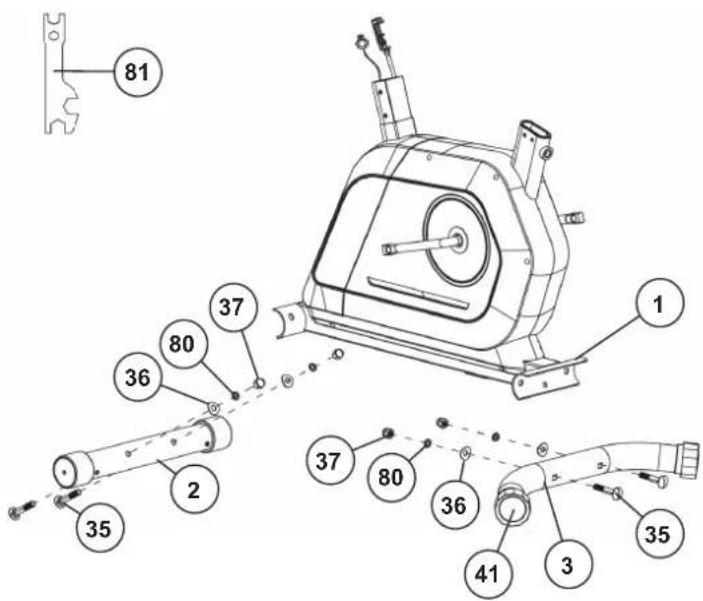

Install of front and rear foot (2+3) to the main frame (1).

1. Place two screws (35), spring washers (80), curved washers (36) and nuts (37) accessibly beside the front and rear parts of the main frame (1).
2. Insert the foot bars (2+3) in the holder of the main frame (1) and adjust so that the hole patterns of the holders and the foot bars (2+3) are aligned. The rear foot (3) has preassembled eccentric caps (41).
3. Push one screw (35) through each hole. Fit the screw ends of (35) with one washer (36) and spring washer (80) each and fasten with a nut (37).

(Note! If the machine has positioned for training on an uneven floor, this can be compensated at any place by turning the eccentric caps (41)).

81 37 80 36 2 35 37 80 36 41 3 1 35

STEP 2

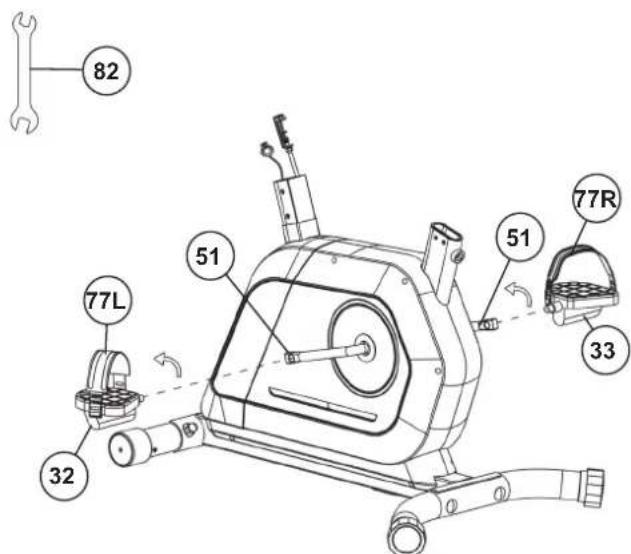

Installation of the pedals (32+33) at pedal crank (51).

1. The pedals and pedals straps are marked "R" for right and "L" for left.
2. Screw the right pedal (33) into the threaded hole on the right hand side of the pedal crank (51) and tighten firmly. (Note: Right and left are specifies as viewed seated on the machine during training. It must also be observed that the threaded part of the right pedal must be screwed clockwise into the threaded hole of the pedal crank.)
3. Screw the left pedal (32) into the threaded hole on the left hand side of the pedal crank (51) and tighten firmly. (Note: The threaded part of the left pedal have to screw anticlockwise into the threaded hole of the pedal crank.)
4. Then mount the pedal straps on the left (77L) and right (77R) to the corresponding pedals (32-33). The small number of holes in the pedal straps should be attached to the inside of the pedal.

82 77L 32 51 51 77R 33

STEP 3

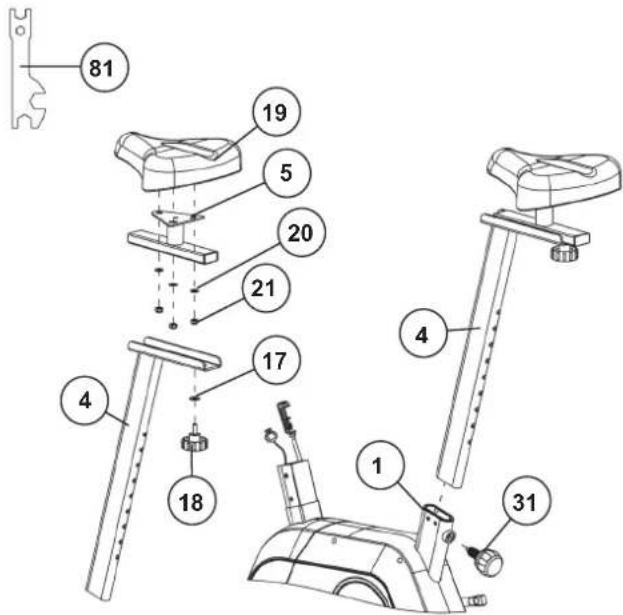

Installation of saddle (19) and saddle support (4).

1. Place the saddle (19) with the seat surface downwards.
2. Place the retaining plate of the saddle slide (5) on the upwards pointing bottom of the saddle (19). The threaded pieces on the bottom of the saddle (19) must project through the corresponding holes in the retaining plate of the saddle slide (5).
3. Place washers (20) on the threaded pieces, screw on nuts (21) and tighten firmly.
4. Place the movable seat slide (5) into the holder of saddle support (4), set it at the desired horizontally position and tighten it by washer (17) and hand grip nut (18).
5. Insert the saddle support (4) into the provided holder of the main frame (1) and secure at the desired position by screwing in the quick release (31). Note: To screw in the quick release (31), the threaded hole in the main frame (1) and one of the holes in the saddle support (4) must be aligned. Furthermore, ensure that the saddle support (4) is not pulled out of the main frame beyond the marked maximum adjustment position. The setting of the saddle support can be adjust as desired later. For this, the rapid action catch (31) must be loosened by only a few revolutions, the cap of the lock must be pulled away and the saddle adjusted. Then secure the new setting by tightening the rapid action catch.) Furthermore, you must ensure when setting this desired position that the seat pillar is not pulled out of the main frame further than the highest setting position, which is marked. Attention! Ensure before every exercising that the saddle is tighten firmly.

81 19 5 20 21 4 17 4 18 31

STEP 4

Installation of handlebar support (6) at main frame (1).

1. Place screws (27), spring washer (14) and washers (17) / (26) accessibly beside the front part of the main frame (1).
2. Place the lower end of the support (6) against the main frame (1) and plug the ends of the two computer cables (28+29) projecting from (1) and (6) together. (Note: The computer cable harness (28) projecting from the support (6) must not slide into the tube, as it is required for later steps of installation. When joining the tubes, ensure that the cable connection will not trapped.) Push the cable of tension (30) upwards from the bottom of the support tube so that it can be removed through the opening in the support tube (6). Insert the support tube (6) onto the base frame (1).
3. Connect the tension cable of resistance control (23) to the bracket of lower section cable of tension (30) (See figure A1-A3). Before this step of the installation, it is advisable to adjust the resistance setting to the position, at which the cable extends furthest from the sheath. Put the lowest part of cable cable of resistance control (23) into the small hook of lower tension cable (30) (figure A1). Then pull the resistance control (23) (with the cable knob hooked in) so that the hook slides upwards in the holder (Figure A2) and the casing can be locked onto the holder at the top (Figure A3).
4. Push the handlebar support (6) onto the main frame (1) and put one spring washer (14) and one washer (17) / (26) on each screw (27). Be careful not to squeeze any cables. Push the screws (27) through the holes in the support (6), screw into the threaded holes of the main frame (1) and tighten firmly.

83 6 30 25 24 23 A 27 14 26 17 14 27 28 29 1 A1 A2 30B 23

STEP 5

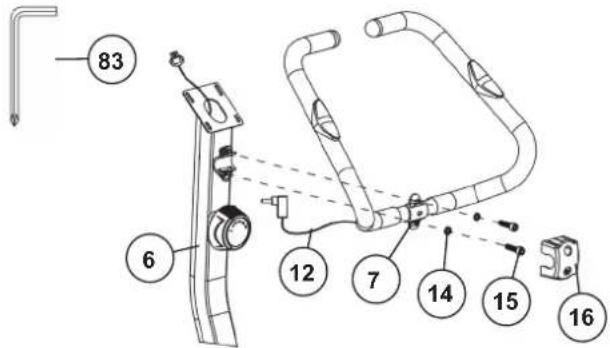

Installation of handlebar (7) at handlebar support (6).

1. Place the handlebar (7) against the handlebar support (6) and adjust so that the hole patterns in the handlebar and the handlebar support are aligned. Put one spring washer (14) on each screw (15). Push the screws (15) through the holes in the support, screw into the threaded holes of the support (6) and tighten firmly.
2. Cover the handle bar connection with handlebar cover (15).

83 6 12 7 14 15 16

STEP 6

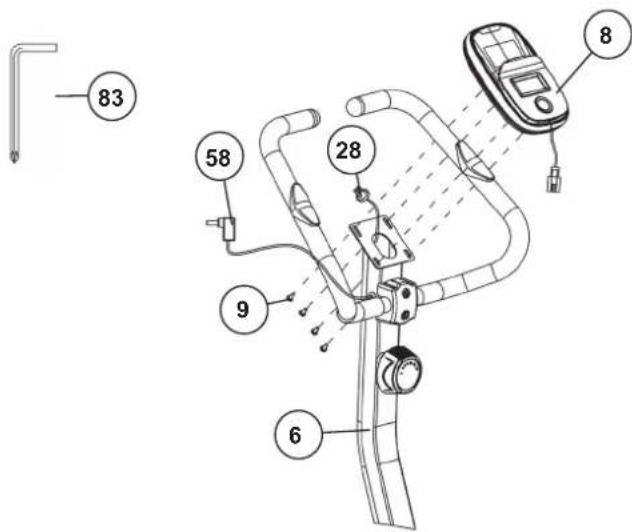

Installation of the computer (8) at handlebar support (6).

1. Take the computer (8) that has been supplied out of the packaging and insert the batteries (Type "AAA"-1.5 V pencells) by watching for the right polarity on the back of the computer (8). (Batteries for the computer are not included in this item. Please buy them at your located market.)
2. Guide the computer (8) to top of the upper handlebar support (6) and connect the plugs of upper connection cable (28) with computer cables.
3. Stow the cable connections in the support tube and place the computer (8) on the handlebar support tube (6) and fasten the computer using the screws (9). The fastening screws (9) are located on the back of the computer.
4. Plug the pulse cable (58) into the back of the computer (8).

83 58 28 9 6 8

CHECKS

1. Check the correct installation and function of all screwed and plug connections. Installation is thereby complete.
2. When everything is in order, familiarise yourself with the machine at a low resistance setting and make your individual adjustments.

Note: Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

Line drawing of a stationary exercise bike with adjustable arms and control panel (no text or symbols)

USE OF THE DEVICE

Adjustment – Seat Position

For an effective workout, the seat must be adjusted properly. While your are pedaling, your Knees should be slightly bent when the pedals are in the farthest position. To set the correct sitting position, unscrew the quick release (13) and then pull the saddle with the seat support tube (4) into the desired sitting position. Then fasten this position properly again using the quick release (13).

Attention! Make sure to put the quick release (13) back into place in the seat post and tighten it completely. Never exceed the maximum height of the seat. Always get off the bicycle before making any adjustment.

Transportation

There are two rollers equipped on the front foot (6). For moving, you can lift up the rear foot and drive it to where you would like to locate or store it.

Mount

After the seat is adjusted to properly position, insert your foot into retaining strap of pedal step on the pedal and hold the handlebar tightly. Try to put whole body weight on your foot and simultaneously cross over the trainer and land your another foot on the other side. Now you are in the position to start your training.

Use

Keep you hands on the handlebar, and both feet are insert into retaining straps of both pedal properly. Pedal your exercise bike by your both feet alternately. Then you can increase the pedaling speed gradually and adjust braking resistance levels to increase the exercise intension.

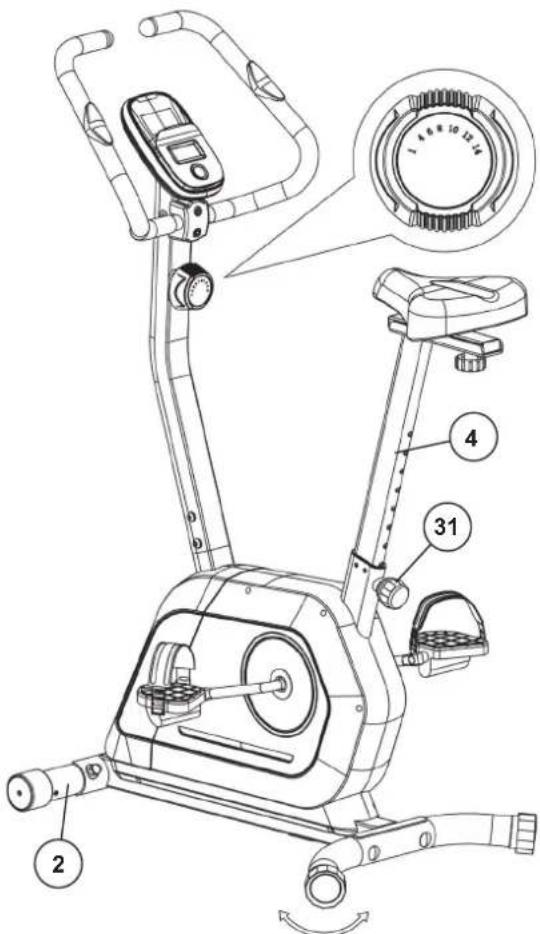

Dismount

Slow down the pedaling speed until it comes to rest. Keep the left hand grabbing the left handlebar tightly, put your feet cross over the equipment and land on the floor, then land the other one.

This training equipment is a stationary exercise machine used to simulate without causing excessive pressure to the joints, hence decreasing the risk of impact injuries. Exercise bike offer a non-impact cardiovascular workout that can vary from light to high intensity based on the resistance preference set by the user. It will strengthen your muscles of legs and increase cardio capacity and maintain fitness of your body also.

Technical diagram of a stationary exercise bike with labeled components and a circular inset showing gear ratio.

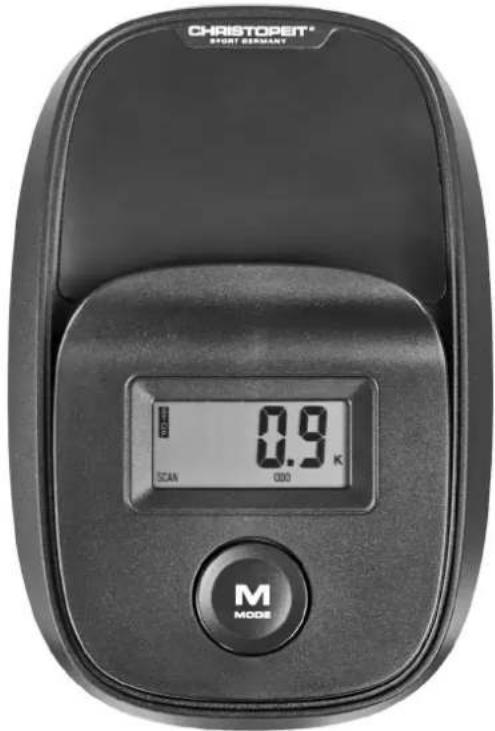

COMPUTERCOMPUTER INSTRUCTIONS

The supplied computer allows the most convenient training. Every value relevant to training is displayed in a corresponding window.

From the beginning of the training session, the required time, the current speed, the approximate calorie consumption, the travelled distance ad the current pulse rate are displayed. All values are counted from zero upwards. If you wish to see one value displayed constantly during training, select this with the [M] key. If you wish to see these values in constant alternation, select the „SCAN“ function. The display then changes from one function to the next at intervals of approx. 6 seconds. The computer is switched on by briefly pressing the [M] key or simply by beginning training. The computer begins to register and display all values.

To stop the computer, just stop training. The computer stops all measurements and retains the last attained values. The last attained values in the functions TIME, CALORIES and KM are stored for 4 minutes and training can continue with these values when training is resumed. The computer switches of automatically approx. 4 minutes after training is stopped.

CHRISTOPERT® SPORT SANTANT 0.9 K SCAN 000 M MODE

DISPLAYS

[SCAN]:

If this function is selected, the current values of all functions are displayed successively in a constant sequence approx. every 5 seconds.

[SPD]:

The current speed is displayed in kilometres per hour. (Limit of the display: 999.9 km/h.)

[ DIST]:

The current status of the travelled distance is displayed. (Limit of the display: 999,9 km.)

[TIME]:

The currently required time is displayed in minutes and seconds. (Limit of the display: 99 minutes.)

[CAL]

The current status of the consumed calories is displayed. (Limit of the display: 999,0 calories.)

[ODO]:

The current status of the travelled kilometres of all previous training sessions including current training session is displayed. (Limit of the display: 9999 km.)

[PULSE]:

The current pulse rate is displayed in beats per minute. (Displays: 40 - 240 pulse beats per minute.)

KEY

[M-Mode]:

Pressing this key once briefly makes it possible to change from one function to another, i.e. the respective functions can be selected. If the key is held longer (approx. 3 seconds), all last attained values are deleted.

PULSE RATE

1. Hand pulse measurement

On the left and right side of handlebar two metal contact plates are insert as pulse sensors. Please take care that both hands at the same time in normal force on the sensors. During the heartbeat measurement a heart symbol flashes next to the pulse display. (The hand pulse measurement serves only for orientation, as it is caused by movement, friction, sweat etc. it can come to deviations from the actual pulse. A few people may cause malfunctions of hand pulse measurement. Should you have trouble with the hand pulse measurement, we recommend the use of a cardio chest belt with external pulse display.)

Attention! Heart rate monitor systems may be inaccurate. Excessive exercising can lead to serious damage or maybe to death. If dizziness or weakness is felt, stop exercising immediately.

REPLACING THE BATTERIES

1. Open the battery compartment cover and then remove the used batteries.(If the batteries should leak remove them under increased considering that the battery acid is not into contact with skin come and clean the battery compartment thoroughly.)

2. Insert the new batteries (type (AAA) 1.5 V in the correct order and taking into account the polarity in the battery compartment and close the battery cover so that it clicks into place.

3. If the computer does not pick up immediately, the function should batteries are removed for 10 seconds and re-inserted.

4. The empty batteries properly in accordance with the disposal regulations disposed of and do not give residual waste.

Battery compartment

AAA Batteries

CLEANING, CHECKS AND STORAGE

1. Cleaning

Use only a less wet cloth for cleaning. Attention! Never use benzene, thinner or other aggressive cleaning agents for surface cleaning as this damage caused. The device is only for private home use and for use suitable indoors. Keep the unit clean and moisture from the device.

2. Storage

Remove the batteries from the computer while intending the unit for more than 4 weeks not to use. Push the saddle slide toward the handlebar and the seat support tube as deeply as possible into the frame. Choose a dry storage in-house and put some spray oil to the pedal bearings left and right, and on the thread of the quick release for saddle support.

Cover the bike to protect it from being discolor by any sunlight and dirty through dust.

3. Checks

We recommend every 50 hours to review the screw connections for tightness, which were prepared in the assembly. Every 100 operating hours, you should put some spray oil at the pedal bearings left and right, and to the thread of quick release for saddle support.

TROUBLESHOOTING

If you cannot solve the problem with the following information, please contact the authorized service center.

Problem Possible Cause Solution
Computer has no value at Display if you press any key.	No Batteries insert or batteries empty Check	the position of batteries at battery compartment or replace batteries.
Computer is not counting data and do not switch on after start cycling.	Sensor impulse missing base on not well plugged connection	Check the plug connections at computer and inside of handlebar support.
Computer is not counting data and do not switch on after start cycling.	Sensor impulse missing base on not correct position of sensor.	Take off the cover and check the distance between magnet and Sensor. The magnet at turning belt wheel should have only less than < 5mm distance against the sensor position.
No pulse value Pulse cable is not plugged in. Check the separately pulse cable is well connected with computer.
No pulse value Pulse sensors not well connected Screw out the screw for pulse	measurement and check if plugs are well connected and no damage at pulse cable..
Resistance don’t change	Connection of resistance not well	Check the resistance connection inside of handlebar support as manual mention.

TRAINING SPACE REQUIREMENT

2200 950 550

Training area in mm (for home trainer and user)

2200 1550 1750

Free area in mm
(Training area and security area (circulating 600mm))

GENERAL TRAINING INSTRUCTIONS

You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefits.

INTENSITY

The level of physical exertion during training must exceed the point of normal exertion, without going beyond the point of breathlessness and/or exhaustion. A suitable reference value can be the pulse. With each training session, the condition increases and therefore the training requirements should be adjusted. This is possible by extending the duration of the training, increasing the level of difficulty or changing the type of training.

TRAINING HEART RATE

To determine the training heart rate, you can proceed as follows. Please note that these are guide values. If you have health problems or are unsure, consult a doctor or fitness trainer.

01 Maximum heart rate calculation

The maximum pulse value can be determined in many different ways, since the maximum pulse depends on many factors. You can use the main-formula for the calculation (maximum heart rate = 220 - age). This formula is very general. It is used in many home sport products to determine the maximum heart rate. We recommend the Sally-Edwards-formula. This formula calculates the maximum heart rate more precisely and takes gender, age and body weight into account.

Sally-Edwards-formula:

Men:

Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)

Women:

Maximum heart rate = 210 - (0.5 x age) - (0.11 x body weight)

02 Training heart rate calculation

The optimal training heart rate is determined by the goal of the training. Training zones were defined for this.

Health - Zone: Regeneration and Compensation

Suitable for: Beginners

Type of training: very light cardio training

Goal: recovery and health promotion. Building the basic condition.

Training heart rate = 50 to 60% of the maximum heart rate

Fat-Metabolism - Zone: Basics endurance training 1

Suitable for: beginners and advanced users

Type of training: light cardio training

Goal: activation of fat metabolism (calorie burning). improvement in endurance performance.

Training heart rate = 60 to 70% of the maximum heart rate

Aerobic - Zone: Basics endurance training 1 to 2

Suitable for: beginners and advanced

Type of training: moderate cardio training.

Goal: Activation of the fat metabolism (calorie burning), improving aerobic performance, Increase in endurance performance.

Training heart rate = 70 to 80% of the maximum heart rate

Anaerobic - Zone: Basics endurance training 2

Suitable for: advanced and competitive athletes

Type of training: moderate endurance training or interval training

Goal: improvement of lactate tolerance, maximum increase in performance.

Training heart rate = 80 to 90% of the maximum heart rate

Competition - Zone: Performance / Competition Training

Suitable for: athletes and high-performance athletes

Type of training: intensive interval training and competition training /

Goal: improvement of maximum speed and power.

Attention! Training in this area can lead to overloading of the cardiovascular system and damage to health.

Training heart rate = 90 to 100% of the maximum heart rate

Sample calculation

Male, 30 years old and weighs 80 kg. I am a beginner and would like to lose some weight and increase my endurance.

01: Maximum pulse - calculation

Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight)

Maximum heart rate = 214 - (0.5 x 30) - (0.11 x 80)

Maximum pulse = approx. 190 beats/min

02: Training heart rate calculation

Due to my goals and training level, the fat metabolism zone suits me best.

Training heart rate = 60 to 70% of the maximum heart rate

Training heart rate = 190 x 0.6 [60%]

Training heart rate = approx. 114 beats/min

After you have set your training heart rate for your training condition or Once you have identified goals, you can start training. Most of our endurance training equipment have heart rate sensors or are heart rate belt compatible. So you can check your heart rate on the monitor during the workouts. If the pulse rate is not shown on the computer display or you want to be on the safe side and want to check your pulse rate, which could be incorrectly displayed due to possible application errors or similar, you can use the following tools:

a. Pulse measurement in the conventional way (sensing the pulse beat, e.g. on the wrist and counting the beats within a minute).

b. Heart rate measurement with suitable and calibrated heart rate measuring devices (available from medical supply stores).

c. Heart rate measurement with other products such as heart rate monitors, smartphones....

FREQUENCY

Most experts recommend the combination of a health-conscious diet, which must be adjusted according to the training goal, and physical exercise three to five times a week. A normal adult needs twice a week exercise to maintain its current condition. To improve his condition and change his body weight, he needs at least three training sessions per week. Ideal of course is a frequency of five training sessions per week.

TRAINING PLAN

Each training session should consist of three training phases: "warmup phase", "training phase" and "cool-down phase". In the "warm-up phase" the body temperature and the oxygen supply should be increased slowly. This is possible through gymnastic exercises over a period of five to ten minutes. After that you start with actual training "training phase". The training load should be adapted according to the training heart rate. In order to support the circulation after the training phase and to preventaching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and/or light gymnastic exercises for a period of five to ten minutes.

Example - stretching exercises for the warm-up and cool-down phases

Start your warm up by walking on the spot for at least 3 minutes and then perform the following gymnastic exercises to the body for the training phase to prepare accordingly. The exercises do not overdo it and only as far run until a slight drag felt. This position will hold a while.

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

Reach with your left hand behind your head to the right shoulder and pull with the right hand slightly to the left elbow. After 20sec. switch arm.

Bend forward as far forward as possible and let your legs almost stretched. Show it with your fingers in the direction of toe. 2 x 20sec.

Sit down with one leg stretched out on the floor and bend forward and try to reach the foot with your hands. 2 x 20sec.

Kneel in a wide lunge forward and support yourself with your hands on the floor. Press the pelvis down. Change after 20 sec leg.

MOTIVATION

The key to a successful program is regular training. You should set a fixed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goalin view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit.

PARTS LIST – SPARE PARTS LIST

Weight approx. [kg]: 22 kg

Load max. (User weight) [kg]: 110 kg

FEATURES

• Magnetic brake system
- Approx. 5 kg flywheel mass
• 14 -stepped resistance control
- Saddle horizontally- and vertically-adjustable
- Hand pulse measurement
• Floor level compensation and transport rollers
- Bottle holder
- Computer with LCD display shows: Time, Speed, Distance, ODO, approx. calories and pulse frequency.
- Integrated holder for smartphones and tablets

NOTE

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future.

This product is created only for private Home sports activity and not allowed to us in a commercial or professional area. Home Sport use class H/C.

Illustration No.	Designation Dimension mm Quantity Attached to ET Number
1 Main frame	1 2+3 33-2561-01-SW
2 Front stabilizer	1 1 33-2561-02-SW
3 Rear stabilizer	1 1 33-2561-03-SW
4 Seat support	1 1 33-2561-04-SW
5 Seat slide	1 4 33-2561-05-SW
6 Handlebar tube		1 1 33-2561-06-SW
7 Handlebar		1 6 33-2561-07-SW
8 Computer	1 6 36-2561-03-BT
9 Crosshead screw	M5x10	4 8 39-9903-SW
10	Handlebar foam		2 7 36-2561-05-BT
11	End cap	25	2	7	36-1206-13-BT
12	Pulse sensor		2 7 36-1820-28-BT
13	Crosshead screw	4.2x18	4	12+34	36-9211-38-BT
14	Spring washer	for 8	8	15+27	39-9864-SW
15	Inner hex screw	M8x30	2 7 39-9906
16	Handlebar cover		1 7 36-9110-13-BT
17	Washer	8//16	5	18+27	39-9962-SW
18	Handgrip screw	M8x20	1	5	36-9903-21-BT
19	Saddle		1 5 36-2561-06-BT
20	Washer	8//16	4	19+74	39-9962-CR
21	Nylon nut	M8	6	19,71+74	39-9918-CR
22	Square cap		2 5 36-9103-24-BT
23	Tension control knob		1	6+30	36-2561-07-BT
24	Arc washer	5//14	1	25	39-1011-VC
25	Crosshead screw	M5x50	1	6+23	39-10406
26	Arc Washer	8//20	2	27	39-9966-SW
27	Allen bolt	M8x20	6 2 39-10247
28	Connection cable		1	8+29	36-9211-07-BT
29	Sensor cable		1 1+29		36-9211-12-BT
30	Tension cable 1 23+56	36-2561-08-BT
31	Quick release	M16	1 1 36-2561-09-BT
32	Pedal left	12"L	1	51	36-9110-04-BT
33	Pedal right	12"R	1	51	36-9110-05-BT
34	End cap with transport roller		2 2 36-2561-10-BT
35	Carriage bolt	M10x60	4	2+3	39-10026-SW
36	Arc washer	10//25	4	35	39-10233-SW
37	Cap nut	M10	4	35	39-10021-SW
38	Cable safe		1 7 36-9821-13-BT
39	Crosshead screw	4.2x12	2	76	36-9825339-BT
40	Crosshead screw	4.2x25	6	76	39-9825338-BT

Illustration No.	Designation Dimension mm Quantity Attached to ET Number
41 Eccentric	cap 2 3 36-1321-07-BT
42 Seat post	bushing 1 1 36-2561-11-BT
43 Nut	M22	2 51		36-9713-05-BT
44	Washer	22//35	1	51	36-9713-04-BT
45	Bearing cover 1	M22	1	51	36-9713-03-BT
46	Ball bearing	30//45	2	51	36-9713-02-BT
47 Bearing seat		2 51		36-9713-01-BT
48	Bearing cover 2	M23	1	51	36-9713-06-BT
49	Washer	23//38	1	51	36-9713-07-BT
50 Belt		1 51+69		36-2541-12-BT
51 Belt wheel with crank		1 1 33-2561-08-SI
52 Bolt	M6x15	2 55		39-10120-SW
53	Washer	6//16	4	52+70	39-10013-VC
54 Safety clip	C12	2 55		36-9514-26-BT
55 Magnetic bracket axle		1 56		36-2561-13-BT
56 Magnetic bracket with magnets		1 55		33-2561-09-SW
57 Magnet		1 51		36-1122-23-BT
58 Pulse cable		1 8+12		36-2561-14-BT
59 Crosshead screw	3x10	5 56		39-9909-SW
60 Spring		1 71+75		36-2561-15-BT
61 Bolt	M6x45	1 56		39-10410-CR
62 Nut	M6	2 61		39-9861
63 Bolt	M6x12	6 66+71		39-10120-VC
64 Bolt	M6x10	1 66		39-10120
65	Washer	6//12	7	63	39-10013-VC
66 Bearing seat holder		2 67+68		36-2561-16-BT
67 Bearing	6001	2 68		36-9516-27-BT
68 Bearing seat		2 1 36-2561-17-BT
69 Flywheel mass		1 1 33-2561-10-SW
70 Allen bolt	M6x12	2 69		39-9958
71 Idle wheel bracket		1 1 33-2561-11-SW
72 Idler wheel		1 71		36-2561-18-BT
73 PVC pad		1 71		36-2561-19-BT
74 Bolt	M8x20	1 1+71		39-10095-SW
75 Eye bolt	M8x75	1 1+71		36-2561-20-BT
76L	Chain cover left		1	1+76R	36-2561-01-BT
76R	Chain cover right		1	1+76L	36-2561-02-BT
77L	Pedal strap left		1 32		36-9308-12-BT
77R	Pedal strap right		1	33	36-9308-10-BT
78 Crank cover		2 76		36-2561-04-BT
79	Crosshead screw	4.2x20	5	76+29	39-10253-VC
80 Spring washer	for M10	4 35		39-9995
81 Multi key		1		36-2466-16-BT
82 Open end wrench		1		36-9107-28-BT
83 Allen key	6	1		36-9107-27-BT
84 Assembly and exercise instruction		1		36-2561-20-BT

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

SOMMAIRE

Page Contenu

Line drawing of a stationary exercise bike with adjustable arms and control panel (no text or symbols)

MONTER, UTILISER & DESCENDRE

Technical diagram of a stationary exercise bike with labeled components and a circular inset showing gear ratio.

COMPUTERCOMPUTER INSTRUCTIONS

REEMPLACEMENT DES PILES:

Line drawing of a stationary exercise bike with control panel and side-mounted device (no text or symbols)

OPSTAPPEN, GEBRUIKEN & AFSTAPPEN

Technical diagram of a stationary exercise bike with labeled parts and a circular inset showing the dial.

COMPUTERHANLEIDING

Competitie - Zone: Prestaties / Competitie Training

02: Training hartslagberekening

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

Line drawing of a stationary exercise bike with adjustable arms and control panel (no text or symbols)

POUŽÍVÁNÍ PŘÍSTROJE

Technical diagram of a stationary exercise bike with labeled components and a circular inset showing gear ratio.

POKYNY K POČÍTAČI

Sequence of four sequential illustrations showing a person performing a stretching or kneeling movement (no text or symbols)

Exploded view diagram of a mechanical device with numbered components and exploded view

Exploded view diagram of a mechanical device with numbered components and exploded views

© by Top-Sports Gilles GmbH D-42551 Velbert (Germany)
