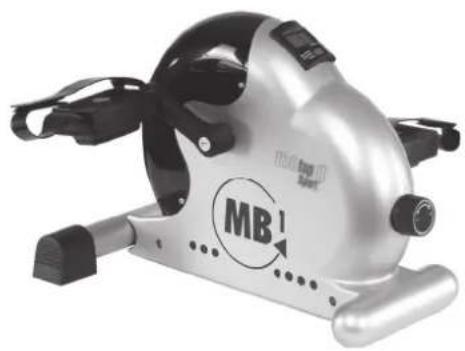

MB1 Order No. 98401

Technical data: Issue: 01. 09. 2007

An exercise bike to train your leg- and arm muscles on small space.

• Break Belt System
• Stabile construction with item weight of approx. 5,6 kg
• Resistance continuously adjustable
• Training for leg muscles
• Training for arm muscles
• Easy to use computer with digital display of:
  time, approx. calory consumption, reps and Total Reps. Space requirement approx. L 41, W 40, H 31 cm

MB1 best.nr. 98401

Technische gegevens: stand: 01. 09. 2007

Technical line drawing of a mechanical device with no visible text or symbols

Garantiebestimmungen

Exploded view diagram of a mechanical device with numbered components and labeled parts

D		GB Parts List - Spare Parts List MB1 Order No. 98401		F Liste des pièces- Liste des pièces de rechange MB1 N° de commande 98401		NL Stuklijst - reserveonder-delenlijst MB1 best.nr. 98401
Stückliste - Ersatzteilliste MB1 Best.-Nr. 98401
Abb.	Bezeichnung Description Liste de pièce Omschrijving Qty ET -Nr.
	1	Grundrahmen	Bottom	Frame	Chàssis		Frame
2	Bremsbandarretierung	Insert lock	Arrete de bande dela resistance de frenage	Rembandvergrendeling	1	36-9711-14-BT
3	Schraube M5x16	Bolt M5x16	Vis M5x16	Bout M5x16	2	39-10165
4	Widerstandsregulierung	Tension control	Réglage de la resistance de freinage	Weerstandinstellende eenheid	1	36-9840106-BT
5	Feder	Spring	Ressort	Veer	1	36-9711-07-BT
6	Bremsband	Nylon belt	Bande dela resistance de frenage	Remband	1	36-9840105-BT
7	Bremsscheibe	Brake wheel	Masse centrifuge	Remwiel	1	36-9840104-BT
8	Magnet	Magnet	Aimant	Magneet	1	36-9840107-BT
9	Achse	Axle	Axe	As	1	33-9840103-SI
10	Unterlegscheibe 17//30	Washer 17//30	Rondelle 17//30	Onderlegplaatje	1	36-9723-14-BT
11	Sicherungsring	Spring clip	Bague de sécurité	Sluitring	5	36-98401-BT
12	Gleitlager	Wheel bushing	Roulement en plastique	Geleidelager	2	36-9840108-BT
13	Schraube M4x16	Bolt M4x16	Vis M4x16	Bout M4x16	6	39-10187
14R	Verkleidung Rechts	Chaincover right	Capotage droit	Bekleding Rechts	1	36-9840102-BT
14L	Verkleidung Links	Chaincover left	Capotage gauche	Bekleding Links	1	36-9840101-BT
15	Schraube M4x16	Bolt M4x16	Vis M4x16	Bout M4x16	4	39-10187
16	Schraube M4x10	Bolt M4x10	Vis M4x10	Bout M4x10	6	39-10188
17R	Pedalarm Rechts	Right crank	Pédalier droite	Pedaalkruk Rechts	1	36-9840109-BT
17L	Pedalarm Links	Left crank	Pédalier gauche	Pedaalkruk Links	1	39-9840110-BT
18R	Pedal Rechts	Right pedal	Pédale droite	Pedaal Rechts	1	36-9840111-BT
18L	Pedal Links	Left pedal	Pédale gauche	Pedaal Links	1	36-9840112-BT
19	Stopfen	End cap	Capuchon rond	Dop	2	36-9840113-BT
20	Schraube M8x19	Bolt M8x19	Vis M8x19	Bout M8x19	2	39-10455
21	Stopfen	End cap	Capuchon rond	Dop	2	36-9840114-BT
22	Schraube M6x50	Bolt M6x50	Vis M6x50	Bout M6x50	1	39-9979
23	Computer	Computer	Ordinateur	Computer	1	36-9840103-BT
24	Transp. Verkleidung	Transp. chain cover	Habillage transparent	Transparante behuizing	1	36-9840115-BT
25	Hinterer Fuß	Rear stabilizer	Tube de pied arrière	Voetbuis achteren	1	33-9840102-SI
26	Fußstopfen	End cap	Capuchon rond	Dop	2	36-9840-06-BT
27	Schraube M8x55	Bolt M8x55	Vis M8x55	Bout M8x55	2	39-10056
28	Werkzeug set	Tool Set	Jeu d'outils	Gereedschapset	1	36-9840-24-BT
29	Karton	Carton	Carton	Doos	1	36-9840116-BT
30	Montage- Und Bedienungsanleitung	Assembly & exercise instruction	Instructions de montage et mode d'emploi	Montage- en bedieningshandleiding	1	36-9840117-BT

D

Montageanleitung

Technical diagram of a mechanical device with numbered components, likely an electrical or mechanical assembly.

18L 17R 18R

Exterior view of a silver stationary exercise machine with black and white body (no visible text or symbols)

Übungsanleitung

Beintraining:

Woman sitting on a chair using an exercise bike, holding a newspaper (no visible text or symbols)

Person using an exercise bike with legs and feet visible (no text or symbols)

Armtraining:

Person using a stationary exercise machine on a table (no visible text or symbols)

Person using a stationary exercise machine (no visible text or symbols)

Woman exercising on a stationary exercise machine (no text or symbols visible)

1. Summary of Parts Page 4
2. Parts List Page 5
3. Important Recommendations and Safety Information Page 8
4. Assembly Instructions With Exploded Diagrams Page 9
5. Training Instructions Page 9
6. Computer instructions Page 10

Dear customer,

We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use.

Please do not hesitate to contact us at any time if you should have any questions.

Important Recommendations and Safety Instructions

Our products are all TÜV-GS tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine contained in the parts list. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the parts list in the installation and operating instructions.
2. Check the firm seating off all screws, nuts and other connections before using the machine for the first time and at regular intervals to ensure that the trainer is in a safe condition.
3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.
5. Before beginning training, remove all objects within a radius of 2 metres from the machine.
6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after finishing training.
7. Your health can be impaired by incorrect or excessive training. Consult a doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. Observe that this machine is not suitable for therapeutic purposes.
8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs.
9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.

10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time.

11. Wear training clothes and shoes which are suitable for fitness training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.

12. If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.
13. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.
14. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision.
15. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.
16. To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.
17. This machine is a speed-dependant machine, i.e. the power increases with increasing speed, and the reverse.
18. The machine is equipped with infinite resistance adjustment. This makes it possible to reduce or increase the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards the minus sign reduces the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards the plus sign increases the braking resistance and thereby the training exertion.
19. This machine has been tested and certified in compliance with EN 957-1 "H.C".

GB

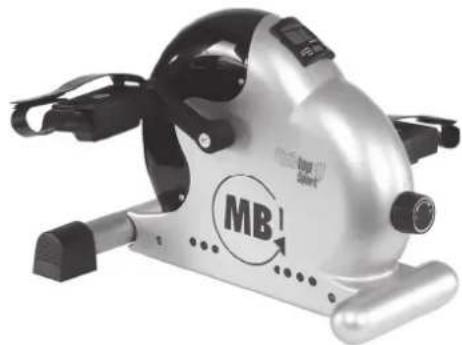

Assembly Instructions

Before beginning assembly, be sure to observe our recommendations and safety instructions.

Step 1:

Installation of footbar (25) on the main frame (1) with bolts (27).

1. Place screws (27) beside the rear part of the main frame (1).
2. Insert the footbar (25) in the holder of the main frame (1) and adjust so that the hole patterns of the holders and the footbar (25) are aligned.
3. Push the screws (27) through the holes and fasten the footbar (25) at main frame (1).

Step 2:

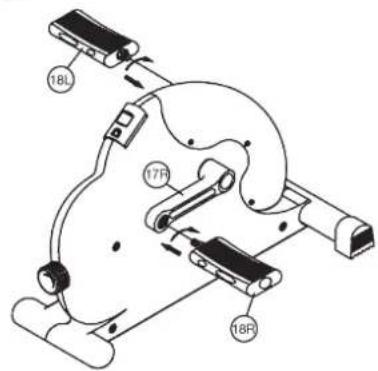

Installation of the right pedals (18R) and the left pedals (18L) on the pedal crank (17L+17R).

1. The pedals and pedal crank are marked „R“ for right and „L“ for left.
2. Screw the right pedal (18R) into the threaded hole on the right pedal crank (17R) and tighten firmly.

(Note: It must be observed that the threaded part of the right pedal must be screwed clockwise into the threaded hole of the right pedal crank.)

1. Screw the left pedal (18L) into the threaded hole on the left hand side of the pedal crank (17L) and tighten firmly.

(Note: The threaded part of the left pedal must be screwed anticlockwise into the threaded hole of the left pedal crank.)

Step 3:

Checks

1. Check the correct installation and function of all screwed and plug connections. Installation is thereby complete.
2. When everything is in order, familiarize yourself with the machine at a low resistance. Setting and make your individual adjustments.

Note:

Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

Technical diagram of a mechanical device with numbered components, likely an industrial or robotic assembly.

18L 17R 18R

Exterior view of a silver and black fitness tracker with 'MB!' logo (no additional text or symbols)

Training Instructions

Arm training: Leg training:

Person using a stationary exercise machine on a table (no visible text or symbols)

Woman sitting on a chair using an exercise bike (no visible text or symbols)

Person using an exercise bike with legs and feet visible (no text or symbols)

Person using a stationary exercise machine (no visible text or symbols)

Woman exercising on a stationary exercise machine (no text or symbols visible)

Computer instructions for 98401

The supplied computer allows the most convenient training. Every value relevant to training is displayed in the window.

From the beginning of the training session, the required time, distance, the current Reps, the approximate calorie consumption and the total reps are displayed.

All values are counted from zero upwards.

The computer is switched on by briefly pressing the „Mode“- key or simply by beginning training. To start the computer, simply begin training.

The computer begins to register and display all values.

To stop the computer, just stop training. The computer stops all measurements and retains the last attained values. The last attained values in the functions TIME, CALORIES, Reps and Total reps are stored and training can continue with these values when training is resumed.

The computer switches of automatically approx. 4 minutes after training is stopped. All previously attained values are deleted.

On bottom side of meter, which you can take off easily from housing, you can exchange the battery (Type L1154) if necessary.

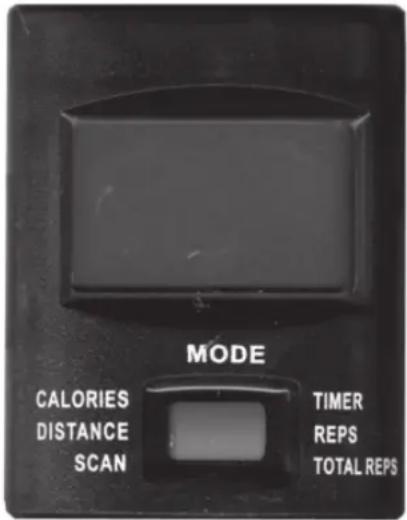

Displays:

With the „Mode“ key, the individual functions can be selected and the associated

data displayed in the window. The selected function is indicated by an icon in the window beside the printed name of the function.

Computer display:

Key functions:

1. „Mode“ key

By pressing this key once brief y, it is possible to change from one function

to another. The associated values are then displayed in the window. If the key is held longer (approx. 4 seconds), all last attained values are deleted with the exception of the values in the „TOTAL REPS“ display.

Displays:

With the „MODE“ key, the individual functions can be selected and the associated data displayed in the window. The selected function is indicated by an icon in the window beside the printed name of the function.

The currently required time is displayed in minutes and seconds.

2. „Calories" (CAL) -display:

The current status of the consumed calories is displayed.

3. „REPS (REPS) – display:

The current status of the REPS of pedal crank is displayed.

4. „TOTAL REPS (T REPS) –display:

The current status of the REPS of all training sessions is displayed.

5. „DISTANCE“ (KM) –display:

If this function is selected, the current values of all functions are displayed successively in a constant sequence approx. every 5 seconds.

7. STOP -display

No moving pedals.

MODE CALORIES DISTANCE SCAN TIMER REPS TOTAL REPS
