https://www.scheppach.com/de/service scheppach1 Introduction 20
2 Proper use.... 20
3 Product description (Fig. 1-5).... 20
4 Scope of delivery (Fig. 2) 21
5 Unpacking 21
6 Technical data.... 21
7 Safety instructions.... 21
8 Before commissioning.... 24
9 Operation 25
10 Electrical connection 26
11 Cleaning and maintenance 26
12 Storage and transport 27
13 Repair and ordering spare parts 28
14 Disposal and recycling 28
15 Troubleshooting 29
16 EU Declaration of Conformity.... 29

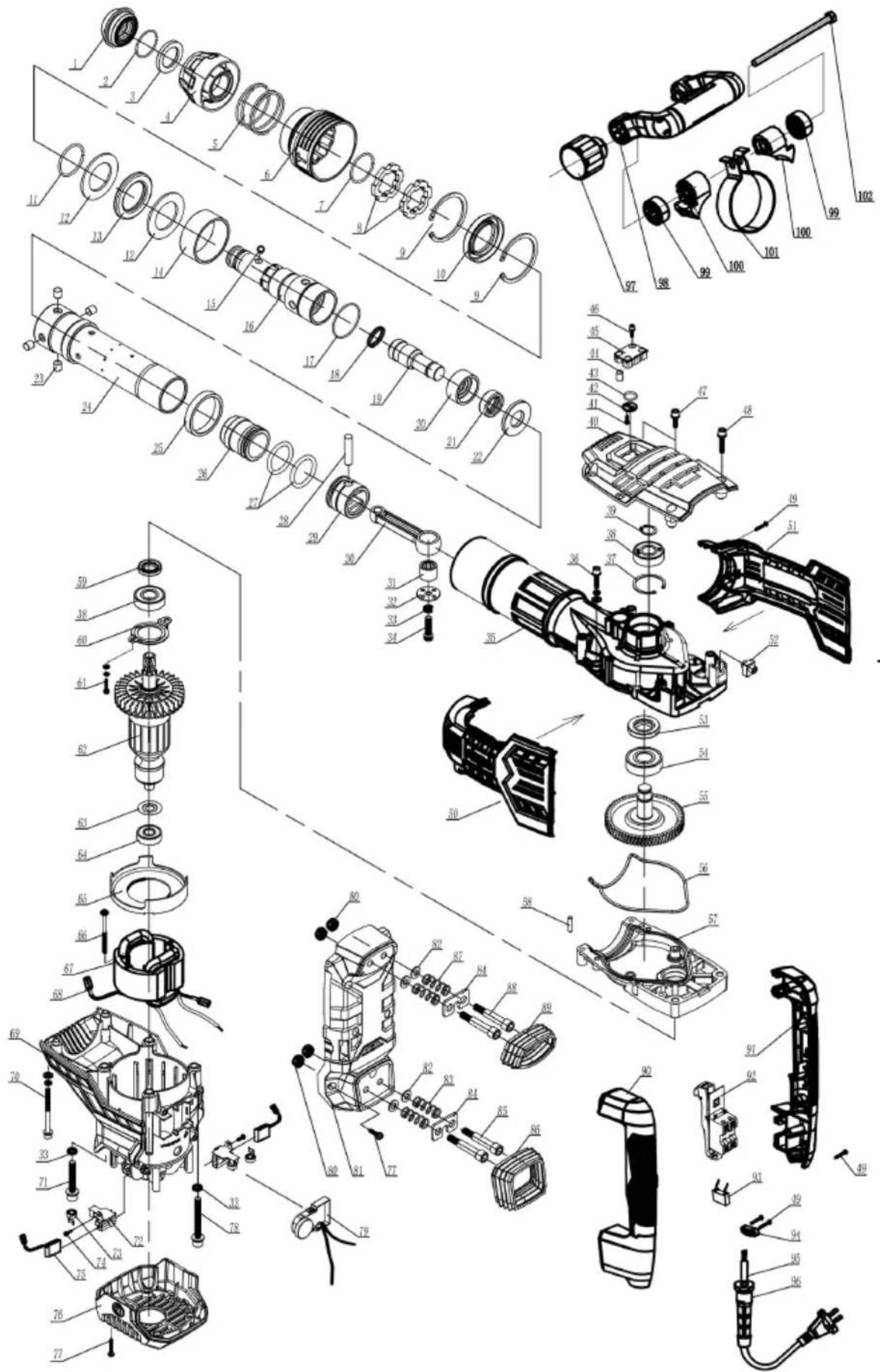

17 Exploded view 95
Explanation of the symbols on the product
Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.
![]() | Before commissioning, read and observe the operating manual and safety instructions! |
![]() | Before commissioning, read and observe the operating manual and safety instructions! |
![]() | Wear hearing protection. |
![]() | If dust builds up, wear respiratory protection! |
![]() | Wear safety goggles. |
![]() | Wear sturdy footwear! |
![]() | Wear protective gloves. |
![]() | Protection class II (double insulation). |
![]() | Guaranteed sound power level of the product. |
![]() | The product complies with the applicable European directives. |
Explanation of the signal words in the operating manual

DANGER
Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
ATTENTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.
1 Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Note:
In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:
- Improper handling
- Failure to comply with the operating manual
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts - Improper use
- Failures of the electrical system due to failure to observe the national electrical requirements and regulations.
Note:
The operating manual is part of the product and contain important information for safe, proper and economical operation. Please also observe the applicable national regulations. Read all operating and safety instructions carefully before use and only use the product as described. Keep the manual and pass it on when you give the product to someone else.
2 Proper use
The product is intended for heavy chiselling and demolition work. The product is suitable for chiselling into the following materials:
- Concrete
- Masonry
- Stone
- Plaster
- Tiles
The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.
The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.
The product may only be operated with original parts and original accessories from the manufacturer.
The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

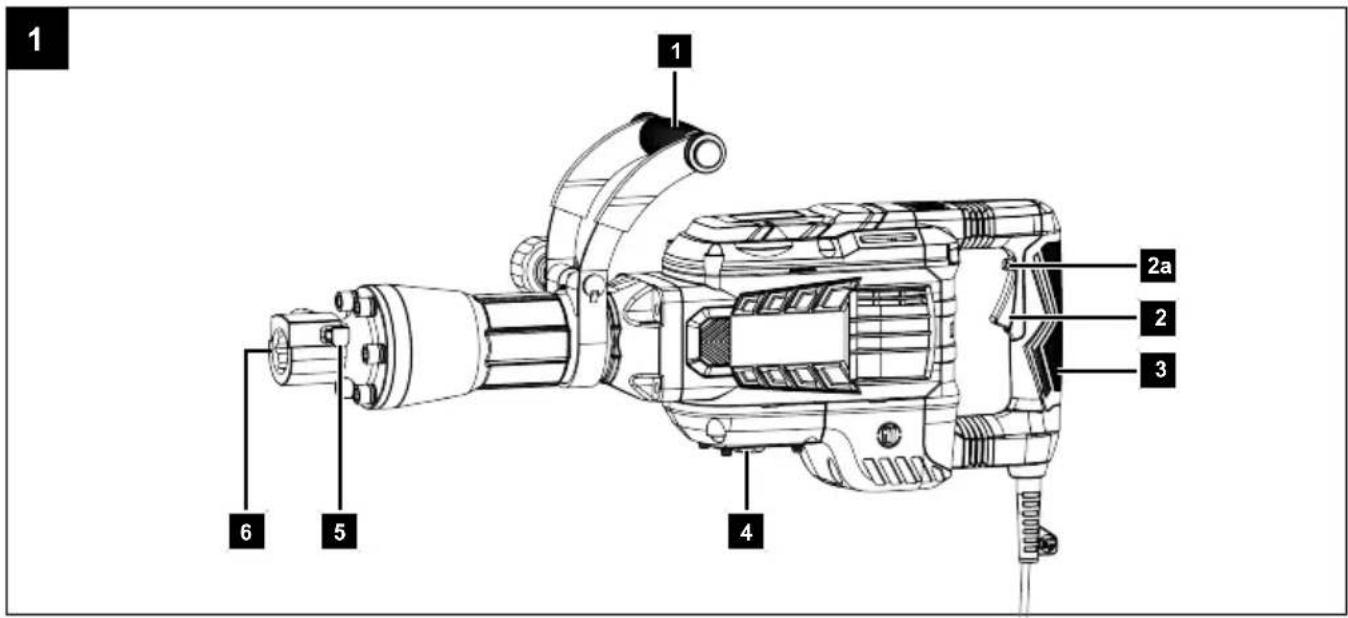

3 Product description (Fig. 1-5)
- Tool receiver
1a. Dust cap
1b. Locking sleeve - Additional handle
2a. Clamping screw - Lubricating grease cover
3a. Lubricating grease tank - On/off switch
4a. Locking switch
4b. Speed control - Handle
- Flat chisel
- Pointed chisel
- Allen key, 3 mm
- Carbon brushes
- Lubricating grease tube
- Transport case

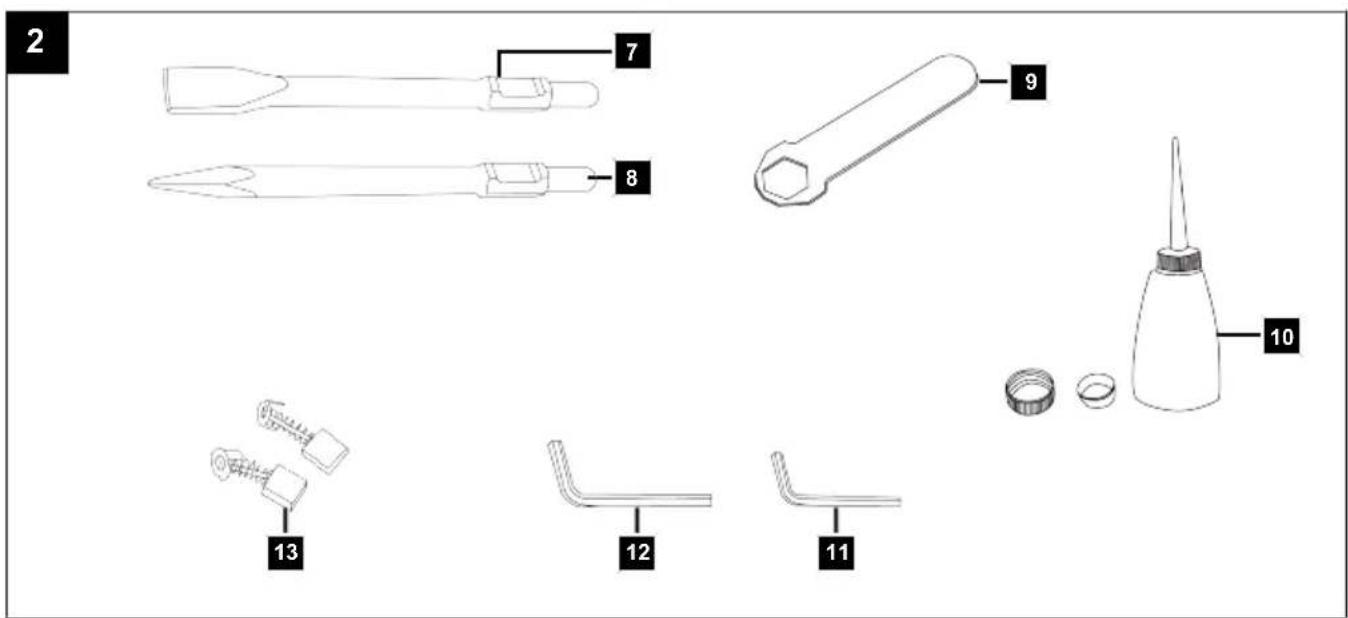

4 Scope of delivery (Fig. 2)
Item Quantity Designation
- 1 x Flat chisel
- 1 x Pointed chisel
- 1 x Allen key, 3 mm
9.2 x Carbon brushes - 1 x Lubricating grease tube
- 1 x Transport case (not shown)
1 x Demolition breaker
1 x Operating manual
5 Unpacking

WARNING
The product and the packaging material are not children's toys!
Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!
- Open the packaging and carefully remove the product.
- Remove the packaging material, as well as the packaging and transport safety devices (if present).
- Check whether the scope of delivery is complete.
- Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
- If possible, keep the packaging until the expiry of the warranty period.
- Familiarise yourself with the product by means of the operating manual before using for the first time.
- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
- When ordering please provide our article number as well as type and year of manufacture for the product.
6 Technical data
| Rated voltage 230 V~/ | 50 Hz |
| Rated input 1700 W | |
| Impact force 60 J | |
| Number of impacts 2100 bpm | |
| Max. speed | 2100 rpm |
| Lubricating grease quantity | approx. 55 - 60 g |
| Recommended oil | 10W40 / 5W40 |
| Protection class | II /☐ (Double in-sulation) |
| Protection category | IPX0 |
| Retainer | SDS-MAX |
| Length of mains connection cable | 4 m |
| Weight (incl. tool attachment) | 13.2 kg |
| Weight (without tool attachment) | 11.6 kg |
Subject to technical changes!

WARNING
Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.
Information on noise measured according to the relevant standards (EN 62841-1):
Noise data
| Sound pressure level L_pA | 82.4 dB |
| Measurement uncertainty K_pA | 2.36 dB |
| Measured sound power level L_wA | 102.4 dB |
| Guaranteed sound power level L_wA | 105 dB |
| Measurement uncertainty K_wA | 2.36 dB |
Vibration parameters (hand/arm vibration)
| Vibration a_h Cheq | 20.989 m/s ^2 |
| Measurement uncertainty K | 1.5 m/s ^2 |
ATTENTION
The vibration values and noise emission values can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the power tool is used, and in particular the type of workpiece being processed.
The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.
The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.
