Product type	Electric demolition hammer
Brand	Herkules
Model	AB1900
Dimensions (L x W x H)	674 x 155.3 x 264.3 mm
Weight	16.5 kg
Power supply	230-240 V~, 50 Hz, 1900 W
Percussion frequency	2000 min⁻¹
Percussion power	60 Joules
Protection class	II (double insulation)
Protection rating	IPX0
Absorption system	SDS-HEX 30 mm
Sound pressure level	81.6 dB(A)
Guaranteed sound power level	104 dB(A)
Vibration emission (main handle)	17.447 m/s² (K=1.5 m/s²)
Vibration emission (additional handle)	19.546 m/s² (K=1.5 m/s²)
Delivery contents	Hammer, transport case, oil bottle, pointed chisel ø30 L390, flat chisel ø30 L390, instruction manual
Maintenance	Regular cleaning, lubrication, oil change every 40-50 h (oil SAE 15W/40, 100 ml)
Safety	Hearing protection, safety glasses, gloves, dust mask mandatory; use additional handle; keep away from cables
Wear parts	Chisels, carbon brushes
Warranty	Legal, defective parts replaced free of charge under conditions

Frequently Asked Questions - AB1900 Herkules

How to install a chisel on the AB1900 demolition hammer?

Pull the locking bolt to the stop, turn it 180°, insert the cleaned and slightly oiled chisel to the stop, then turn the bolt 180° again to lock it. Check that the tool is securely attached before use.

How to adjust the additional handle?

Loosen the clamping screw of the additional handle by turning the knob, rotate the handle to the desired position, then tighten the screw firmly.

What oil to use for oil change and how often?

Use 100 ml of SAE 15W/40 oil or equivalent. The oil change must be performed every 40 to 50 hours of service.

What to do if the motor does not start?

Check fuses, extension cable, motor/switch connection, and carbon brushes. If the problem persists, have the electrical system tested by a professional.

What personal protective equipment is required?

You must wear hearing protection, safety glasses, work gloves, a dust mask (P2 class) and non-slip safety shoes.

How to clean the demolition hammer?

Unplug the device. Clean it with a clean cloth or low-pressure compressed air. Do not use detergents or solvents. Regularly remove dust and dirt from the vents and housing.

Can I use this tool for drilling?

No, this tool is designed exclusively for chiseling, demolition, driving, and compacting. It must not be used for drilling.

What is the rated power of the AB1900?

The rated input power (P1) is 1900 W under 230-240 V~ / 50 Hz. The impact power is 60 Joules.

How to store the tool after use?

Store it in a dark, dry place, protected from frost, between 5 and 30 °C. Keep it in the original packaging or covered to protect it from dust and moisture. Keep the manual nearby.

What to do if the tool becomes blocked during work?

Stop the device immediately. Do not restart it while the tool is blocked. Identify and remove the cause of the blockage (jamming, overload, etc.) while following safety instructions.

USER MANUAL AB1900 Herkules

Exterior view of a Herkules mechanical tool with two additional metal tools beside it (no text or symbols visible on the main body)

AB1900

DE	Elektro-AbbruchhammerOriginalbetriebsanleitung	4
GB	Electric demolition hammerTranslation of original instruction manual	17
FR	Marteau piqueur électriqueTraduction des instructions d'origine	28
ES	Martillo de demoliciónTraducción del manual de instrucciones original	40
CZ	Elektrické bourací kladivoPřeklad originálního návodu k obsluze	52
SK	Elektrické búracie kladivoPreklad originálneho návodu na obsluhu	63
HU	Elektromos bontókalapácsEredeti használati utasítás fordítása	74

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Two black mechanical tools with pointed tips and flanges, shown from different angles (no text or symbols visible)

Flachmeißel

Art.Nr.: 3908201108

Barcode: 4046664014287

Spitzmeißel

Art.Nr.: 3908201109

Barcode: 4046664014294

14. Lagerung

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read instruction manual and safety instructions before starting up and pay attention!
	Wear work gloves!
	Wear safety goggles!
	Wear ear protection!
	Wear a dust mask!
	Protection class II
	The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction.... 19
2. Device description (fig. 1-5).... 19
3. Scope of delivery (fig. 6)....19
4. Intended use 20
5. General power tool safety warnings....20
6. Technical data.... 22
7. Before starting the equipment 23
8. Operation 23
9. Starting up 23
10. Operation- / work instructions 24
11. Electrical connection 24
12. Maintenance 25
13. Accessories 25
14. Storage 26
15. Disposal and recycling....26
16. Troubleshooting 27
17. Declaration of conformity 87

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified,
• Failures of the electrical system due to failure to observe the national electrical requirements and regulations.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of machines must be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

2. Device description (fig. 1-5)

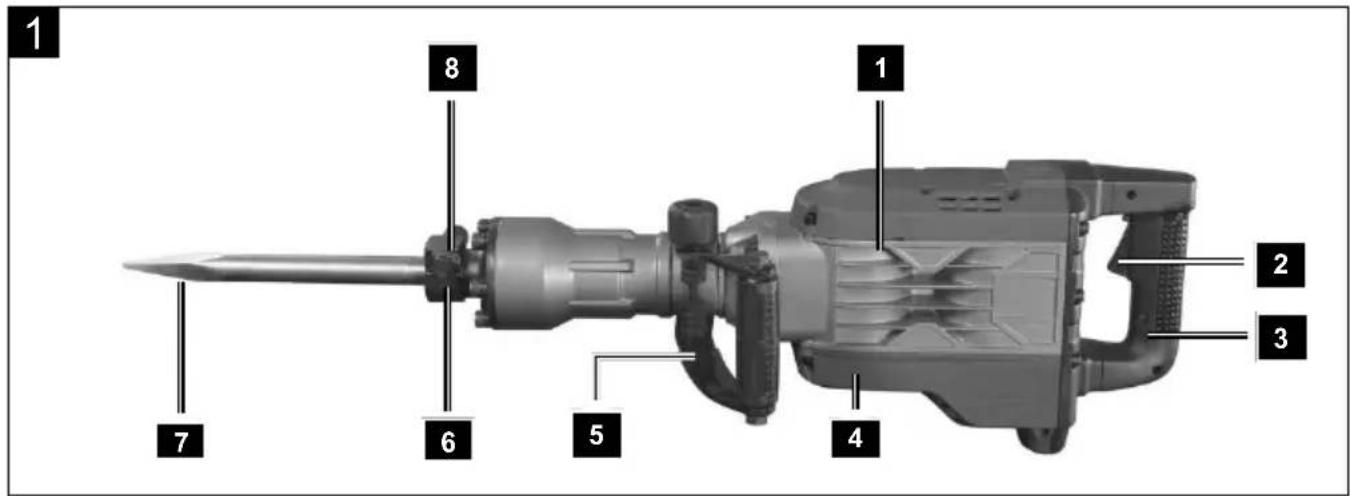

1. Motor housing
2. ON-/OFF switch
3. Handle

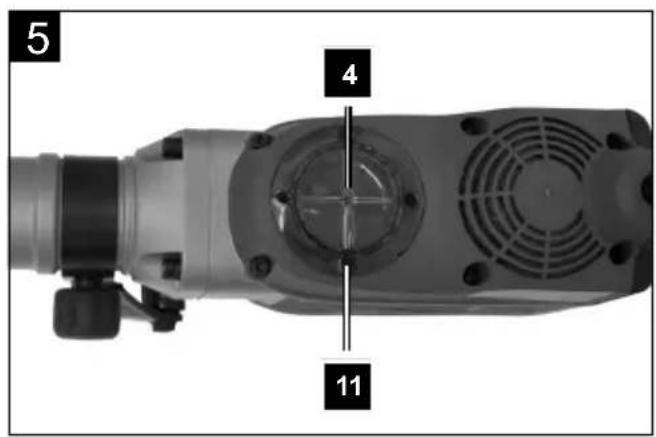

4. Oil fill opening / sight glass
5. Additional handle

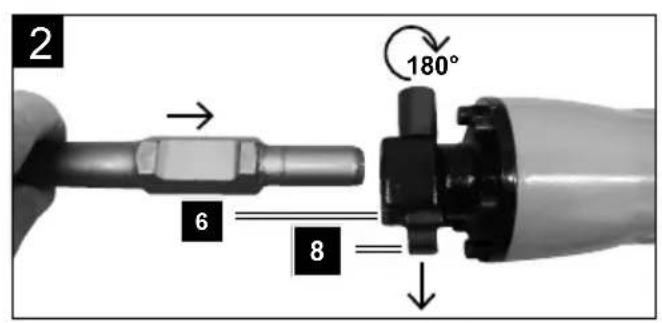

6. Tool holder
7. Point chisel
8. Locking bolt

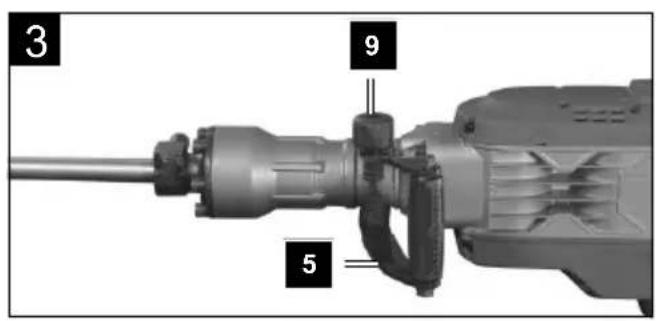

9. Clamping screw

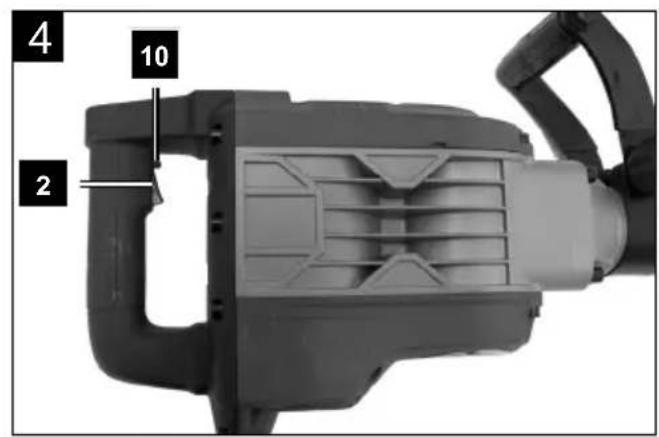

10. Locking switch
11. Tapping screw

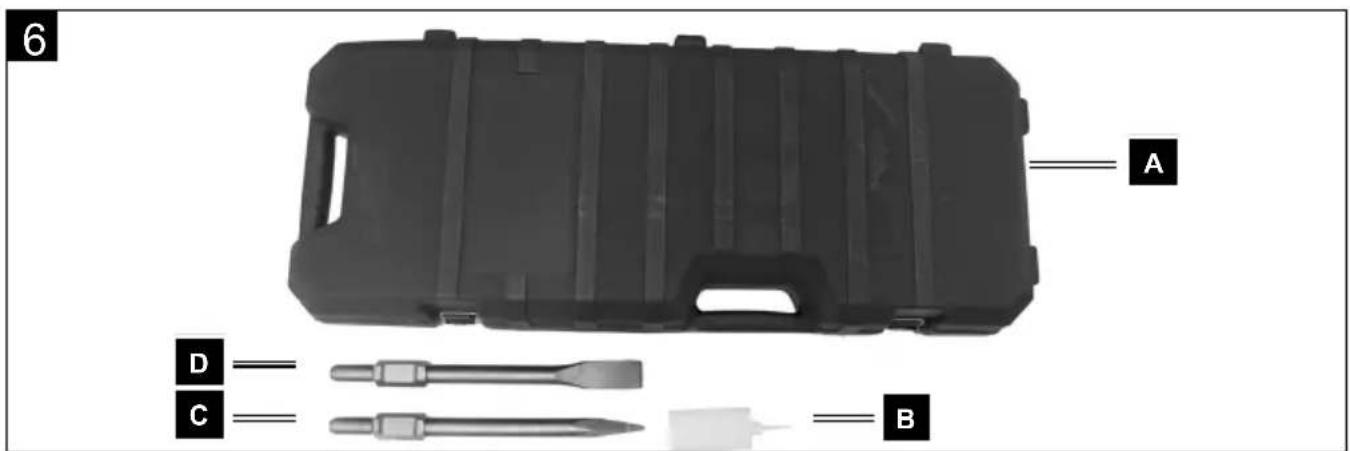

3. Scope of delivery (fig. 6)

(1x) Demolition Hammer
(1x) Transport box (A)
(1x) oil bottle (B)
(1x) Point-chisel ø 30 L390 (C)
(1x) Flat-chisel ∅ 30 L390 (D)
(1x) Instruction manual

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage. When complaints the dealer must be informed immediately. Subsequent complaints will not be accepted.
• If possible, store the packaging until the warranty period has expired.
• Read the operating instructions to make yourself familiar with the device prior to using it.
• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.

- Specify our part numbers as well as the type and year of construction of the device in your orders.

Attention!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

The machine is intended for heavy chiselling and demolition work as well as for driving in and compacting with the appropriate accessories.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. General power tool safety warnings

Attention! The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and keep the safety instructions for later reference.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

APPLIANCE-SPECIFIC SAFETY INSTRUCTIONS FOR HAMMERS

• Wear ear protectors. Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
• When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Wear a dust mask.

ADDITIONAL SAFETY AND WORKING INSTRUCTIONS

WARNING

• Do not overreach. Keep proper footing and balance at all times.
• Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders.
• The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
• Always keep the connection cable from the working area of the device. Always guide the cable backwards, away from the device!
• Do not machine any materials that present a danger to health (e.g. asbestos).
• When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
• Please turn the device immediately off when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could cause bounce back with a high reaction moment. Determine and remove the cause of the blocking of the tool used while respecting the safety instructions. The possible causes may be:
• it is tilted in the workpiece to be machined
• it has pierced through the material to be machined
  • the power tool is overloaded
• Do not reach into the machine while it is running.
• Chips and splinters must not be removed while the machine is running.

WARNING! Danger of burns

The insertion tool may become hot during use.

• when changing tools
• when setting the device down

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

6. Technical data

Blow rate 2000 min	-1
Dimensions L x W x H 674 x 155.3 x 264.3 mm
Blowing force 60 Joule
Weight 16.5 kg
Motor 230-240 V~ 50 Hz
Power consumption P1 1900 W
Protection class II
Type of Protection IPX0
Tool fitting SDS-HEX System 30 mm

Technical modifications subject to change!

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

Sound pressure level L_pA	81.6 dB
Uncertainty K_pA	3 dB
Sound power level L_WA(guaranteed)	104 dB
Uncertainty K_WA	2.73 dB

Wear ear-muffs.

The impact of noise can cause damage to hearing. Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Chiseling

Main handle:
Vibration emission value a_h, Cheq = 17.447 m/s
Uncertainty K = 1.5 m/s	2

Auxiliary handle:
Vibration emission value a_h, Cheq = 19.546 m/s
Uncertainty K = 1.5 m/s	2

Additional information for electric power tools

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum!

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

7. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

• Get to know your machine. Familiarise yourself with its application and limitations, as well as the specific potential hazards.
• Make sure that the switch is OFF before inserting the plug into the socket.
• Make sure that the machine is assembled completely and properly.
• Check the machine before use for damaged parts and determine whether these parts work properly and perform its intended function; in case of doubt, the part is to be replaced.
• Check the alignment of all moving parts, broken or mounting parts, and other conditions that could impair proper operation. Any damaged part should be repaired or replaced by a qualified technician.

- Do not use the machine if a switch cannot be switched on and off correctly.

Caution! Before beginning the operation, check the installation site for concealed electrical cables, gas and water pipes using a pipe locator.

8. Operation

• Use only proper equipment.
• Make all machine adjustments only with the machine switched off.
• Never leave the machine unattended while it is running.
• When switching off, leave the machine only after it comes to a complete standstill.
• Turn the machine off before you unplug it.
  • Always unplug the mains cord. Never pull out the plug from the wall outlet by holding the cable.
• Perform maintenance and cleaning of the device regularly.

9. Starting up

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

Using the chisel (fig. 2)

1. Clean chisel always before inserting it and lubricate the shaft slightly.
2. Pull out the locking bolts (8) up to the end stop, turn by 180^ and release.
3. Insert chisel into the tool holder (6) and slide it up to the end stop.
4. Pull out the locking bolts (8) once again, turn by 180^ and release.
5. Check lock on the tool.

Remove chisel

Pull out the locking bolts (8) up to the end stop, turn by 180^ and release, and remove the chisel.

Additional handle (fig.3)

For safety reasons, use the demolition hammer only with the additional handle!

1. The additional handle (5) provides you safe grip while using the demolition hammer.
2. The additional handle (5) can be rotated to any position.

3. Loosen the screw (9).

4. Turn the additional handle (5) to a convenient and safe working position and tighten the screw (9) again.

Switching ON / OFF (fig. 4)

Switching ON: Press the operating switch (2).

Switching OFF: Release the operating switch (2).

Continuous operation: Press operating switch (2) and lock with locking switch (10).

Stop continuous operation: Press and release operating switch.

10. Operation- / work instructions

Caution! For your safety, the machine must be held only at the two handles (3 and 5, fig. 1)!

This will avoid the danger of an electric shock through contact of lines during chiselling.

Always keep the chiselling tools sharp.

Note:

• Work only at low pressure when chiselling.
- Excessive pressure loads the motor unnecessarily.
- Sharpen the chisels in time and replace, if necessary.

Dust/Chip Extraction

Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Faulty power supply cables

Insulation damage often occurs at power supply cables.

Causes are:

• Pressure points when power supply cables are routed through the window or door gaps.
• Bends due to improper fastening or guiding of the power supply cables.
• Interfaces by running over the power supply cables.
  • Insulation damage by pulling off the wall outlet.
• Cracks due to ageing of the insulation.

Such defective power supply cables must not be used and are extremely dangerous to life because of the insulation damage!

Check power supply cables regularly for damage. Make sure that the power cable is not connected to the mains supply when you check.

Electrical connections must comply with the relevant VDE and DIN regulations. Only use connecting cables with H 07 RN-F mark.

An imprint of the type designation on the power cable is mandatory.

AC motor

• The mains voltage must be 230 V \~ / 50Hz
• Extension cables up to 25 m length must have a cross section of 1.5 mm ^4 .

Power supply and extension cord must be 3-wire = P + N + SL. - (1/N/PE).

The mains supply is secured up to 16 A.

• The product fulfils the requirements of EN 61000-3-11 and is subject to special connection requirements. This means that use at any freely selectable connection points is not permitted.
• The product can cause temporary voltage fluctuations in unfavourable mains conditions.
• The product is only intended for use at connection points that

a) do not exceed a maximum permissible mains impedance "Z" (Zmax. = 0,471 Ω), or
b) have a mains constant current carrying capacity of at least 100 A per phase.

- As the user, you are required to ensure that the connection point at which you wish to operate the product fulfils one of the requirements mentioned, a) or b). If necessary, consult with your energy supplier in this regard.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

Connection type X

If the mains connection cable of this device is damaged, it must be replaced by a special connection cable which can be obtained from the manufacturer or its service department.

12. Maintenance

If personnel qualified for unusual maintenance tasks or repairs must be obtained during of after the warranty period, please always contact a service point recommended by us or contact the manufacturer.

• Only perform repair, maintenance and cleaning work as well as the correction of malfunctions with the drive switched off as a basic rule.
• All protective and safety equipment must be reassembled immediately after repair, maintenance is completed.

CLEANING

Caution! Disconnect the mains plug.

• Clean the machine each time after completing work.
• The machine should be cleaned regularly to remove dust and dirt.
• Keep safety devices, air vents and the motor housing as dust and dirt-free as possible.
• Clean the device with a clean cloth, or blow it out with compressed air at low pressure.
• All moving parts are to be re-greased at periodic intervals.
• Do not use detergents or solvents as these might damage the plastic parts of the device. Make sure that no water can get inside the device.

Carbon brushes

In case of excessive sparking, have the carbon brushes checked by a qualified electrician.

Caution! The carbon brushes should be replaced only by a qualified electrician.

Check the oil level

The oil level should be checked before each use of the device.

Place the device with the tool holder in the down position on the floor. The oil must be aligned with the marked cross. Refill with oil if necessary.

Oil change (fig.5)

The oil should be changed after about 40-50 hours of operation.

Recommended oil: 100 ml SAE 15W/40 or similar.

Caution! Switch off the device. Disconnect the mains plug!

1. Lay the device on its back. Unscrew the sight glass (4) by opening the four tapping screws (11).
2. Empty the old oil by tilting it into a suitable container. Note: Waste oil must be disposed of at the appropriate collection point for used oil!
3. Fill in the new oil (about 100 ml) into the oil filler opening.
4. Tighten the sight glass again and check the oil level. Refill or remove oil if necessary.
5. Check the oil level again after a short period.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: all chisels, carbon brushes

* Not necessarily included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

13. Accessories

Two black metal tools with pointed tips and rectangular bases, no visible text or symbols

Flat chisel

item no.:

3908201108

Barcode:

4046664014287

Point chisel

item no.:

3908201109

Barcode:

4046664014294

14. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

16. Troubleshooting

Fault Possible cause Remedy
Motor does not start	Failure of mains fuse Check the mains fuse
	Extension cable defective Replace defective extension cable
	Connections at the motor or switch out of order	Check with the help of an electrician
	Motor or switch defective Check with the help of an electrician
	Carbon brushes defective Check with the help of an electrician
Motor does not work, the fuse responds	Cross-section of the extension cable is not sufficient	Refer to Electrical Connection
	Overload Check tool
	Electrical defect Check with the help of an electrician

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Two black mechanical tools with pointed tips and rectangular bases, no visible text or symbols

Burin plat

Réf.: 3908201108

Code-barres: 4046664014287

Burin pointu

Réf.: 3908201109

Code-barres: 4046664014294

14. Stockage

Günzburger Straße 69

Two black mechanical tools with pointed tips and flanges, shown from different angles (no text or symbols visible)

Cincel plano

N.° de art.: 3908201108

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

DALŠÍ BEZPEČNOSTNÍ A PRACOVNÍ POKYNY

VAROVÁNÍ

Two black mechanical tools with pointed tips and flanges, shown side by side (no text or symbols visible)

Plochý sekáč

Výr. č.: 3908201108

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

ĎALŠIE BEZPEČNOSTNÉ A PRACOVNÉ POKYNY

VAROVANIE

Two black mechanical tools with pointed tips and tapered ends, shown side by side (no text or symbols visible)

Plochý sekáč

Č. výr.: 3908201108

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Two black mechanical tools with pointed tips and rectangular end caps (no text or symbols visible)

Laposvéső

Scheppach GmbH, Günzburger Str. 69, 89335 Ichenhausen

DE	EU-KonformitätserklärungÜbersetzung der OriginalkonformitätserklärungWir erklären in alleiniger Verantwortung, dass das hier beschriebene Produkt mit den geltenden Richtlinien und Normen übereinstimmt.		Der hier beschriebene Gegenstand der Erklärung erfüllt die Vorschriften der Richtlinie 2011/65/EU des Europäischen Parlaments und des Rates vom 8. Juni 2011 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten.*Technische Unterlagen verfügbar bei:**
	Artikelnummer***	Artikelbezeichnung: Elektro-Abbruchhammer AB1900		Marke****
GB	EU Declaration of ConformityTranslation of the original Declaration of ConformityWe declare under our sole responsibility that the product described here complies with the applicable directives and standards.		The object of the declaration described here fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.*Technical documentation available at:**
	Item number***	Item designation: Electric demolition hammer AB1900		Brand****
FR	Déclaration UE de conformitéTraduction de la déclaration de conformité originaleNous déclarons, sous notre propre responsabilité, que le produit décrit ici est conforme aux directives et normes en vigueur.		L'appareil décrit ci-dessus dans la déclaration est conforme aux réglementations de la directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 visant à limiter l'utilisation de substances dangereuses dans la fabrication des appareils électriques et électroniques.*Dossier technique auprès de:**
	Référence ***	Désignation de l'article: Marteau piqueur électrique AB1900		Marque ****
ES	Declaración de conformidad UETraducción de la Declaración de conformidad originalDeclaramos, bajo nuestra exclusiva responsabilidad, que el producto aquí descrito cumple las directivas y normas aplicables.		El objeto de la declaración aquí descrito cumple las disposiciones de la Directiva 2011/65/UE del Parlamento Europeo y el Consejo del 8 de junio de 2011 sobre restricciones a la utilización de determinadas sustancias peligrosas en aparatos eléctricos y electrónicos.*Documentación técnica disponible en:**
	Núm. de articulo***	Denominación del articulo: Martillo de demolición AB1900		Marca****
CZ	EU prohlásení o shoděPřeklad originálního prohlásení o shoděProhlašujeme na svou výlučnou odpovědnost, že zde popsaný výrobek od-povídá platným směrnicím a normám.		Zde popsaný předmět prohlásení splňuje předpisy směrnice 2011/65/EU Evropského parlamentu a Rady ze dne 8. června 2011 pro omezení používání určitých nebezpečných látek v elektrických a elektronických zařizeních.*Technické podklady k dispozici u:**
	Číslo výrobku***	Název výrobku: Elektrické bourací kladivo AB1900		Značka****
SK	EÚ vyhlásenie o zhodePreklad originálneho vyhlásenia o zhodeNa vlastnú zodpovednosť vyhlasujeme, že tu popísaný výrobok je v súlade s platnými smernicami a normami.		Tu opísaný predmet vyhlásenia je v súlade s predpismi smernice Európskeho parlamentu a Rady 2011/65/EÚ z 8. júna 2011 o obmedzení používania určitých nebezpečných látok v elektrických a elektronických zariadeniach.*Technické podklady sú k dispozícii na:**
	Číslo výrobku ***	Označenie výrobku: Elektrické búracie kladivo AB1900		Značka ****
HU	EU megfelelőségi nyilatkozatAz eredeti megfelelőségi nyilatkozat fordításaSaját kizárólagos felelősségünkre kijelentjük, hogy az itt ismertetett termék megfelel az érvényes irányelveknek és szabványoknak.		A nyilatkozat itt megnevezett tárgya teljesíti az Európai Parlament és Tanács 2011. június 8-i, egyes veszélyes anyagok elektromos és elektronikus berendezésekben való alkalmazásának korlátozásáról szóló 2011/65/EU irányelvének előírásait.*A můszaki dokumentáció elérhető:**
	Cikkszám ***	Termék megnevezése: Elektromos bontókalapács AB1900		Márka ****
	***3908204915			****HERKULES

** :Niklas SchieleGünzburger Str. 69D-89335 Ichenhauseni.V.Andreas Pachi.V. Andreas Pecher /Head of Project Managementi.V. Simon Schunk /Division Manager Product CenterIchenhausen, 24.09.2025	2011/65/EU*2014/30/EU2016/1628/EU2014/29/EU2014/35/EU2004/22/EG2014/68/EU89/686/EWG_96/58/EG90/396/EWG	2006/42/EGAnnex IVNotified Body:Notified Body No.:Certificate No.:	2000/14/EG; 2005/88/EGNoise:measured L_WA = 101,1 dBguaranteed L_WA = 104 dBAnnex VAnnex VINotified Body:TÜV SÜD Industrie Service GmbH, Westendstraße 199, 80686 München, Deutschland Notified Body No.: 0036
	2016/1628/EUEmission No.:
	EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A2:2024;EN IEC 61000-3-11:2019; EN 62841-1:2015/A11:2022; EN IEC 62841-2-6:2020/A11:2020

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
