Product type	Electronic feedback module (S88 Link)
Brand	Märklin
Model	60883
Power supply	Märklin cutoff power supply 66361 or 66201 (5V or 12V depending on configuration)
Number of contacts	16 signaling contacts (expandable to 64 in matrix mode)
Central Station compatibility	Central Station 60213/60214/60215 (software version 3.8.xx or later) and Terminal 60125
Supported S88 buses	Up to 31 S88 modules and/or 62 S88AC/S88DC modules
Use	Track feedback (center conductor H0 or 2L), track contact, key matrix (switchboard)
Connection	Booster socket of the Central Station or terminal, RJ45 connection for S88 bus
Configuration	Via the Central Station: Setup/Info menu, then advanced configuration (tool icon)
Addressing	Automatic upon connection; default addresses: contacts 1-16, keys 101-164, bus 1-3
Safety	Do not open the housing; use only in dry rooms; disconnect before any wiring
Maintenance and cleaning	No special maintenance; clean with a dry, lint-free cloth
Spare parts and repairability	Contact a specialized Märklin dealer for any repairs; legal and contractual warranty (see certificate)
General information	Operating instructions to be kept and passed on with the product; proper disposal (www.maerklin.com/imprint)

Frequently Asked Questions - 60883 Märklin

How to connect the L88 Link module to the Central Station?

Connect the L88 Link directly to the booster socket of the CS2 or to the terminal 60125 using an RJ45 cable. Then connect the cutoff power supply 66361 or 66201. Ensure that the module is disconnected from power during connection.

What power supply to use for the L88 Link?

Use exclusively a Märklin cutoff power supply 66361 or 66201. The supply voltage can be set to 5V or 12V via a switch on the module, depending on the type of S88 modules connected.

How many contacts can I connect to the L88 Link?

The L88 Link has 16 direct contacts (terminals 1-16). In matrix mode (use as keyboard), you can connect up to 64 contacts (8 outputs x 8 inputs). Additionally, via the S88 buses, you can connect up to 31 S88 modules and/or 62 S88AC/S88DC modules.

How to configure the L88 in the Central Station?

Go to the Setup/Info menu of the Central Station, then press the tool icon to enter configuration mode. Select the S88 Link and set parameters such as the number of modules per bus, cycle times, and contact usage (track or keyboard).

Can I use reed contacts with 2L tracks (Trix H0, Minitrix)?

Yes, the L88 Link is compatible with reed contacts on two-conductor tracks. For these tracks, a ground return (GND) is required for each reed switch. The wiring diagram is provided in the manual.

How to use the L88 as a key matrix (switchboard)?

Activate matrix mode in the L88 configuration. Contacts 9-16 serve as inputs (rows) and contacts 1-8 as outputs (columns). Each key requires a diode 1N4148 connected in series. You can connect up to 8 switchboards (inputs 9-16).

What to do if an L88 module needs to be replaced?

In the Central Station, go to Setup -> Tool -> Devices -> Modify. Assign the new L88 the device number of the old one, confirm and restart the CS. The contacts will then work as before.

What is the meaning of the contact addresses?

Direct contacts (terminals 1-16) have addresses 1 to 16. Keys in matrix mode use addresses 101 to 164. Modules connected to buses 1, 2, and 3 have addresses 1001-1496, 2001-2496, and 3001-3496 respectively, where the module number and contact are combined.

How to connect additional S88 modules to the L88?

Connect the S88 modules via the RJ45 buses of the L88 (Bus 1, 2, and 3). You can connect up to 31 S88 modules on Bus 3, and up to 62 S88AC/S88DC modules on Buses 1 and 2. The maximum cable length is 100 meters.

What safety precautions must be observed?

Never open the housing of the L88. Use the module only in dry rooms. Perform all connections with power off. Power must be supplied by the 66361 or 66201 power supplies. Follow the instructions in the manual to avoid any risk of short circuit.

USER MANUAL 60883 Märklin

Using the Product as Intended 14

Safety Notes 14

Important Notes 14

Inputs and Outputs for the Link 88 14

Connect 15

Overview of Connections 16

Configuration for the L88 18

Use as a Button Matrix 22

Inhoudsopgave :

Pagina

Beoogd gebruik 34

Using the Product as Intended

• The L88 feedback module is designed for connection to the L88 (60883) and the 60213/60214/60215 Central Stations (CS2) with Software Version 3.8.xx and higher.
• Connections from the 6088/60880/60881 and 60882 feedback modules to the Central Station units mentioned above.
• The L88 Link feedback module is a position indicator with 16 indicator contacts for Märklin H0 center conductor track or for 2-rail track (1 Gauge, Trix H0, Minitrix) with reed contacts.
• Or connections to 64 button controllers.

Safety Notes

• The voltage supply for the L88 Link is done only by means of the 66361/66365 or 66201 switched mode power pack.
• Connections to the L88 Link feedback module may only be done with no voltage present.
• WARNING! Sharp edges and points required for operation.
  • The housing must not be opened.
• The L88 Link feedback module is designed only for use in dry areas.

Important Notes

• The operating instructions are a component part of the product and must therefore be kept in a safe place as well as included with the product, if the latter is given to someone else.
• Please see your authorized Märklin dealer for repairs
• The warranty card included with this product specifies the warranty conditions.
• Disposing: www.maerklin.com/en/imprint.html

Inputs and Outputs for the Link 88

Current supply: 66361/66365 or 66201 switched mode power pack. Connections to the Central Station / Terminal

Ground return (when used as a position indicator)

1-16 Contact connections (Märklin H0 center conductor track or button controllers)

Bus 1 60881 or 60882

Bus 2 60881 or 60882

Bus 3 6088 and/or 60880

Switches for current supply to the S88 Module with 5 volts or 12 volts.

Connect

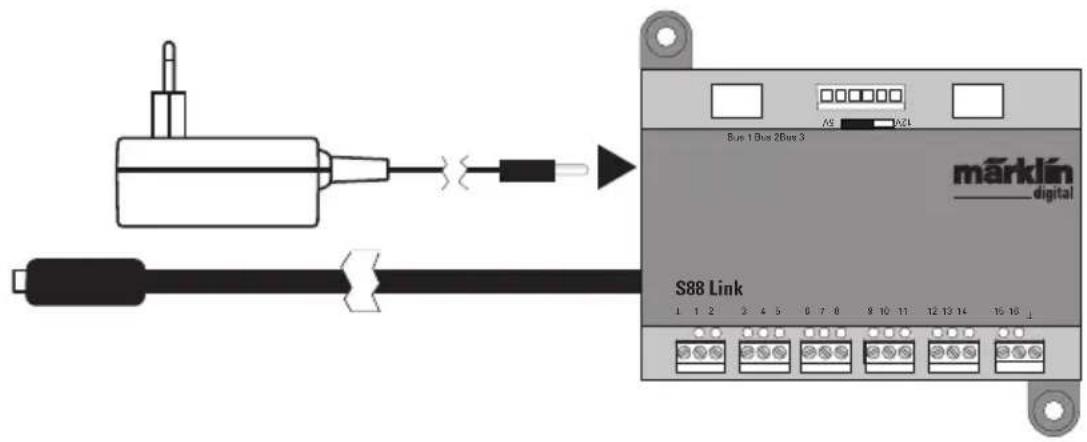

Connections to the Central Station

Connect the Link 88 directly to the Booster connection on the CS2 or to the 60125

Terminal. After that plug in the 66361/66365 or 66201 power supply.

Central Station / Terminal

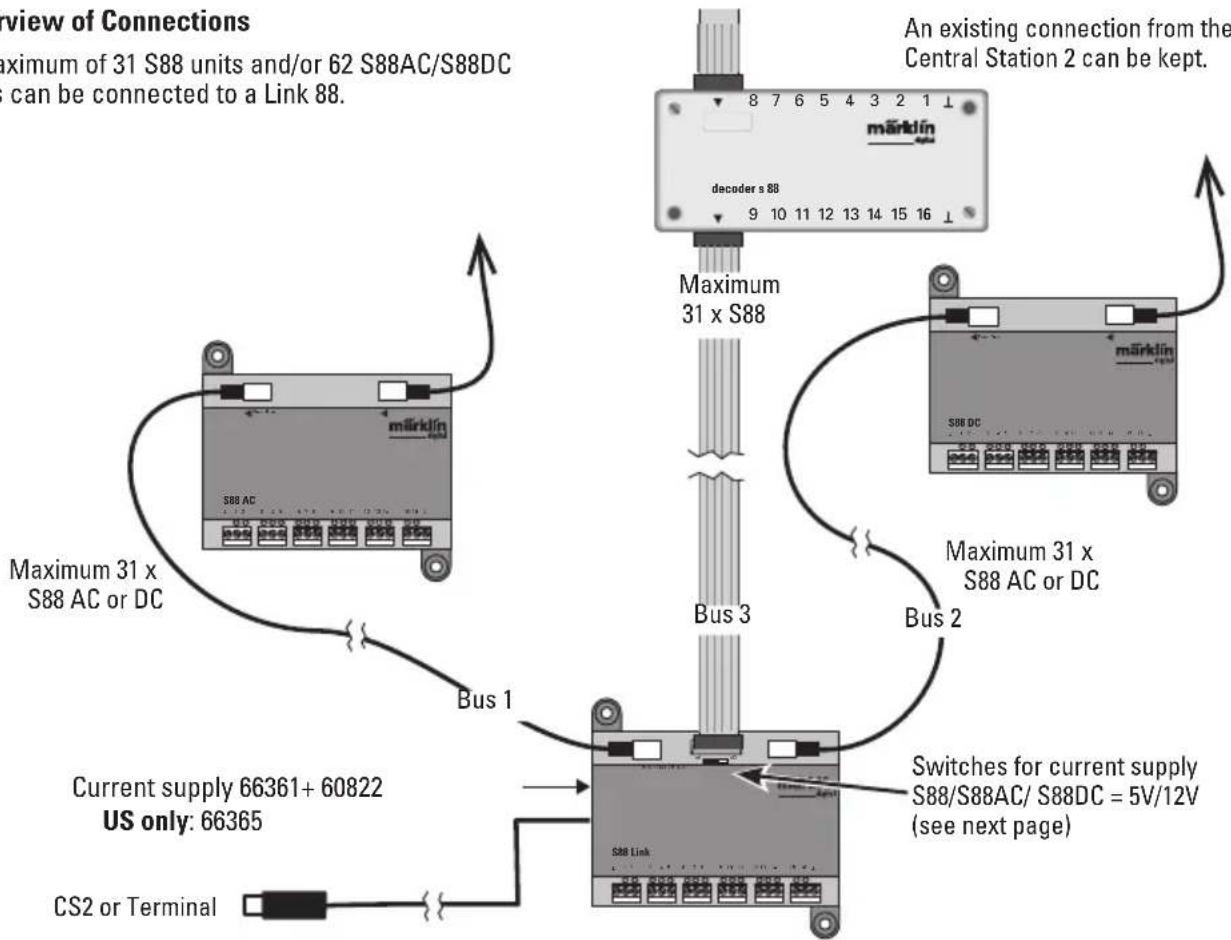

Overview of Connections

A maximum of 31 S88 units and/or 62 S88AC/S88DC units can be connected to a Link 88.

An existing connection from the S88 to the Central Station 2 can be kept.

Current Supply:

5volts in mixed operation of S88 and S88 AC/DC Märklin products (as shown in the illustration), as well as products of other makes.

12 volts only in conjunction with the S88 AC/DC. The susceptibility to interruptions is reduced with a 12 volt power supply.

PIN Assignment for the RJ45 Plug

S88 Pin	Name Description	PIN RJ45		ColorEIA/TIA 568A
1 DATA Readout Data 2 green
2 GND Ground for signals and voltage supply 3 white/orange
2 GND 5 white/blue
3 CLOCK Clock signal for the synchronization 4 blue
4 PS (LOAD) Load the data into the bus 6 orange
5 RESET Reset the input memory 7 white/brown
6	+5V/+12V	Voltage supply for the feedback module	1	white/green
—	SHIELD	Cable shield, not connected	—	—

Märklin assumes no liability for joint use of Märklin products and products of other makes.

We therefore urgently recommend that you check the PIN assignments of the RJ45 plug you may be using.

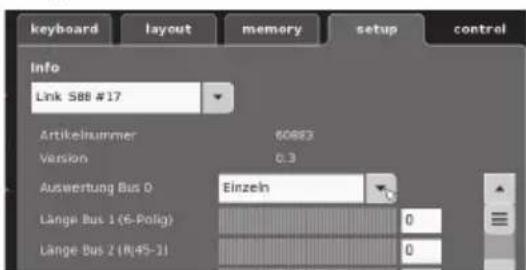

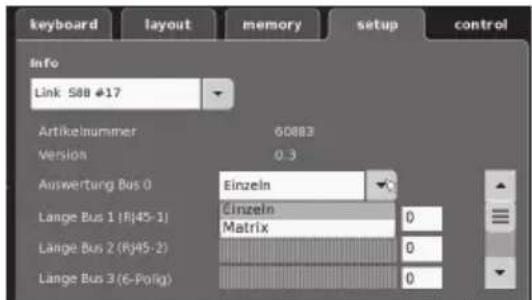

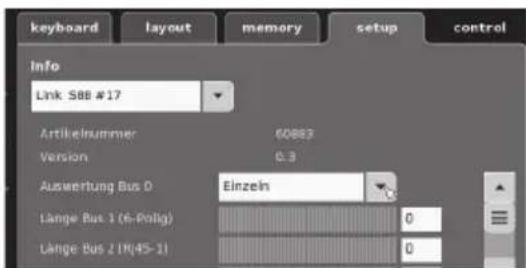

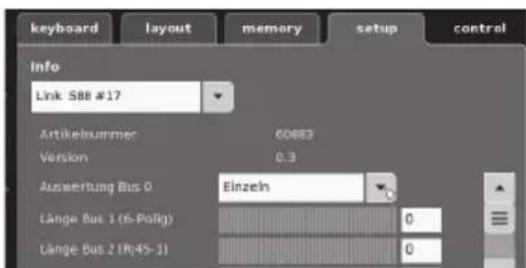

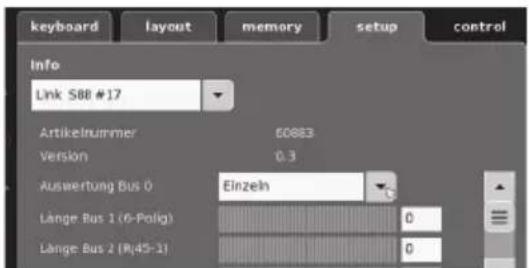

Configuration for the L88

The L88 must first be configured before using it for the first time. To do this go into the CS to setup/Info and with the tool symbol 🖼 go into the configuration mode. All of the following images are examples:

Open up Info

Select Link S88 #17.

Now the individual data can be set..

• Evaluation of Bus 0 (direct bus for the L88), Setting for individual units = 16 indicator contacts Setting for matrix = up to 64 button controllers
• Length of Bus 1-3 Here you enter how many S88 units are connected to each bus (max. 31).
• Cycle period for Bus 1-3 Enter query cycles for the S88 busses in milliseconds (ms) (min 10 ms - max. 1000 msm, factory setting 100 ms).
• Bit time for the S88 Set the cycle for the answer (factory setting 167 μs)
• Cycle period for (Link 88) Contacts 1 - 16 Query cycles for the Link contacts when used as track contacts 1 - 16.
• Cycle period for keyboard Query cycle when used as a keyboard (factory setting 67 ms).
• Columns for the keyboard Entering the columns (max. 8) for the keyboard matrix
• Rows for the keyboard Entering the rows (max. 8) for the keyboard matrix

Addresses for the Module:

The module automatically get an address when it is plugged in. You will find below the addresses for settings in the Central Station.

Contacts (track): 1-16

Button controller addresses: 101-164

Bus 1: 1001 -1496 (ex. 1005 = 1st module, Contact 5)

Bus 2: 2001 - 2496

Bus 3: 3001 - 3496

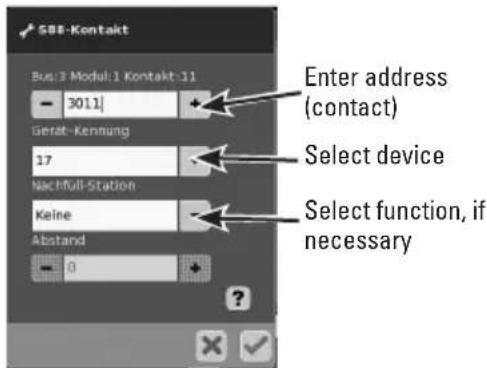

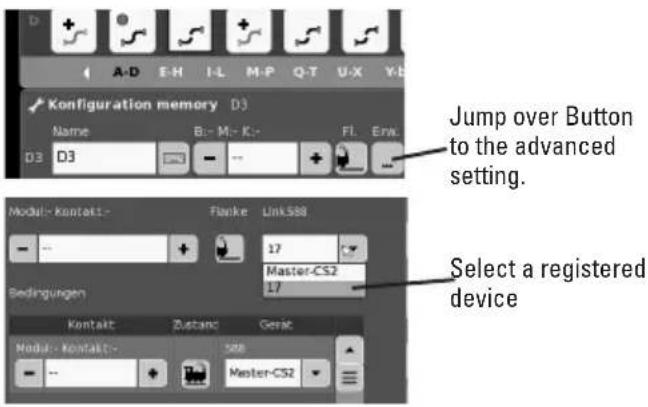

Examples of Settings on the Central Station:

Settings on the Central Station:

1. Use as a track contact:

1.1 Use in the Memory (example)

Go into the Configuration mode

e.g. Contact 8 Modul 2 Bus 2

1.2 Use in the Layout (example)

Go into the Configuration mode and define the contact

Swapping Devices.

If a device swap becomes necessary, the new L88 can be switched to the previous device number. The switch takes place after the Link S88 registers in the CS at setup -Tool -Devices - edit. Enter the new Link S88 there with the previous device number and confirm this number. After that, the CS needs to be rebooted. All of the contacts will function as usual.

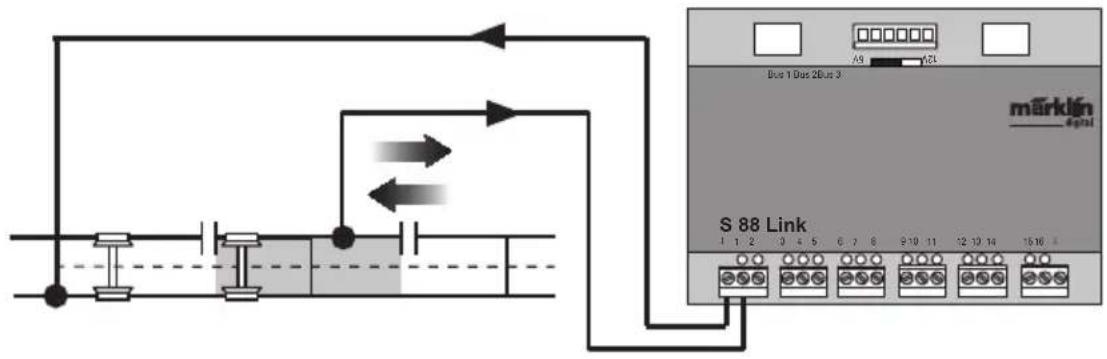

Sample Connections for the Different Feedback Contacts

Only one ground return is required for all track contacts.

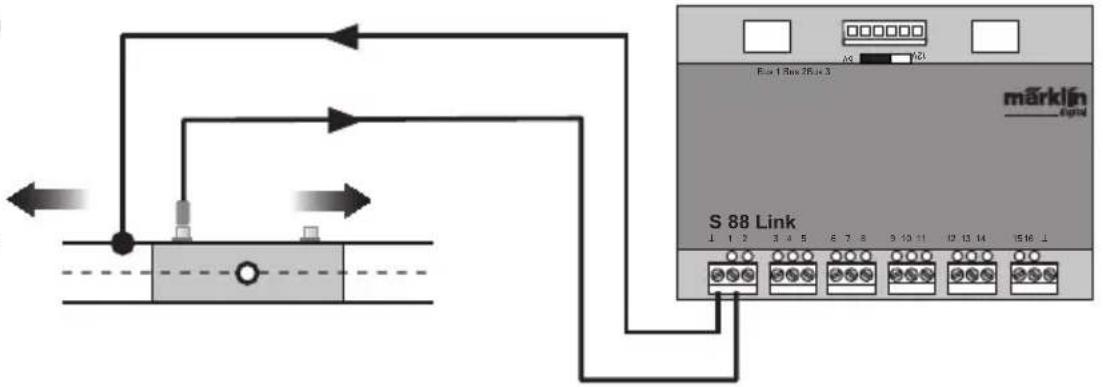

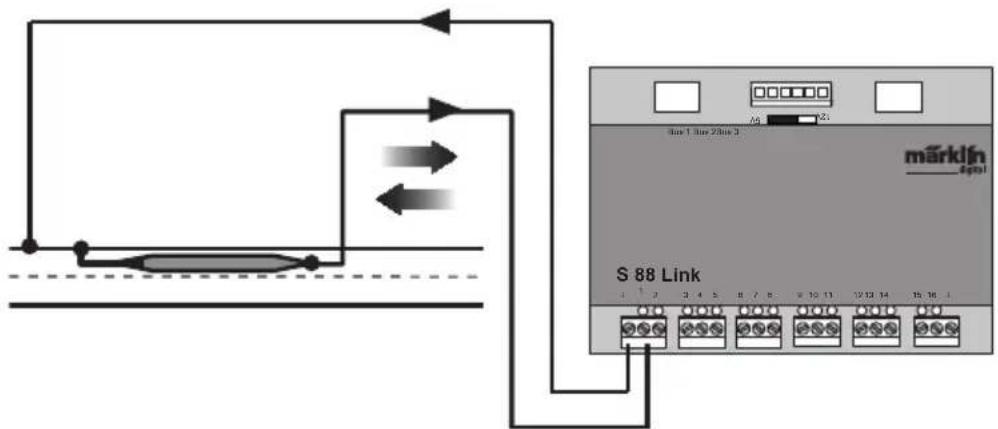

Connections to the Märklin H0 track system with the Circuit Track

= Direction of training back

Feedback is dependent on the direction of travel


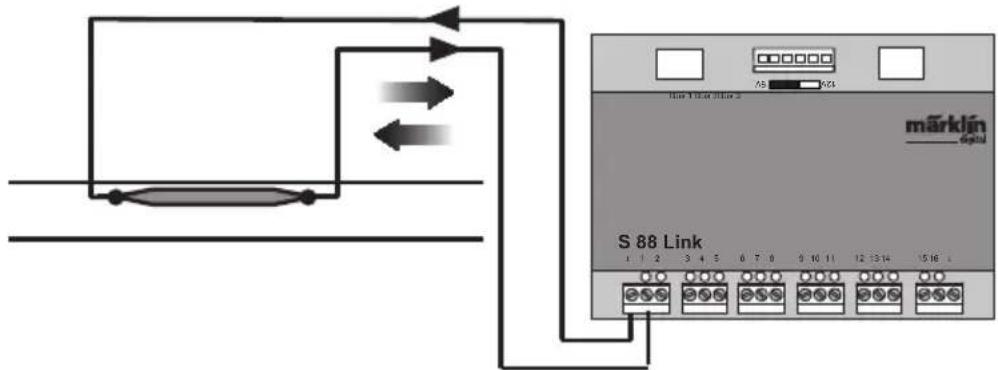

Connections to the Märklin H0 track system with Contact Tracks

Feedback is independent of the direction of travel

Connections to the Märklin H0 track system with Reed Switches

Feedback is independent of the direction of travel

Ground return is required per reed switch

Connections to two-rail track systems, independent of the gauge only with Reed Switches.

Feedback is independent of the direction of travel

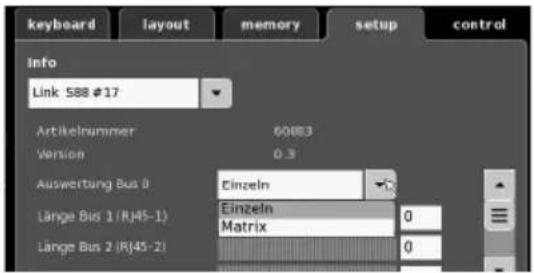

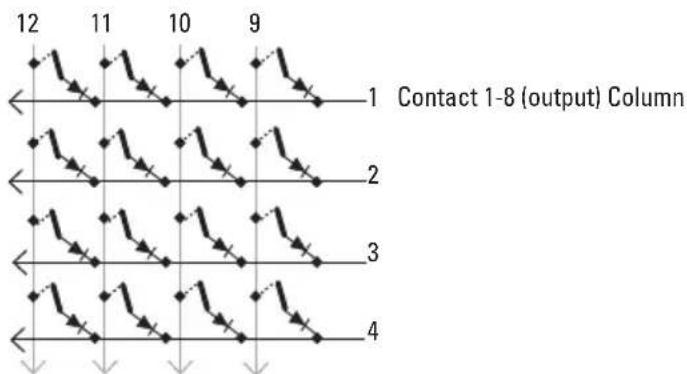

Use as a Button Matrix (Control Box):

If you want to use the L88 for a button matrix, then the following setting must be done.

A maximum of 64 button controllers (32 solenoid devices or 64 routes) can be supported by the setting Matrix. A 1N4148 diode per button is required for the setup. Pay attention to the installation direction.

Contact 9-16 (input) line
        direction LR
        A --> B --> C --> D
        B --> C --> D
    end

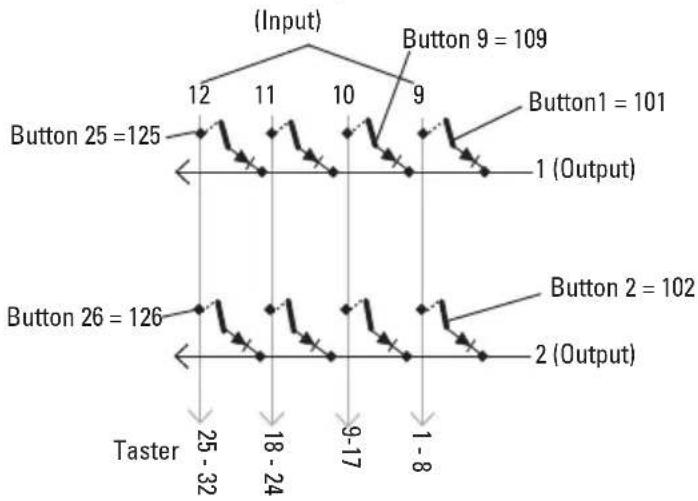

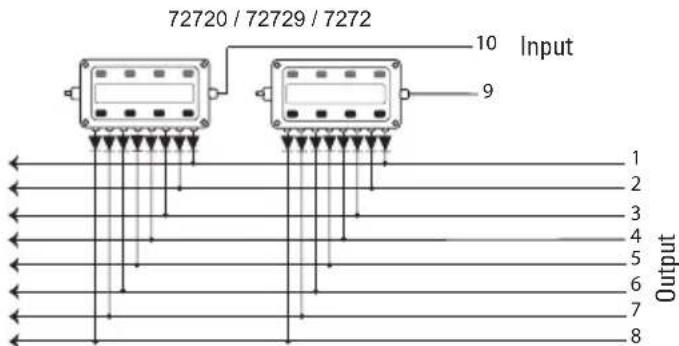

Connections for a Control Box

A maximum of 8 control boxes (Inputs 9 - 16) can be connected.

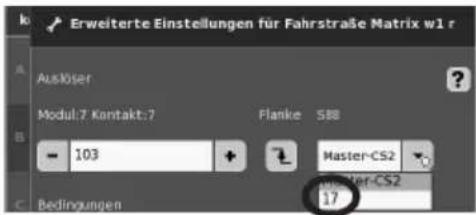

Now every button must be assigned to a route. Make sure, that the routes in the Memory are set for automatic operation.

The settings are done in the configuration mode for the Memory (see instructions for the Central Station). The assignment is done by means of the button ... in the advanced settings for a route.

You first enter the address for the button (see table page 23).

After that enter the assigned device (here 17).

If everything has been entered correctly, confirm it with the green check mark. Store in memory along the way with the blue arrow on the display now appearing in the image. After that edit or process other routes or confirm with the green check mark and end the process.

Addresses the button (Example)

Address Table for the Buttons

Please note, the diode must be installed in the blocking direction at the output.

Example Button 1: 9 output connected to input 1 is replaced by the address. 101.

Output\Input	9 10	11 12	13 14	15 16
1 101 109	117	125 1	33 141	149	157
2 102 110	118	126 1	34 142	150	158
3 103 111	119	127 1	35 143	151	159
4 104 112	120	128 1	36 144	152	160
5 105 113	121	129 1	37 145	153	161
6 106 114	122	130 1	38 146	154	162
7 107 115	123	131 1	39 147	155	163
8 108 116	124	132 1	40 148	156	164

kies Link S88#17

Vælg Link S88 #17,

Due to different legal requirements regarding electro-magnetic compatibility, this item may be used in the USA only after separate certification for FCC compliance and an adjustment if necessary.

Use in the USA without this certification is not permitted and absolves us of any liability. If you should want such certification to be done, please contact us – also due to the additional costs incurred for this.
