Frequently Asked Questions - Bügelpuppe Gentleman 4084 Sommertal

How to assemble the Bügelpuppe Gentleman 4084?

Follow the steps in the manual: assemble the support bars with connecting parts, place the air cushion on the motor, fix the air outlet, then install the clips and adapters. Always unplug the appliance before assembly.

What is the maximum load capacity?

The appliance can hold up to 1.5 kg. Check garment labels before use.

How to set the timer?

Turn the timer knob from 0 to 180 minutes. Set to 'ON' to start; the indicator light turns on.

Can I iron wool garments?

No, delicate textiles like wool or similar should not be pressed on the ironing surface. Always follow textile care instructions.

How to clean the appliance?

Use a soft cloth to clean the surface. Never wash or immerse the appliance in water.

What to do if the appliance stops suddenly?

Check if the air inlet or outlet is blocked or covered. Turn off the appliance, clear the openings and let it cool. The programmed time may also have elapsed.

What is the power of the appliance?

The rated power is 1250 W at 220-240 V~, 50/60 Hz.

Is the appliance foldable for storage?

Yes, the appliance is foldable and easy to transport. Follow the dismantling steps in reverse order of assembly.

What to do if the power cord is damaged?

Do not attempt to repair it yourself. Contact an authorized service center (Albatros International GmbH) for replacement.

Where can I get spare parts?

Contact after-sales service: Albatros International GmbH, Konrad-Zuse-Str. 3, D-54552 Nerdlen, Germany. Tel.: [phone], email: [e-mail].

USER MANUAL Bügelpuppe Gentleman 4084 Sommertal

Two types of clothing or garment designs: a long-sleeve shirt with side arm and a V-necked garment with black trim, both mounted on mannequins (no text or symbols visible)

220-240VAC, 50 / 60Hz, 1250W

www.twc.com ID 1000000000

WEEE Reg No.DE43021155

Illustration of a white fabric garment with a numbered label pointing to the chest area (no text or symbols on the garment itself)

White plastic object with a circular label containing the number 14, no visible text or symbols on the object itself.

Four black cable connectors with white leads, arranged in a row (no text or symbols visible)

HOSEN:

Symbol of a trash bin crossed with a diagonal line, no text or labels present

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Two types of clothing or garment designs: a long-sleeve jacket with a back panel and a V-necked garment with a V-shaped opening, both mounted on mannequins (no text or symbols visible)

220-240VAC,50/60Hz,1250W

www.jiv.com ID 1009900000

WEEE Reg No.DE43021155

Chemises:

Pantalons :

H. Démontage

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Abstract logo design with stylized letter 'S' surrounded by curved lines (no text or symbols)

Sommertal

Two types of clothing or garment designs: a long-sleeve shirt with side arm and a V-necked garment with black trim, displayed on mannequins (no text or symbols visible)

220-240VAC, 50 / 60Hz, 1250W

www.tw.com ID 100000000

WEEE Reg No.DE43021155

Pantaloni:

H. Smontaggio

Symbol of a trash bin crossed with a diagonal line, no text or labels present

D-54552 Nerdlen (Germania)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Two types of clothing or garment designs: a long-sleeve shirt with side panel and a V-shaped black-and-white garment with circular base (no text or symbols visible)

220-240VAC,50/ 60Hz,1250W

ID 100000000

WEEE Reg No.DE43021155

E.Components

Bestandteil	Anzahl
Motor	1 Set
Timer	1 Ud.
Elemento de salida de aire	1 Ud.
Soporte	1 Ud.
Tubo de soporte	2 Uds.
Conector	2 Uds.
Abrazaderas a	4 Uds.
Abrazaderas b	4 Uds
Barra transversal	1 Ud.
Cojí n de aire	2 Ud.

F.Montaje

G. Desmontaje

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Abstract logo design with stylized letter 'S' surrounded by curved lines (no text or symbols)

Sommertal

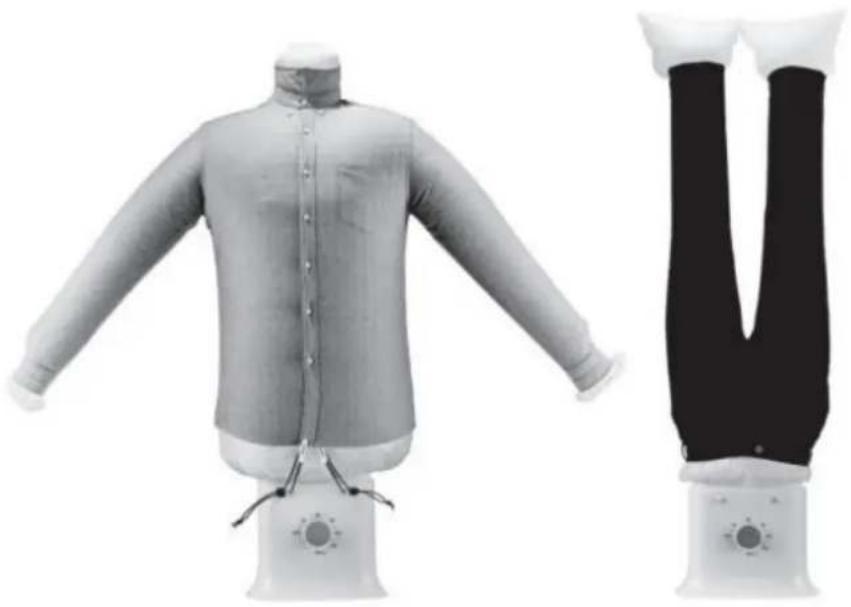

IroningDummyGentleman

Ironsanddrysmachine

UserManual

VAR.ID.: 4084

Readandunderstandthismanual! Takecareofthesafetyinstructions!

Two types of clothing or garment designs: a long-sleeve shirt with button closure and a V-necked black-and-white garment with circular patterns (no text or symbols visible)

220-240VAC,50/60Hz,1250W

www.tuv.com ID 1000000000

WEEE Reg No.DE43021155

A. Intended Use

1. The appliance is exclusively intended for the purpose described in the user manual. Do not use the appliance or its parts for any other purpose than intended to avoid risks.

2. The use of attachments not recommended or sold by the appliance manufacturer may pose a risk of injury to persons.

3. For household and indoor use only.

4. The appliance is designed for drying and ironing textiles such as blouses and shirts. Delicate textiles like wool or similar fabrics should not be pressed on the ironing surface. Always adhere to the care instructions for textiles before use.

B. Important Safety Instructions

1. Always keep the device away from water and fire. Place the device on a hard, flat surface with good air circulation.

2. Use a soft cloth to clean the surface of the device. Never wash the device.

3. Hang clothes after drying. Make sure to NEVER expose the device to water.

4. Risk of burns: Never touch the heating elements while the device is in operation.

5. The device can be loaded with a maximum of 1.5 kg. Before using the device, pay attention to the instructions on the garment label.

6. This device is not intended for individuals (or children) with restricted physical, sensory, or mental abilities, or with lack of experience or knowledge, unless they are supervised or instructed by a person responsible for their safety.

7. Never cover the air intake and exhaust outlet.

8. Unplug the device before installing or relocating it.

9. If the power cord is damaged, contact an authorized service center for repair. Do not attempt to disassemble or repair the device yourself.

10. Supervise children and do not let them play with the device.

11. WARNING: This device is only suitable for drying textiles washed with water.

12. Children aged 8 and above, as well as mentally and physically restricted individuals, may only use the device if they have been thoroughly briefed on its functions and safety precautions by a responsible supervisor. Ensure that children do not play with the device. Children aged 8 and above may only clean the device under supervision.

13. Never cover the air intake or exhaust outlet.

14. Unplug the device before assembly.

15. If the power cord or plug is damaged, they must be replaced by the manufacturer, an authorized service provider, or a similarly qualified person.

16. Ensure that children do not play with the device.

17. CAUTION Risk of burns! Never touch the surface of the dryer during

use to avoid burns.

1. Note: This device is intended solely for drying laundered textiles.

C. Technical Specifications

Rated Voltage: 220-240V\~

Rated Frequency: 50/60Hz

Rated Power: 1250W

Timer: 0-180 minutes

Class II, IPX 1

D. Product Features

Energy-efficient, collapsible, and easy to transport.

The device is equipped with a heating element.

Quiet operation with overheating protection for enhanced quality without noise disturbance.

High temperatures for rapid drying of garments.

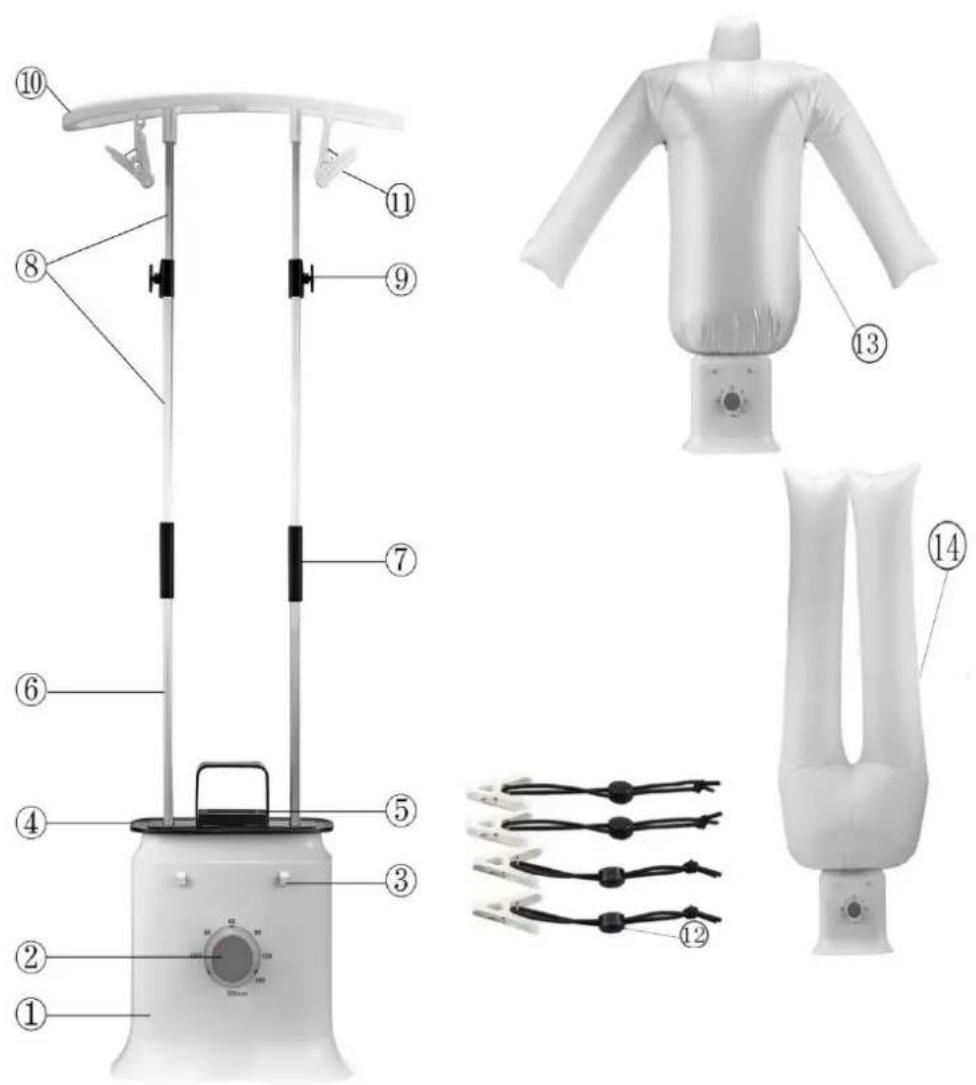

E. Product Overview

1	Motor unit	8	Telescopic rod
2	Timer	9	Screw(for adjusting the height)
3	Fixed points	10	Hanger
4	Mounting flange	11	Clips
5	Outlet vent	12	Clips with elastic cord
6	Lower rod	13	Shirts air bag
7	Connector	14	Pants air bag

F. Product Component

Part name	Quantity
Motor unit	1set
Lower rod	2pcs
Telescopic rod	2pcs
Hanger	1set
Clips	4pcs
Clips with elastic cord	4pcs
Shirts air bag	1pc
Pants air bag	1pc
Motor unit	1set

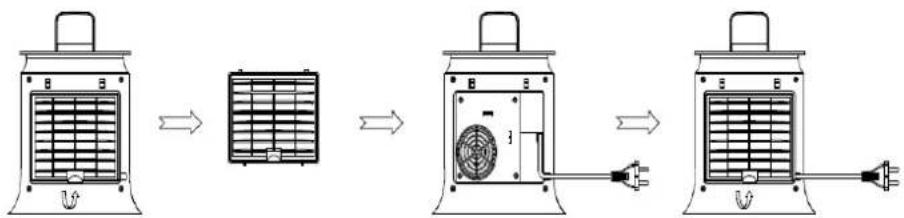

G. Assembly

Pull the mains plug out of the back of motor unit.


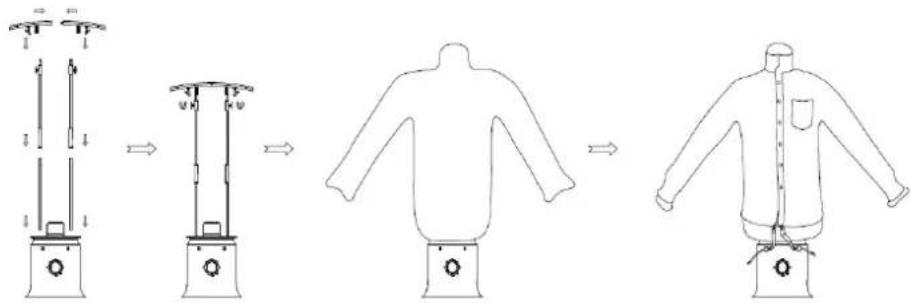

SHIRTS

Install the two lower rods into the corresponding holes of the motor unit. Insert the two telescopic rods with lower rods. Set the height you want. To do this, open the screw, pull out the telescopic rod and then close th screw again. Place the hanger with 4 clips onto the telescopic rods.

Puton the shirts air bag, and pull the elastic cord at the bottom over the mounting flange.

Wear the garments on the shirts air bag and turn on the motor

Connect the clips with elastic cord on the fixed points of motor unit. Stretch the clips along the bottom of the garment to make it smoother

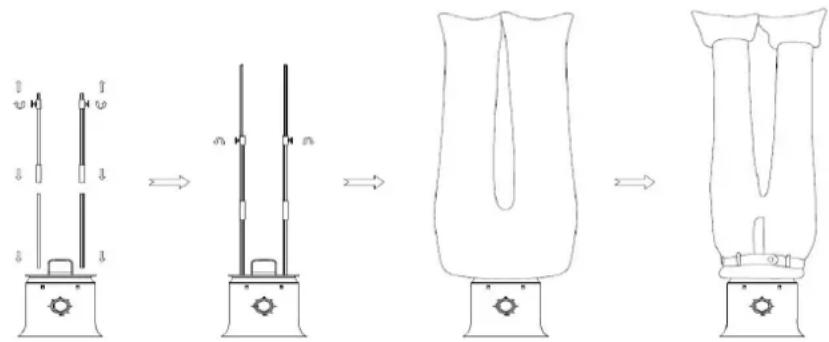

PANTS:

Insert the two lower rods into the corresponding holes of the motor unit. Insert the two telescopic rods with lower rods. Adjust the desired height. Open the screw for this, pull out the telescopic rod, and then close the screw again.

Pull the airbag for pants over and pull the elastic band at the bottom over the mounting flange.

Assemble 3 support rods with 2 connecting pieces each. Place the fully assembled support rods on the lower horizontal rod and the short rod, then close the zipper of the air cushion.

Place the pants on the airbag for pants and turn on the motor.

H. Disassembly:

Follow the steps for assembling the device in reverse order to disassemble the device.

I. Usage:

1. Plug the power cord into the outlet.
2. Set the timer to "ON." The device will start operating, and the indicator light will illuminate.
3. Turn the knob to set the time.

J. Tips:

Ensure that the shirt is placed on the air cushion without wrinkles. Adjust as needed.

K. Troubleshooting

No.	Problem	Possible cause/solution
1	The appliance does not work. The LEDs do not light up.	Is the mains plug inserted in the plug socket correctly? Correct the fit of the mains plug.Is the plug socket defective? Try another plug socket.Check the fuse of the mains connection.Is the appliance switched on? Set the timer to a time.
2	Unusual noises	Are the wind outlet covered up or blocked? Free up the outlet vent.
3	The appliance switches off suddenly.	Are the wind outlet covered up or blocked? Free up the outlet vent.The appliance has an automatic safety switch-off function. It switches off automatically if it overheats. Allow the appliance to cool down and switch it on again.
4	Odour produced	You might notice a slight odour caused by production residues the first time you use the appliance. However, this is harmless and will cease as you use the appliance.

L. DISPOSAL NOTES

Symbol of a trash bin crossed with a diagonal line, no text or labels present

These products must not be disposed of with regular household waste. Please check local regulations for the separate collection of electrical and electronic devices. Adhere to local guidelines and do not dispose of old appliances with household waste. Proper disposal of old appliances protects the environment and the health of others from potential negative consequences. Material recycling helps reduce the consumption of raw materials.

The components are quality products. They were designed taking into consideration the latest technical knowledge, and carefully constructed using a standard, good quality material.

The warranty period is 24 months from the time of handover, which must be confirmed through a sales receipt, invoice or delivery note. Within the warranty period, any functional defects in the components will be fixed by our customer service team if these can be shown to be the result of a material defect that has arisen despite prudent handling in accordance with our operating instructions.

The warranty will include repairing defective parts or providing properly functioning replacements free of charge and at our discretion. Any parts that are replaced will become our property. The repair or replacement of individual parts does not result in an extension to the warranty period, nor is there a new warranty period for the specific components affected. There is no separate warranty period for built-in spare parts. We offer no warranty for damage or defects affecting components or their parts if these are caused by excessive use, or incorrect handling or maintenance. The same applies for failure to follow the operating instructions and for the installation of spare parts or accessories not listed in our range. Warranty claims shall be void in the event of interference or modifications to components by unauthorised individuals.

The warranty does not cover parts that are subject to natural wear and tear. In the event of a warranty claim, fault, need for a spare part or accessory, please contact the customer support centre specified here:

Customer support centre:

Albatros International GmbH

Konrad-Zuse-Str. 3

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Subject to modification.

Model:

Purchased at:

In (town/city, street):

Buyer's name:

Street, building number:

Postcode, town/city:

Telephone:

Date, signature:

Fault description:

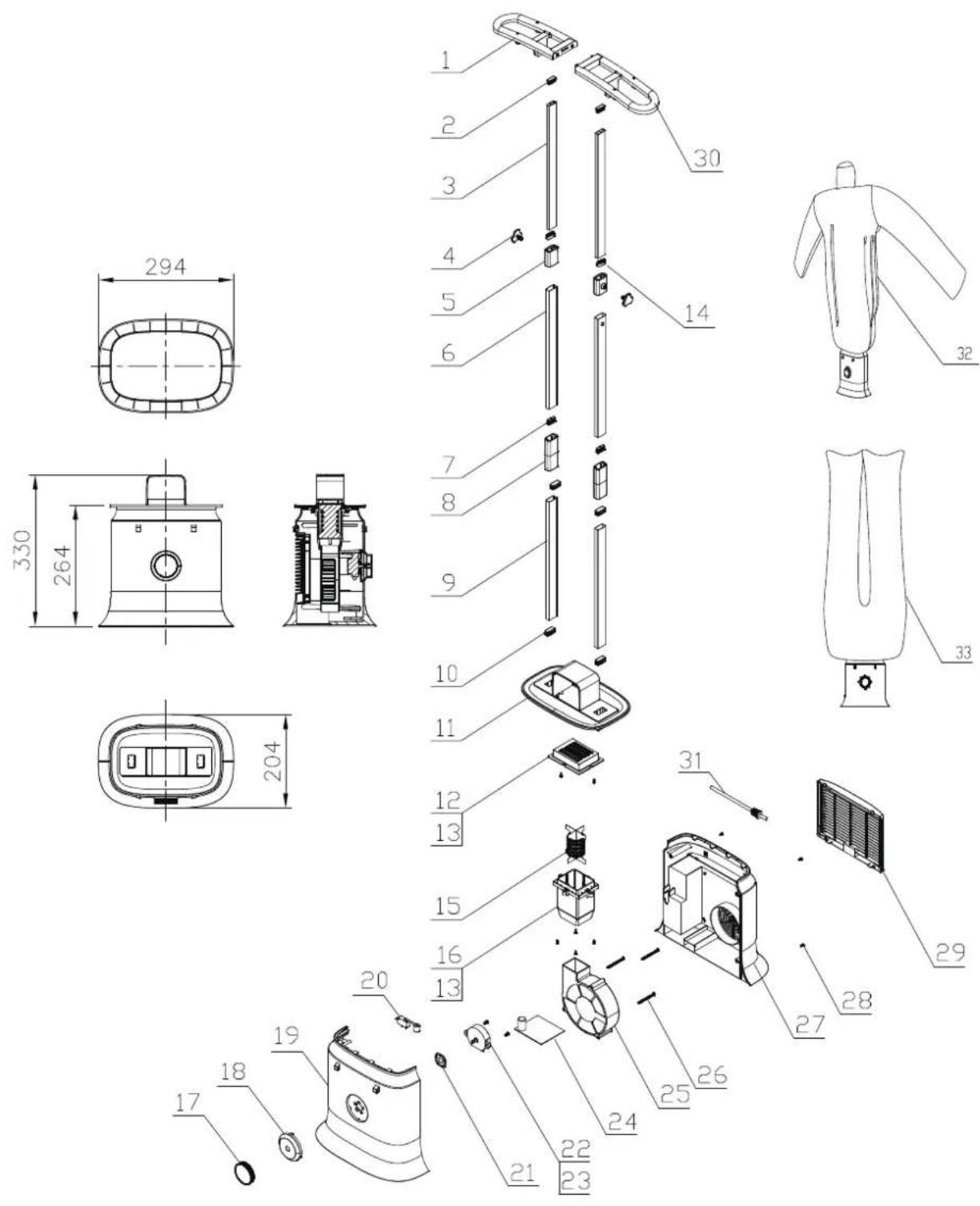

Explosionszeichnung/ Schéma éclaté/ Disegno esploso/ Dibujo explosivo/ Explosion drawing

D Deutsch:

EG KONFORMITÄTSERKLÄRUING:

CE-DÉCLARATION DE CONFORMITÉ

DÉCLARATION DE CONFORMITÉ CE

EC-DECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards (1) in accordance with the regulations of the undermentioned Directives (2) test report (3) issuing test office (4).

Irons and drys machine

Brand: Sommertal

Var.ID. 4084

(1) EN 55014-1: 2021; EN 55014-2: 2021; EN IEC 61000-3-2: 2019+A1; EN 61000-3-3: 2013+A1+A2; EN 60335-1: 2012+A11: 2014+A13: 2017+A1: 2019+A14: 2019+A2: 2019+A15: 2021; EN 60335-2-43: 2003+A1+A2; EN 62233: 2008; AfPS GS 2019:01 PAK; EK1 527-12 Rev. 2 +A1: 2015+A12: 2021+A2: 2021; EN 62233: 2008; IEC 62301: 2011; EN 50564: 2011
(2) 2014/30/EU; 2014/35/EU; (EC) No. 1275/2008 (EU) No. 801/2013; 2005/32/EC; 2011/65/EU; (EU) 2015/863
(3) 50259979 003; 50259977 003; 170269566a 001; 50259978 001; TW2305089S
(4) TÜV Rheinland (China) Ltd.; SHENZHEN TIMEWAY TESTING LABORATORIES.

EN Importer and responsible for technical documents

Dokumentationsbevollmä chtigter:

Authorized person for the compilation of the technical documentation:
