Product type	Television
Brand	Haier
Model	H100S90FUX
Screen size (diagonal)	100 inches
Resolution	3840 × 2160 pixels
Maximum refresh rate	144 Hz (3840×2160) / 240 Hz (1920×1080)
Aspect ratio	16:9
TV system	ATV (PAL, SECAM) / DTV (DVB-T/C/T2/S2)
Power supply voltage	100-240 V ~ 50/60 Hz
Power consumption (max)	500 W
Standby power consumption	≤ 0.5 W
Audio output	47 W
Operating conditions	Temperature: +5 to +40 °C; Humidity: 25 to 80%
Main features	Google TV, hands-free voice control, eye protection (Low Blue Light), accessibility (TalkBack, text-to-speech, subtitles, etc.)
Connectivity	HDMI, USB, LAN, OPTICAL, SATELLITE, AV IN, CI
Care and cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not use abrasive products.
Safety	Use under the specified temperature and humidity conditions. Do not expose to moisture or heat sources.

Frequently Asked Questions - H100S90FUX HAIER

How to turn on the Haier H100S90FUX TV?

Press the POWER button on the remote control or the button located at the bottom or on the side of the TV.

How to install the TV stand?

Follow the provided installation guide. Attach the stand using the supplied screws (M5 x 19, 8 pieces).

How to enable hands-free voice control?

Toggle the hands-free voice control switch to enable it, then set up Google TV by selecting Set up Google TV and sign in. You can then use the 'Hey Google' command.

How to adjust eye protection (Low Blue Light)?

Press the Settings button on the remote, then go to Display&Sound > Picture > Advanced Settings > Low Blue Light. Choose from the options: Off, Low, Middle, High.

What to do if the remote control does not work?

Check the remote control batteries. If the problem persists, use the physical buttons on the TV (Power, Volume, etc.) located on the side.

How to access the electronic manual (E-Manual)?

Press the HOME button, then navigate to the E-Manual app in the Apps section. The built-in manual provides detailed information on functions.

What TV signal formats are supported?

The TV supports ATV (PAL, SECAM) and DTV (DVB-T/C/T2/S2) signals.

How to connect an external device (DVD player, console)?

Use the HDMI, USB, or AV IN ports located on the back of the TV. Select the corresponding source via the Source button on the remote control.

What is the standby power consumption?

The standby power consumption is less than or equal to 0.5 W.

How to clean the TV screen?

Unplug the TV. Use a soft, dry cloth to wipe the screen. Do not use chemical or abrasive products.

USER MANUAL H100S90FUX HAIER

Illustrations in this guide are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

LED Television

TURNING ON THE TV

1. Install the stand and place the TV on a solid surface.
2. Connect the antenna or cable to the ANT aerial socket on the back of the TV set.

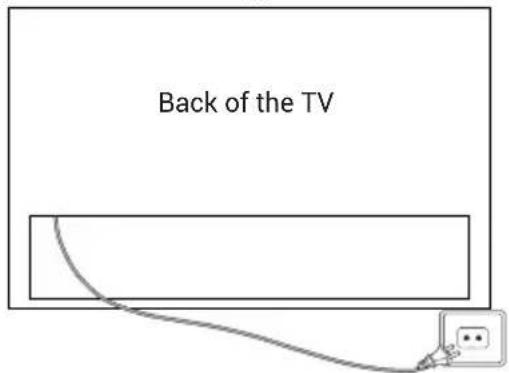

3. Power:

Plug the cord into a working power outlet.

1. Turn the TV on:

Press on the remote control or POWER button at the bottom/side of the TV.

BUTTON CONTROL

ACCESSORIES

Remote Control - 1 pc User's Manual - 1 pc Base Installation Guide - 1 pc Base Stand - 2 pcs *Wall Mount Component - 1 pc Warranty Card - 1 pc *Screws (M6x20) - 4 pcs

NOTE

1. Wall mount component is for M96/M92 models.
2. H100S90FUX: The specification of the base fixing screw is M5x19 - 8 pcs.

GENERAL SPECIFICATIONS

Size (Diagonal)	100" 85" 75" 65"
Resolution 3840x2160
Max Refresh rate	144Hz @ 3840x2160240Hz @ 1920x1080
Aspect Ratio 16:9
TV System ATV	(PAL, SECAM)/DTV (DVB-T/C/T2/S2)
Video Signal System	PAL, SECAM
Input Power Voltage	100-240V~50/60Hz
Rated Power	100" 85" 75" 65"
	500W 400W 350W 280W
Audio Output	M96 Series: 90W
	M92/S90 Series: 47W
Standby Power consumption	≤ 0.5W
Environmental Condition	Operating ambient temperature:+5°C to +40°COperating environment humidity:25%~80%Storage Temperature: -15°C~+45°CStorage Humidity: <80%Atmospheric Pressure: 86~106Kpa

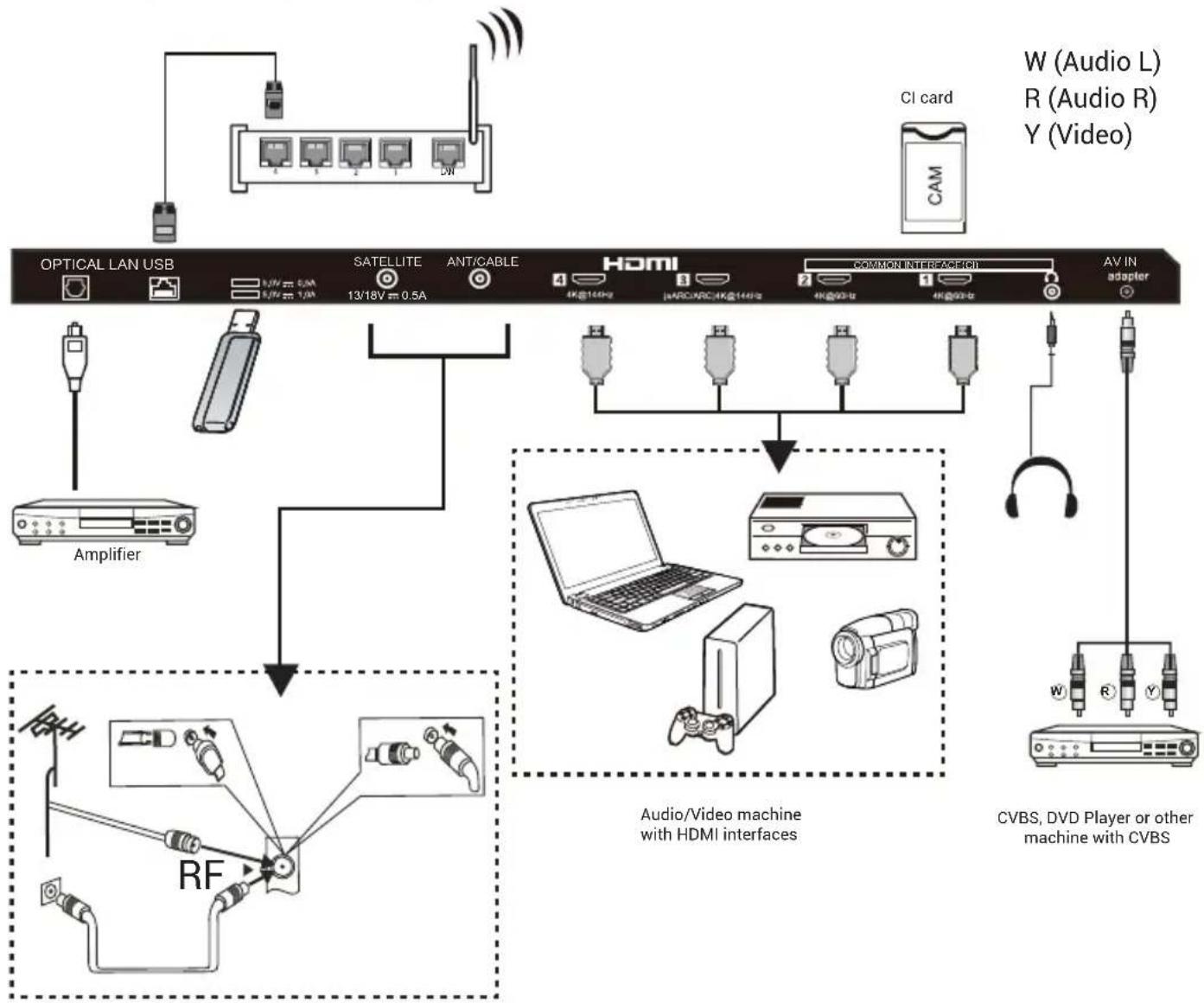

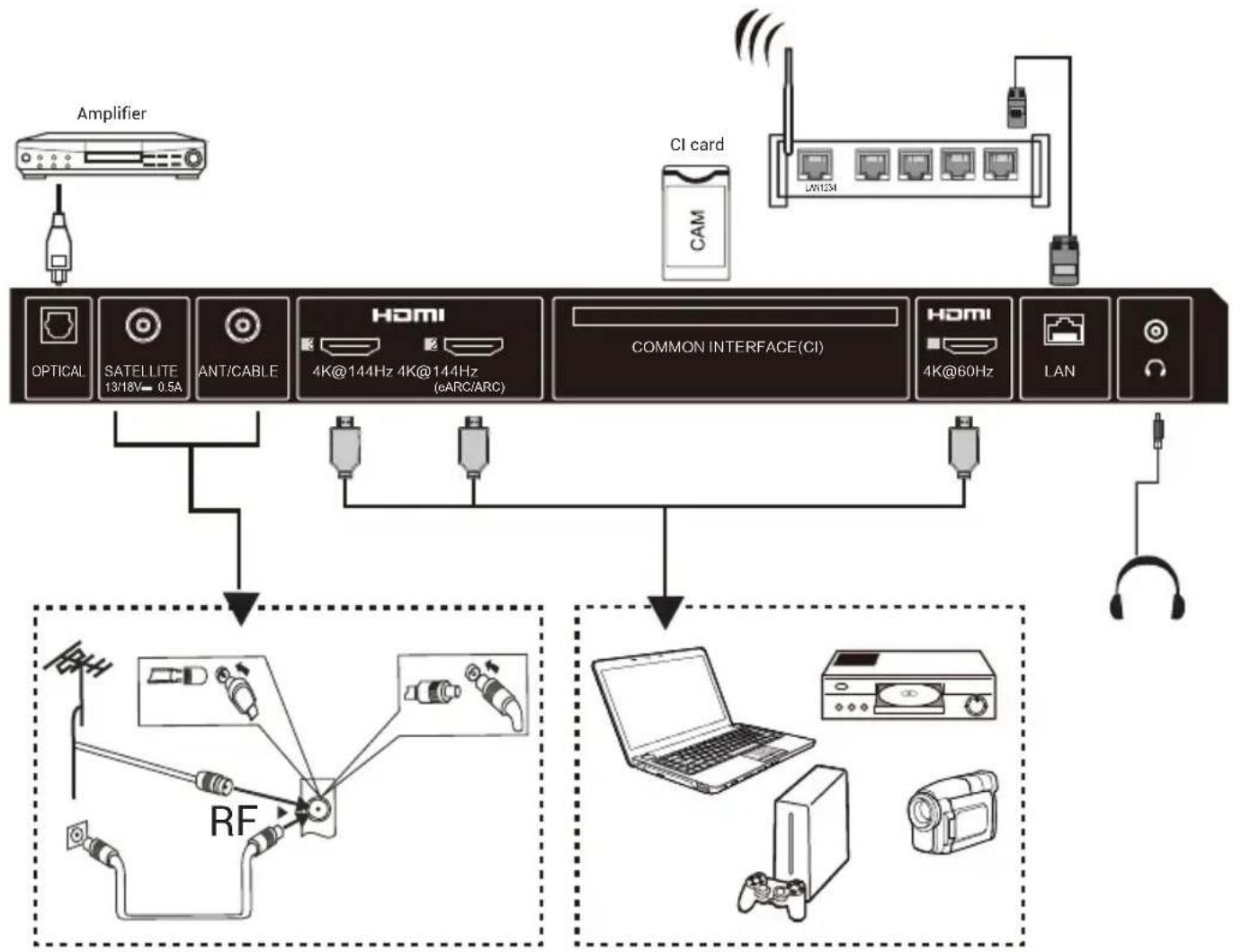

Please refer to the user's manual of the equipment to be connected as well.

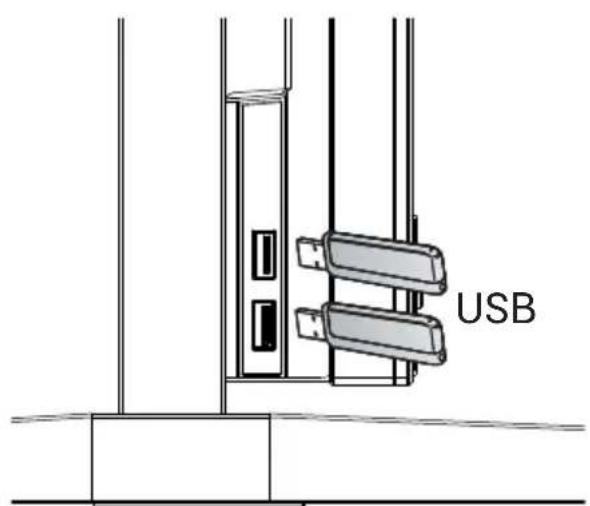

You can use the input terminals on the rear of the TV set as follows.

It can be connected to the following appliances: VCR, multi-disc player, DVD, camcorder, video game, or stereo system, etc.

Note:

1. Sometimes it will not support different devices because the device supplies a non-standard signal.
2. The equipment and connecting cables shown in the picture are not included and need to be purchased separately.

H100S90FUX/H85M92FUX/H75M92FUX/H65M92FUX

H100M96FUX

Audio/Video machine with HDMI interfaces

at the left side of the TV

Subject to the actual product functions.

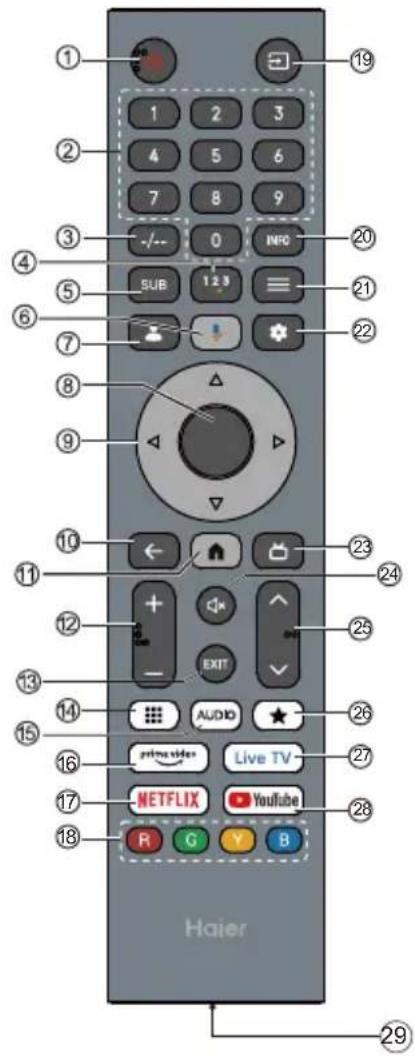

# Item Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2	0~9 number Press	to enter a TV channel number.
3	-- Press to set the TV channel number input.
4	Press to open Soft Keyboard.
5	SUB Press to set subtitle function.
6	Press to open the Google Assistant.
7	Press to open user account page.
8	OK Enter the selected option or perform the selected operation.
9	Press to navigate the on-screen menu.
10	BACK Return to the previous menu.
11	Press to open the Home Page.
12	VOL+/VOL- PressVOL+ or VOL- to adjust volume level.
13	EXIT Exit the current operation.
14	Press to show virtual keypad.
15	AUDIO Press to set NICAM in ATV. Select the Sound Tracks in DTV.
16	Press to open the prime video.
17	NETFLIX Press to open the NETFLIX.
18	Coloured buttons Implement the relevant operations according to the prompt at the botton of the menu in the text.
19	Press to open the input source list.
20	INFO Press to display the channel information
21	MENU ≡ Press to open or close the on-screen menu.
22	Press to open the settings menu.
23	Press to display electronic programme guide in TV mode.
24	Press to open the mute.
25	CH∨/CH∧ Press CH∨ or CH∧ to change TV channels.
26	Create a shortcut for your favorite app.
27	Live TV Press to enter the last input source in LiveTV.
28	YouTube Press to open the YouTube.
29	Type-C port Type-C port for quick charging. (DC 5V 1A)

Eye-protection Function: (In color temperature standard mode meets TUV low blue light requirements)

Low Blue Light - Low Blue Light mode on your TV is designed to reduce the level of blue light to protect your eyes. Press Remote control Settings → Display&Sound → Picture → Advanced Settings → Low Blue Light (Optional: Off, Low, Middle, High).

To reduce eye strain and protect your eyes when you watch TV for a period of time, you are recommended to:

• Take regular and frequent breaks, and avoid watching TV for periods longer than one hour.

Watching TV for long periods of time may cause eye fatigue.

• Look away from the TV screen and focus on distant objects for at least 10 minutes during watch break time.
• Relax yourself during watch break time by doing eye exercises or outdoor activities. • The recommended viewing distance is 3 times the vertical height of the TV screen.
• Regular breaks and exercises are extremely helpful in relieving eye strain and fatigue.

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please follow the on-screen instructions for first-time setup.

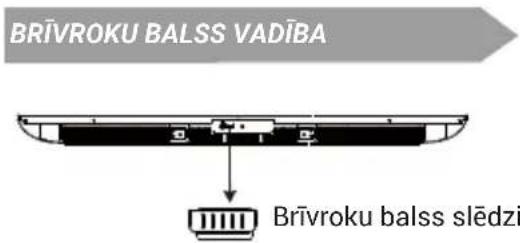

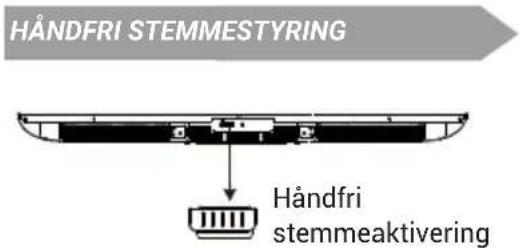

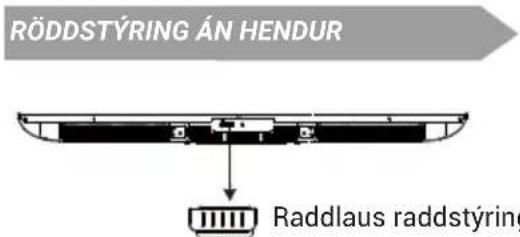

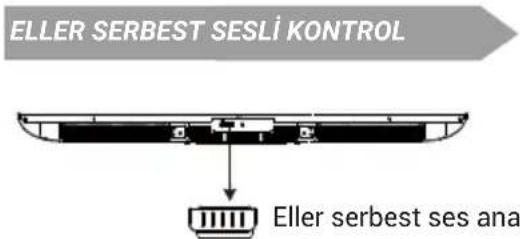

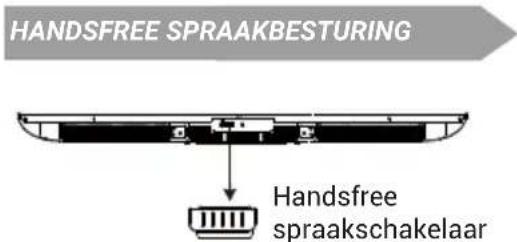

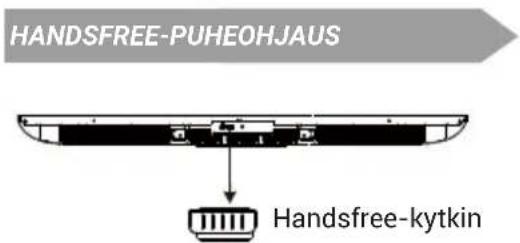

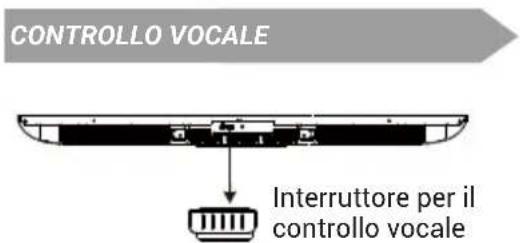

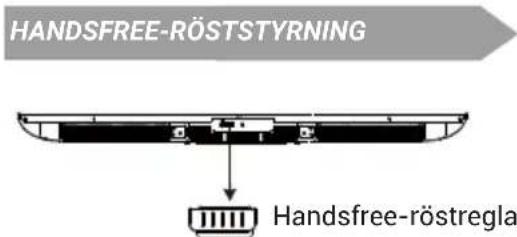

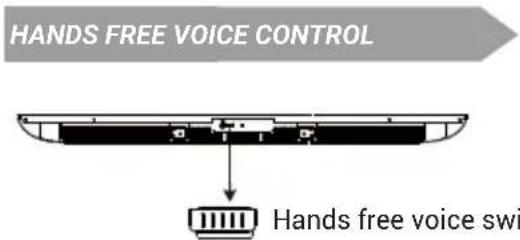

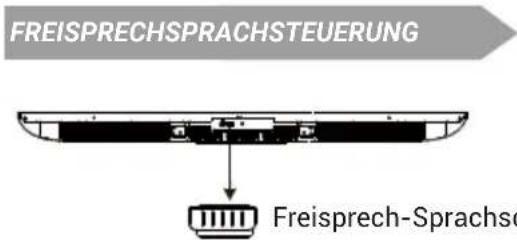

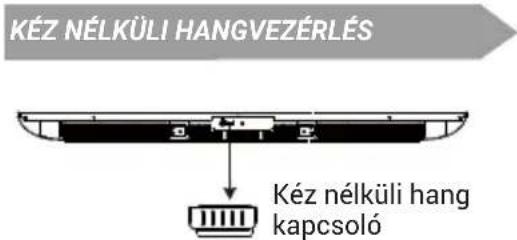

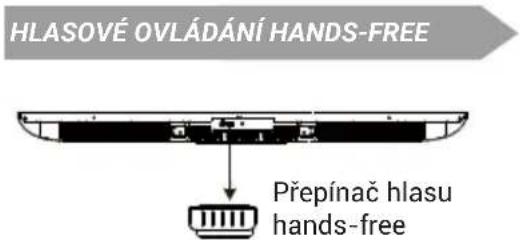

Switch to open or close the Hands Free Voice Control.

Note: This feature requires network connection.

Far-Field voice commands are available in these languages.

en-US/es-US, fr-FR, es-ES, ja-JP, ko-KR, de-DE, it-IT, en-GB, en-AU, en-IN/hi-IN, en-CA/fr-CA, es-MX, pt-BR, id-ID, sv-SE, vi-VN

HOW TO USE HANDS FREE VOICE CONTROL

1. Activate the hands free voice control with the toggle switch.

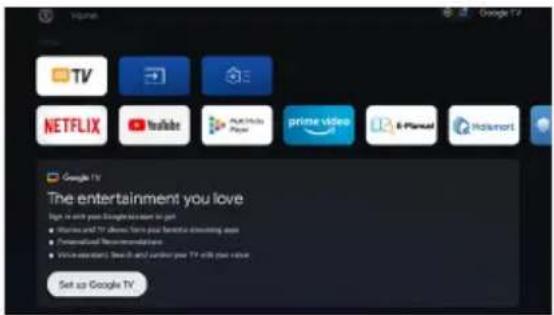

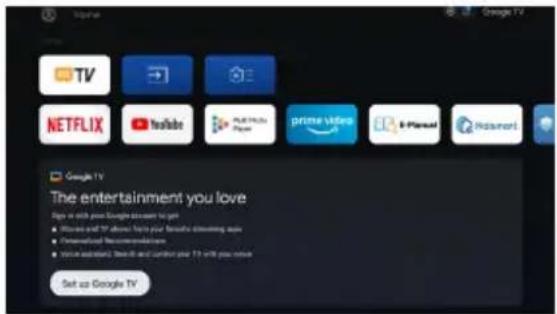

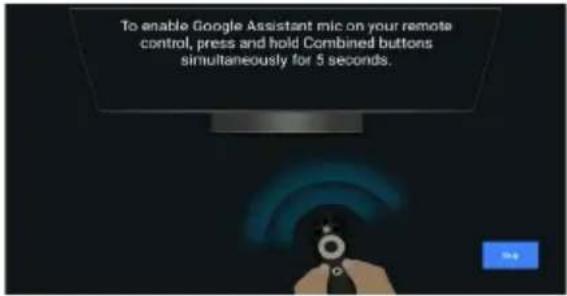

2. Select "Set up Google TV" on the home screen to open the Google assistant settings, and select sign in.

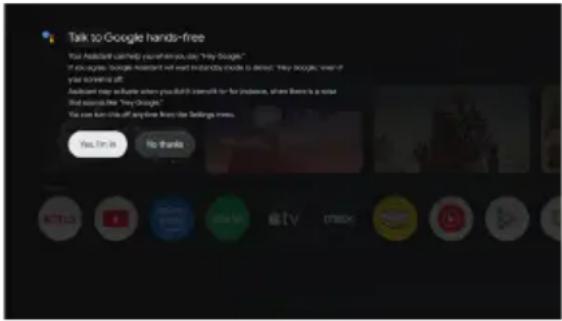

1. When the prompt "Control your TV with 'Hey Google'!" appears, select "Yes I'm in" to enable it.

For example, when you say "Hey Google, what's the weather?", the hands-free voice indicator will light up and provide the weather conditions.

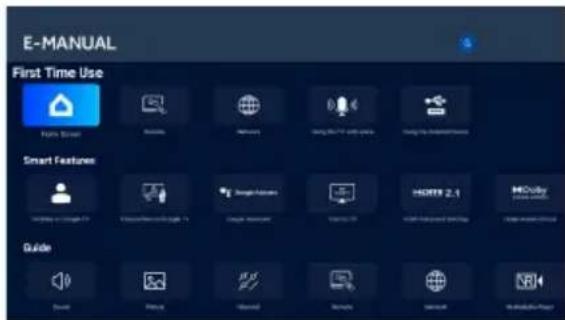

E-Manual

The E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV's features, access the E-Manual by following the steps below. The E-Manual may be available depending on the region or model.

1. Press the HOME button to access the home page.
2. Press the UP/DOWN/LEFT/RIGHT and OK buttons to select and enter "E-Manual" in "Apps".

Note: The picture is for reference only.

Accessibility function description

TalkBack (Screen reader)

TalkBack is a screen reader accessibility feature that assists visually impaired users by reading aloud on-screen text, menu items, and other elements. It can also be set up to use with the Accessibility Shortcut.

Text to speech

A Text-to-Speech Engine is a software component that converts text into natural-sounding speech.

The Text-to-Speech Engine works in the background, supplying the core speech synthesis functionality.

Applications such as screen readers, virtual assistants, or language learning tools often call upon the Text-to-Speech Engine to generate audio output, but the engine itself does not interact with users directly.

This page provides settings to pick the active Text To Speech Engine if there are multiple engines installed in the system, to set basic configurations for Text To Speech engines, like language, reading speed, etc.

Text Scaling

This configuration could scale the text in system-wide applications up or down based on end user's need.

Bold Text

This configuration allows the text in system-wide applications to be bolded for better readability.

Color correction

The "Color correction" setting is designed to help people with color vision differences see on-screen colors more clearly. By enabling this option, you can adjust the way colors are displayed, making it easier to enjoy your favorite shows and apps.

Accessibility shortcut

When the Accessibility shortcut is on, the end user can press both the BACK and DOWN buttons for 3 seconds to start an accessibility feature.

This setting could help the end user to choose the targeted accessibility feature of the shortcut, or to switch the shortcut function on and off.

Keyboard accessibility

Time to take action (accessibility timeout)

This setting allows users to adjust how long the messages and notifications stay on the screen.

The longer stay would enlarge the chance that end user notice the message and take necessary action.

Key repeat delay

This setting allows users to adjust the key repeat delay, which could help the end user get a better experience when pressing buttons on the remote control.

Switch Access

Switch Access lets users interact with TV using one or more switches. Switch Access can be helpful if the end user's interaction with remote control is limited.

Audio Description

The end user would hear a description of what's happening on screen in supported movies and shows by enabling this setting.

Captions

The "Captions" settings let users turn on/off captions, decide the visual appearance of the captions in supported apps.

High contrast text

The "High Contrast Text" setting makes on-screen text easier to read by using brighter colors and clearer outlines. This feature is especially helpful for people who find regular text hard to read.

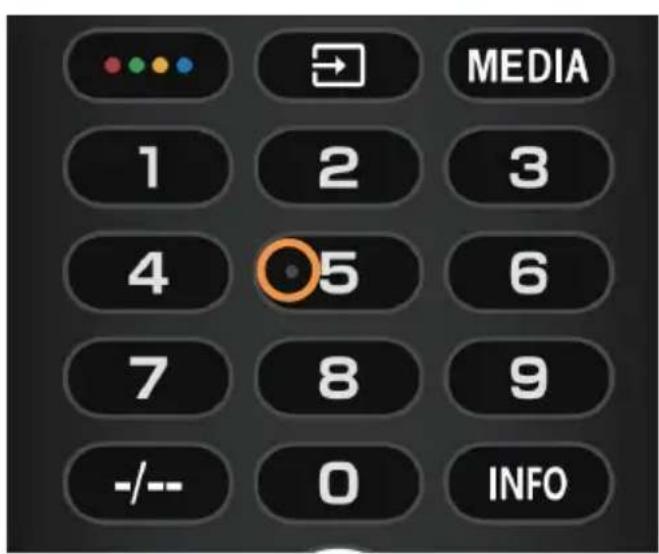

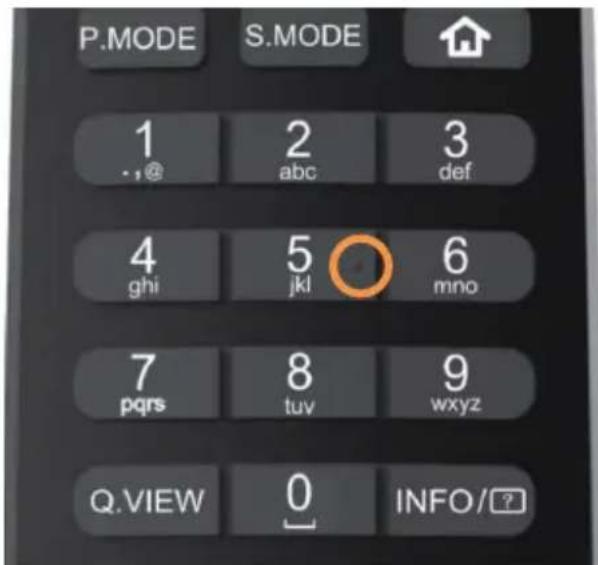

Tactile dots on the remote control buttons

The TV remote control has tactile dots on the number 5 button to help you find the buttons easily.

For example, among the numeric buttons, only the number 5 has a tactile dot to help you find all the numeric buttons.

TV POWER ON

ACCESSORIES

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

HANDS-FREE VOICE COMMAND

ACCESSORIES

ACCESSORIES

ACCESSORIES

ACCESSORIES

ACCESSORIES

Remote control - 1 unit. User manual

- 1 unit.

ACCESSORIES

1. Turn on the TV:

Press on the remote control or the POWER button on the bottom/side of the TV.

CONTROL BUTTONS

1. When the prompt "Control your TV with 'Hey Google'!" appears, select "Yes, I'm in" to activate it.

EQUIPMENT

GENERAL TECHNICAL DATA

ACCESSORIES

Audio/Video device with HDMI interface

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

ACCESSORIES

ADDITIONAL EQUIPMENT

HANDS-FREE VOICE CONTROL

1. When the message "Control your TV with 'Hey Google'!" appears, select "Yes I'm in" to use this function.

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

ACCESSORIES

Remote control – 1 pc. User manual

- 1 pc.

Stand installation instructions

Base stand

- 1 pc.

- 2 pcs.

*Wall mount component

Warranty card

- 1 pc.

- 1 pc.

*Screws (M6 × 20) - 4 pcs.

NOTE

1. The wall mount component is for models M96/M92.
2. H100S90FUX: Screw specification for stand attachment is M5 × 19 – 8 pcs.

GENERAL SPECIFICATIONS

Veličina(Dijagonalno)	100" 85" 75" 65"
Rezolucija 3840	× 2160
Maksimalna stopa osvježavanja	144 Hz @ 3840 × 2160240 Hz @ 1920 × 1080
Omjer stranica	6:9
TV sistem ATV (PAL, SECAM)/DTV (DVB-T/C/T2/S2)
Video signalni sistem	PAL, SECAM
Ulazni napon napajanja	100-240 V ~ 50/60 Hz
Nazivna snaga	100" 85" 75" 65"
	500 W 400W 350W 280W
Audio izlaz	Serija M96: 90W
	Serija M92/S90: 47W
Potrošnja energije u stanju pripravnosti	≤ 0,5 W
Okolinski uvjeti	Radna temperatura okoline:+5°C do +40°CVlažnost radnog okruženja:25% ~ 80%Temperatura skladištenja: -15°C ~ +45°CVlažnost skladištenja: < 80%Atmosferski pritisak: 86 ~ 106 kPa

HANDS-FREE VOICE CONTROL

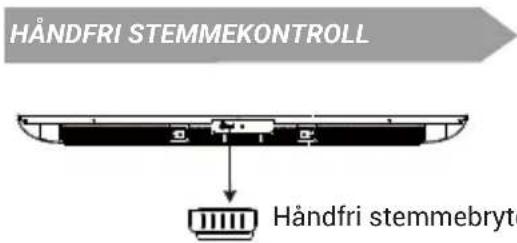

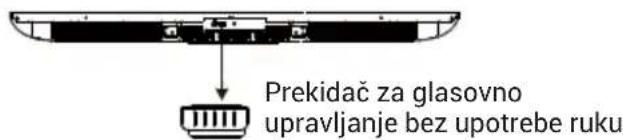

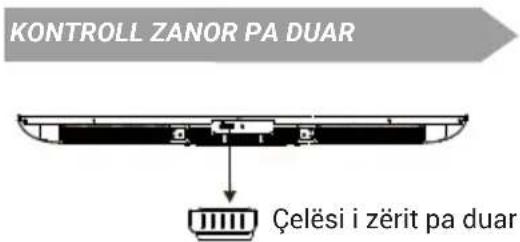

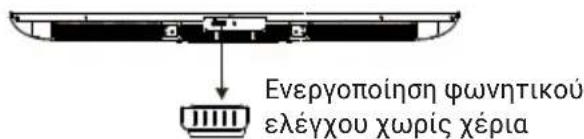

Switch to turn Hands-Free Voice Control on or off.

Note: This function requires a network connection. Remote voice commands via the remote control are available in these languages: en-US/es-US, fr-FR, es-ES, ja-JP, ko-KR, de-DE, it-IT, en-GB, en-AU, en-IN/hi-IN, en-CA/fr-CA, es-MX, pt-BR, id-ID, sv-SE, vi-VN

HOW TO USE HANDS-FREE VOICE CONTROL

1. Activate Hands-Free Voice Control using the switch.
2. Select "Set up Google TV" on the home screen to open Google Assistant settings, then select sign-in.

1. When the prompt "Control your TV with 'Hey Google'!" appears, select "Yes I'm in" to enable this feature.

For example, when we say "Hey Google, what's the weather", the hands-free voice indicator will light up and display the weather conditions.

E-Manual

APPENDIX

SPATIAL VOICE CONTROL

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

Nuotolinio valdymo pultelis- 1 vnt.	Naudotojo vadovas- 1 vnt.
Pagrindo montavimo vadovas- 1 vnt.	Pagrindo stovas- 2 vnt.
*Sieninio tvirtinimo elementas- 1 vnt.	Garantijos kortelė- 1 vnt.
*Varžtai (M6x20) - 4 vnt.

NOTE

HANDS-FREE VOICE CONTROL

1. When the message "Control your TV with 'Hey Google!'" appears, select "Yes, I'm in" to use this feature.

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

ACCESSORIES

HANDS-FREE VOICE CONTROL

ACCESSORIES

Remote control – 1 pc User manual

- 1 pc

Basic setup instructions Base feet - 2 pcs. - 1 pc.

*Wall mount accessory - 1 pc Warranty card - 1 pc *Screws (M6 × 20) - 4 pcs

NOTE

ACCESSORIES
