1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

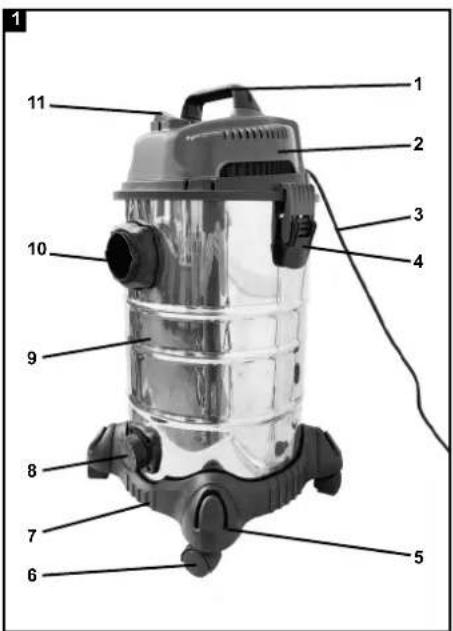

2. Device description (Fig. 1)

1. Handle
2. Machine head
3. Connection cable
4. Locking hooks
5. Castor mounts (4x)
6. Castors (4x)
7. Caster mounting base
8. Screw cap for draining off liquids
9. Stainless steel container
10. Suction connection
11. On/off switch
12. Top cable holder
13. Connection for blower function
14. Filter basket with safety float valve
15. 3m suction hose
16. Foam filter
17. Paper filter bag
18. Folded filter
19. Floor nozzle
20. Joint nozzle
21. Metal extension tube
22. Screw (6x)
23. Bottom cable holder

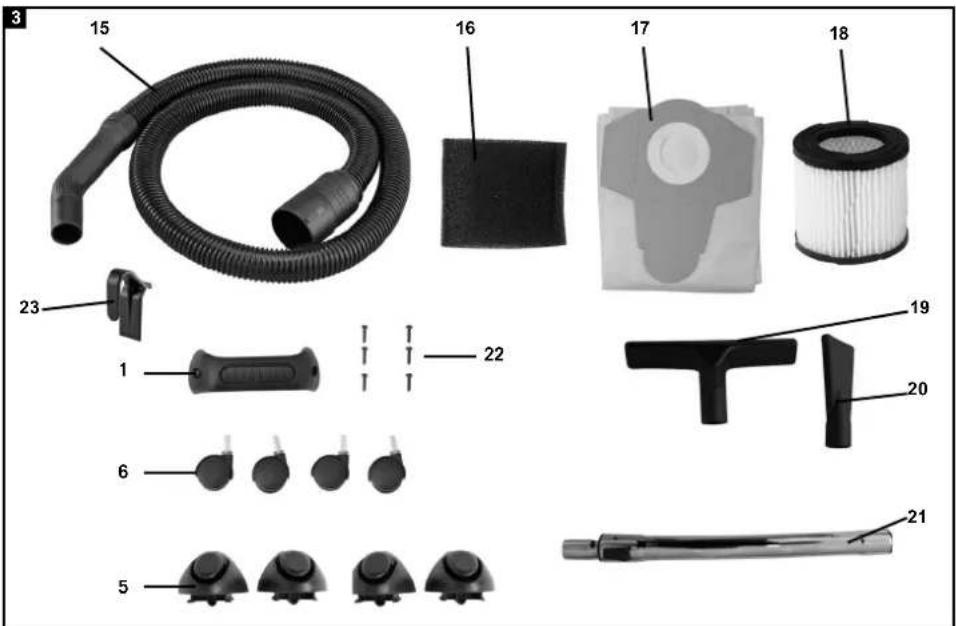

3. Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

30L wet/dry vacuum (1x)

3 m suction hose (1x)

Foam filter (1x)

Paper filter bag (1x)

Folded filter for dry vacuuming (1x)

Castor mount (4x)

Castors (4x)

Handle (1x)

Screw (6x)

Floor nozzle (1x)

Joint nozzle (1x)

Metal extension tube (1x)

Cable holder (1x)

Operating manual (1x)

4. Proper use

The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety instructions

⚠️ DANGER!

• The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
• Never touch the mains plug and the socket with wet hands.
• Do not pull the plug from the socket by pulling on the connecting cable.
• Check the power cord with mains plug for damage before every use. To avoid risks, arrange immediately the exchange by an authorized customer service or a skilled electrician, if the power cord is damaged.
• To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).
• Turn off the appliance and remove the mains plug prior to any care and maintenance work.
• Repair works may only be performed by the authorised customer service.

⚠ WARNING!

- This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.

• Children may only use this appliance if they are over the age of 8 and supervised by a person in charge of their safety, or if they have received instructions on the use of this appliance and have understood the resulting risks.
  • Children must not play with this appliance.
• Supervise children to prevent them from playing with the appliance.
• Cleaning and user maintenance must not be performed by children without supervision.
• Keep packaging film away from children - risk of suffocation!
• Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
• Risk of fire. Do not vacuum up any burning or glowing objects.
• The appliance may not be used in areas where a risk of explosion is present.
• Immediately switch the appliance off or pull the power plug if foam forms or liquids escape!
• Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.

Certain materials may produce explosive vapours or mixtures when agitated by the suction air! Never vacuum up the following materials:

• Explosive or combustible gases, liquids and dust particles (reactive dust particles)
• Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
• Undiluted, strong acids and alkalies
• Organic solvents (such as petrol, paint thinners, acetone, heating oil).

In addition, these substances may cause the appliance materials to corrode.

⚠ WARNING!

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

6. Technical Data

Mains voltage	220-240V~ 50/60Hz
Power 1400W
Water tank capacity 30L
Suction performance 20 kPA
Protection category	IPX4
Protection class	II

7. Installation

⚠️ Important!

Prior to use, ensure that the device has been correctly and fully assembled.

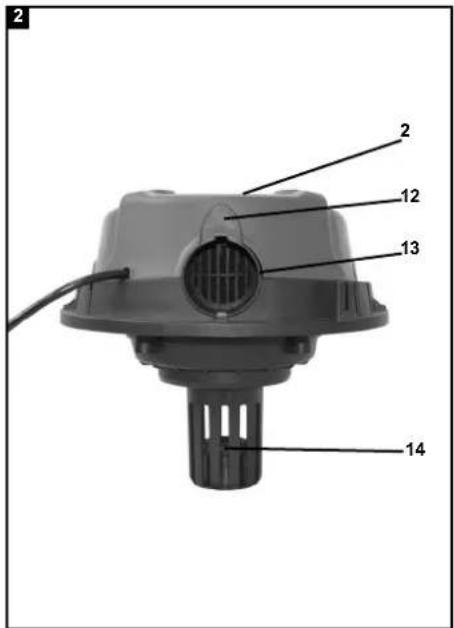

Unpacking (Fig. 1+2+3)

- Release the locking hooks (4) and remove the machine head (2). The accessories are located inside the stainless steel container (9). Only the metal extension tube (21) is located outside the stainless steel container (9) in the packaging. Remove all of the accessories from the stainless steel container (9).

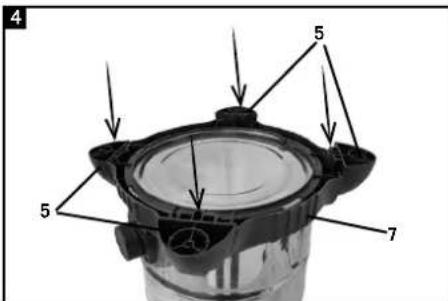

Installing the castor mounts (fig. 4+5)

• Turn the stainless steel container (9) upside-down (the machine head (2) must be removed).

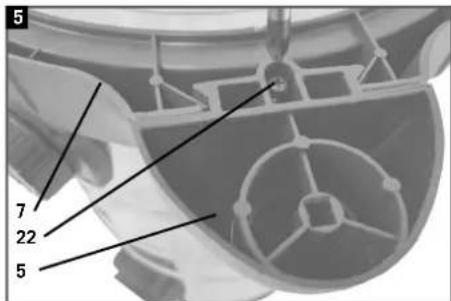

• Push the castor mounts (5) into the cut-outs provided on the wheel mounting base (7). (4x)
• Fasten the castor mounts (5) with a screwdriver (not included in the delivery) and one screw each (22). (4x)

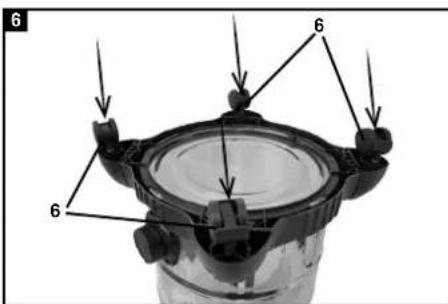

Installing the castors (6) (fig. 6)

- Press the four castors (6) into the holes in the wheel mounting base (5).

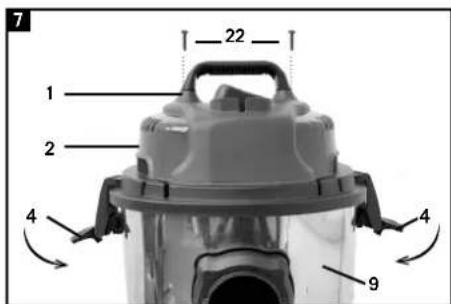

Installing the machine head (2) and the handle (1) (Fig. 7)

• Place the machine head (2) on the stainless steel container (9). Secure the machine head (2) with the locking hooks (4). When installing the machine head (2), ensure that the locking hooks (4) latch into place correctly.
• Place the handle (1) on the machine head (2) and fasten it with two screws (22) with a screwdriver (not included in the delivery).

Installing the foam filter (16) (fig. 3+8)

Never use the device without filter! Always ensure that the filters are correctly fitted!

- Installing the foam filter (16): For wet vacuuming, slide the foam filter (16) provided over the filter basket with safety float valve (14).

Installing the folded filter (18) (fig. 3+9)

For dry vacuuming, slide the folded filter (18) provided over the filter basket with safety float valve (14). The folded filter (18) is only suitable for dry vacuuming!

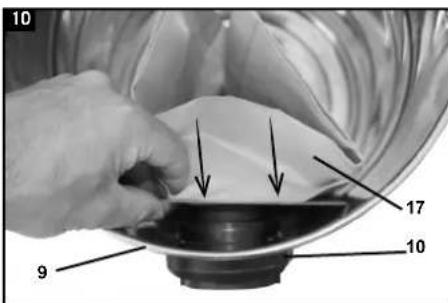

Installing the paper filter bag (17) (fig. 3+10)

It is recommended to use an additional paper filter bag (17) when vacuuming fine, dry dirt.

- Slide the paper filter bag (17) over the suction opening in the stainless steel container (9). The paper filter bag (17) is only suitable for dry vacuuming. The paper filter bag (17) makes it easier to dispose of the dust collected.

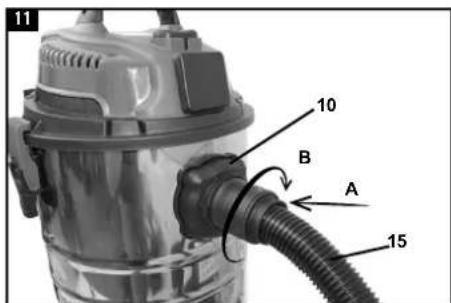

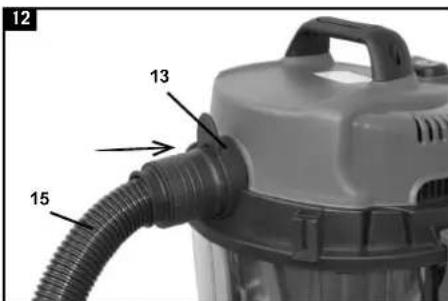

Installing the suction hose (15) (fig. 3+11+12)

Connect the suction hose (15) to the corresponding port, depending on the desired use, on the wet and dry vacuum.

Vacuuming:

Connect the suction hose (15) to the suction hose port (10). To do so, slide the end of the suction hose (15) with the two nipples into the suction hose port (10) (A). Insert the two nipples into the recesses. Once the suction hose is fully inserted, turn it clockwise (B).

Blowing:

Connect the suction hose (15) to the blowing function connection port (13). Slide the end of the suction hose (15) with the two nipples into the blowing function connection port (13). Insert the two nipples into the recesses. It is not necessary to turn it here.

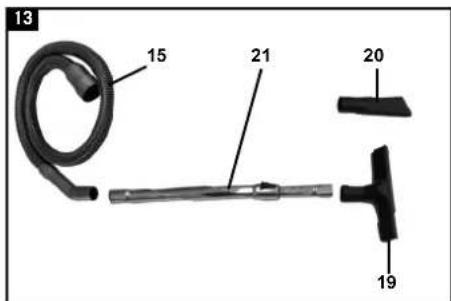

Installing the metal extension tube (21), suction hose (15) and nozzles (19/20) (fig. 13)

• Connect the metal extension tube (21) with the bent end of the suction hose (15).
• Fit the floor nozzle (19) or joint nozzle (20) to the other end of the metal extension tube (21).
• Push the slide piece forwards (A) to change the length of the metal extension tube (21). (Fig. 14)
• Pull the tube to the desired length (B). Ensure that the slide lock latches into place. (Fig. 14)

Installing the bottom cable holder (fig. 3+15)

- Clip the bottom cable holder (23) onto the wheel mounting base (7) at the rear of the device. The top cable holder (12) is on the connection port for the blower function (13).

8. Operation

⚠ Warning!

Switch the device off if liquid or foam emerges with the exhaust air during wet vacuuming.

Switching on/off (fig. 16)

The on/off switch (11) has two settings

• Switch setting 0: Off
• Switch setting I: On

Press the on/off switch (11) to switch on. Switch setting I: On

Press the on/off switch (11) again to switch the device off. Switch setting 0: Off

Dry vacuuming (fig. 3+9+10)

Use the folded filter (18) for dry vacuuming. The paper filter bag (17) can be used in addition. This ensures that the folded filter (18) remains free of dust for longer and maintains the vacuum power for longer. In addition, the disposal of the dust is also easier. Always ensure that the filters are correctly fitted.

Wet vacuuming (fig. 3+8)

Use the foam filter (16) for wet vacuuming. Ensure that the foam filter (16) is correctly fitted. If the stainless steel container (9) is full, the safety float valve (14) closes the suction port and suction operation is interrupted.

⚠️ Important!

The device is not suitable for vacuuming flammable liquids. For wet vacuuming, use the only the foam filter (16) provided.

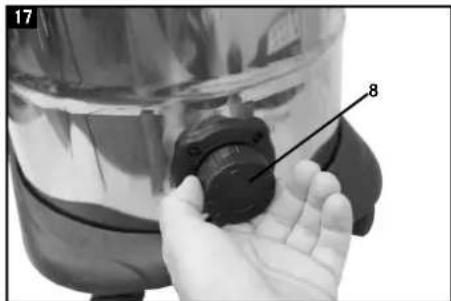

Water drain plug (fig. 17)

The stainless steel container (9) is equipped with a water drain plug (8) in order to make it easier to drain. Open the water drain plug (8) by turning it counter-clockwise and drain out the liquid.

9. Maintenance and cleaning

⚠ Warning!

Prior to any adjustment, maintenance or service work disconnect the mains power plug!

Cleaning

It is recommended to clean the device after each use. Do not spray the device with water or clean it under running water. This can result in electric shocks and can damage the device.

Empty the stainless steel container (9) after each use: After opening the screw cap to drain out the liquids (8), the liquid collected can be drained out. Residual liquid remains in the stainless steel container (9). To remove residual liquid, take off the machine head (2) by releasing the locking hooks (4) from the stainless steel container (9). Pour out the liquid residue. Clean the container with a damp cloth.

• Replace paper filter bag when full
• Always keep the device clean. Do not use cleaning agents or solvents.
• Keep the ventilation slots clean and free of dirt and dust.
• Clean the device only with a soft brush or a damp cloth.
• Clean the foam filter (16) with a little soap and running water and then leave it to air dry.

Maintenance

The device is maintenance-free.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear parts*:

• Foam filter
• Paper filter bag
• Folded filter for dry vacuuming

* Not necessarily included in the scope of delivery!

10. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Store the electrical tool in its original packaging.

Cover the electrical tool in order to protect it from dust and moisture.

Store the operating manual with the electrical tool.

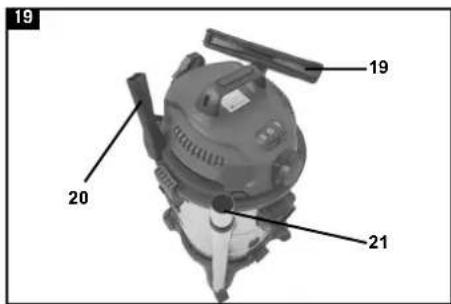

• Wind the mains cable (3) around the top cable holder (12) at the connection port for the blower function (13) and the bottom cable holder (23). (Fig. 18)
• There are four recesses on the top side of the machine head (2) for storing the floor nozzle (19) and the joint nozzle (20). There are also recesses on the wheel mounting base (5) for attaching the metal extension tube (21). (Fig. 19)
• The remaining accessories can be stored in the stainless steel container (9).

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
• Extension cables up to 25 m long must have a cross-section of 1.5 ~mm^2 .
  Connections and repairs of electrical equipment may only be carried out by an electrician.

12. Disposal and recycling

The equipment is supplied in packaging to preven it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

13. Troubleshooting

Fault Possible cause	Remedy
Motor does not run	Check whether the plug is plugged in. Plug the mains plug back in to the socket.
	Check whether there is power to the socket.	Call an electrician.
	Check whether the vacuum cleaner on/off switch is switched on.	Switch the on/off switch on.
Reduced vacuuming power	Is the brush blocked?	Switch the vacuum cleaner off to remove the blockages.
	Is the dust bag full of dust? Remove and empty the dust bag.
	Is the filter full of dust? Remove and empty the filter.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Déballage (Fig.1+2+3)

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Exploded view diagram of a washing machine with labeled components and wiring connections

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU		90/396/EC		Annex V
X	2014/30/EU	X	2011/65/EU*				Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body:Notified Body No.:
	2006/42/EC
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
						Emission. No:

Standard references:

Standard references: EN 60335-2-2:2010+A11:2012+A1:2013; EN 60335-1:2012+A11:2014+A13:2017; EN 62233:2008; EN 55014-1:2017; EN 55014-1:2017; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
