Product type	Wet and dry vacuum cleaner
Brand	Scheppach
Model	ASP30-O
Tank capacity	30 L
Power	1400 W
Suction power	20 kPa
Mains voltage	220-240 V ~ 50/60 Hz
Protection rating	IPX4
Protection class	II (double insulation)
Main functions	Dry vacuuming, liquid vacuuming, blowing
Included filters	Foam filter (liquid), paper filter bag (dry)
Safety	Overflow float, locking hooks
Suction hose length	1.5 m
Included accessories	Floor brush, crevice tool, 2 plastic extension tubes, 4 swivel castors
Tank material	Stainless steel
Maintenance	Tank drainable via plug, washable or replaceable filters
Usage	Domestic and DIY (non-professional)
Weight (estimated)	Approx. 7 kg

Frequently Asked Questions - ASP30-O SCHEPPACH

How to assemble the Scheppach ASP30-O vacuum cleaner?

To assemble the vacuum cleaner, first attach the wheel supports under the tank with the provided screws, snap the swivel castors in place, then place the vacuum head onto the tank by engaging the locking hooks. Next, mount the handle on the head with two screws. Install the appropriate filter (foam for liquid, paper bag for dry) and connect the suction hose to the corresponding mouthpiece.

What is the power of the Scheppach ASP30-O vacuum cleaner?

The Scheppach ASP30-O vacuum cleaner has a power of 1400 W and a suction power of 20 kPa, allowing it to effectively vacuum both liquids and dry dust.

How to vacuum liquids with this vacuum cleaner?

To vacuum liquids, use the provided foam filter. Place it over the filter basket with the float. Insert the suction hose into the designated mouthpiece. When the tank is full, the float automatically shuts off suction. To drain, open the drain plug or remove the vacuum head.

How to maintain the foam filter?

The foam filter can be cleaned under running water with a little mild soap. Let it dry completely in the air before reuse. Never use solvents or harsh chemicals.

What type of filter bag to use for dry vacuuming?

For dry vacuuming, use the provided paper filter bag. It mounts on the suction opening of the tank. Replace it as soon as it is full. For better filtration of fine dust, you can also use an optional pleated filter.

What to do if suction power decreases?

A decrease in power can be due to a blockage in the brush, a full dust bag, or a dirty filter. Turn off the vacuum cleaner, check and clean the obstructed parts. Also ensure the hose is not bent or clogged.

What are the important safety instructions?

Never vacuum flammable, explosive, or dangerous substances. Use only on alternating current with a properly grounded outlet. Never immerse the appliance in water. Always unplug before maintenance. Keep children away and do not leave the plastic bag within their reach.

Can the vacuum cleaner be used for blowing?

Yes, the vacuum cleaner has a blowing function. Connect the suction hose to the blowing mouthpiece (marker 12) on the vacuum head. Insert the end of the hose with the nipples into the recesses without twisting. Be careful not to direct the airflow towards people or fragile objects.

How to store the accessories after use?

Store the floor brush and crevice tool in the recesses on top of the vacuum head. The plastic extension tubes can be stored in the recesses of the wheel supports. Other accessories can be placed inside the stainless steel tank. Store the appliance in a dry, dark, frost-free place.

What is the tank capacity for liquids?

The stainless steel tank has a capacity of 30 liters for liquids. A safety float automatically stops suction when the maximum level is reached. Remember to drain regularly using the drain plug.

USER MANUAL ASP30-O SCHEPPACH

ASP30-O

DE	Nass- TrockensaugerOriginalbetriebsanleitung	5-10
GB	Wet and dry vacuum cleanerTranslation of Original Operating Manual	11-16
FR	Aspirateur eau et poussièresTraduction de la notice originale	17-23
IT	AspiratuttoTraduzioni del manuale d'uso originale	24-29

CAUTION!: Read the manual carefully before operating this machine!

Blank gray image with no visible content, text, or symbols

Close-up of a hand holding a small black object with a numbered label pointing to it (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Explanation of the symbols on the equipment

Warning! Danger to life, risk of injury or damage to the tool are possible by ignoring!.

Caution - Read the operating instructions to reduce the risk of inquiry

Protection class II: This wet / dry vacuum cleaner is double insulated and does not need to be connected to a grounded power outlet.

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers.

The minimum age requirement must be complied with. In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

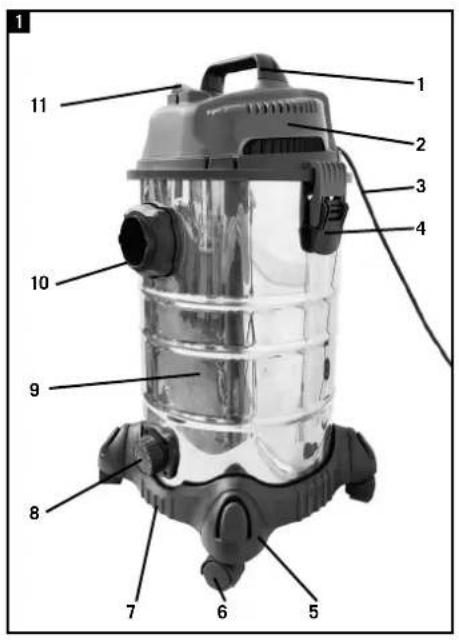

2. Device description (Fig. 1)

1 Handle
2 Appliance head
3 Power cord
4 Locking hook
5 Castor mounting fixture (4x)
6 Castor (4x)
7 Base
8 Screw cap for draining liquids
9 Container
10 Suction hose connector
11 On/off switch

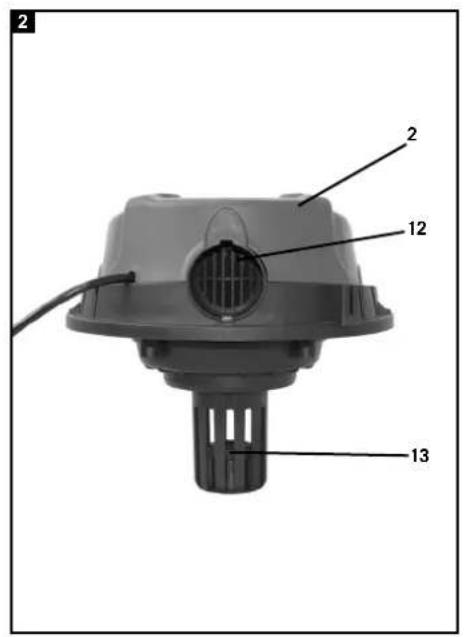

12 Blow connector
14 1.5m Suction hose

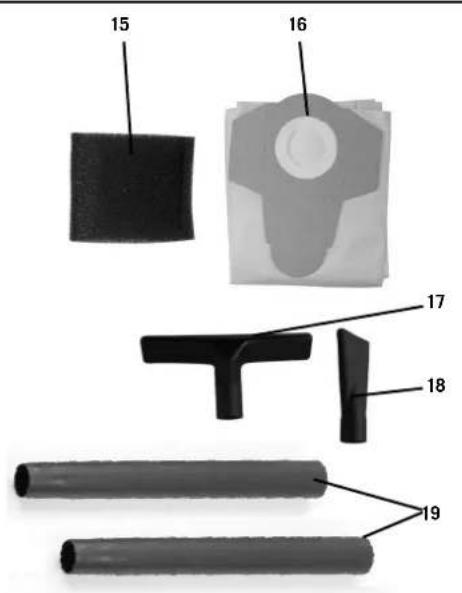

15 Foamed plastic filter
16 Paper bag
17 Floor nozzle
18 Crevice nozzle
19 Plastic extension tube (2x)
20 Screw (6x)

13 Filter basket with safety float valve

3. Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

30L Dry and wet vacuum cleaner (1x)

1.5m suction hose (1x)

Foamed plastic filter (1x)

Paper bag (1x)

Castor mounting fixture (4x)

Castor (4x)

Handle (1x)

Screw (6x)

Floor nozzle (1x)

Crevice nozzle (1x)

Plastic extension tube (2x)

Instruction manual (1x)

4. Proper use

The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety instructions

⚠️ DANGER!

• The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
• Never touch the mains plug and the socket with wet hands.
• Do not pull the plug from the socket by pulling on the connecting cable.
• Check the power cord with mains plug for damage before every use. To avoid risks, arrange immediately the exchange by an authorized customer service or a skilled electrician, if the power cord is damaged.
• To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).
• Turn off the appliance and remove the mains plug prior to any care and maintenance work.
• Repair works may only be performed by the authorised customer service.

⚠ WARNING!

• This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.
• Children may only use this appliance if they are over the age of 8 and supervised by a person in charge of their safety, or if they have received instructions on the use of this appliance and have understood the resulting risks.
  • Children must not play with this appliance.
• Supervise children to prevent them from playing with the appliance.

• Cleaning and user maintenance must not be performed by children without supervision.

• Keep packaging film away from children - risk of suffocation!

• Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
• Risk of fire. Do not vacuum up any burning or glowing objects.
• The appliance may not be used in areas where a risk of explosion is present.
• Immediately switch the appliance off or pull the power plug if foam forms or liquids escape!
• Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.

Certain materials may produce explosive vapours or mixtures when agitated by the suction air! Never vacuum up the following materials:

• Explosive or combustible gases, liquids and dust particles (reactive dust particles)
• Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
• Undiluted, strong acids and alkalies
• Organic solvents (such as petrol, paint thinners, acetone, heating oil).

In addition, these substances may cause the appliance materials to corrode.

⚠ WARNING!

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

6. Technical Data

Mains voltage 220-240 V\~

Power 1400 W

Container volume 30 L

Protection category IPX4

Safety class II

Suction power 20 kPA

7. Assembly

⚠ WARNING!

Ensure the appliance is correctly and completely assembled before use.

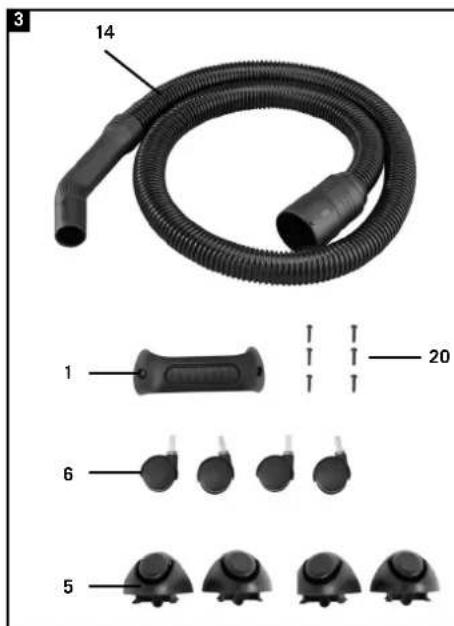

Unpacking (Fig. 1+2+3)

• Unlock the locking hooks (4) and remove the appliance head (2).
• The accessory is in the container (9). Only the plastic extension tubes (19) are outside of the container (9) in the packaging. Remove all accessories out of the container (9).

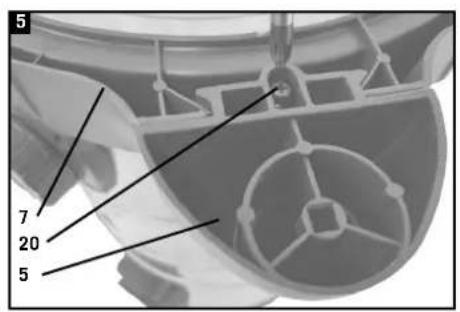

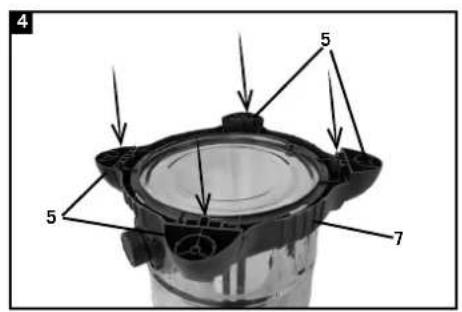

Assembly of the castor mounting fixture (Fig. 4 + 5)

• Turn the stainless steel container (8) upside down (the machine head (2) must be removed).
• Slide the castor mounting fixtures (5) into the recesses provided on the base (7). (4x)
• Secure the castor mounting fixtures (5) with a screwdriver (not included) with one screw (20) each. (4x)

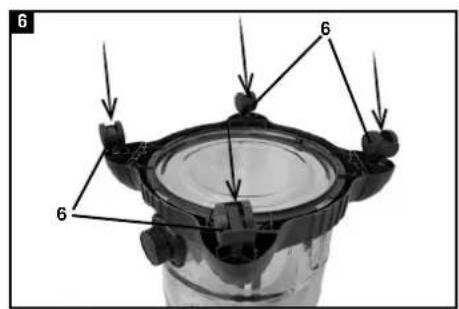

Assembly of the rollers (Fig. 6)

Press the four castors (6) into the holes in the castor mounting fixtures (5).

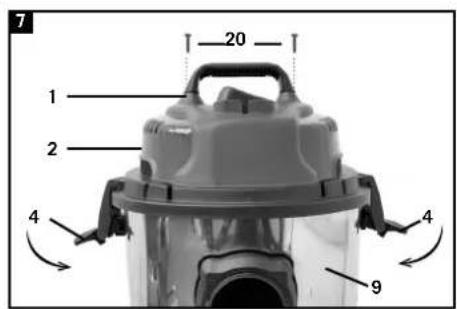

Mounting appliance head and handle (Fig. 7)

• Place the appliance head (2) onto the container (9). Secure the appliance head (2) with the locking hooks (4). When fitting the appliance head (2), make sure that the locking hook (4) locks into place correctly.
• Place the handle (1) on the appliance head (2) and secure it with two screws (20) by using a screw-driver (not included).

Fitting the foamed plastic filter (Fig. 3+8)

Never use the appliance without a filter! Always ensure that the filters are correctly mounted

- Fitting the foamed plastic filter (15): For wet-vacuuming, slip the supplied foamed plastic filter (15) over the filter basket with safety float valve (13).

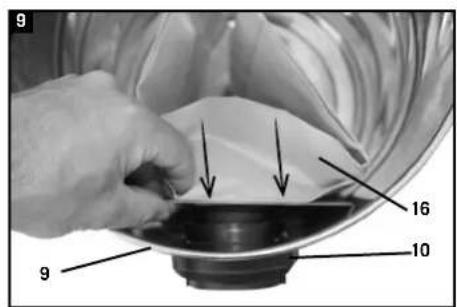

Assembling the paper bag (Fig. 3+9)

For vacuuming fine, dry dirt it is recommended that you paper bag (16). Slip the paper bag (16) over the vacuuming hole inside of the container (9). The paper bag (16) is suitable for dry-vacuuming only. The paper bag (16) makes it easier to dispose of the sucked-in dust.

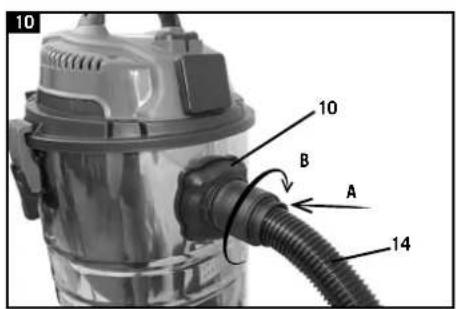

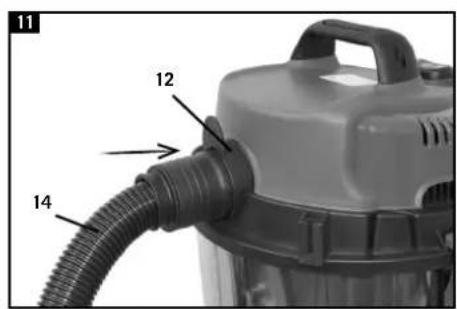

Fitting the suction hose (Fig. 3+10+11)

Connect the suction hose (14) to the corresponding connector on the wet and dry vacuum cleaner, depending on the application required.

Vacuuming:

Connect the suction hose (14) to the suction hose connector (10). Therefore push the end of the suction hose (14) with the two nipples into the suction hose connector (10) (A). Adjust the two nipples to the recesses. In the final position, turn clockwise (B).

Blowing:

Connect the suction hose (14) to the blow connector (12). Push the end of the suction hose (14) with the two nipples into the blow conector (10). Adjust the two nipples to the recesses. A rotation is not required here.

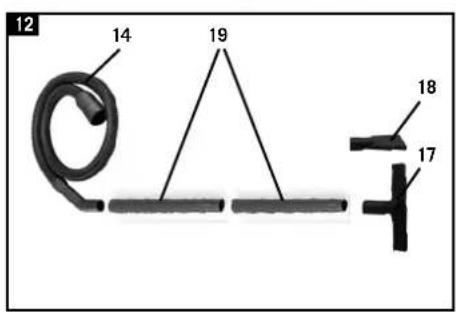

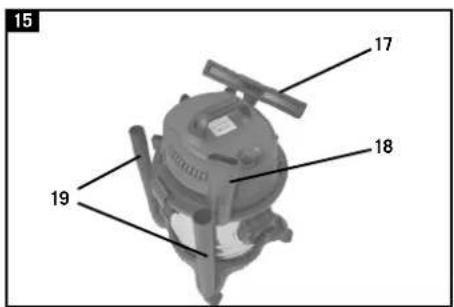

Mounting the plastic extension tube (19), hose and nozzles (17/18) (Fig. 12)

• Put the plastic extension tubes (19) together.
• Connect the composited plastic extension tube to the curved end of the suction tube (14).
• Mount the floor nozzle (17) or the crevice nozzle (18) on the composited plastic extension tube.

8. Operation

⚠ WARNING!

Switch off the appliance if liquid or foam is emitted with the exhaust air when wet vacuum cleaning.

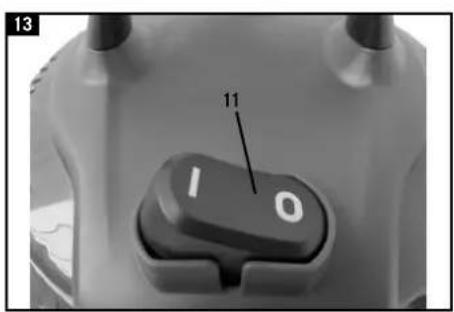

Switching off/on/automatic mode (Fig. 13)

The ON/OFF switch (11) has two settings:

• Switch position 0 : Off
• Switch position I : On
  Press the On/Off switch (11) to switch on.
  Press the On/Off switch (11) again to switch off.

Dry vacuuming (Fig. 9)

Use the paper bag (16) for dry vacuuming. Always ensure that the filters are correctly mounted.

Wet vacuuming (Fig. 8)

For wet-vacuuming, use the foamed plastic filter (15). Ensure that the foamed plastic filter (15) is correctly mounted.

If the container (9) is full, the safety float valve closes the suction opening and the suction process is interrupted.

ATTENTION!

The appliance is not suitable for the vacuuming of combustible liquids. For wet vacuuming, only use the supplied foamed plastic filter (15).

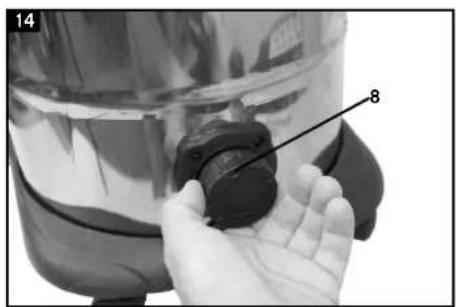

Water drain plug (8) (fig. 14)

The stainless steel container (9) is equipped with a water drain plug (8) in order to make it easier to drain. Open the water drain plug (8) by turning it counterclockwise and drain out the liquid.

9. Maintenance and cleaning

ATTENTION!

Pull out the power plug before every maintenance operation. This also includes connecting to the water supply or trying to eliminate leaks. There is a risk of electrocution or of injury from moving parts.

Cleaning

It is recommended to clean the appliance after each use. Never direct the water jet against the appliance, nor clean the appliance under flowing water. This could give rise to the danger of electric shock and damage the appliance!

Empty the container (9) after operation: The absorbed liquid can be drained after opening the screw cap for draining liquids (8). There remains a residue of liquid in the container (9). To remove any residual fluid, remove the appliance head (2) from the container (9) by opening the locking hooks. Pour out the liquid residue. Clean the container with a damp cloth.

• Replace a full paper filter bag
  • Always keep the appliance clean. Do not use any detergents or solvents.

• Always keep the ventilation slots clean and free from dirt and dust.

• Only clean the appliance with a soft brush or a slightly moist cloth.
• Clean the foamed plastic filter (15) with a little soft soap under running water and allow it to air-dry.

Maintenance

The appliance is maintenance free.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear parts*:

• Foamed plastic filter
• Paper bag

10. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Cover the electrical tool in order to protect it from dust and moisture.

• On the top of the machine head (2) are four wells on which the floor nozzle (17) and the crevice nozzle (18) can be mounted for storage. On the castor mounting fixtures (5) there are four recesses to which you can attach the plastic extension tubes. (Fig. 15)
  Store the operating manual with the electrical tool.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
• Extension cables up to 25 m long must have a cross-section of 1.5 ~mm^2 .

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. Never place batteries in your household refuse, in fire or in water. Batteries should be collected, recycled or disposed of by environment-friendly means. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

13. Troubleshooting

Fault Possible cause	Remedy
Motor does not run	Check whether the plug is plugged in. Plug the mains plug back in to the socket.
	Check whether there is power to the socket.	Call an electrician.
	Check whether the vacuum cleaner on/off switch is switched on.	Switch the on/off switch on.
Reduced vacuuming power	Is the brush blocked?	Switch the vacuum cleaner off to remove the blockages.
	Is the dust bag full of dust? Remove and empty the dust bag.
	Is the filter full of dust? Remove and empty the filter.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Déballage (Fig.1+2+3)

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

CE - Declaration of Conformity

Standard references:

Standard references: EN 60335-2-2:2010+A11:2012+A1:2013; EN 60335-1:2012+AC:2014+A11:2014; EN 62233:2008; EN 55014-1:2006/+A1:2009/+A2:2011; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013

This declaration of conformity is issued under the sole responsibility of the manufacturer.
