USER MANUAL BBV500-40Li SCHEPPACH

Black industrial spray gun with a black cover and label 'Scheppach' visible, no additional text or symbols present.

https://www.scheppach.com/de/service scheppach

BBV500-40Li

DE	Akku Laubsauger /-bläserOriginalbedienungsanleitung	4
GB	Cordless leaf vacuum/blowerTranslation of original instruction manual	16
FR	Batterie Aspirateur/souffleurTraduction des instructions d'origine	26

1

Technical diagram of a mechanical device with numbered parts labeled 1 through 6

1a

Close-up of a white handheld device with black handle and labeled component (7), no visible text or symbols beyond the number.

Black fabric bag with a pointed tip and label '6' pointing to its side (no other text or symbols)

Black cylindrical object with a curved top and wheels, no visible text or symbols

Black and white photo of a black safety harness with attached clip (no text or symbols visible)

schappach CE 02158-45U

1a 1b 1c

5a KICK

Technical line drawing of a mechanical assembly with no visible text or symbols

4 KLICK

Technical line drawing of a mechanical lifting or mounting bracket with a curved cable and circular component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

7 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts (9), showing internal components and directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical device with no visible text or symbols

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

	Read the operating and safety instructions before start-up and follow them!
	Use hearing protection and safety goggles!
	Warning! Disregard results in a risk of death or injury, or damage to the tool
	△ Attention: Risk of injury!Never have your hands near the blades.
	△ Attention! Risk of injury due to rotating blade roller! Keep hands and feet outside of the openings when the machine is running.
	△ Attention! Risk of injury due to workpieces being thrown away!
	Do not operate the device in rain or in humid conditions. Danger of electric shock!
	Keep bystanders at a distance.
	Wear sturdy footwear and protective gloves!
	Wear a dust protection mask!
	Always remove the rechargeable battery pack from the electrical tool before performing maintenance and service work!
	The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction...... 18
2. Device description.... 18
3. Scope of delivery.... 18
4. Proper use....18
5. Safety information 19
6. Technical data 21
7. Before commissioning....22
8. Operation....22
9. Maintenance....23
10. Storage 23
11. Disposal and recycling 24
12. Troubleshooting....25

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

NOTE!

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions.
  • Repairs carried out by third parties, unauthorised specialists.
• Installing and replacing non-original spare parts,
  • Application other than specified,
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed.

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you familiarise yourself with your power tool and teach you how to use it for its intended purpose.

The operating manual include important instructions for the safe, proper and economic operation of the power tool, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the power tool.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the power tool in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The power tool may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

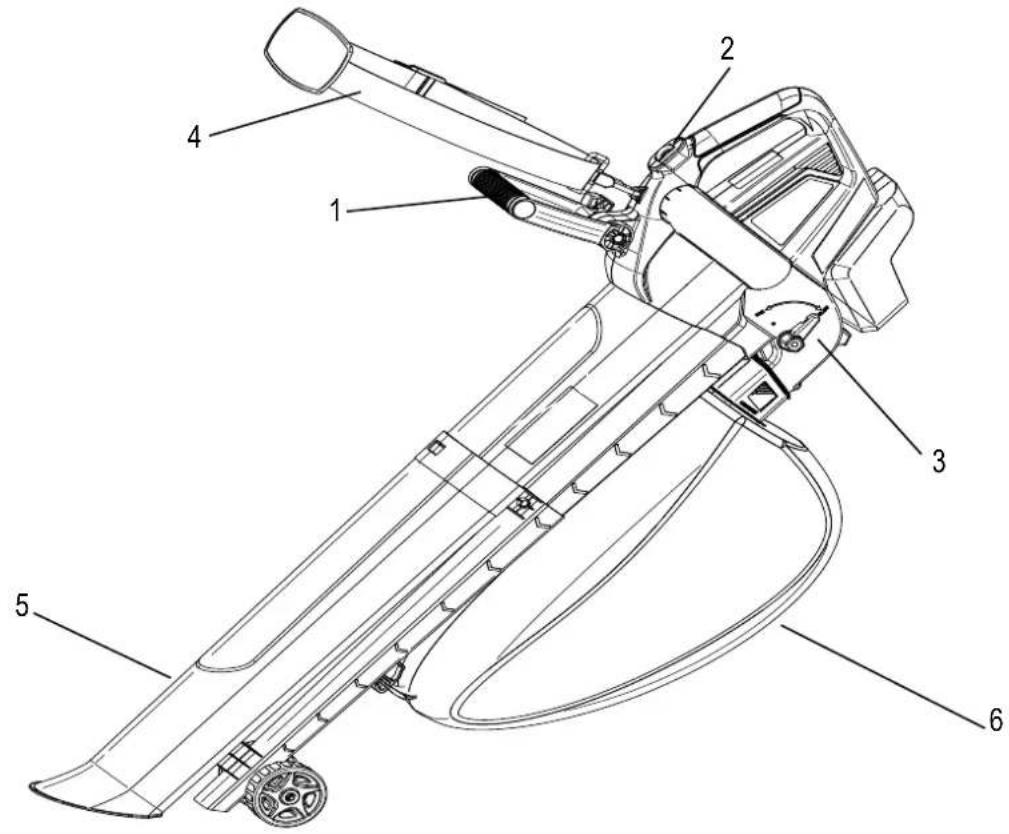

2. Device description (Fig. 1-10)

1. Handle
2. Level setting
3. Suction/blowing selection lever
4. Carrying strap
5. Blast pipe
6. Collection bag
7. Motor unit

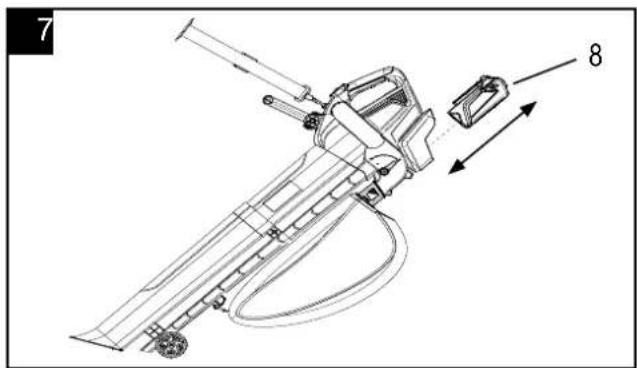

8. Battery*

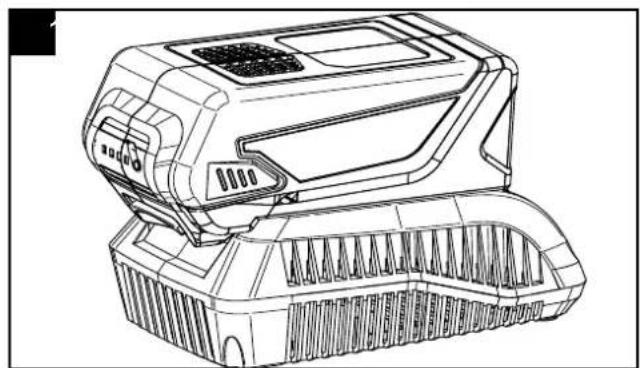

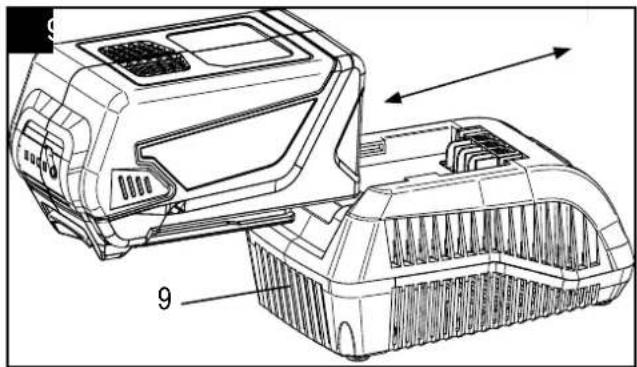

9. Charging unit*

*Not included in the scope of delivery

3. Scope of delivery (Fig. 1-1a)

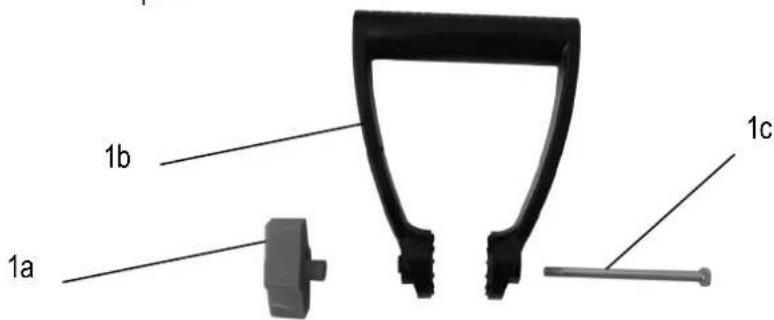

• Handle (1a)
  • Hexagonal bolt M5 x 90 (1b)
• Wing nut (1c)

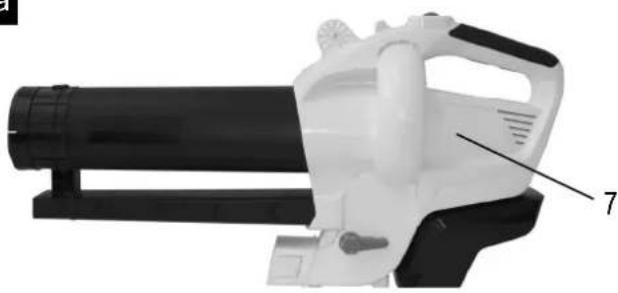

• Motor unit (7)
• Blast pipe (5)

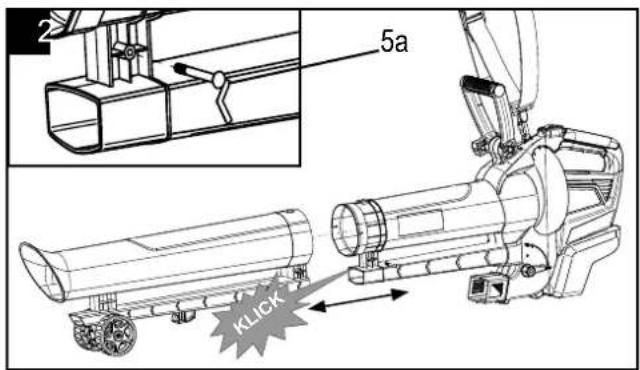

• Fillister head screw ST 4.2 x 45 (5a)

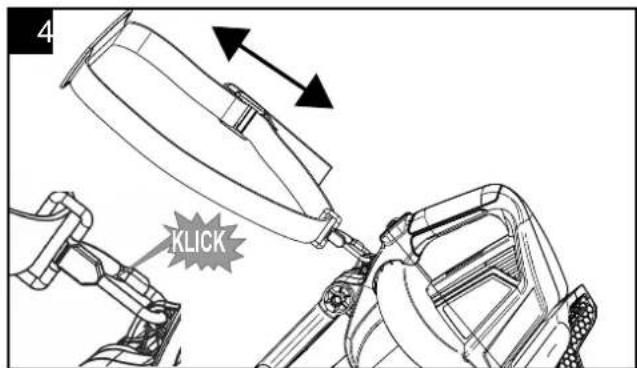

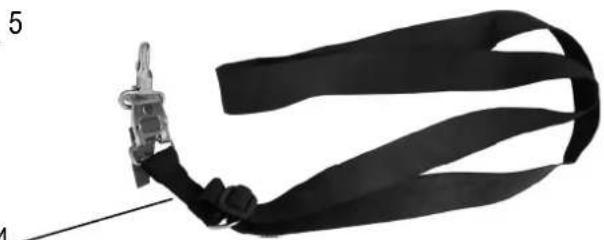

• Carrying strap (4)

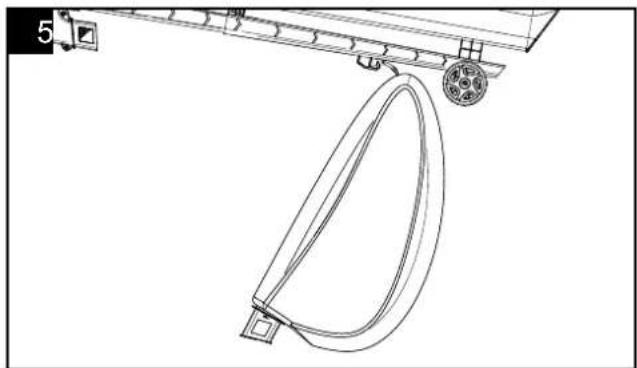

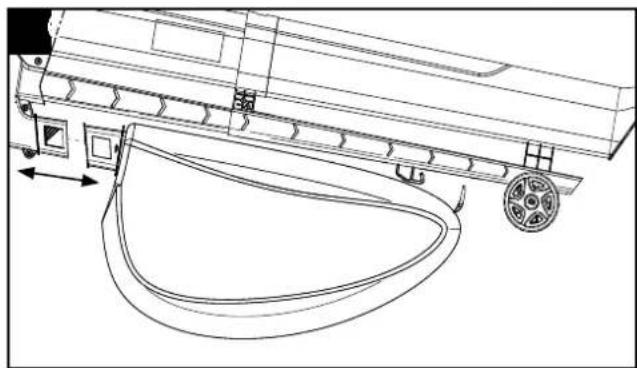

• Collection bag (6)
  • Original instructions (10)

Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.

ATTENTION!

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

4. Proper use

Devices for private gardens and allotments is considered to be equipment that is not used in public areas, parks, sports facilities, along roads and in agriculture and forestry. The observance of the manufacturer's usage instructions included is a prerequisite for the proper use of the device.

The device may only be used in the intended manner. Any use beyond this is improper.

The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Wear proper protective clothing such as safety shoes and close-fitting work clothing.
• Hazard due to electrical power with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety instructions" and "Intended use" are observed along with the complete operating instructions.

5. Safety information

We have marked points in these operating instructions that impact your safety with this symbol: ⚠

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

⚠️ DANGER!

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING!

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

ATTENTION!

A failure to observe these instructions poses a minor to moderate risk of injury.

NOTE!

A failure to observe these instructions poses a risk of damage to the device or other property.

⚠ WARNING!

Read all safety information and instructions. Failure to adhere to safety information and instructions can result in electric shock, fire and/or serious injuries.

Save all warnings and instructions for future reference. Before using the charging unit, read and observe:

• This operating manual,
• The rules and regulations for accident prevention applicable to the place of use.

This gardening tool is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge, unless they are being supervised by a person who is responsible for their safety or they are receiving instructions about how this device is to be used. Never allow children or other persons who are not familiar with the operating instructions to use the gardening tool. Children should not be left unattended, to ensure they do not play with the device.

Safety instructions for the charging unit △ WARNING!

Read all safety information and instructions. Failure to observe safety information and instructions can result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference. The term "power tool" used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions may cause you to lose control of the device.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not use the cable for another purpose, for example, carrying or hanging the power tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.
• If you work with a power tool outdoors, only use extension cables that are also suitable for outdoor use. Using an extension cable suitable for outdoor use reduces the risk of an electric shock.

- If you cannot avoid using the electrical tool in a wet environment, use a fault-current circuit breaker. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Keeping your finger on the switch or having the device switched on when you connect it to the power supply may result in accidents.
• Remove any adjusting key or wrench before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not overload the device. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Remove the plug from the socket and/or remove the battery before setting the device, changing accessories or putting the device away. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and Do not let people use the device who are not familiar with it or who have not read these instructions.

Power tools are dangerous in the hands of un-trained users.

• Maintain the electric tool with care. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Using and handling the rechargeable tool

• Only charge the rechargeable batteries with charging units recommended by the manufacturer. A charging unit that is suitable for a particular type of rechargeable battery poses a fire hazard when used with other rechargeable batteries.
• Only use the rechargeable batteries in power tools that are designed for them. The use of other rechargeable batteries can lead to injuries and a risk of fire.
• Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short-circuit between the contacts. A short-circuit between the contacts of the rechargeable battery could result in burns or fires.
• Liquid may leak from the rechargeable battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
• Observe the operating manual and the safety instructions enclosed with the rechargeable battery or charging unit.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Leaf blower safety instructions

• This gardening tool is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge, unless they are being supervised by a person who is responsible for their safety or they are receiving instructions about how this device is to be used. Children should not be left unattended, to ensure they do not play with the gardening tool.
• The operator or user is responsible for accidents sustained by other persons or damage to their property.
• During operation, no other persons or animals may be within a radius of 3 metres. The operator is responsible for third parties in the area of operations.
• Never operate the gardening tool whilst other persons, in particular children or pets, are in the immediate vicinity.
• Operate the gardening tool only during daylight or with good artificial lighting.
• Do not use the gardening tool barefoot or with open sandals. Always wear robust footwear and long trousers.
• Make sure that loose clothing is not pulled into the air intake as this could cause injury.
• Operate the gardening tool only with the nozzle attached.
• Make sure that long hair is not pulled into the air intake as this could cause injury.
  • Always ensure you have a secure footing when working on inclines.
• Keep all cooling air openings free of dirt.
• Never blow dirt/leaves in the direction of anyone standing nearby.
• Do not make any changes to the leaf blower. Unauthorised changes can impair safety and lead to increased noise and vibrations.
• Never overexert yourself and always maintain balance
  • Walk calmly, never run quickly
• Do not work with the gardening tool during adverse weather conditions, in particular if a storm is approaching.

Safety instructions for Li-Ion rechargeable batteries

• Do not open the rechargeable battery. There is a danger of a short circuit.
• Protect the rechargeable battery from heat, e.g. also from continuous sunlight, fire, water and moisture. There is a risk of explosion.

• Vapours may escape if the rechargeable battery is damaged or used improperly. Supply fresh air and consult a doctor in the event of discomfort. The vapours can irritate the respiratory tract.

• Liquid may leak from the rechargeable battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

• Only use original rechargeable batteries with the voltage specified on the type plate of your power tool. If other batteries are used, e.g. counterfeit batteries, refurbished rechargeable batteries or rechargeable batteries from other manufacturers, there is a risk of injury and damage to property due to exploding batteries.
• The rechargeable battery voltage must match the charging voltage of the charging unit. Otherwise, there is a risk of fire and explosion.
• Only charge the rechargeable batteries with charging units recommended by the manufacturer. A charging unit that is suitable for a particular type of rechargeable battery poses a fire hazard when used with other rechargeable batteries.
• The rechargeable battery can be damaged by sharp objects such as nails or screwdrivers or by external forces. An internal short circuit may occur and the rechargeable battery could burn, smoke, explode or overheat.

⚠ Warning!

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

Dimensions L x W x H	1190 x 335 x 210 mm
Wheel diameter 75 mm

Motor 40 V DC

Max. motor speed 8000 - 13,000 rpm

Rated engine power 580 W

Weight 2.95 kg

Blast function:
Air speed min./max.	115 / 216 km/h
Air flow min./max. 1.7 / 8.3 m	^3 /min

Suction function:
Air speed min./max.	72 / 172 km/h
Air flow min./max. 3.4 / 8.2 m	^3 /min
Shredder function (to reduce volume)	10:1
Collection bag volume 40 l

Technical changes reserved!

Information about noise level measured in accordance with applicable standards:

Sound pressure L_pA = 84 dB(A)

Sound power L_WA = 97 dB(A)

Measurement uncertainty K_PA = 3 dB(A)

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Vibration A_hv = 2.5 m/s^2

Measurement uncertainty K_PA = 1.5 m/s^2

Keep the noise level and vibration to a minimum!

• Only use devices which are free of defects.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.

We have marked points in these operating instructions that impact your safety with this symbol: △

7. Before commissioning

Unpack the device and check for completeness of delivery and transport damage.

NOTE!

The rechargeable batteries (optional; depending on scope of delivery) are not fully charged when delivered. Fully charge the rechargeable batteries before using the device for the first time. See the operating manual for the charging unit.

Fitting the blast pipe (Fig. 2)

• Push the blast pipe (5) onto the outlet opening of the motor unit (7) until it clicks into place on the plastic safety catch.
• Then screw the outlet opening of the motor unit (7) to the blast pipe (5) using the screw (5a) supplied

Fitting the handle (Fig. 3)

• Position the handle (1b) as shown in the picture.
• Insert the hexagonal bolt (1c) through the handle (1b) and lock it on the other side using the wing nut (1a)

Fitting the carrying strap (Fig. 4)

- Use the integrated carabiner on the carrying strap (4) and hook it into the position shown in Fig. 5.

Fitting the collection bag (Fig. 5-6)

• Attach the collection bag (6) to the bracket on the blast pipe (5).
• Click the other end onto the fastener provided on the motor unit (7).

Removing/inserting the rechargeable battery (Fig. 7)

• To remove the rechargeable battery from the device, press the release button on the rechargeable battery (8) and pull the battery out.
• To insert the rechargeable battery into the device, push the rechargeable battery along the guide rail into the device. It clicks into place audibly.

8. Operation

• Do not try to suck in leaves and garden debris that is still damp or wet. Give the material some time to dry before removing it with the device.
• Use the leaf vacuum/blower to blow off residual material from the patio, paths and walkways, lawn, bushes and edges.
• You can also use the device to vacuum leaves, paper, small twigs and wood residue.
• If you use the device as a vacuum, the material is sucked in through the suction pipe and forwarded to the collection bag. This material is also partially shredded as it passes through the fan.
• The shredded material is best ideally suite for use as mulch around plants.

NOTE!

• Solid objects such as stones, cans, glass, etc. will damage the suction fan.
• Do not use the device to suck up water or very damp/wet material.
• Never operate the device without the collection bag attached.

Blowing

• Always check the working range before starting work. Remove any objects or debris that can be thrown up or that can get caught in the device and clog it.
• Set the switch lever (3) on the side of the device (Fig. 8) to blow and switch the device on.
• Move the device forward on the wheels, with the nozzle blowing excess material out of the working area.
• Alternatively, guide the device just above the ground and move it from side to side. While doing so, step forward and point the nozzle at the working area to remove the material.

- Blow the material into a convenient pile, which you can then easily vacuum up using the suction functions.

Vacuuming

• Always check the working range before starting work. Remove any objects or debris that can be thrown up or that can get caught in the device and clog it.
• Set the switch lever (3) on the side of the device (Fig. 8) to suction (vac) and switch the machine on.
• Move the device forward on the wheels, with the nozzle sucking the working area free of excess material.
• Alternatively, guide the device just above the ground and move it from side to side. As you do so, step forward and point the nozzle at the working area to vacuum the material.
• Do not force the nozzle into the material as this will clog the suction pipe and the performance of the machine will drop rapidly.
• Organic materials such as leaves contain large amounts of water. So they can stick in the suction pipe. In this case, let the device dry for a few days. Then remove the dried material from the blast pipe.

9. Maintenance

⚠ WARNING INFORMATION!

Remove the rechargeable battery before carrying out any work on the device!

Always wear protective gloves during all work on and around the cutting tools.

Cleaning

• Keep the ventilation slots on the device clean in order to prevent the motor overheating.
• Clean the housing of the device regularly with a soft cloth, if possible after each use.
• Keep the ventilation slots free of dirt and dust.
• If the dirt does not come off, please use a soft cloth moistened with soapy water.
• Check the device at regular intervals and before starting work.
• Damaged cutting blades must be repaired or replaced by an approved service centre before working with the device.
• Never clean or splash the device with water. Only clean the motor housing with a damp cloth and never use cleaning agents or solvents! This could damage the plastic parts of the device. Finally, dry the motor housing carefully.
• Only use original accessories and spare parts.

Cleaning the collection bag (6)

• Empty the collection bag (6) after each use.
  • Thoroughly shake out the collection bag.

• Turn it inside out to brush out the collection bag.

• Wash the collection bag by hand in mild soapy water if it is very dirty or at least once a year.

• If the zip is difficult to operate, rub the zip teeth with a dry soap bar.
• For your own safety, check the collection bag regularly for damage.
• Replace a damaged collection bag immediately.

Maintenance

We have designed our machines to run for a long period of time with a minimum of maintenance.

Proper functioning depends on regular maintenance and cleaning of the machine.

Always ensure that all nuts, bolts and screws are tight and well seated so that the device is in a safe operating condition.

• Check the collection bag frequently for wear or damage.
• Replace worn or defective parts.
• Use only original spare parts and accessories.
  • Always store the device in a dry place.

The user is responsible for all damage caused by failure to observe the instructions given in this user manual. This also applies to unauthorised modifications to the device, use of unauthorised spare parts, attachments, work tools, use other than intended and use for other than the intended purpose, consequential damage caused by the use of defective components.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Collection bag

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

10. Storage

• The entire device and accessories must be cleaned thoroughly.
• Always store the device out of the reach of children. Place in a stable position in a dry and safe place where extremely high or extremely low temperatures cannot occur.
• Protect the stored device from sunlight, if possible place it in darkened areas.
• Do not wrap the device in bags or tarpaulins made of nylon or plastic, as moisture can form in these.

⚠ WARNING!

Do not store the device unprotected outside or in a damp environment

11. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle. The device and its accessories are made of different materials, such as metal and plastic. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Do not throw primary batteries or rechargeable batteries away with household waste

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*marked with: Cd = cadmium, Hg = mercury, Pb = lead

Remove the batteries from the device before disposing of the device and the batteries.

12. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault	Possible cause	Remedy
Motor does not start • Battery empty• Battery defective• Battery not inserted correctly• Motor or switch faulty		• Charge battery• Repair by an authorised service centre• Remove the battery and reinsert it correctly• Repair by an authorised service centre
The vacuumed material is not drawn in properly (reduced suction power)	• Device is clogged or blocked• Collection bag is too full• The speed setting is too low (only for leaf vacuums with infinitely variable speed control)	• Remove blockage, contact customer services if necessary• Empty collection bag• Set higher speed
Device runs intermittently • On/off switch defective• Battery defective		• Contact the Service Centre
Gardening tool does not blow	• Nozzle blocked• Rechargeable battery is empty	• Clear nozzle• Switch the gardening tool off and charge the battery if the airflow speed reduces significantly or stops completely.
Motor stops during operation	• Battery empty• Battery not inserted correctly• Battery defective	• Charge battery• Re-insert battery• Clean contacts, replace original battery
Reduced power • Battery depleted• Battery not fully charged		• Replace battery• Charge battery

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

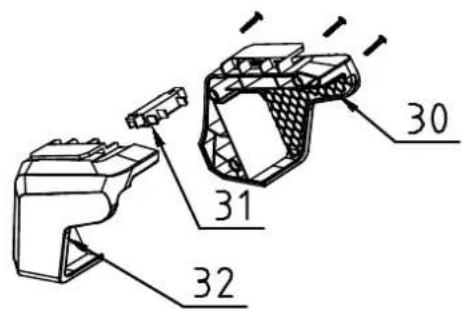

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

30 31 32

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC	89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU	90/396/EC	X Annex V
X	2014/30/EU		X 2011/65/EU*		Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body:Notified Body No.:
X 2006/42/EC
	Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
					Emission. No:

Standard references:

EN60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019; EN50636-2-100:2014; EN55014-1; EN55014-2;

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
