USER MANUAL PBKS 53 C3 PARKSIDE

Technical line drawing of a chain-linking machine (no text or symbols)

PDF ONLINE parkside-diy.com

PETROL CHAINSAW PBKS 53 C3 BENZIN-KETTENSÄGE PBKS 53 C3 TRONÇONNEUSE À ESSENCE PBKS 53 C3

Petrol chainsaw

Operating and Safety Instructions

Translation of the original operating instructions

WARNING: READ CAREFULLY BEFORE USE AND STORE IN A SAFE PLACE FOR FUTURE REFERENCE.

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT BE CH

GB / IE / NI / MT Operating and Safety Instructions Page 1

Technical line drawing of a mechanical assembly with a hand operating a tool (no text or symbols visible)

Line drawing of a chain saw cutting through a wire, with no text or symbols present

9 28

Diagram of a chain saw cutting a tool with an arrow indicating direction (no text or symbols present)

Diagram of a chain mill with a moving gear and directional arrow (no text or symbols)

121 28 15

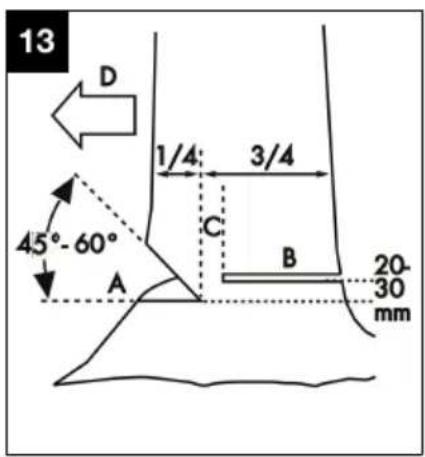

13 D 1/4: 3/4 45°-60° C B 20- 30 mm A

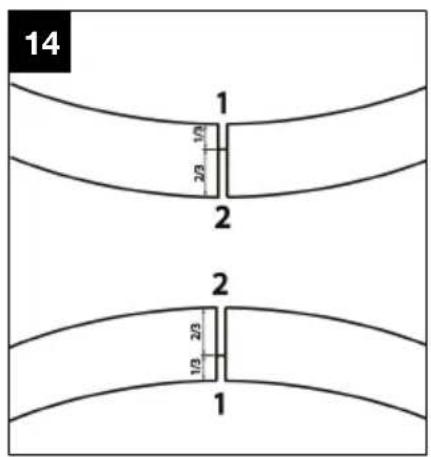

14 1 2/3 1/0 2 2 1/3 2/3 1

c

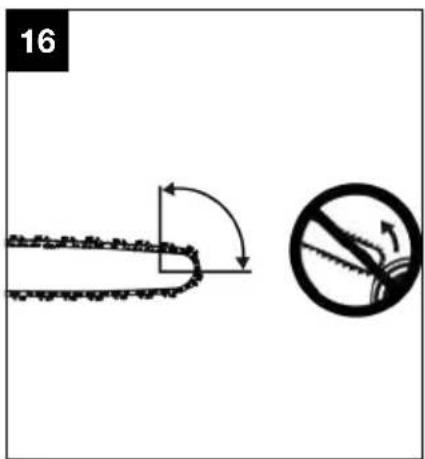

16

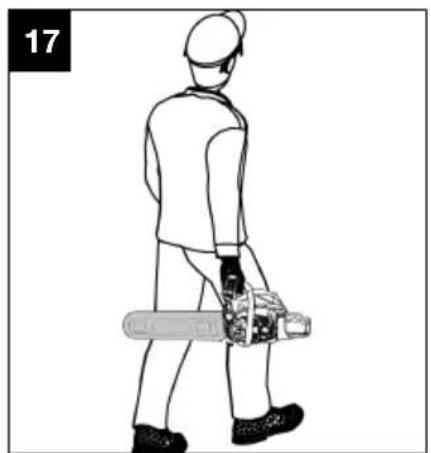

Line drawing of a person walking with a chain-link fence (no text or symbols)

JP PARISONE 26 25

Table of contents

1 Explanation of the symbols on the product 2
2 Brief explanation 4
3 Introduction.... 5
4 Product description (Fig. 1-18) 5
5 Scope of delivery (Fig. 2).... 5
6 Proper use.... 5
7 Improper use.... 6
8 Safety instructions 6
9 Technical data.... 10
10 Unpacking.... 11
11 Before commissioning 11
12 Operation.... 13
13 Working instructions 16
14 Cleaning and maintenance 20
15 Storage and transport.... 26
16 Repair and ordering spare parts 26
17 Disposal and recycling.... 27
18 Troubleshooting 27
19 EU Declaration of Conformity 28
20 Warranty certificate.... 29
21 Exploded view.... 226

1 Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

ATTENTION

Before initial commissioning, read the operating manual thoroughly and be sure to follow the safety instructions!

It is recommended to attend a professional safety course “Electric chainsaw training course certificate of attendance” with a country-specific training standard on the use and maintenance of the chainsaw as well as a first aid course. If you do not use the electric chainsaw for an extended period of time and for practice, you should always make simple cuts in safely supported wood again before starting to familiarise yourself with the chainsaw.

Keep the operating manual in a safe place!

Note:

Please note that some national regulations such as work and environmental safety could restrict the use of the chainsaw.

	Before commissioning, read and observe the operating manual and safety instructions!		2-stroke engine oil: ISO L EGD / JA-SO FD
	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.		Press the fuel pump “Primer” 6x.
	It is important to wear protective clothing for hands, forearms, legs and feet.		“Cold start” lever (choke)
	Wear a safety helmet with face protection or safety goggles and hearing protection.		Groove width.
	Wear protective gloves. Running direction	/ chain.
	Wear sturdy footwear! Guide rail length
	Warning! Risk of kick-back. Beware of the kick-back of the product and avoid making contact with the rail tip.		Cutting length
	Warning - Hot surfaces! Chain pitch.
	Naked flames or smoking near the device is strictly prohibited!		Number of drive links.
	Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.		Chain brake (open/closed).
	Only for two-handed operation. Release
	Chain lubrication setting Apply chain brake
	Tank contents. Fuel: ROZ 95 / ROZ 98		Guaranteed sound power level of the product.
40:1	Fuel tank; mixing ratio: 40 parts fuel to 1 part oil		The product complies with the applicable European directives.

2 Brief explanation

Cold start Warm start

	Remove the guide bar and chair guard (26) from the guide bar (15). Push the front hand guard (1) forwards until it latches into place.		Remove the guide bar and chair guard (26) from the guide bar (15). Push the front hand guard (1) forwards until it latches into place.
	Press the fuel pump “primer” (6) 6x.		Press the fuel pump “primer” (6) 6x.
	Pull out the choke (7).		Hold the chainsaw firmly by the front handle (2) and pull the pull starter (4) out slowly until you feel the first resistance.
	Hold the chainsaw firmly by the front handle (2) and pull the pull starter (4) out slowly until you feel the first resistance.		Release the chain brake by pulling the front hand guard (1) backwards.
	Do not press the choke (7).
	As soon as the engine has stopped, actuate the throttle interlock (8) and the throttle (9) together.
	Now pull the pull starter (4) again and the engine should start.
	Release the chain brake by pulling the front hand guard (1) backwards.

3 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

4 Product description (Fig. 1-18)

1. Front hand guard (chain brake)
2. Front handle
3. Air filter cover
   3a. Clip fastener
   3b. Air filter screw
   3c. Air filter
4. Pull starter
5. On/off switch
6. Fuel pump "primer"
7. Choke
8. Throttle interlock
9. Throttle
10. Rear handle
11. Rear hand guard
12. Fuel tank
    12a. Fuel filler cap

12b Bracket
13. Oil tank
13a. Oil tank cover
13b. Bracket
14. Claw stop (pre-assembled)
15. Guide bar (guide rail)
16. Saw chain
17. Bench grinder aid
18. Adjusting screw (saw chain lubrication)
19. Chain tensioning screw
19a. Chain tensioning pin
19b. Hole
20. Chain cover
20a. Fixing nuts
21. Chain catcher
22. Chain wheel
23. Saw chain oil (organic)
24. Oil-petrol mixing bottle
25. Installation spanner

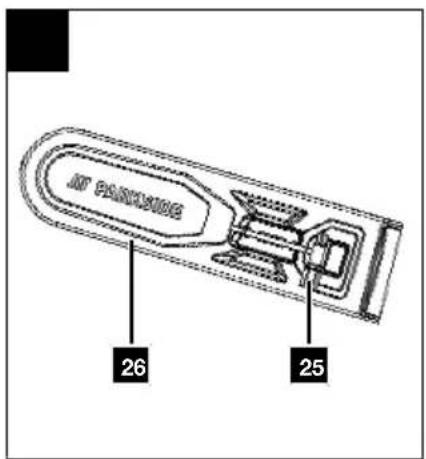

26. Guide bar and chain guard
27. Spark plug connector

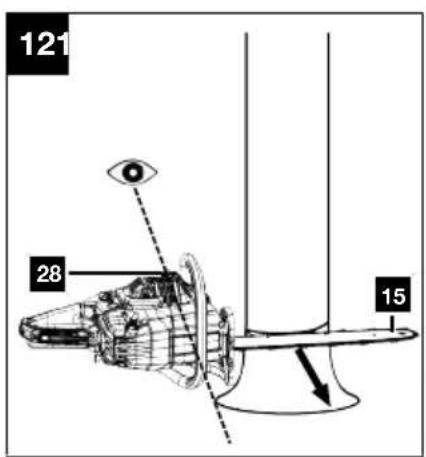

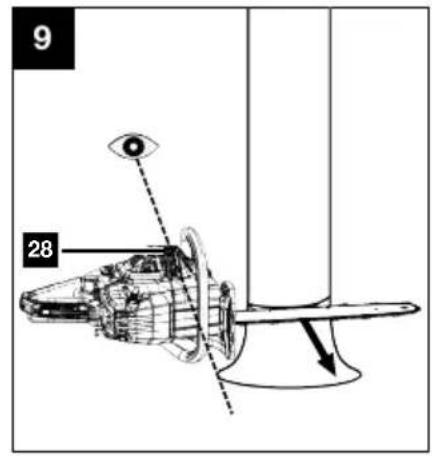

28. Felling marks

5 Scope of delivery (Fig. 2)

Item Quantity Designation

1. 1 x Saw (guide rail) (pre-asssembled)

2. 1 x Saw chain (pre-fitted)

3. 1 x Chain cover

4. 1 x Saw chain oil (organic)

5. 1 x Oil-petrol mixing bottle

6. 1 x Installation spanner

7. 1 x Guide bar and chain guard

1 x Petrol chainsaw 1 x Operating manual

6 Proper use

The petrol chainsaw is designed for sawing wood only. The product is not intended for any other types of application (e.g. cutting masonry, plastic or food).

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

7 Improper use

Do not make any changes to the product. Safety may be compromised as a result. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

First-time users must be instructed to familiarise themselves with the features of the product. Attend a state chainsaw training course for your safety. The petrol chainsaw may only be operated by persons who are aged 18 and above. An exception to this is use by minors if the use takes place as part of occupational training in order to gain proficiency under the supervision of an instructor.

People who are not familiar with the operating manual, people under the influence of alcohol, drugs or medication, and people who are tired or unwell are not allowed to operate the product.

National regulations may restrict the use of the product!

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

8 Safety instructions

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR YOUR RECORDS

The operating manual contains important notices on how to work safely and professionally with the chain-saw and how to avoid hazards.

8.1 General safety instructions

- Stay alert, watch what you are doing and use common sense when operating the product. Do not use a product while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using the product can result in serious injuries.

The operating manual contains important notices on how to work safely and professionally with the chain-saw and how to avoid hazards.

- Before start-up, read the operating manual for your product and pay particular attention to the safety instructions.

- Warning and information labels attached to the product provide important information for safe operation.

- In addition to the information in the operating manual, the general safety and accident prevention regulations of the legislature must be observed.

- Keep packaging films away from children, there is a risk of suffocation!

- Inadequately informed operators can endanger themselves and others through improper use. The operator is responsible for the safety of third parties.

- Be very attentive when handling the product. Go about your work sensibly and pay close attention to what you are doing.

- Do not work for more than 10 minutes at a time. It is advisable to take a break of 10-20 minutes between operations.

- Only lend the product to users who have experience with the product. The operating manual must be handed over at the same time.

- Some cutting tasks require special training and skills. If you have any doubts, consult a specialist.

- First-time users must be instructed to familiarise themselves with the features of the product. Attend a state chainsaw training course for your safety.

• When not in use, the product must be set down in such a way that no one is endangered. Secure from unauthorised access.
• The user of the product is responsible for all accidents and hazards that cause damage to other people or their property.
• Children, young people and persons with reduced physical, sensory or mental abilities must not use the chainsaw. Exceptions exist only for young people over 16 years of age in the context of training under the supervision of a professional.
• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in extended chain braking time, a higher degree of kick-back, damage to the product and serious injury to the person working with it.
• Always keep the product in good operating condition.
• Clean and maintain the product before storage.

WARNING

Engage the chain brake before every start-up (push the front hand guard forward).

WARNING

Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw using the opposite grip increases the risk of injuries and must be avoided.

8.2 Personal Protective Equipment (PPE)

DANGER

Danger of injury!

Always wear personal protective equipment (PPE)!

• Wear a safety helmet with face protection or safety goggles and hearing protection.
• Wear close-fitting protective clothing with a cut protection insert.
• Wear non-slip safety shoes.

• Wear protective gloves.

• Do not wear wide clothing or jewellery, which can become entangled in moving parts.

• Do not wear a scarf, tie or jewellery

• Tie long hair back in a hair net.

• Wear a safety helmet for all work in the forest. This provides protection from falling branches. Check the safety helmet regularly for damage. This must be replaced after 5 years at the latest. Only use approved safety helmets.

• The face guard or safety goggles protect against shavings and wood splinters. To prevent injuries to the eyes, you must always wear a face guard or safety goggles when working with the product.
• Wear hearing protection.
• Wear robust protective gloves made of tough material, such as leather.
• Wear a dust protection mask when sawing dry wood. Sawdust may form.
• During chain lubrication, a slight trace of oil is formed by the emergent oil. Pay attention to the wind direction and do not expose yourself unnecessarily to the lubricating oil mist.
• When working in the tree, the user may fall down. The user can be seriously injured or killed. Wear fall protection equipment.

8.3 Environmental safety

• National and/or municipal regulations may impose time restrictions on the use of noise-generating, motorised products. Ask your local administration about this.
• The product must not be operated indoors or in other poorly ventilated areas. There is a danger of suffocation due to the toxic exhaust gases / lubricating oil vapours.
• Work must be stopped immediately in event of nausea, headaches or visual disturbances as well as dizziness. These symptoms can be caused, among other things, by excessive exhaust gas concentrations.

Dusts such as wood dust, vapour and smoke can also arise during the sawing process. Good ventilation must be ensured and a dust protection mask must be worn

• Only work in daylight.
• Do not work in adverse weather conditions, such as rain or wind. There is an increased risk of accidents in these instances!
• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• People should keep a safe distance of at least 15 metres from the work area.
• Never operate the product while people, especially children, or animals are nearby.
• Do not work near wire fences or in areas with loose old wire.
• Have fire extinguishers ready when working in highly flammable environments such as dry grass, etc. There is a risk of fire!

8.4 Refill with fuel

• Fuel is combustible and highly flammable. Do fuel the unit during operation. Do not fuel the unit when someone is smoking or near open flames. Do not spill any fuel.
• Be careful not to spill fuel. Ensure that no fuel or saw chain oil gets into the soil. Use suitable sheeting or similar to help with this.
• Refuel only in well-ventilated areas. Fuel vapours can easily ignite or explode.
• Switch off the engine before refuelling and allow the product to cool down. If fuel has been spilled, clean the affected areas immediately. Also, do not let any fuel get on your clothes, otherwise change immediately.
• Also avoid skin and eye contact with fuel or lubricants (oil).
• Do not breathe in fuel vapours/lubricating oil vapours.
• Watch out for leaks. If fuel is leaking, do not start the engine.
• Open the fuel cap carefully and slowly. Wait for the pressure to equalise and only then remove the fuel filler cap completely.

8.5 Before commissioning

WARNING

Always carry out checks before use and with the engine switched off.

Check the product before each use and after it has fallen to the ground to ensure that it is in safe operating condition.

Check that all moving parts are working properly. Many accidents are caused by poorly maintained tools. Have damaged parts repaired by qualified specialist personnel.

Only use the chainsaw and accessories in accordance with these instructions. Take into account the working conditions and the work to be performed. Using power tools for operations other than those intended can lead to hazardous situations.

• Regularly check the chain brake for proper functioning (front hand guard).
• Check the guide rail to make sure it is mounted correctly.
• Check the installation/running direction as well as a perfect (sharp) saw chain.

• Check that the saw chain is properly tensioned. Follow the instructions for lubrication, chain tensioning and replacing accessories. An improperly tensioned or lubricated chain can break or increase the risk of kick-back.

• A new saw chain stretches and needs to be re-tensioned more often. Check and adjust the chain tension regularly after each cut.

• Check the function of the coupling. The saw chain should not move when idle.

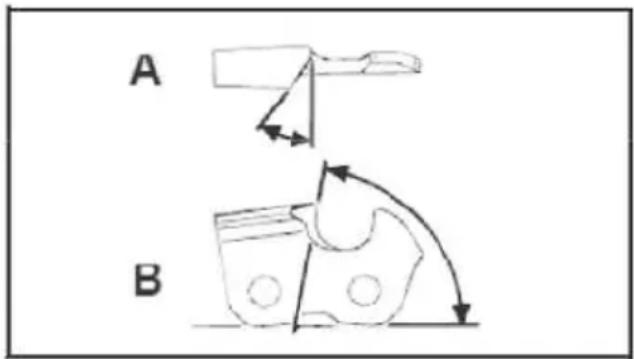

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Check that the on/off switch and the throttle inter-lock work smoothly.
• Keep the handle dry, clean and free of oil and grease.
• Never carry out the work alone. In an emergency, someone must be nearby.
• Only use the chainsaw when standing on firm, safe and level ground. Avoid abnormal postures. Slippery ground or unstable standing surfaces (e.g. on a ladder) can cause loss of balance or loss of control of the chainsaw. Keep proper footing and balance at all times. This will allow you to better control the chainsaw in unexpected situations.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
• Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw using the opposite grip increases the risk of injuries and must be avoided.
• Keep all body parts away from the saw chain when the saw is running. Before starting the pruning saw, ensure that the saw chain is not touching anything. When working with a chain-saw, a moment of carelessness can result in clothing or body parts being caught by the saw chain.
• Switch off the chainsaw immediately if you notice any noticeable changes in the product's behaviour.
• If the chainsaw has come into contact with stones, nails or other hard objects, stop the engine immediately and check the saw chain and guide rail for damage.
• Do not drop the product, do not hit it against obstacles and never use the guide bar as a lever.
• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
• When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring loaded limb may strike the operator and/or throw the chain saw out of control.

- Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

8.6 Vibrations

• Wear warm clothing when working in cold environments and keep your hands warm and dry.
• Take regular breaks and move your hands to promote circulation.
• Limit the use of high-vibration tools per day and spread them out over several days. Make a work plan that limits the vibration load.
• Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.
• Replace worn components immediately.
• Change your working position regularly. If the product is to be used or operated frequently, you, should contact your specialist dealer and request anti-vibration accessories (handles) if applicable.

Safety devices

- Chain brake/front hand guard (1)

• Safety devices that stop the saw chain immediately in the event of kick-back.
  – The lever can also be manually actuated.
• Protects the left operator's left hand if it slips off the front handle.

- ON/OFF switch (5)

- Protects the user from unintentionally switching on the product.

- Throttle interlock (8)

- To switch on the product, the throttle interlock must be unlocked. The throttle interlock prevents accidental starting of the product.

- Throttle lever (9) with chain instant stop

- When the throttle lever is released, the saw chain stops immediately. The engine continues to run.

- Claw stop (14)

• Reinforces stability when vertical cuts are performed and makes sawing easier.
  – Saw chain (16) with low kick-back
• Helps you to intercept kick-backs with specially developed safety devices.

8.7 Precautionary measures against kick-back

WARNING

Watch out for kick-back when working with the product. There is a danger of injury. Avoid kick-backs through caution and correct sawing technique.

• Touching with the rail tip can sometimes lead to an unexpected backward reaction, whereby the guide rail whips up and in the direction of the user.

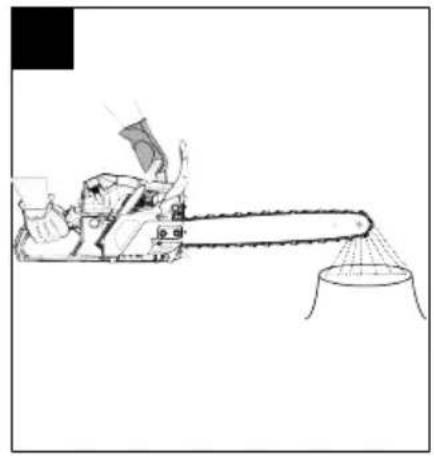

• Kick-back can arise if the tip of the guide rail touches an object or if the wood bends and the saw chain jams in the cut.
• Before the saw chain is guided into the cutting area, it can slip away to the side or jump up.
• Attention! Increased risk of kickback!

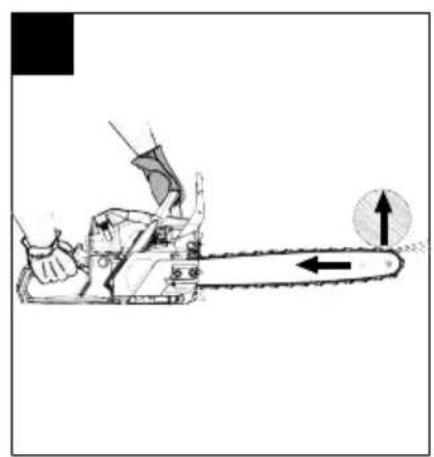

• If the saw chain jams on the top edge of the guide rail, the chainsaw can jerk back suddenly in the direction of the operator in an uncontrolled manner.

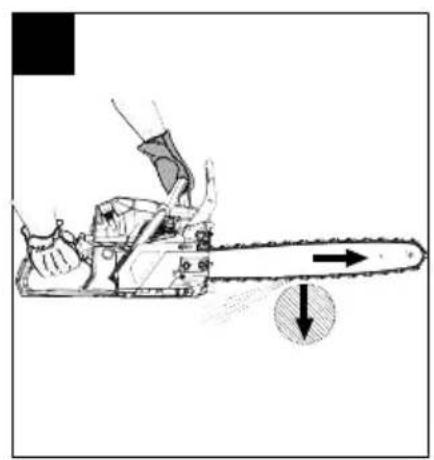

• If the saw chain jams on the lower edge of the guide rail, the chainsaw can jerk forward suddenly away from the operator in an uncontrolled manner.
• Be extremely careful when using the saw chain of the chainsaw to continue cutting into a cut that has already been started.
• Do not saw branches or pieces of wood that could change their position during the sawing process or where the cut closes during the sawing process.
• Each of these reactions can lead to you losing control of the saw and possibly suffering a serious injury. Never rely solely on the safety equipment integrated in the chainsaw. As a chainsaw user, take various measures to work without accidents and injuries.
• As a user of the product, take various measures to work without accidents and injuries.

Kickback is the result of incorrect use or misuse of the saw. It can be prevented by suitable precautionary measures, as described in the following.

• Hold the saw firmly with both hands, with the thumbs and fingers enclosing the product's handles. Bring your body and arms into a position in which you can absorb the kick-back forces. If suitable measures are implemented, the user will be able to withstand the kick-back forces. Never let go of the product.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.

• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

• Do not saw with the tip of the guide bar. There is a risk of kick-back.
• Make sure that there are no nails or metal pieces in the cutting area.
• Also be careful when sawing hardwoods where the saw chain can get caught. This can cause kick-back.
• Start cutting at full power and always keep the chainsaw at maximum speed while sawing.
  • Make sure that there are no objects on the floor that you can trip over.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Damage to hearing if the stipulated hearing protection is not worn.
• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

DANGER

DANGER OF INJURY!

Contact with the saw chain can lead to fatal cuts. Never touch the saw chain with your hands while it is running.

DANGER

RISK OF KICK-BACK!

Kick-back can lead to fatal cuts.

WARNING

DANGER OF BURNING!

The chain and guide rail heat up during operation.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

9 Technical data

Type of engine 2-Stroke engine/ air cooled
Displacement 53 cm3
Idle speed n0	3100 ± 300 rpm
Speed nmax	11500 rpm
Engine output 2.0 kW
Fuel Regular grade petrol/ lead-free max. 10% bioethanol
Tank contents 0.55 l
Oil tank capacity 0.26 l
Spark plug L8RTC
Chain speed	22.1 m/s
Guide rail	18"
Cutting length*	44 cm
Chain pitch	8.255 mm (0.325")
Number of chain wheel teeth	7 teeth
Type of saw chain	KANGXIN .325.058-72
Type of guide rail	KANGXIN BE18-72-5810P
Driving link thickness	1.47 mm (0,058")
CO2 output 811.32 g/kWh
Weight (with empty tank and without set of blade and saw chain)	approx. 5.6 kg
Weight (with empty tank and fully assembled)	approx. 6.8 kg

Subject to technical changes!

* The actual cutting length may be less than the specified cutting length.

The noise levels have been determined in accordance with ISO 22868.

Noise data

Sound pressure level L_pA	104 dB
Uncertainty K_pA	3 dB
Measured sound power level L_wA	112.9 dB
Guaranteed sound power level L_wA	117.0 dB
Uncertainty K_wA	3 dB

Information on the noise emissions as per the Product Safety Act (ProdSG) and EC machinery directive: The noise pressure level at the workplace can exceed 80 dB.

In this case, noise protection measures are required for the operator (e.g. wearing hearing protection that is suitable and intended for this as well as observance of regular breaks).

The vibration values have been determined in accordance with ISO 22867.

Vibration parameters (hand/arm vibration)

Vibration value at the rear handle 7.62 m/s ^2

Vibration value at the front handle 7.28 m/s ^2

Uncertainty K 1.5 m/s ^2

WARNING

Avoid the risks associated with vibration, e.g. the risk of white finger syndrome (circulatory disorders) by taking frequent breaks from work where you rub your palms together, for example.

WARNING

The actual vibration emission value during use of the product may differ from the vibration emission value indicated in the operating manual or by the manufacturer. This can be caused by the following influencing factors to which attention should be paid both before and during every use:

• Is the product being properly used.
- Is the nature of the cutting or processing of the material correct.

• Is the product in good working order.
- Sharpness of the cutting tool and is the cutting tool the correct one.
- Are the handles or, if applicable, the optional anti-vibration handles installed and firmly attached to the product.

10 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

11 Before commissioning

ATTENTION

Always carry out assembly and adjustments on the product with the engine switched off and disconnect the spark plug connector.

ATTENTION

The product is delivered without fuel/oil mixture. It is therefore essential to fill with fuel/oil mixture before commissioning. Use only a mixture of unleaded fuel (min. RON 95) and special 2-stroke engine oil (JASO FD/ISO L EGD).

WARNING

Do not use fuel that has not been correctly mixed with 2-stroke oil. This may cause permanent engine damage and will void the manufacturer's warranty on this product. Never use a fuel mixture that has been stored for more than 90 days.

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

WARNING

Fuels and fuel vapours are flammable and can cause serious damage if they are inhaled or come into contact with the skin. You should therefore exercise caution when handling fuel, and ensure good ventilation.

WARNING

Petrol and the fuel-oil mixture are highly flammable!

Notes:

• Place the product on a level, even surface.
• Familiarise yourself with the product by means of the operating manual before using for the first time.

It is mandatory to carefully check the product for any damage before each use or after it has been dropped. If damage is identified, it must be rectified immediately by you or an authorised service centre.

The following points must be observed to ensure that the product functions perfectly and has a long service life:

• Correct seating of the guide rail.
• Installation/running direction, as well as flawless (sharp) saw chain.
• Tension of the saw chain (check and readjust several times if the chain is new).

• Function of the chain lubrication.

• Function of the chain brake.

- Function of the coupling (chain does not move when idle).

- Faultless condition and completeness of the guards and the cutting device.

• All screw connections are tight.
• Smooth running of all moving parts.

Tool required:

• Installation spanner (25)

- Rag/cloth*

* = may not be included in the scope of delivery!

11.1 Mixing fuel (Fig. 2)

WARNING

Avoid direct skin contact with fuel and inhalation of fuel vapours.

1. The engine must be operated with a fuel mixture of fuel and engine oil.
2. Use only a mixture of unleaded fuel (min. RON 95) and special 2-stroke engine oil (JASO FD/ISO L EGD).
3. Mix the fuel mixture as per the fuel mixing table.
4. Put the correct amount of fuel and 2-stroke oil into the enclosed oil-petrol mixing container (24) (see 11.1.1).
5. Then shake the oil-petrol mixing container (24) well.

11.1.1 Fuel mixture

Do not mix the fuel mixture in the tank.

Add the 2-stroke oil in accordance with the fuel mixture table.

Fuel 2-stroke engine oil (1:40)
0.5 litres 12.5 ml

11.2 Filling in fuel (Fig. 1)

DANGER

Risk of fire and explosion!

Only fill the fuel when the engine is switched off and has cooled down. Do not smoke when refuelling the product.

DANGER

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

• Always use fresh fuel/oil mixture.
- Keep heat, flames and sparks away.
- Only fill up with fuel outdoors.
- Wear protective gloves.
- Avoid contact with skin and eyes.

• Start the product at a distance of at least 3 m from the fuel filling point.
• Watch out for leaks. If fuel is leaking, do not start the engine.
• Use a suitable funnel or filler pipe for refuelling so that no fuel can spill onto the combustion engine and housing.

Do not overfill the fuel tank!

Note:

Also check the saw chain oil after each fuel fill.

1. Mix the fuel as described in 11.1.
2. Always clean the area around the fuel filler cap (12a) before filling to prevent dirt from falling into the fuel tank (12). Use a dry, lint-free cloth for this purpose.
3. Lay the product on its side with the fuel filler cap (12a) facing upwards.
4. Flip the tab (12b) up.
5. Turn the chain fuel tank cap (12a) anti-clockwise and open it. The fuel filler cap (12a) is connected to an anti-loss device in the fuel tank (12) and thus cannot fall off.
6. Pour the fuel mixture into the fuel tank. Do not spill fuel when refuelling and do not fill the fuel tank to the brim.
7. Always wipe up spilled fuel immediately.
8. Turn the fuel filler cap (12a) clockwise to close it.
9. Fold the tab (12b) down again.

11.3 Topping up saw chain oil (23) (Fig. 1, 2)

WARNING

Only fill the saw chain oil when the engine is switched off and has cooled down. There is a risk of fire!

Never work without chain lubrication! If the saw chain runs dry, the set of blade and saw chain will be irreparably destroyed in a short time.

Always check chain lubrication before working.

Note:

• Use only saw chain oil. Preferably biodegradable.
• Do not use waste oil, engine oil, etc. Check that the chain lubrication is working during the work.
• Always clean the area around the oil tank cap (13a) before filling to prevent dirt from falling into the oil tank (13). Use a dry, lint-free cloth for this purpose.
• Lay the product on its side with the oil tank cap (13a) facing upwards.

• Flip the tab (13b) up.

• Turn the chain oil tank cap (13a) anti-clockwise and open it. The oil tank cap (13a) is connected to an anti-loss device in the oil tank (13) and thus cannot fall off.

• Pour the supplied saw chain oil (23) into the oil tank (13). Do not spill saw chain oil (23) when refuelling and do not fill the oil tank (13) to the brim.
• Wipe up spilled saw chain oil (23) immediately.
• Turn the oil tank cap (13a) clockwise to close it.
• Fold the tab (13b) down again.

11.4 Tensioning and checking the saw chain (16) (Fig. 2, 3)

WARNING

Danger of injury when handling the saw chain or the blade!

- Wear cut-resistant gloves.

Note:

• A new saw chain stretches and needs to be re-tensioned more often. Check and adjust the chain tension regularly after each cut.
• Before tensioning, loosen the two fixing nuts (20a) a little with the installation spanner (25).
• Turn the chain tensioning screw (19) clockwise with the installation spanner (25) to increase the tension.
• Tighten the two fixing nuts (20a) with the installation spanner (25).
• The saw chain (16) must be in contact with the underside of the guide bar. Check whether the saw chain (16) can be pulled over the guide rail (15) by hand (with the chain brake released, pull the front hand guard (1) back).

12 Operation

DANGER

Danger of injury!

Always wear personal protective equipment (PPE)!

• Wear a safety helmet with face protection or safety goggles and hearing protection.
• Wear close-fitting protective clothing with a cut protection insert.
• Wear non-slip safety shoes.
• Wear protective gloves.

WARNING

Please observe the legal provisions from the noise protection ordinance.

Note:

The chainsaw does not have a start gas lock.

Therefore, only deactivate a pulled choke (7) using the throttle lock (8) and throttle lever (9).

The choke(7) will then automatically spring back to the "warm start" operating position.

Do not push a pulled choke (7) back to the “warm start” position by hand, otherwise the engine could start with increased idling.

Working instructions

Familiarise yourself with handling the chainsaw before use.

It is mandatory to carefully check the product for any damage before each use or after it has been dropped. If damage is identified, it must be rectified immediately by you or an authorised service centre.

The following points must be observed to ensure that the product functions perfectly and has a long service life:

• Correct seating of the guide rail
• Check the installation/running direction as well as a perfect (sharp) saw chain.
• Tension of the saw chain (check and readjust several times if the chain is new)

• Function of the chain lubrication

• Function of the chain brake

- Check the function of the coupling. The saw chain should not move when idle.

- Leak-tightness of the fuel system

- Faultless condition and completeness of the guards and the cutting device

- All screw connections are tight.

- Smooth running of all moving parts.

12.1 Chain brake (Fig. 1, 5)

WARNING

The chain brake must be checked before each use.

The chain brake brakes the saw chain immediately in the event of kick-back.

WARNING

Product damage!

Increased motor speed for too long with the chain brake locked will damage the motor and the saw chain drive.

If the saw chain still moves, contact the customer service.

12.1.1 Activating the chain brake/front hand guard (1)

1. Do not tilt the chain brake/front hand guard (1) in the direction of the guide bar (15).

12.1.2 Loosening the chain brake/front hand guard (1)

1. Pull the chain brake/front hand guard (1) in the direction of the front handle (2).

12.1.3 Checking the chain brake/front hand guard (1)

1. Release the chain brake/front hand guard (1) as described under 12.1.2.
2. Make sure that the front hand guard (1) is free of dirt and moves easily.
3. Hold the chainsaw tight in both hands.
4. Switch on the chainsaw as described in 12.2 and move the throttle lever (9).
5. Do not tilt the chain brake/front hand guard (1) in the direction of the guide bar (15). The saw chain (16) must stop immediately!
   If the saw chain still moves, do not use the product. There is a danger of injury due to the saw chain (16) continuing to run. Contact customer service.

12.2 Starting the engine (Fig. 6, 7)

WARNING

Engage the chain brake before every start-up (push the front hand guard forward).

ATTENTION

Always pull the pull starter out straight. Hold the handle of the pull starter firmly when the pull starter winds back in. Never let the pull starter whip back in.

ATTENTION

• Do not let the pull starter whip back in. This can result in damage.
  – In case of cool weather, it may be necessary to repeat the starting process numerous times.

12.2.1 Starting a cold engine

ATTENTION

Never let the pull starter whip back in. This can result in damage.

Note:

With high outside temperatures, it may be necessary to start the engine without the choke even when the engine is cold!

1. Check the fuel and saw chain oil levels before each start (see sections 11.2 and 11.3). Make sure that the spark plug connector (27) is connected to the spark plug.

2. Remove the guide bar and chain guard (26) from the guide bar (15).

3. Set the chainsaw down on a firm and level surface. The saw chain (16) must not come into contact with the floor.

4. Push the front hand guard (1) forwards until it latches into place. The saw chain (16) is clamped by the chain brake.

5. Press the fuel pump "primer" (6) 6x.

6. Pull out the choke (7) (✗).

7. Place the tip of your shoe in the rear hand guard (11).

8. Hold the chainsaw firmly by the front handle (2) and pull the pull starter (4) out slowly until you feel the first resistance.

9. Now pull the pull starter (4) quickly until the engine starts. If the choke (7) is pulled out ( , the engine will only start briefly and then stop again. If the engine does not start, repeat the process.

10. As soon as the engine has stopped, press the throttle interlock (8) and the throttle lever (9) together. The choke (7) automatically jumps to the "warm start" operating position.

11. Now pull the pull starter (4) again and the engine should start.

12. If the engine does not start even after several attempts, read 18.

13. Release the chain brake by pulling the front hand guard (1) backwards.

14. Press the throttle interlock (8) on the rear handle (10) and operate the throttle (9). The saw chain (16) starts running.

You can use the throttle lever (9) to continuously adjust the speed. The further you press the throttle (9), the higher the speed.

12.2.2 Starting a warm engine

(The product stood still for less than 15-20 minutes.)

1. Check the fuel and saw chain oil levels before each start (see sections 11.3 and 11.2). Make sure that the spark plug connector (27) is connected to the spark plug.

2. Remove the guide bar and chain guard (26) from the guide bar (15).

3. Set the chainsaw down on a firm and level surface. The saw chain (16) must not come into contact with the floor.

4. Push the front hand guard (1) forwards until it latches into place. The saw chain (16) is clamped by the chain brake.

5. Press the fuel pump "primer" (6) 6x.

6. The choke (7) does not have to be pulled to start a warm engine.

7. Place the tip of your shoe in the rear hand guard (11).

8. Hold the chainsaw firmly by the front handle (2) and pull the pull starter (4) out slowly until you feel the first resistance.

9. Now pull the pull starter (4) quickly. The product should start after 1-2 pulls. If the product has still not started after 6 pulls, repeat the procedure described under 12.2.1.

10. The engine will start.

11. Release the chain brake by pulling the front hand guard (1) backwards.

12. Press the throttle interlock (8) on the rear handle (10) and operate the throttle (9). The saw chain (16) starts running.

You can use the throttle lever (9) to continuously adjust the speed. The further you press the throttle (9), the higher the speed.

12.2.3 Operating while idle

ATTENTION

When idling, the saw chain must be stationary. If the saw chain moves, adjust the idle speed!

Note:

- If the saw chain moves at idle or the engine stops by itself when the throttle is released, a carburettor adjustment must be made.

- Refer to 14.2.3.

1. Switch the product on as under 12.2.

2. After actuating the throttle lever (9) once, the engine runs at idle speed.

3. Allow the engine to warm up briefly.

12.3 Checking and adjusting the chain lubrication (Fig. 1, 8)

Notes:

Before starting work, check the oil level and the function of the chain lubrication.

If there is no trace of oil, clean the oil opening if necessary or have the electric chainsaw repaired by our customer service.

1. Fill the oil tank (13) as described in 11.3.

2. Hold the chainsaw during operation, at medium speed, over a sawed-off tree stump or a suitable surface. If the lubrication is sufficient, a slight trace of oil will form on the tree stump or surface.

The amount of oil can be reduced or increased with the adjusting screw (18).

Use the installation spanner (25).

• Clockwise - the amount of oil is reduced (-)
• Counterclockwise - the amount of oil is increased (+)

12.4 Switch off the engine (Fig. 1)

12.4.1 Emergency stop procedure

1. If it is necessary to stop the product immediately, set the on/off switch (5) to position "0" and keep it pressed in this position until the engine has come to a standstill.

12.4.2 Normal procedure

1. Release the throttle (9). The engine goes into idle speed.
2. Set the on/off switch (5) to position "0" and keep it pressed in this position until the engine has come to a standstill.

13 Working instructions

DANGER

Danger of injury!

This section examines the basic working technique for using the product.

The information provided here does not replace the many years of training and experience of a specialist. Avoid any work that you are not adequately qualified for!

Careless use of the product can lead to serious injuries and even death!

DANGER

Danger of injury!

Sawing and felling work as well as all related work may only be carried out by specially trained and briefed persons.

WARNING

For safety reasons, we advise inexperienced users against felling a tree trunk with a guide bar length that is smaller than the trunk diameter.

Notes:

Before switching on, make sure that the product does not touch any objects.

Observe the country-specific regulations for felling work and obtain information from the relevant authority.

• Make sure that no one can be harmed by the falling branches and trees.
• Only the persons required for the felling work may be in the work area.
• Keep the work area at the trunk clear and tidy so that users have a safe standing area.

- Keep escape routes clear and tidy in order to be able to leave the work area quickly.

- Do not carry out felling work in stronger wind conditions, bad weather or poor visibility.

- Keep distances to the nearest workplace of at least 2 1/2 tree lengths.

- Switch off the motor if the saw comes into contact with a foreign object. Check the saw and repair it if necessary.

- Protect the saw chain from dirt and sand. Even small amounts of dirt can quickly dull the saw chain and increase the risk of kick-back.

- Start by sawing smaller logs for practice to get a feel for your product before tackling more difficult tasks.

- Press the housing of the electric chainsaw against the tree trunk when you start sawing.

- Let the saw work for you. Apply only light downward pressure.

- To avoid losing control of the product after the saw chain has come out of the wood, do not apply pressure to the saw towards the end of the cut.

- Do not cut wood that is lying on the ground or try to cut roots that are sticking out of the ground.

- Avoid abnormal postures. Keep proper footing and balance at all times. This will allow you to better control the product in unexpected situations.

- You have better control when you saw with the underside of the bar (with a pulling chain).

- The saw chain must not touch the ground or any other object during or after sawing.

- Also observe the precautions against kick-back (see safety instructions).

13.1 Holding the device correctly

DANGER

Danger of injury!

• Never work on unstable ground!
• Never work above shoulder height!
  – Never work when standing on ladders!
• Do not bend too far when working!
• Only use the device when the weather and terrain conditions are favourable!
• Stand with both legs firmly on the ground.
• Be aware of obstacles in the working area.
• During work, always hold the product tight in both hands!

13.2 How to saw correctly!

• Exert regular pressure on the product and do not apply excessive force.
• If possible, apply the product to the branch you wish to saw with the claw stop.
• Never work without the claw stop. The product can pull the operator forward.
• Use the claw stop for cutting tree trunks or thick branches.
• Using the claw stop increases work safety, reduces personal strain when working and vibrations are also reduced.
• If it came into contact with a foreign object. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.

13.3 Sawing techniques

13.3.1 Pull sawing (Fig. 10)

With this technique, sawing takes place with the underside of the chainsaw guide bar from top to bottom.

The saw chain pulls the product forwards and away from the user. With this action, the front edge of the product forms a support, which absorbs the forces that arise on the tree trunk during sawing. With pull sawing, the user has significantly greater control over the product and is able to better avoid kickbacks.

13.3.2 Push sawing (Fig. 11)

DANGER

Life-threatening injuries!

If the chainsaw guide bar jams, the product can be thrown towards the user with great force.

If the user does not balance the backward force of the saw chain with their body strength, there is a risk that only the tip of the chainsaw guide bar will remain in contact with the wood and kick-back will occur.

With this technology, sawing takes place with the top side of the guide rail from bottom to top.

The saw chain pushes the product backwards, towards the user.

13.3.3 Cutting to length

This is the sawing of felled tree trunks into small sections. If possible, the trunk should be underpinned and supported by branches, beams or wedges.

• Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.
• Always stand above the branch when sawing on slopes. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the saw chain to stop before removing the product.
• Always switch off the product's engine before switching from workplace to workplace.

13.3.3.1 Trunk lying on the floor

• The saw chain must not touch the ground or any other object during or after sawing.
• Saw all the way through the trunk from the top.
• If it is possible to turn the trunk, saw 2/3 through it. Then turn the trunk over and saw through the rest of the trunk from above.

13.3.3.2 Trunk is supported at one end

• First saw through 1/3 of the trunk diameter from bottom to top (with the top side of the chainsaw guide bar) to avoid fragments.
• Then saw from top to bottom (with the underside of the chainsaw guide bar) towards the first cut to avoid jamming.

13.3.3.3 Trunk is supported at both ends

• First saw through 1/3 of the trunk diameter from top to bottom (with the underside of the chainsaw guide bar).
• Then saw from the bottom up (with the top of the chainsaw guide bar) until the cuts meet.

13.3.3.4 Sawing on a metal work trestle

1. Hold the product firmly with both hands and guide the product in front of your body while sawing.
2. When cutting the trunk, guide the product past the body on the right.
   Keep your left arm as straight as possible. Watch out for the falling trunk.
3. Position yourself so that the severed trunk does not pose a hazard.
4. Pay attention to your feet. The cut trunk could cause injuries if it falls.
5. Make sure your body is balanced and that you have a secure stance.

13.3.4 Creating a felling notch (Fig. 1, 12, 13)

DANGER

Danger of injury!

Sawing and felling work as well as all related work may only be carried out by specially trained and briefed persons.

DANGER

A lot of experience is needed to fell trees. Only fell trees if you can handle the product safely. Never use the product if you feel unsafe.

DANGER

Life-threatening injuries!

– Never saw fully through the trunk!
- During felling, only stand to the side of the tree you intend to fell!

DANGER

Do not fell a tree if a strong or changing wind is blowing, if there is a risk of property damage or if the tree could hit electrical lines.

DANGER

When felling trees, care must be taken not to expose other persons to danger, not to hit supply lines and not to cause damage to property. Should a tree come into contact with a supply line, the utility company must be informed immediately.

DANGER

Never step in front of a tree that is notched.

DANGER

As soon as the tree begins to fall, remove the product from the cut, stop the engine, place the product down and leave the workplace via the escape route. Watch out for falling branches and do not trip.

• Ensure that no other people or animals are present in the work area. The safety distance between the tree to be felled and the nearest workplace must be 2.5 tree lengths.
• Pay attention to the felling direction: The user must be able to move safely in the vicinity of the felled tree in order to be able to cut to length and delimb the tree easily. The falling tree must be prevented from becoming entangled in another tree. Observe the natural fall direction which depends on the inclination and curvature of the tree, wind direction and number of branches.
• Small trees with a diameter of 15-18 cm, can usually be sawn with one cut.
• Always stand above the branch when sawing on slopes. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the saw chain to stop before removing the product.
• Always stand above the tree trunk when sawing on slopes. In order to maintain full control at the moment of "cutting all the way through", reduce the pressing force towards the end of the cut, without loosening your firm grip of the handles of the product. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the product to stop before removing the product. Always switch off the product and disconnect the mains plug before switching from tree to tree.
• For trees with a larger diameter, notch cuts and a felling cut must be made.
• Ensure that the saw chain does not become jammed in the saw cut. The branch must not break or splinter.
• Dirt, stones, loose bark, nails, staples and wire must be removed from the tree.

WARNING

Fold up the hearing protection immediately after finishing the sawing process so that you can hear sounds and warning signals.

Note:

The fall notch determines the felling direction of the tree to be felled.

1. Place the fall notch at right angles to the felling direction.

2. Saw as close to the ground as possible.

3. Pay attention to escape routes. Remove the under-growth around the tree to ensure an easy retreat. The escape route should be about 45^ behind the planned felling direction.

4. Support the chainsaw with the claw stop (14).

13.3.4.1 Determining the felling direction - with marks on the product

The chainsaw is equipped with felling marks (28) which aid you with the direction of the chainsaw.

1. Place the chainsaw against the trunk. The felling marks (28) show you the probable felling direction of the tree.

13.3.4.2 Creating the notch cut (Fig. 9)

1. First start with the cut of the fall notch A. The depth of the fall notch should be approx. 1/4 of the tree diameter and have an angle of 45^-60^ .

13.3.4.3 Checking the felling direction (Fig. 13)

1. Place the chainsaw with the guide bar (15) at the bottom of the notch cut.
2. The felling marks (28) show the probable felling direction.
3. If necessary, recut the notch cut accordingly.

13.3.4.4 Carrying out the felling cut (Fig. 13)

WARNING

Danger of accident!

Do not under any circumstances saw the breaking strip C during felling cut B, otherwise the tree may fall in an unpredictable direction!

Be prepared for the tree to "slide" uncontrollably when falling on the cut.

Be prepared for the tree to "jump" uncontrollably in one direction when it hits the ground.

To prevent the chainsaw from jamming in felling cut B, drive aluminium or plastic wedges into felling cut B in good time. Do not use iron wedges.

ATTENTION

Property damage!

Make sure that the wedge does not come into contact with the saw chain. It can be severely damaged by this.

1. Place the felling cut B approx. 2-3 cm higher than the horizontal cut of the fall notch A. Make sure that felling cut B is carried out exactly horizontally.
2. Leave approx. 1/10 of the tree diameter, the breaking strip C before felling cut B. Breaking strip C guides the tree to the ground like a hinge and secures it against premature falling.

13.3.4.5 Release a jammed chainsaw

If the chainsaw becomes jammed during cutting, proceed as follows:

1. Switch off the chainsaw and secure it on the inside of the tree trunk (i.e. towards the tree trunk) or attach it to a separate tool rope.
2. Pull the chainsaw out of the notch while lifting the branch as far as necessary.
3. If necessary, use a handsaw or second chainsaw to loosen the jammed chainsaw by cutting at least 30 cm away from the jammed chainsaw.

Regardless of whether a hand saw or a chainsaw is used to release a trapped chainsaw, the cuts to release the chainsaw should always be made on the outside (towards the tips of the branches) so that the chainsaw does not get carried away with the sawn-off parts and further complicate the situation.

13.3.5 Machining live wood (Fig. 1, 14)

ATTENTION

Property damage!

Lying wood must not touch the floor on the underside of the cutting point, otherwise the saw chain may be damaged.

It is essential to follow the correct sequence when working on wood that is tensioned. Otherwise the saw chain (16) may jam or kick-back may occur.

Tensioned wood must always be cut on the compressed side first. Only then perform the separating cut using the opposite side.

This prevents the saw chain (16) from jamming.

Recoil

- If the saw chain (16) jams on the top edge of the guide bar (15), the chainsaw can recoil suddenly in the direction of the operator in an uncontrolled manner.

Dragging

- If the saw chain (16) jams on the lower edge of the guide bar (15), the chainsaw can jerk forward suddenly away from the operator in an uncontrolled manner.

Safe work

• Keep the product in good working order to prevent injuries.
• It is necessary to conduct daily inspections before use and after dropping, fuel leaks or other impacts to determine any significant damage or defects.
• Use the product at ground level, not when standing on a ladder or in an unsafe, insecure position.
• Do not be tempted to make a rash cut. This could endanger yourself and others.

- Change your working position regularly. Prolonged use of the product can lead to vibration-induced circulatory disorders of the hands. However, you can extend the duration of use by wearing suitable gloves or taking regular breaks. Be aware that personal predisposition to poor circulation, low outside temperatures or large gripping forces when working reduce the duration of use.

13.3.5.1 Wooden branch is bent downwards

1. First saw relief cut 1 (approx. 1/3 of the branch diameter) on the compressed side.
2. Then make cut 2 (approx. 2/3 of the branch diameter) on the tensioned side.

13.3.5.2 Wooden branch is bent upwards

1. First saw relief cut 1 (approx. 1/3 of the branch diameter) on the compressed side.
2. Then make cut 2 (approx. 2/3 of the branch diameter) on the tensioned side.

13.3.6 Delimbing (Fig. 1)

WARNING

Danger of injury!

Many accidents happen during delimbing.

• Hold the product firmly with both hands and guide the product in front of your body while sawing.
• Do not lean too far forward during operation.
• Never saw off branches when standing on the tree trunk.
• Keep an eye on the kick-back area if branches are tensioned.

Delimbing is the term for removing branches and twigs from a tree.

• Remove supporting branches only after cutting to length.
• Tensioned branches must be sawn from the bottom upwards to prevent the product from jamming.
• Work to the left of the trunk and as close as possible to the product. If possible, let the weight of the product rest on the trunk.

- Change your position to cut branches on the other side of the trunk.

- Branched boughs are cut to length individually.

- When delimbing, leave larger downward branches that support the tree for the time being. Separate smaller branches with one cut.

- Remove the branches hanging downwards by making the cut above the branch.

- Never delimb above shoulder height.

- Always be aware of the danger of branches snapping back.

• Avoid making contact with the rail tip of the guide rail.
• Never saw several branches at once.
• Support the chainsaw with the claw stop (14) when delimbing, if possible.
• Make sure that at the end of the cut the chainsaw can swing through under its own weight. It is no longer supported in the cut so hold it securely.
• Take a firm, stable and secure stance when delimbing.

13.3.6.1 Delimbing in sections (Figs. 1, 15, 16)

Shorten long or thick branches before making the final cut. Otherwise the saw chain (16) can easily jam.

13.4 After use

• Always switch the product off before placing it down and wait until the product has come to a standstill.
• Place the guide bar and chain guard (26) on the guide bar (15).
• Activate the chain brake (1).
• Allow the product to cool.
• When the product is not in use, remove the spark plug connector (27) from the spark plug.

14 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the spark plug connector from the spark plug.
• Allow the product to cool.

WARNING

Danger of injury when handling the saw chain or the blade!

- Wear cut-resistant gloves.

WARNING

Danger of burning!

Do not touch hot silencers, cylinders or cooling fins.

Notes:

All instructions regarding maintenance and cleaning must be carried out regularly or daily and before each commissioning. Incorrect maintenance can lead to severe property or personal damages. If this work cannot be carried out by the user themselves, see a specialist dealer.

The product should be thoroughly cleaned after each use.

- Only carry out cleaning and maintenance work to the extent specified in this operating manual. Further work must be carried out by qualified specialists.

14.1 Cleaning

1. We recommend that you clean the product directly after every use.
2. Use a brush or hand brush to clean the saw chain and no liquids.
3. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
4. If necessary, clean the handles with a damp cloth washed in soapy water.
5. Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the product directly after every use.
6. Ventilation openings must always be free.
7. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
8. Clean the groove of the chainsaw guide bar using a brush or compressed air.
9. Clean the chain wheel.
   * = may not be included in the scope of delivery!

14.2 Maintenance

Notes:

Maintain the product carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. Have damaged parts repaired before using the product.

Place the product on a level, even surface.

Tool required:

• Installation spanner (25)
- Copper wire brush*
- Feeler gauge*
- Test gauge*
- File gauge*
- Round file*
- Flat file*

* = may not be included in the scope of delivery!

14.2.1 Maintaining the air filter (Fig. 4)

DANGER

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Only clean the air filter by knocking it out.
• Never clean the air filter with petrol or flammable solvents.

ATTENTION

Risk of damage!

Operating the engine without a filter element or with a damaged filter element can cause engine damage.

- Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe damage to the engine.

ATTENTION

Fouled air filters diminish the engine output due to reduced air supply to the carburet-tor. Regular inspection is therefore essen-tial.

Note:

The air filter should be checked every 25 operating hours and cleaned as required. The air filter must be checked more often in case of very dusty air.

1. Remove the air filter cover (3) by opening the clip fasteners (3a).

2. Take off the air filter screw (3b) and remove the air filter (3c).

3. Only clean the air filter (3c) by knocking it out.
4. Replace a faulty air filter (3c) with a new one.
5. Re-insert the air filter (3c) and fit the air filter screw (3b)
6. Attach the air filter cover (3) and secure it with the clip fasteners (3a).

14.2.2 Maintaining the spark plug (Fig. 4)

Check the spark plug for dirt for the first time after 20 operating hours and clean it with a copper wire brush if necessary. Then service the spark plug every 50 operating hours.

1. Remove the air filter cover (3) by opening the clip fasteners (3a).
2. Take off the air filter screw (3b) and remove the air filter (3c).

3. Remove the spark plug connector (27) and remove the spark plug. Use the installation spanner (25).

4. Remove any dirt from the base of the spark plug.

5. Visually inspect the spark plug. Remove any deposits present using a copper wire brush.

6. Check the spark plug gap. Use a feeler gauge to adjust the electrode gap to 0.6-0.7 mm.

7. Replace the spark plug and take care not to tighten it excessively.

8. Then place the spark plug connector (27) on the spark plug. Use the installation spanner (25).

9. Re-insert the air filter (3c) and fit the air filter screw (3b)

10. Attach the air filter cover (3) and secure it with the clip fasteners (3a).

14.2.3 Maintaining carburettor settings

If the saw chain (16) moves at idle or the engine stops by itself when the throttle is released, a carburettor adjustment must be made.

Note:

Have carburettor adjustments (e.g. idle speed) carried out only by qualified specialists to avoid engine damage.

14.2.4 Checking the chain wheel (22) (Fig. 3)

1. Turn the chain tensioning screw (19) anti-clockwise to loosen the chain tension. Use an installation spanner (25).
2. Turn the fixing nuts (20a) anti-clockwise, so that the chain wheel cover (20) is removed. Use an installation spanner (25).

3. Remove the guide bar (15) and the saw chain (16).

4. Check the grooving on the chain wheel (22) with a test gauge.

5. If the grooves are deeper than a=0.5 mm, do not use the product and consult a specialist dealer. The chain wheel (22) must be replaced.
6. Fit the guide bar (15) and saw chain (16) as described under 14.2.6.

14.2.5 Checking the guide bar (15) (Fig. 1, 3)

1. Turn the chain tensioning screw (19) anti-clockwise to loosen the chain tension. Use an installation spanner (25).
2. Turn the fastening nut (20a) anti-clockwise, so that the chain wheel cover (20) is removed. Use an installation spanner (25).
3. Remove the guide bar (15) and the saw chain (16).
4. Measure the groove depth of the guide bar (15) with the scale on a file gauge.
5. The guide bar (15) must be replaced if any of the following apply:
   – The chainsaw guide bar is damaged.
6. The measured groove depth is smaller than the minimum groove depth of the chainsaw guide bar (4 mm).

7. The groove of the chainsaw guide bar has narrowed or spread.

8. Fit the guide bar (15) and saw chain (16) as described under 14.2.6.

14.2.6 Fitting/removing/changing the guide bar (15) and saw chain (16) (Fig. 2, 3)

DANGER

Serious injuries possible due to tearing or jumping off of the sawtooth!

- Never fit a new saw chain on a worn sprocket or on a damaged or worn guide rail. The saw chain could jump off or break.

WARNING

Always wear protective gloves when touching the saw chain. Danger of injury due to the sharp cutting teeth!

ATTENTION

Always carry out assembly and adjustments on the product with the engine switched off and disconnect the spark plug connector.

Notes:

• A new saw chain stretches and needs to be re-tensioned more often. Check and adjust the chain tension regularly after each cut.
• Only use saw chains and blades designed for this product.
• Before changing the saw chain, clean the groove of the guide bar, as the saw chain may jump out of the bar if it dirty. The deposits can also soak up the chain oil. The consequence would be that the chain oil does not reach the underside of the guide bar, or only to a small extent, and lubrication is reduced.

Depending on wear, the guide bar (15) can be turned.

1. Set the product down on a level and stable surface.
2. Pull the front hand guard (1) back up to the stop to release the chain brake, if necessary.
3. Remove the two fixing nuts (20a) with the installation spanner (25).
4. Remove the chain cover (20).
5. Slide the slotted hole of the guide rail (15) over the two protruding pins.
6. Place the saw chain (16) over the teeth of the chain wheel (22). Insert the saw chain (16) accurately in the direction indicated on the guide rail (15). In the tip of the guide rail (15) there is a guide wheel into whose teeth the saw chain (16) must be inserted.
7. Pull slightly on the guide rail (15) to slightly pre-tension the saw chain (16).
8. Fit the chain cover (20). Ensure that the internal chain tensioning pin (19a) fits into the corresponding hole (19b) in the guide bar (15). If necessary, adjust the chain tensioning screw (19) using the installation spanner (25).
9. Screw on the two fixing nuts (20a) by hand. However, make sure that you do not tighten them yet.
10. Use the installation spanner (25) to turn the chain tensioning screw (19) clockwise until the lower part of the saw chain (16) slides into the guide rail (15). The saw chain (16) must lie snug against the underside of the guide bar. When the chain brake is released, the saw chain (16) must be able to be pulled by hand over the guide bar (15).
11. Tighten the two fixing nuts (20a) with the installation spanner (25).
12. Check the fit of the saw chain (16) again and tension the saw chain (16) as described in 11.4.
13. Disassembly takes place in reverse order.

Note:

With a new saw chain, the tensioning force decreases after some time. Therefore, you must retension the saw chain after the first 5 cuts, or after 10 minutes of sawing at the latest.

14.2.7 Sharpening and maintaining the saw chain (16) (Fig. 3)

WARNING

The teeth of the saw chain are very sharp. In order to avoid injuries, always wear thick gloves when in use!

Keep the saw chain in a good operating condition, effective work with the chainsaw is only possible if the saw chain is sharp, well lubricated and properly tensioned.

This also reduces the risk of kick-back.

The properly sharpened saw chain (16)

A properly sharpened saw chain (16) goes effortlessly through the wood and requires very little pressure. Do not work with a dull or damaged saw chain (16).

It increases physical exertion, magnifies the vibrations and leads to unsatisfactory results as well as greater wear and tear.

• Clean the saw chain (16) regularly.
• Check the saw chain (16) for breaks in the links and damaged rivets.
• Sharpening a saw chain (16) should only be carried out by experienced users!
• Note the angles and dimensions specified below.

If the saw chain (16) is not properly sharpened or the depth gauge is too small, there is a higher risk of kick-back effects and the resulting injuries! The saw chain (16) cannot be fixed on the guide rail (15). It is therefore best to remove the saw chain (16) from the guide rail (15) and then sharpen it.

- Select a sharpening tool that is suitable for the chain pitch.

The chain pitch (e.g. 3/8") is marked in the depth gauge of each blade.

Only use files specifically for saw chains!

Other files have the wrong shape and the wrong edge.

Select the diameter of the file according to your chain pitch. Be sure to also note the following angles when sharpening the cutting links.

A B

A = file angle

B = angle of the side plate

Furthermore, the angle must be maintained for all cutting links.

If the angles are uneven, the saw chain (16) will run erratically, wear out quickly and break prematurely.

Since these requirements can only be met with sufficient and regular practice:

1. Use a file holder.
2. A file holder must be used when sharpening the saw chain (16) by hand. The correct filing angles are marked on it.
3. Hold the file horizontally (at the correct angle to the guide rail (15)) and file according to the angle marking on the file holder. Support the file holder on the top plate and the depth limiter.
4. Always file the cutting link from the inside out.
5. The file only sharpens as it moves forward. Lift the file off as you move backwards.
6. Do not touch the drive links or fastening links with the file.
7. Turn the file regularly to avoid wear on one side.
8. Use a piece of hard wood to remove the burr from cutting edges.

All cutting links must have the same length, otherwise they will also be of different heights.

This causes the saw chain (16) to run erratically and increases the danger of breaking.

14.2.8 Sharpening the saw chain (16) (Fig. 3)

WARNING

Increased risk of accidents due to an incorrectly sharpened saw chain!

Deviations from the dimensions of the cutting edge geometry during sharpening increase the risk of kick-back of the product.

- Have the saw chain sharpened by a professional.

The saw chain can be resharpened at an authorised specialist workshop. Do not attempt to sharpen the saw chain yourself if you do not have a suitable tool and the necessary experience.

CAUTION

Special tools are required to sharpen the chain; these ensure that the cutting tools are sharpened at the correct angle and to the correct depth.

All cutting links must have the same width and length after sharpening.

Notes:

A sharp saw chain ensures optimum cutting performance. It effortlessly eats through the wood, leaving behind large, long wood chips.

A saw chain is blunt if you have to push the cutting equipment through the wood and the wood chips are very small. With a very blunt saw chain, no chips are produced at all, only wood dust.

1. For sharpening, the saw chain (16) should be taut to allow proper sharpening.
2. A round file with a diameter of 4.8 mm is required for sharpening.

CAUTION

Other diameters damage the saw chain and can lead to hazards when working!

1. Only sharpen from the inside out. Guide the round file from the inner side of the cutting tooth to the outside.
   Lift the round file when you pull it back.
2. Sharpen the teeth on one side first.
   Then turn the chainsaw around (16) and sharpen the teeth from the other side.
3. The saw chain (16) is worn and must be replaced with a new saw chain (16) when only approx. 4 mm of the cutting tooth is left.
4. After sharpening, all cutting links must be the same length and width.
5. After every third sharpening, the sharpening depth (depth limiter) must be checked and the height re-filed using a flat file.

The depth limiter should be approx. 0.65 mm lower than the cutting teeth. After resetting, round off the depth limit slightly towards the front.

* = may not be included in the scope of delivery!

14.2.8.1 Instructions for sharpening the chain

Saw chain type	File diameter Top angle Bottom angle Top tilt angle (55°) Standard depth				gauge
		Clamping rotation angle	Clamping tilt angle	Side angle
21PBX approx. 4.8 mm 30° 10°		85° 0.64 mm
Depth stop File

14.2.9 Maintenance intervals

The information given here refers to normal operating conditions. In difficult conditions, such as heavy dust generation or longer daily working hours, the specified intervals should be shortened accordingly.

Product part Action Before starting work		Weekly In the event of malfunctions	In the event of damage	If necessary
Chain lubrication	Check	X
Saw chain	Check and pay attention to the state of sharpness	X
	Check chain tension	X
	Sharpen			X
Guide bar	Check (wear, damage)	X
	Clean		X	X
	Replace			X

15 Storage and transport

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the engine before carrying out any cleaning or maintenance work.
• Allow the engine to cool down.
• Disconnect the spark plug connector from the spark plug.

• Empty the product completely.
- Clean and check the product for damage.

15.1 Storage (Fig. 2)

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.

• In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).

• Always use the guide bar and chain guard (26) during storage.

• The installation spanner (25) can be stored on the side of the guide bar and chain guard (26).

15.1.1 Drain fuel with a fuel extraction pump (Fig. 1)

WARNING

Do not remove the fuel in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

In case of storage over a longer period of time, the fuel must be drained.

Tool required:

• Fuel extraction pump*
• Collection bucket*
  * = may not be included in the scope of delivery!
• Hold a collection bucket under the hose on the fuel extraction pump.

• Lay the product on its side with the fuel filler cap (12a) facing upwards.

• Flip the tab (12b) up.

• Turn the chain fuel tank cap (12a) anti-clockwise and open it. The fuel filler cap (12a) is connected to an anti-loss device in the fuel tank (12) and thus cannot fall off.
• Push the fuel extraction pump hose into the fuel tank (12).
• Empty the fuel tank using a petrol extraction pump into an approved container.
• Turn the fuel filler cap (12a) clockwise to close it.
• Fold the tab (12b) down again.

15.2 Transport (Fig. 1, 17, 18)

• Always use the guide bar and chain guard (26) during transport.
• Switch off the product before any transport, even over short distances. Secure the product against tipping over during transport (including in vehicles) to prevent fuel loss, damage or injury.
• Carry the product only by the front handle (2). In doing so, the guide bar (15) points backwards, away from your body.
• The installation spanner (25) can be stored on the side of the guide bar and chain guard (26).
• Keep the hot silencer away from your body. There is a risk of burns!

16 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

16.1 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Saw chain, guide rail, chain wheel, saw chain oil, engine oil, claw stop, chain catcher, spark plug, air filter, fuel filter, saw chain oil filter

* = not included in the scope of delivery!

- To ensure product safety, only use original spare parts from the manufacturer or spare parts approved by the manufacturer.

- Using third-party parts leads to a loss of guarantee claims.

16.2 Ordering spare parts

Note:

When returning the product for repair, for safety reasons, ensure that it is free of oil and fuel when it is sent to the service centre.

Please provide the following information when ordering spare parts:

• Type of product
  • Article number of the product

Hearing protection 7909601702

Safety goggles 7909601701

Approved set of blade and saw chain

Saw chain

Kangxin .325.058-72 7910100721

Guide rail

Kangxin BE18-72-5810P 7910100743

17 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

18 Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy

The engine does not start, or it starts but does not continue to run.	Incorrect starting procedure.	Observe the instructions given in this manual.
	Incorrectly adjusted carburettor mixture.	Have the carburettor adjusted by the authorised service centre.
	Sooty spark plug.	Clean/adjust or replace the spark plug.
	Clogged fuel filter.	Replace the fuel filter.
The engine starts up but does not have full power.	Contaminated air filter	Clean the air filter
The engine runs erratically	Wrong spark plug electrode gap	Clean spark plug and adjust electrode gap or fit new spark plug
Sooty or damp spark plug	Incorrect carburettor setting	Have the carburettor adjusted and, if necessary, clean the spark plug or replace it with a new one

19 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: PARKSIDE

Art. designation: Petrol chainsaw –

PBKS 53 C3

Art. no. 3910141974-3910141976;

39101419915; 39101419959

IAN no. 507549 2507

Series no. 01001-22308

EU directives:

2014/30/EU, 2006/42/EG, 2000/14/EG_2005/88/EG, 2016/1628/EU, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN ISO 11681-1:2022; EN ISO 14982:2009;

2006/42/EG - Appendix IV

2000/14/EG\_2005/88/EC - Appendix: V

Guaranteed sound power level ( L_WA ): 117 dB

Measured sound power level ( L_WA ): 112.9 dB

2016/1628/EU

Emission. No:

e13*2016/1628*2020/1040SHB1/P*0036*02

Only for Great Britain: the technical documentation for the machinery is available from:

Name: Scheppach UK Ltd

Address: 4-5 Lochside Way

Edinburgh Park

EH12 9DT

Edinburgh

United Kingdom

For other countries: documentation authorised representative:

Tobias Ihle

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
• In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Processing of warranty claims

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and article number (e.g. IAN 507549_2507) ready as proof of purchase for all enquiries.
• Please refer to the type plate on the product, an engraving on the product, the title page of your instructions (bottom left) or the sticker on the back or underside of the product for the article number.
• If functional faults or other defects occur, first contact the service department named below by telephone or e-mail.
• You can then send a product recorded as defective to the service address provided to you free of charge, enclosing the proof of purchase (receipt) and stating what the defect is and when it occurred.
• You can view and download these and many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and

use the search mask to search for the operating instructions. Enter the article number (IAN) 507549_2507 to access the operating instructions for your article.

PDF ONLINE parkside-diy.com

Service contact (GB): Service contact (IE):

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: [phone] Tel: [phone]

E-Mail: [e-mail] E-Mail: [e-mail]

Location: Great Britain Location: Great Britain

Service contact (NI): Service contact (IT):

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Name: Netsend GmbH

Nachtwaid 6

DE - 79206 Breisach am Rhein

Tel: [phone] Tel: [phone]

E-Mail: [e-mail] E-Mail: [e-mail]

Location: Great Britain Location: Germany

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

• Montageschlüssel (25)

- Lappen/Tuch*

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Garantieurkunde

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Certificat de garantie

Chère Cliente, Cher Client,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

13.3.6 Snoeien (afb. 1)

WAARSCHUWING

Gevaar voor letsel!

15.2 Transport (afb. 1, 17, 18)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

V. Andres Hall

Andreas Pecher

Head of Project Management

Garantiebewijs

Geachte klant,

Servicecontact (NL): Servicecontact (BE):

Naam: TeleMarCom

European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Naam: TeleMarCom

European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Telefoon: 00800 4003 4003 Telefoon: 00800 4003 4003

E-mail: [e-mail] E-mail: [e-mail]

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

2000/14/EG\_2005/88/CE - Allegato: V

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE
parkside-diy.com

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

Notizen

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FR FR

FSC

www.fsc.org

MIX

Paper from responsible sources
