USER MANUAL DH8000x SCHEPPACH

Line drawing of a portable air purifier with ventilation slots and wheels (no text or symbols)

https://www.scheppach.com/de/service scheppach

DH8000x

DE	BautrocknerOriginalbetriebsanleitung	5
GB	Building dryersTranslation of original instruction manual	16
FR	Déshumidificateur d'airTraduction des instructions d'origine	26

1 2 3 4 5 5a 6 7

2 1 1a 5

3 1 1a

4

a i g h On/Off Mode 88 %RH 88888:88 b c d f e

5

2a 2

6

5 5a

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

• Gabelschlüssel SW 10*

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating manual. Before using the device, always refer to the relevant section in the user manual.
[HZC]	Do not use the device in wet conditions! Protect from moisture!
	Warning against electrical voltage!
	Danger! Natural refrigerant propane (R290) H220 - Extremely flammable gas.H280 - Contains pressurised gas; may explode if heated.P210 - Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. Smoking prohibited!P377 - Fire from escaping gas: Do not extinguish until the leak can be safely repaired.P410+P403 - Protect from sunlight. Store in a well-ventilated place.
	Attention! Before starting repair, maintenance and cleaning work, switch off the engine and unplug the mains plug.
	The product complies with the applicable European directives.
⚠ Attention!	We have marked points in these operating instructions that impact your safety with this symbol.

Table of contents: Page:

1. Introduction...... 18
2. Device description (Fig. 1 - 6)....18
3. Scope of delivery.... 18
4. Proper use....18
5. Safety instructions.... 19
6. Technical data 21
7. Unpacking 22
8. Assembly 22
9. Commissioning....22
10. Maintenance....23
11. Electrical connection 23
12. Transport 24
13. Storage....24
14. Disposal and recycling 24
15. Troubleshooting....25
16. Declaration of conformity 39

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions,
• Repairs carried out by third parties, unauthorised specialists,
• Installing and replacing non-original spare parts,
  • Application other than specified,
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country. Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

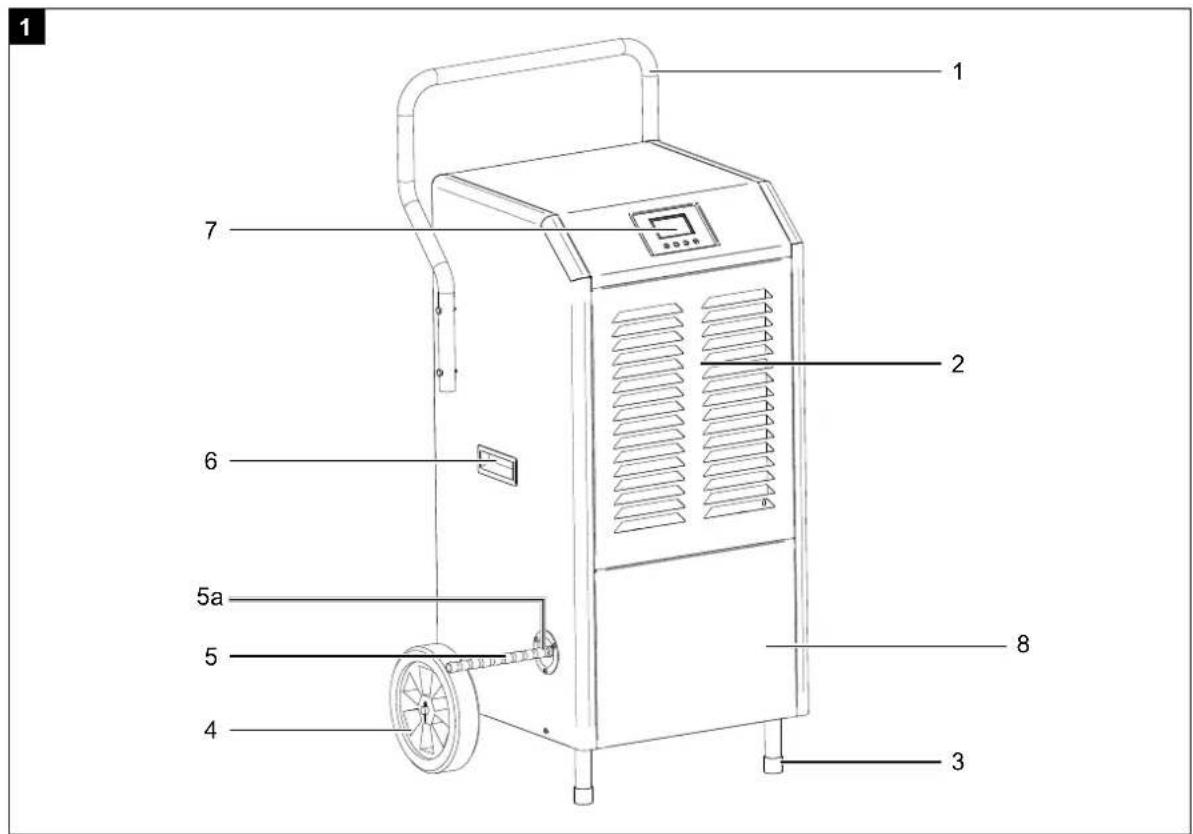

2. Device description (Fig. 1 - 6)

1. Handle
   1a. Hexagonal bolt M6x35mm
2. Flap (dust filter)
   2a. Spring split pin
3. Support feet
4. Wheels
5. Drain hose (condensate)
   5a. Hose connection (condensate)
6. Handle
7. Display with control panel
8. Maintenance flap (collection bucket)

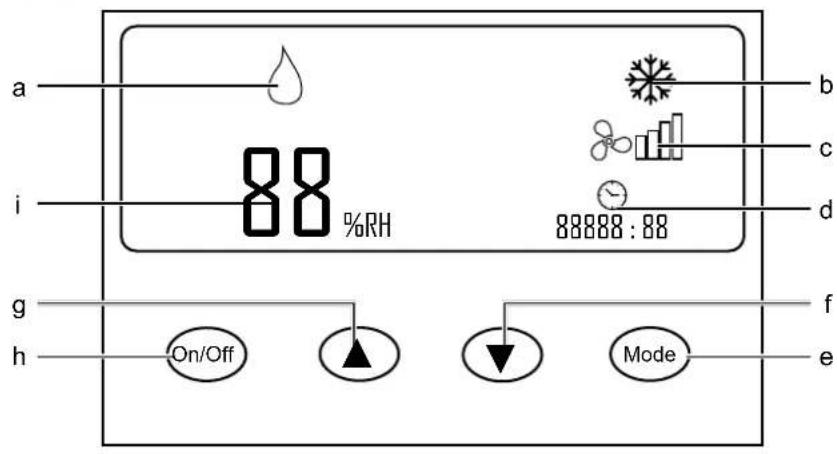

a. Dehumidification mode
b. Automatic defrosting
c. Speed display
d. Operating hours counter
e. Adjust speed
f. Reduce target humidity
g. Increase target humidity
h. On/off switch
i. Hygroscope

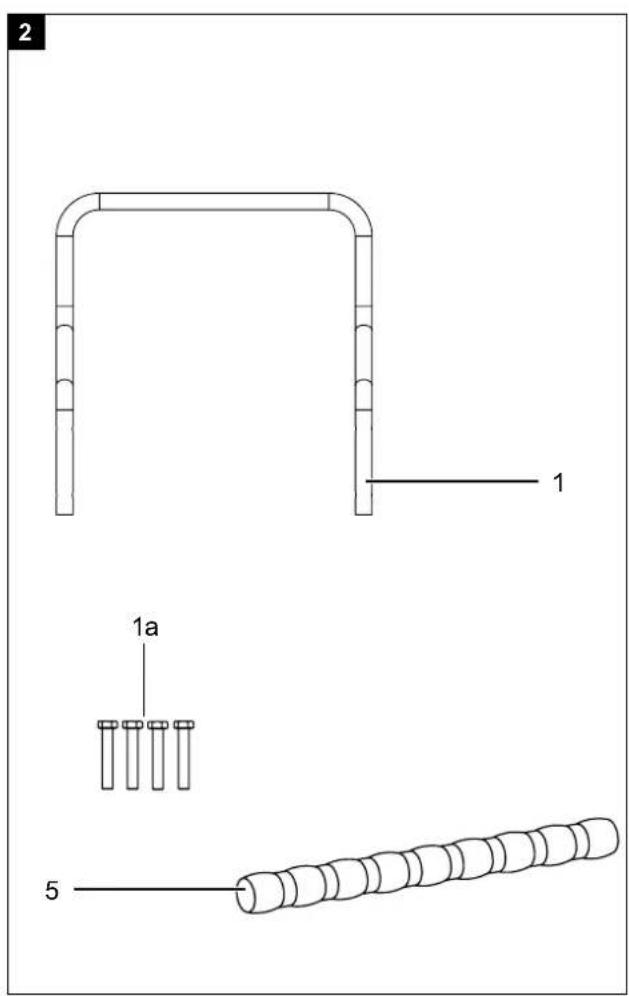

3. Scope of delivery

Item Quantity Designation

1. 1x Handle

1a. 4x Hexagonal bolt M6x35mm

5. 1x Condensate drain hose

1x Building dryers

1x Operating manual

4. Proper use

The product is intended for 230 V AC voltage devices.

Be sure to observe the restrictions in the safety instructions.

The product is only suitable for indoor use, for drying damp walls, after water damage or for reducing the humidity in closed rooms larger than 10.1 m ^2 .

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Operating principle

The product works according to the condensation principle. The room air is drawn in through a filter and a cooling element, where the water vapours in the air condense into water droplets. The water droplets then run into a condensation tray and further into the water tank, while the dried cold air is channelled through the product's condenser and blown back into the room once heated. The temperature of the discharged air is approx. 2-5°C above room temperature. This heat gain is generated by the energy supplied to the compressor and fan, as well as the heat released when the water vapour condenses. By constantly circulating the room air through the appliance, the relative humidity of the air is gradually lowered, allowing the room to dry out quickly and gently.

The water vapours in the air move easily and unhindered through the air. It is therefore important to "seal" the room as well as possible, i.e. doors and windows must be kept closed and entry and exit from the room must be limited as much as possible. Otherwise, the product's drying effect will be reduced significantly.

5. Safety instructions

We have marked points in the operating instructions that impact your safety with this symbol: △

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

Attention!

When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions.

If you hand the device over to another person, please hand over this operating manual / safety instructions as well. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

⚠️ DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

CAUTION

A failure to observe these instructions poses a minor to moderate danger of injury.

Attention

A failure to observe these results in safety no longer being guaranteed.

NOTE

A failure to observe these instructions poses a risk of damage to the engine or other property.

General power tool safety warnings

⚠ WARNING! Read all safety information and instructions. Failure to observe safety information and instructions can result in electric shock, fire and/or serious injuries.

Save all warnings and instructions for future reference.

The term "electrical tool" used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions may cause you to lose control of the device.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not use the cable for another purpose, for example, carrying or hanging the power tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts.

Damaged or coiled cables increase the risk of an electric shock.

e) If you work with an electric tool outdoors, only use extension cables that are also suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Keeping your finger on the switch or having the device switched on when you connect it to the power supply may result in accidents.
d) Remove any adjusting tools or spanners/ keys before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.
e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not overload the device. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Remove the plug from the socket and/or remove the battery before setting the device, changing accessories or putting the device away. These precautionary measures will prevent the electric tool from starting unintentionally.
d) Store idle power tools out of the reach of children. Do not let people use the device who are not familiar with it or who have not read these instructions. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Only have your power tool repaired by qualified specialists and only with original spare parts. This ensures that safety of the electric tool is maintained.

Additional safety instructions for building dryers / building dryers

1. Protect yourself from electrical hazards.
2. Do not touch any mechanically moving or hot parts. Do not remove any protective covers.
3. Do not use any electrical equipment (including extension cables and plug connections) that is faulty.
4. Always check that the mains voltage matches with the voltage specified on the type plate of the product.
5. Do not pull the plug out of the socket by the mains cable to switch off the appliance.
6. Take care not to roll over or damage any cables when moving the appliance.

7. The socket outlet must be earthed and appropriately fused.

8. The construction dryer must not be covered during operation, nor should you place any objects, items of clothing or similar on the appliance.

9. Keep foreign objects away from the air inlet and outlet openings.
10. It must be placed on a completely stable surface.
11. Turning and tilting or changing location during operation is prohibited.
12. Do not position the device near heat sources, e.g. radiators, radiant heaters, etc.
13. Please do not use the appliance in the vicinity of chemicals or acids, as these can damage the collection bucket or the entire appliance.
14. Please disconnect the device from the power supply if you do not intend to use it for a longer period of time. Or if you want to clean the appliance.
15. If you would like to use a permanent drainage system, please ensure that the hose is not kinked and that the water can flow through it unhindered. In the event of very low outside temperatures or conditions in which water could freeze, you should refrain from permanent drainage.
16. Please protect the device from splashing water.
17. Please only use an earthed standard socket with a 220-240V AC connection.
18. This device can be used by children from 8 years of age as well as by persons with reduced physical, sensory or mental capabilities or with a lack of experience or knowledge, if they are supervised or if they have been trained in the safe use of the device and understand the resultant hazards. Children may not play with the device. Cleaning and user maintenance must not be carried out by children unsupervised.
19. Empty the water tank before transport to avoid spillages.
20. If problems occur during operation of the appliance, e.g. burning odour, disconnect the appliance from the power supply.

Safety instructions Service/maintenance

1. Only use original parts for maintenance and accessories.
2. Always visually check the appliance for wear or damage before use. Replace worn or damaged parts for safety reasons. Tighten all nuts, bolts and screws to ensure that the equipment is in safe operating condition.

⚠ WARNING!

Improper maintenance or failure to observe or correct a problem can become a source of danger during operation. Only operate regularly and properly maintained machines. This is the only way you can be sure that you are operating your product safely, economically and trouble-free.

Do not clean, maintain, adjust or repair the product while it is running. Moving parts can cause serious injuries.

Do not use petrol or other flammable solvents to clean machine parts.

Repairs may only be carried out by specialists with the appropriate knowledge of the product.

If the mains connection cable is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Residual risks

Even when used as intended, there may still be residual risks due to the design determined by the intended use, despite compliance with all relevant safety regulations. Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed. Thoughtfulness and caution reduce the risk of personal injury and damage.

• Hazard due to electrical power, with the use of improper electrical connection cables.
• Touching live parts when electrical components are open.

Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

Caution! This device generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the danger of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the device.

1. Technical data

Protection class IP24
Nominal power 1250 W
Max. power 1600 W
Voltage 220-240 V~ / 50 Hz
Power consumption 5 A
Temperature range	5° - 35°C
Air humidity 30% - 80% RH
Dehumidification line at (30°C/80%)	80 L/d
Coolant R290
Coolant quantity 380 g
Max. suction pressure	0,8 Mpa
Max. discharge pressure	2,8 Mpa
Water tank volume	6 L
Self-draining	Water tank/Water hose
Air throughput (m3/h) 1000 m	3h
Room area 70 - 100 m	^2
Display LCD
Weight 45 kg

Subject to technical changes!

7. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly

Place the product on a level, even surface.

Tool required:

- Open-ended spanner, AF 10*

*Not included in the scope of delivery!

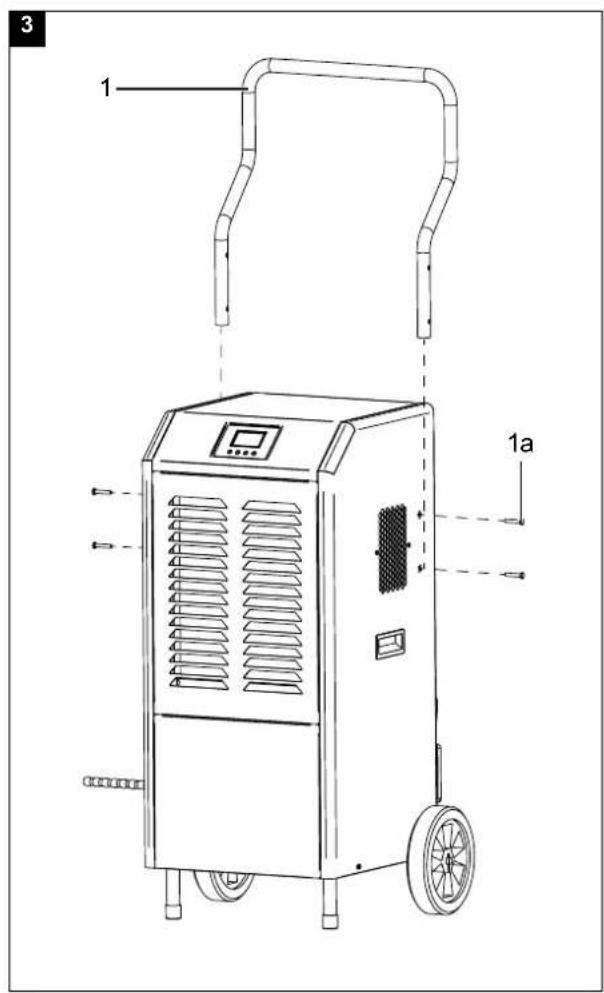

8.1 Mounting the handle (1) (Fig. 3)

1. Align the handle (1) with the holes on the housing.
2. Use the M6x35mm (1a) nuts to secure the handle (1).

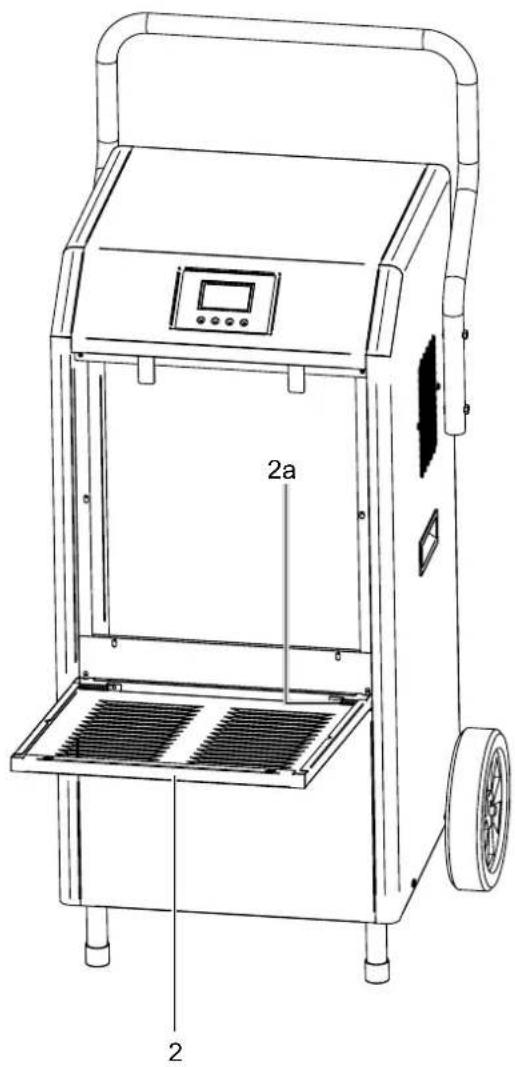

8.2 Fitting the drain hose (condensate) (5) (Fig. 5 + 6)

1. Open the flap (dust filter) (2) by pulling.
2. Pull the spring split pins (2a) inwards to remove the flap (dust filter) (2).
3. You can now open the maintenance flap (collection bucket) (8).

4. Ensure that the hose is connected to the hose connection (condensate) (5a) from the inside in the housing.

5. Now re-install the maintenance flap (collection bucket) (8) and the flap (dust filter) (2).

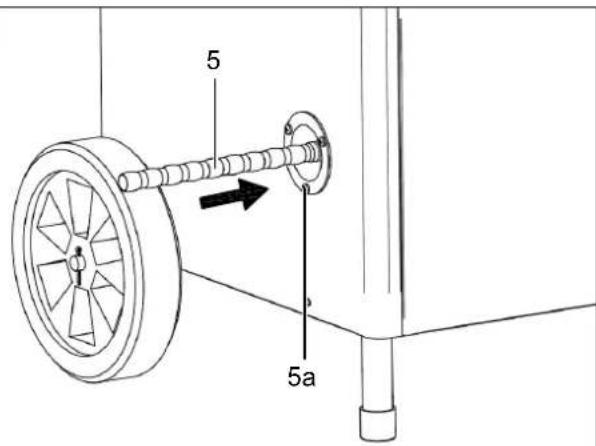

6. Push the drain hose (condensate) (5) as far as possible onto the condensate hose connection (condensate) (5a).
7. Ensure that the end of the drain hose (condensate) (5) is in a suitable collection bucket or a drain before commissioning.

9. Commissioning

• Place the product on a horizontal, level surface before using it.
• The product must be installed in accordance with national connection regulations.

• Use a type H05VV-F 3G 1.5 mm ^2 cable to connect the appliance to the socket.

• Insert the plug of the mains cable into the socket. The product confirms this with a signal tone. The display with control panel (7) now shows the ambient humidity.

• The dehumidification value can now be set to between min. 30% and max. 80% using the Plus▲/Minus▼ buttons (the dehumidification mode icon flashes during this process.
• Once you have set the required value, wait 5 seconds until the product saves the value. The de-humidification mode icon now stops flashing and the building dryer starts. The ambient humidity display shows the change.

9.1 Input button functions

1. Switch-on/switch-off button (ON/OFF): You can use this button to switch the product on and off.
2. "Plus▲/Minus▼" buttons: Use these two buttons to set the desired humidity value. Press the Plus ▲ or the Minus ▼ button repeatedly until the required value is reached or press and hold the button (the values now run smoothly in the respective direction) and release when the required value is reached.
3. "Mode" button: You can press this several times to set the humidity, the on/off timer in hours and the wind speed. If you press and hold the button for 10 seconds, you go to the defrosting time setting. P1: Compressor operating time, adjustable to between 0 and 60 minutes. P2: Defrosting time, adjustable to between 8 and 15 minutes.

Automatic defrosting

If the ambient temperature is low, the product starts the defrosting process automatically. In this phase, the cooling fan operates normally, only the built-in compressor switches off. The "Automatic defrosting" icon and the WIND icon illuminate on the display during this phase.

Product running time

The total running time for the product is shown on the display.

Important working instructions

• The compressor on the product switches on with a delay of around 3 minutes after switching the product on.
• The temperature range in which the product can work properly is from approx. +5°C to approx. +35°C.
• During the defrosting phase, the compressor is switched off and the fan continues to run normally.
• We recommend cleaning the filter material around once per month. To do this, wash it out carefully with clean, warm water.
• We recommend maintaining a safety distance between the wall and the air inlet/outlets.
• Please empty the collection bucket each time after using the product.
• If you do not wish to use the product for an extended period, disconnect the product from the power supply and attach the power cable to the product.
• Please do not tilt the product by more than 45^ , neither during transport nor during use.
• If the product has been tilted inadvertently, wait at least 12 hours before using the product.

10. Maintenance

The product is designed for problem-free operation and minimal monitoring.

All moving parts are permanently lubricated.

The product has no further internal parts that require maintenance.

Cleaning

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure.
• We recommend that you clean the product directly after every use.
• Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning agents or solvents; they could corrode the plastic parts on the product. Ensure that no water can penetrate the interior of the product.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Wheels

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

11. Electrical connection

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05RR-F.

The printing of the type designation on the connection cable is mandatory.

- The mains voltage must be 230 V\~

- Extension cables up to 25 m long must have a cross-section of 2.5 ~mm^2 .

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Machine data - type plate

12. Transport

Use the wheels (4) to transport the product. To do this, hold the product by the handle (1) and tilt it backwards slightly. Ensure that you do not tilt the product by more than 45^ .

If you tilt the product by more than 45^ or transport it when horizontal, the product must be upright for at least twelve hours before use, in order to prevent damage to the compressor.

13. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30 °C. Keep the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

15. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Cause Solution

E1 Coil sensor error The coil sensor must be replaced. Contact our service team to do this.

E2 Humidity sensor error The humidity sensor must be replaced. Contact our service team to do this.

E3 Temperature sensor error The temperature sensor must be replaced. Contact our service team to do this.

Fault Possible cause Remedy
Building dryer is not working.	The device has no power.The mains plug is not plugged in correctly.The error code FU is shown on the display.	Connect the power supply.Insert the mains plug correctly.Empty the water collection bucket.
Poor dehumidification performance.	The air inlets are covered.The room is not closed.Low humidity and ambient temperature.	Clear the air inlets.Please close all doors and windows.The lower the ambient temperature, the lower the dehumidification performance.
Strong noise development.	The device has not been positioned on a flat surface.The air outlets are covered.	Position the device on a level surface.Clear the air outlets.
Water runs out of the appliance.	The water collection bucket is leaking.	Check the water collection bucket.Replace the water collection bucket.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Exploded view diagram of a household appliance with numbered parts for identification

EU Declaration of Conformity

Standard references:

EN IEC 55014-1:2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;

EN IEC 55014-2:2021; EN 60335-2-40:2003+A11:2004+A12:2005+A1:2006+A2:2009+A13:2012;

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021; EN 62233:2008

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
