Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 20

Product Overview 24

Temperature Control 24

Care and Maintenance 25

Troubleshooting 26

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number 10045838, 10045837, 10045840

Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

Information on the safety of children and persons at risk

• This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised during use or have received instruction in the safe use of the appliance and understand the risks involved.
  • Children aged 3 to 8 years may fill refrigerators with food and remove food.
• Ensure that children do not play with the appliance.
• Cleaning and maintenance of the appliance may only be carried out by children if they are at least 8 years old and supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When you dispose of the appliance, unplug it from the wall outlet, cut the power cord and remove the door. This will prevent children playing on the appliance from injuring themselves, getting hit or getting trapped.
• If this machine replaces an older machine with a spring lock and latch on the door or lid, disable the spring lock and latch before disposing of the old machine. This will prevent children from getting trapped and suffocating.

General advice

• Keep ventilation openings in the unit housing or in the built-in cabinet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances, such as ice machines, inside refrigeration appliances unless they are approved for this purpose by the manufacturer.
• If there is a light bulb inside the appliance, do not touch it. If it has been switched on for a long time, it can become very hot. The light bulb supplied with this unit is a special bulb that may only be used with the unit supplied. This light bulb is not suitable for household lighting. Do not use the unit without the light bulb.
• When setting up the machine, take care not to pinch or damage the power cord.
• Do not store explosive substances such as spray cans containing a flammable propellant in this appliance.
• During transport and installation of the unit, take care not to damage any components of the refrigerant circuit.

- Avoid naked flames and sources of ignition near the unit.

- Thoroughly and regularly ventilate the room in which the unit is located.

- It is dangerous to modify this product in any way. Any damage to the cable may cause a short circuit, fire or electric shock.

- All electrical components such as the plug, power cord and compressor must be replaced by a certified service centre or by qualified service personnel.

• The power cord must not be extended.

- Be careful not to pinch or damage the power plug. A pinched or damaged power plug may overheat and cause a fire.

• Make sure that you can reach the power plug of the machine at any time.

- Do not pull on the power cord.

- If the power outlet is loose, do not plug in the power plug. There is a risk of electric shock or fire.

• This machine is heavy. Be careful when moving it.

- Do not touch the freezer compartment if your hands are damp or wet, as this may cause skin abrasions or cold burns.

- Do not place the unit in direct sunlight.

- This appliance is intended for use in the home and similar environments. These include:

- Staff kitchens in shops, offices and other working environments

- Farms, hotels, motels and other residential facilities

- Pensions that offer breakfast (Bed & Breakfasts)

- Catering and similar applications outside the retail trade

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Notes on replacing the light source

• This product contains a light source of energy efficiency class G.

- The light source in this product may only be replaced by a professional.

Notes on daily use

• Do not put hot food in the machine.
• Do not place food directly against the rear panel.
• Frozen food must not be refrozen after defrosting.
• Store packaged frozen food according to the instructions of the frozen food manufacturer.
• Do not place carbonated fizzy drinks in the freezer compartment as the pressure they generate can cause them to explode and damage the appliance.
• Open the door as rarely as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories, such as drawers, shelves or racks in the appliance.

Notes on installation

• Unpack the machine and check for damage. Do not connect the machine if it is damaged. Report any damage immediately to the manufacturer. Save the original packaging for possible return shipment.
• Wait at least four hours before connecting the unit to allow the coolant to distribute itself in the cooling circuit.
• Ensure that there is sufficient air circulation around the unit. Otherwise, the unit may overheat.
• If possible, the spacers on the unit should rest against the wall. This prevents burns caused by touching the hot compressor or condenser.
• The unit must not be installed near radiators or cookers.
• Make sure that the mains plug is always accessible after the unit has been installed.
• Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate:

SN	Low	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

Notes on cleaning and maintenance

• Before cleaning and maintenance, switch the machine off and unplug the power cord from the wall outlet.
• Do not clean the machine with metal objects. Do not use sharp objects to remove frost from the machine. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

Special instructions for freezers and chest freezers

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the machine, make sure that the mains cable is not pinched or damaged.
• Ensure that there are no multiple sockets or power supply units on the rear of the machine.

To avoid contamination of food, please follow the instructions below:

• Prolonged opening of the door can cause a significant temperature rise in the compartments of the unit.
• Clean surfaces that may come into contact with food regularly. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip onto other foods.

Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.
• If the refrigerator is left empty for a long period of time, switch it off, let it defrost, clean it, dry it and leave the door open to prevent mould from forming in the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

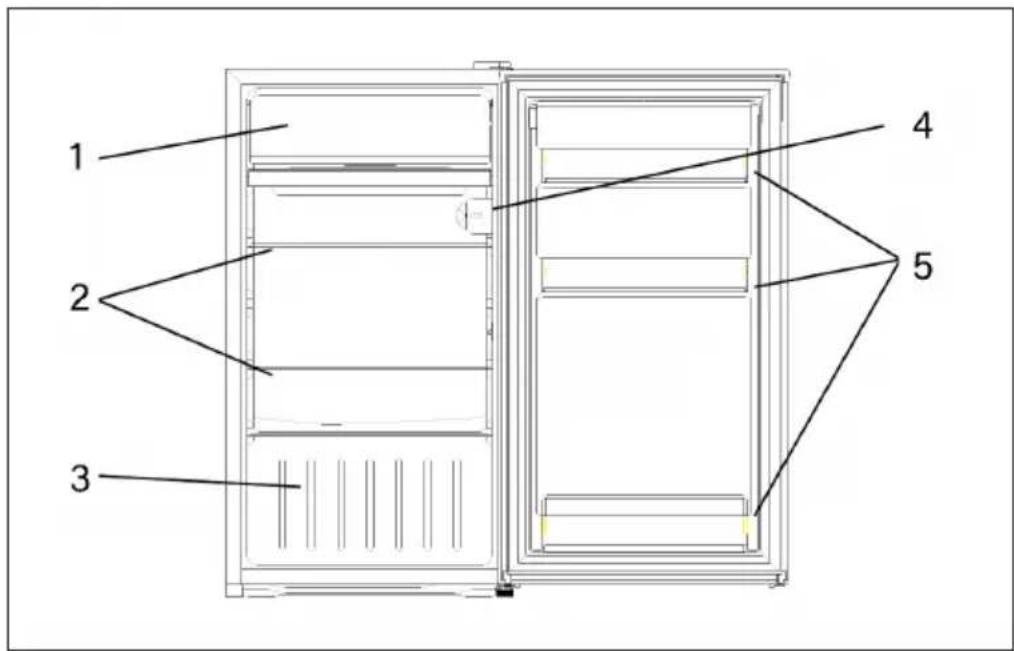

PRODUCT OVERVIEW

1 2 3 4 5

1	Chiller room	4	Thermostat
2	Glass shelve	5	Door rack
3	Vegetable crisper

Note: The opening direction of the door cannot be changed. Opening is only possible to the right.

TEMPERATURE CONTROL

The temperature in the refrigerator compartment and in the freezer compartment is controlled by the temperature controller installed in the middle of the refrigerator compartment.

Turn the thermostat knob to regulate the temperature inside the refrigerator.

The marks on the knob are not the exact number of the degrees of temperature but the temperature grades from [1] to [7]. The first grade corresponds to the highest temperature and the 7th grade corresponds to the lowest temperature the refrigerator can produce. Turn the knob from [1] to [7], the temperature decreases continuously.

Set the thermostat knob to [3] or [4] position for a normal use. Notice that the product is set for operation at a specific ambient range between 16°C and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicate range.

The indoor temperatures are influenced by the following factors:

• Ambient temperature
  • Frequency of door opening
  • Amount of stored foods
  • Installation of the appliance

CARE AND MAINTENANCE

Defrosting

• Frost can accumulate on the inside of the unit and defrost automatically during the compressor cycle.
• The water is led through the outlet opening into the collecting tray above the compressor, where it evaporates.
• Make sure that the drain hole is cleaned regularly so that the water can escape from the storage compartment.

Cleaning the unit

• Remove all shelves and the vegetable drawer. First remove the lower door compartment so that they can remove the vegetable compartment.
• Wipe the inside of the machine with a damp cloth and some detergent. Then wipe with clear, warm water.
• Wash the shelves and vegetable compartment in water with detergent and dry the parts before putting them back in the machine. Clean the outside of the unit with a damp cloth.
• The grille of the capacitor on the back of the unit and the adjacent components can be sucked off with a soft brush attachment.

Cleaning tips

Condensation may form on the outside of the unit. This may be due to a change in room temperature. Wipe off the condensation water. If the problem persists, please contact a qualified technician.

Maintenance

• Have the lamps replaced by a specialist.
- When you move the unit, hold it by the sides or on the floor. Do not hold it by the edges of the top
- The unit should be serviced by an authorized technician and only original spare parts should be used. Never attempt to repair the device yourself. Repairs by inexperienced persons can lead to injuries or serious malfunctions.
- If the unit will not be used for a long time, disconnect it from the power supply. Remove all food and clean the unit. Leave the door open to avoid unpleasant odours.

TROUBLESHOOTING

Problem Possible cause Solution
Appliance does not work. Temperature regulation knob is set at number “0”.		Set the knob at other number to switch on the appliance.
		Mains plug is not plugged in or is loose
		Fuse has blown or is defective
The food is too warm. Temperature is not properly adjusted.		Please look in the initial Temperature Setting section.
		Door was open for an extended period.
		A large quantity of warm food was placed in the appliance within the last 24 hours.
		The appliance is near a heat source.
Appliance cools too much. Temperature is set too cold. Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises. Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Klarstein

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10045837, 10045838

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding
Wine storage appliance: No	Other refrigerating appli-ance:	Yes

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 831	Total volume (dm^3 or l) 88
	Width 445
	Depth 490
EEI	100	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)	41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)	85	Climate class:	temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable	16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting	No

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (oC)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 88,0 4 - M
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	-	- - - -
Light source parameters:
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/01/2024

EPREL registration number: 1857431

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Germany

https://eprel.ec.europa.eu/qr/1857431

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045840
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating			appliance:	Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 676		Total volume (dm3 or L)	72
	Width	445
	Depth 470
EEI		124	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		104	Climate class:	temperate zone, subtropical zone
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 72.0 4 - M
Chill No - - - -
0-star or icemaking No - - -
1-star	No - - - -
2-star	No - - - -
3-star	No - - - -
4-star	No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
